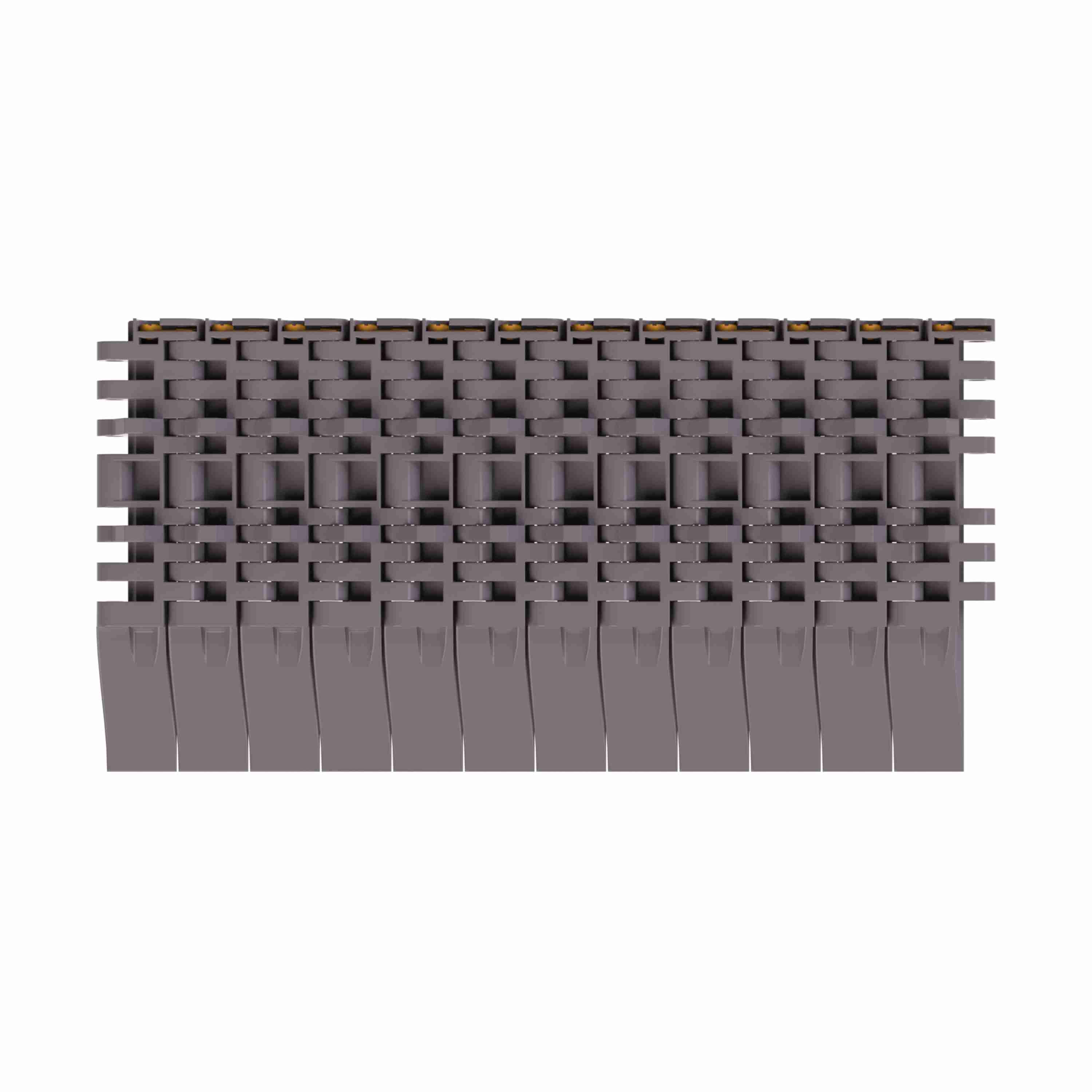

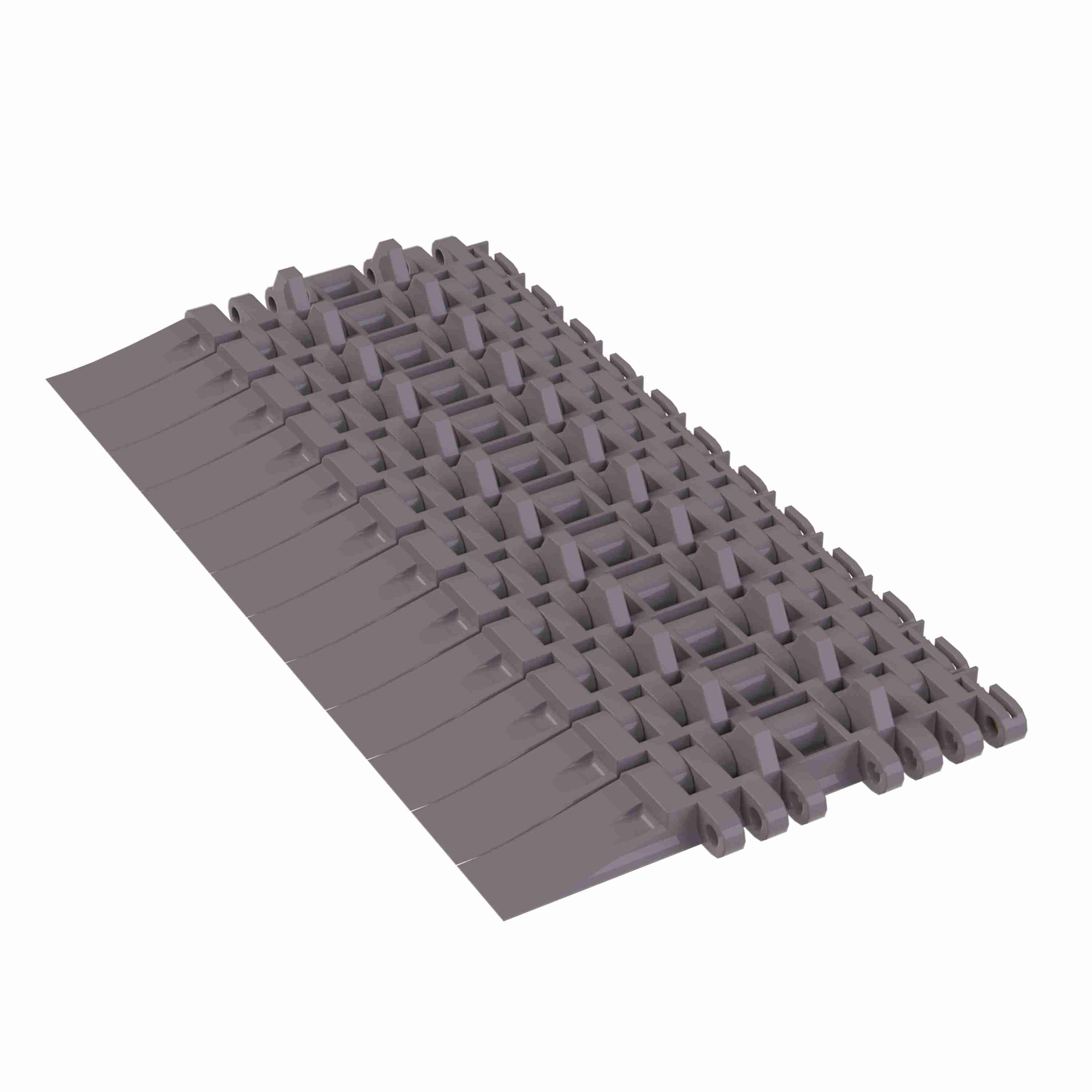

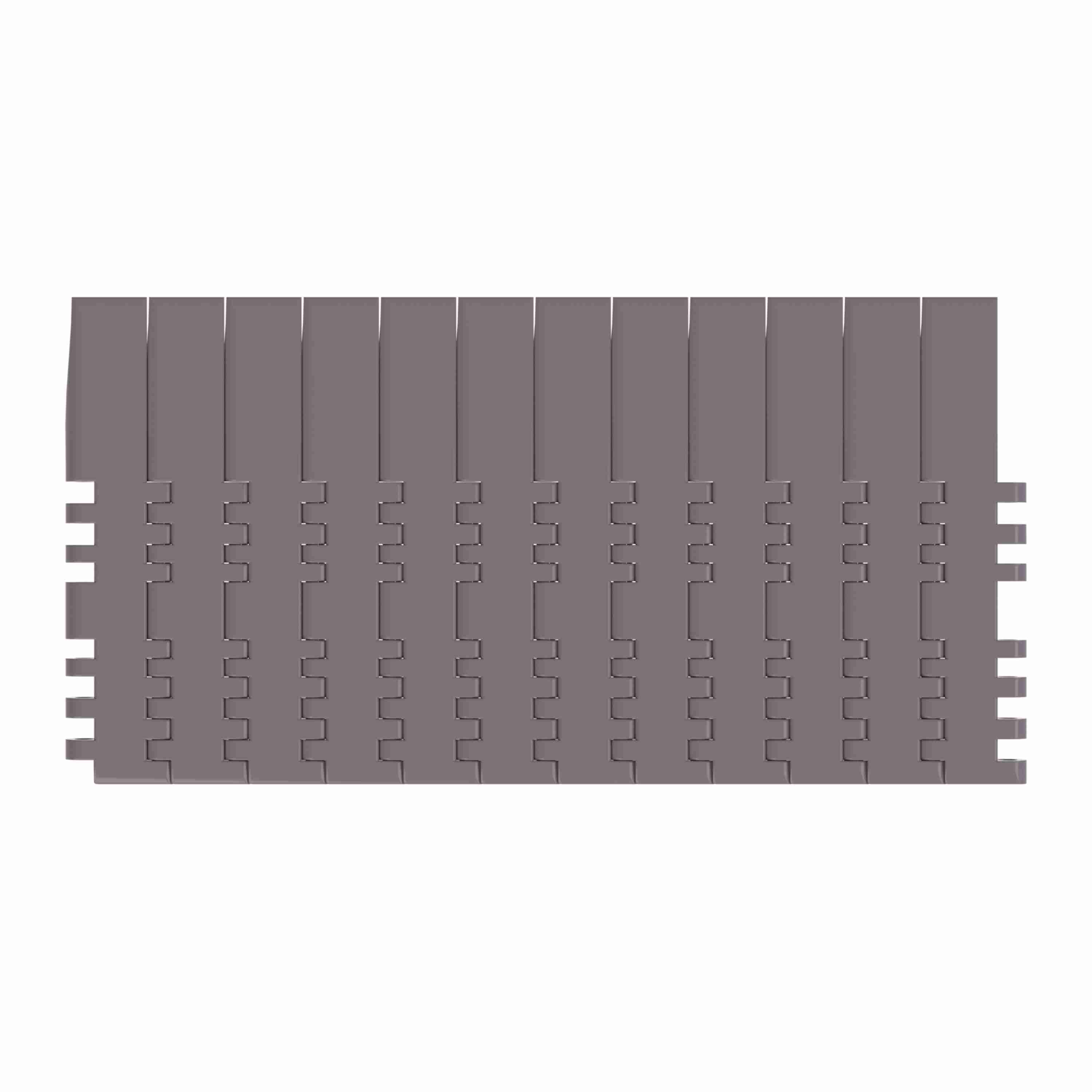

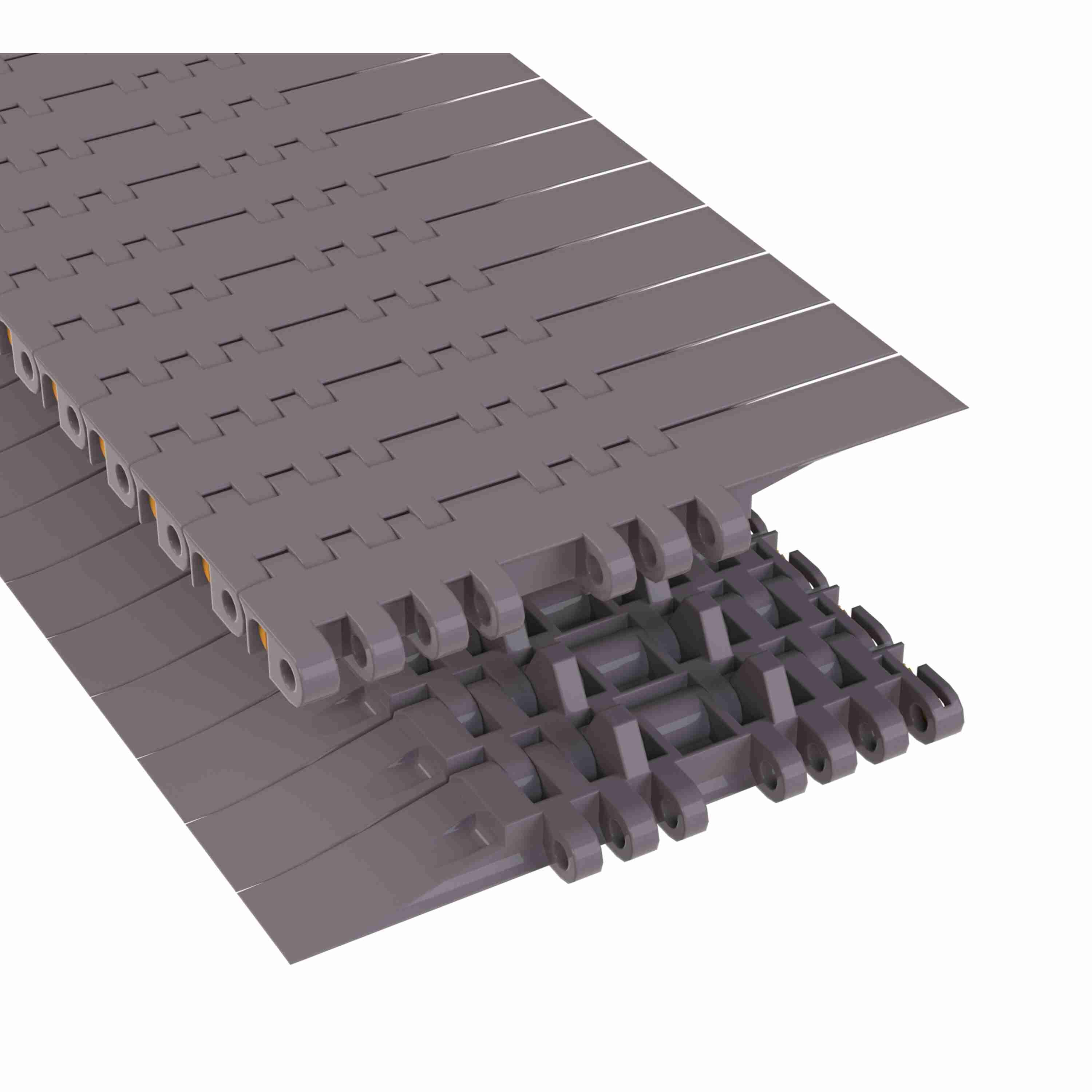

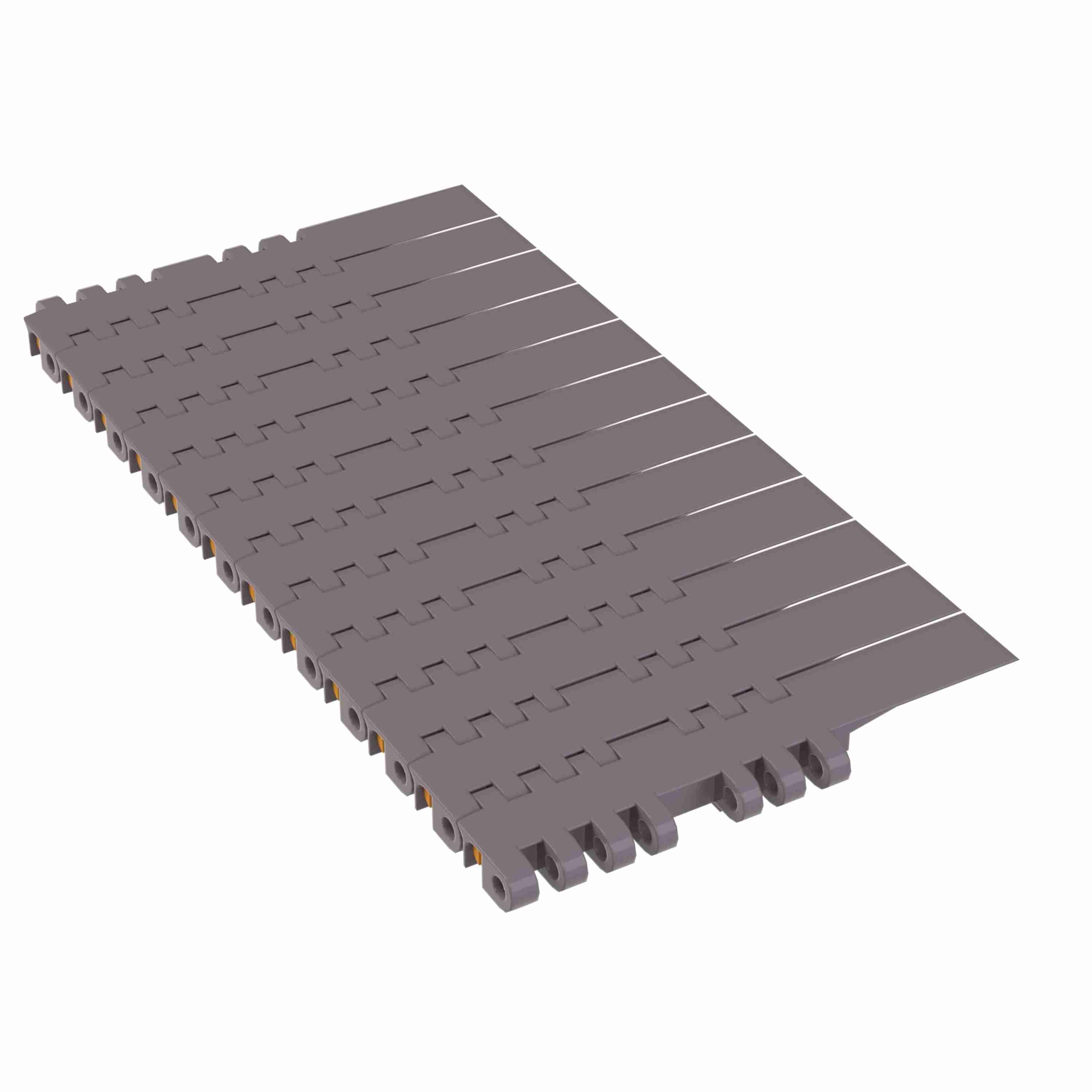

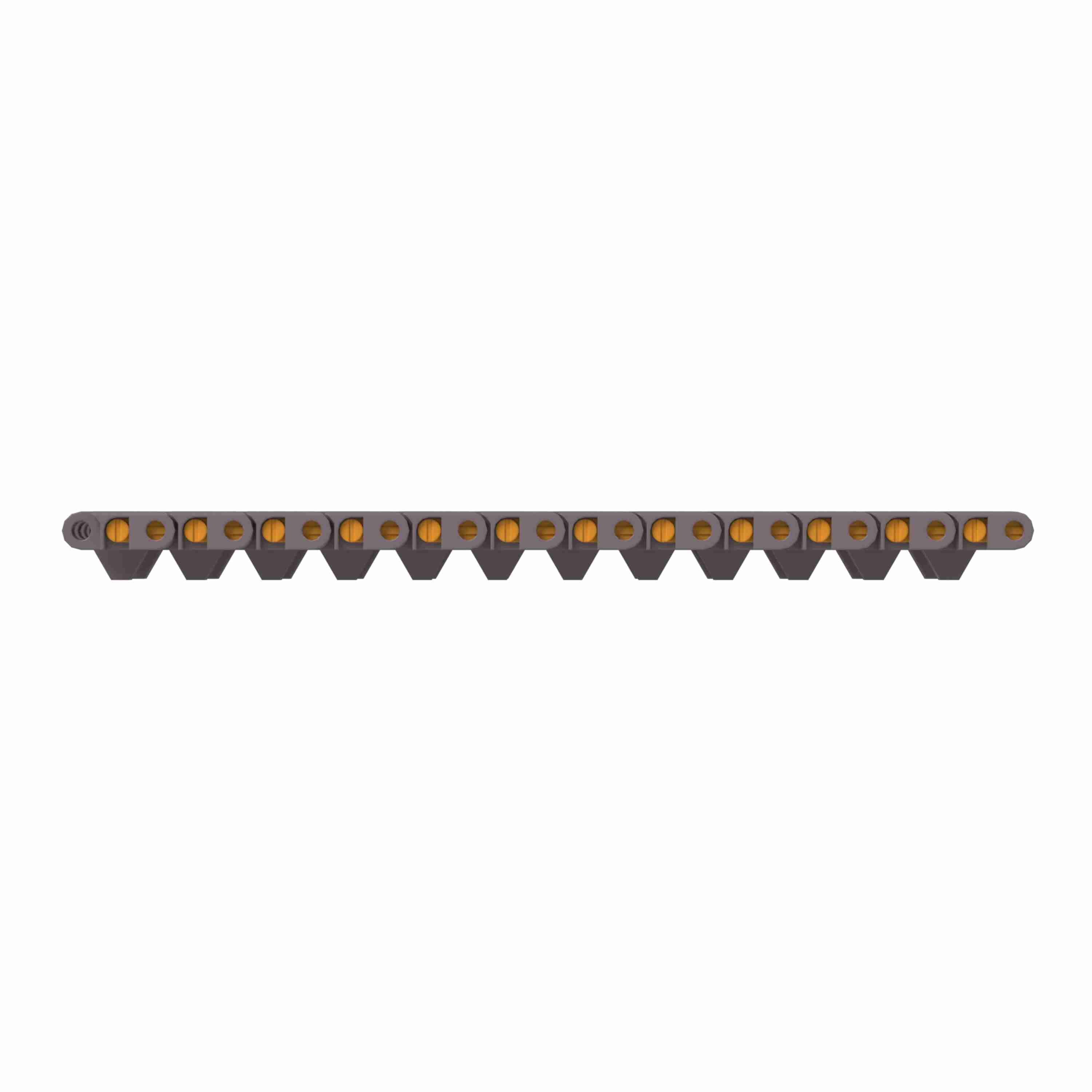

Rexnord 7705DTSR Straight Running DTS®, Material: Brown High Performance, Width: 4.5in, Pitch: 1in - 81421111
Part #:10028941
Catalog #:81421111
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Open Area (%): | 3 % |
| Positrack: | True | Product Group: | Modular Plastic Belts |
| Straight or Side-Flex: | Straight Running | Chain Width (mm): | 114.3 mm |
| Chain Strength (lb): | 1,025 lb | Chain Pitch (in): | 1 in |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (in): | 0.5 in |
| Series: | MatTop 7700 Series Chain | Direction: | RH |
| Number of Positrack: | 2 | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 4.5 in | Chain Material: | HP |
| Belt Thickness (mm): | 12.7 mm | Chain Pitch (mm): | 25.4 mm |
| Positrack Location: | Center | Chain Strength (N): | 4,551 N |
| Product Type: | Straight Running | Surface Type: | DTS® |
| Chain Material Description: | Brown High Performance | Chain Number: | 7705DTSR |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
