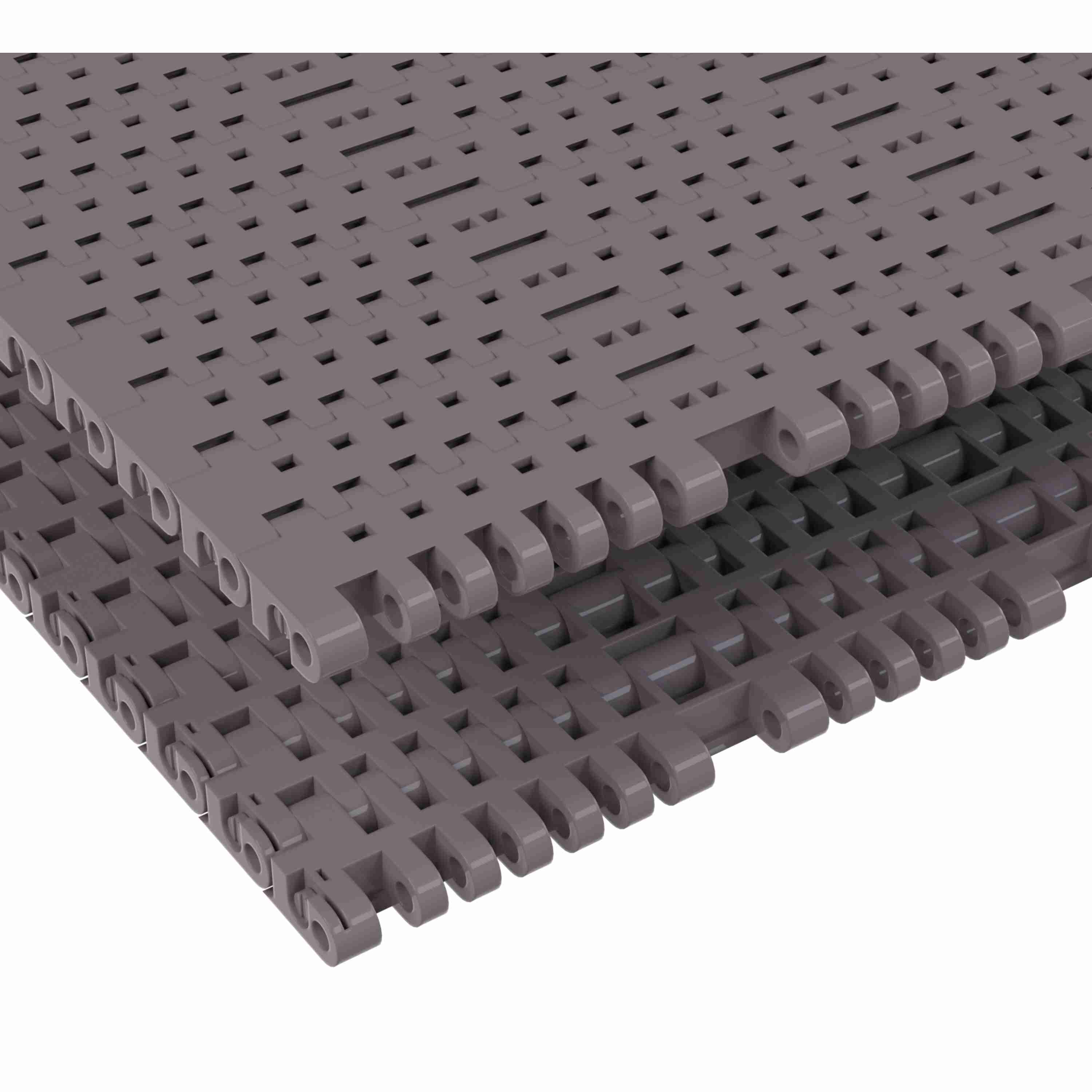

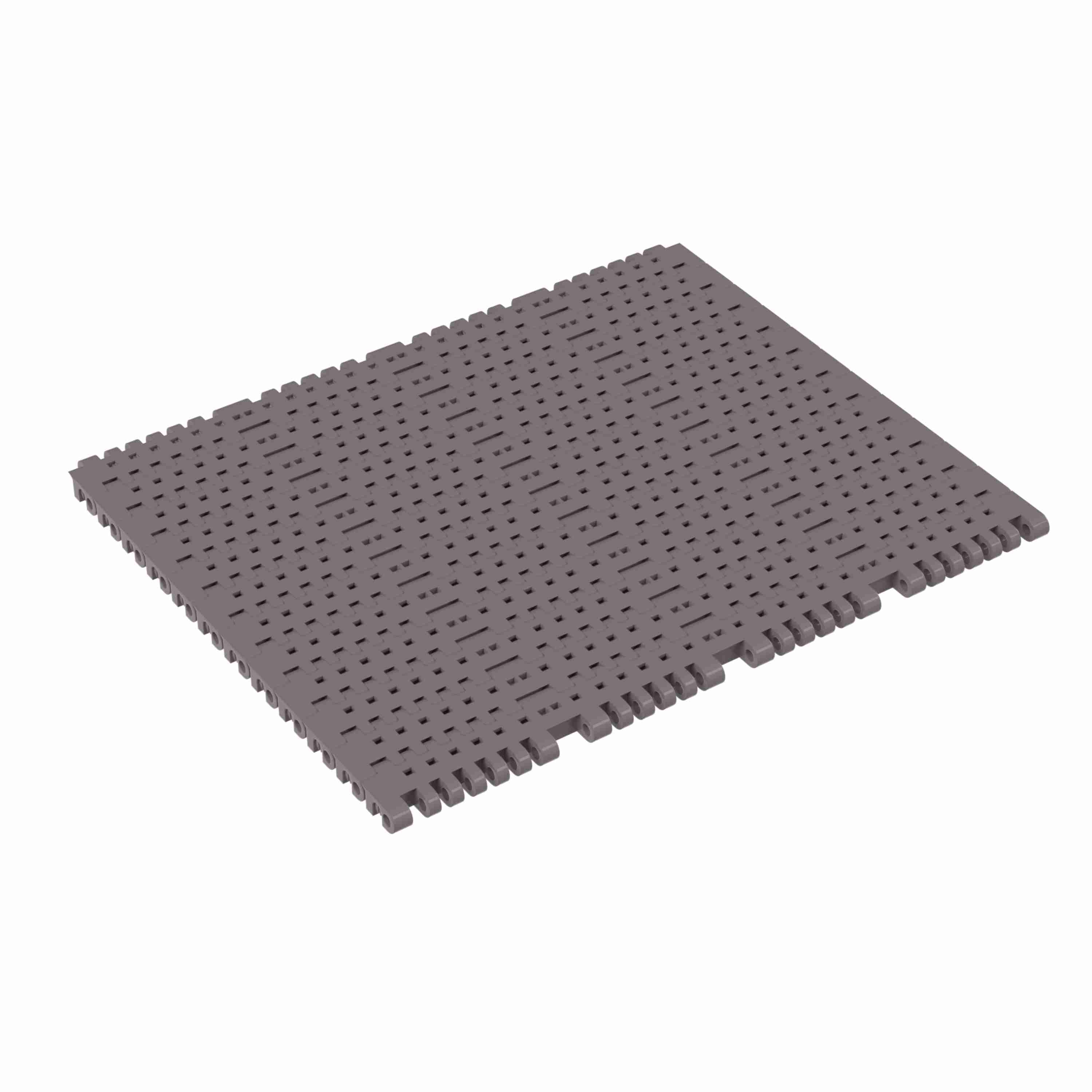

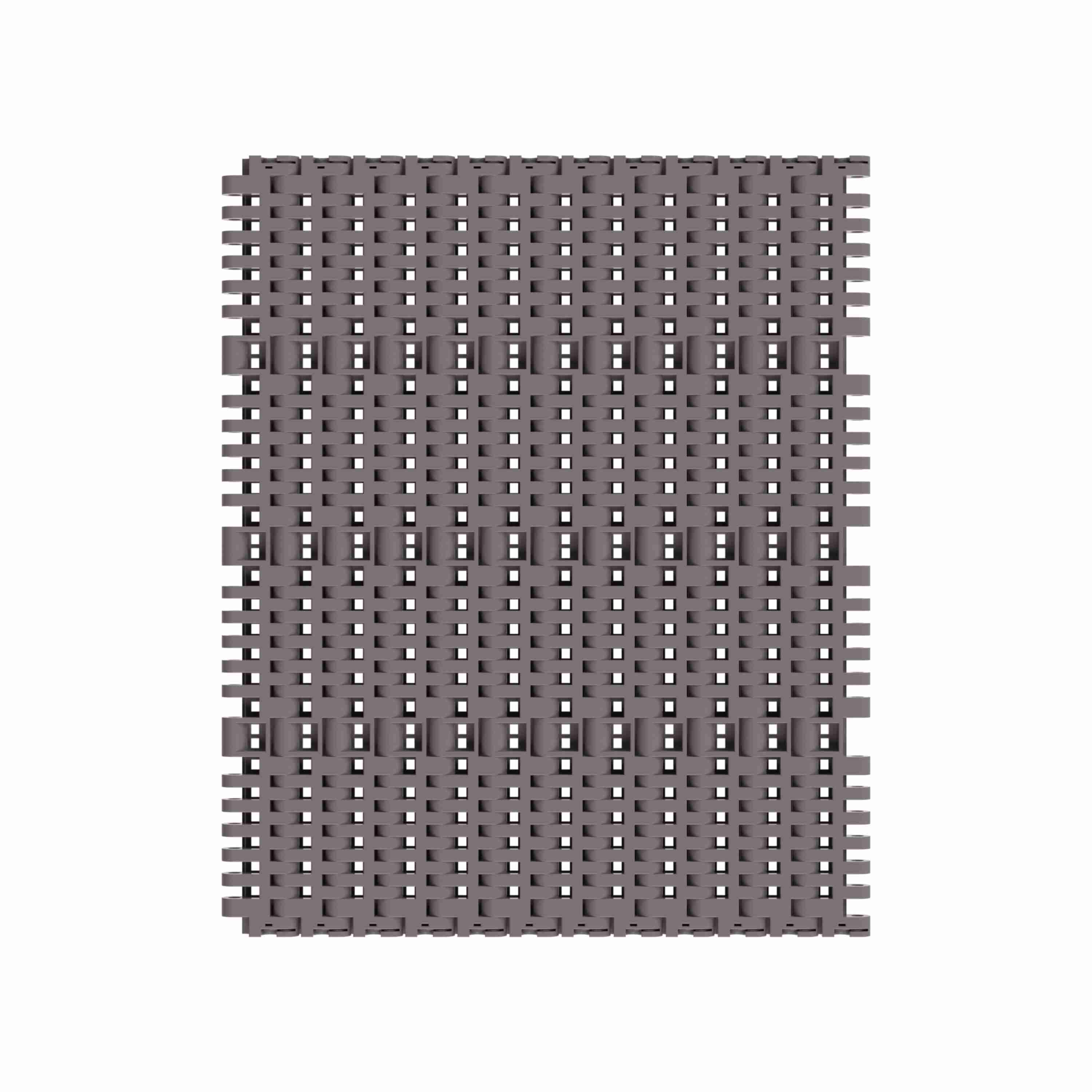

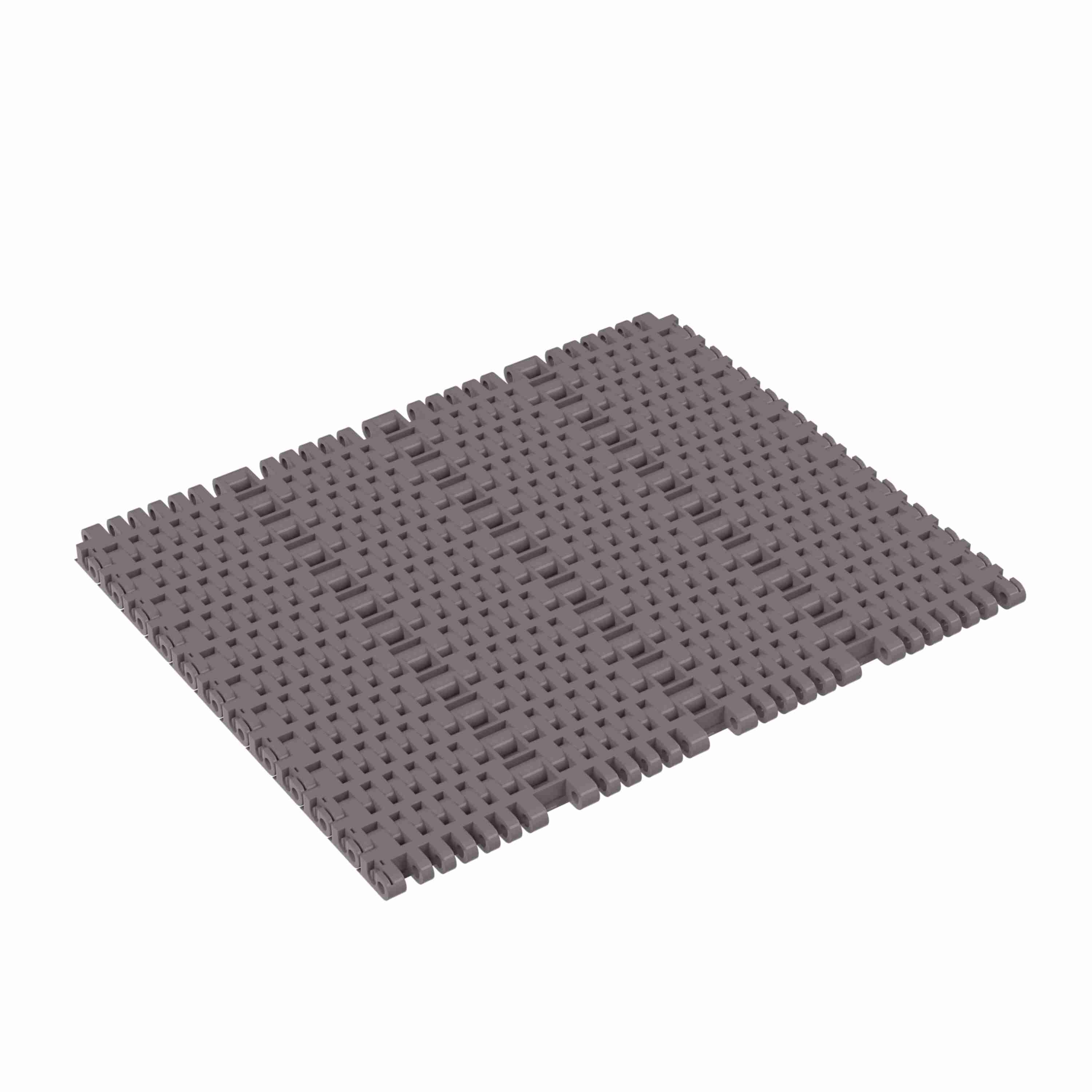

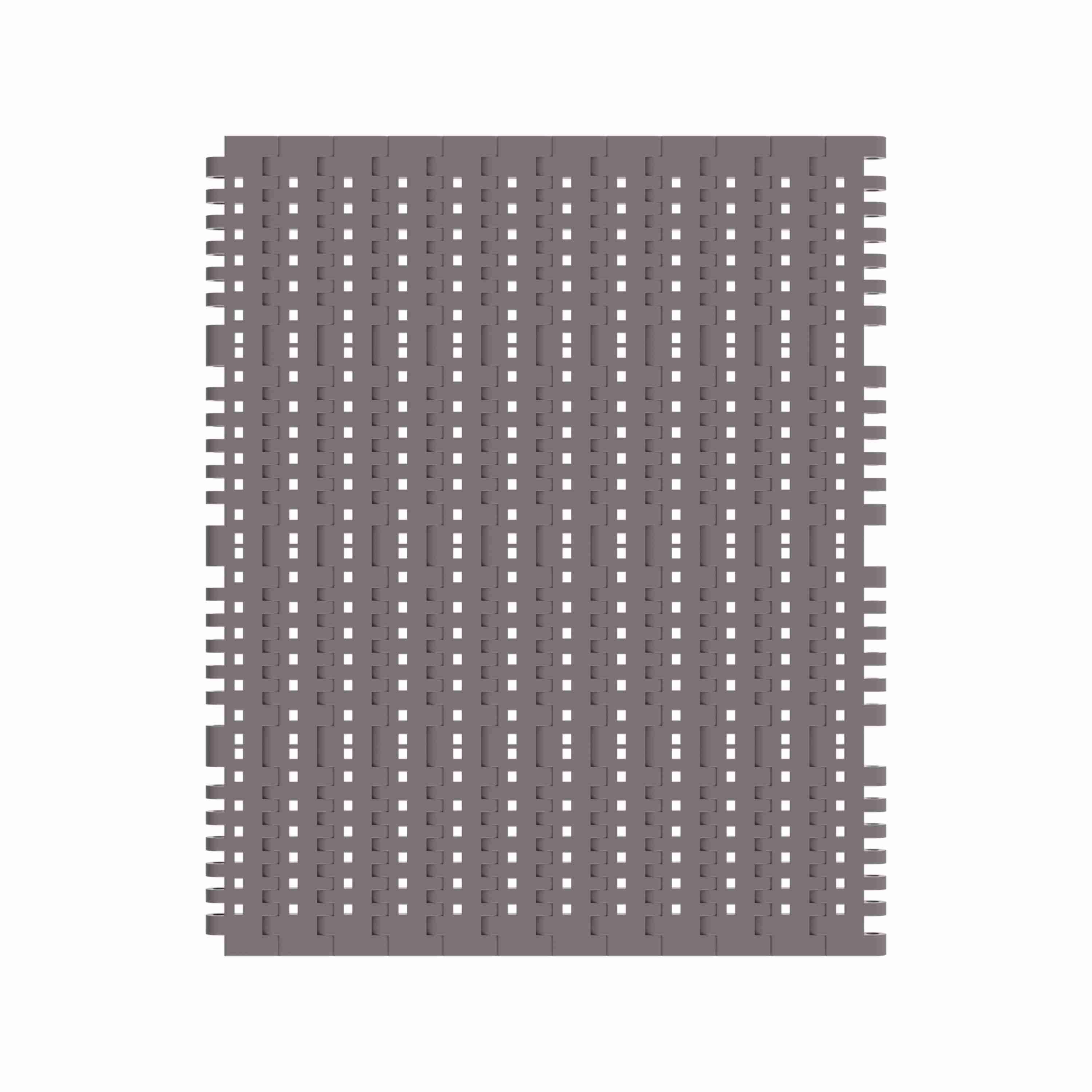

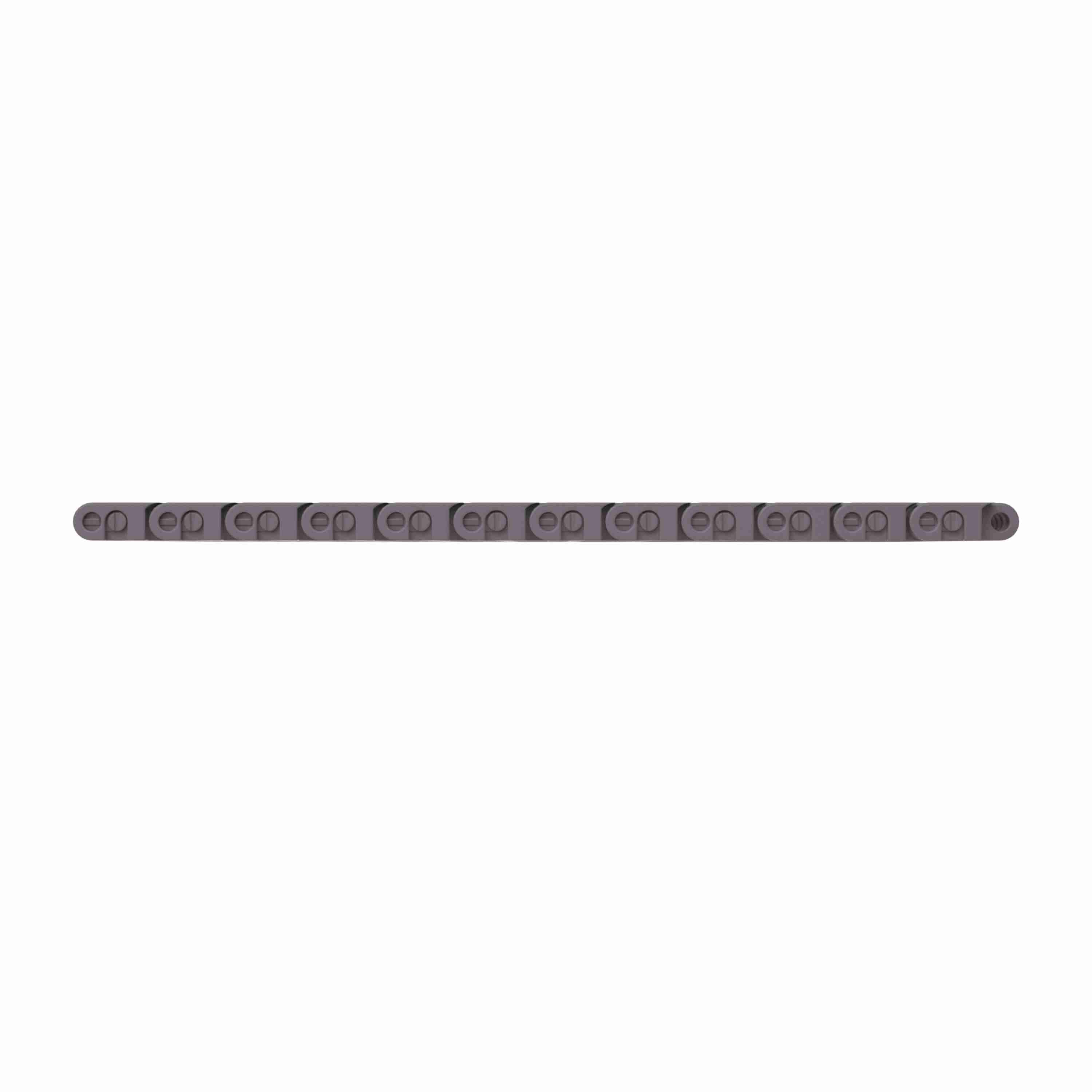

Rexnord 7706 Straight Running Flush Grid, Material: Brown High Performance, Width: 15in, Pitch: 1in - 81416345
Part #:10028419
Catalog #:81416345
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | MatTop 7700 Series Chain | Chain Material: | HP |
| Chain Pitch (mm): | 25.4 mm | Surface Type: | Flush Grid |
| Chain Width Measurement System: | Imperial | Product Line: | Plastic Modular Chain and Belt |
| Belt Thickness (in): | 0.5 in | Product Type: | Straight Running |
| Chain Width (in): | 15 in | Rod/Pin Material: | Polyester |
| Chain Strength (N): | 15,096 N | Chain Pitch (in): | 1 in |
| Chain Strength (lb): | 3,400 lb | Belt Thickness (mm): | 12.7 mm |
| Chain Number: | 7706 | Straight or Side-Flex: | Straight Running |
| Open Area (%): | 8 % | Chain Material Description: | Brown High Performance |
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 381 mm |
General Specifications
| Weight: | 0.28 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
