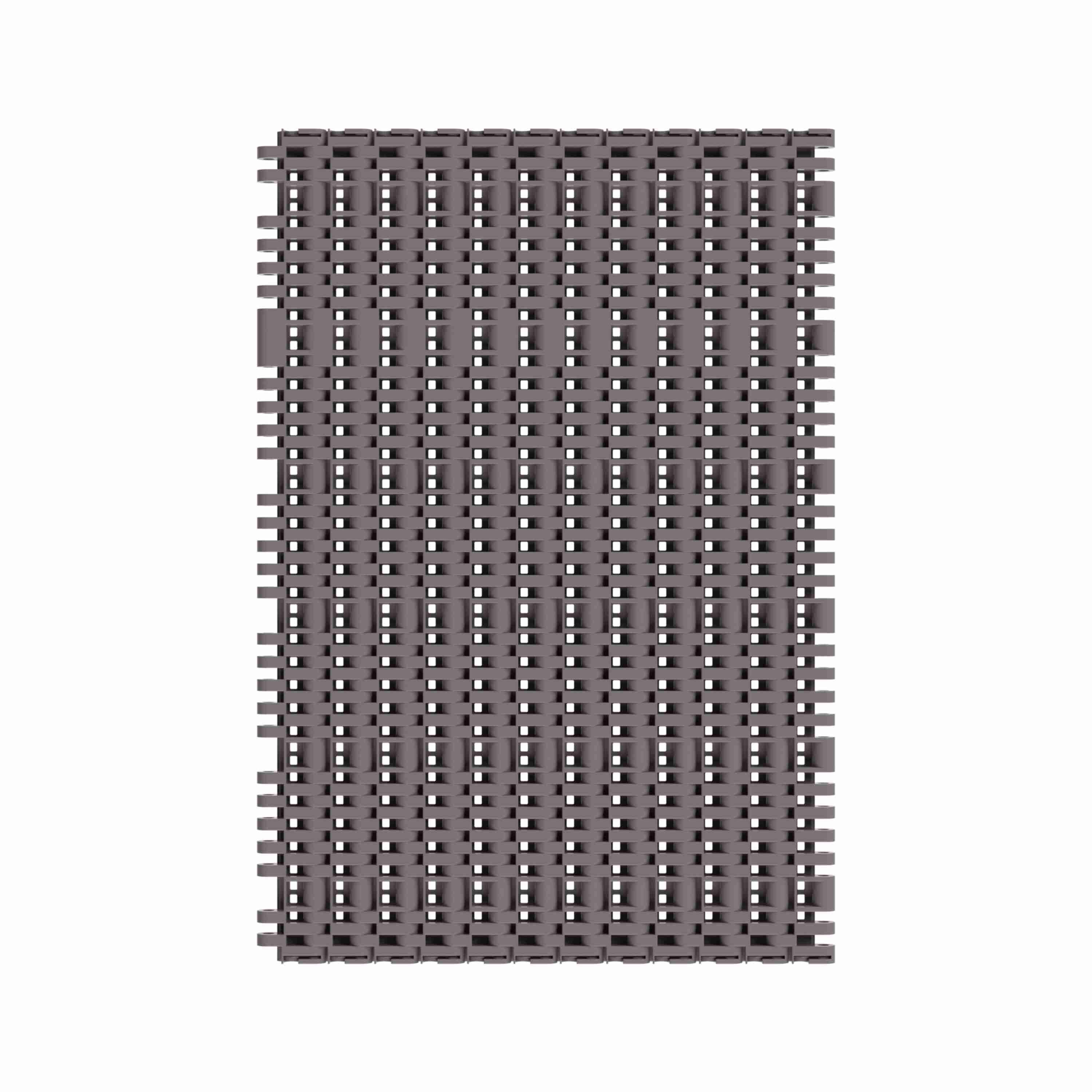

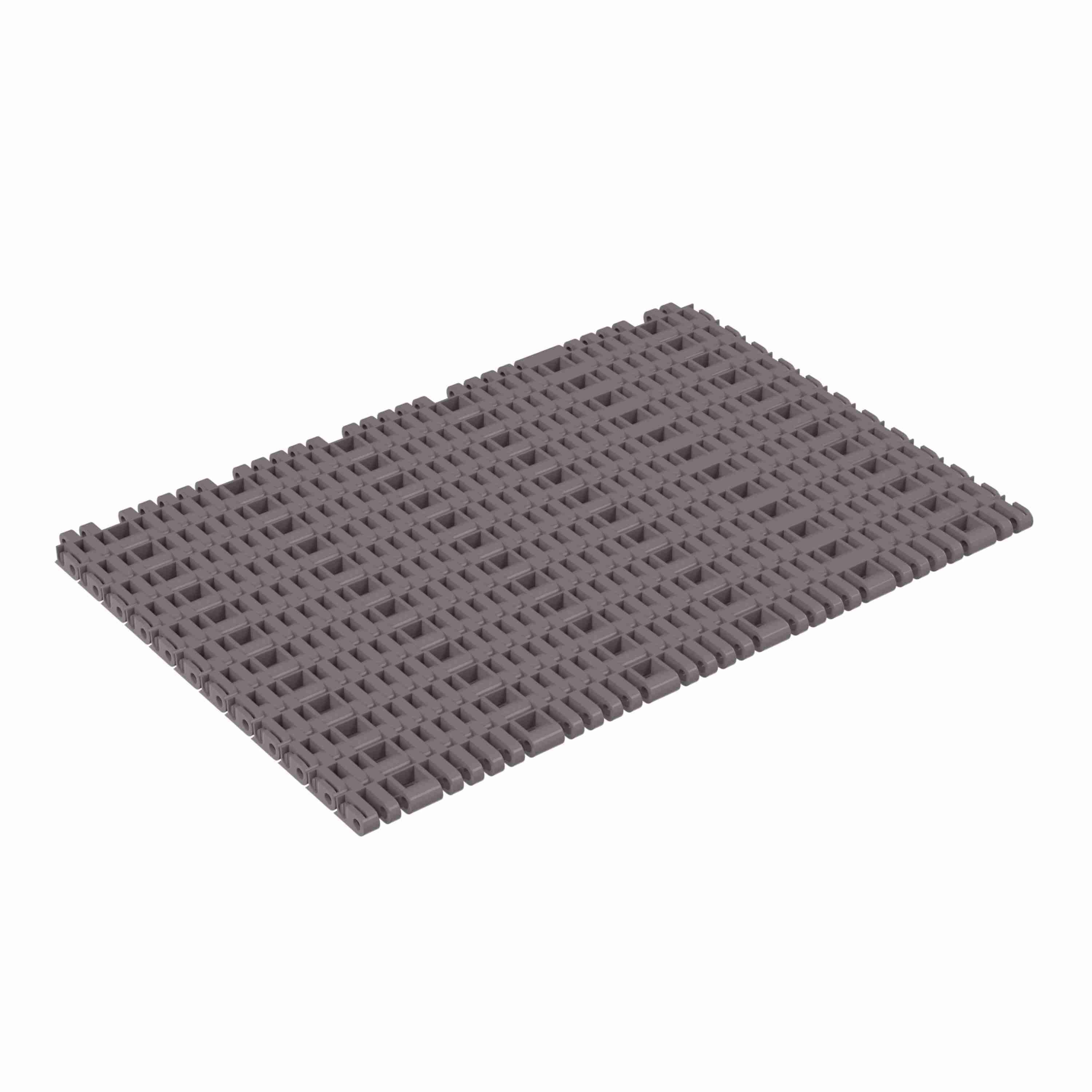

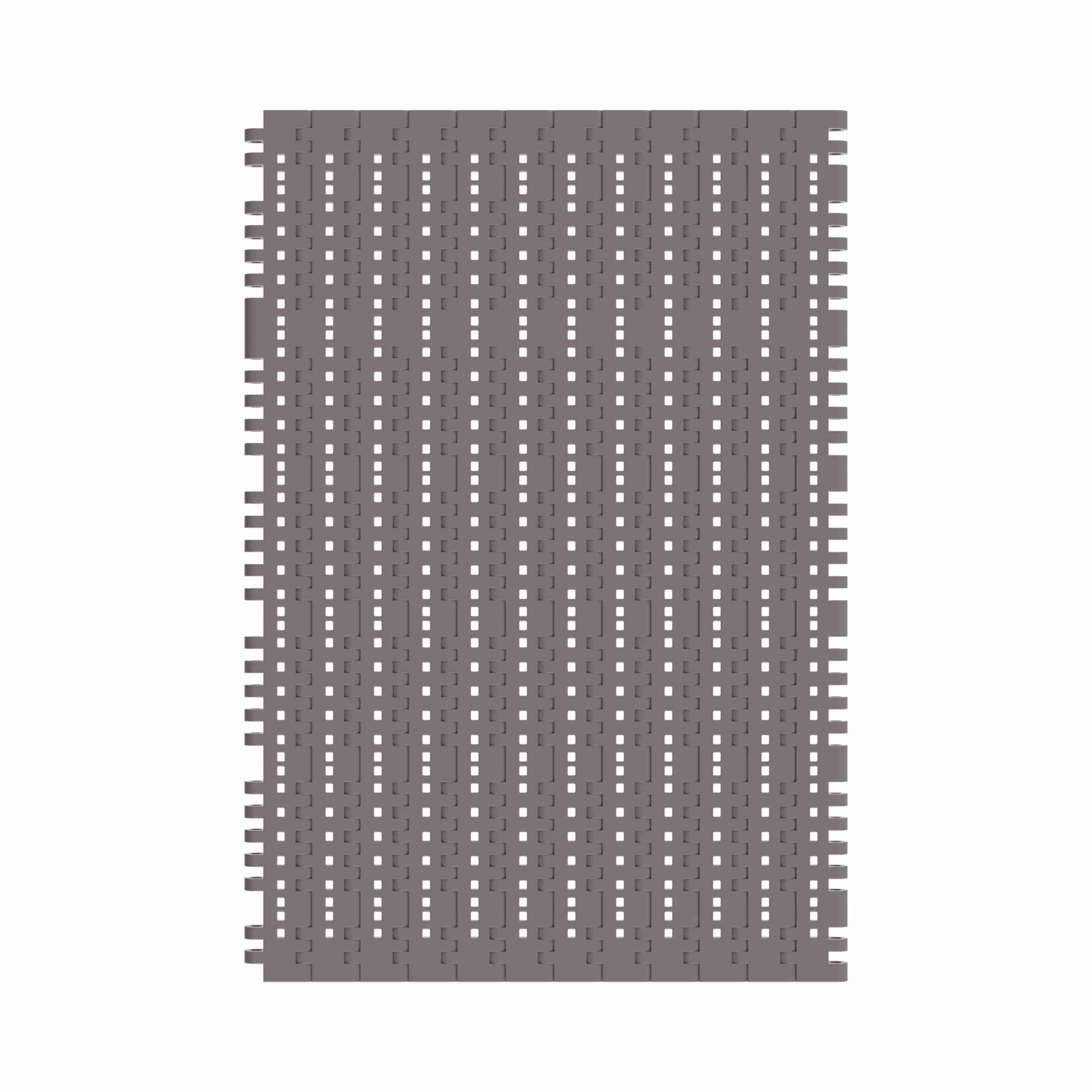

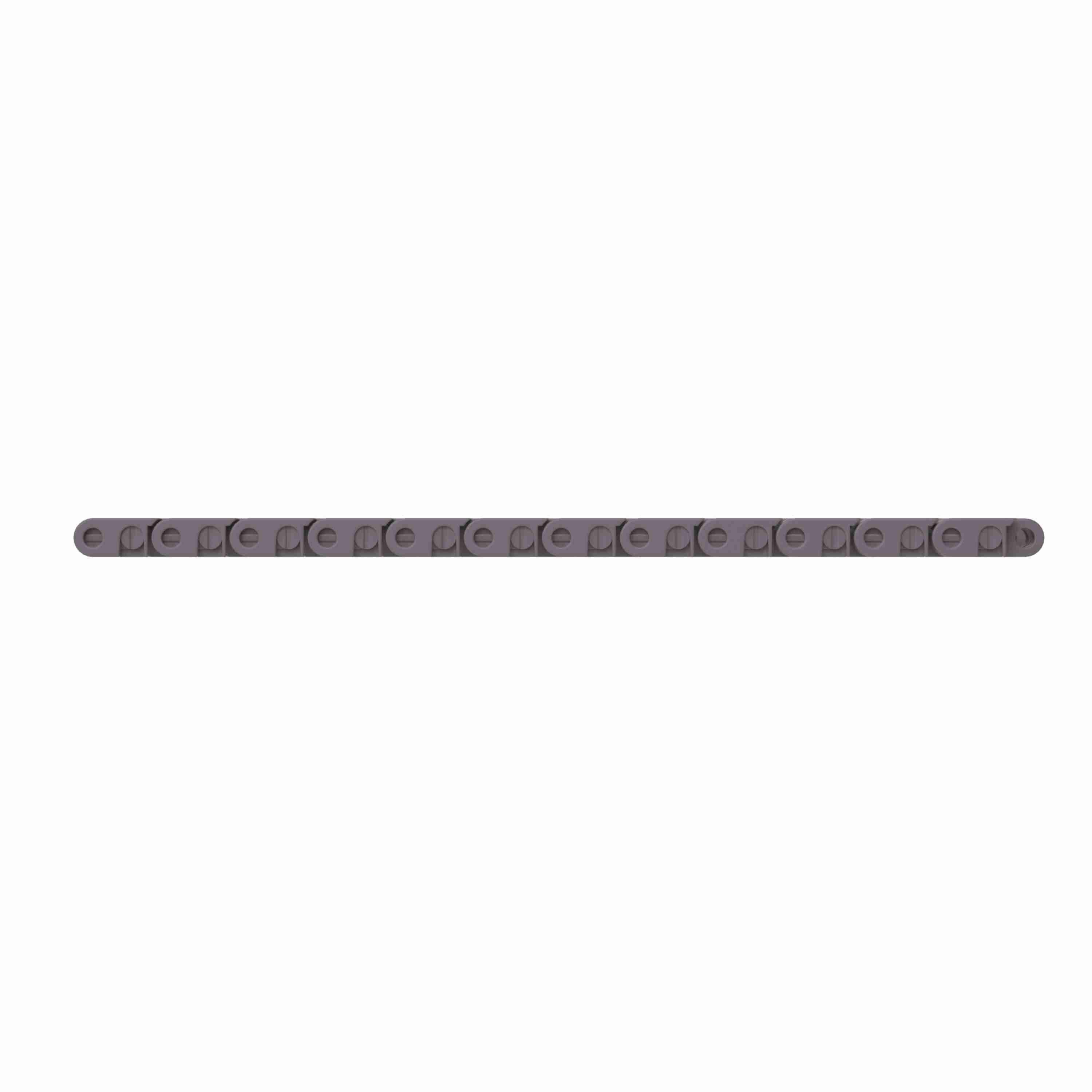

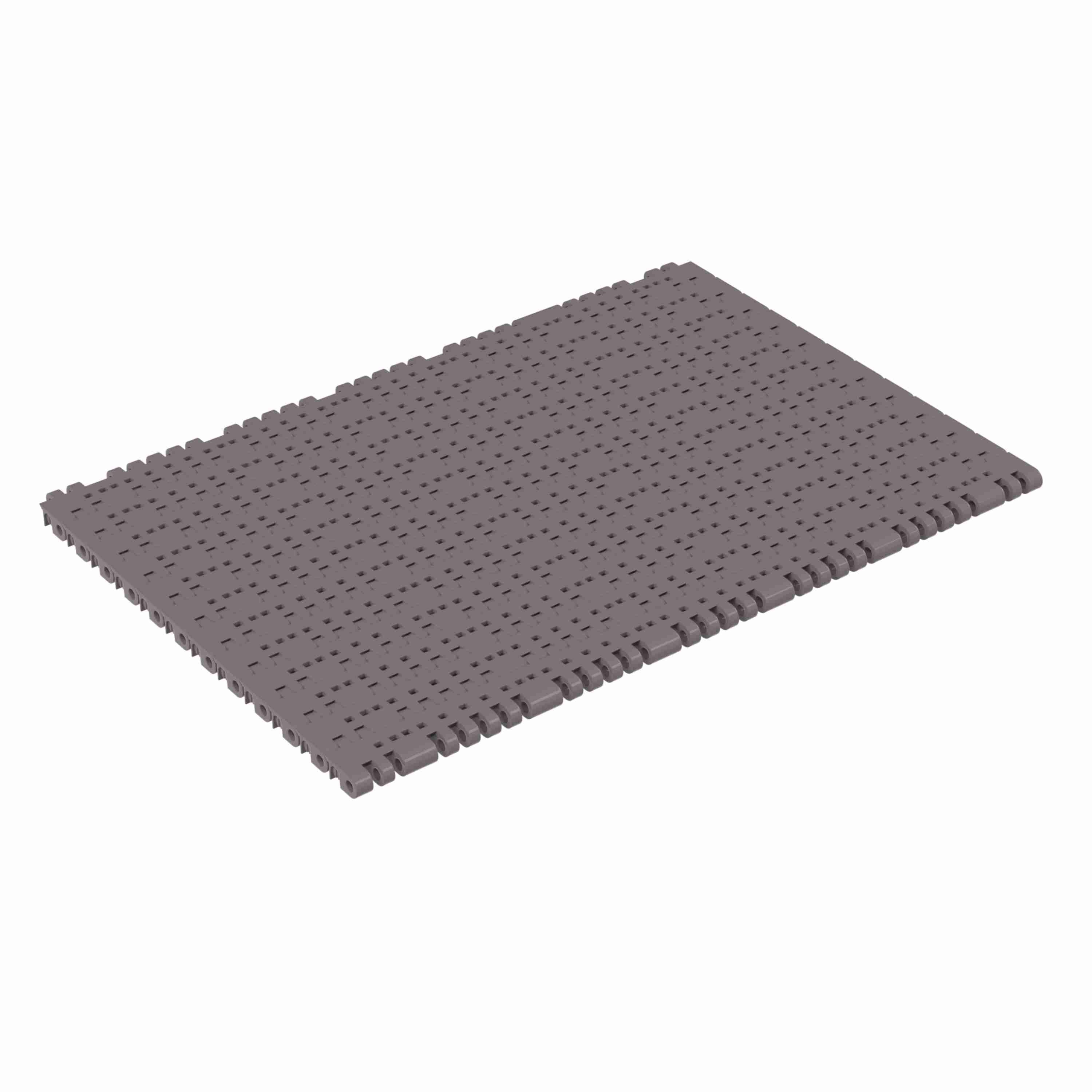

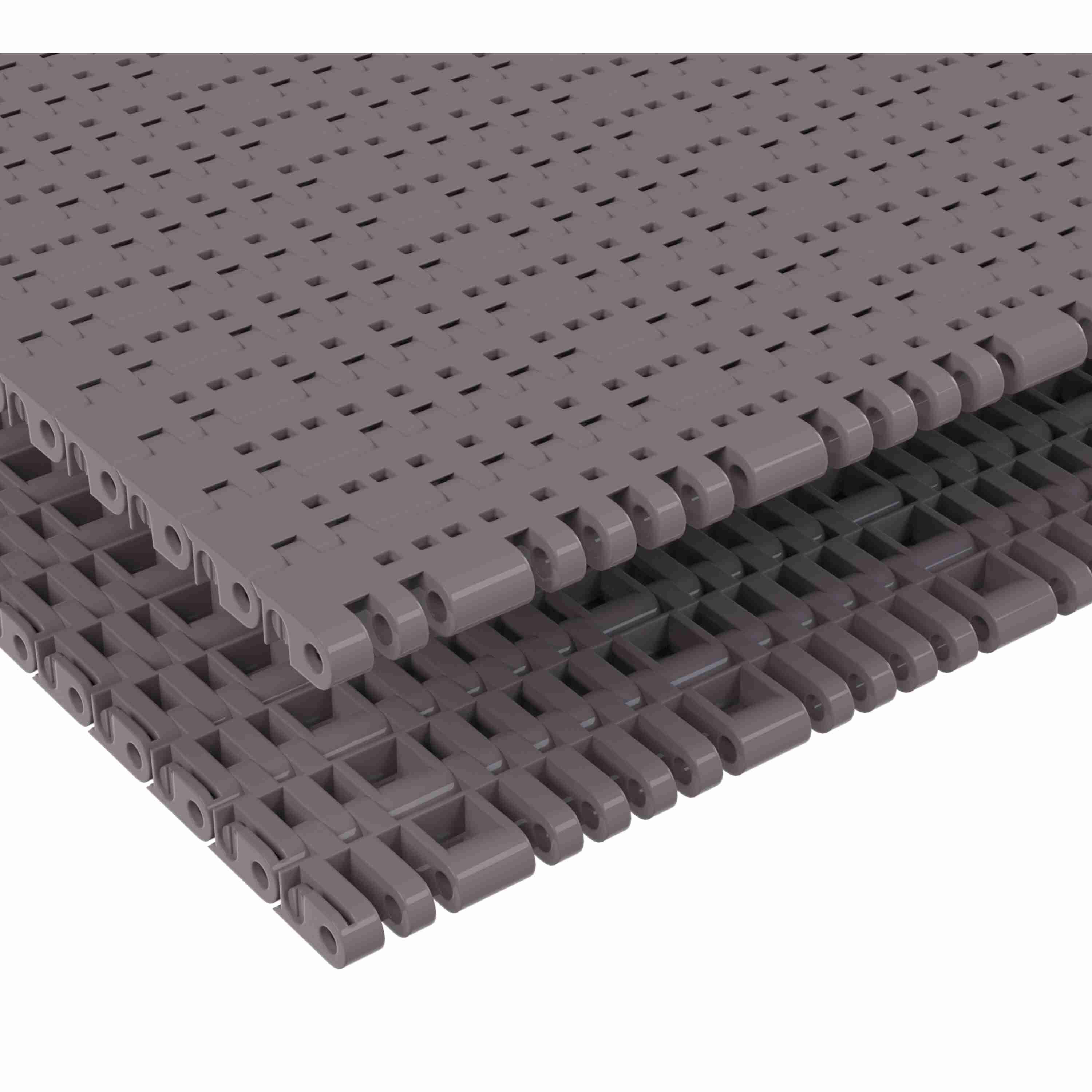

Rexnord 7706 Straight Running Flush Grid, Material: Brown High Performance, Width: 18in, Pitch: 1in - HP7706-18
Part #:10028948
Catalog #:HP7706-18
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Product Type: | Straight Running |
| Chain Pitch (mm): | 25.4 mm | Product Line: | Plastic Modular Chain and Belt |
| Chain Number: | 7706 | Chain Pitch (in): | 1 in |
| Chain Material Description: | Brown High Performance | Belt Thickness (in): | 0.5 in |
| Surface Type: | Flush Grid | Series: | MatTop 7700 Series Chain |
| Chain Width Measurement System: | Imperial | Chain Width (mm): | 457.2 mm |
| Open Area (%): | 8 % | Rod/Pin Material: | Polyester |
| Chain Strength (N/m): | 43,041 N·m | Chain Material: | HP |
| Chain Width (in): | 18 in | Belt Thickness (mm): | 12.7 mm |
| Straight or Side-Flex: | Straight Running | Chain Strength (lb/ft): | 2,950 lb/ft |
General Specifications
| Weight: | 0.34 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
