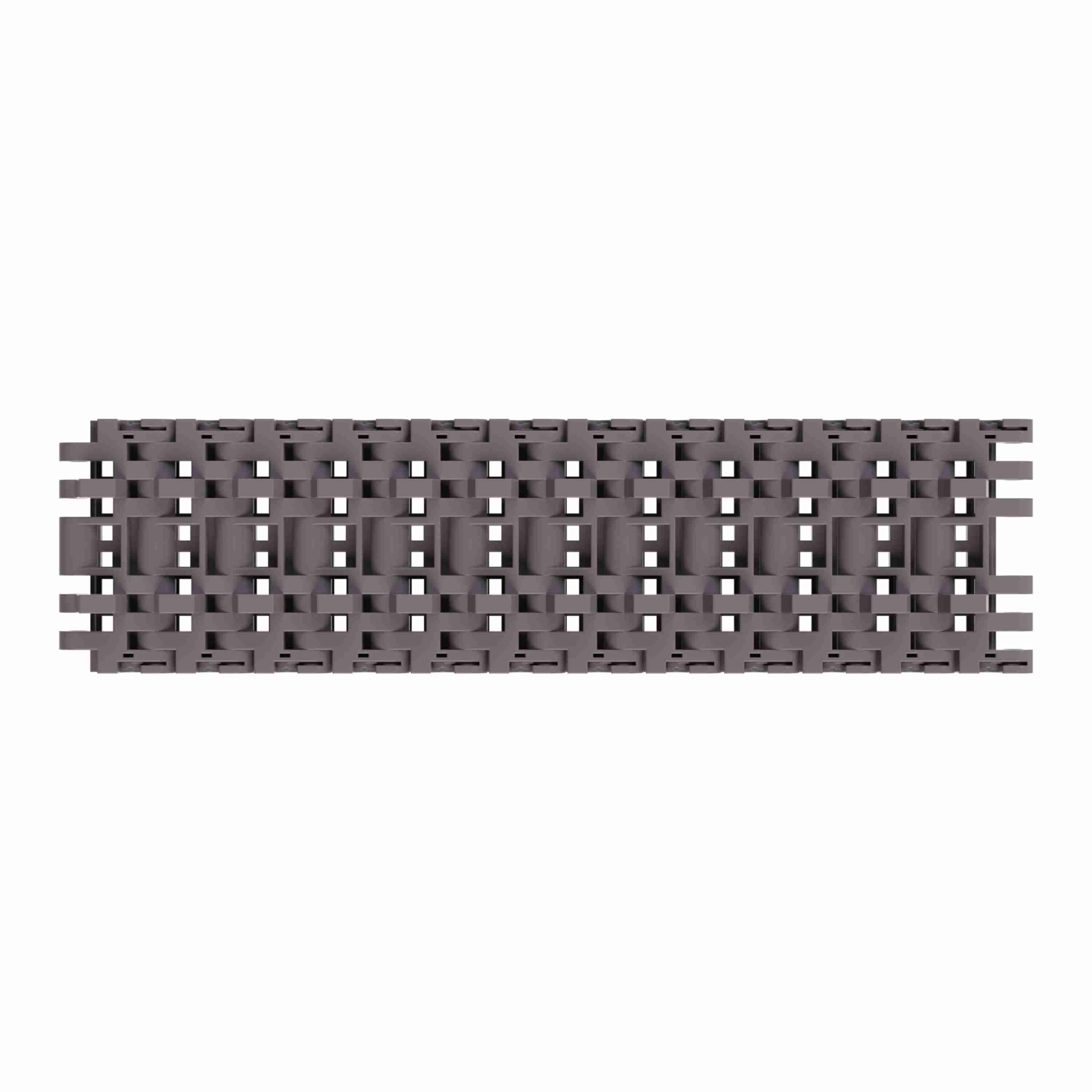

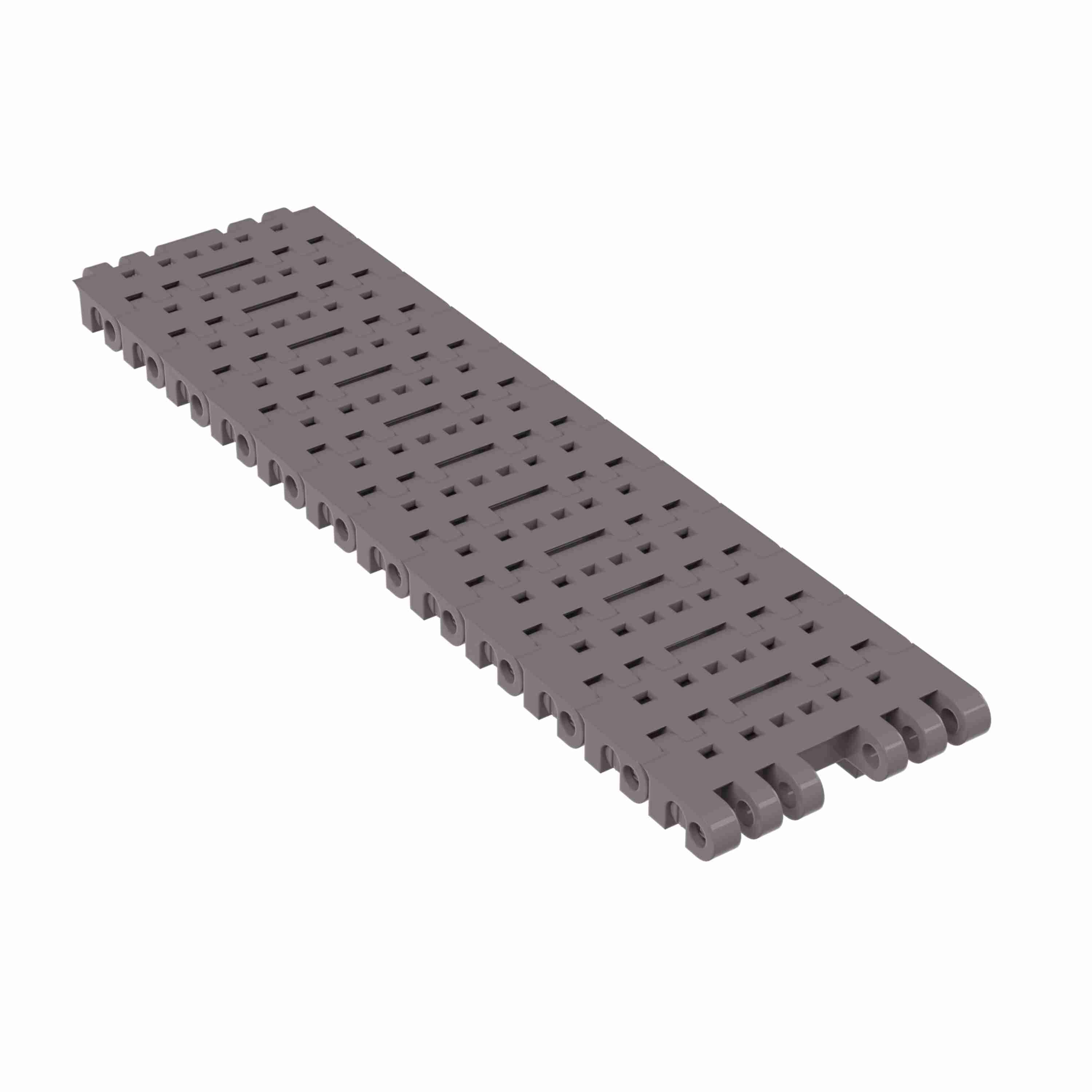

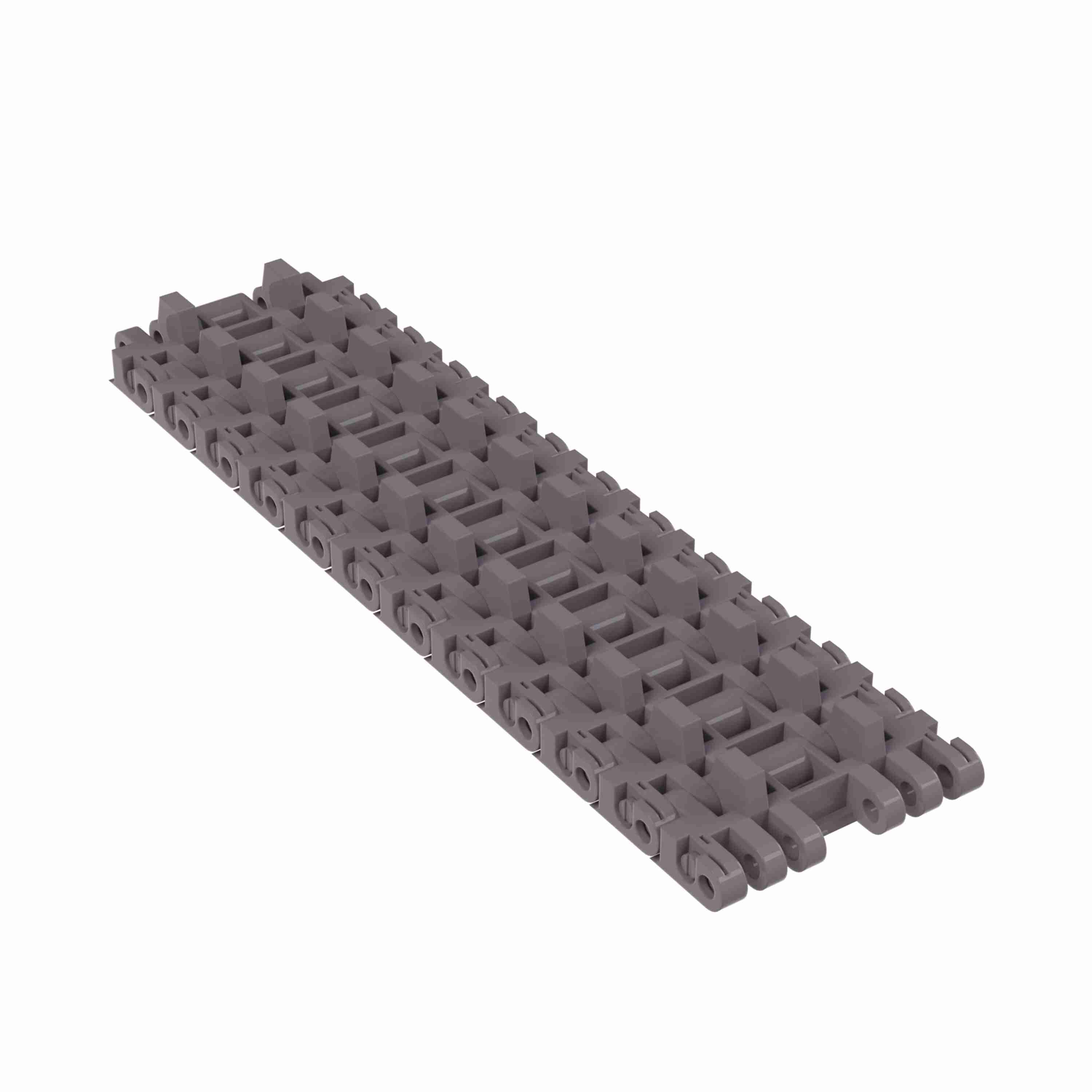

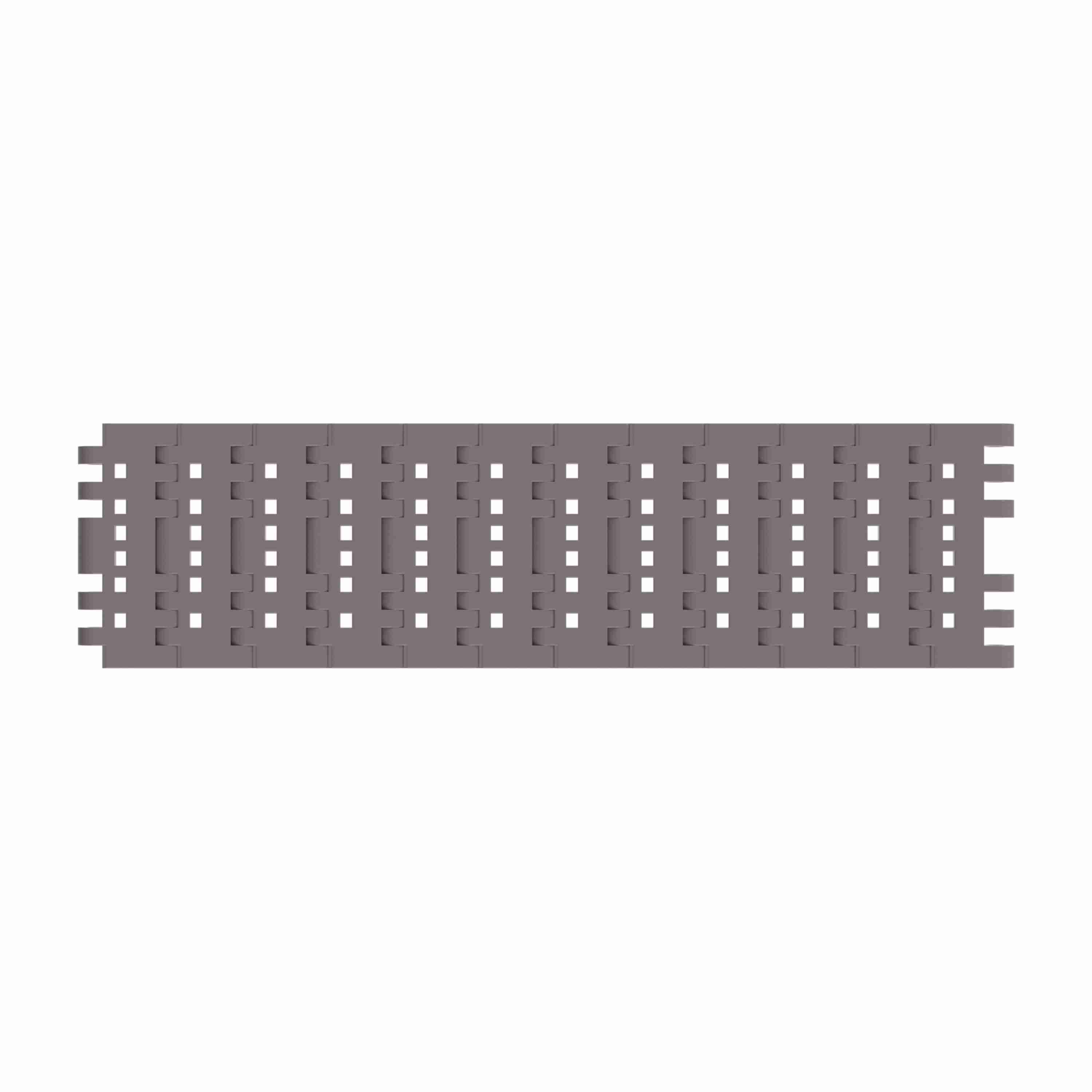

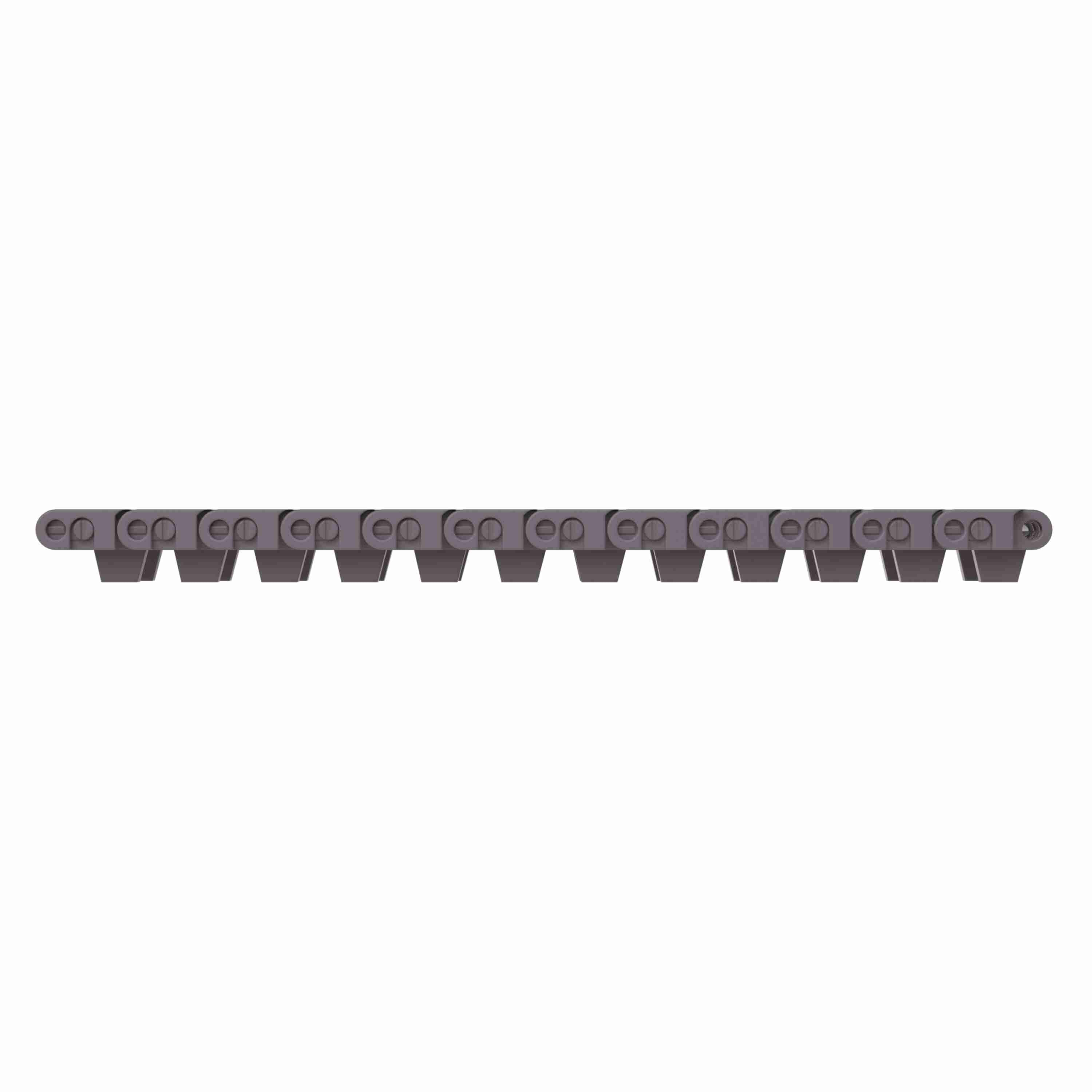

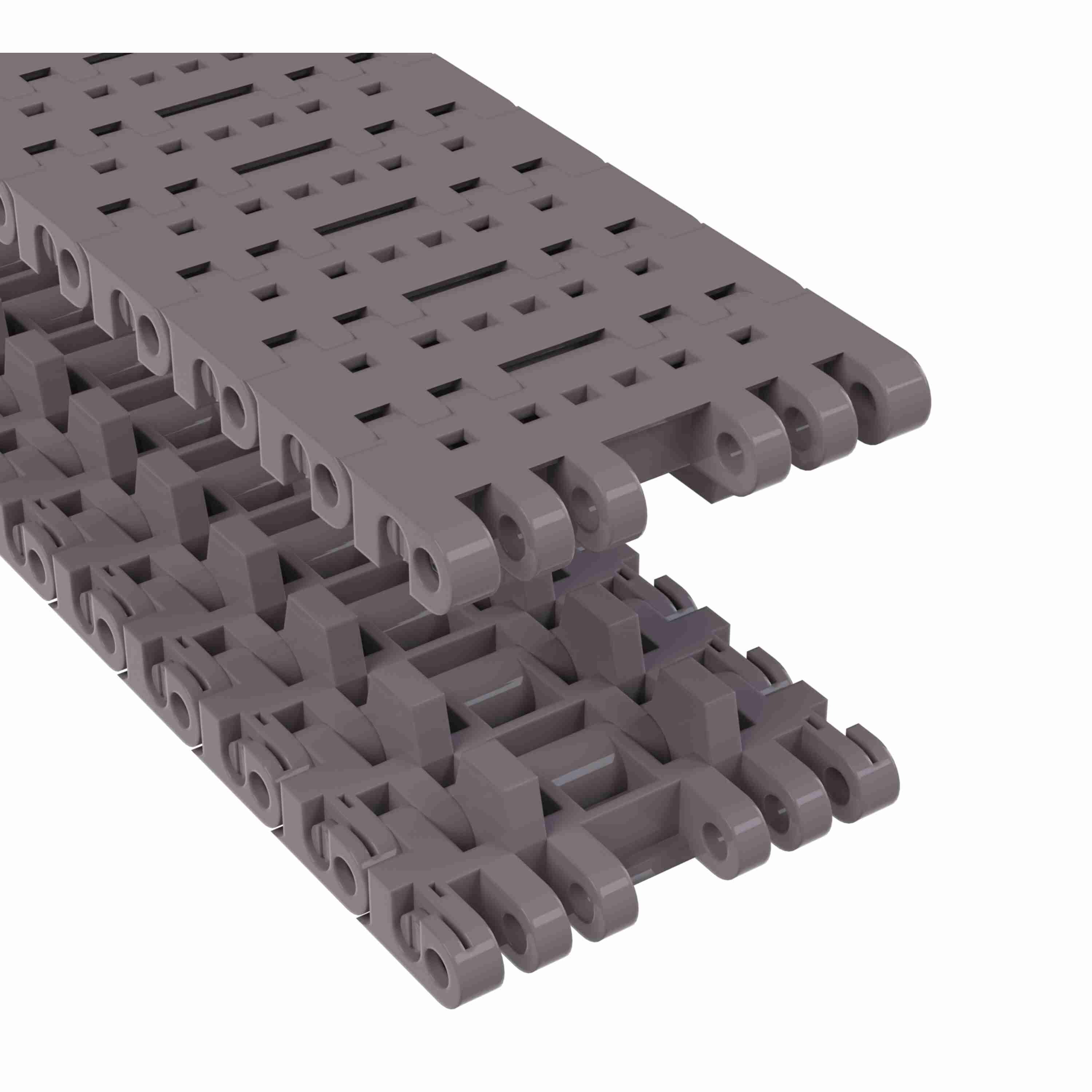

Rexnord 7706 Straight Running Flush Grid, Material: Brown High Performance, Width: 3.25in, Pitch: 1in - 81415221
Part #:10028421
Catalog #:81415221
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Positrack Location: | Center | Number of Positrack: | 2 |
| Straight or Side-Flex: | Straight Running | Chain Width (mm): | 82.6 mm |
| Chain Strength (lb): | 685 lb | Chain Pitch (in): | 1 in |
| Chain Material: | HP | Open Area (%): | 8 % |
| Series: | MatTop 7700 Series Chain | Chain Strength (N): | 3,041 N |
| Chain Material Description: | Brown High Performance | Rod/Pin Material: | Polyester |
| Belt Thickness (in): | 0.5 in | Product Group: | Modular Plastic Belts |
| Product Line: | Plastic Modular Chain and Belt | Surface Type: | Flush Grid |
| Product Type: | Straight Running | Positrack: | True |
| Chain Number: | 7706 | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 3.25 in | Belt Thickness (mm): | 12.7 mm |
| Chain Pitch (mm): | 25.4 mm |
General Specifications
| Weight: | 0.06 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
