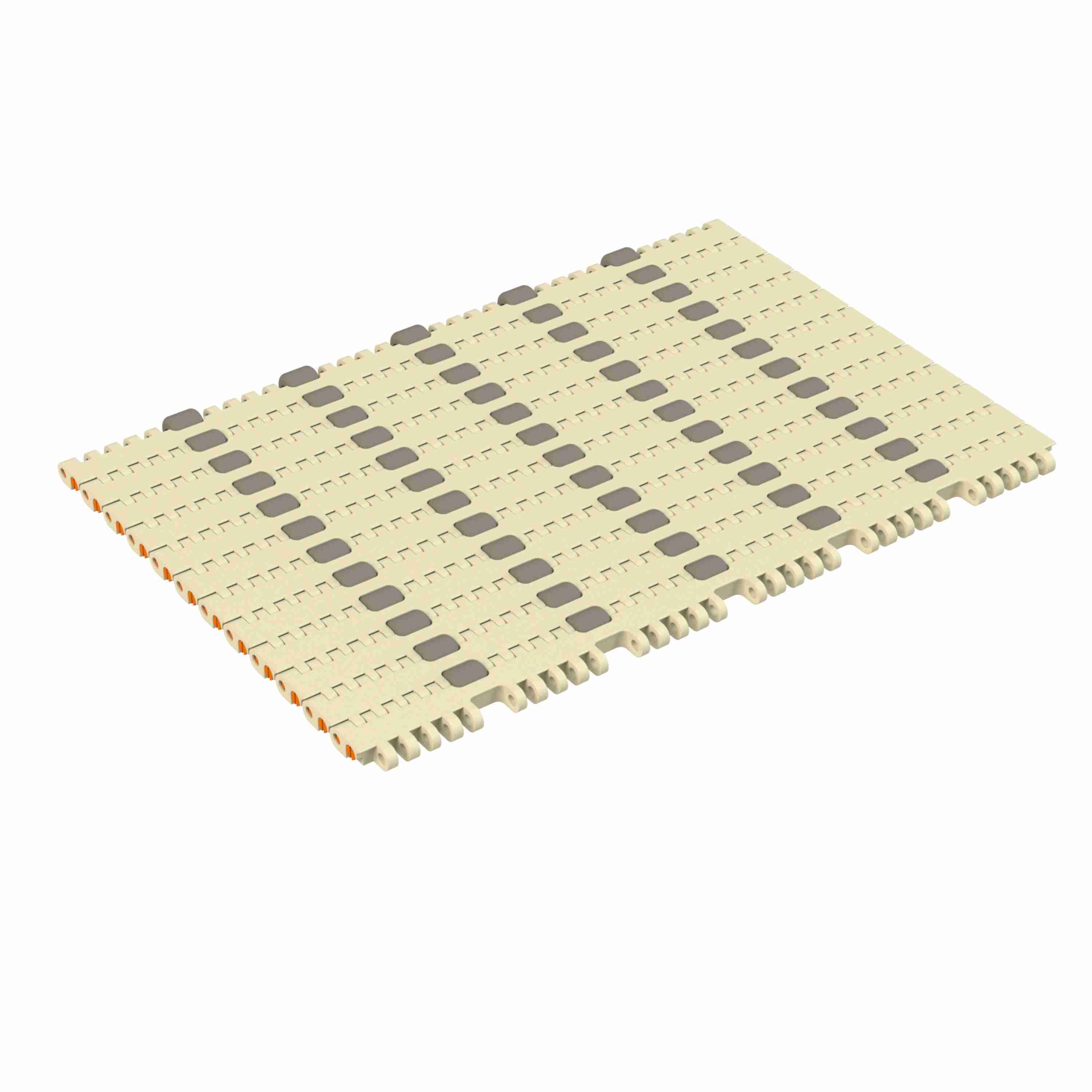

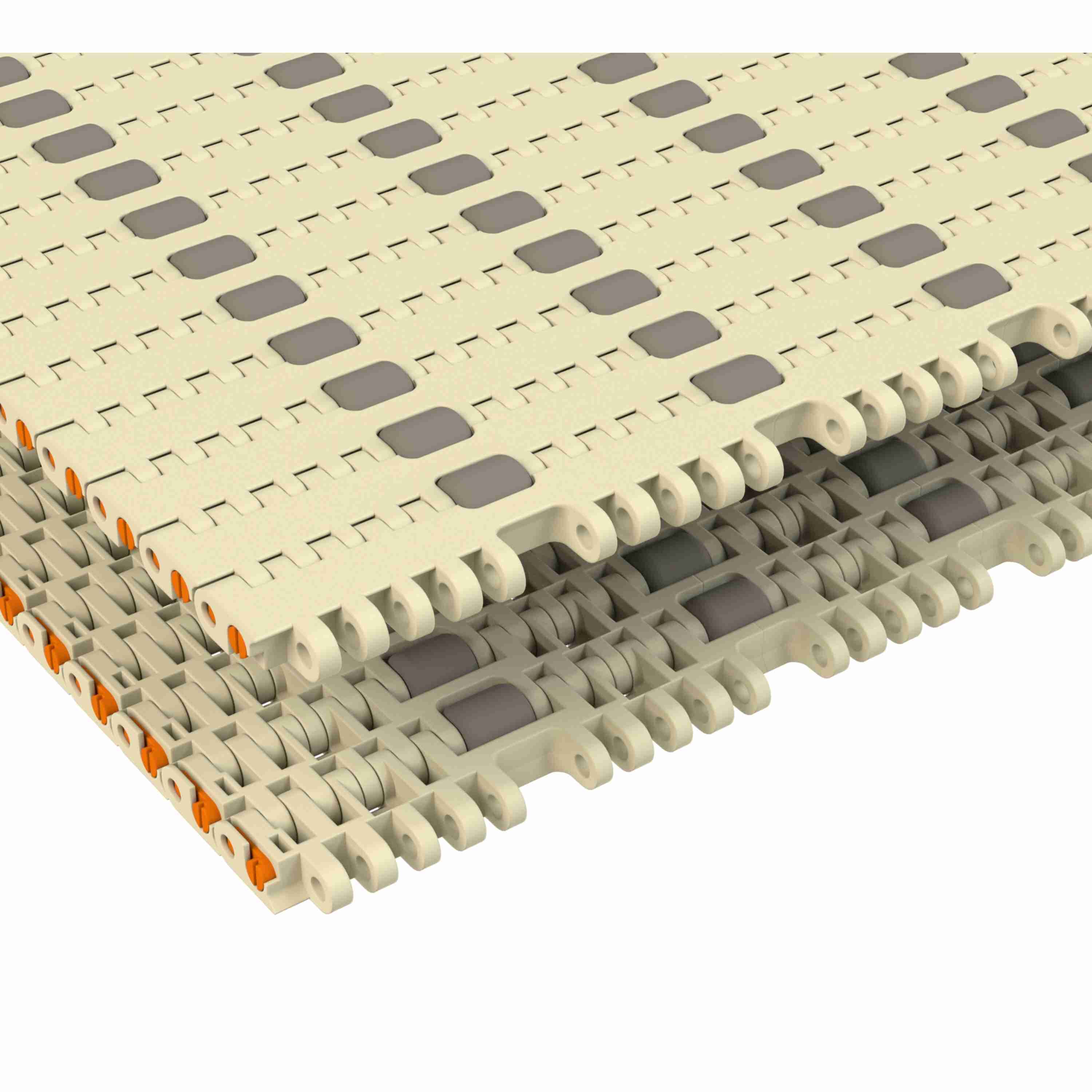

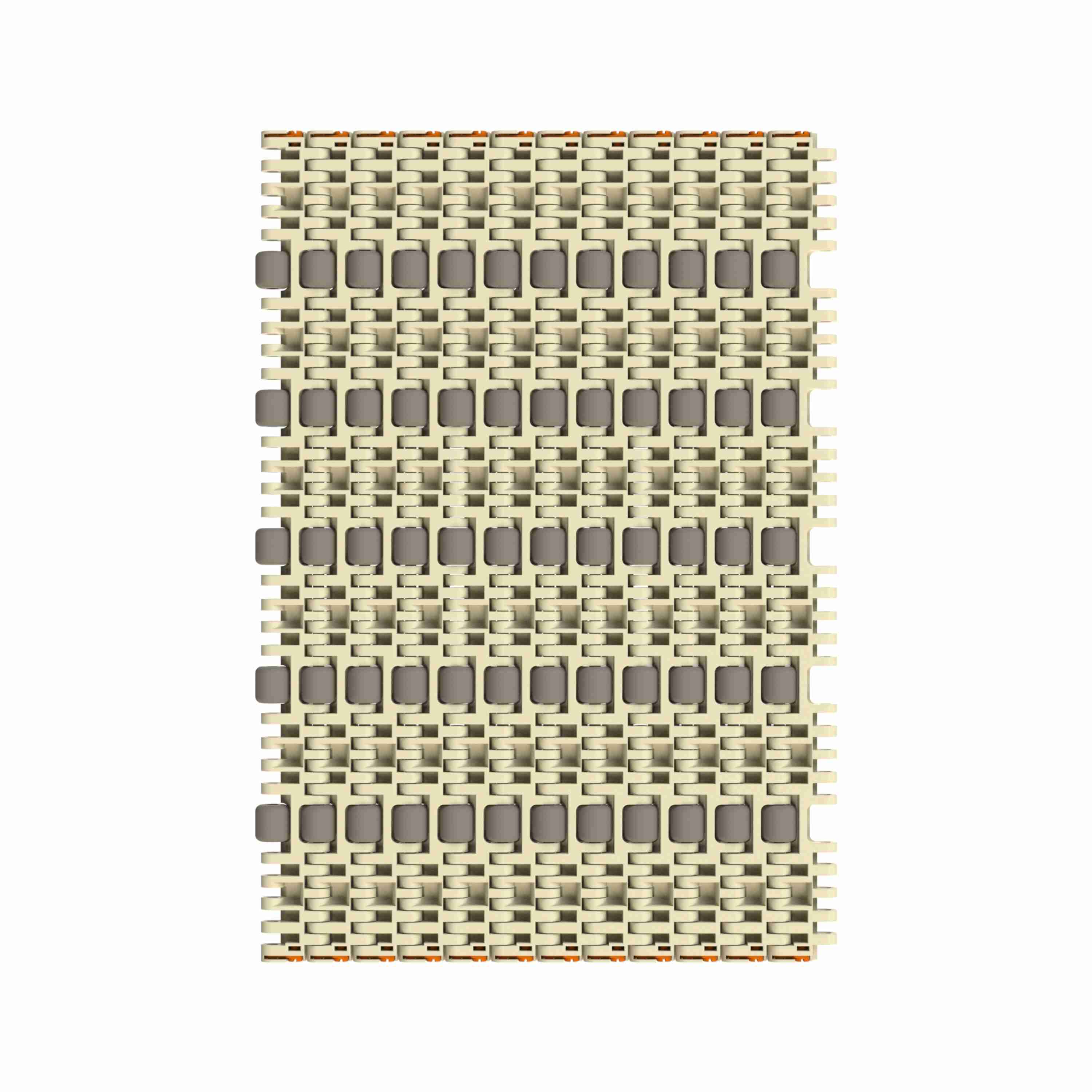

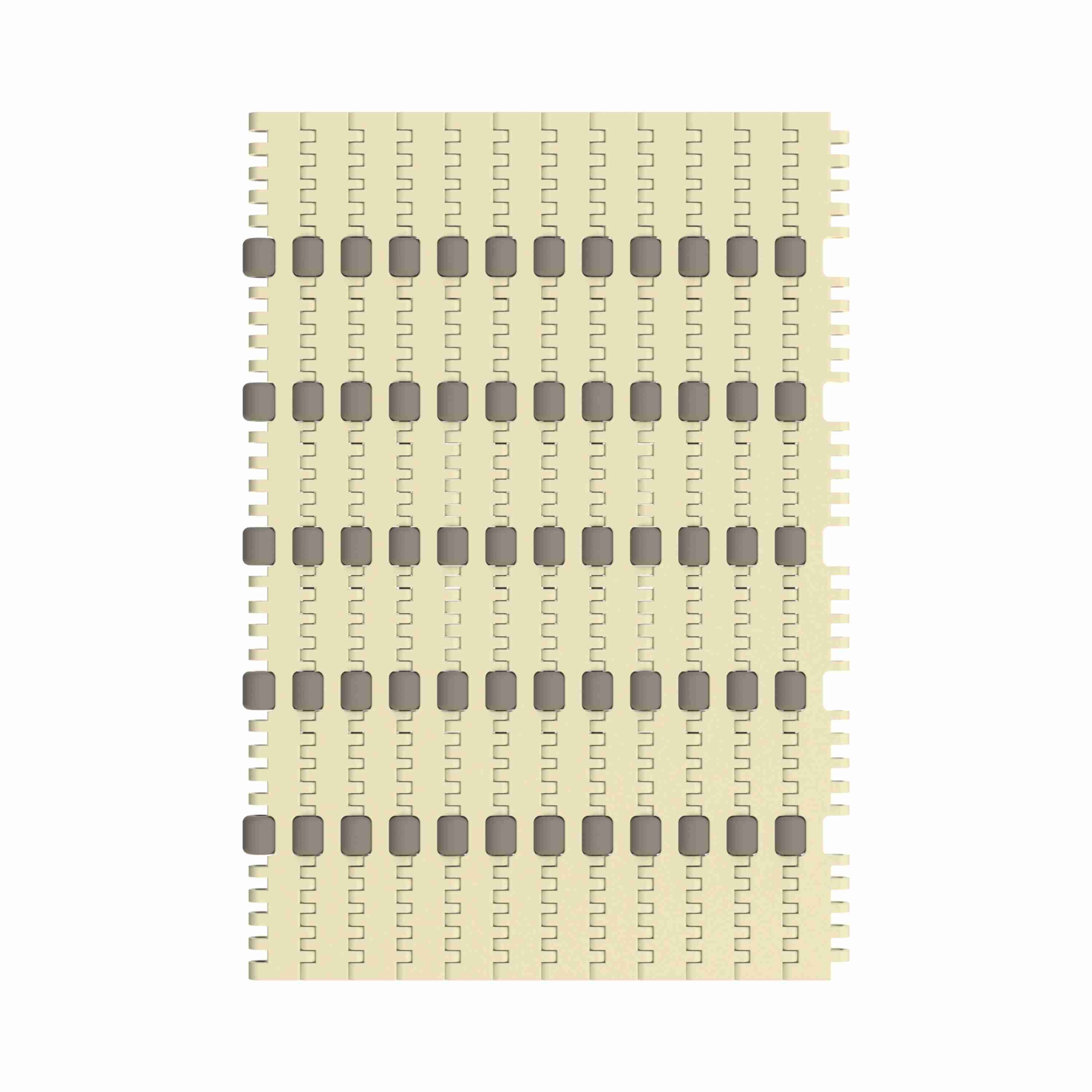

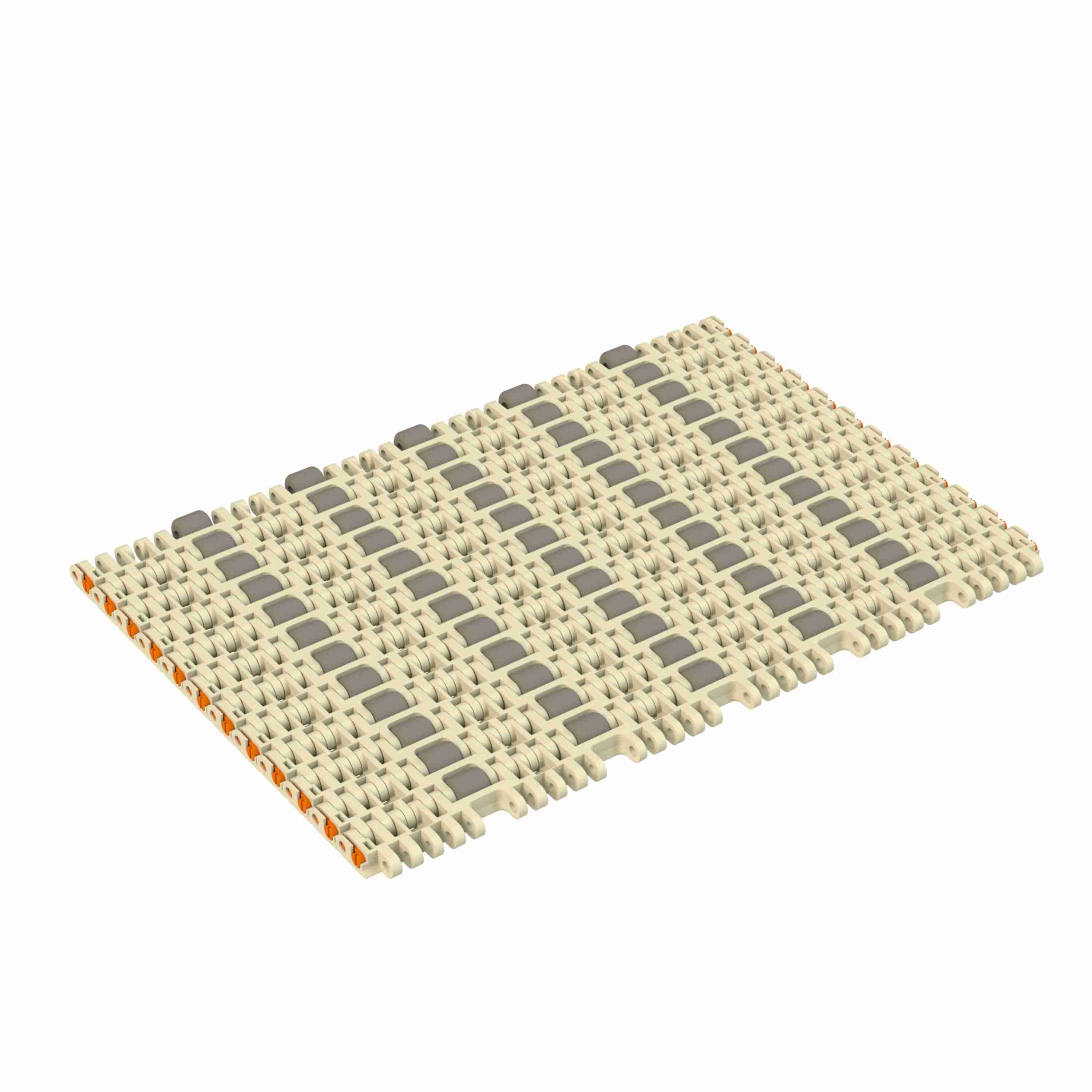

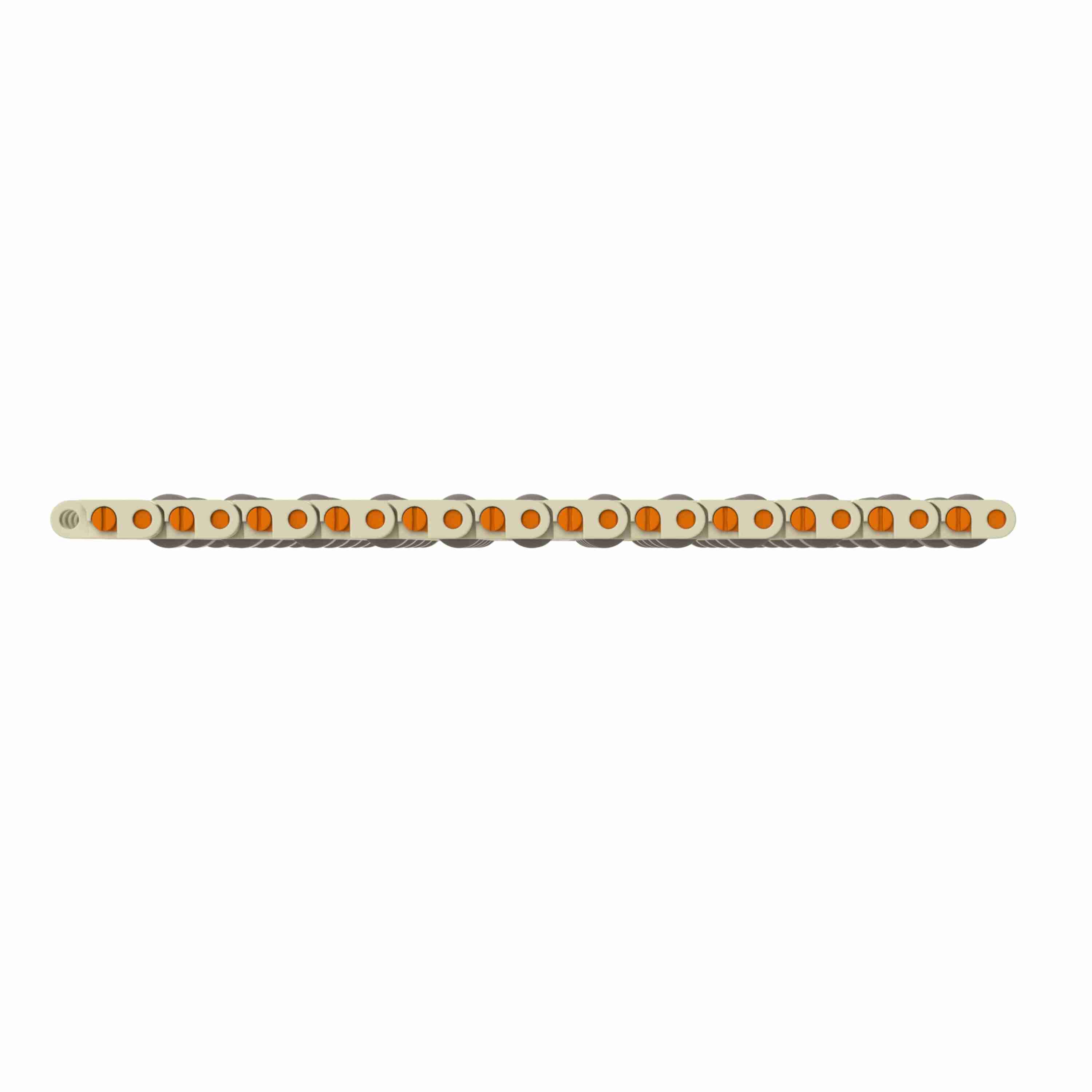

Rexnord 7743 Straight Running Low Backline Pressure, Material: Beige High Temperature, Width: 12in, Pitch: 1in - 81441723
Part #:10029015
Catalog #:81441723
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 12 in | Chain Material Description: | Beige High Temperature |
| Chain Pitch (in): | 1 in | Chain Pitch (mm): | 25.4 mm |
| Rod/Pin Material: | Polypropylene | Belt Thickness (mm): | 15.6 mm |
| Chain Strength (lb/ft): | 1,170 lb/ft | Chain Width Measurement System: | Imperial |
| Product Line: | Plastic Modular Chain and Belt | Straight or Side-Flex: | Straight Running |
| Chain Strength (N/m): | 17,070 N·m | Chain Material: | HT |
| Chain Width (mm): | 304.8 mm | Open Area (%): | 3 % |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Surface Type: | Low Backline Pressure | Series: | MatTop 7700 Series Chain |
| Chain Number: | 7743 | Belt Thickness (in): | 0.6125 in |
General Specifications
| Weight: | 0.19 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
