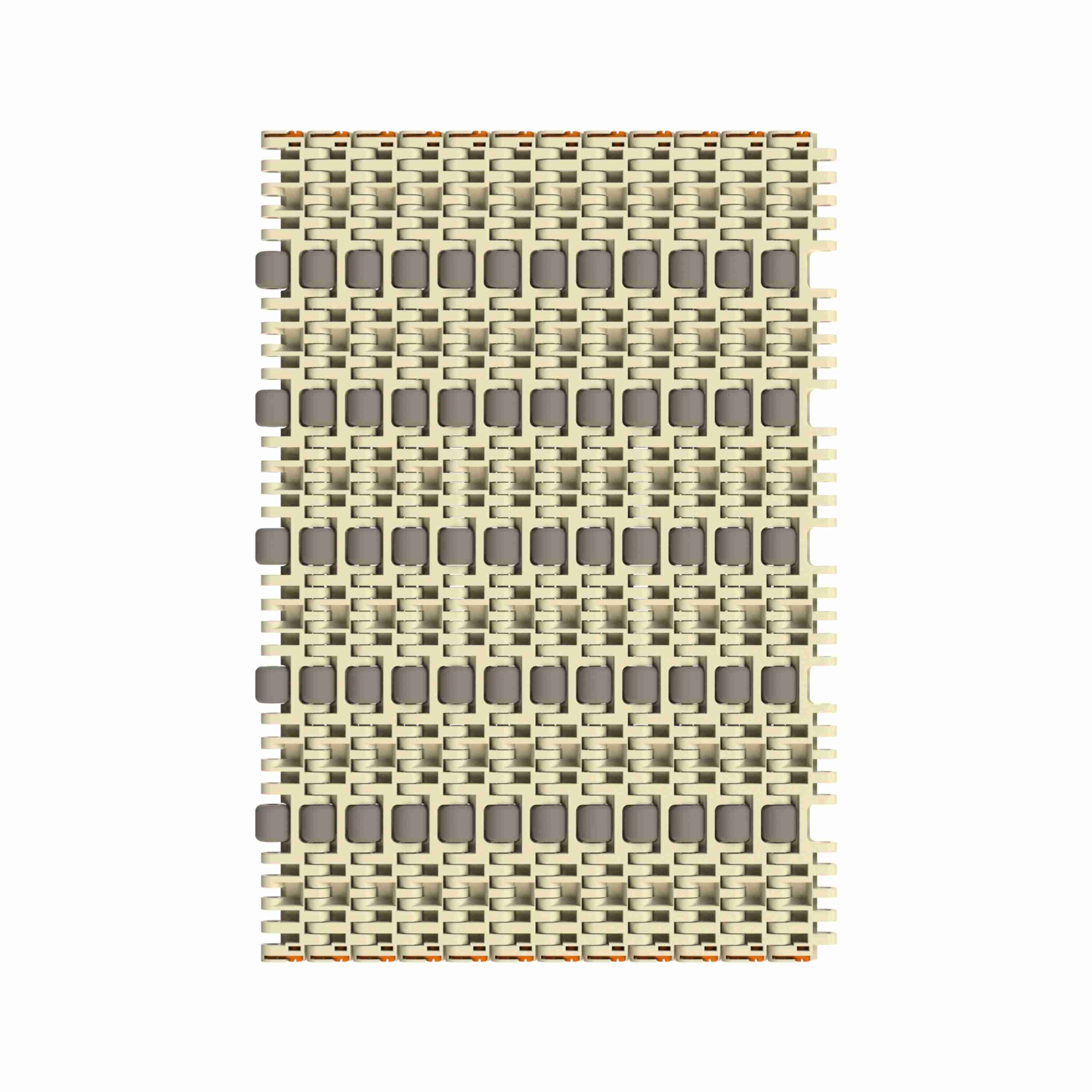

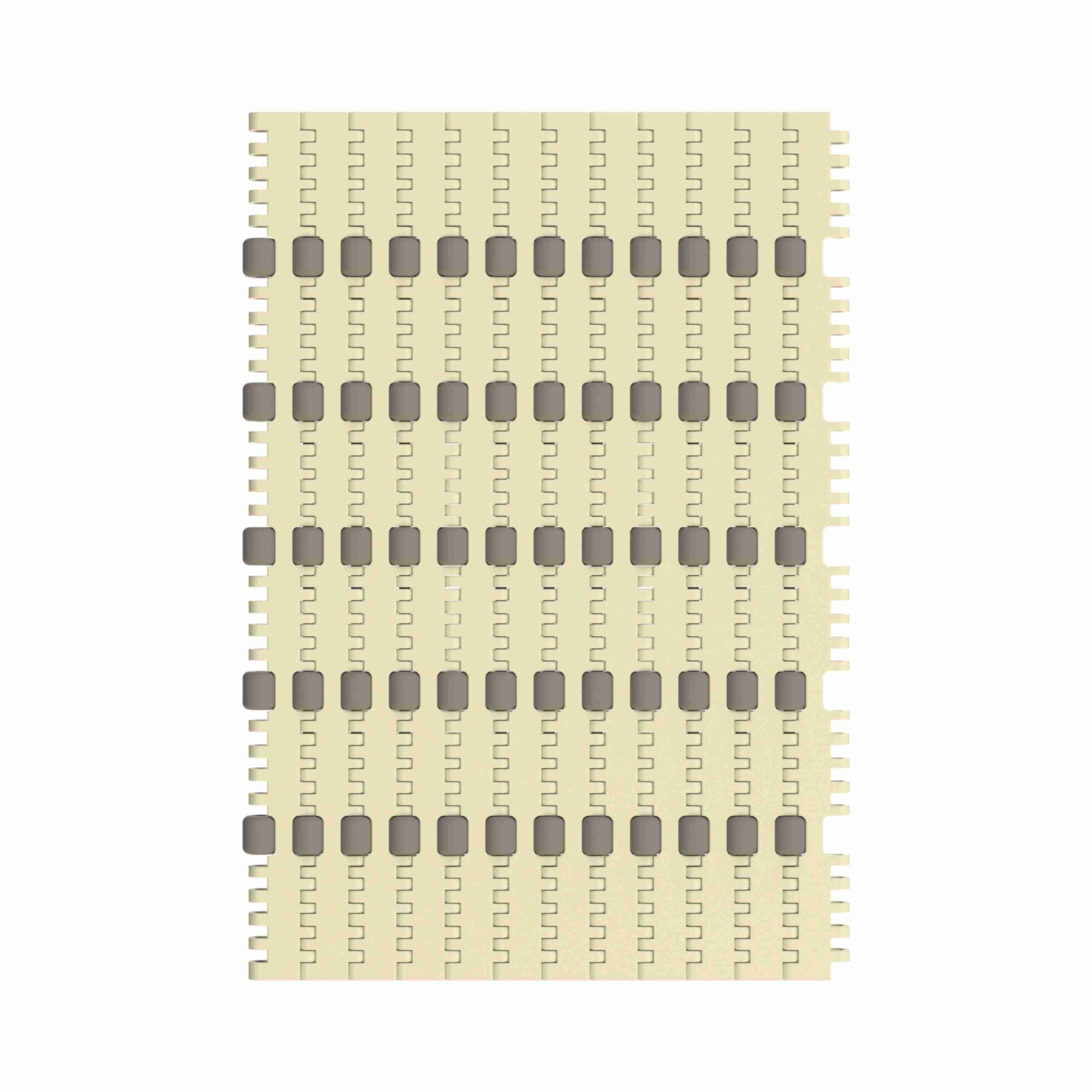

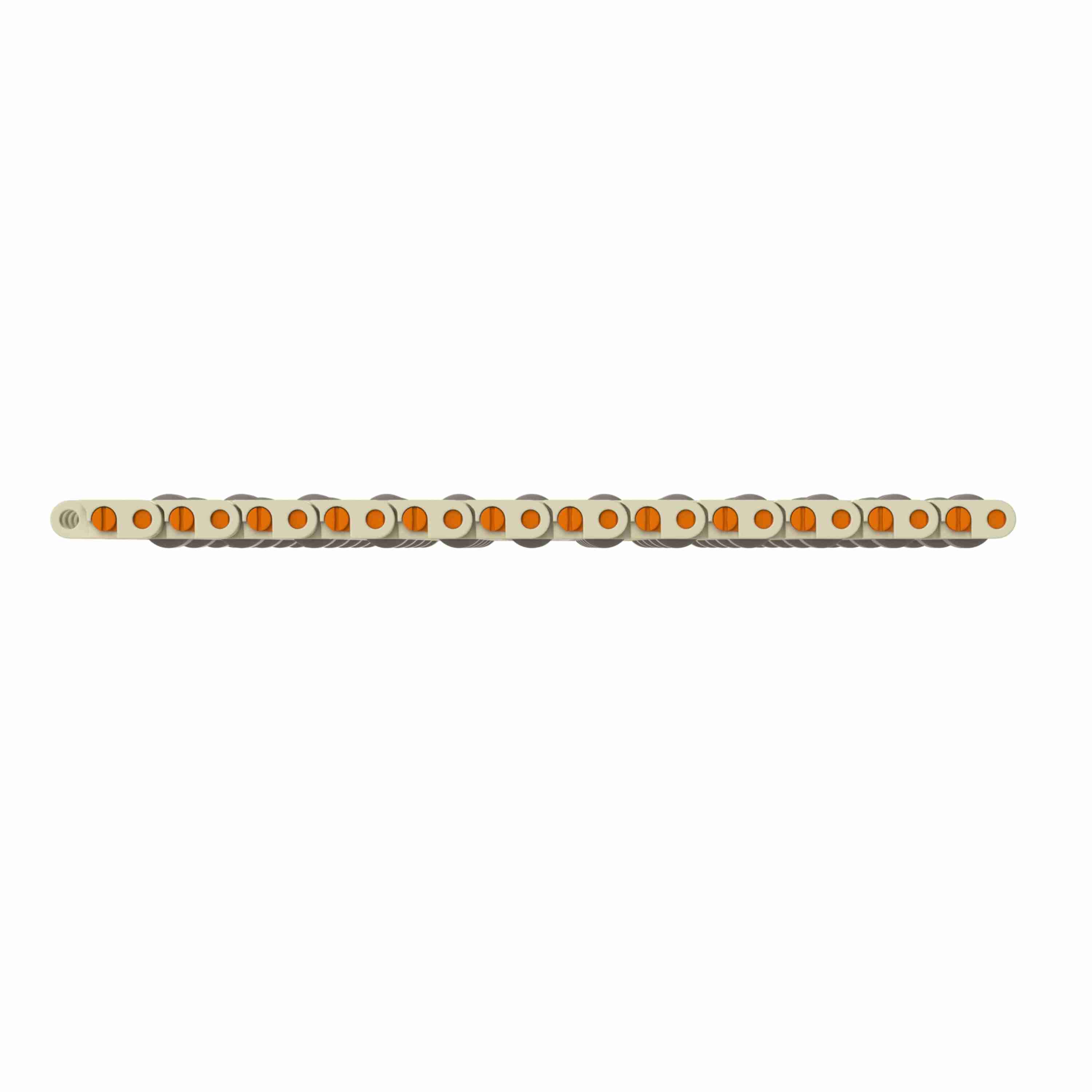

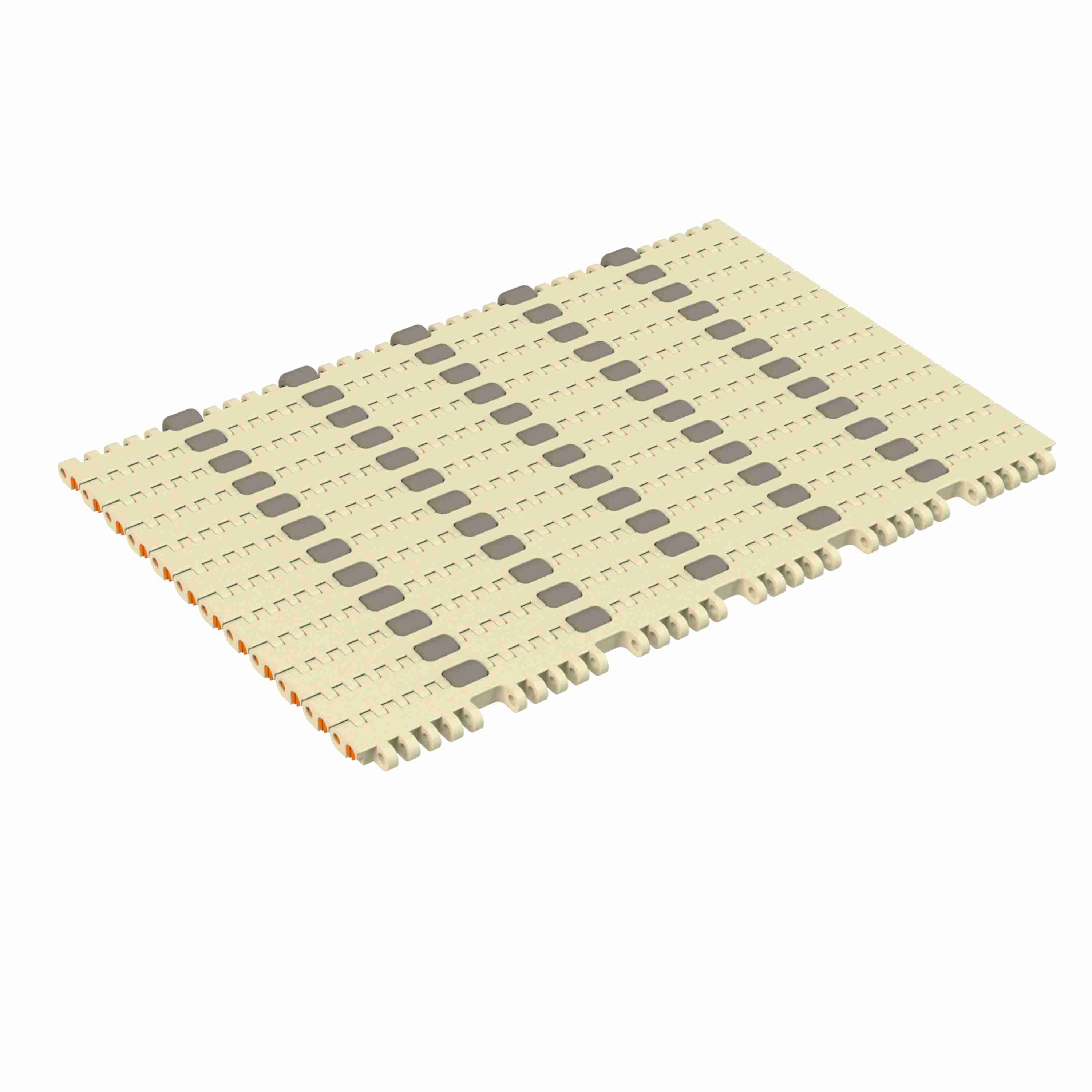

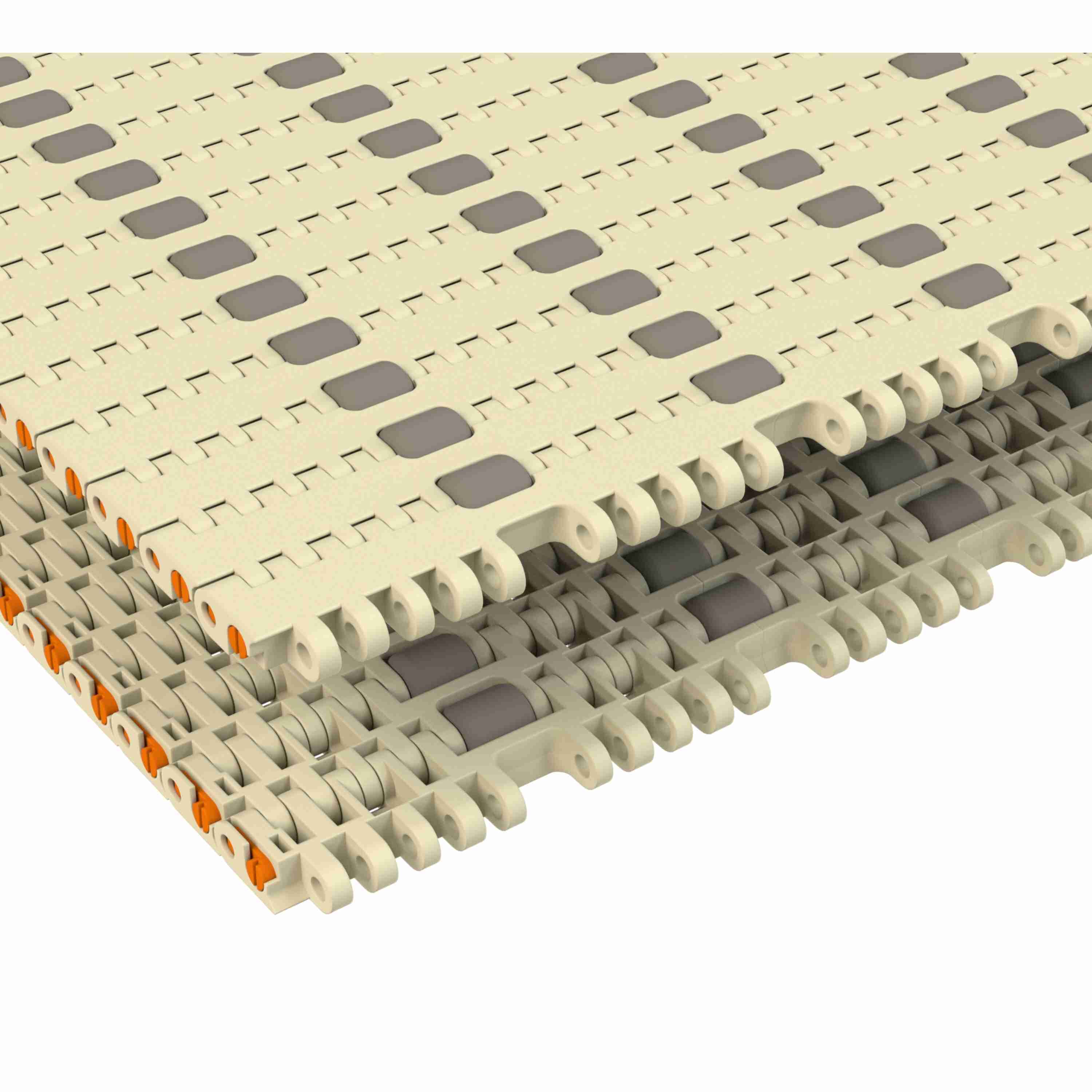

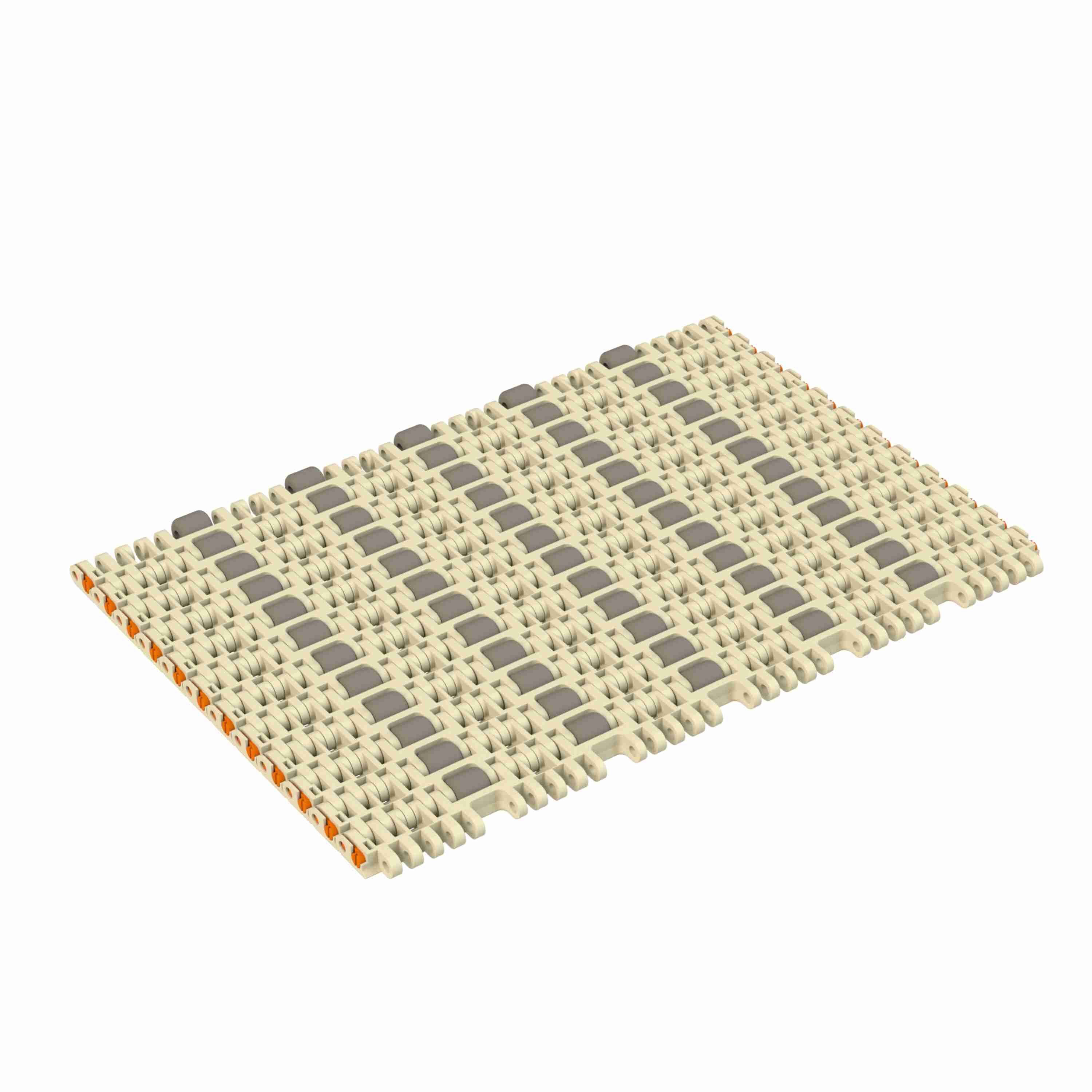

Rexnord 7743 Straight Running Low Backline Pressure, Material: Beige High Temperature, Width: 15in, Pitch: 1in - 10324691
Part #:10324691
Catalog #:10324691
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 1,170 lb/ft | Rod/Pin Material: | Polypropylene |
| Belt Thickness (mm): | 15.6 mm | Chain Material Description: | Beige High Temperature |
| Chain Strength (N/m): | 17,070 N·m | Product Type: | Straight Running |
| Belt Thickness (in): | 0.6125 in | Chain Number: | 7743 |
| Product Group: | Modular Plastic Belts | Chain Material: | HT |
| Product Line: | Plastic Modular Chain and Belt | Series: | MatTop 7700 Series Chain |
| Chain Width (in): | 15 in | Straight or Side-Flex: | Straight Running |
| Open Area (%): | 3 % | Chain Width (mm): | 381 mm |
| Surface Type: | Low Backline Pressure | Chain Width Measurement System: | Imperial |
| Chain Pitch (mm): | 25.4 mm | Chain Pitch (in): | 1 in |
General Specifications
| Weight: | 0.24 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
