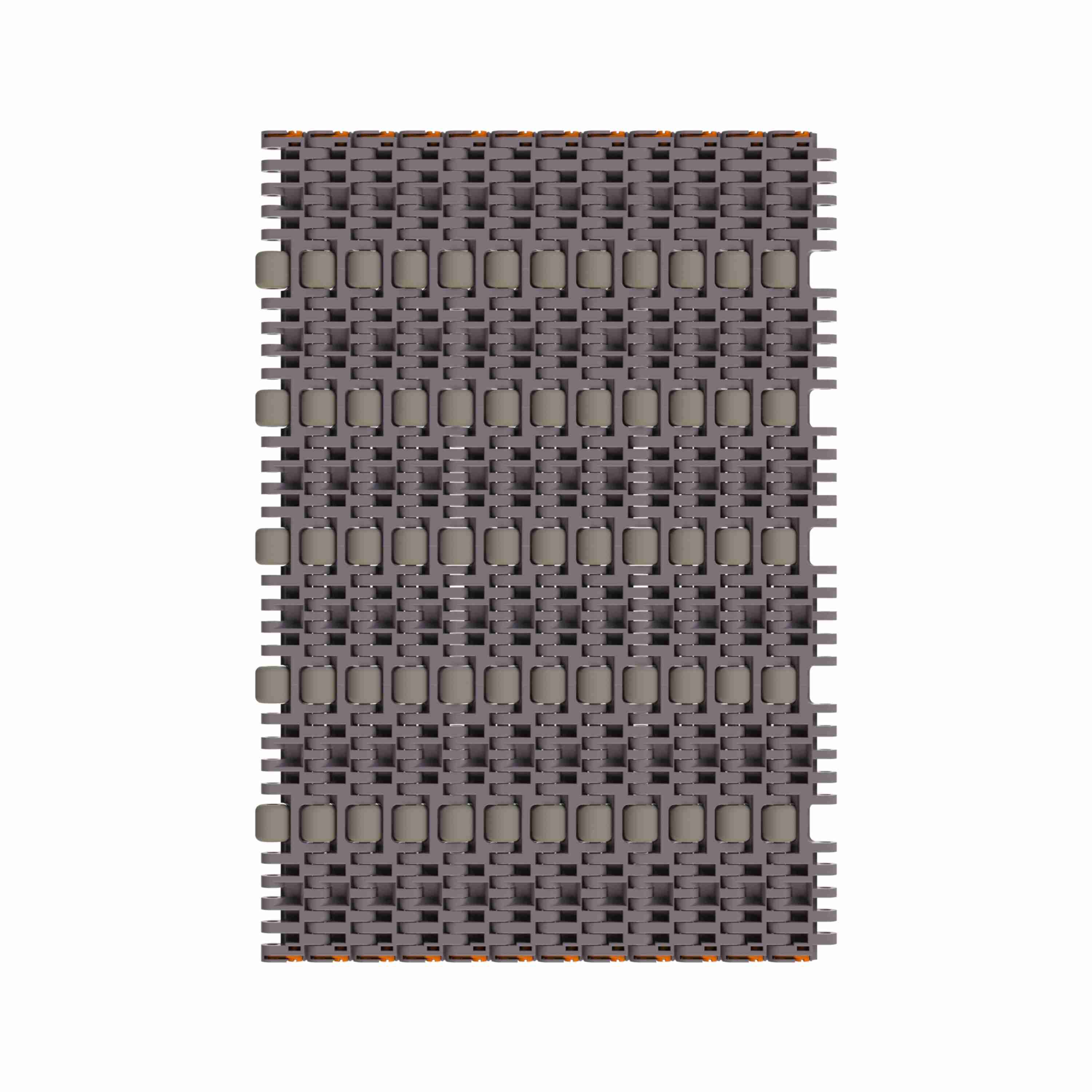

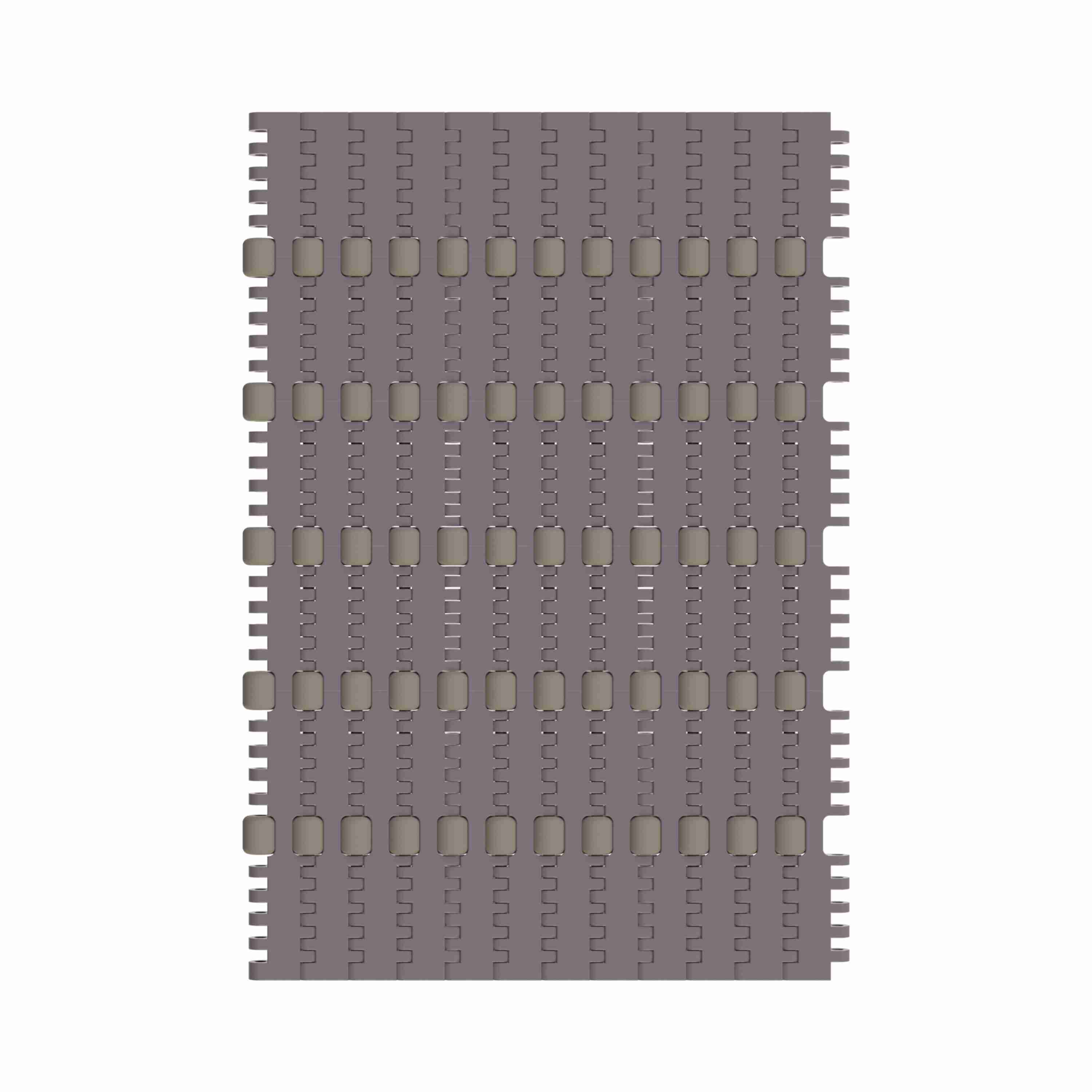

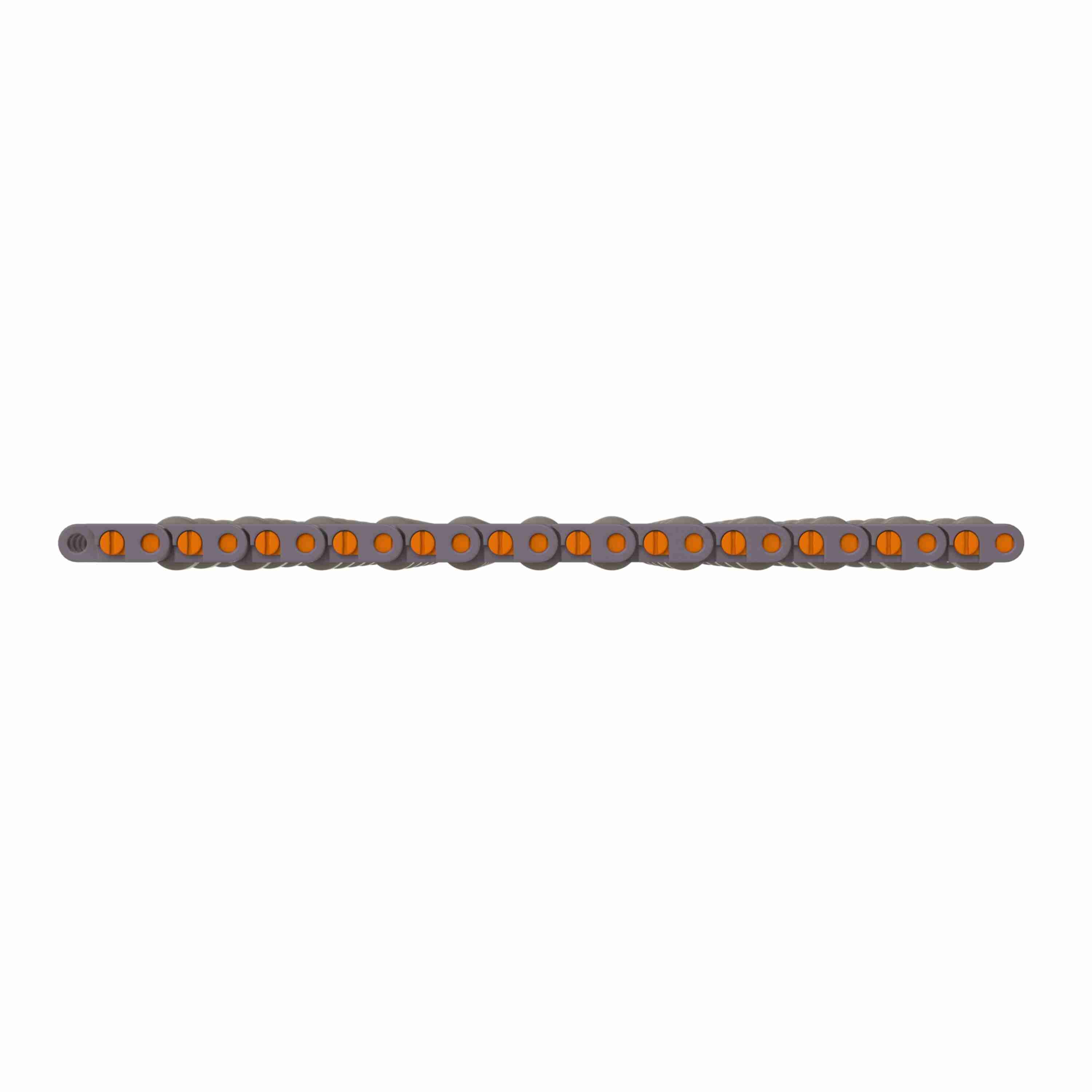

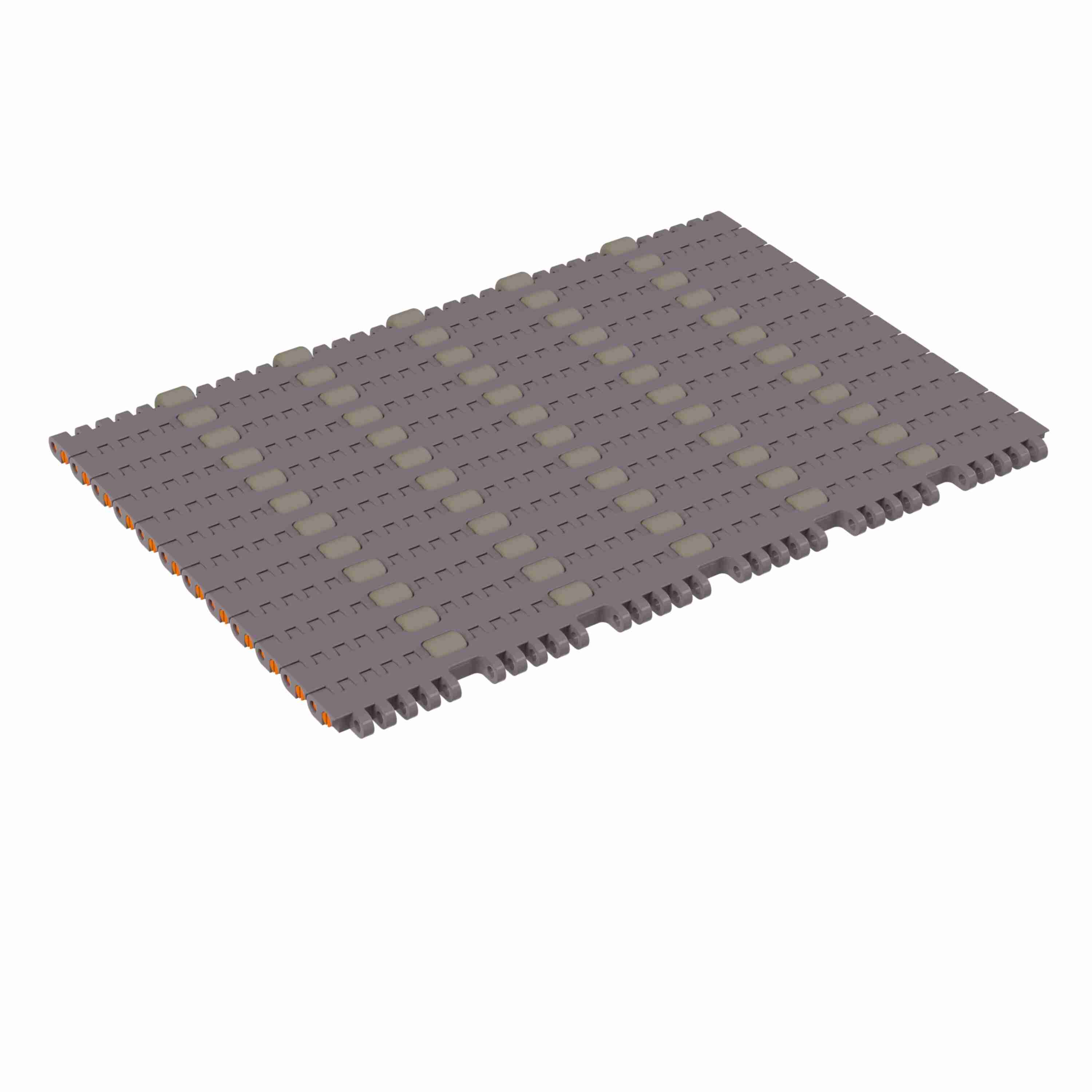

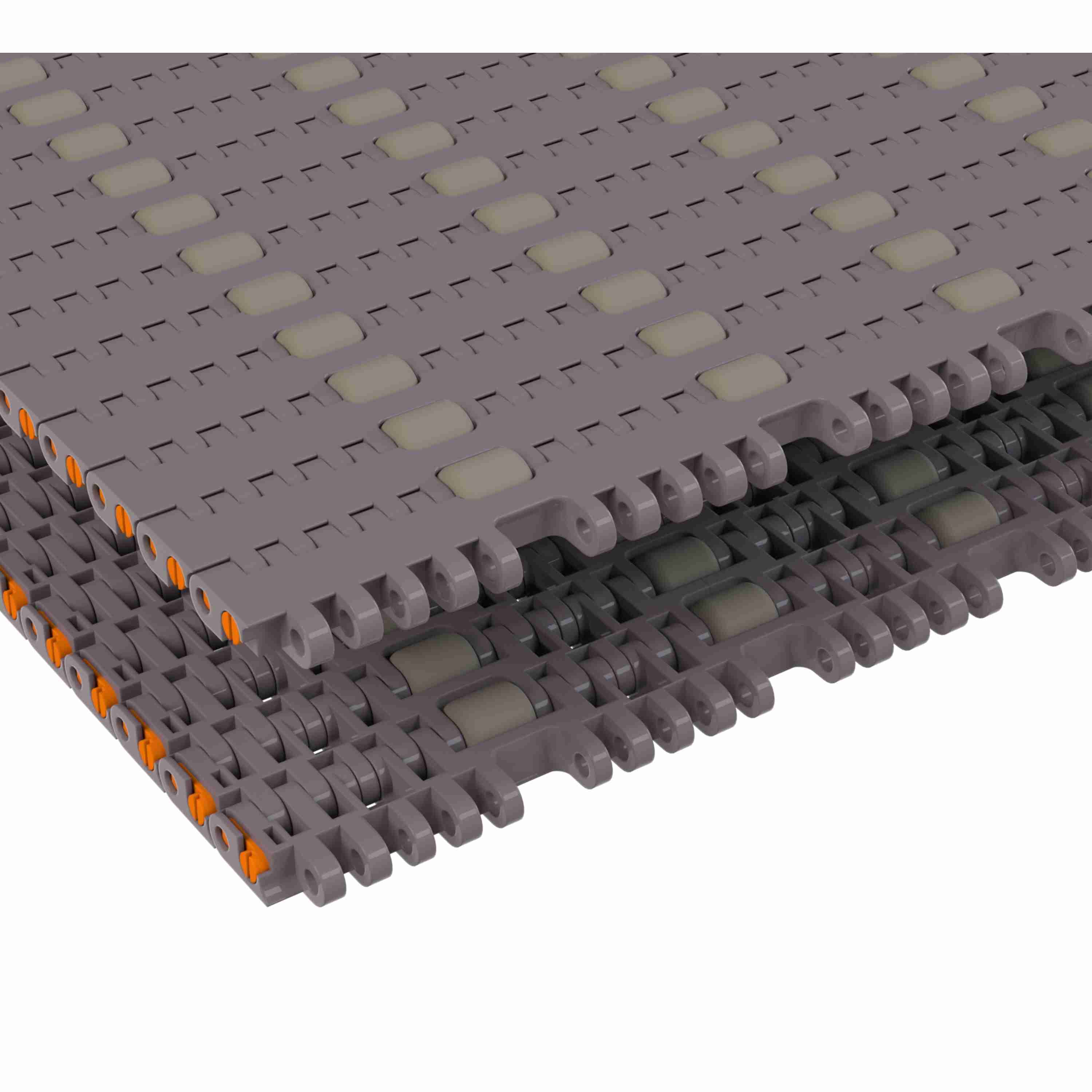

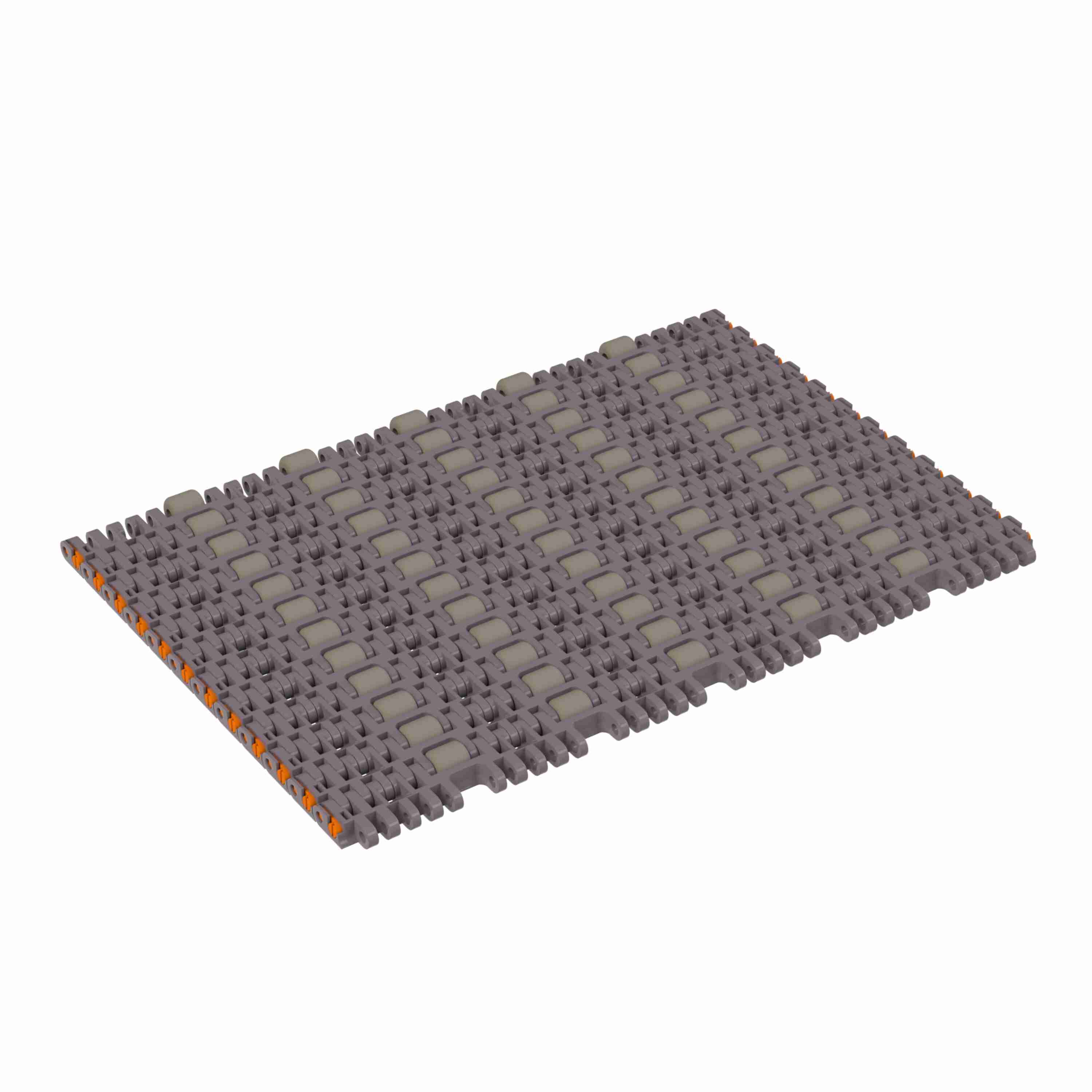

Rexnord 7743 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 12in, Pitch: 1in - 10324681
Part #:10324681
Catalog #:10324681
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (mm): | 25.4 mm | Straight or Side-Flex: | Straight Running |
| Chain Width (mm): | 304.8 mm | Chain Material Description: | Brown High Performance |
| Chain Width Measurement System: | Imperial | Chain Strength (lb/ft): | 1,800 lb/ft |
| Chain Pitch (in): | 1 in | Series: | MatTop 7700 Series Chain |
| Product Type: | Straight Running | Chain Width (in): | 12 in |
| Belt Thickness (mm): | 15.6 mm | Open Area (%): | 3 % |
| Rod/Pin Material: | Polyester | Product Line: | Plastic Modular Chain and Belt |
| Chain Number: | 7743 | Product Group: | Modular Plastic Belts |
| Surface Type: | Low Backline Pressure | Belt Thickness (in): | 0.6125 in |
| Chain Material: | HP | Chain Strength (N/m): | 26,262 N·m |
General Specifications
| Weight: | 0.24 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
