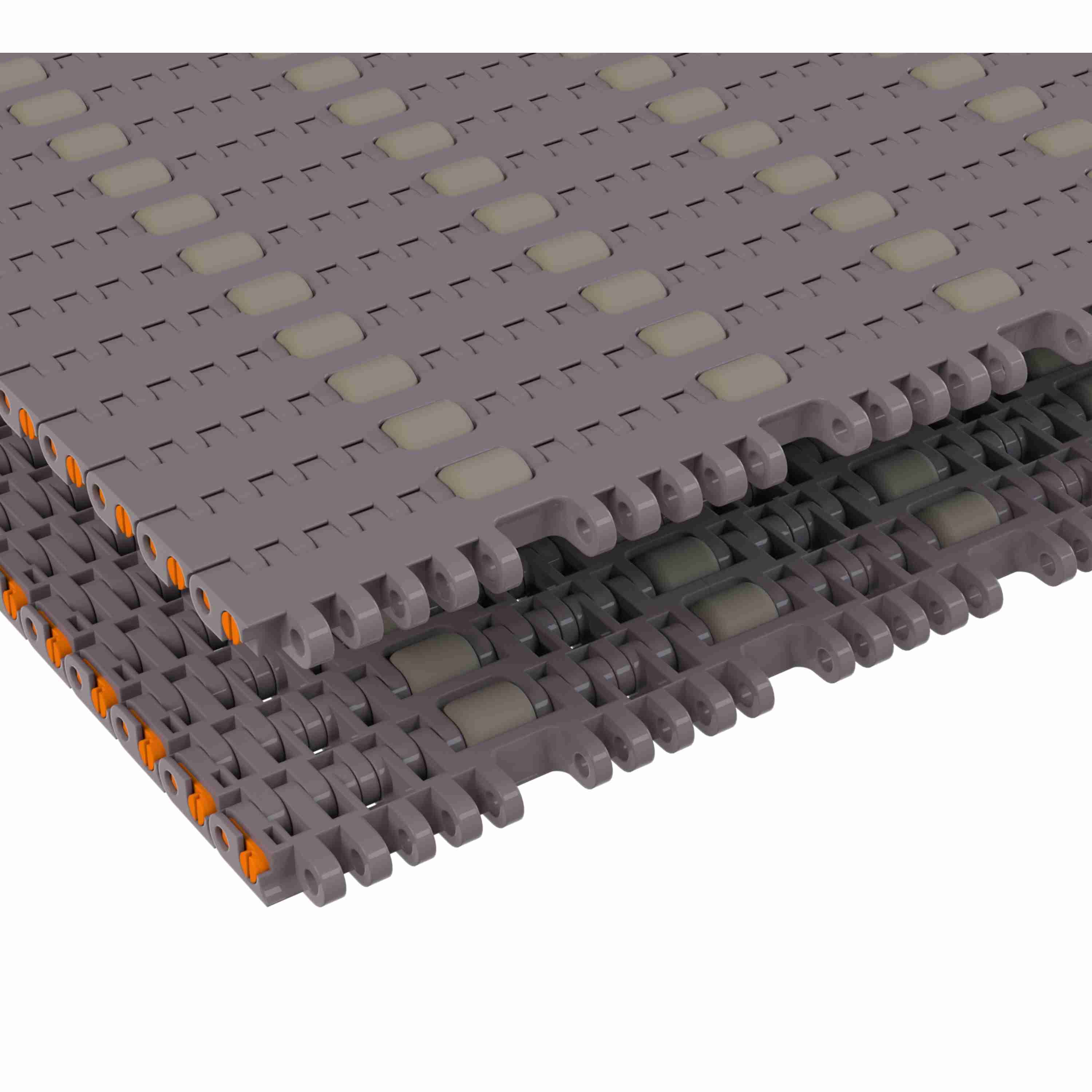

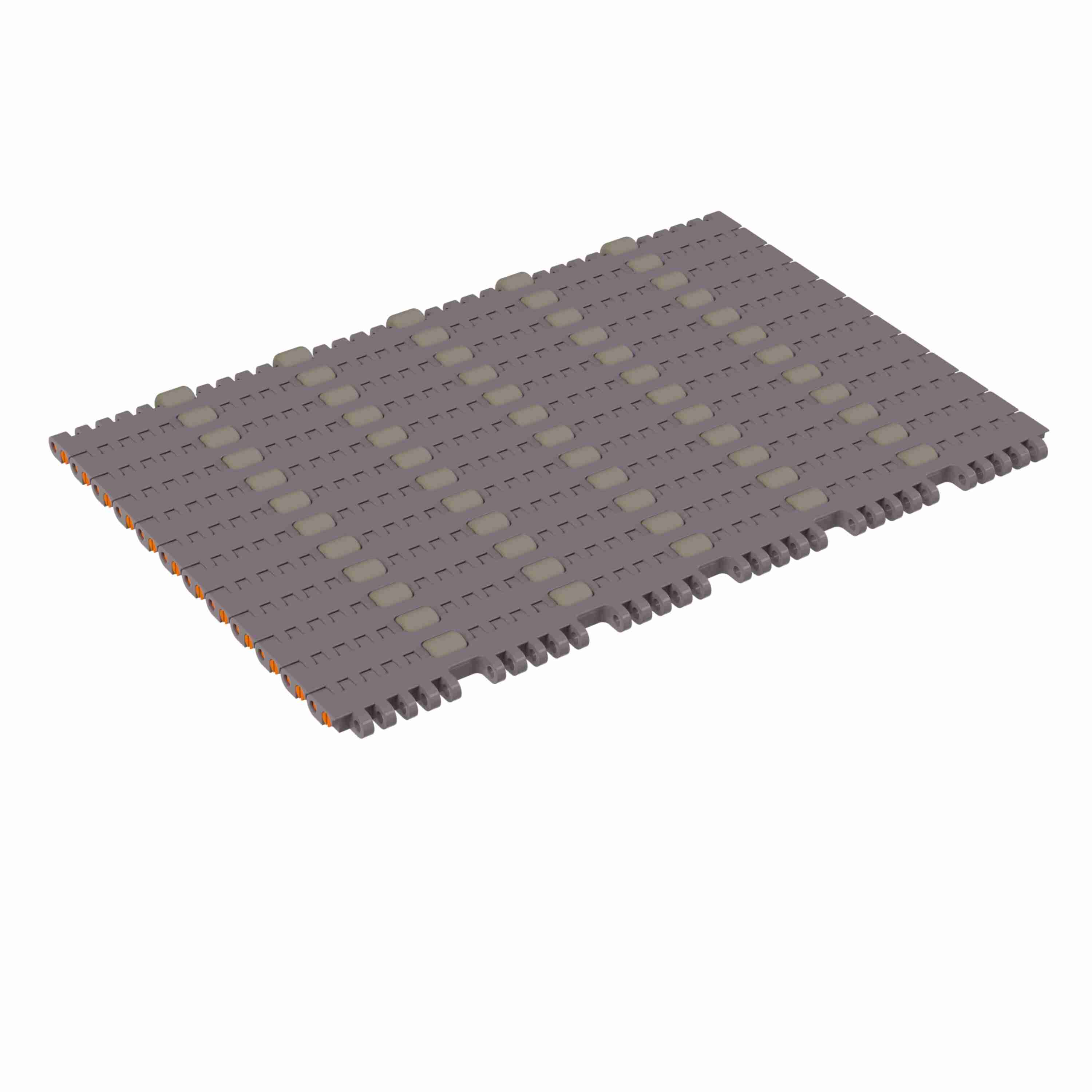

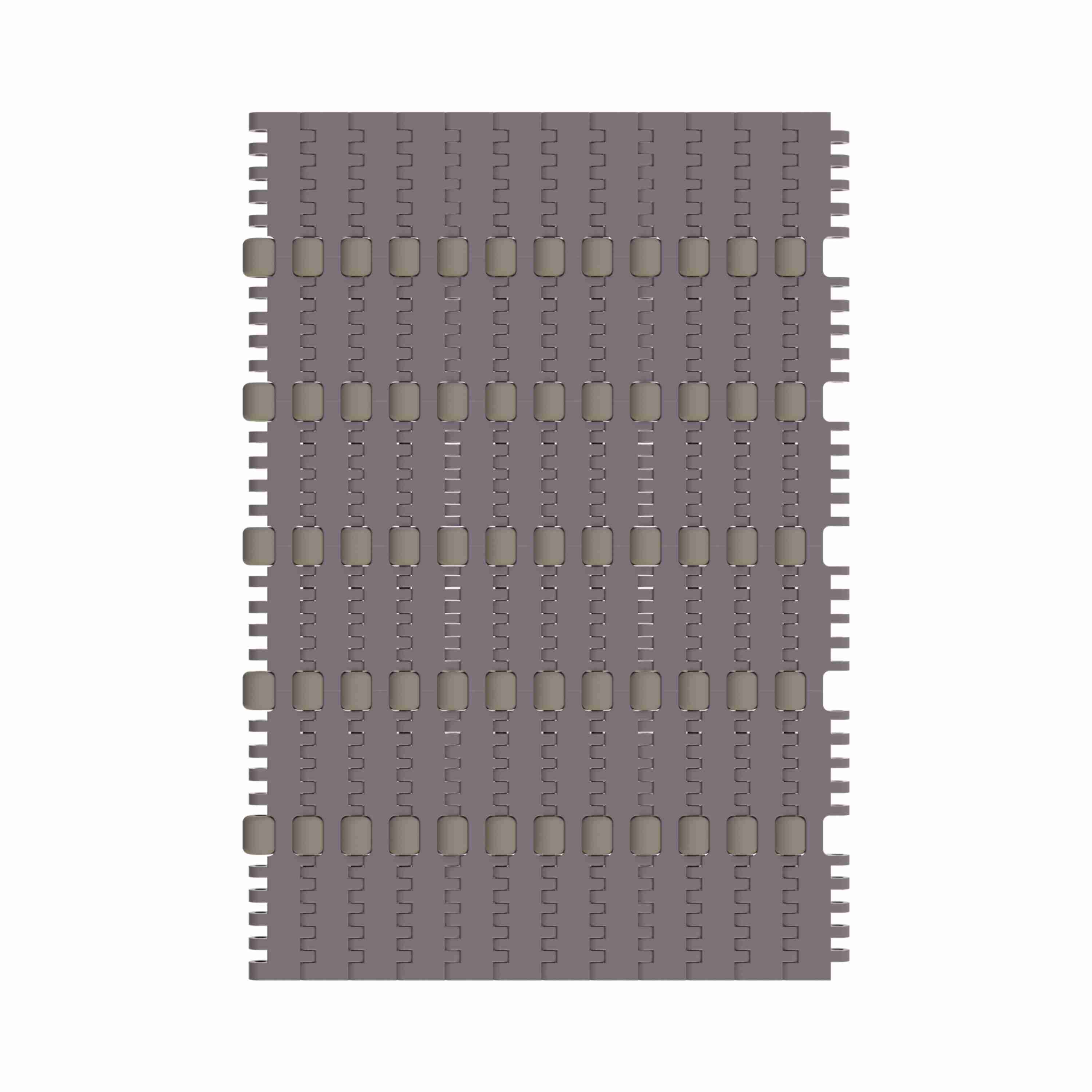

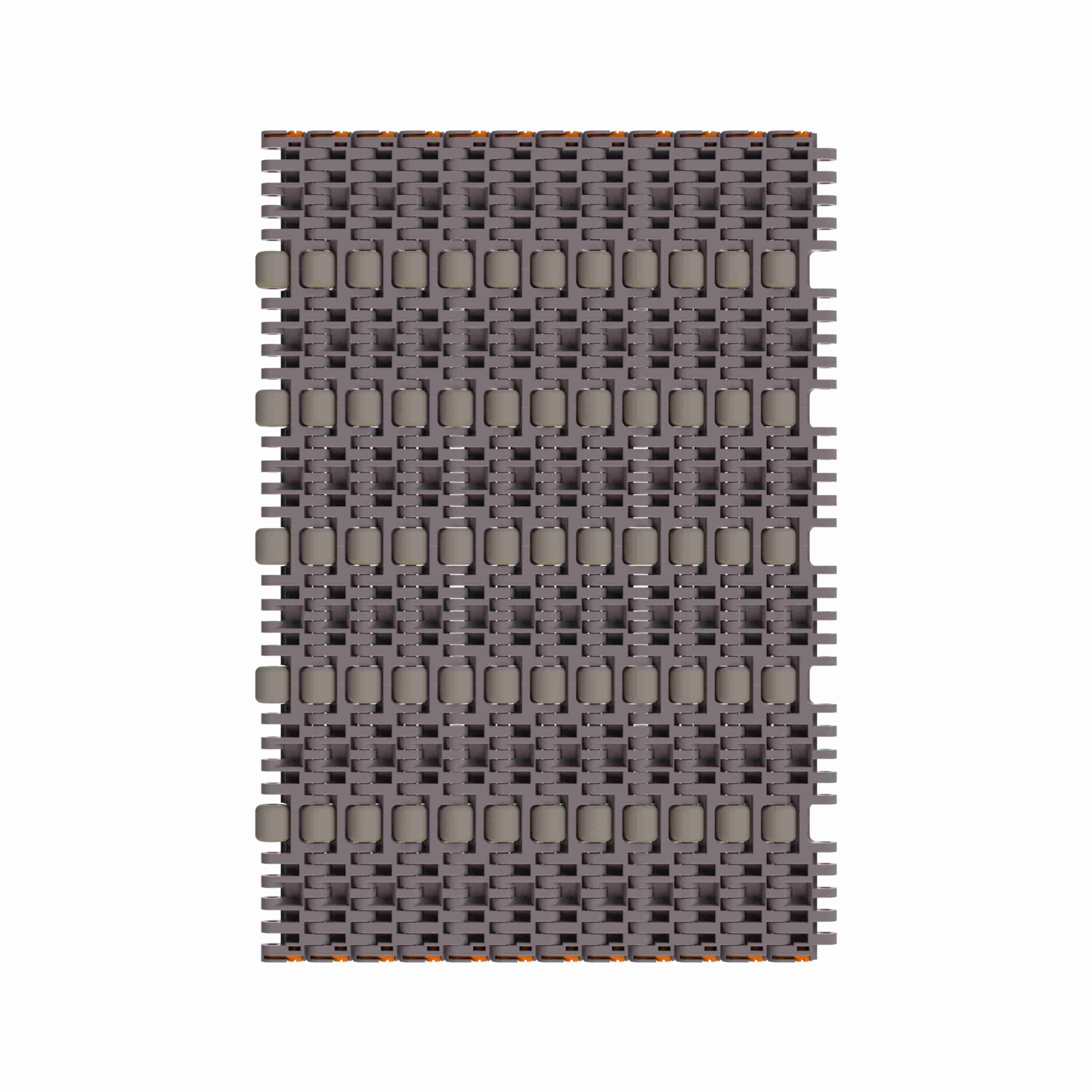

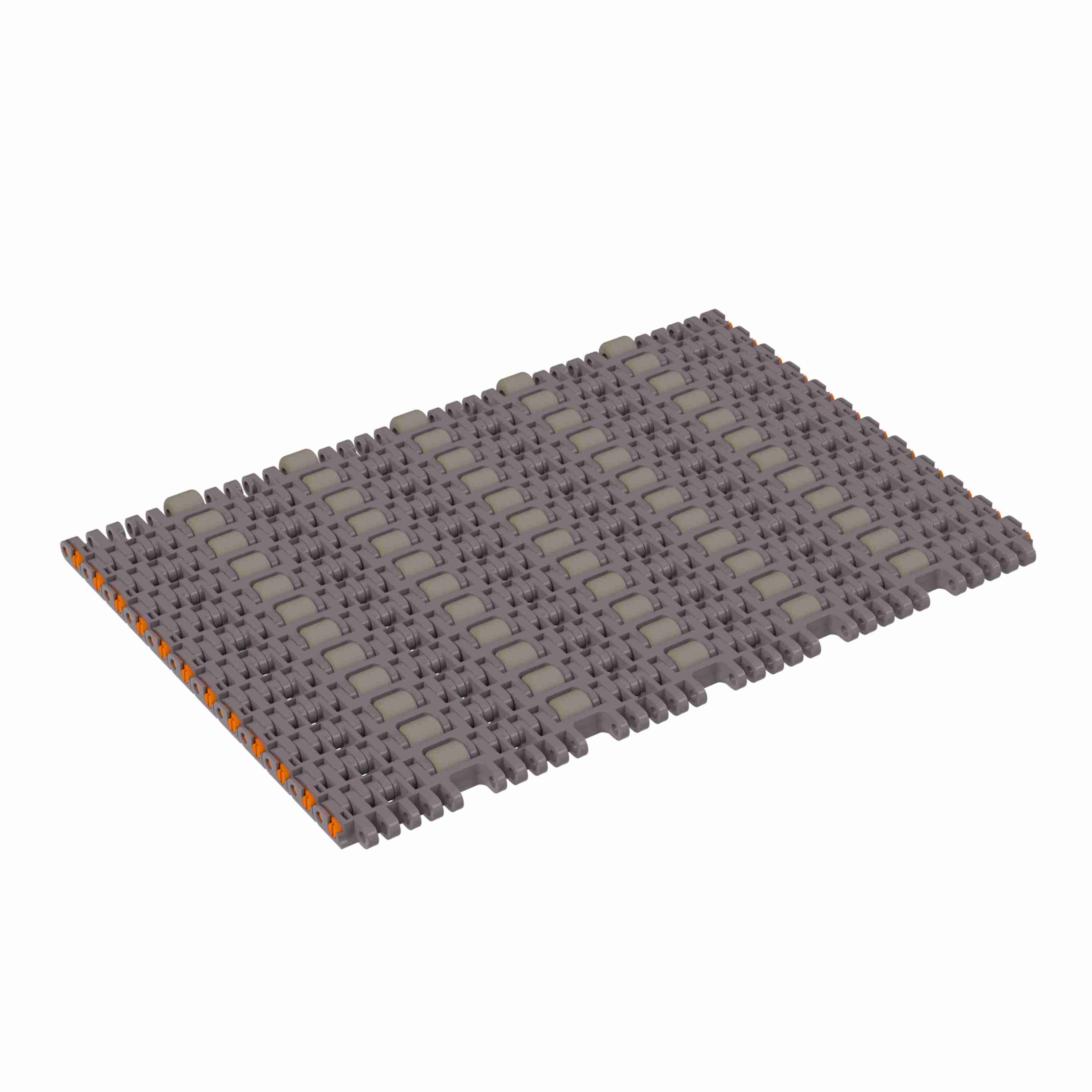

Rexnord 7743 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 18in, Pitch: 1in - 10324683
Part #:10324683
Catalog #:10324683
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | HP | Product Type: | Straight Running |
| Chain Width (in): | 18 in | Belt Thickness (in): | 0.6125 in |
| Series: | MatTop 7700 Series Chain | Open Area (%): | 3 % |
| Chain Material Description: | Brown High Performance | Chain Pitch (mm): | 25.4 mm |
| Belt Thickness (mm): | 15.6 mm | Chain Strength (lb/ft): | 1,800 lb/ft |
| Chain Strength (N/m): | 26,262 N·m | Chain Width (mm): | 457.2 mm |
| Product Line: | Plastic Modular Chain and Belt | Surface Type: | Low Backline Pressure |
| Rod/Pin Material: | Polyester | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Chain Width Measurement System: | Imperial |
| Chain Pitch (in): | 1 in | Chain Number: | 7743 |
General Specifications
| Weight: | 0.37 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
