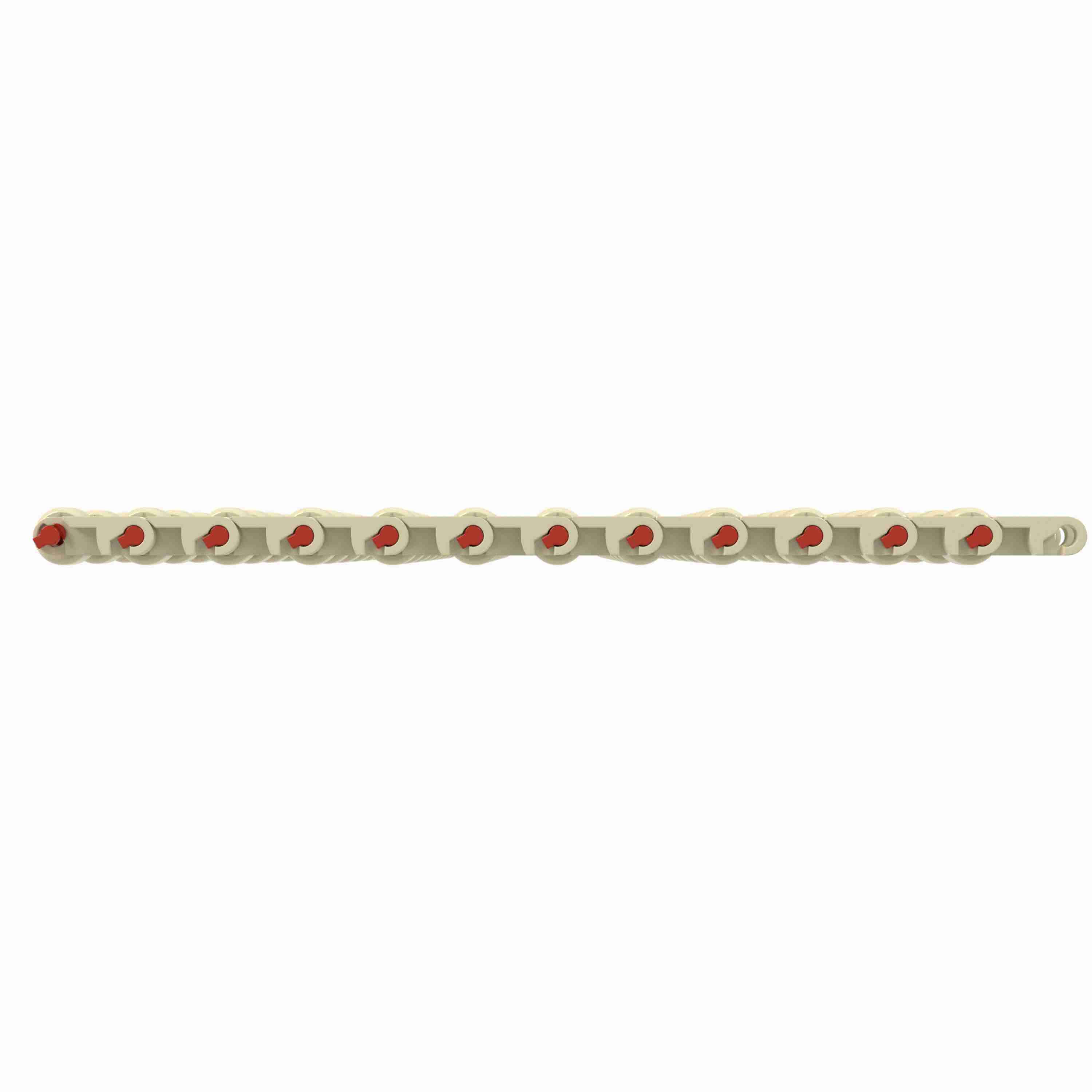

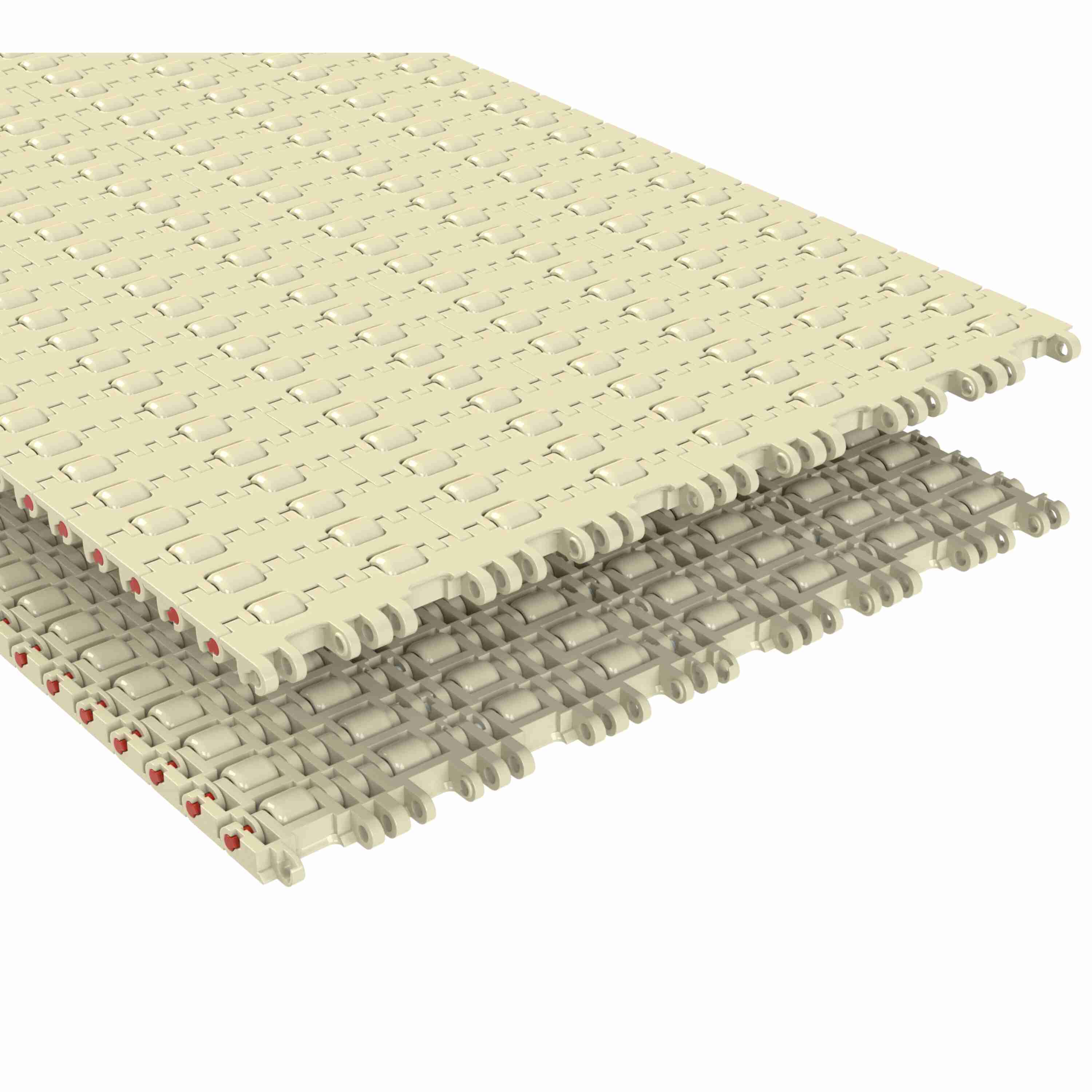

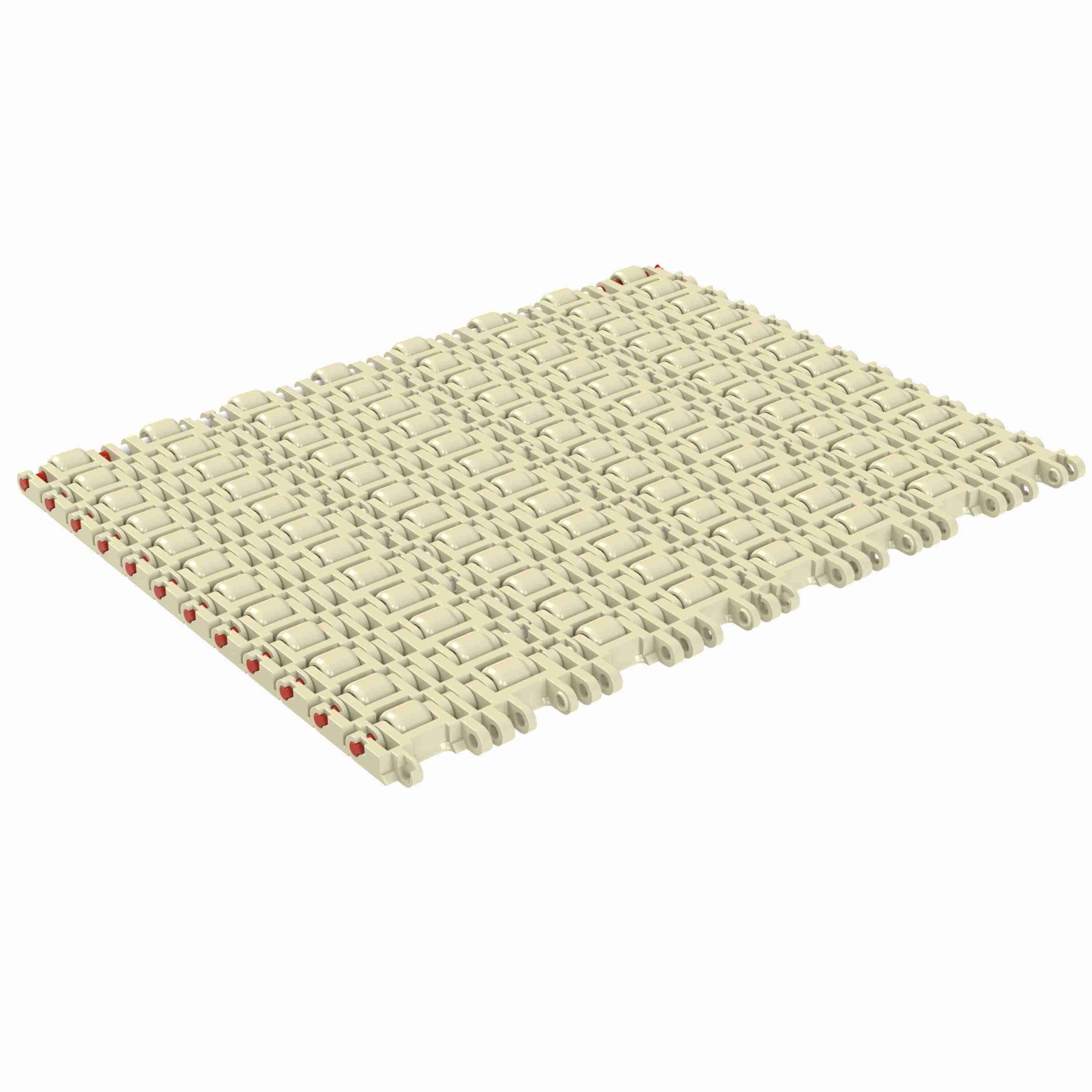

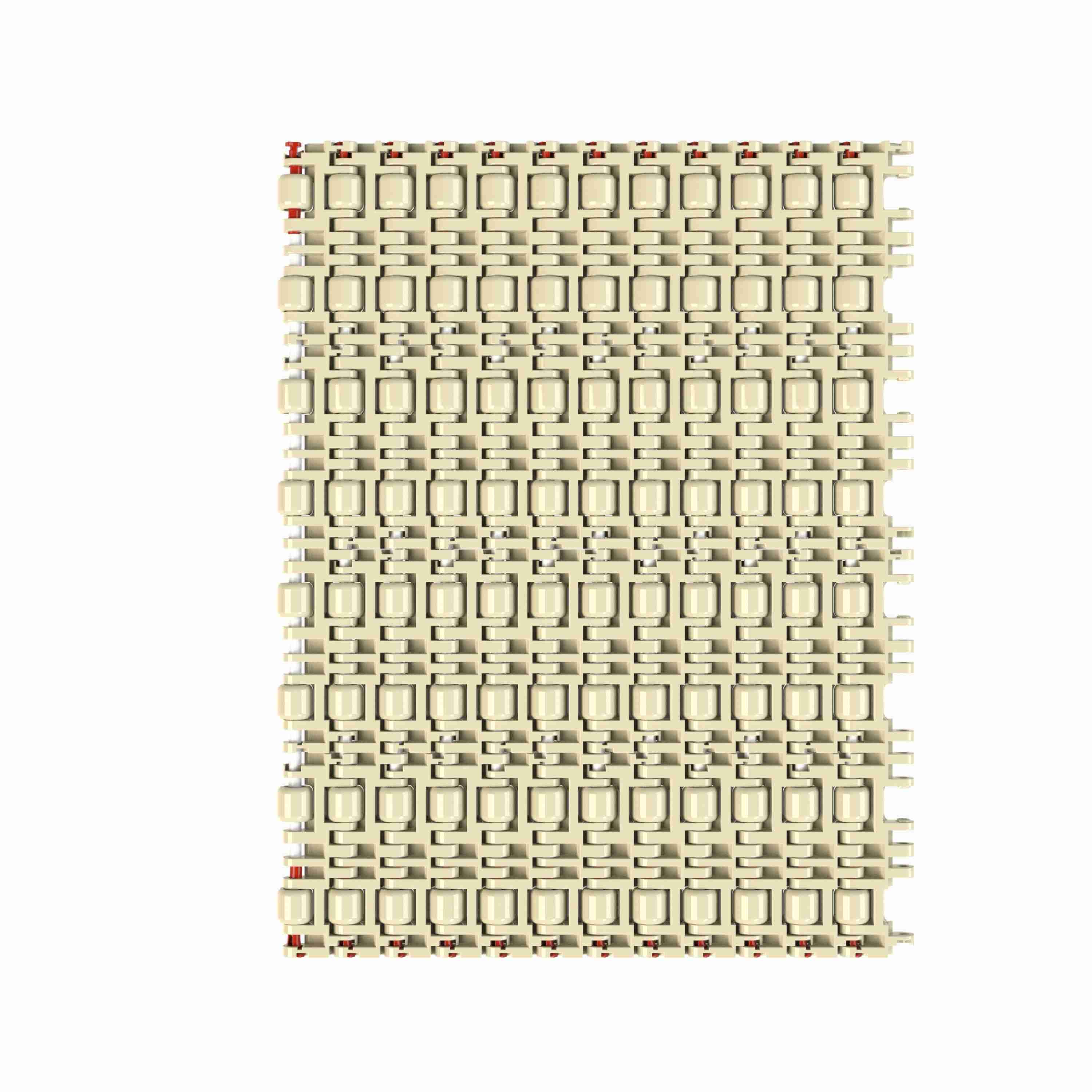

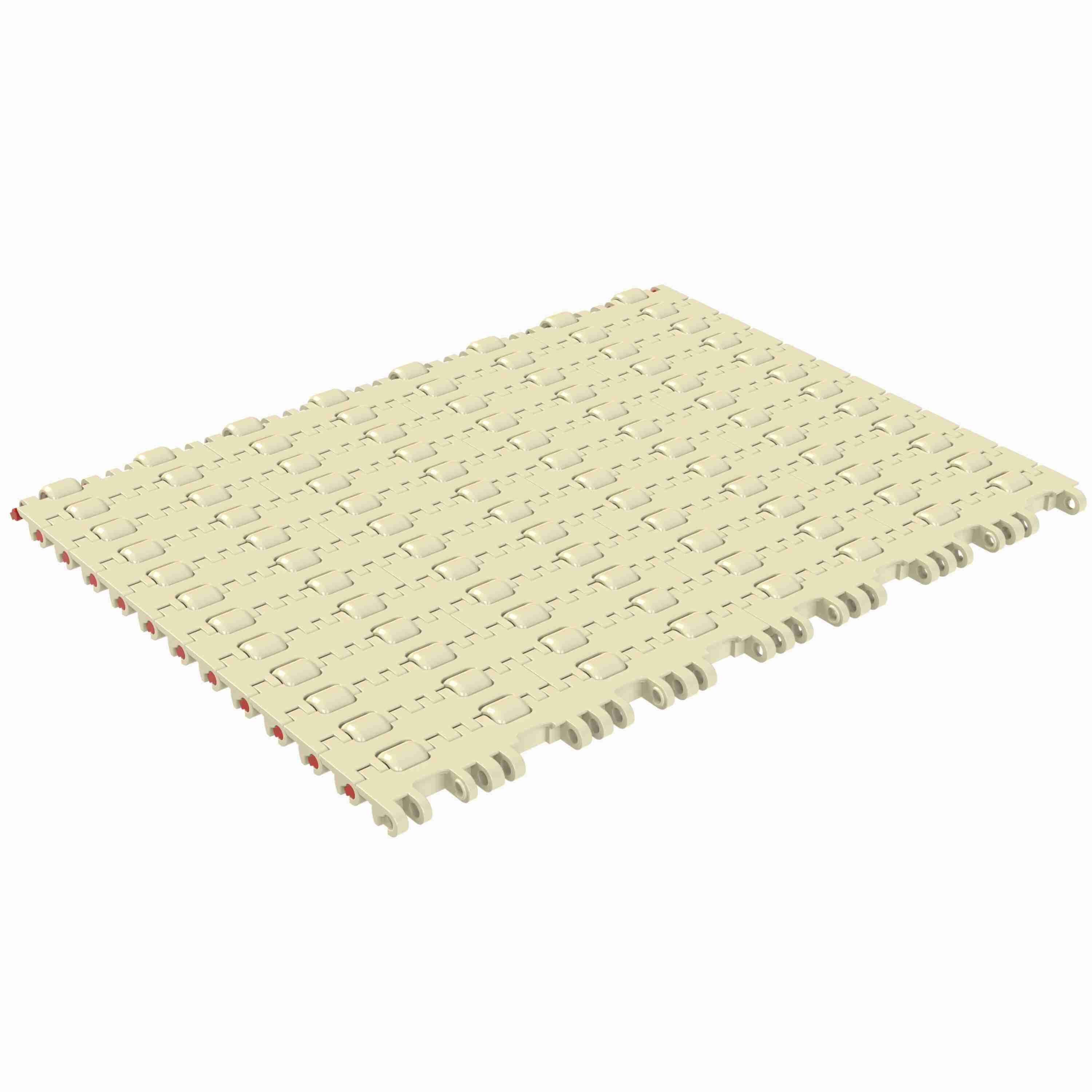

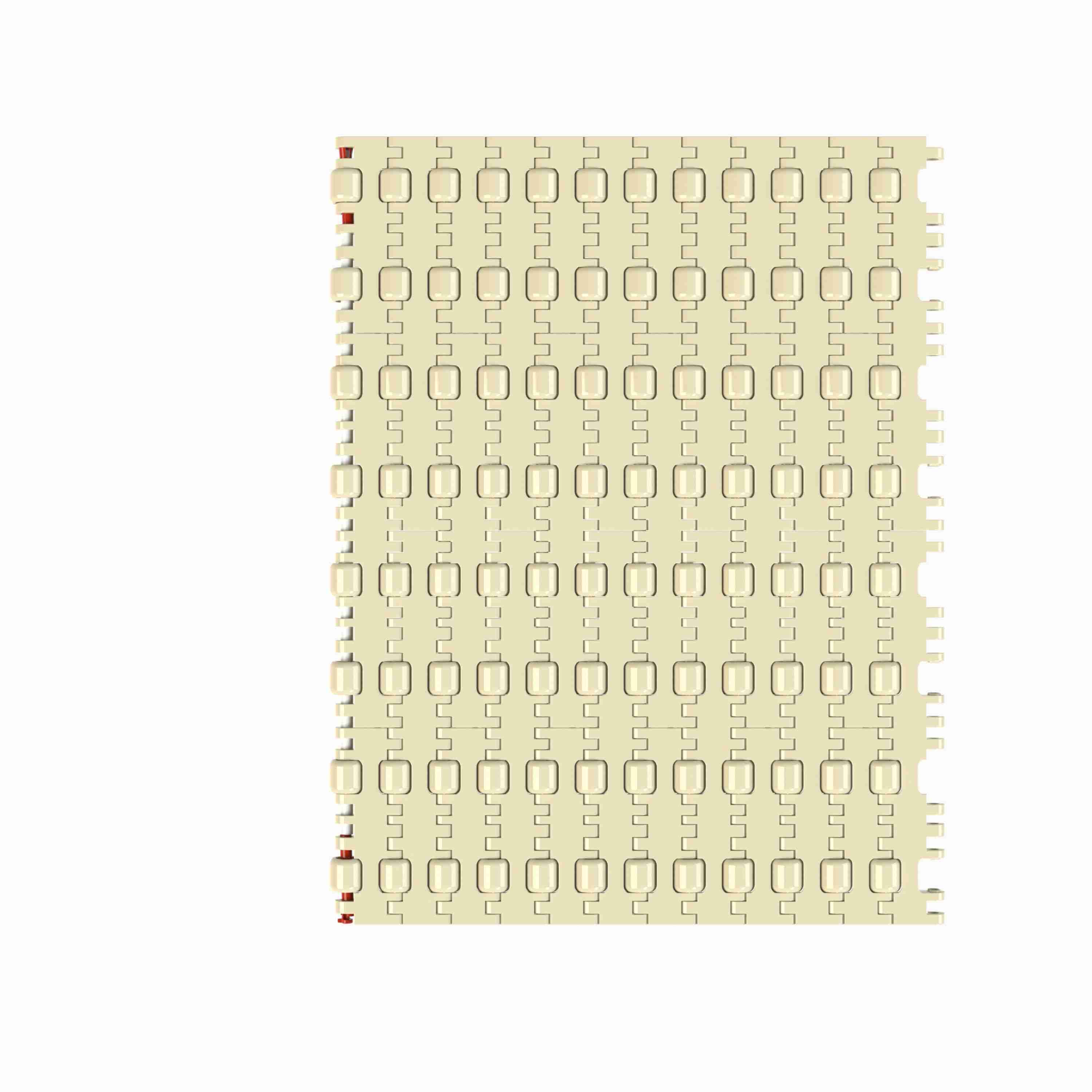

Rexnord 8503 Straight Running Low Backline Pressure, Material: Beige High Temperature, Width: 15in, Pitch: 0.75in - 10324726
Part #:10324726
Catalog #:10324726
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 6 % | Chain Width (mm): | 381 mm |
| Chain Strength (N/m): | 13,131 N·m | Chain Pitch (in): | 0.75 in |
| Belt Thickness (mm): | 10.9 mm | Chain Material: | HT |
| Chain Width (in): | 15 in | Rod/Pin Material: | Polyester |
| Chain Pitch (mm): | 19.1 mm | Product Line: | Plastic Modular Chain and Belt |
| Series: | MatTop 8500 Series Chain | Chain Material Description: | Beige High Temperature |
| Product Group: | Modular Plastic Belts | Surface Type: | Low Backline Pressure |
| Product Type: | Straight Running | Straight or Side-Flex: | Straight Running |
| Chain Width Measurement System: | Imperial | Chain Strength (lb/ft): | 900 lb/ft |
| Belt Thickness (in): | 0.43 in | Chain Number: | 8503 |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
