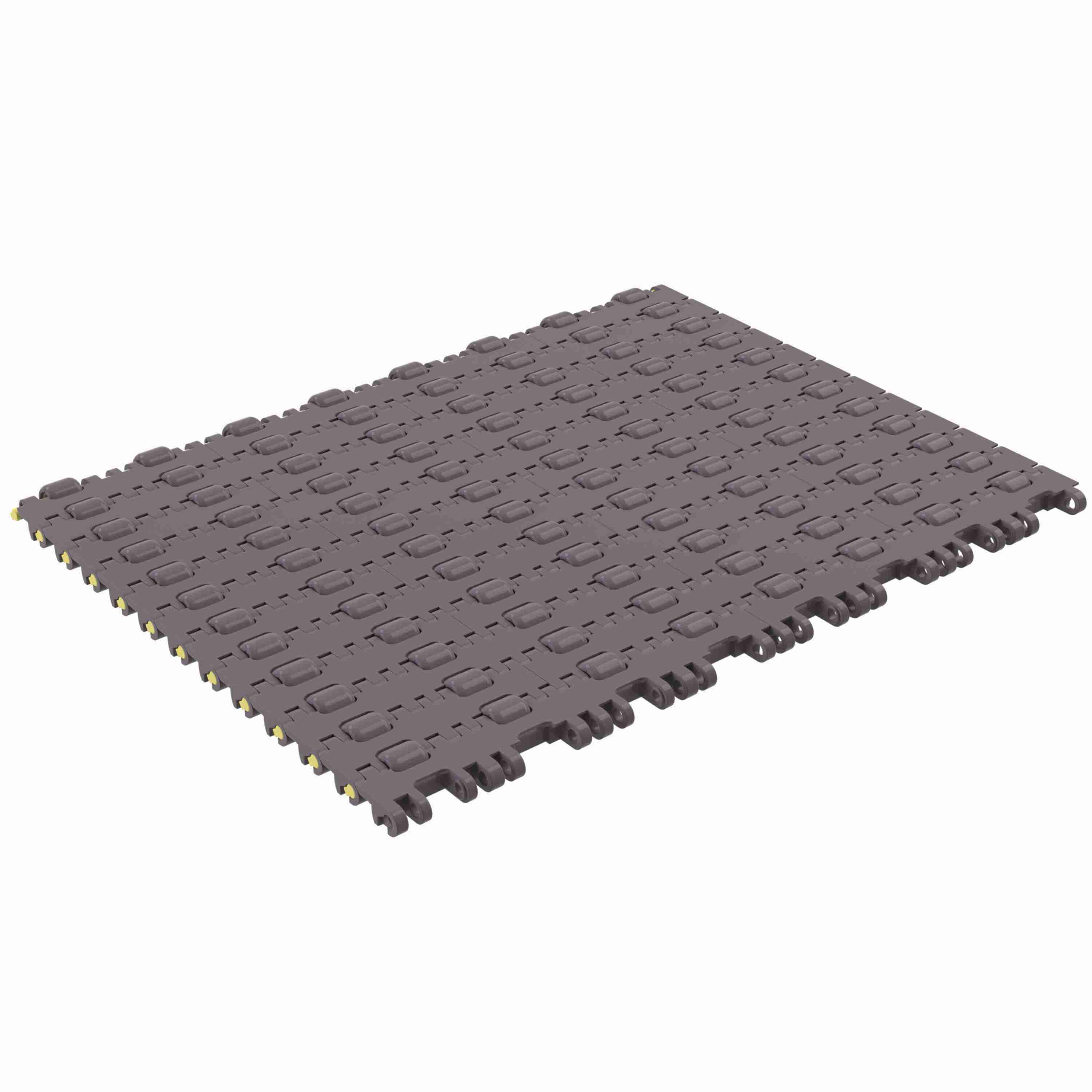

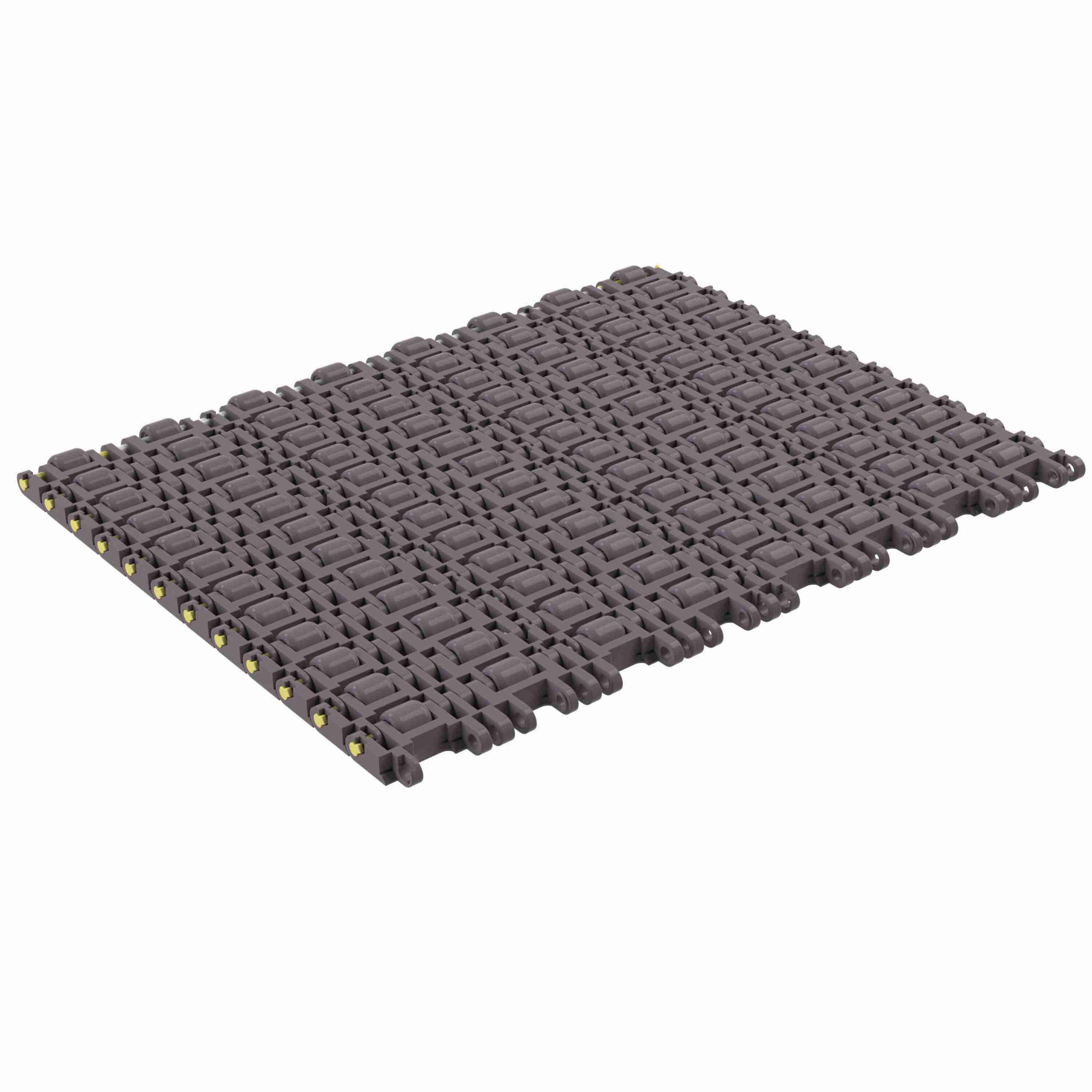

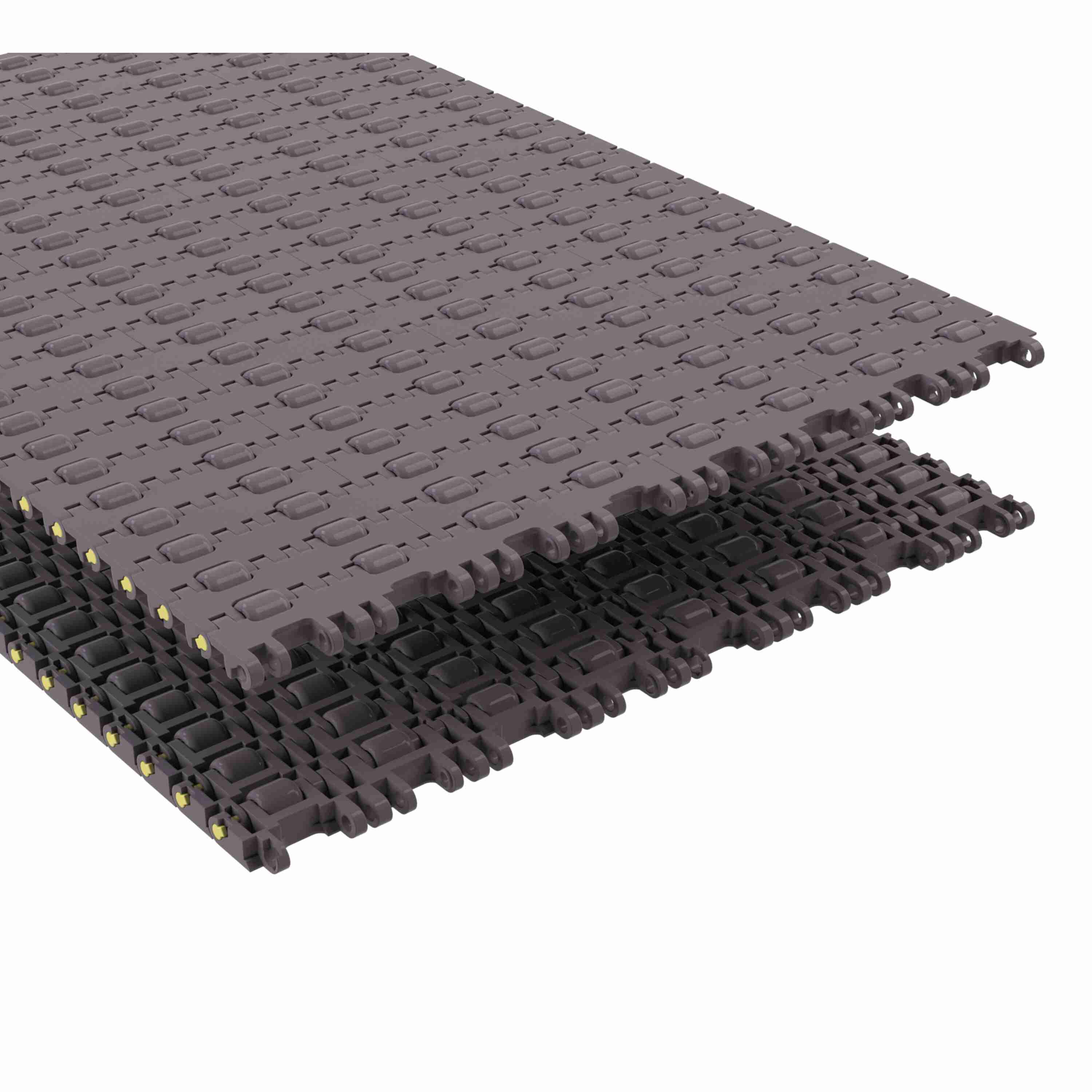

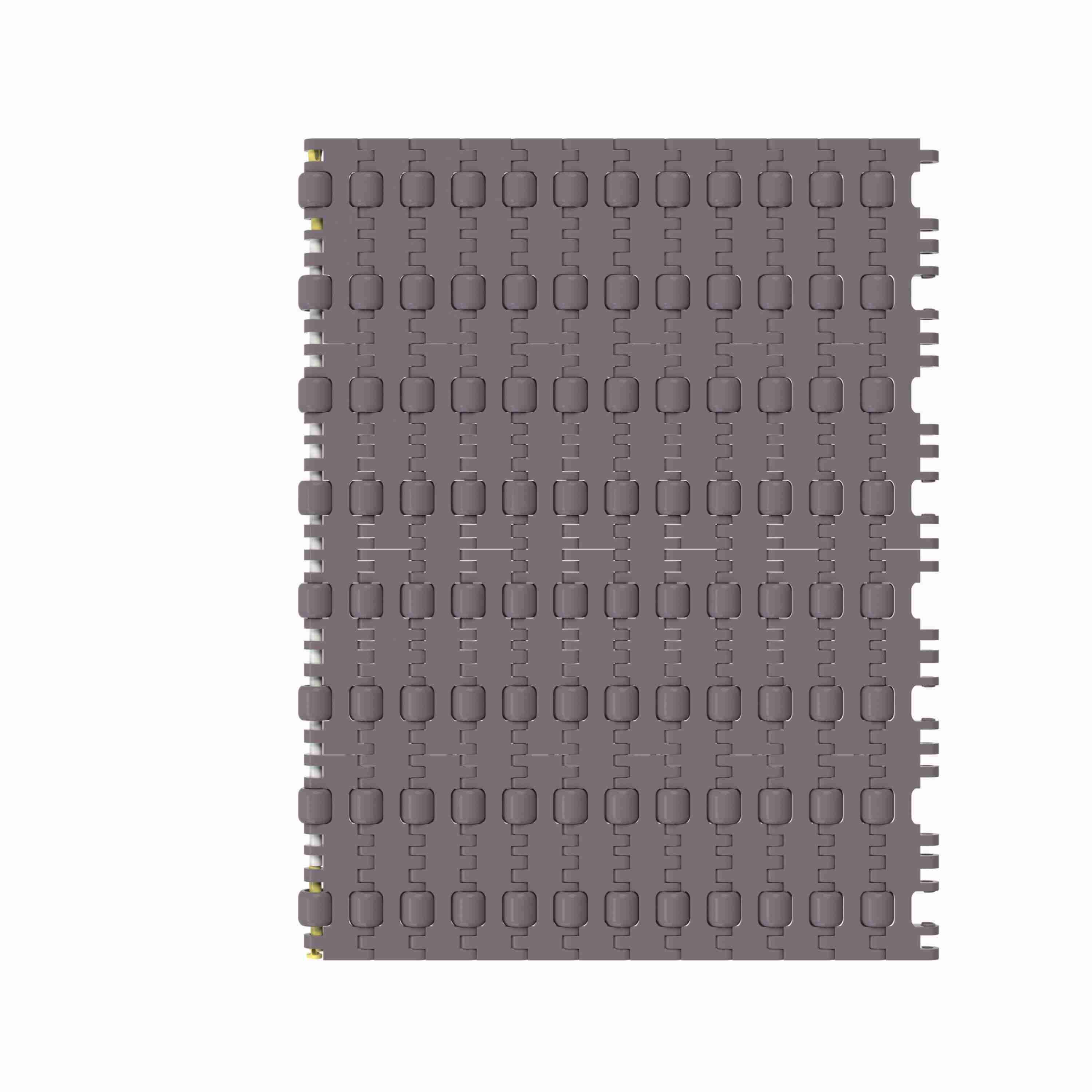

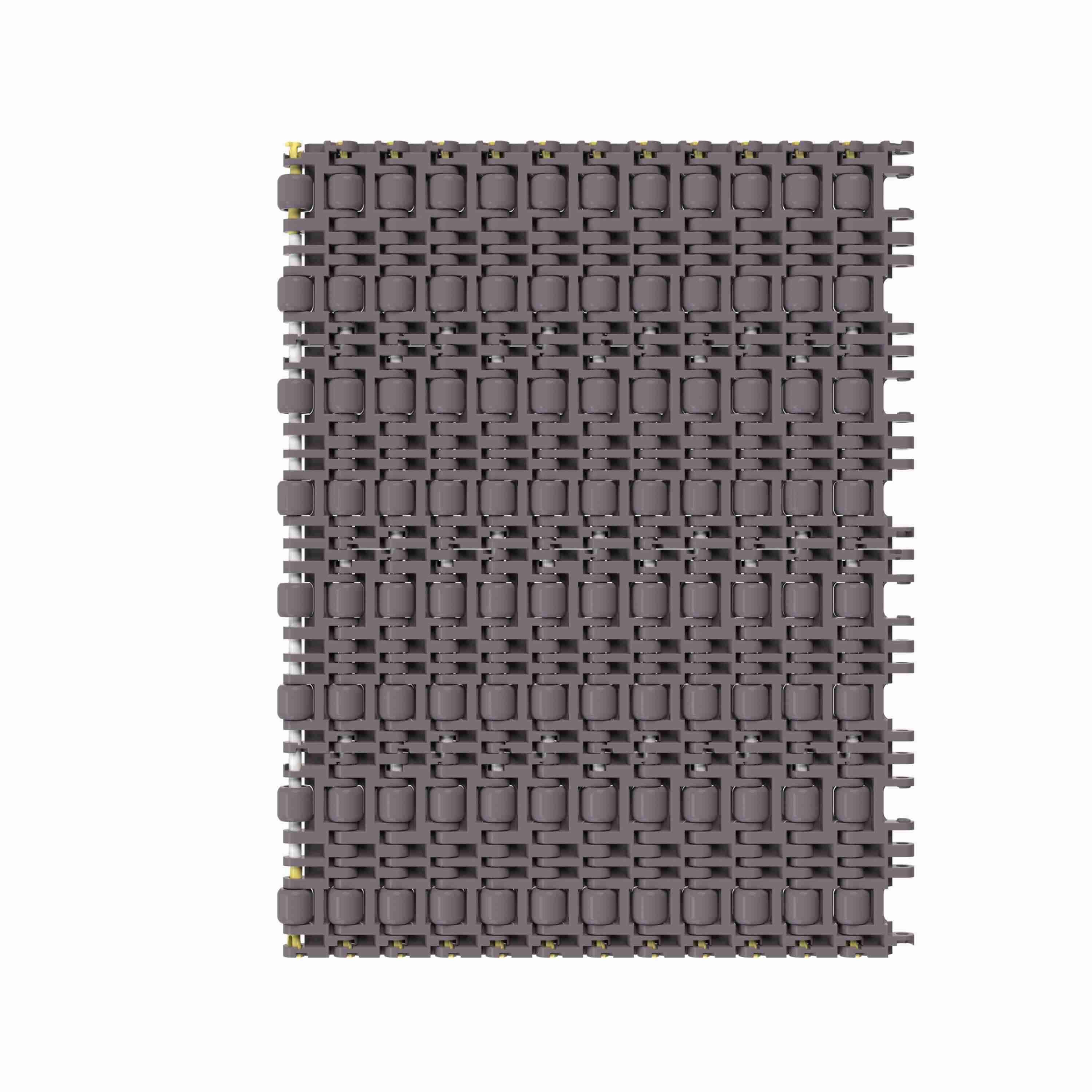

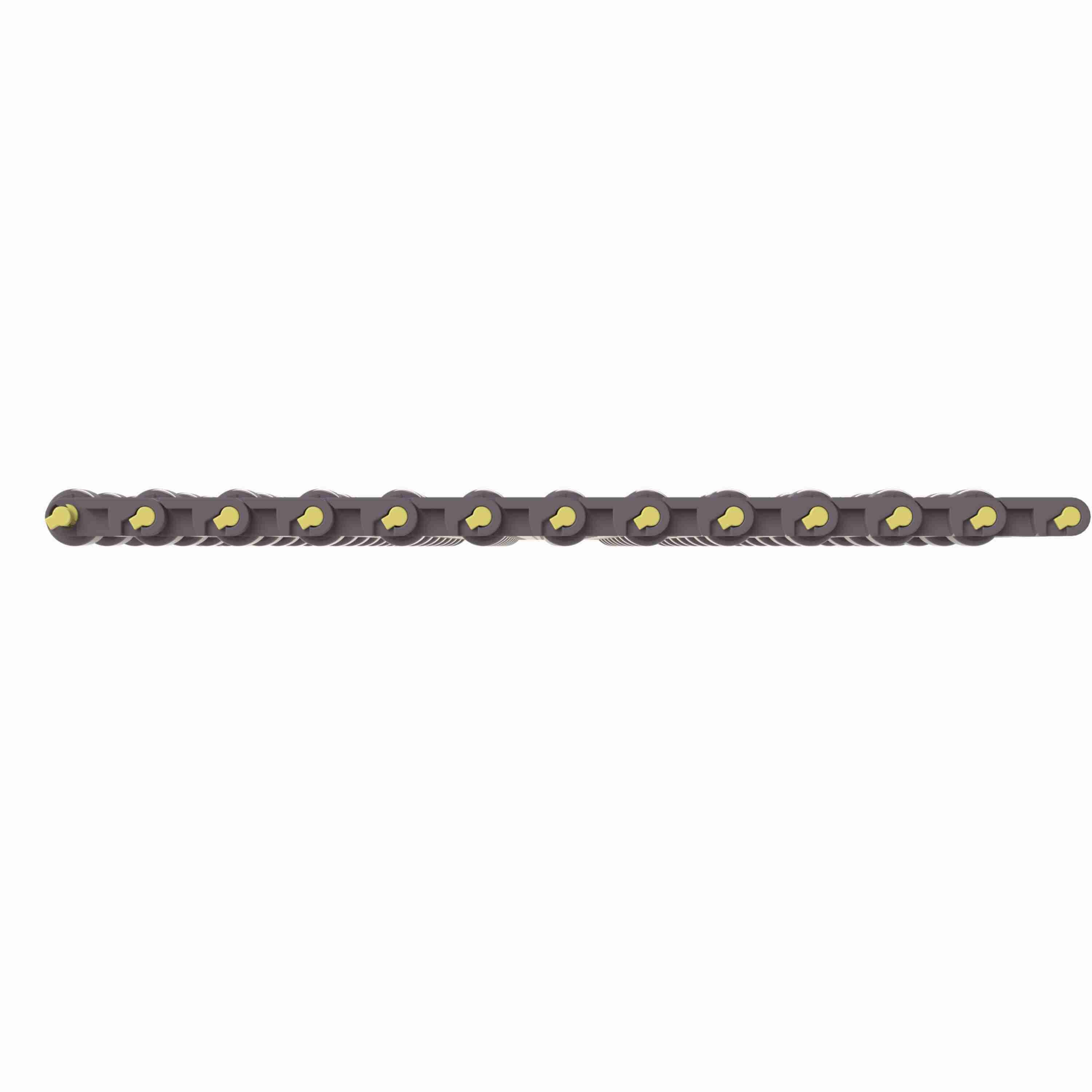

Rexnord 8503 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 12in, Pitch: 0.75in - 81445284
Part #:10028971
Catalog #:81445284
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (mm): | 19.1 mm | Surface Type: | Low Backline Pressure |
| Series: | MatTop 8500 Series Chain | Belt Thickness (in): | 0.43 in |
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 304.8 mm |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 0.75 in |
| Chain Material: | HP | Belt Thickness (mm): | 10.9 mm |
| Chain Material Description: | Brown High Performance | Straight or Side-Flex: | Straight Running |
| Chain Width Measurement System: | Imperial | Chain Strength (N/m): | 29,180 N·m |
| Chain Number: | 8503 | Rod/Pin Material: | Polyester |
| Product Type: | Straight Running | Chain Width (in): | 12 in |
| Open Area (%): | 6 % | Chain Strength (lb/ft): | 2,000 lb/ft |
General Specifications
| Weight: | 0.13 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
