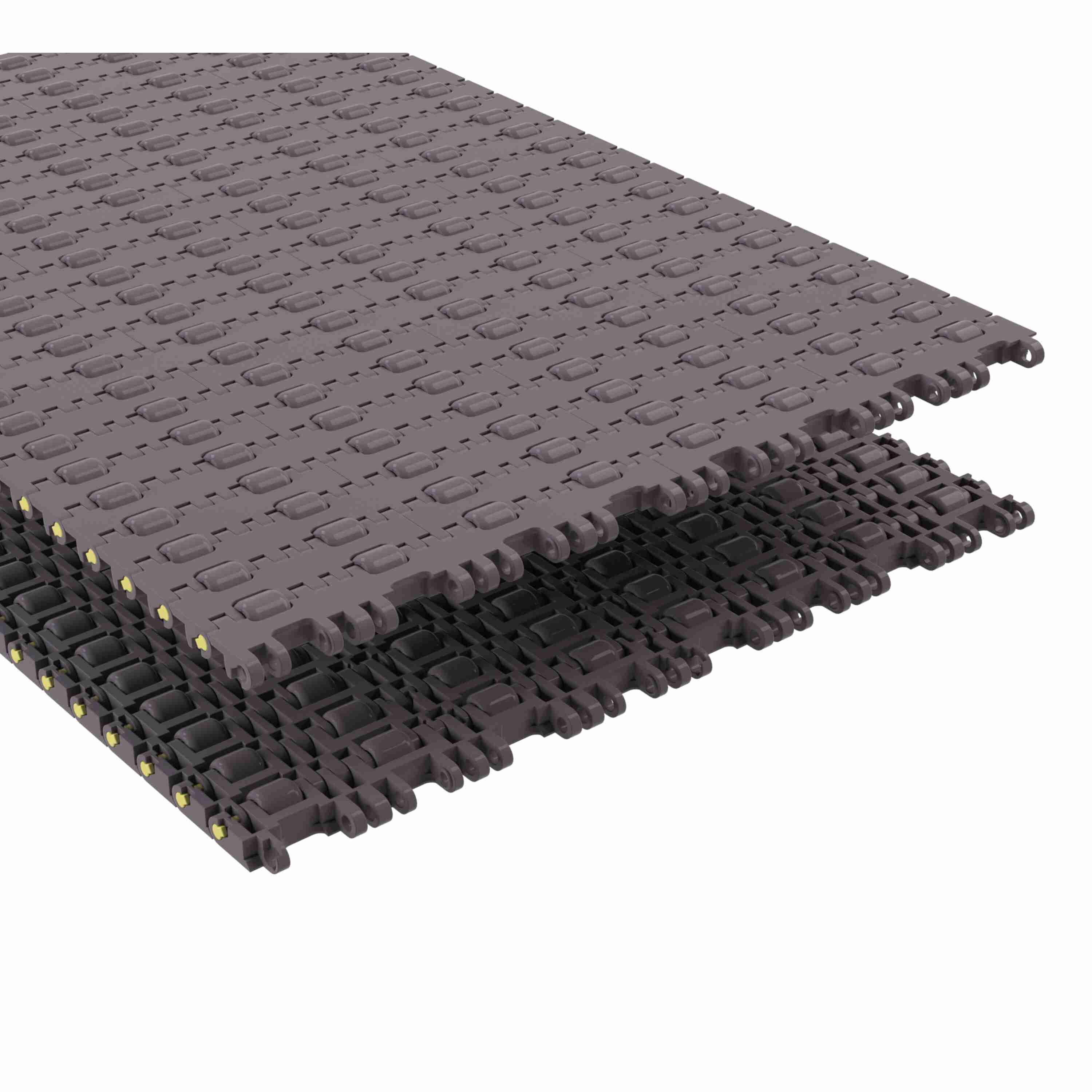

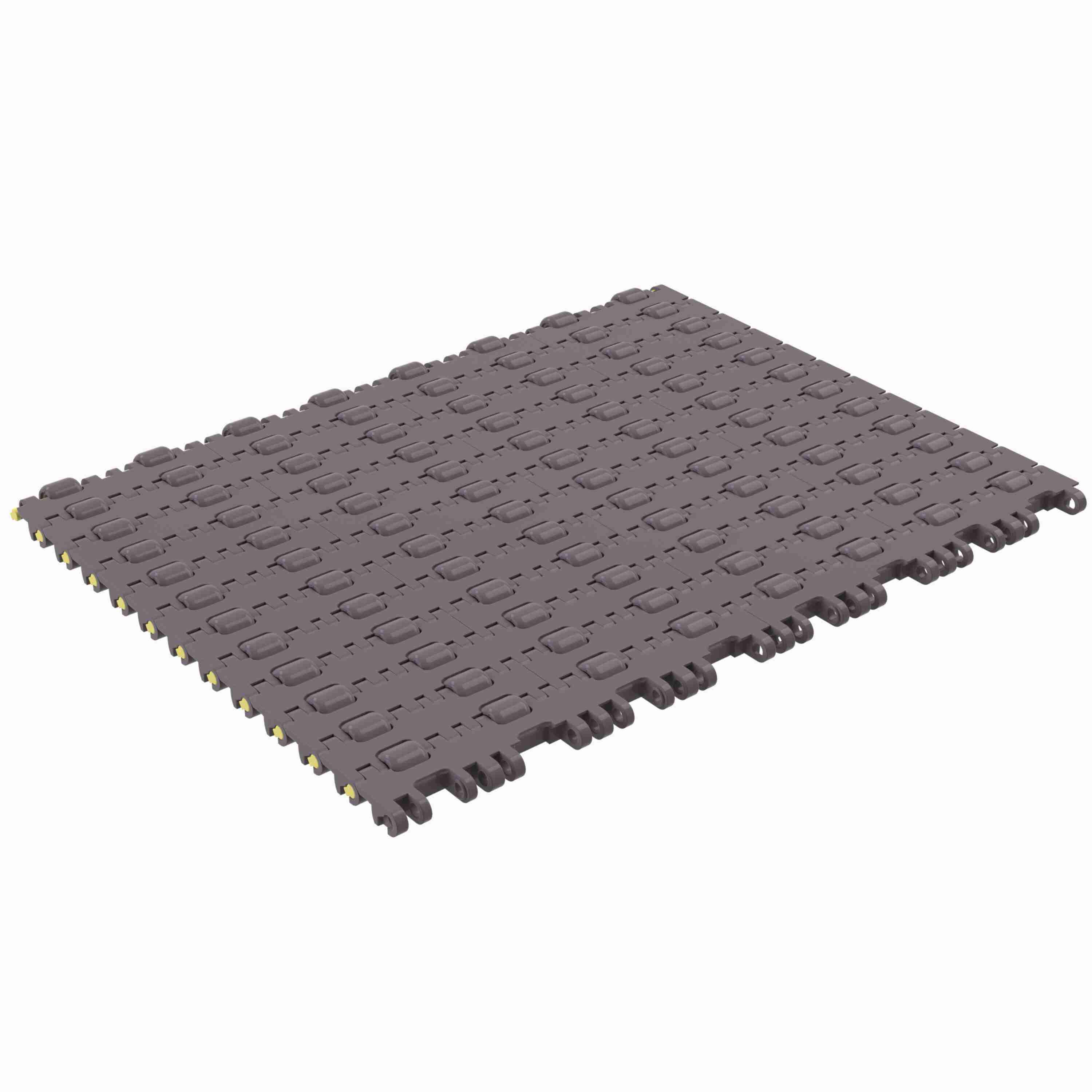

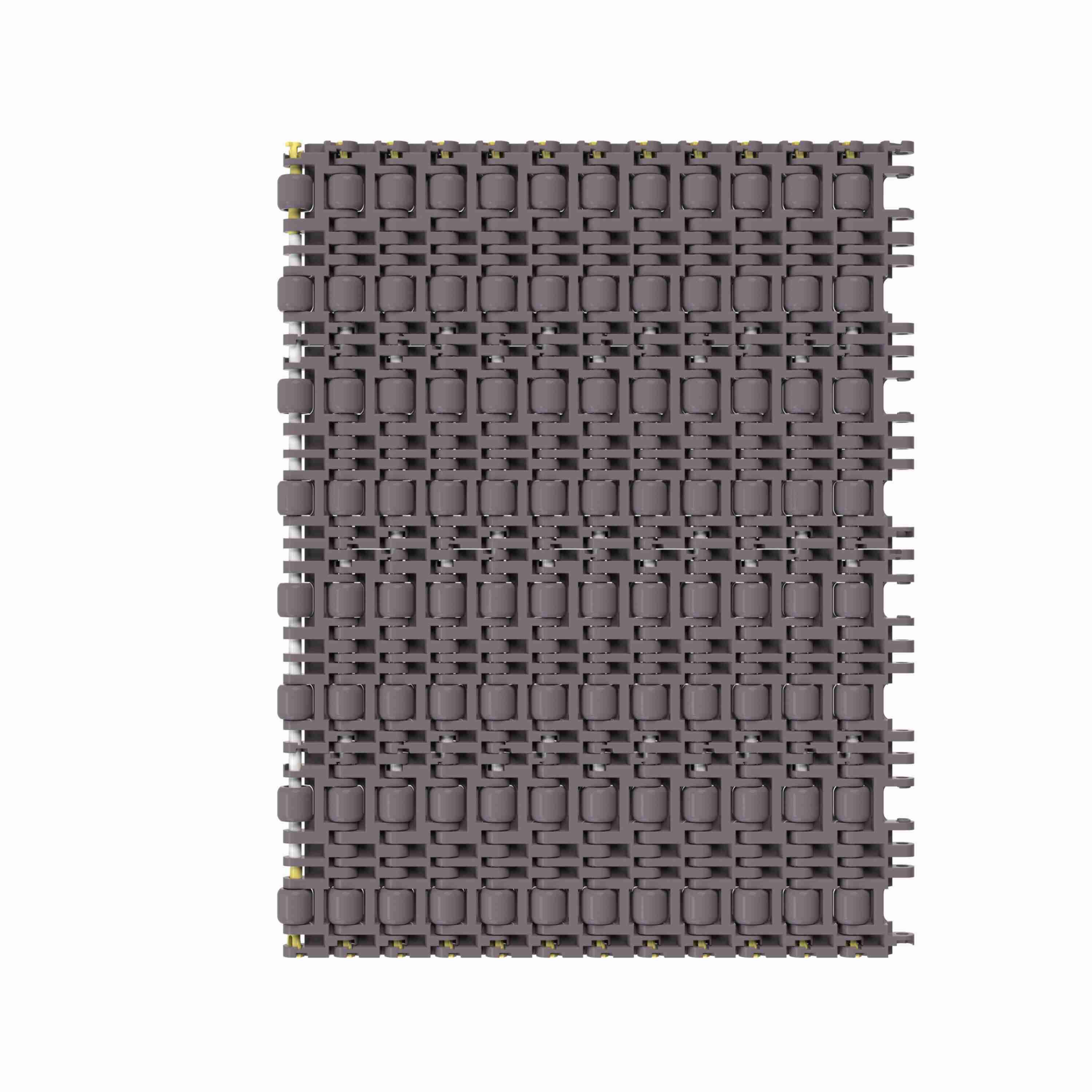

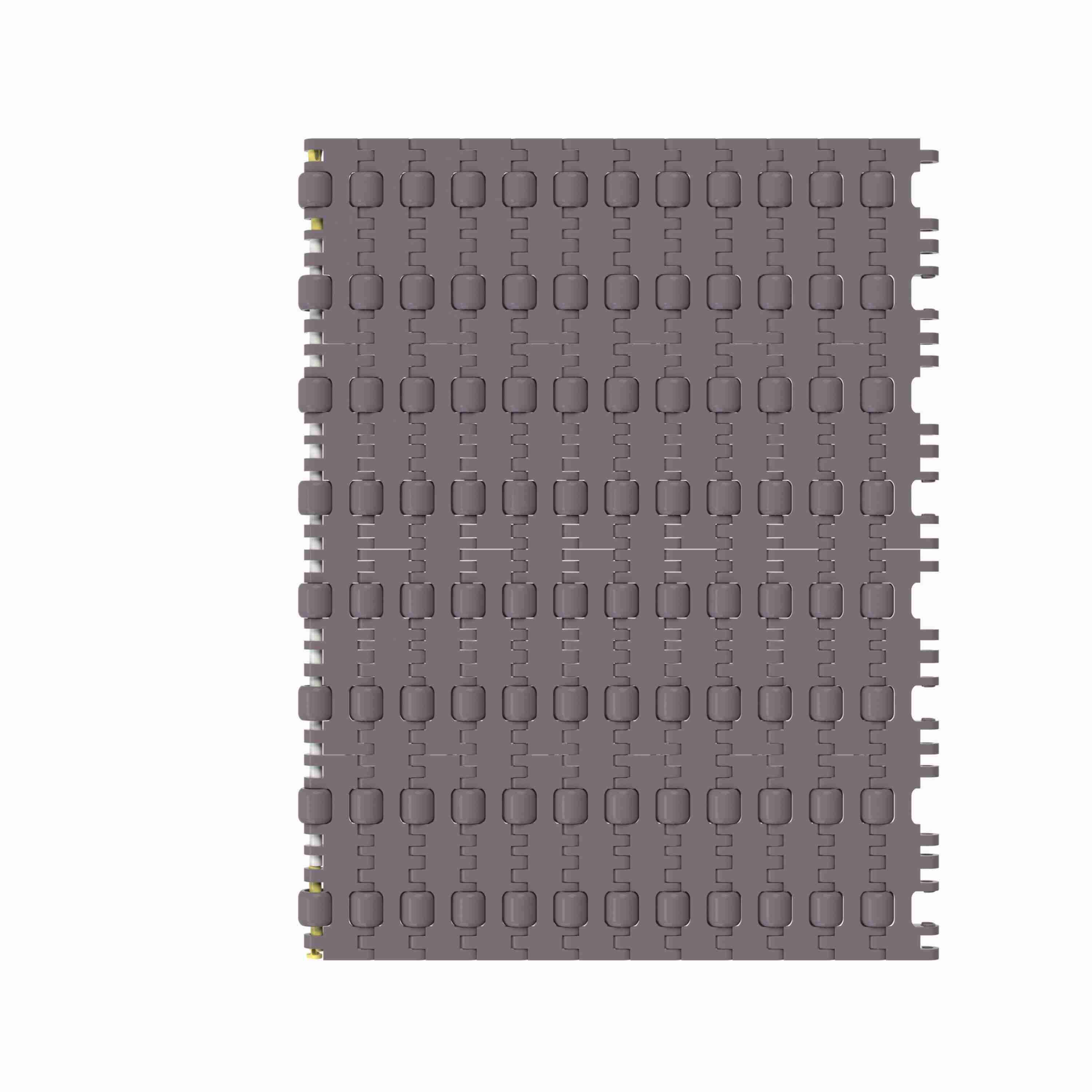

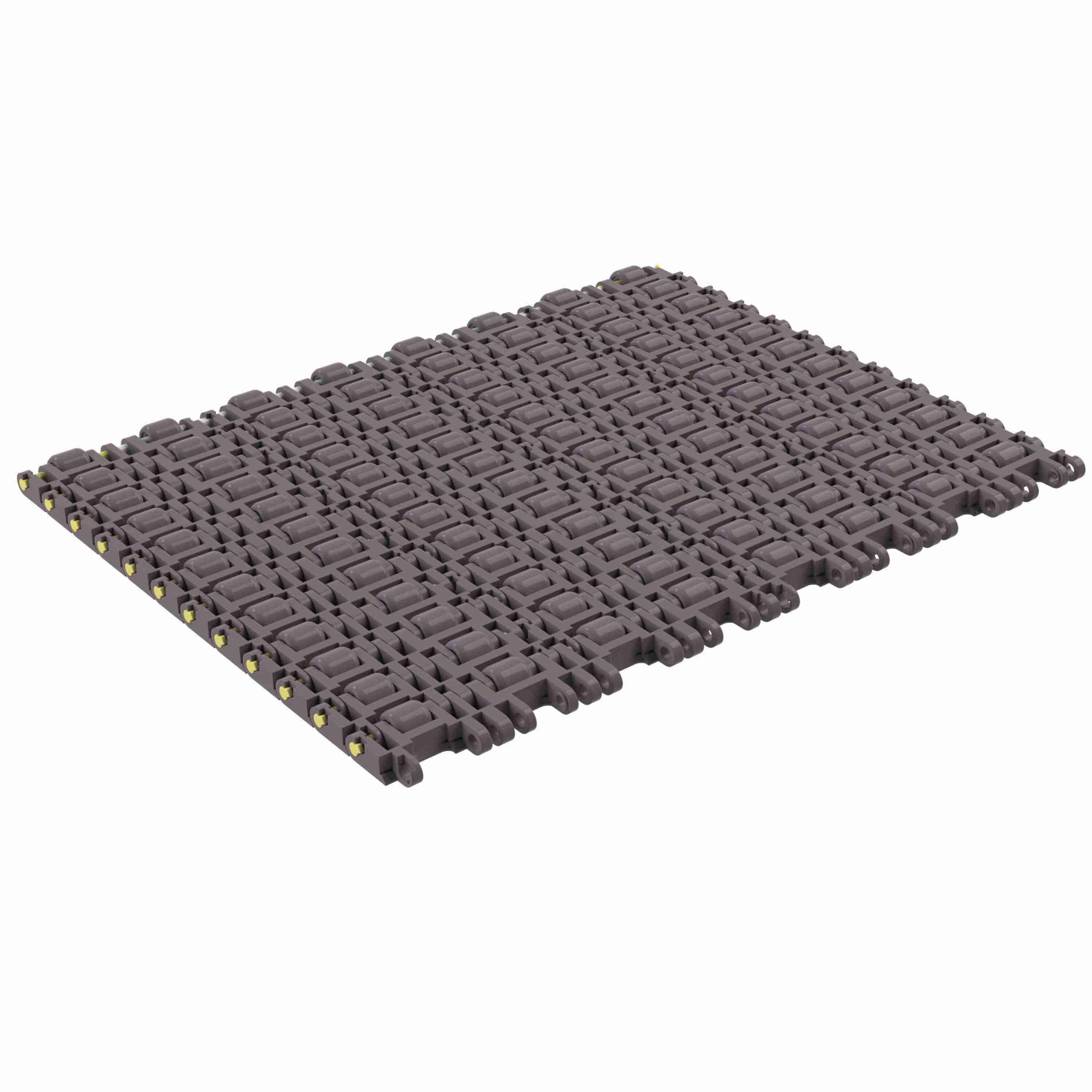

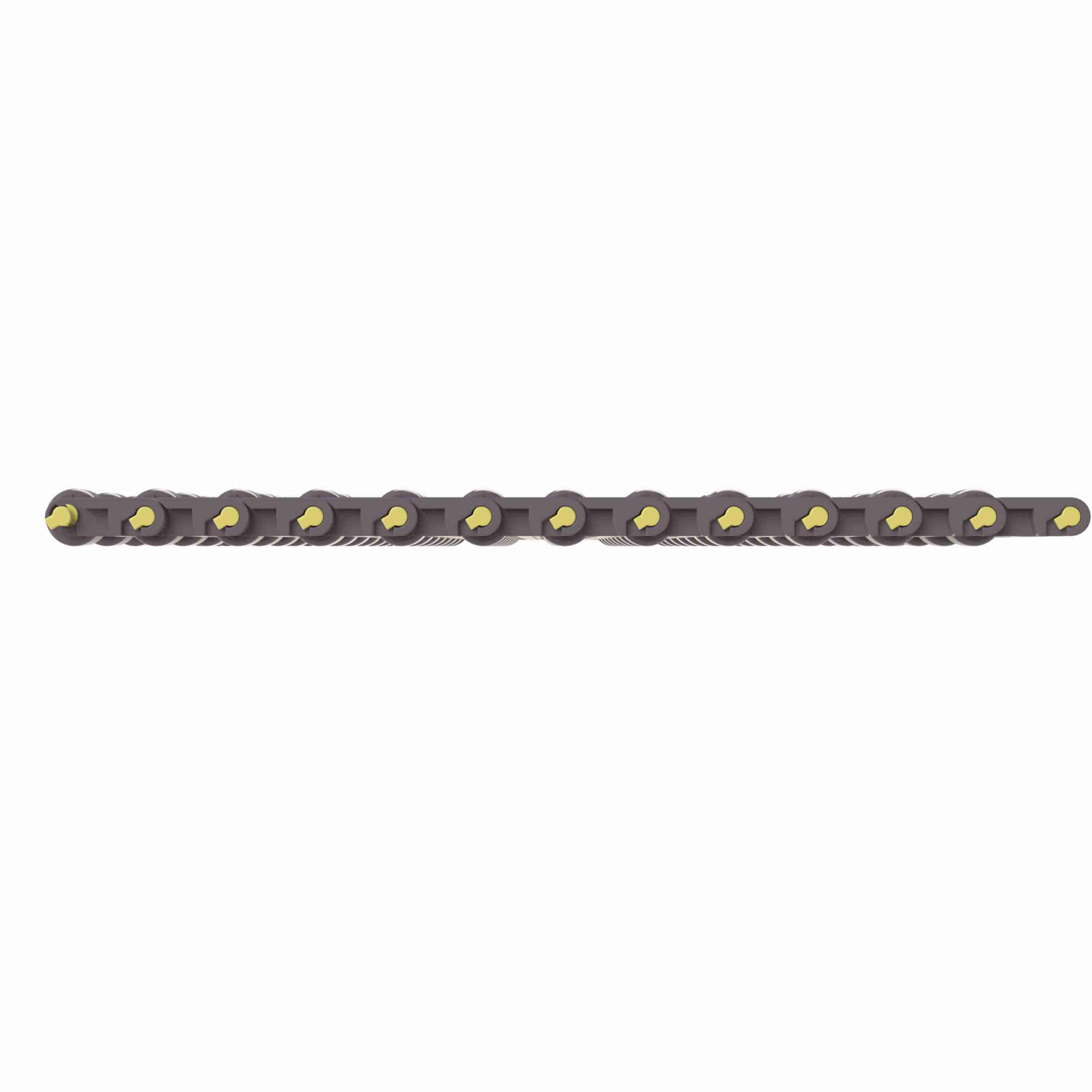

Rexnord 8503 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 6in, Pitch: 0.75in - 10324720
Part #:10324720
Catalog #:10324720
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 2,000 lb/ft | Chain Width Measurement System: | Imperial |
| Product Line: | Plastic Modular Chain and Belt | Open Area (%): | 6 % |
| Chain Width (in): | 6 in | Chain Number: | 8503 |
| Chain Width (mm): | 152.4 mm | Chain Material: | HP |
| Series: | MatTop 8500 Series Chain | Chain Strength (N/m): | 29,180 N·m |
| Surface Type: | Low Backline Pressure | Belt Thickness (in): | 0.43 in |
| Straight or Side-Flex: | Straight Running | Rod/Pin Material: | Polyester |
| Belt Thickness (mm): | 10.9 mm | Chain Pitch (mm): | 19.1 mm |
| Product Type: | Straight Running | Chain Pitch (in): | 0.75 in |
| Chain Material Description: | Brown High Performance | Product Group: | Modular Plastic Belts |
General Specifications
| Weight: | 0.07 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
