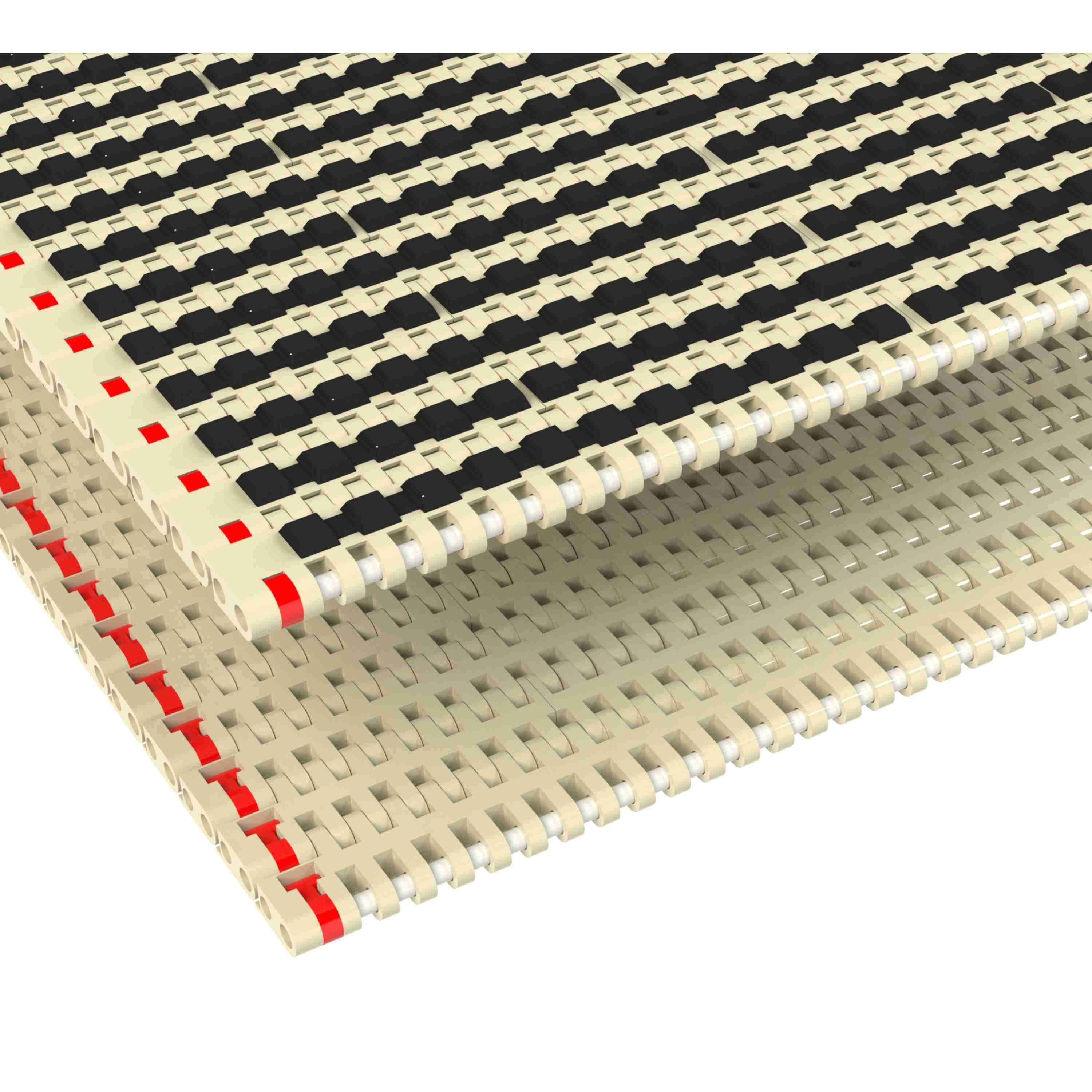

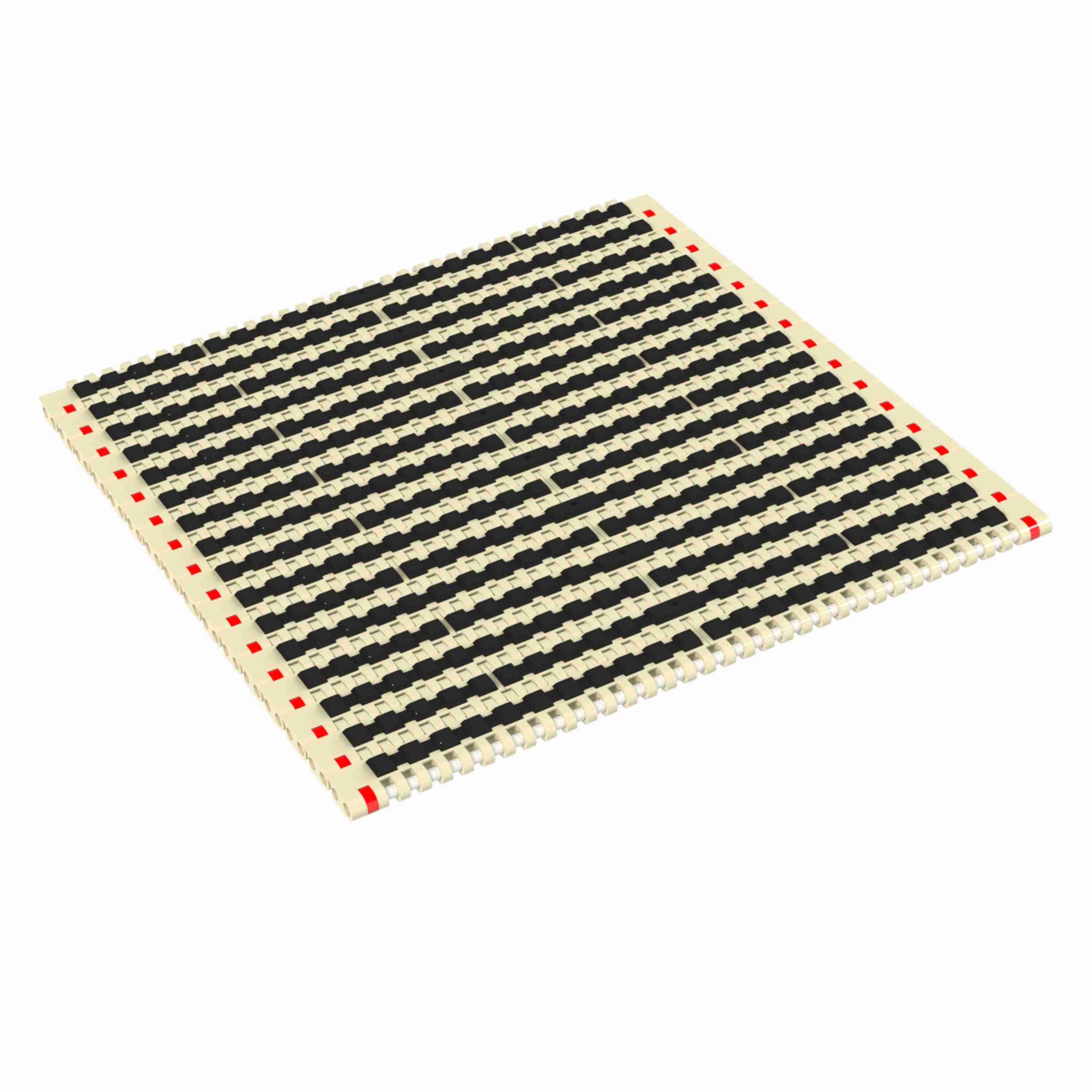

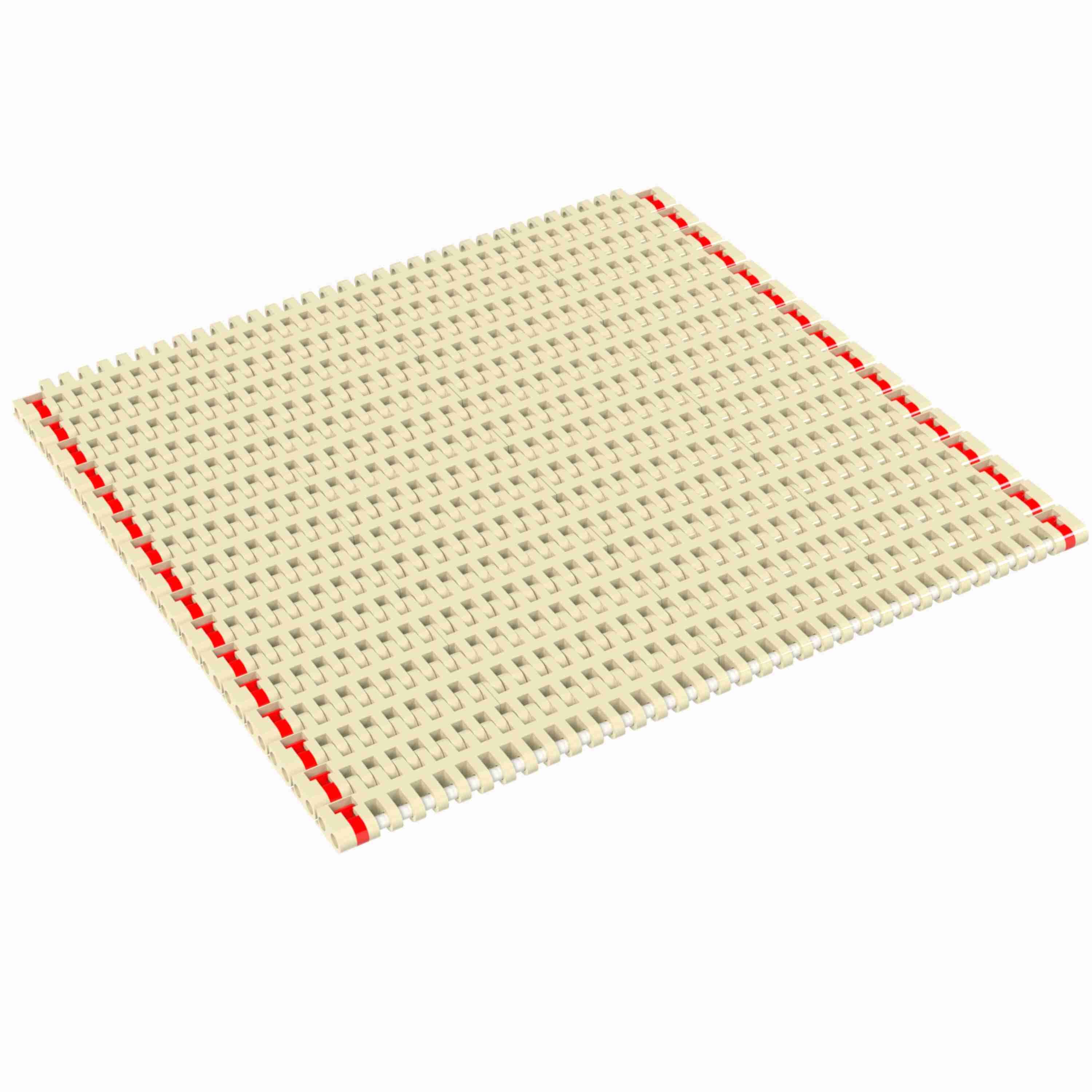

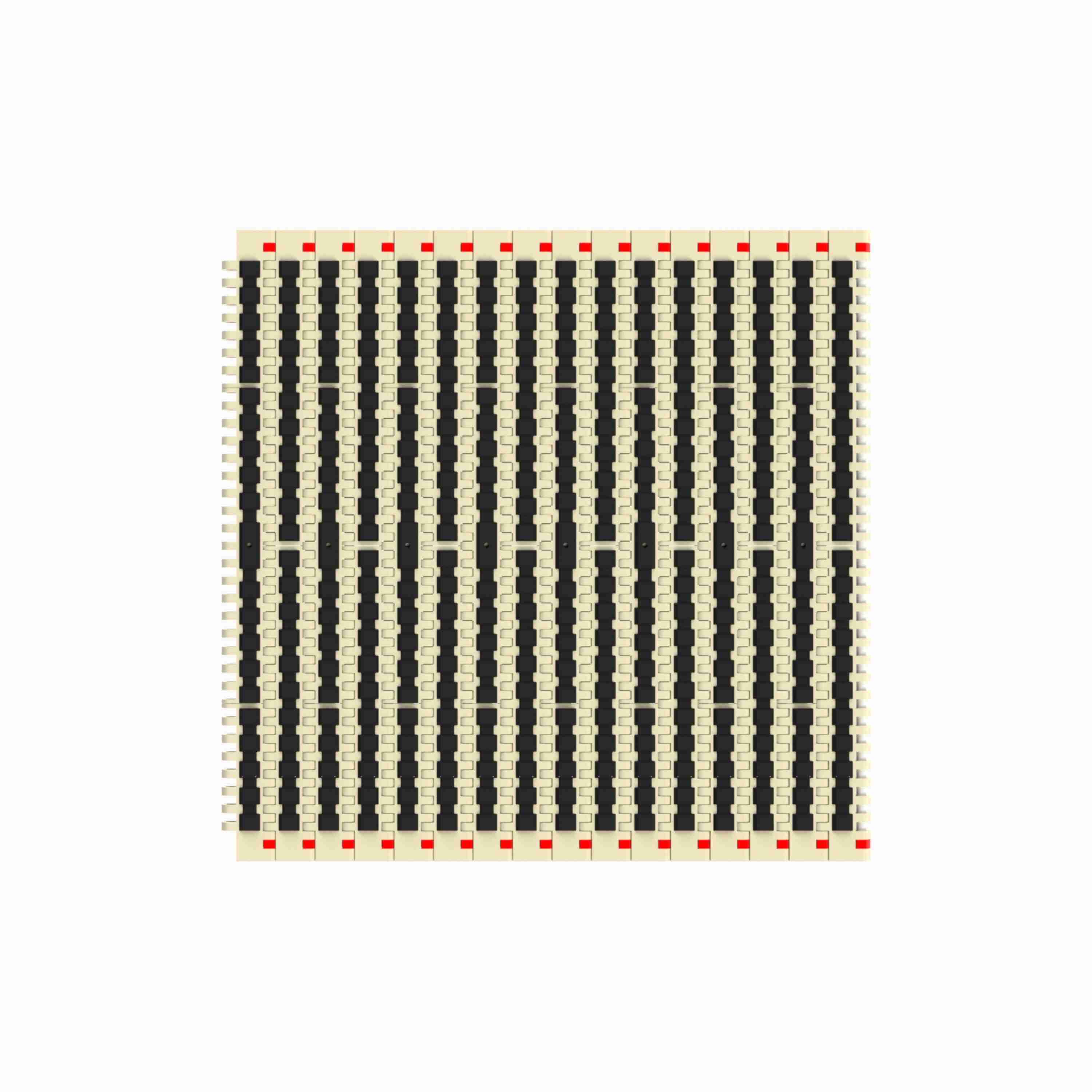

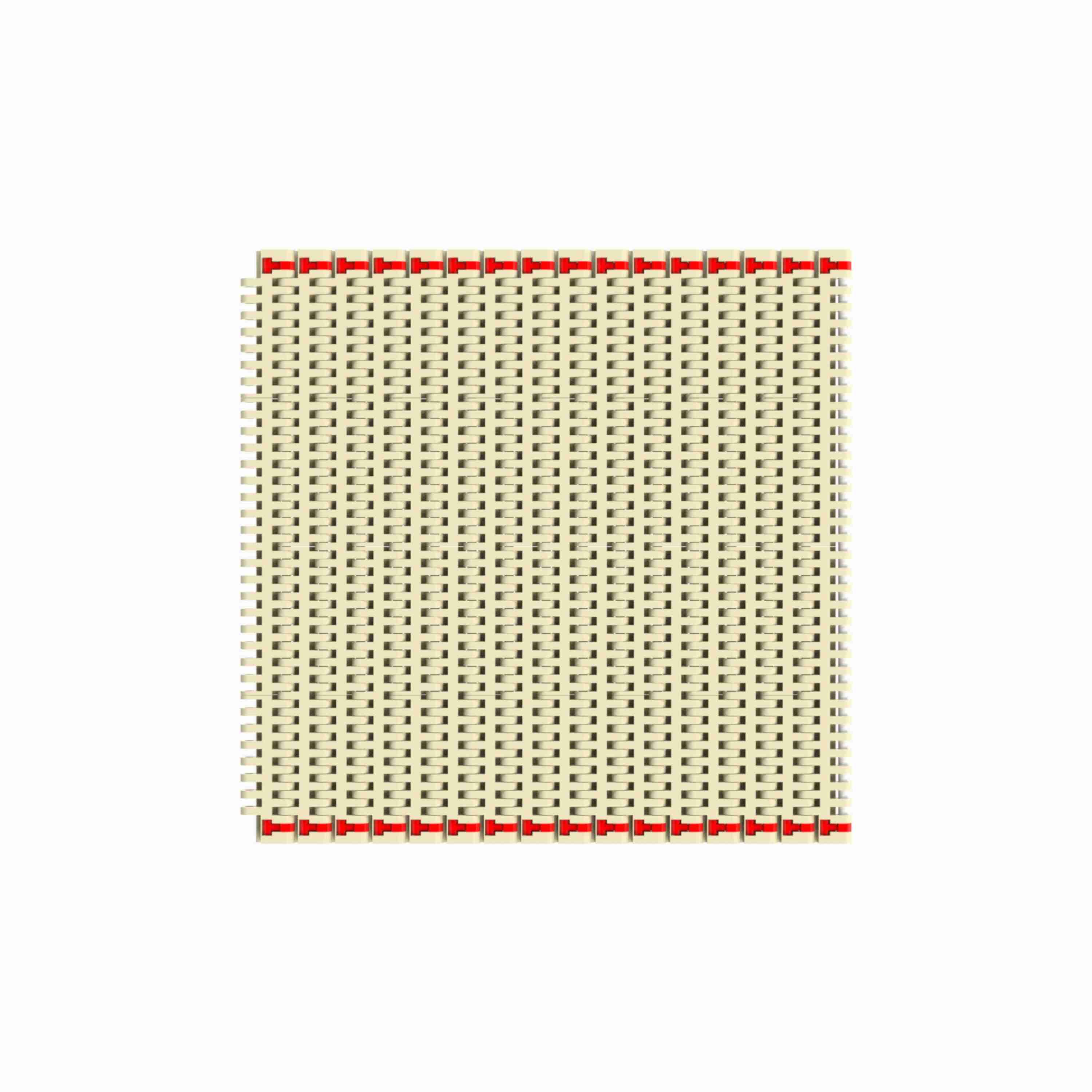

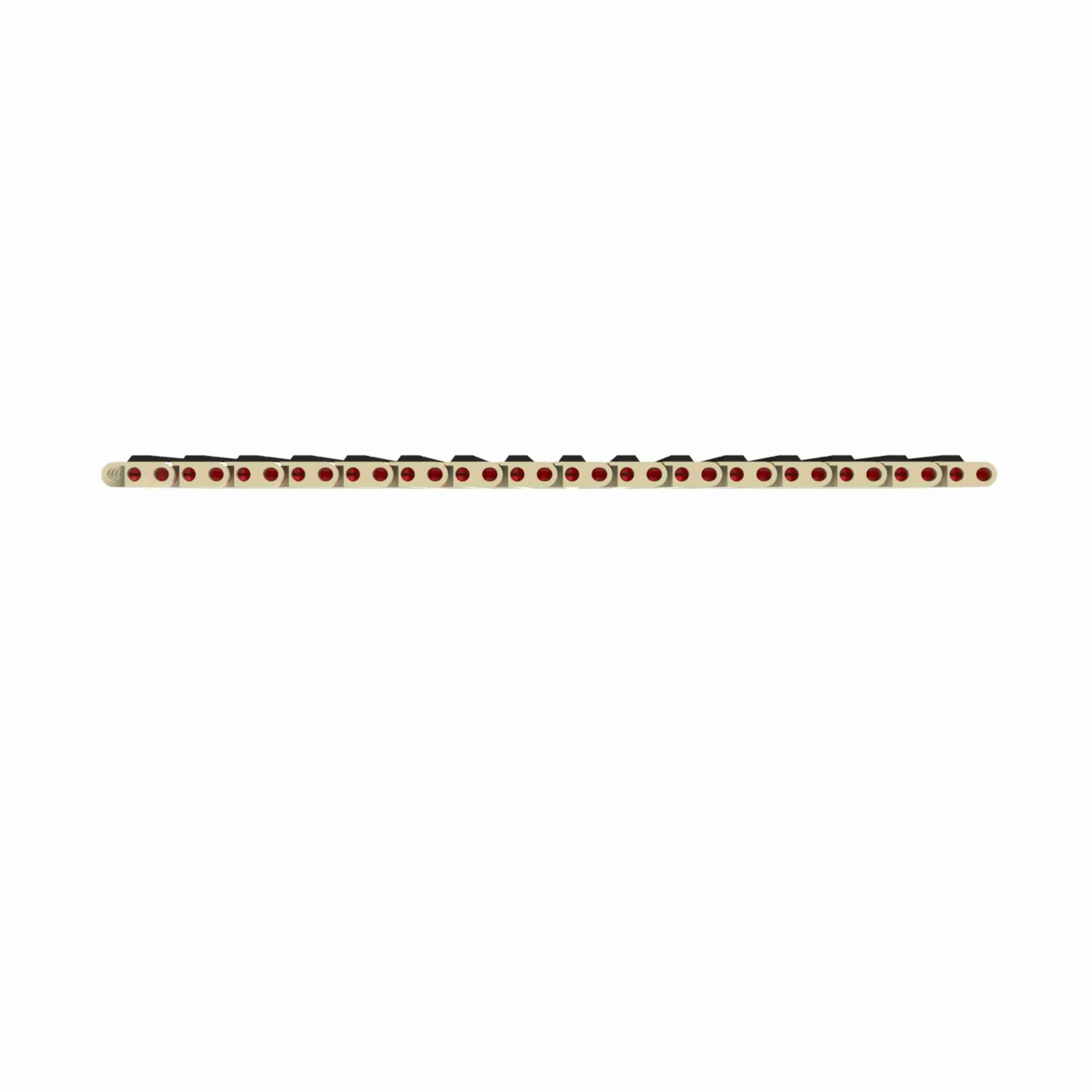

Rexnord 8505 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 12in, Pitch: 0.75in - HTF8505-12
Part #:10029026
Catalog #:HTF8505-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Beige High Temperature | Chain Width Measurement System: | Imperial |
| Open Area (%): | 4.1 % | Series: | MatTop 8500 Series Chain |
| Chain Strength (N/m): | 13,131 N·m | Product Type: | Straight Running |
| Product Group: | Modular Plastic Belts | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Width (mm): | 304.8 mm | Chain Material: | HT |
| Straight or Side-Flex: | Straight Running | Chain Pitch (in): | 0.75 in |
| Chain Strength (lb/ft): | 900 lb/ft | Product Line: | Plastic Modular Chain and Belt |
| Belt Thickness (in): | 0.34 in | Chain Pitch (mm): | 19.1 mm |
| Chain Number: | 8505 RubberTop® | Belt Thickness (mm): | 8.6 mm |
| SG/RT Spacing (Pitches): | Every Pitch | Rod/Pin Material: | Polypropylene |
| Surface Type: | RubberTop® | Chain Width (in): | 12 in |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
