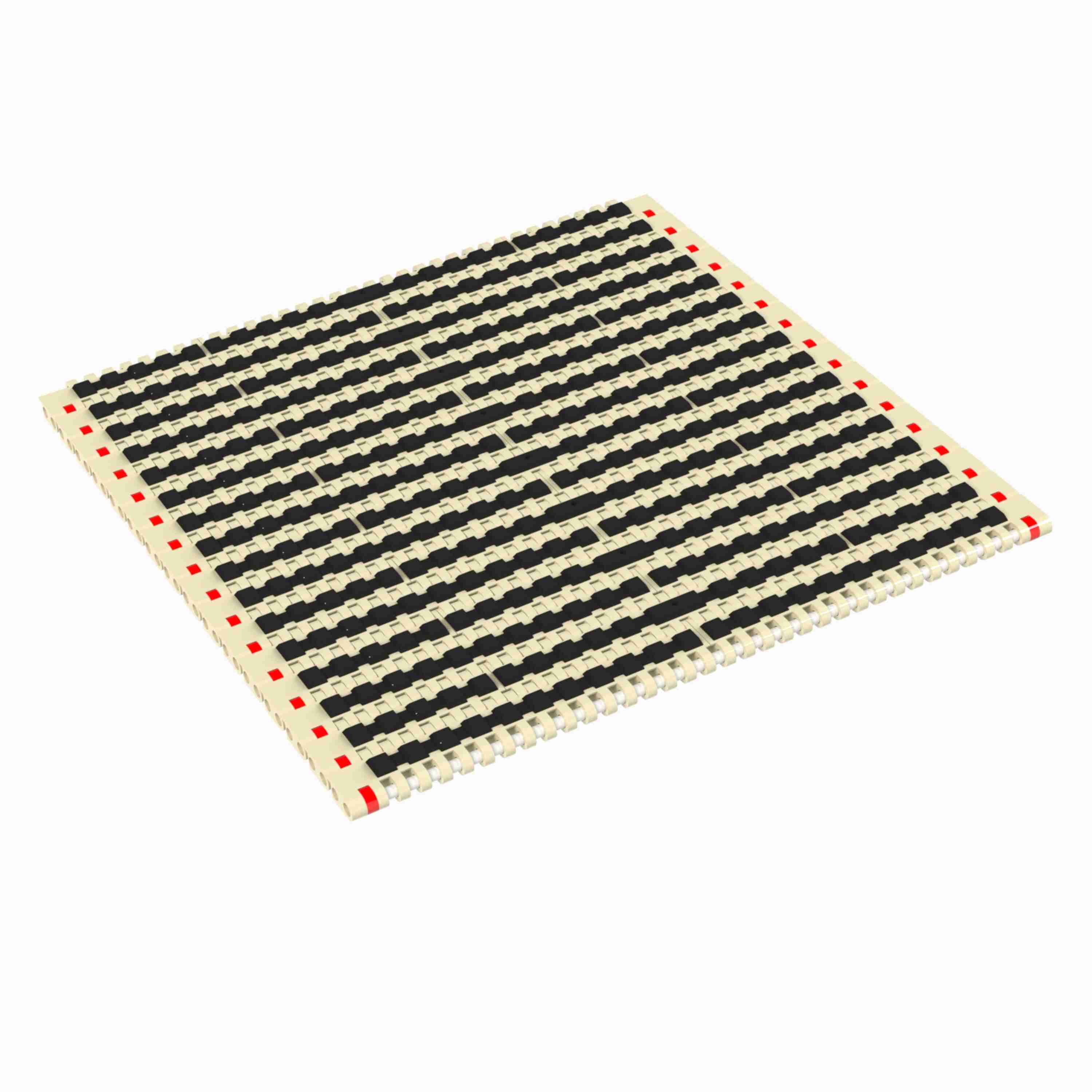

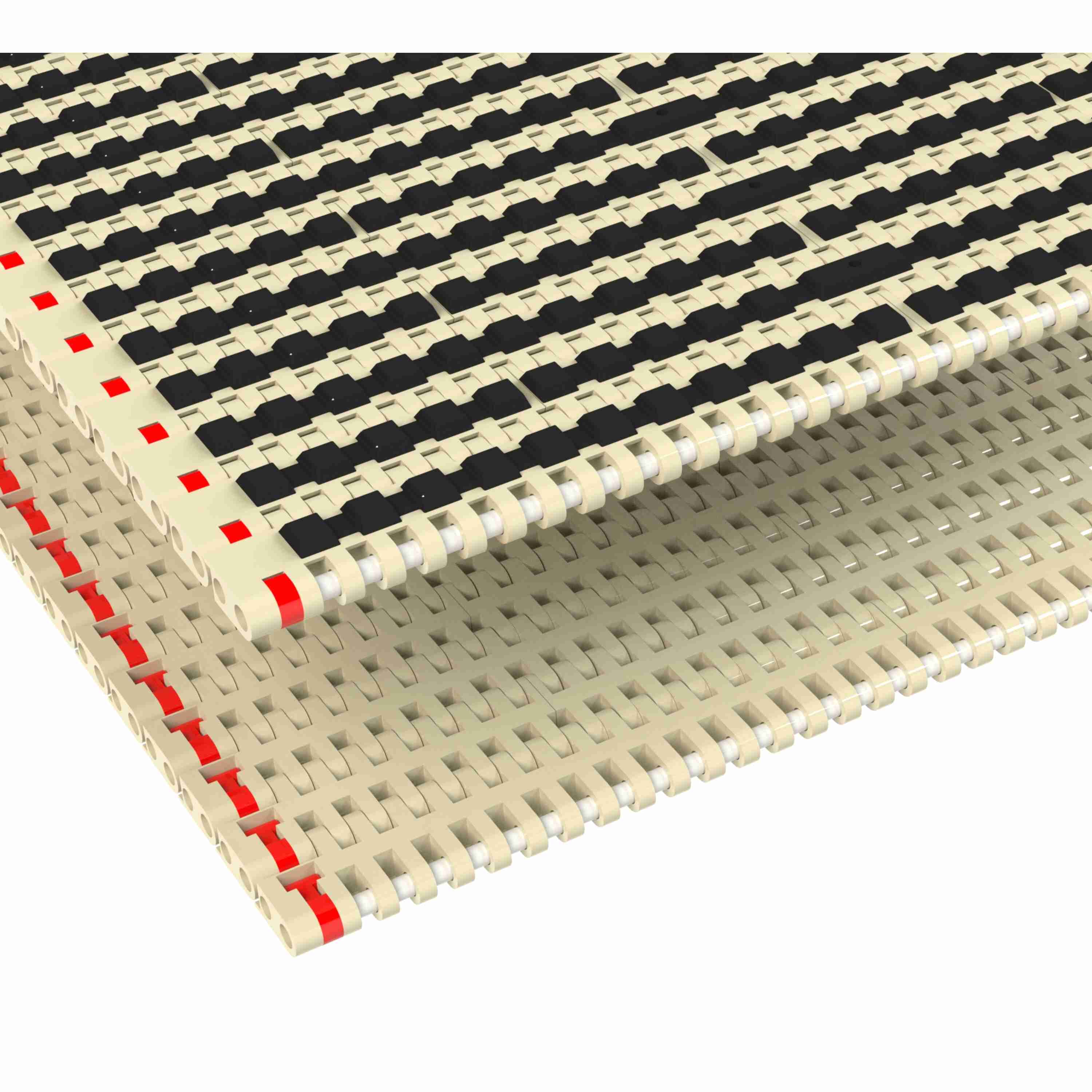

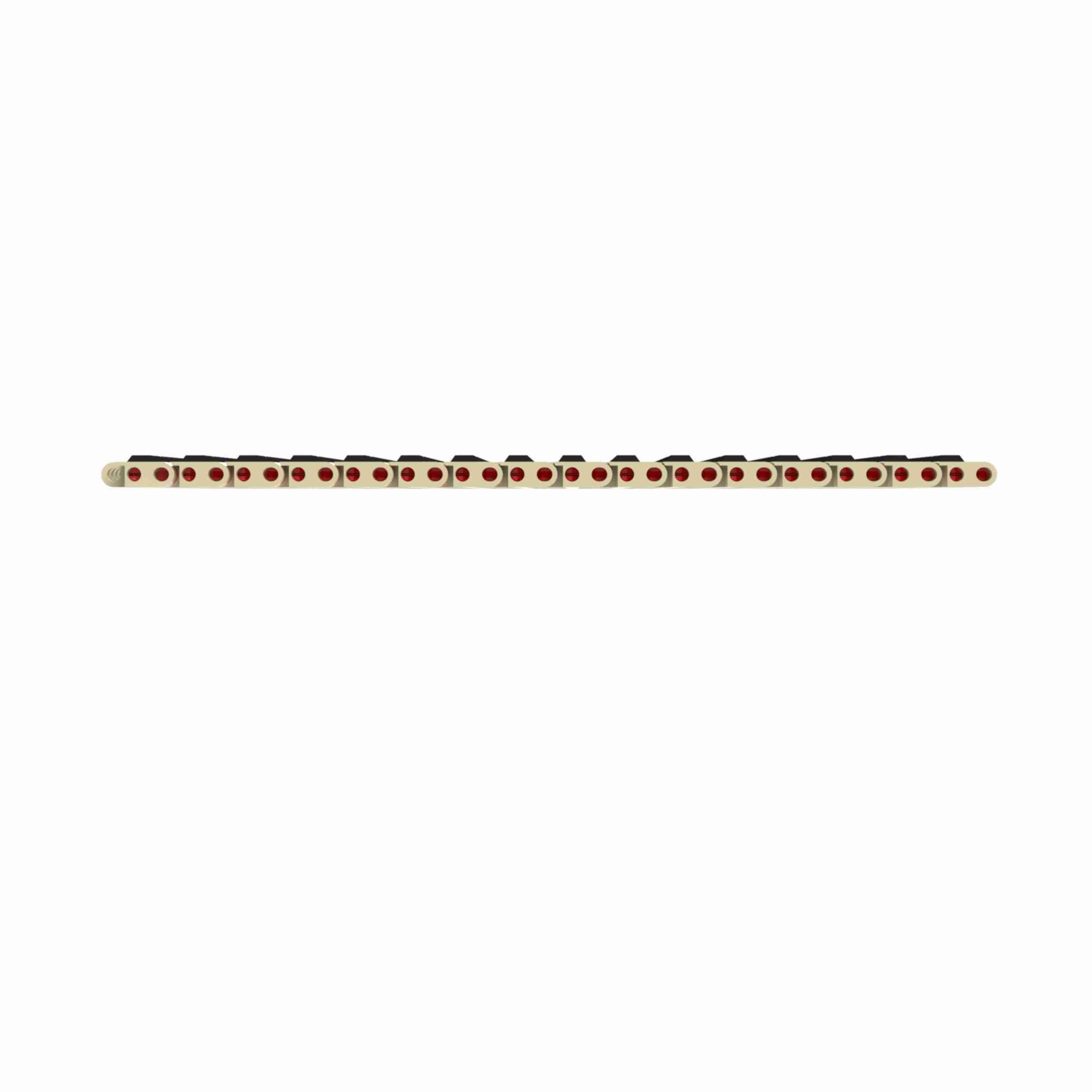

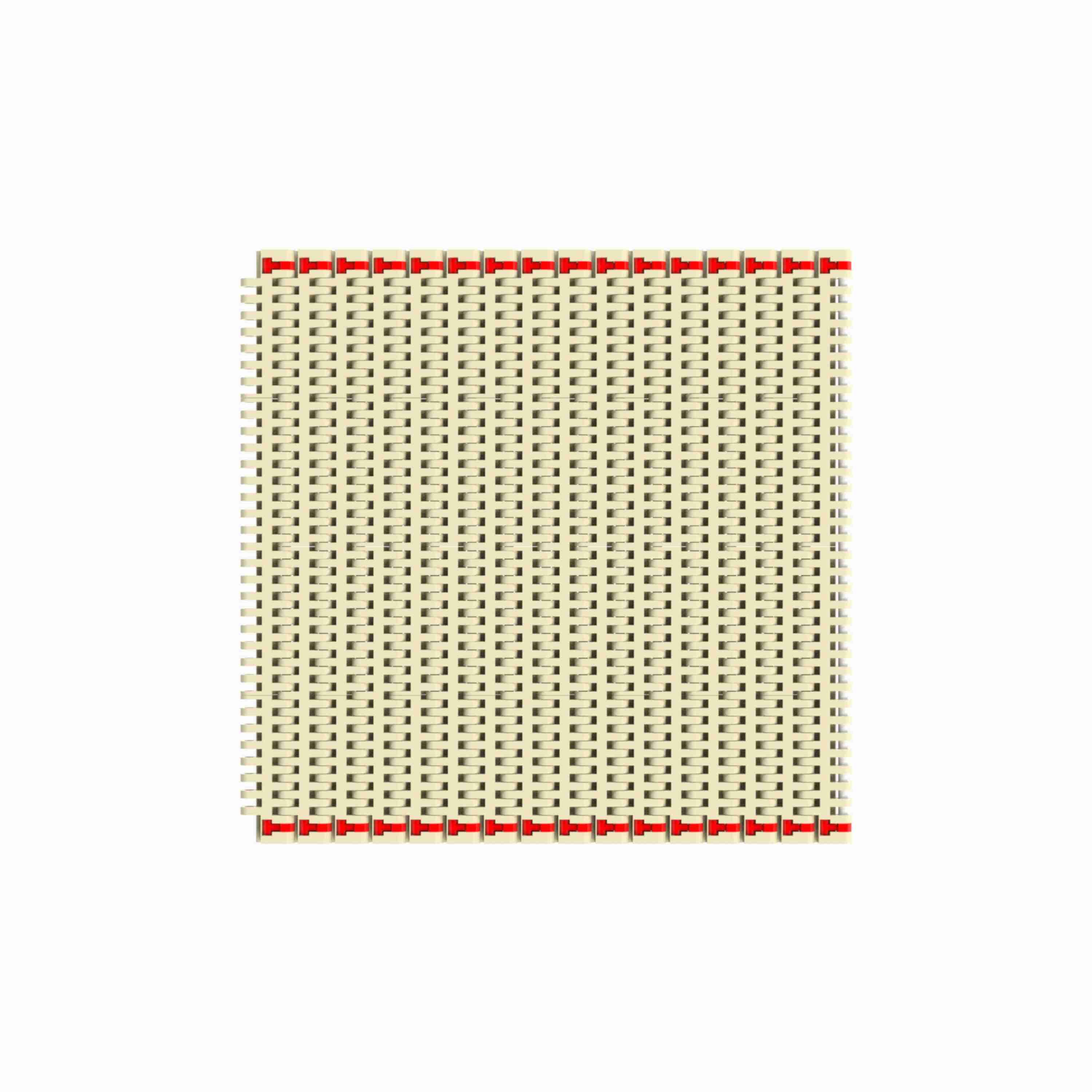

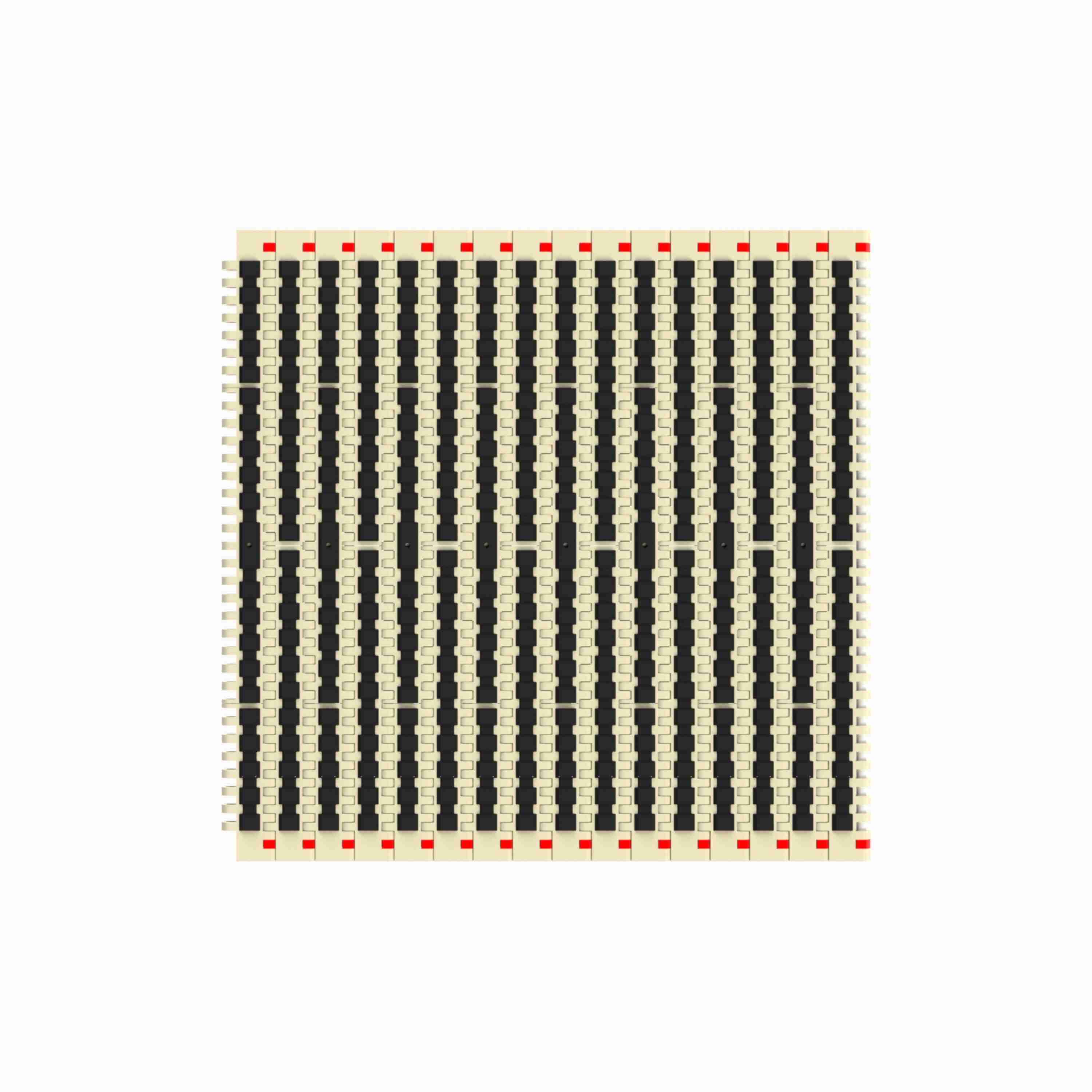

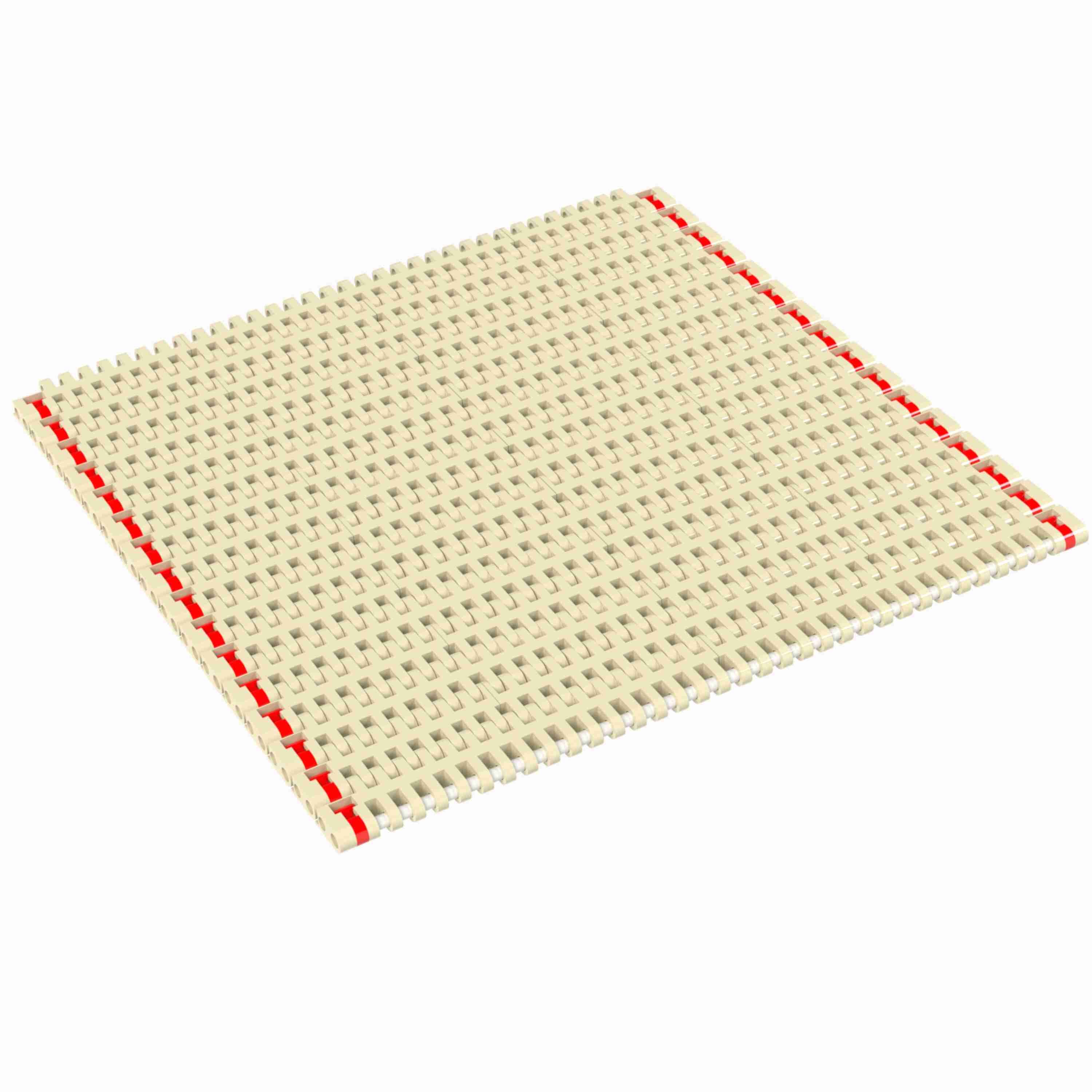

Rexnord 8505 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 21in, Pitch: 0.75in - 10324737
Part #:10324737
Catalog #:10324737
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 4.1 % | Chain Width Measurement System: | Imperial |
| Chain Material: | HT | Series: | MatTop 8500 Series Chain |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Chain Number: | 8505 RubberTop® | Chain Strength (N/m): | 13,131 N·m |
| Belt Thickness (in): | 0.34 in | Chain Pitch (in): | 0.75 in |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Strength (lb/ft): | 900 lb/ft |
| Chain Pitch (mm): | 19.1 mm | Chain Width (in): | 21 in |
| SG/RT Spacing (Pitches): | Every Pitch | Belt Thickness (mm): | 8.6 mm |
| Straight or Side-Flex: | Straight Running | Product Type: | Straight Running |
| Surface Type: | RubberTop® | Chain Material Description: | Beige High Temperature |
| Rod/Pin Material: | Polypropylene | Chain Width (mm): | 533.4 mm |
General Specifications
| Weight: | 0.16 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
