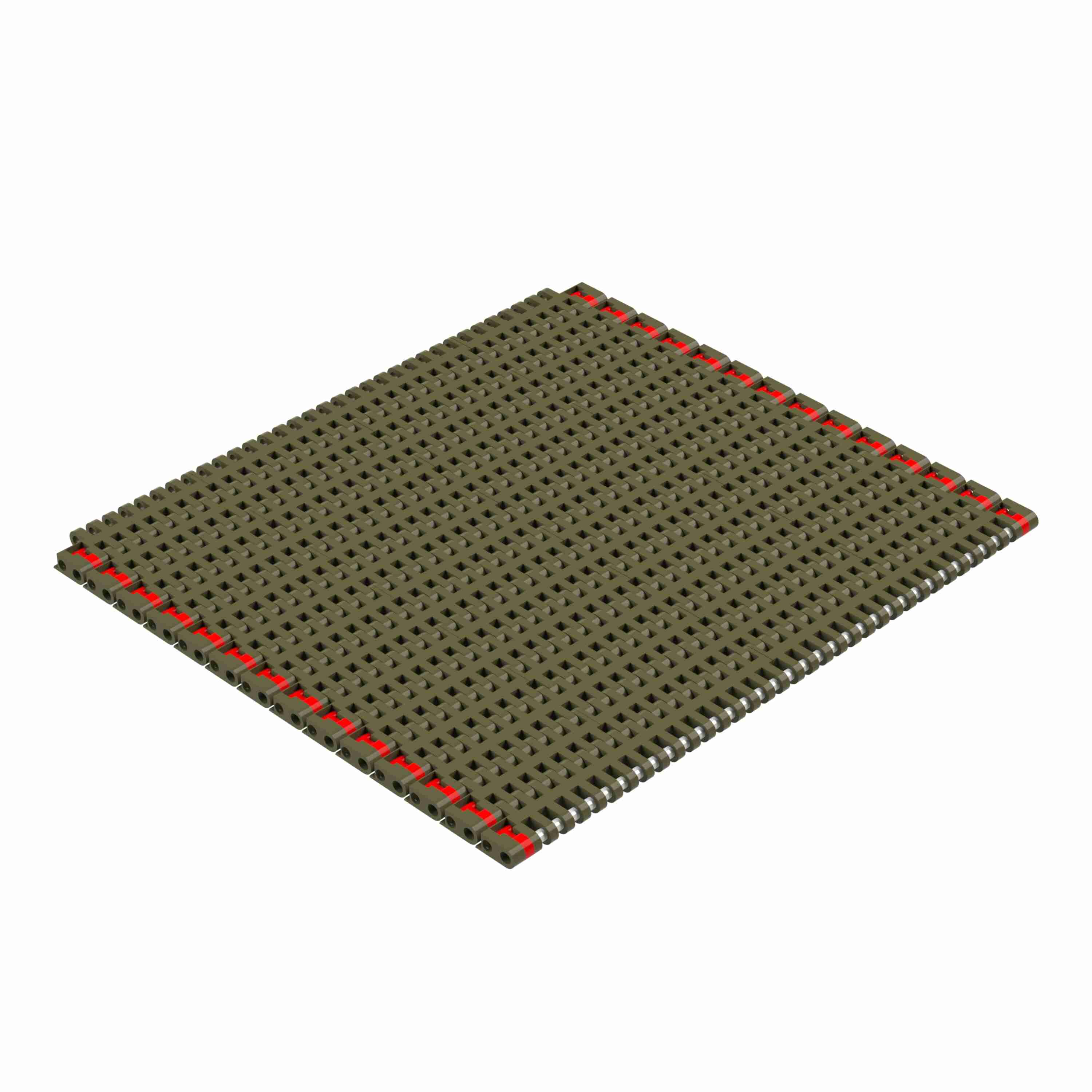

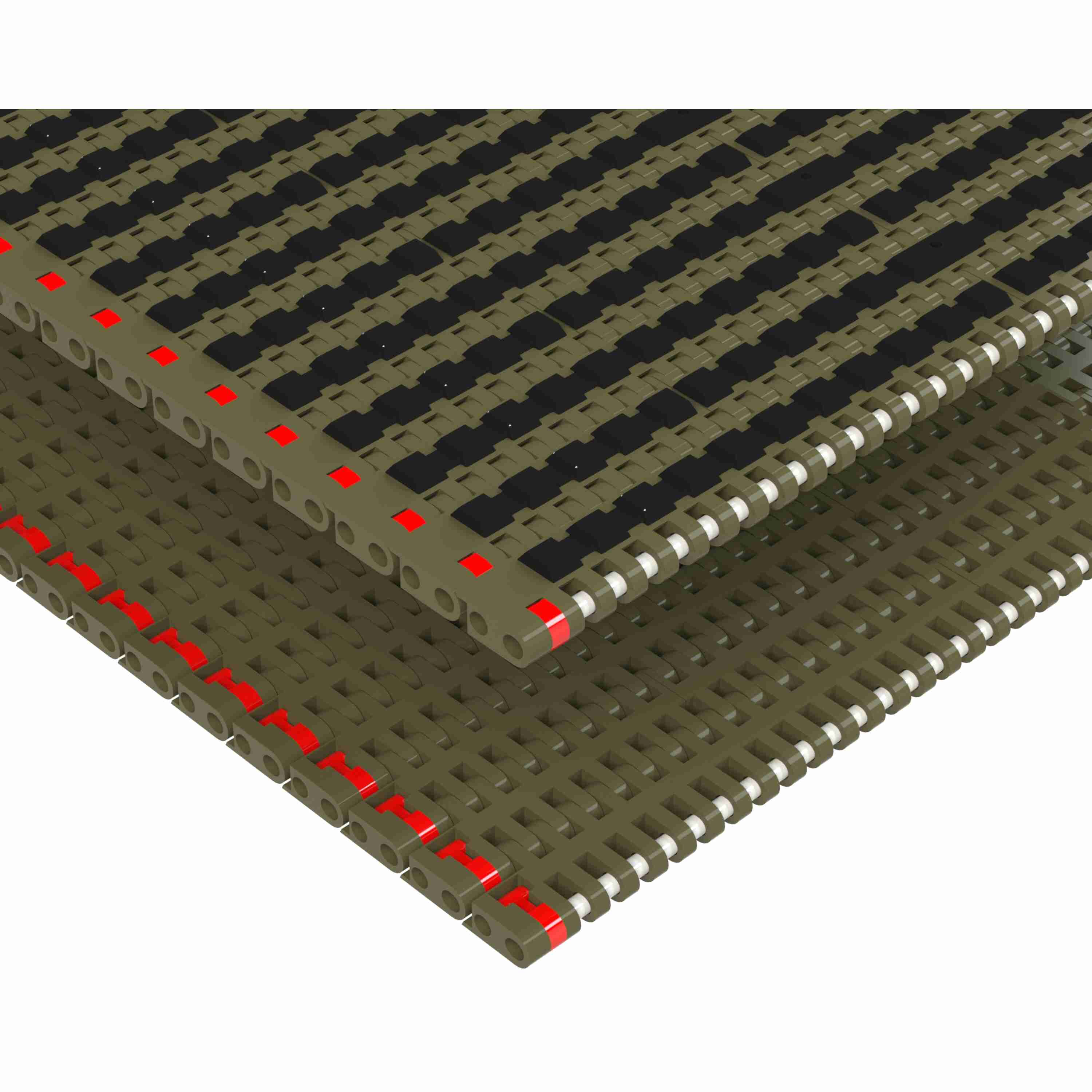

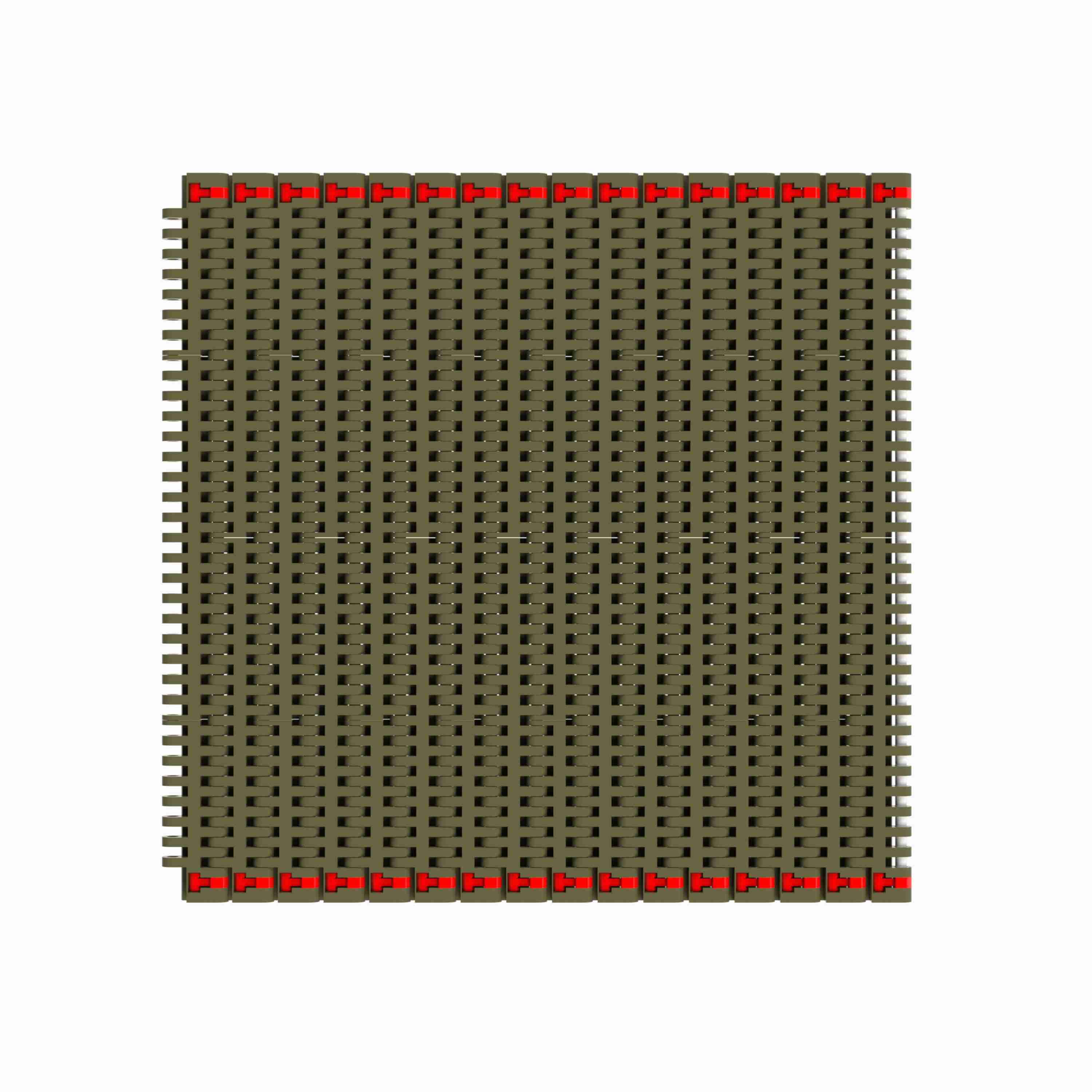

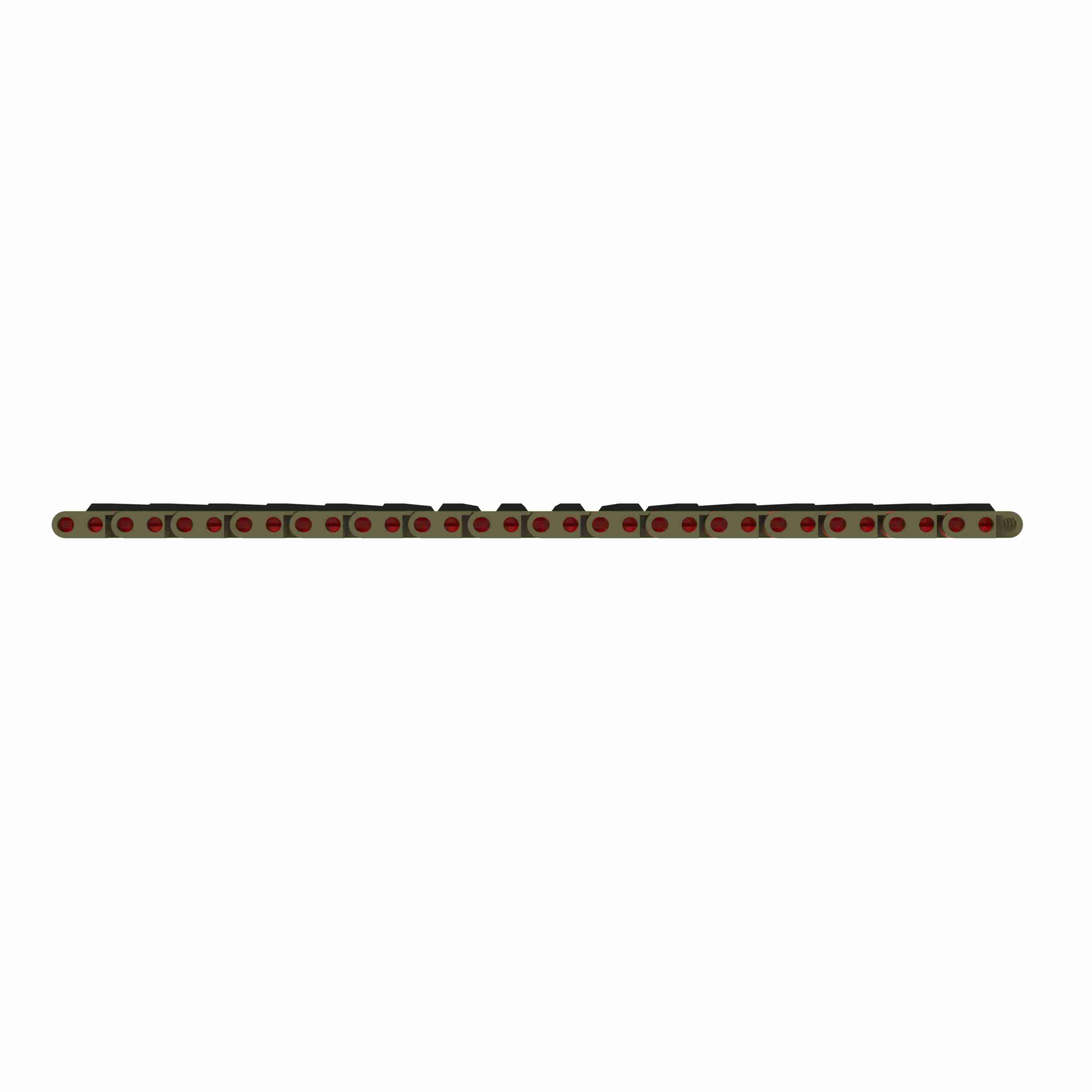

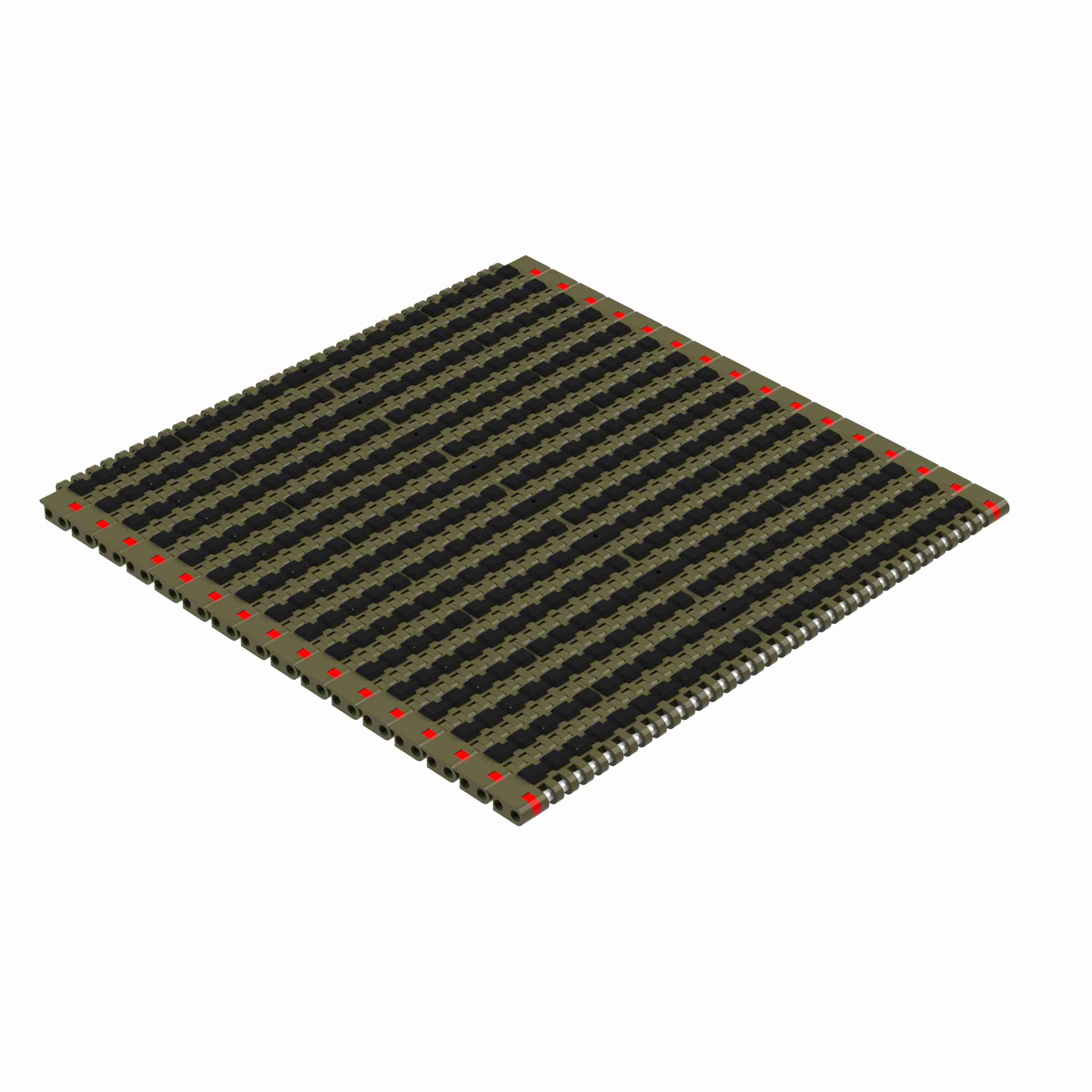

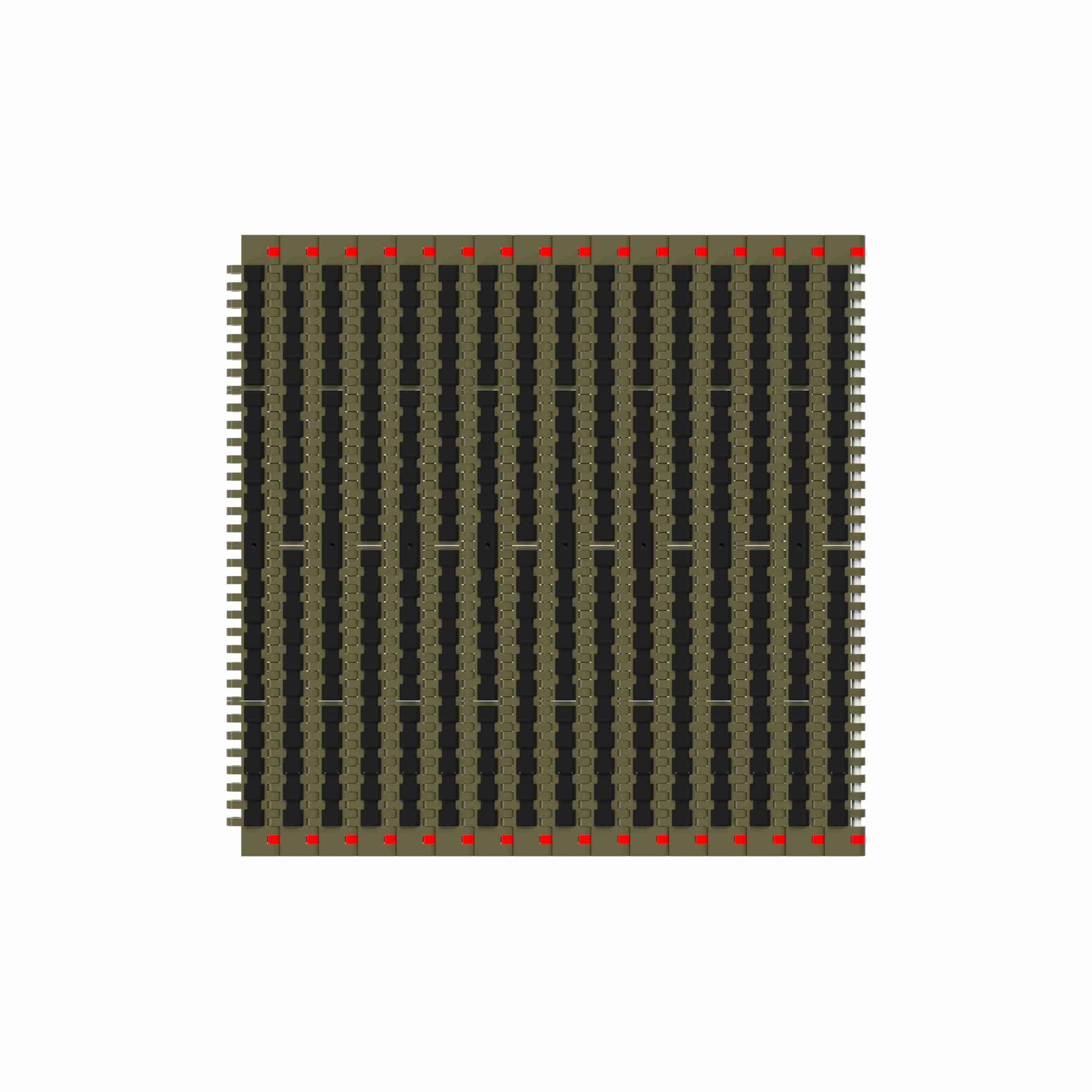

Rexnord 8505 RubberTop® Straight Running RubberTop®, Material: Khaki High Temperature, Width: 18in, Pitch: 0.75in - 10343038
Part #:10343038
Catalog #:10343038
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 457.2 mm | Chain Material: | KHT |
| Belt Thickness (in): | 0.34 in | Product Type: | Straight Running |
| Surface Type: | RubberTop® | Series: | MatTop 8500 Series Chain |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Pitch (mm): | 19.1 mm |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Imperial |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Number: | 8505 RubberTop® |
| Product Line: | Plastic Modular Chain and Belt | Chain Material Description: | Khaki High Temperature |
| Open Area (%): | 4.1 % | Product Group: | Modular Plastic Belts |
| Belt Thickness (mm): | 8.6 mm | Chain Pitch (in): | 0.75 in |
| Chain Strength (lb/ft): | 900 lb/ft | Chain Width (in): | 18 in |
| Rod/Pin Material: | Polypropylene | Chain Strength (N/m): | 13,131 N·m |
General Specifications
| Weight: | 0.14 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
