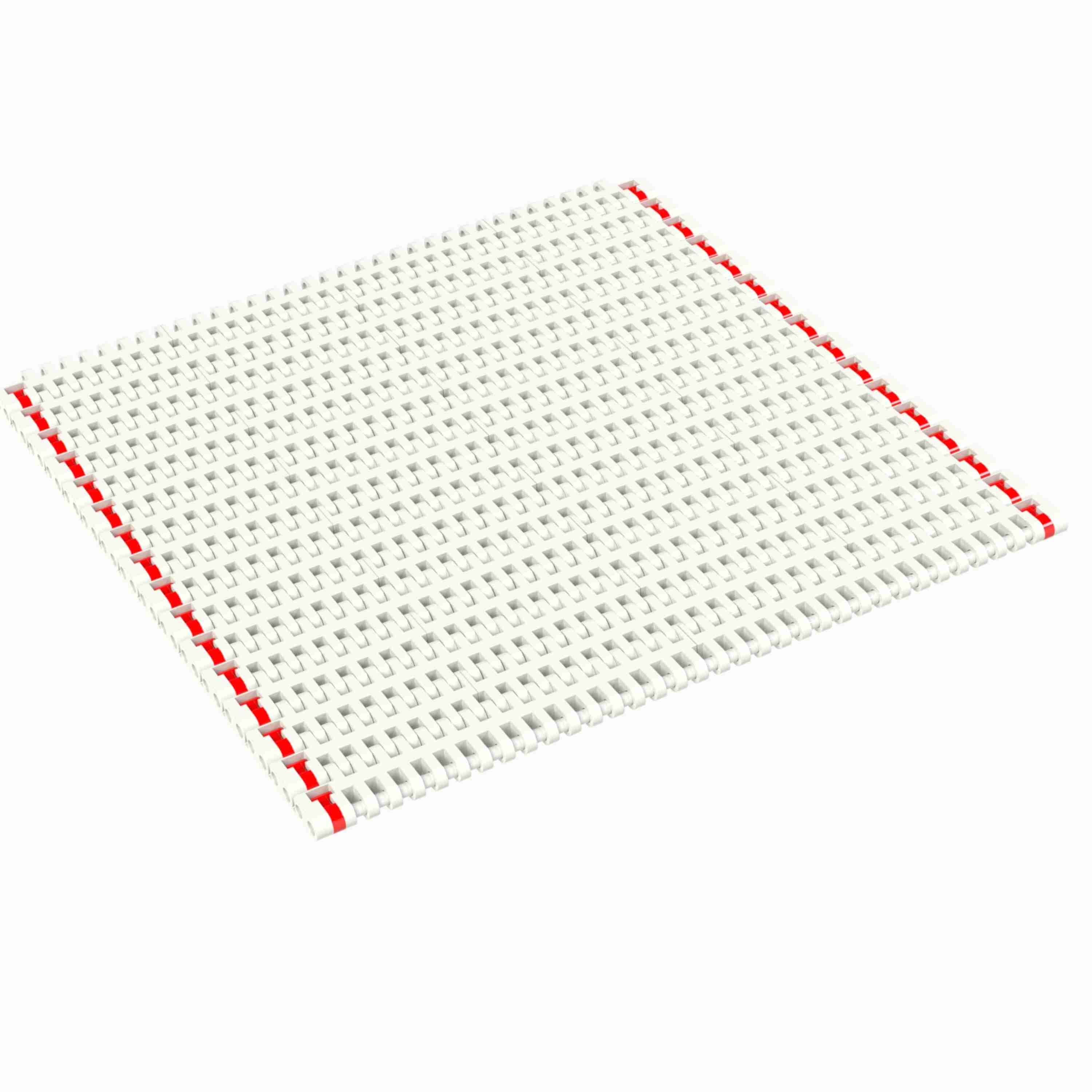

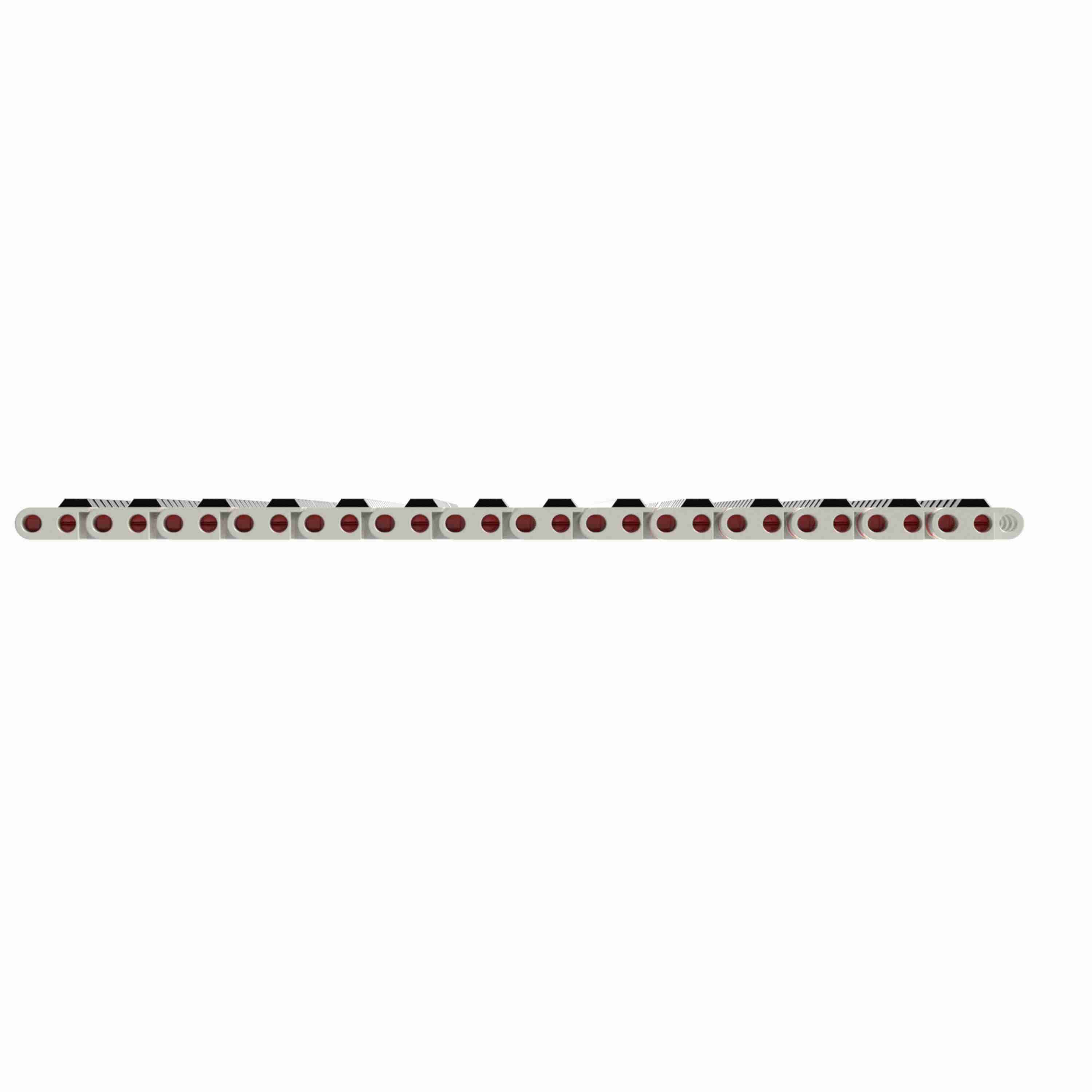

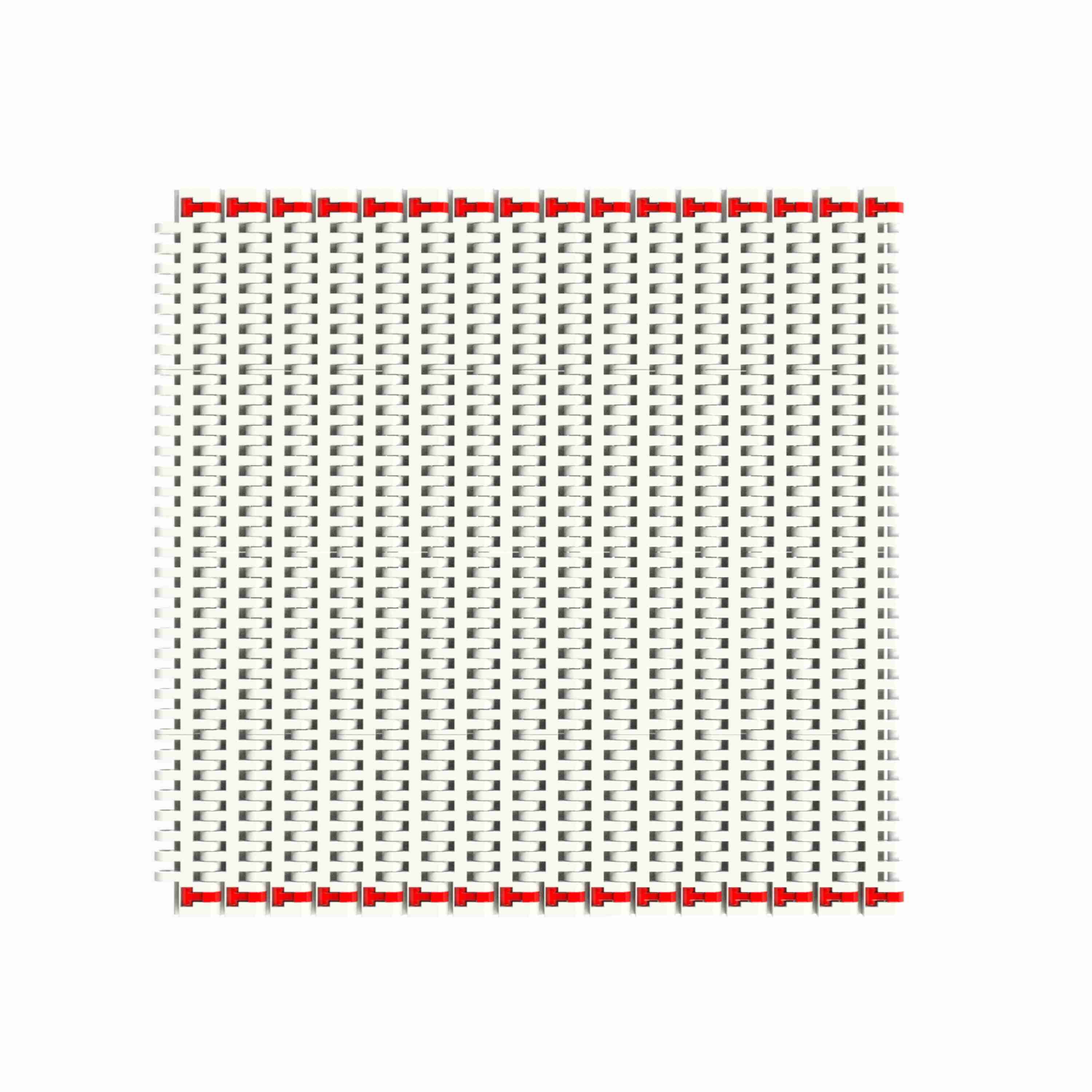

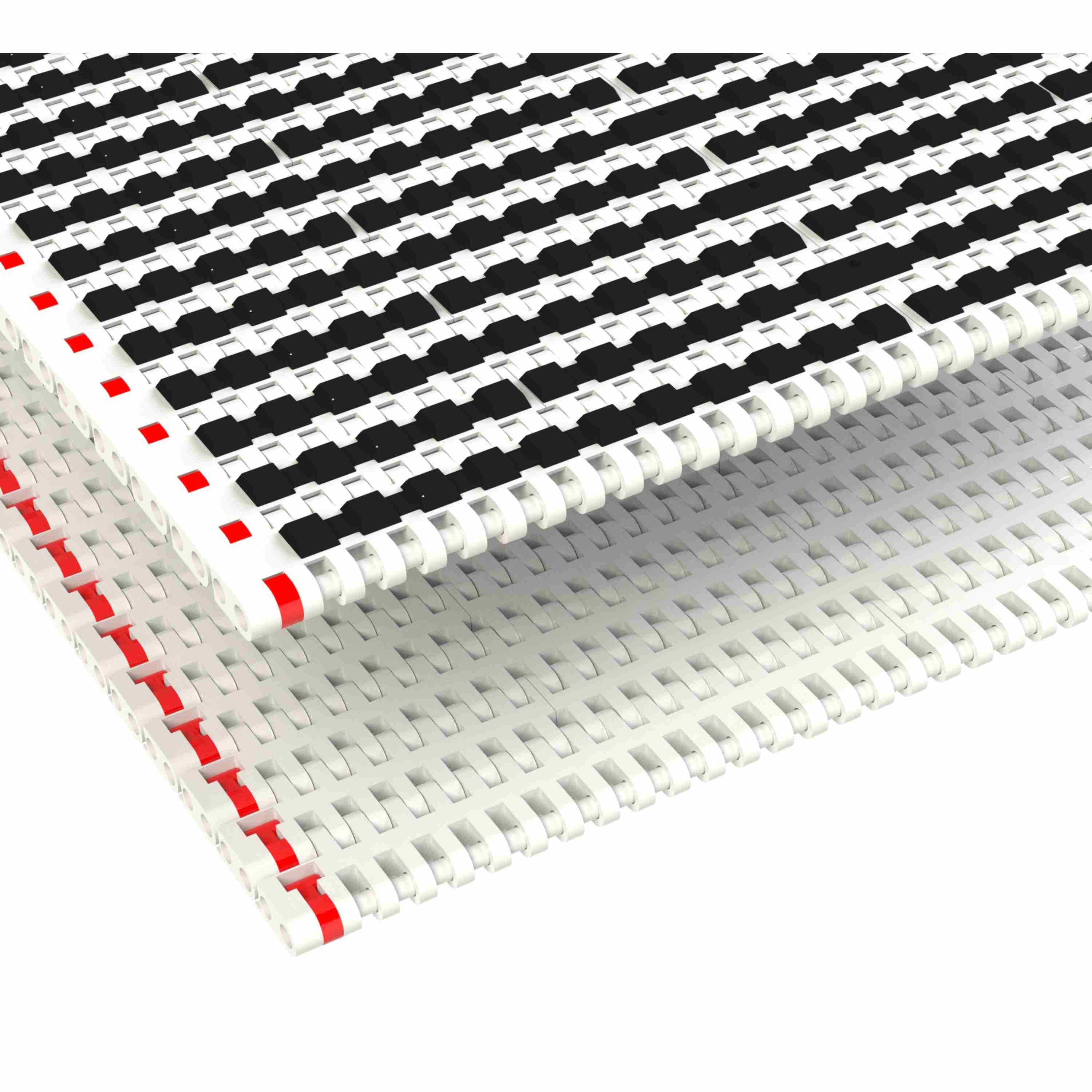

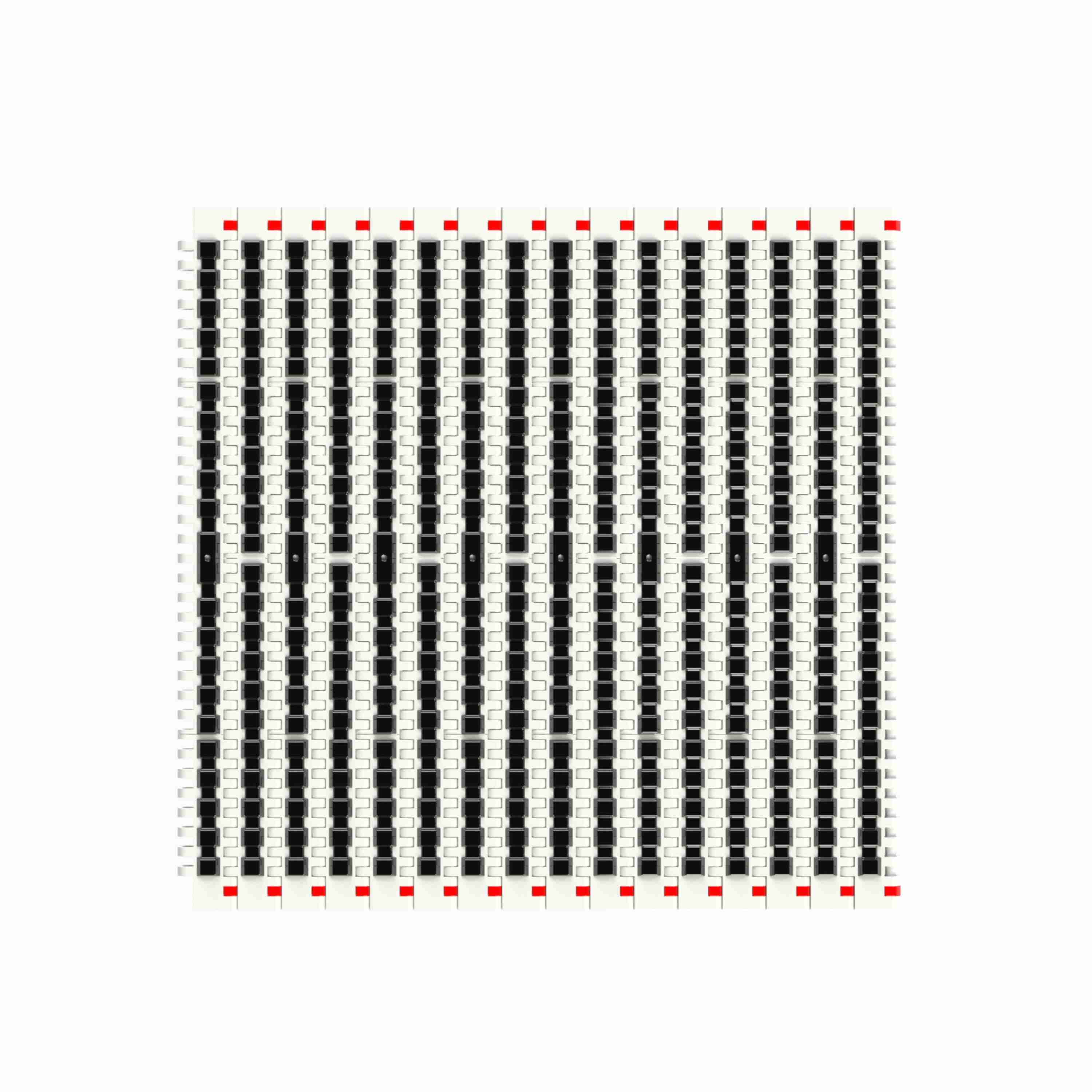

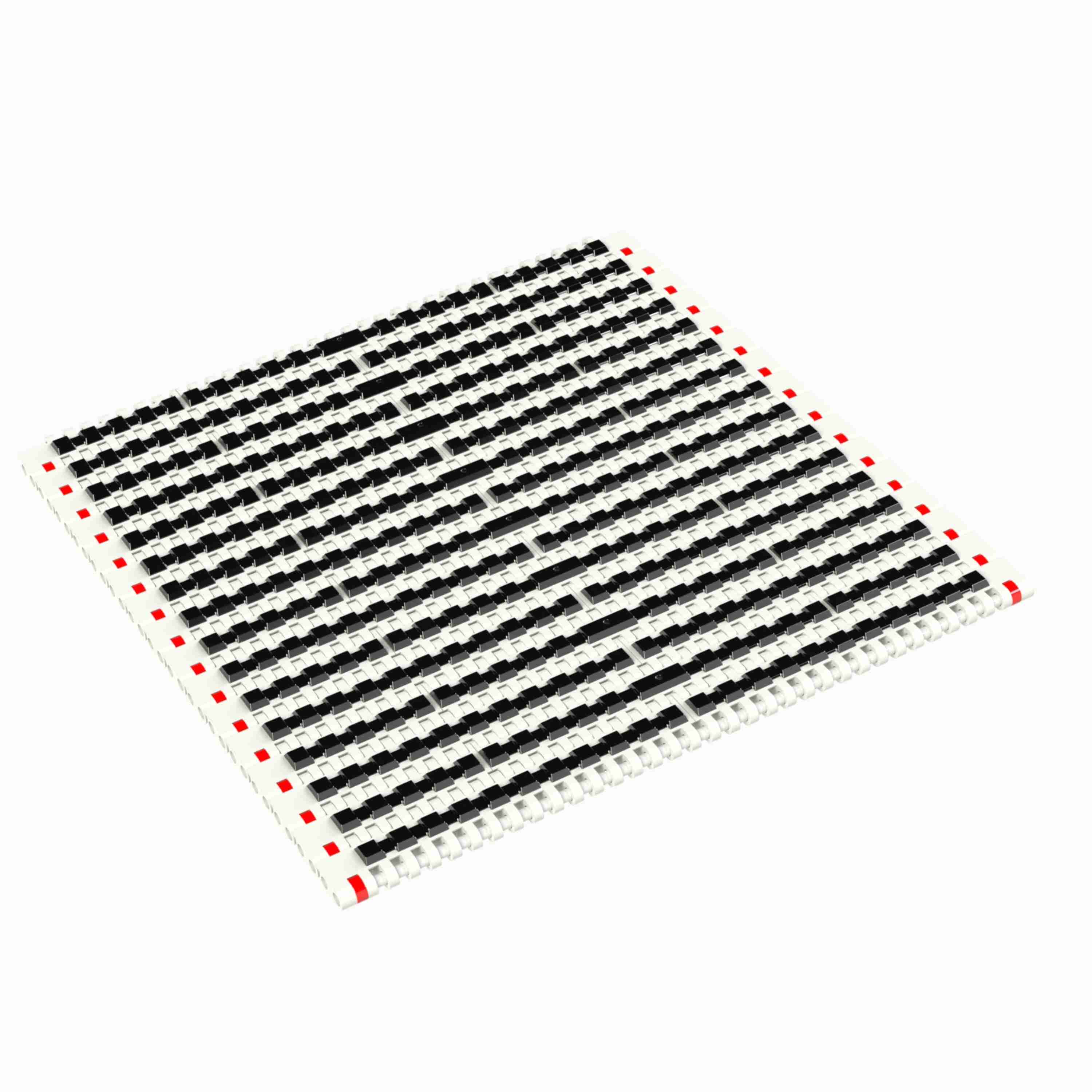

Rexnord 8505 RubberTop® Straight Running RubberTop®, Material: White High Temperature, Width: 15in, Pitch: 0.75in - 10343054
Part #:10343054
Catalog #:10343054
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 900 lb/ft | Chain Width (in): | 15 in |
| Series: | MatTop 8500 Series Chain | Surface Type: | RubberTop® |
| Chain Strength (N/m): | 13,131 N·m | Chain Width Measurement System: | Imperial |
| Chain Pitch (mm): | 19.1 mm | Chain Number: | 8505 RubberTop® |
| Chain Pitch (in): | 0.75 in | Chain Material: | WHT |
| Chain Width (mm): | 381 mm | Product Line: | Plastic Modular Chain and Belt |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Rod/Pin Material: | Polypropylene |
| SG/RT Spacing (Pitches): | Every Pitch | Product Type: | Straight Running |
| Belt Thickness (mm): | 8.6 mm | Open Area (%): | 4.1 % |
| Product Group: | Modular Plastic Belts | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.34 in | Chain Material Description: | White High Temperature |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
