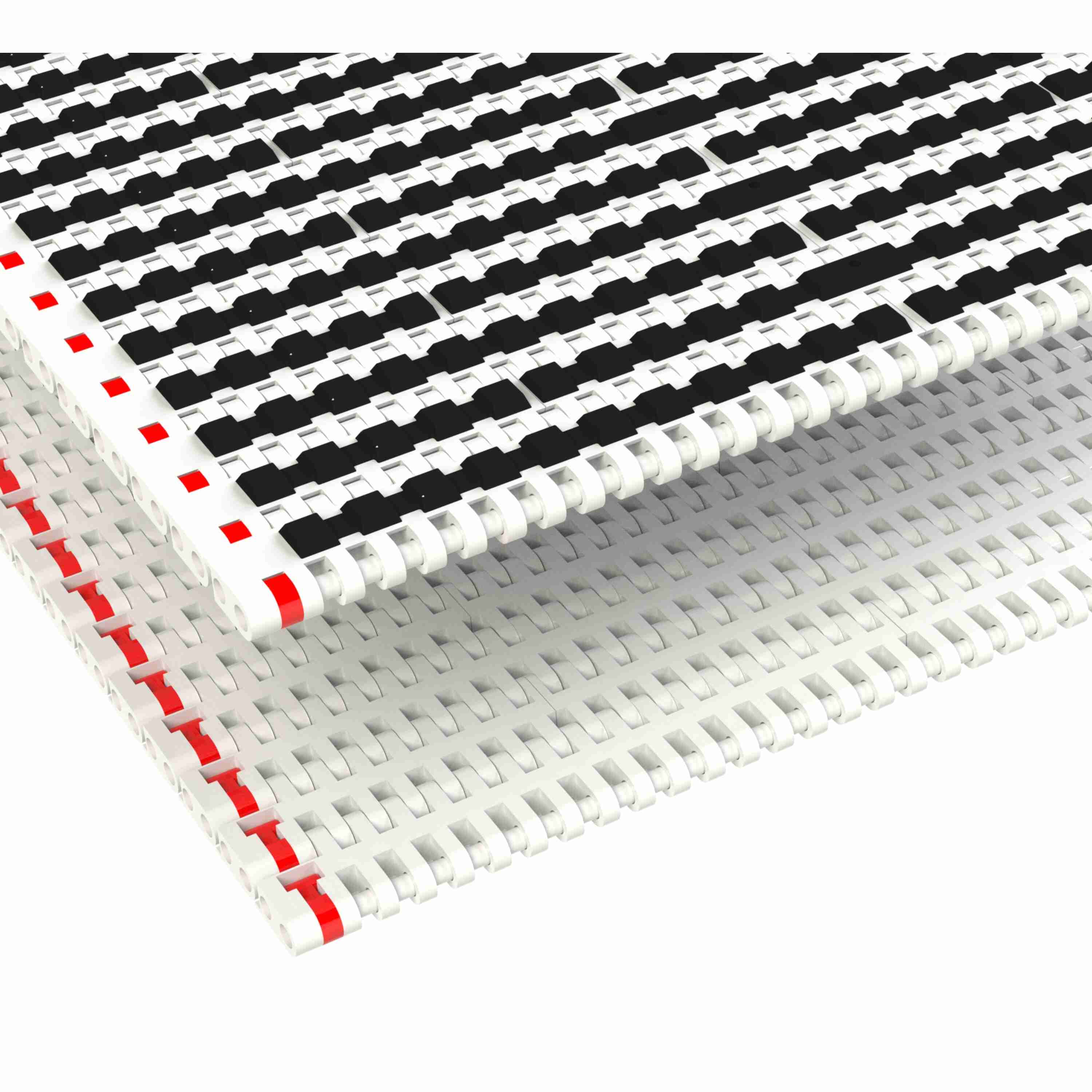

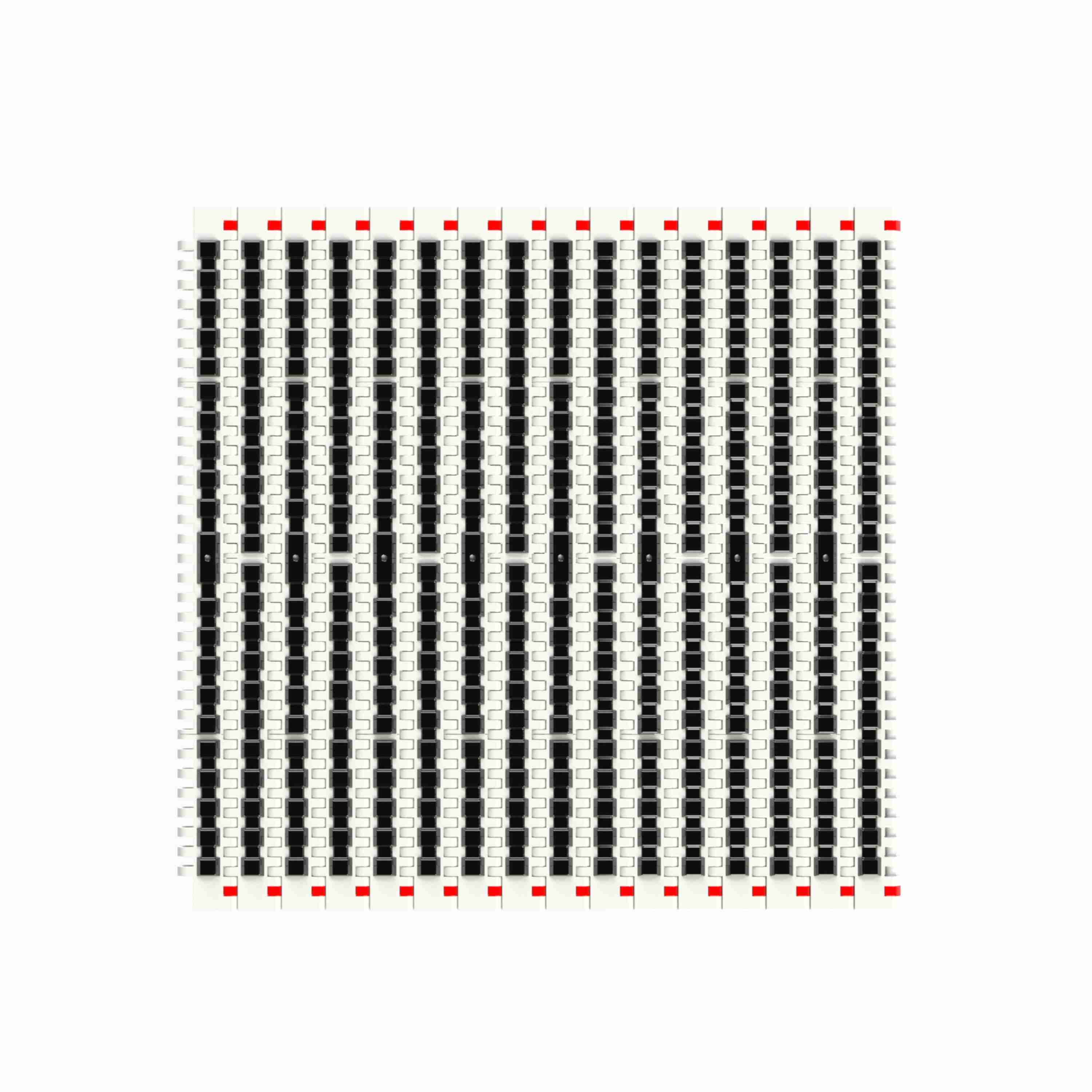

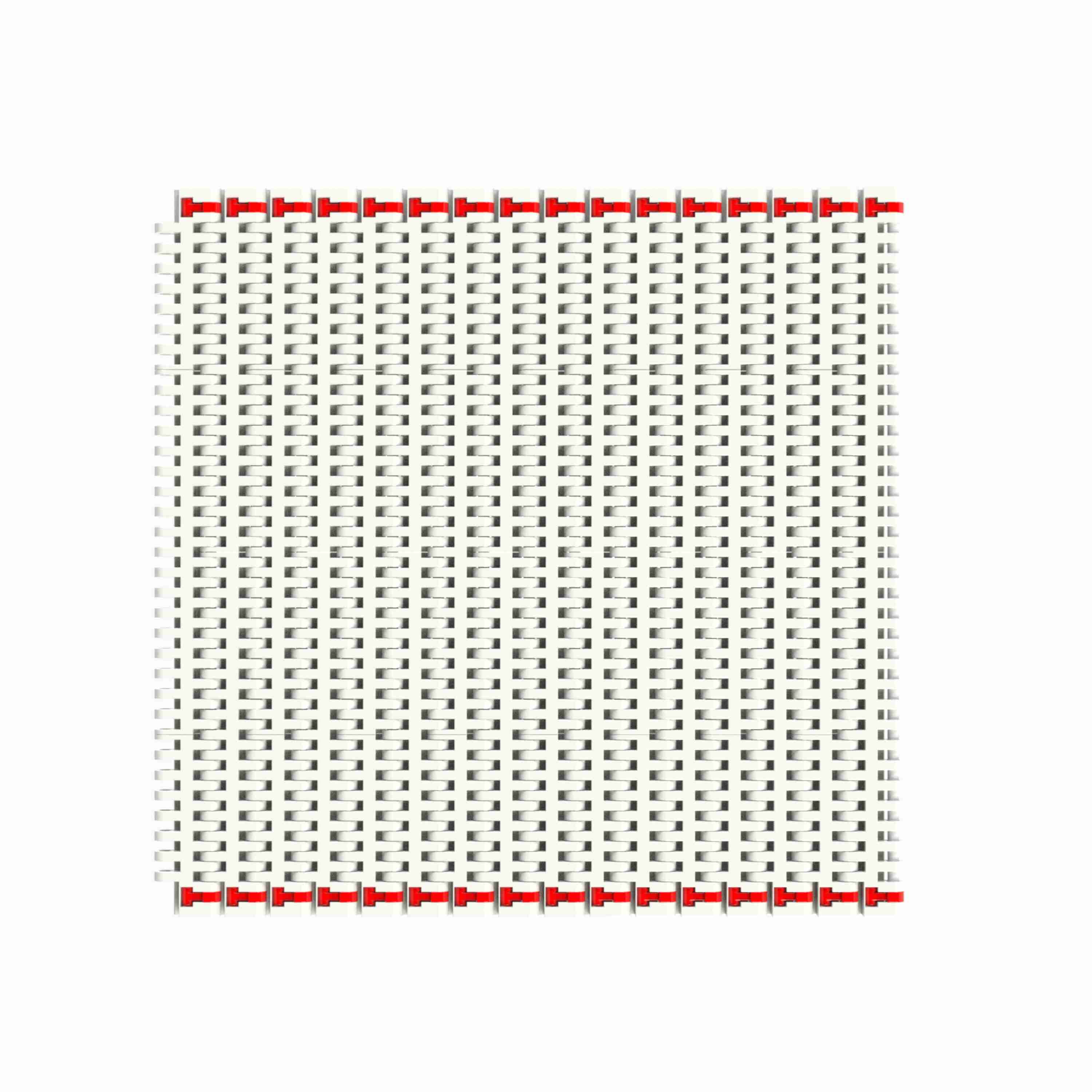

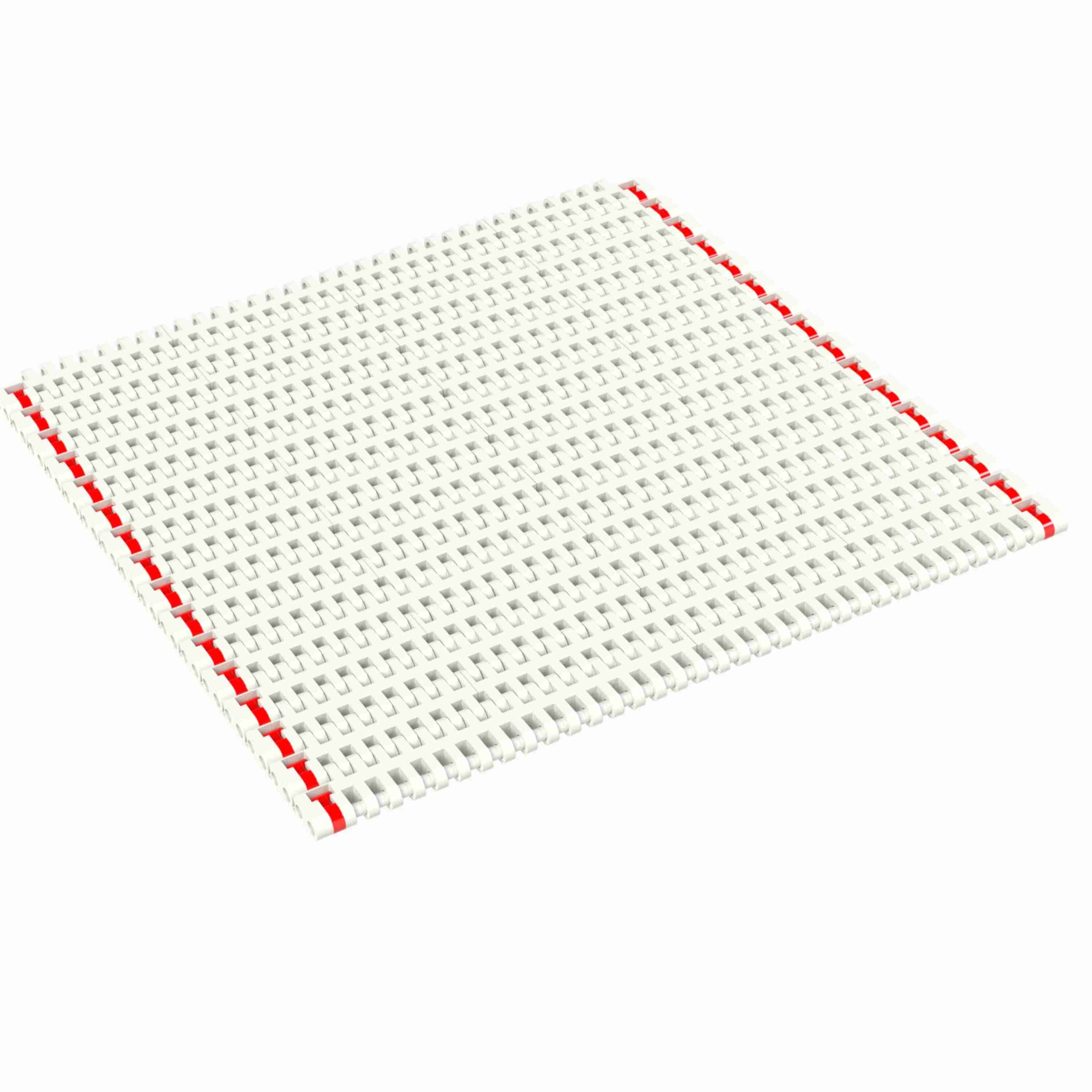

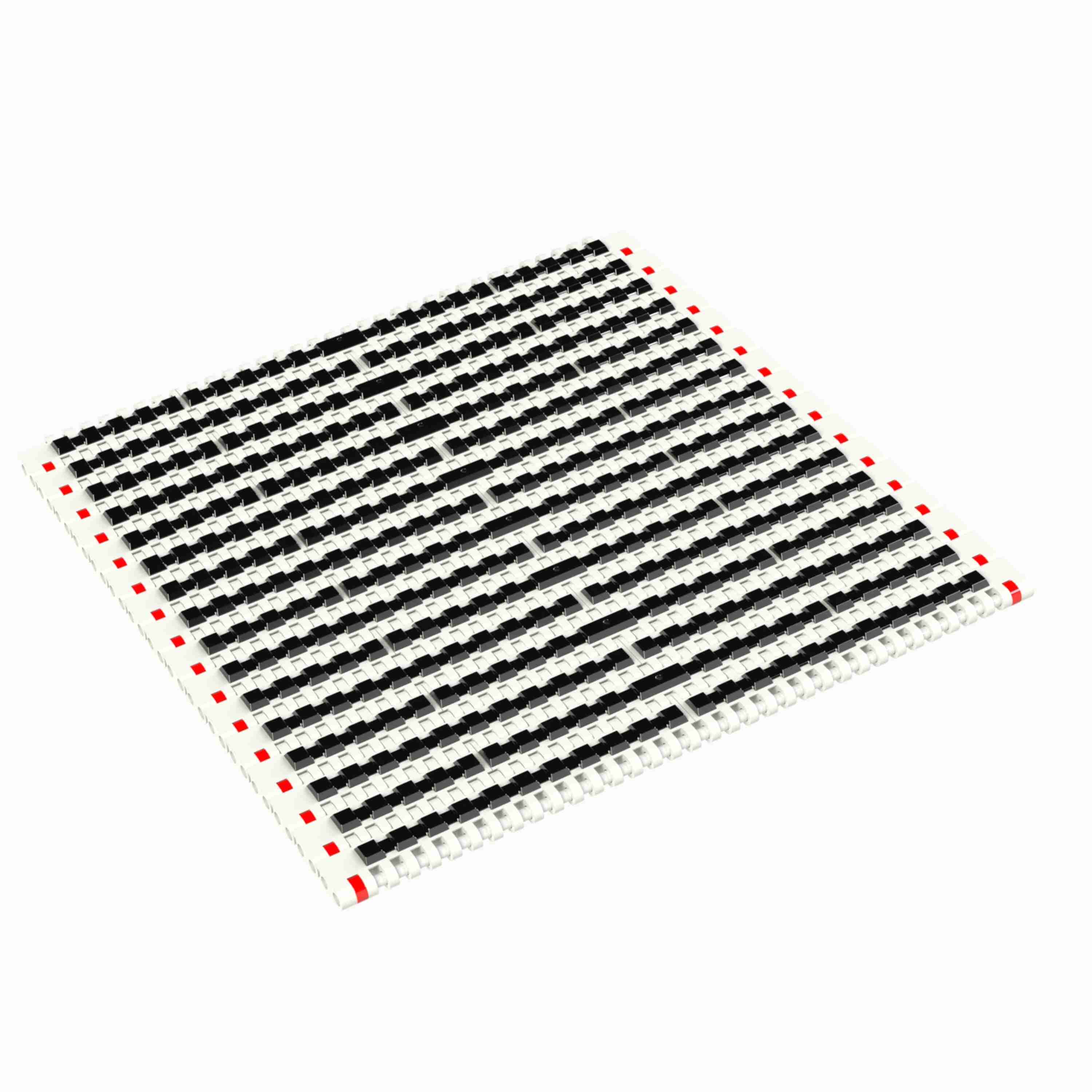

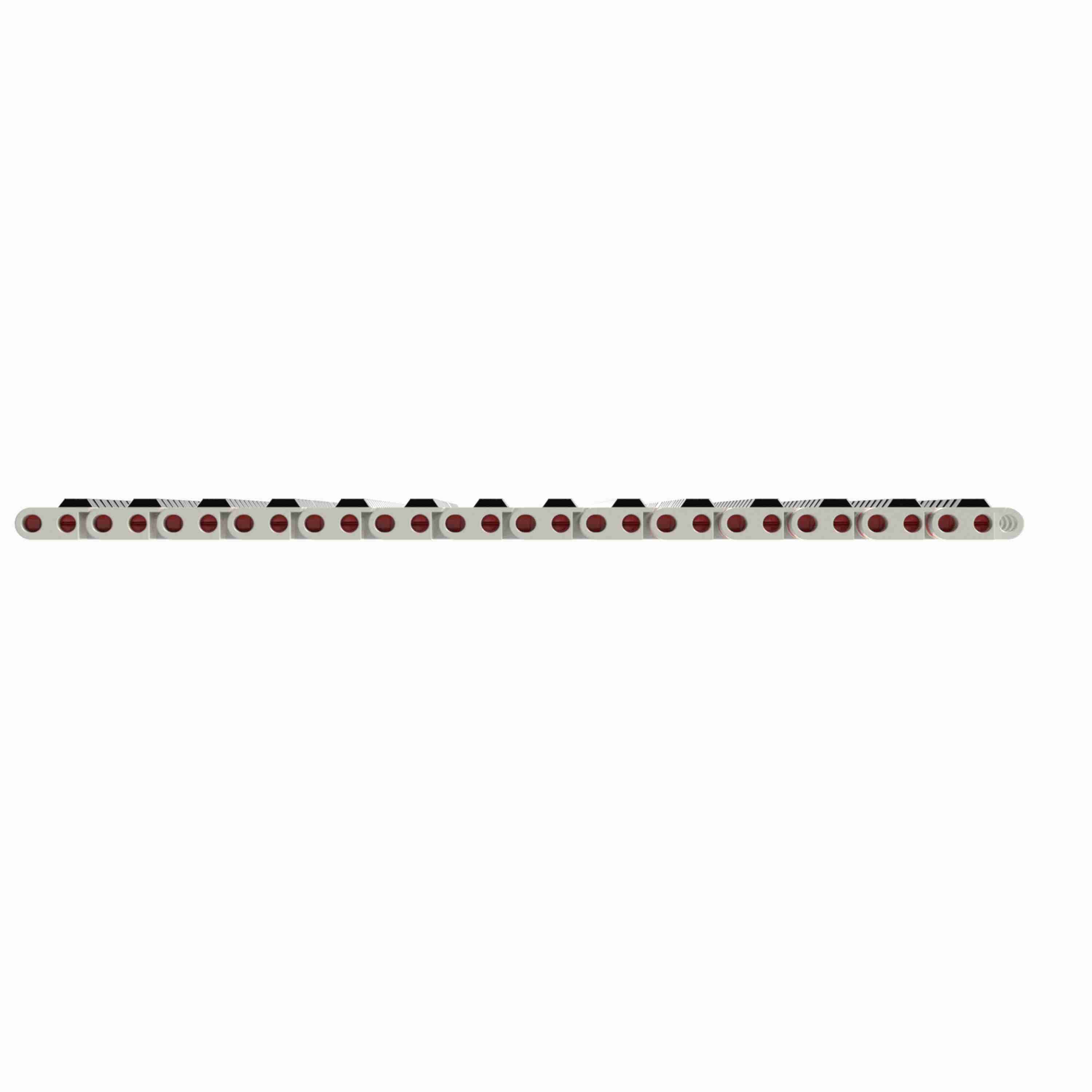

Rexnord 8505 RubberTop® Straight Running RubberTop®, Material: White High Temperature, Width: 24in, Pitch: 0.75in - 10343057
Part #:10343057
Catalog #:10343057
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Belt Thickness (in): | 0.34 in |
| Chain Strength (lb/ft): | 900 lb/ft | Chain Material Description: | White High Temperature |
| Belt Thickness (mm): | 8.6 mm | Open Area (%): | 4.1 % |
| Chain Width (mm): | 609.6 mm | Straight or Side-Flex: | Straight Running |
| Chain Strength (N/m): | 13,131 N·m | Chain Width (in): | 24 in |
| Product Line: | Plastic Modular Chain and Belt | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Rod/Pin Material: | Polypropylene | Chain Pitch (mm): | 19.1 mm |
| Product Group: | Modular Plastic Belts | SG/RT Spacing (Pitches): | Every Pitch |
| Series: | MatTop 8500 Series Chain | Chain Material: | WHT |
| Product Type: | Straight Running | Surface Type: | RubberTop® |
| Chain Pitch (in): | 0.75 in | Chain Number: | 8505 RubberTop® |
General Specifications
| Weight: | 0.18 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
