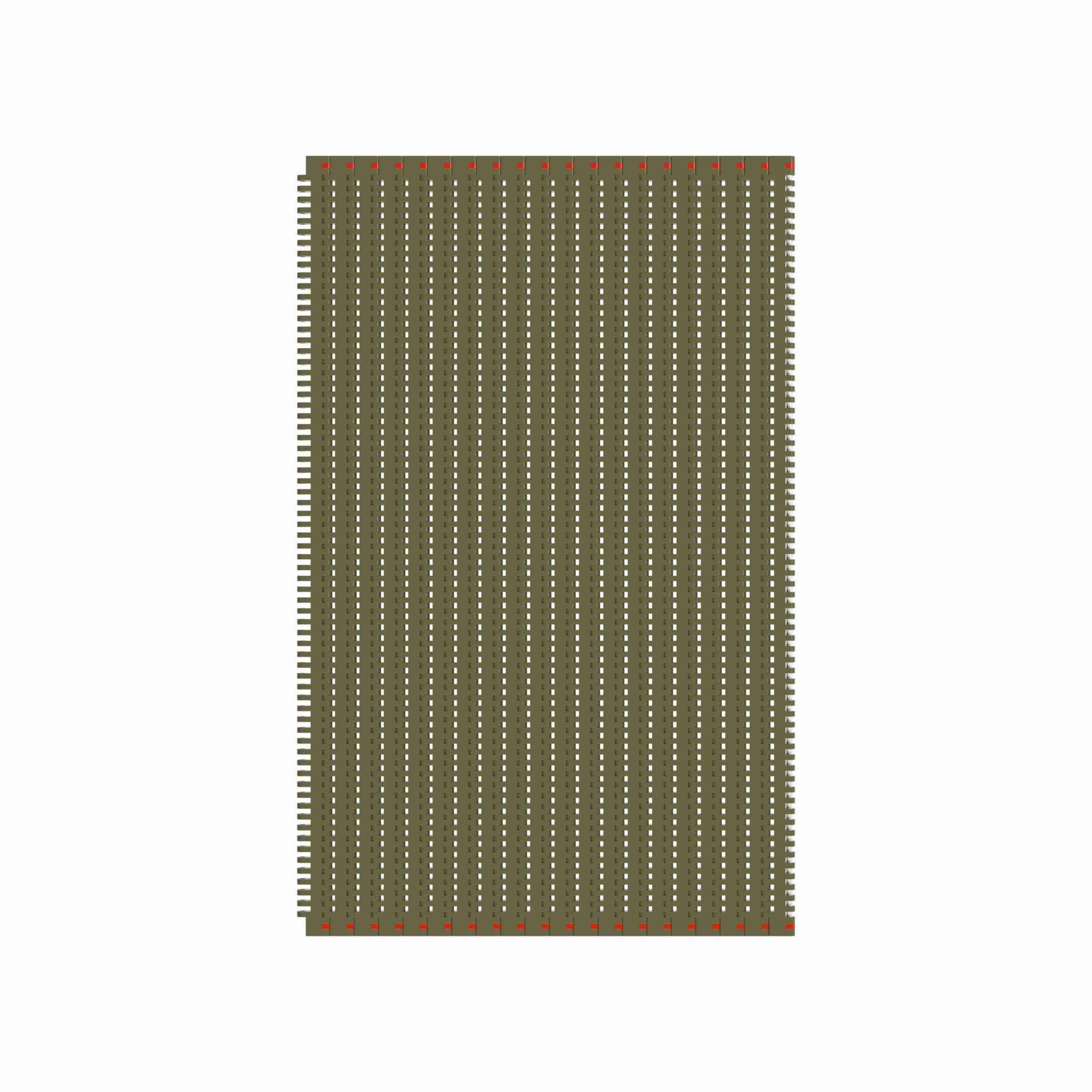

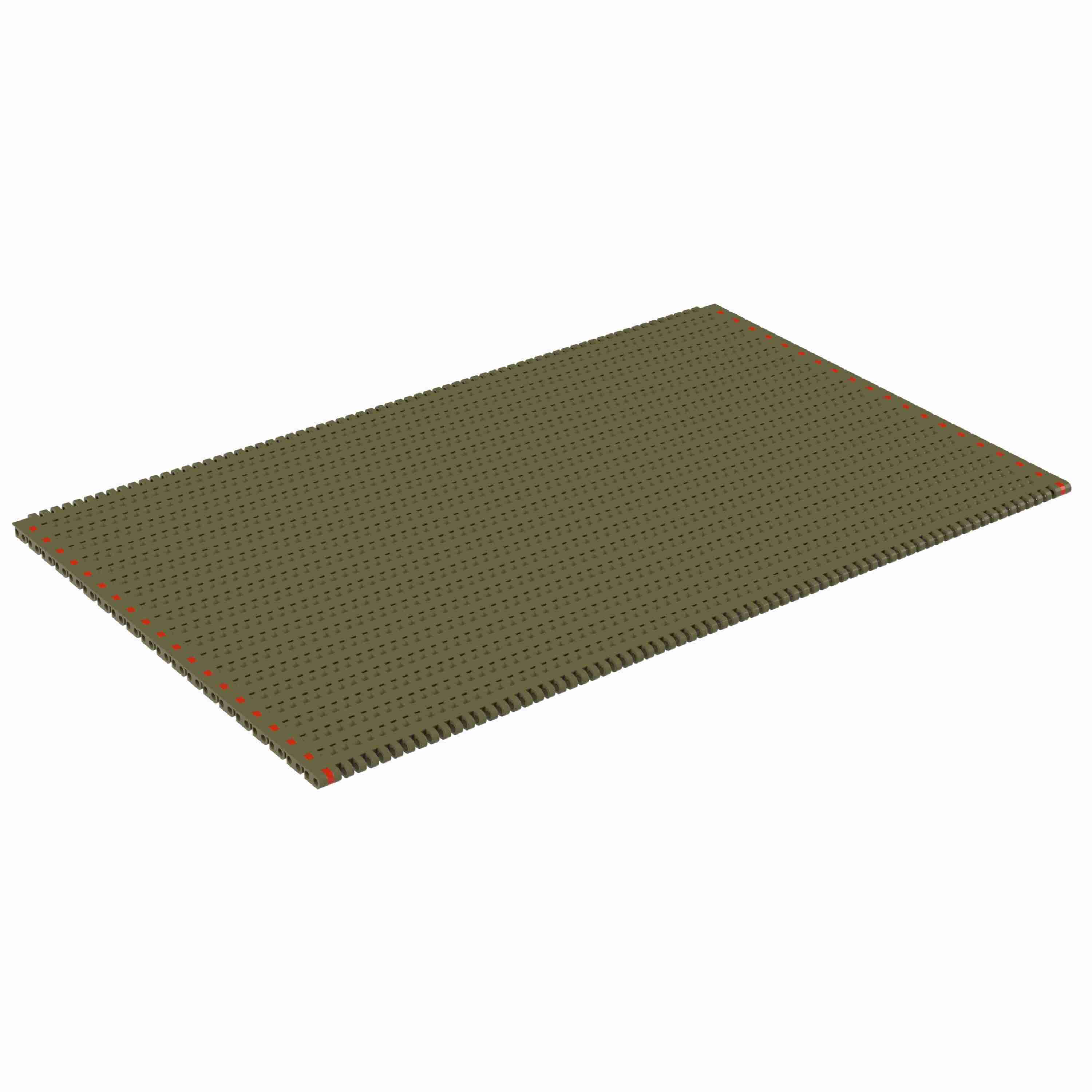

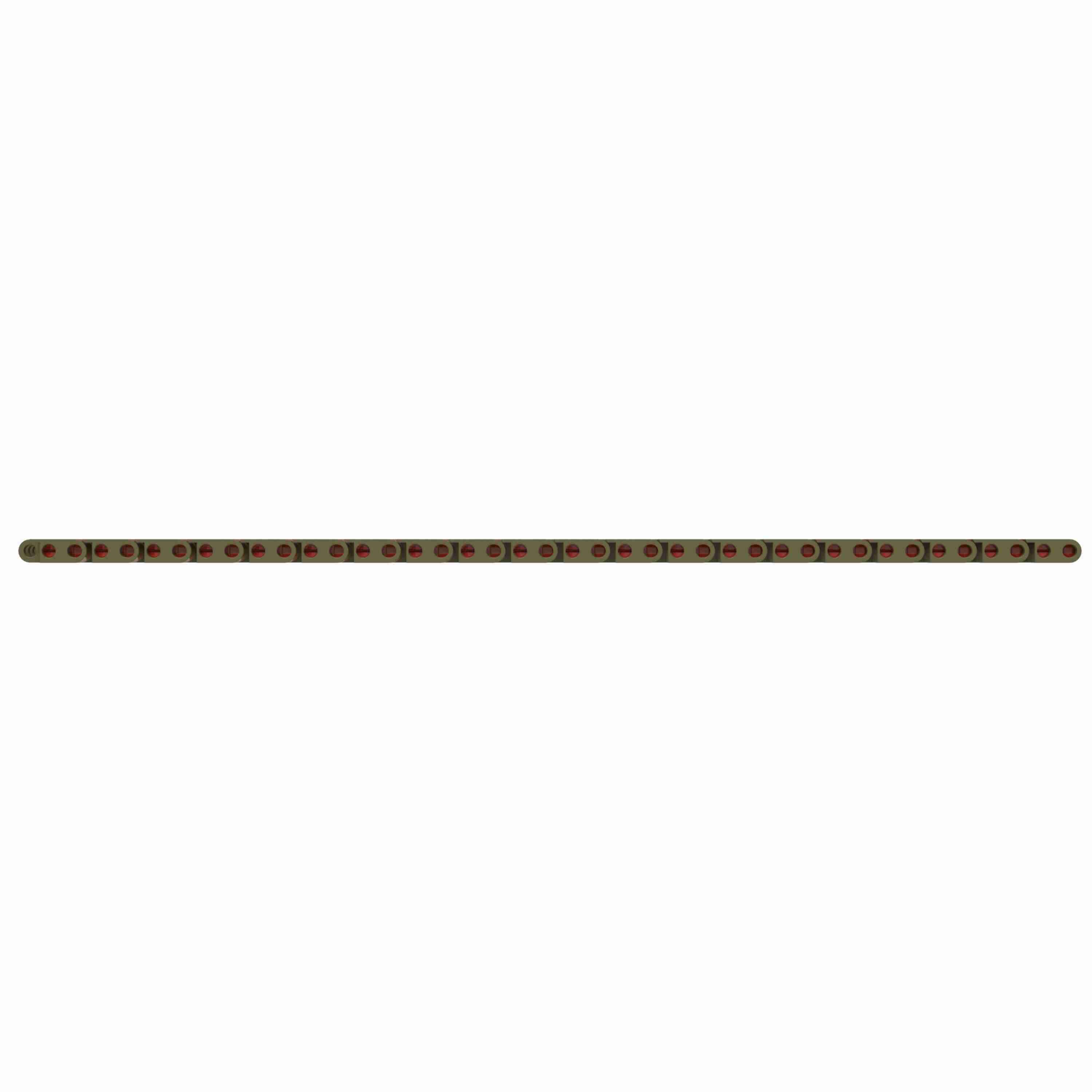

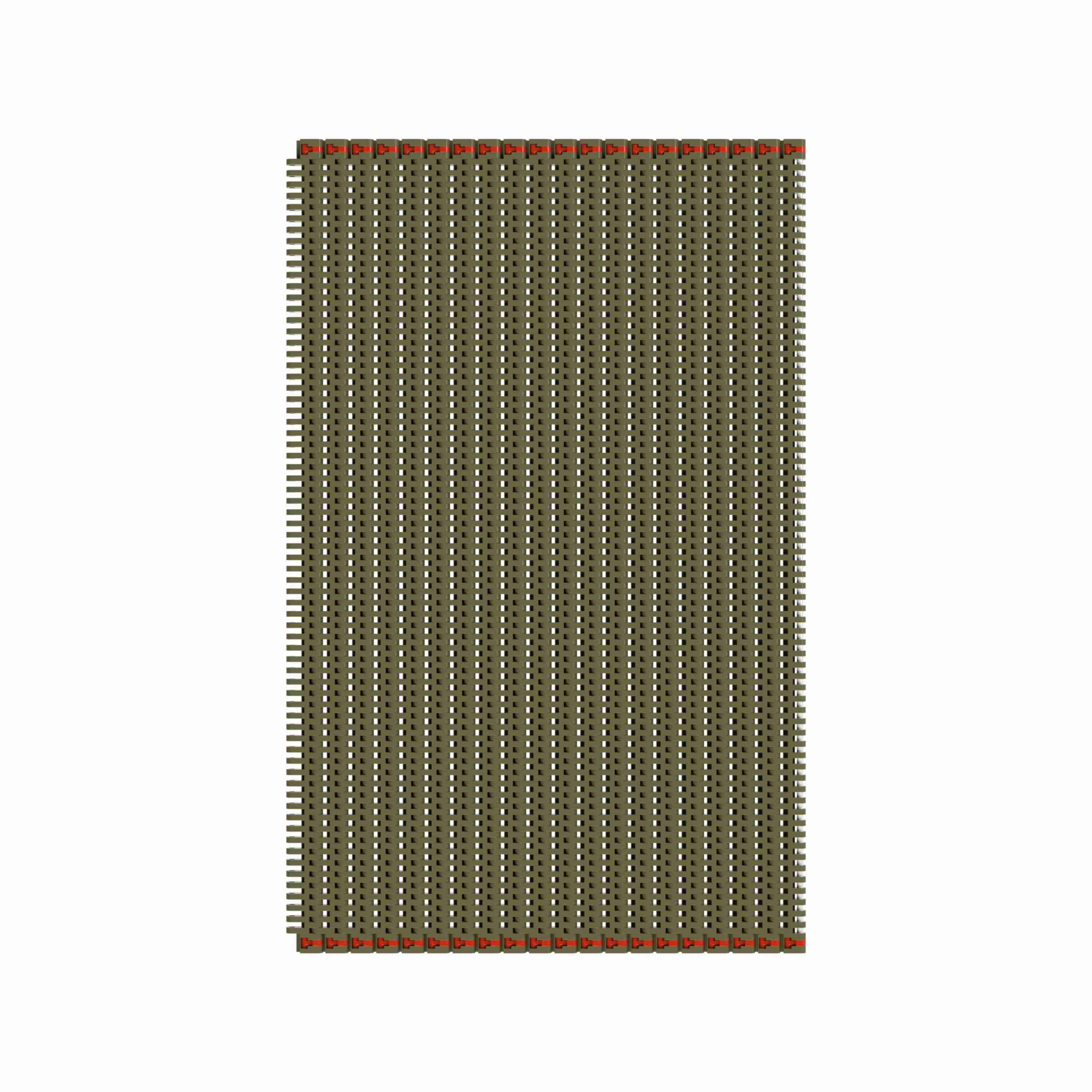

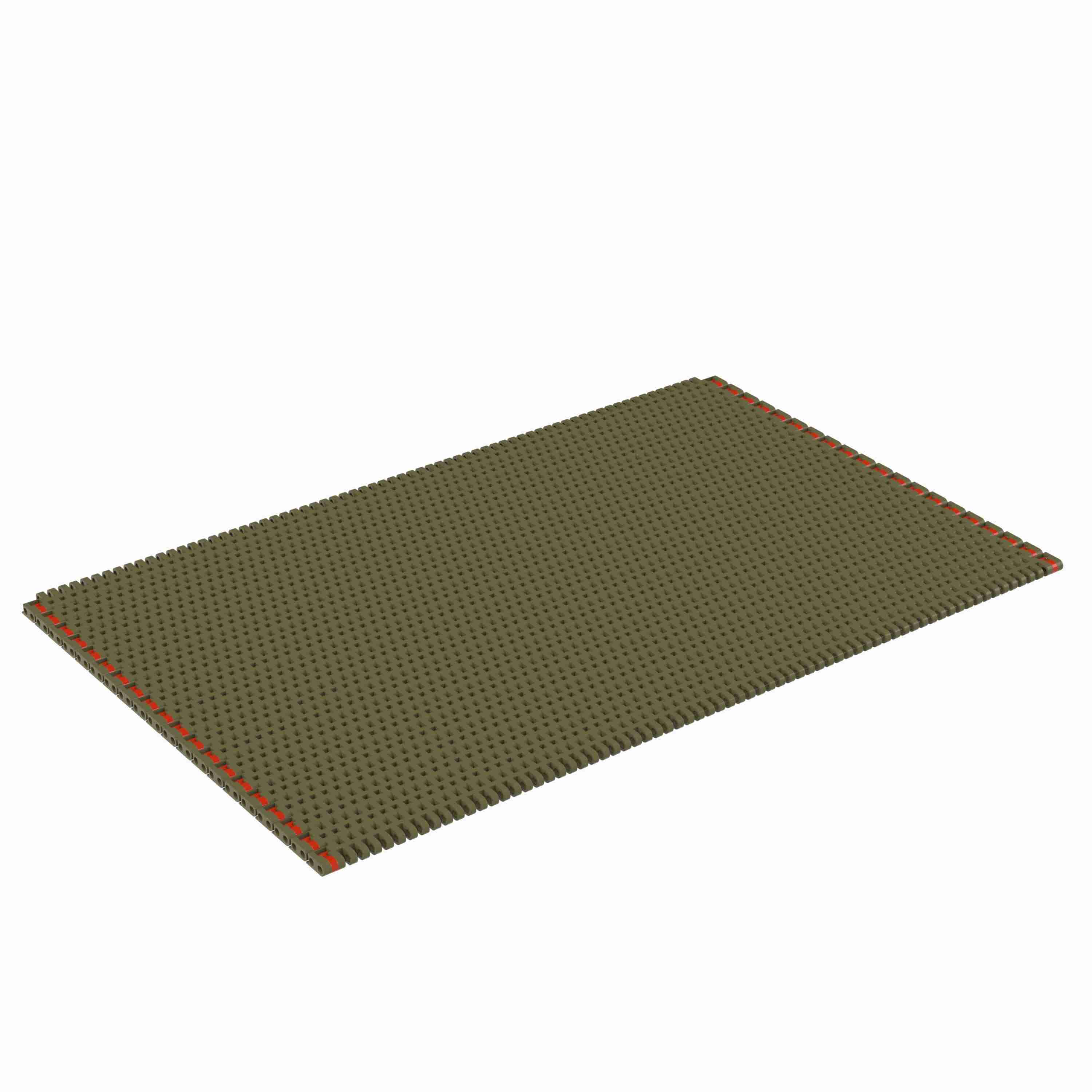

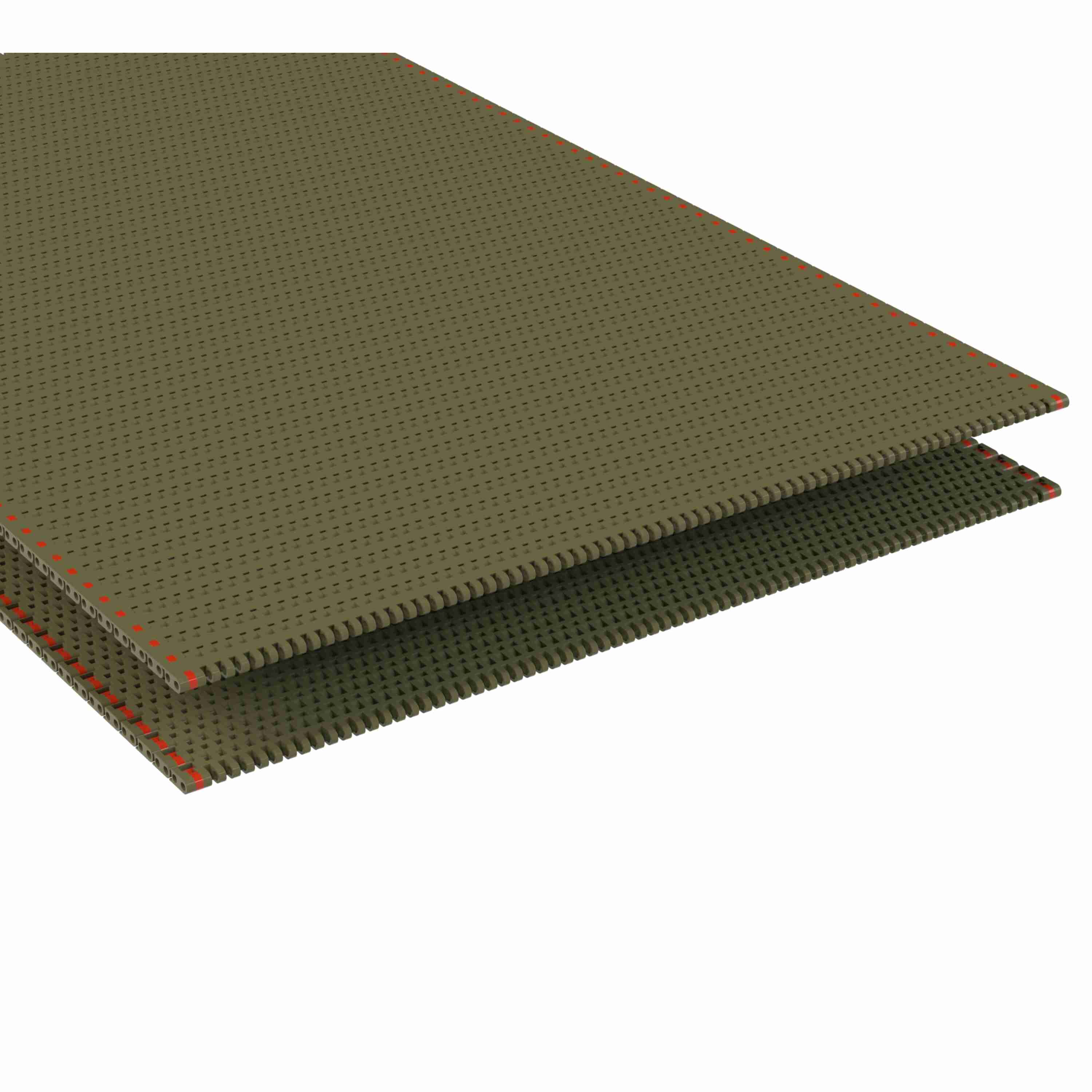

Rexnord 8505 Straight Running Flush Grid, Material: Khaki High Temperature, Width: 48in, Pitch: 0.75in - 10713509
Part #:10713509
Catalog #:10713509
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Khaki High Temperature | Open Area (%): | 21 % |
| Chain Width (mm): | 1,219.2 mm | Chain Strength (N/m): | 13,131 N·m |
| Chain Pitch (mm): | 19.1 mm | Chain Number: | 8505 |
| Belt Thickness (in): | 0.34 in | Product Line: | Plastic Modular Chain and Belt |
| Chain Width Measurement System: | Imperial | Chain Pitch (in): | 0.75 in |
| Product Group: | Modular Plastic Belts | Product Type: | Straight Running |
| Chain Strength (lb/ft): | 900 lb/ft | Surface Type: | Flush Grid |
| Belt Thickness (mm): | 8.7 mm | Series: | MatTop 8500 Series Chain |
| Straight or Side-Flex: | Straight Running | Rod/Pin Material: | Polypropylene |
| Chain Width (in): | 48 in | Chain Material: | KHT |
General Specifications
| Weight: | 0.30 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
