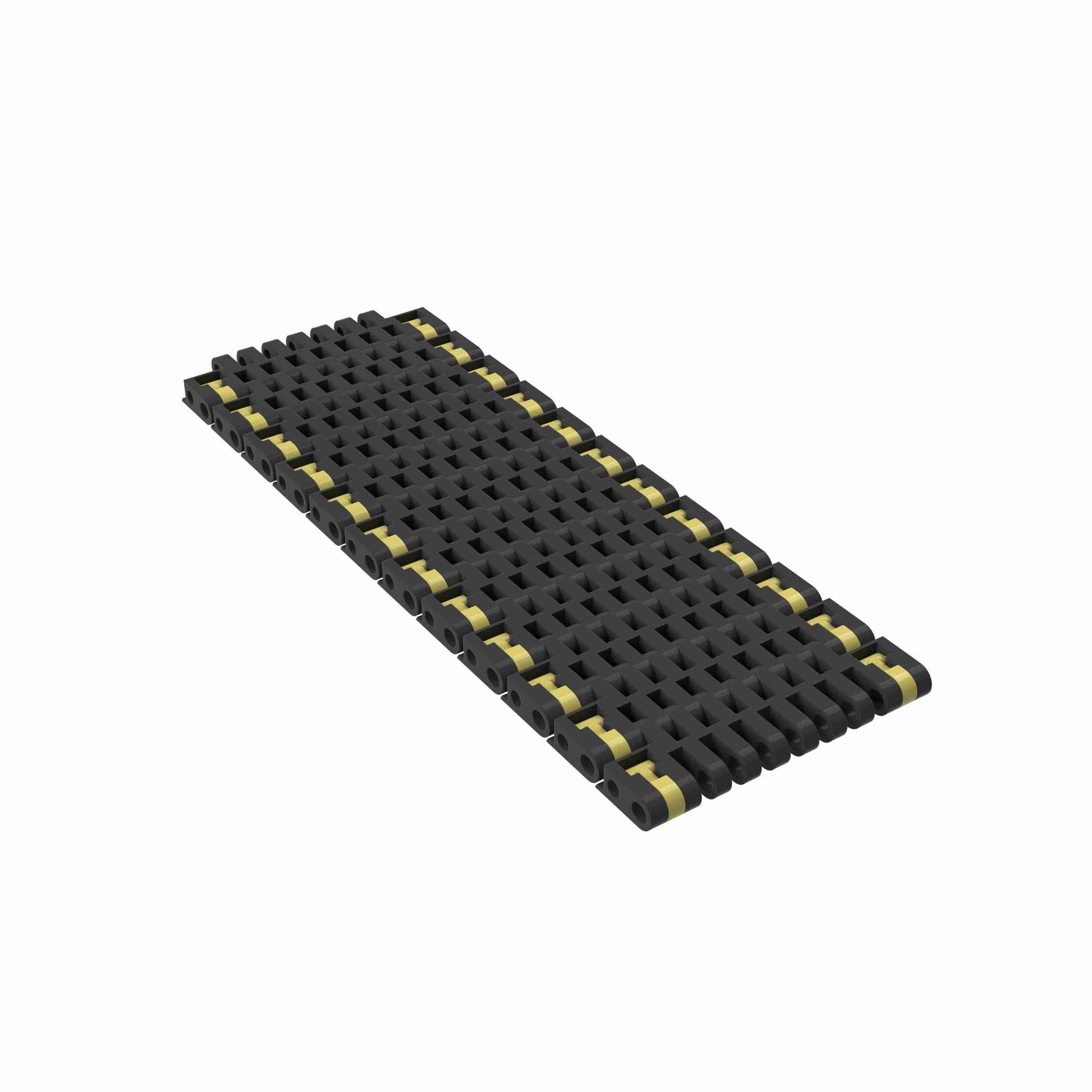

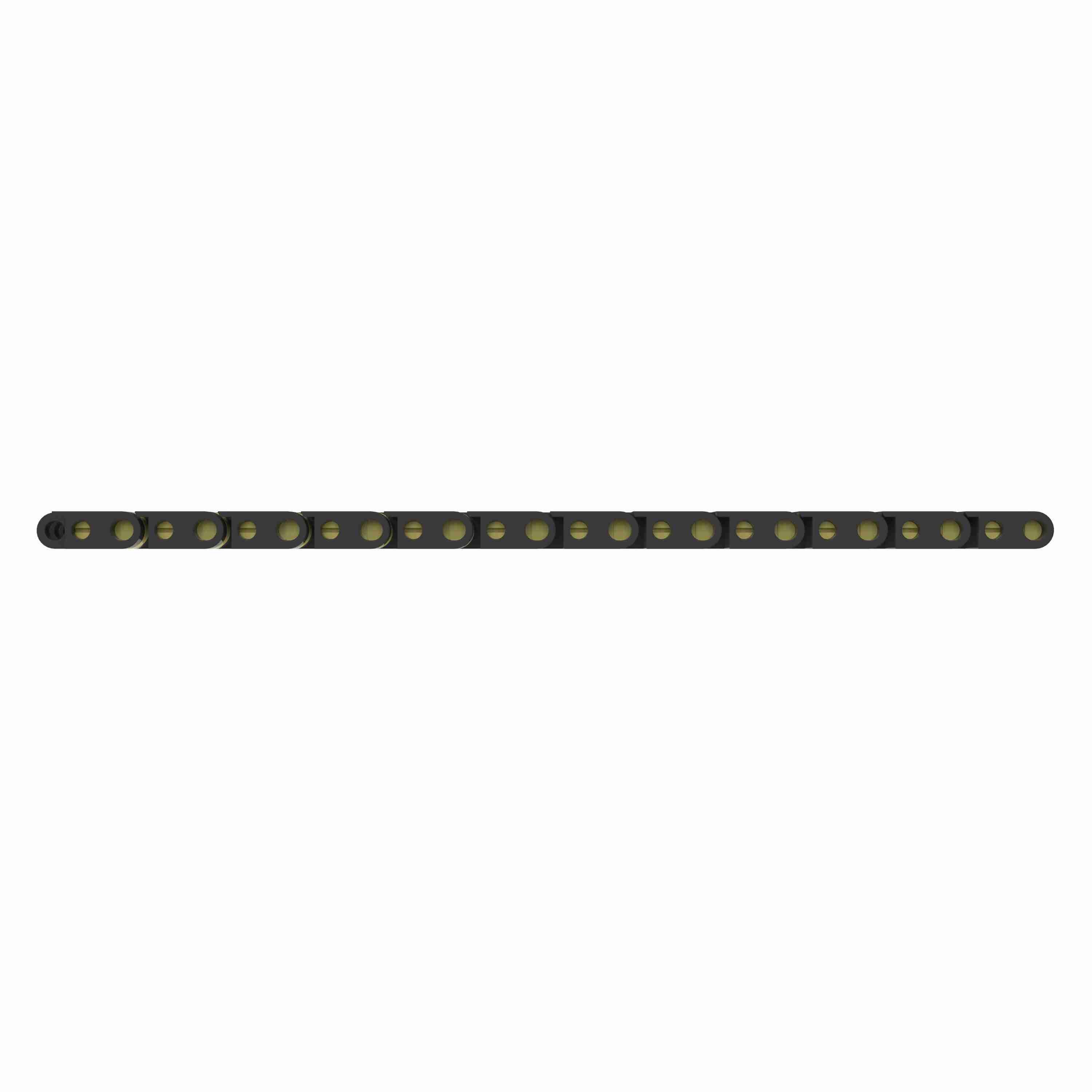

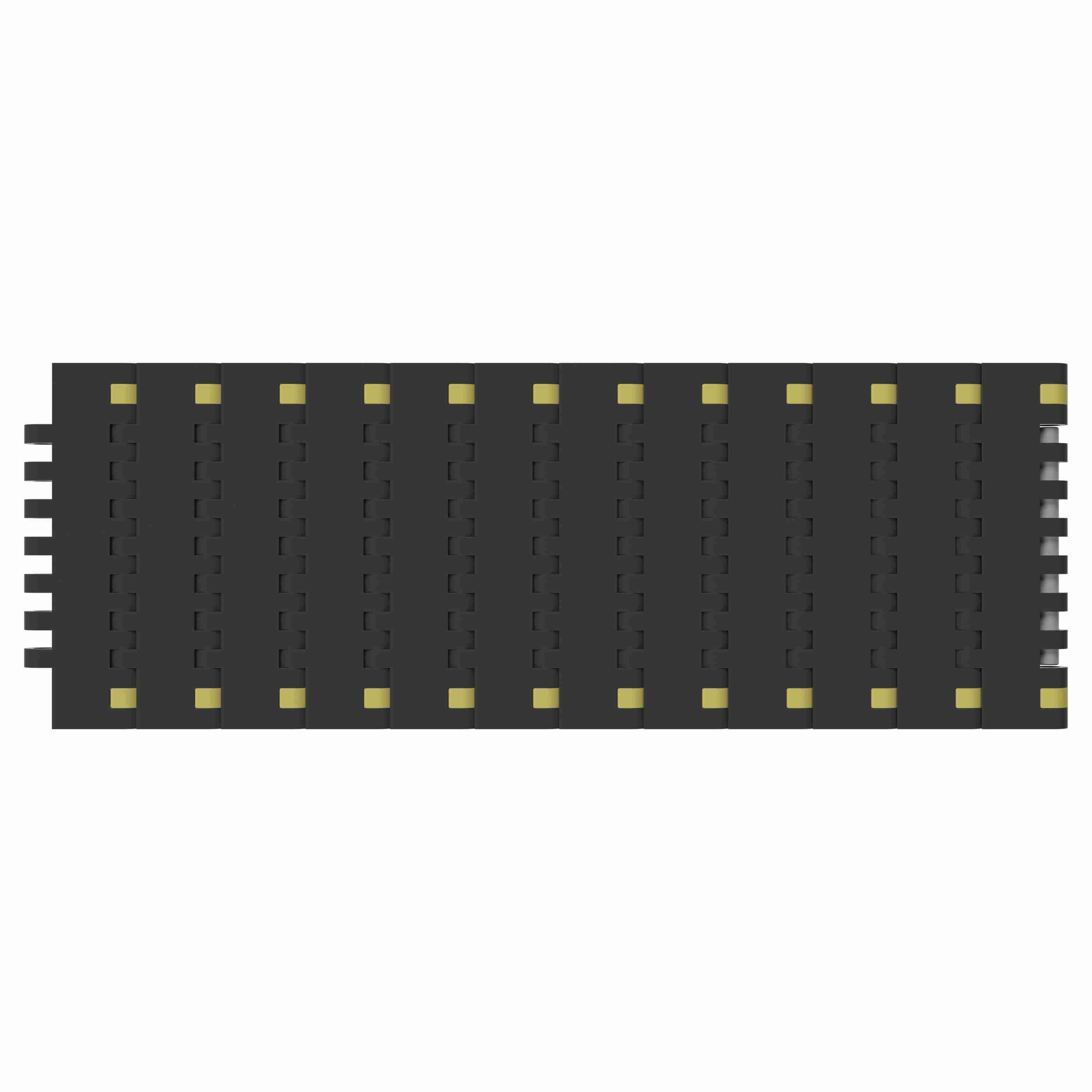

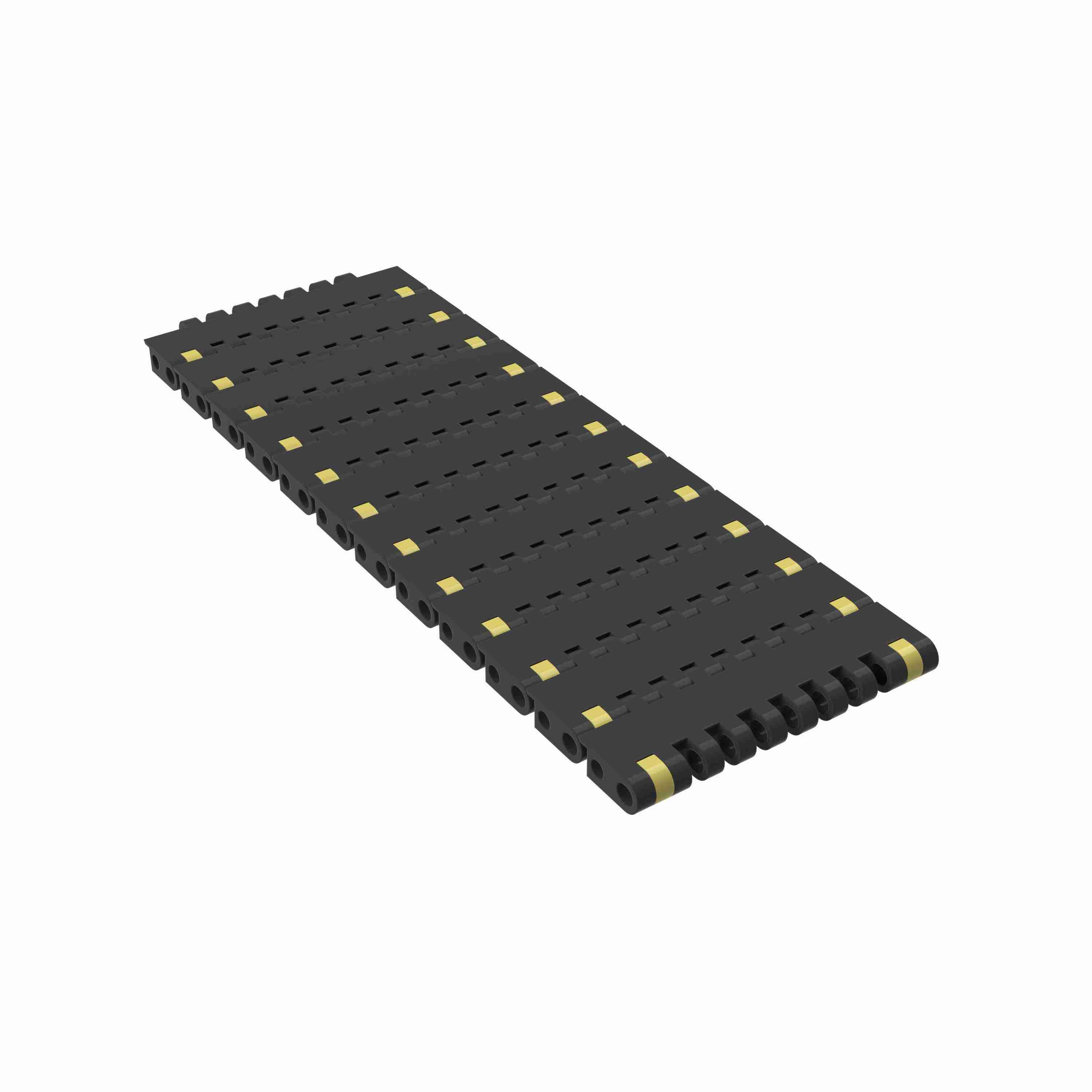

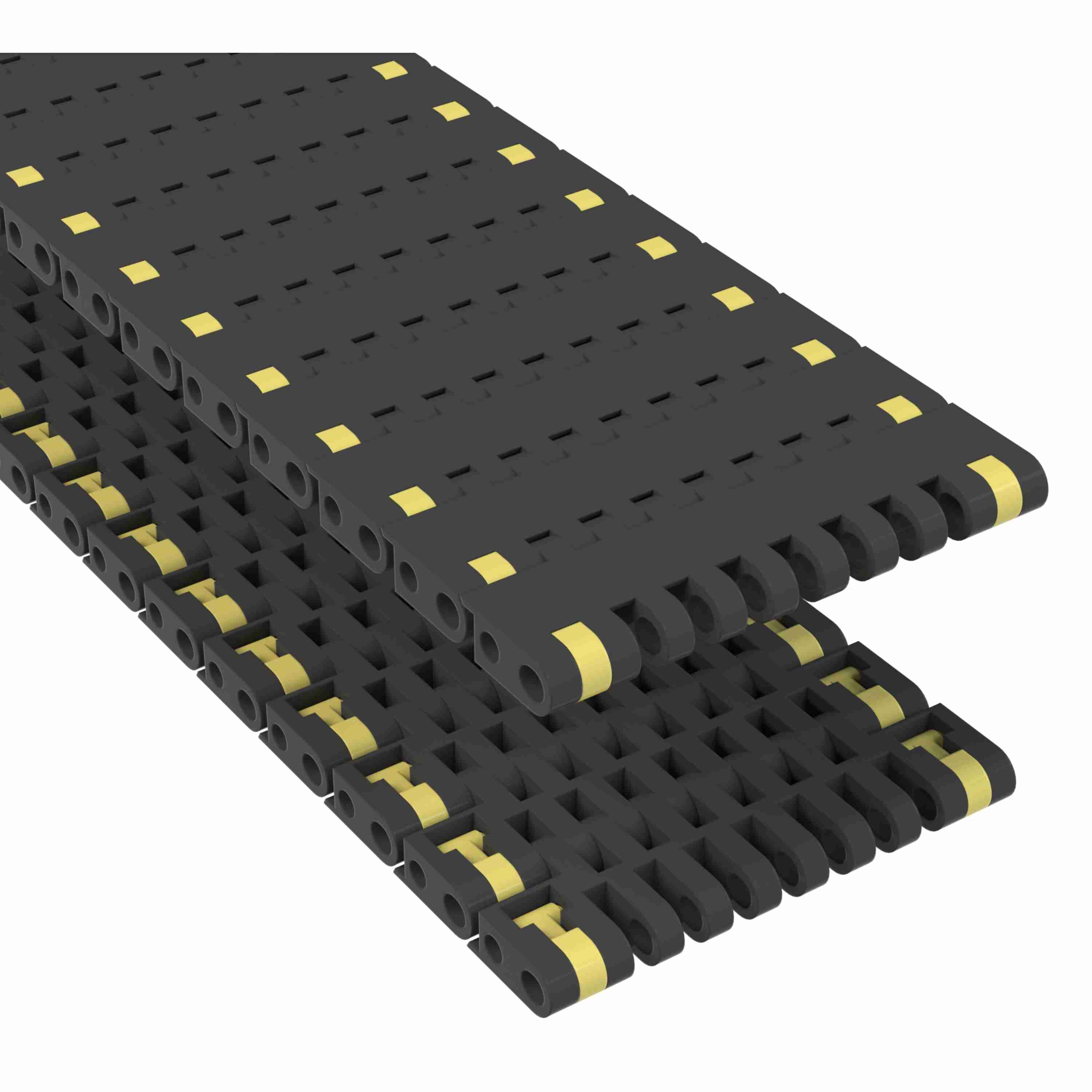

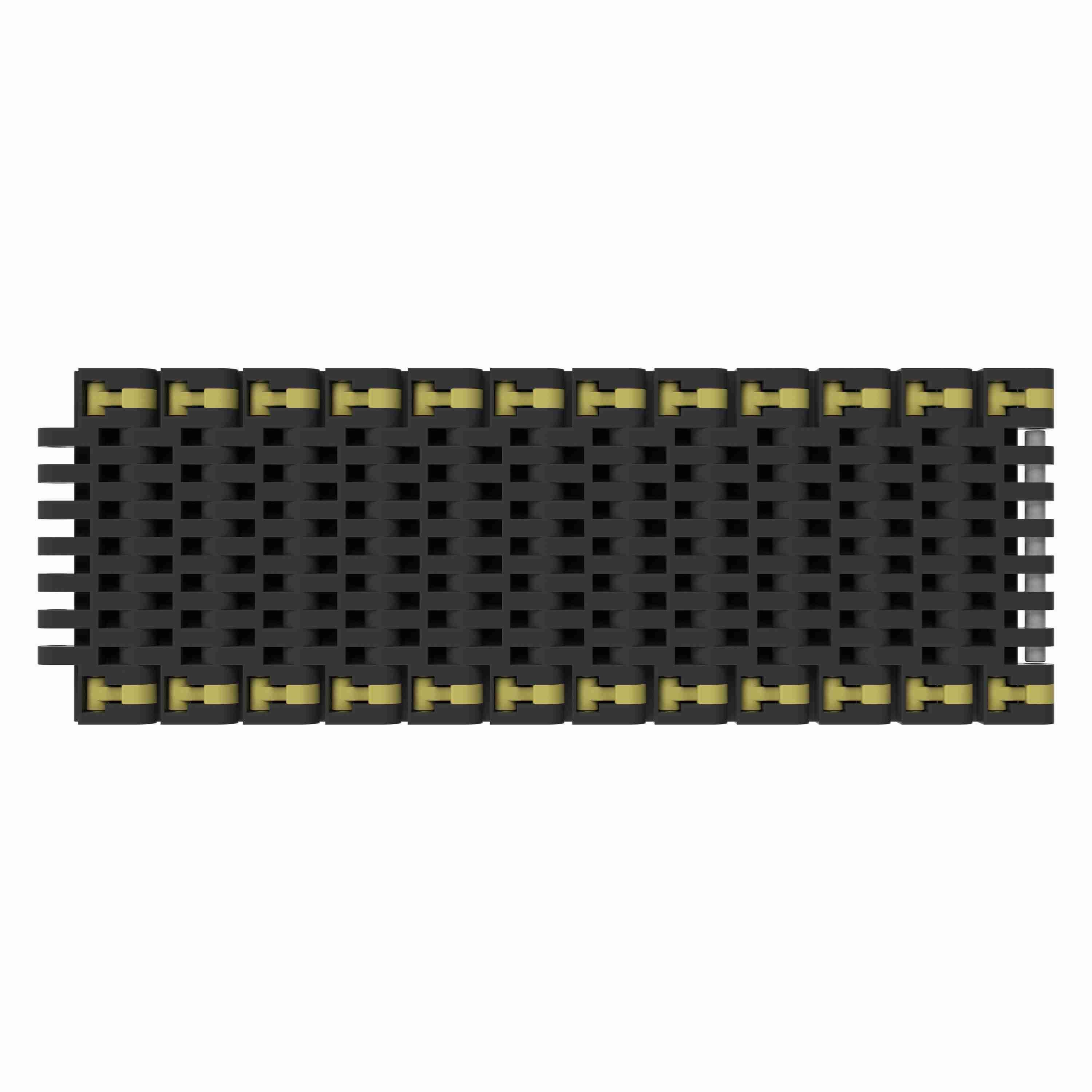

Rexnord 8505 Straight Running Solid Top, Material: Black Anti-Static, Width: 3.25in, Pitch: 0.75in - 81419861
Part #:10322695
Catalog #:81419861
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Straight or Side-Flex: | Straight Running | Chain Width (in): | 3.25 in |
| Chain Strength (lb): | 144 lb | Series: | MatTop 8500 Series Chain |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Belt Thickness (in): | 0.34 in | Belt Thickness (mm): | 8.6 mm |
| Chain Material Description: | Black Anti-Static | Chain Material: | AS |
| Chain Number: | 8505 | Chain Width Measurement System: | Imperial |
| Surface Type: | Solid Top | Open Area (%): | 4.1 % |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 0.75 in |
| Chain Width (mm): | 82.6 mm | Chain Strength (N): | 639 N |
| Rod/Pin Material: | Polyester | Chain Pitch (mm): | 19.1 mm |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
