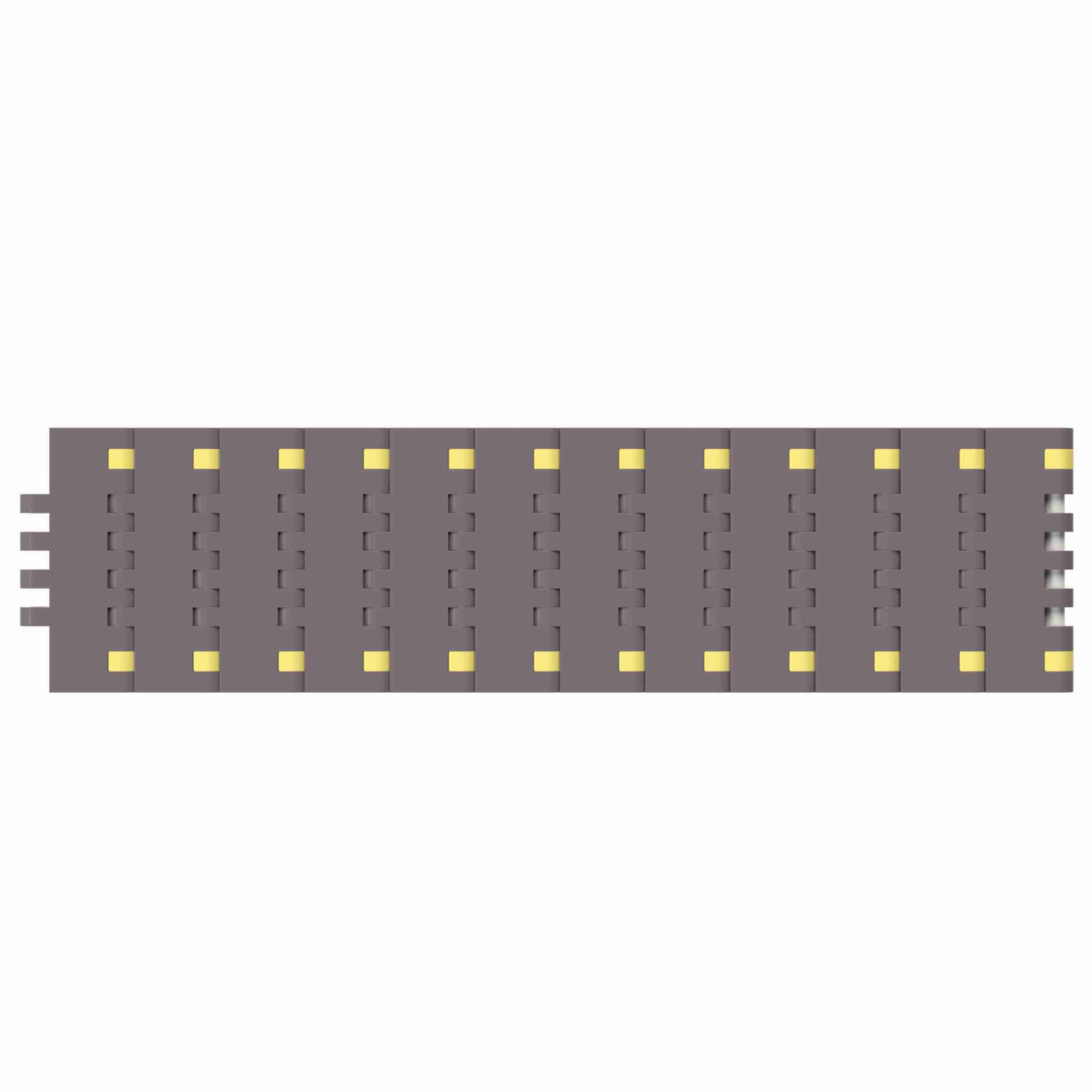

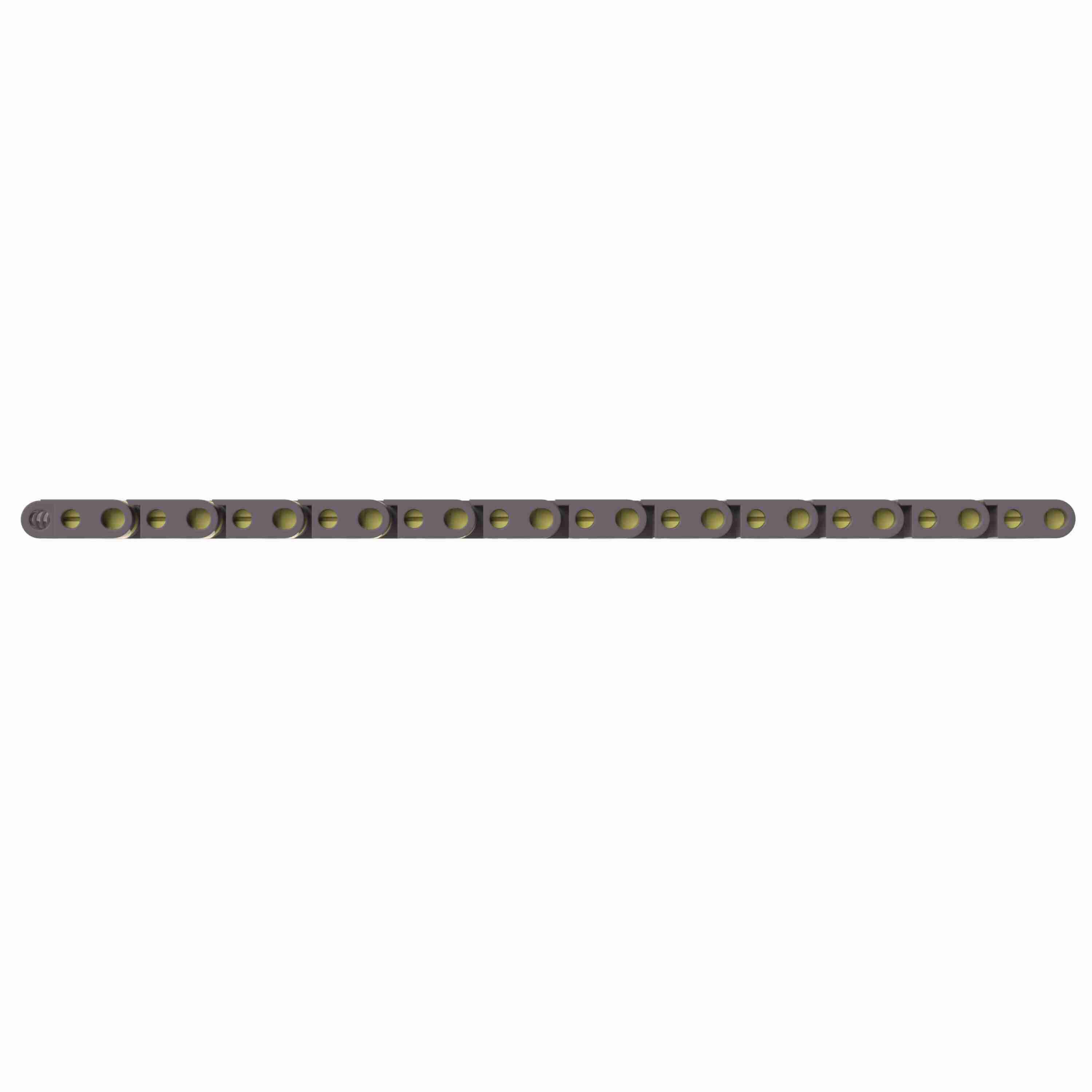

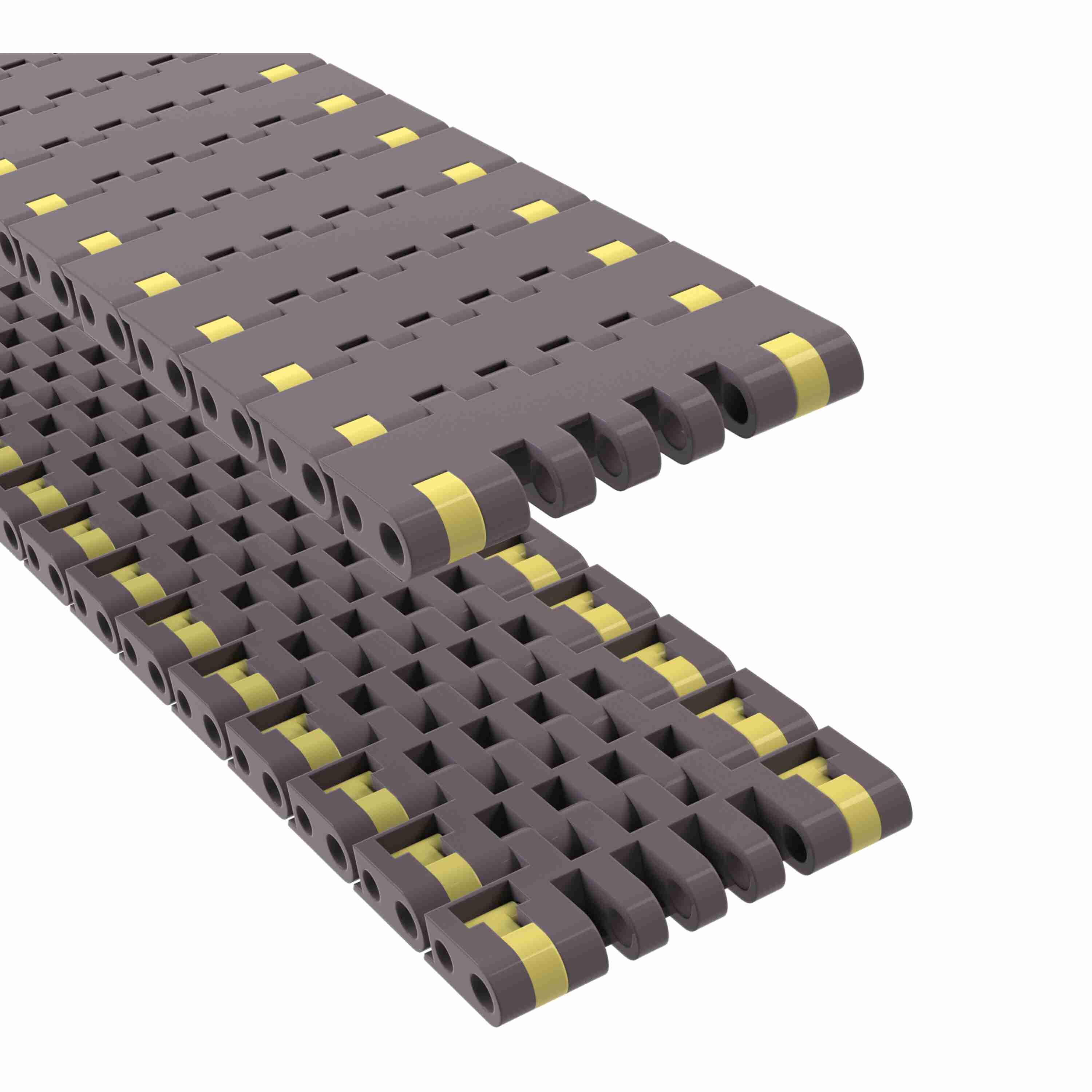

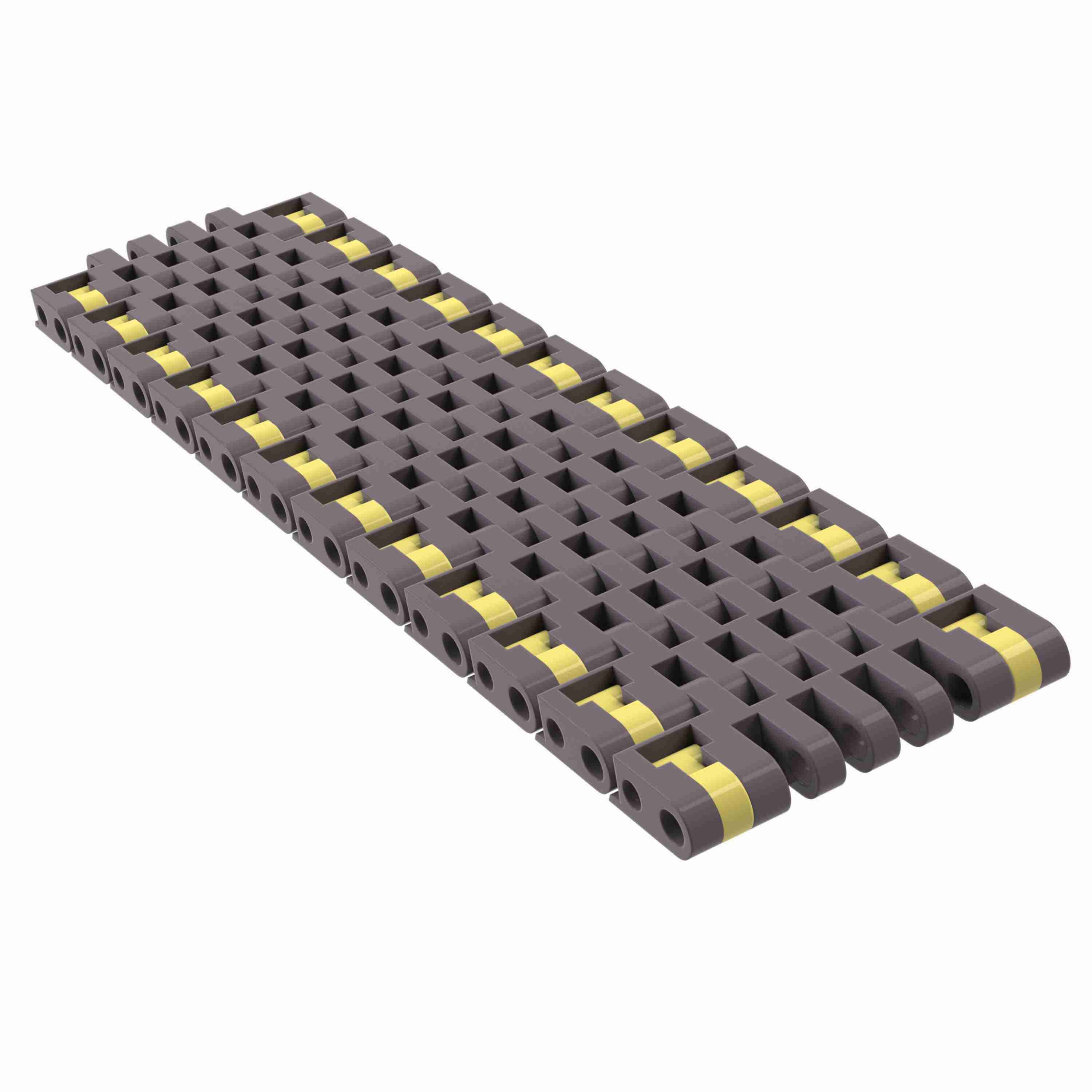

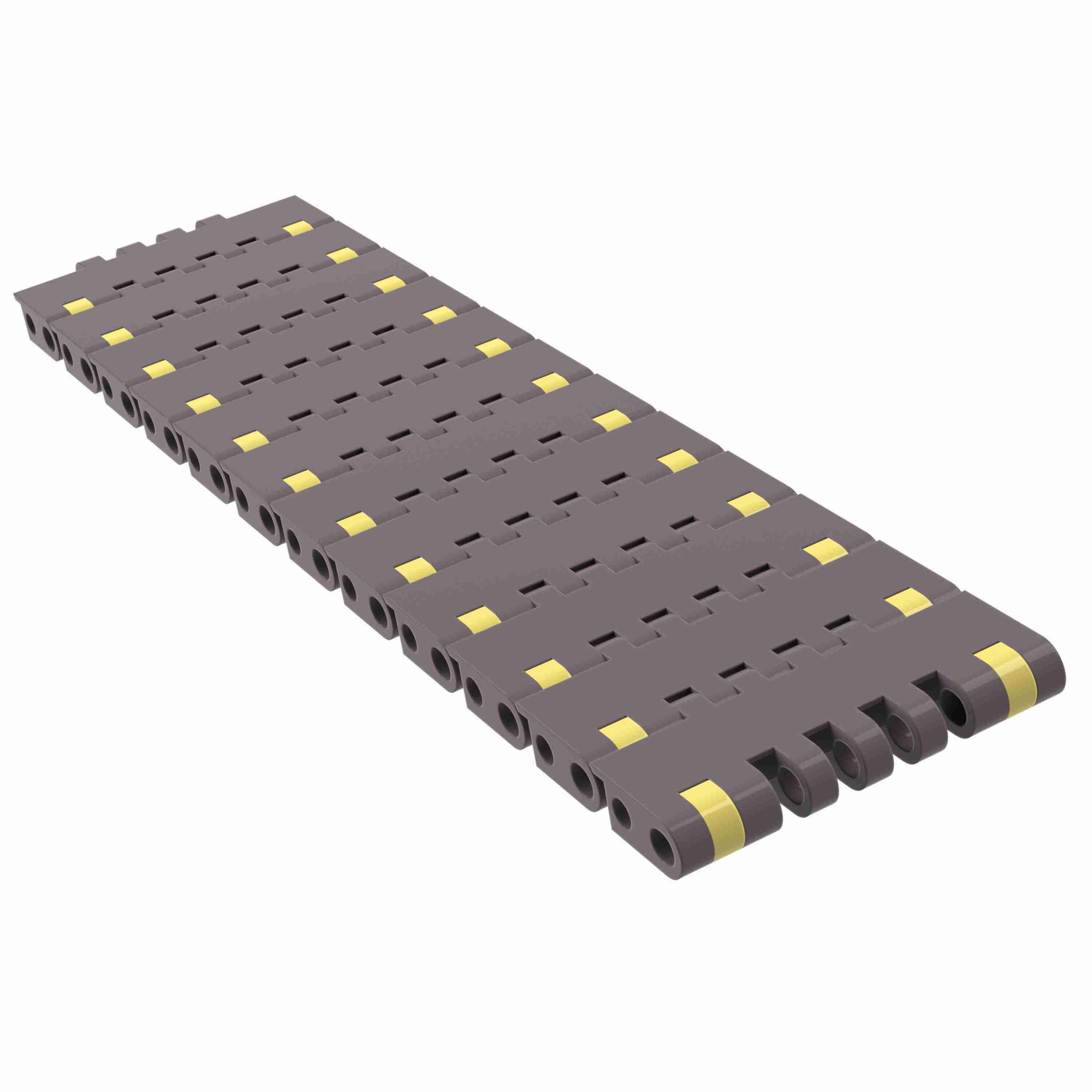

Rexnord 8505 Straight Running Solid Top, Material: Brown High Performance, Width: 2.33in, Pitch: 0.75in - 81419371
Part #:10028974
Catalog #:81419371
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Series: | MatTop 8500 Series Chain |
| Chain Strength (lb): | 225 lb | Surface Type: | Solid Top |
| Chain Material: | HP | Open Area (%): | 4.1 % |
| Chain Material Description: | Brown High Performance | Chain Strength (N): | 999 N |
| Chain Pitch (mm): | 19.1 mm | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 2.33 in | Belt Thickness (mm): | 8.6 mm |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (in): | 0.34 in |
| Chain Pitch (in): | 0.75 in | Product Type: | Straight Running |
| Chain Width (mm): | 59.2 mm | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Chain Number: | 8505 |
General Specifications
| Weight: | 0.02 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
