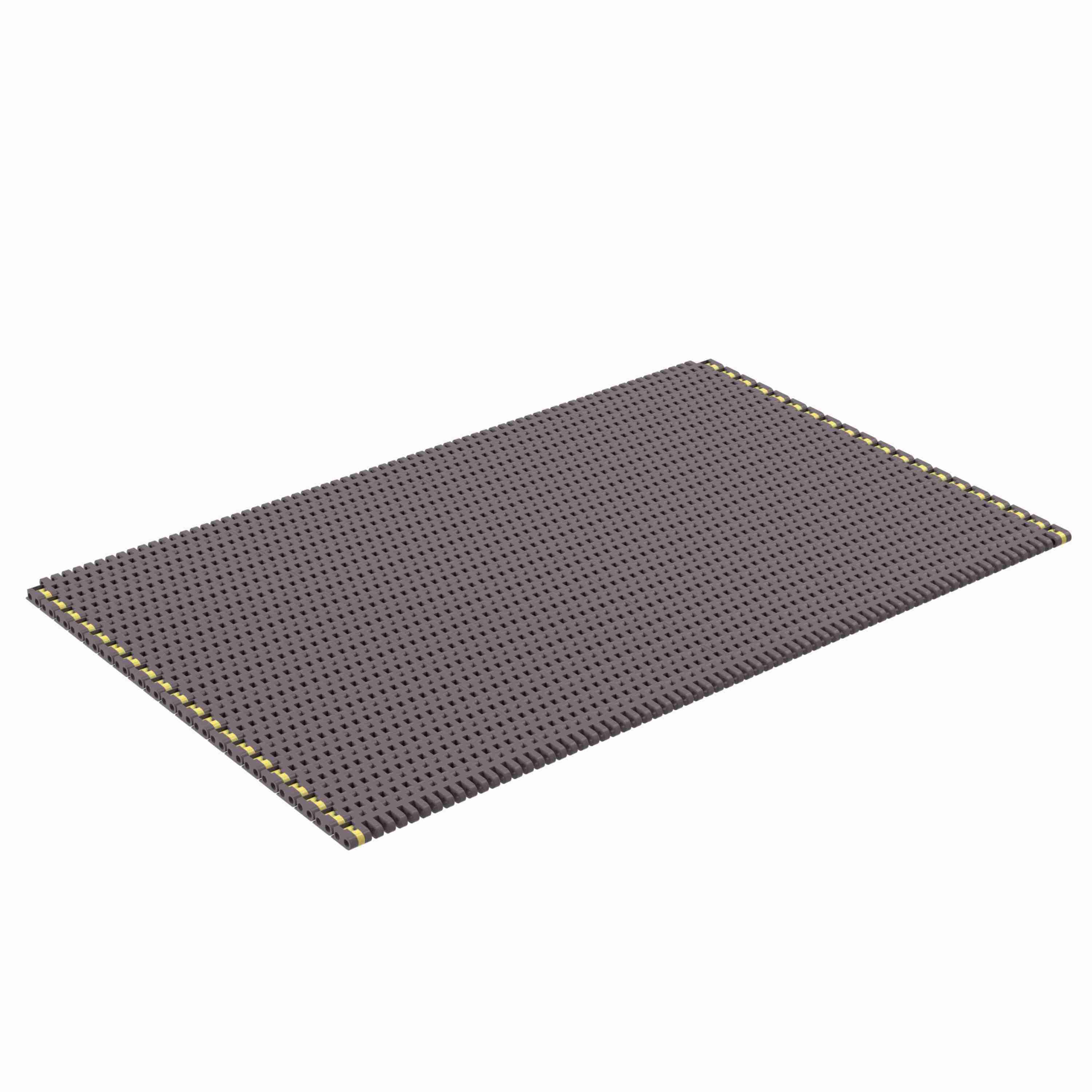

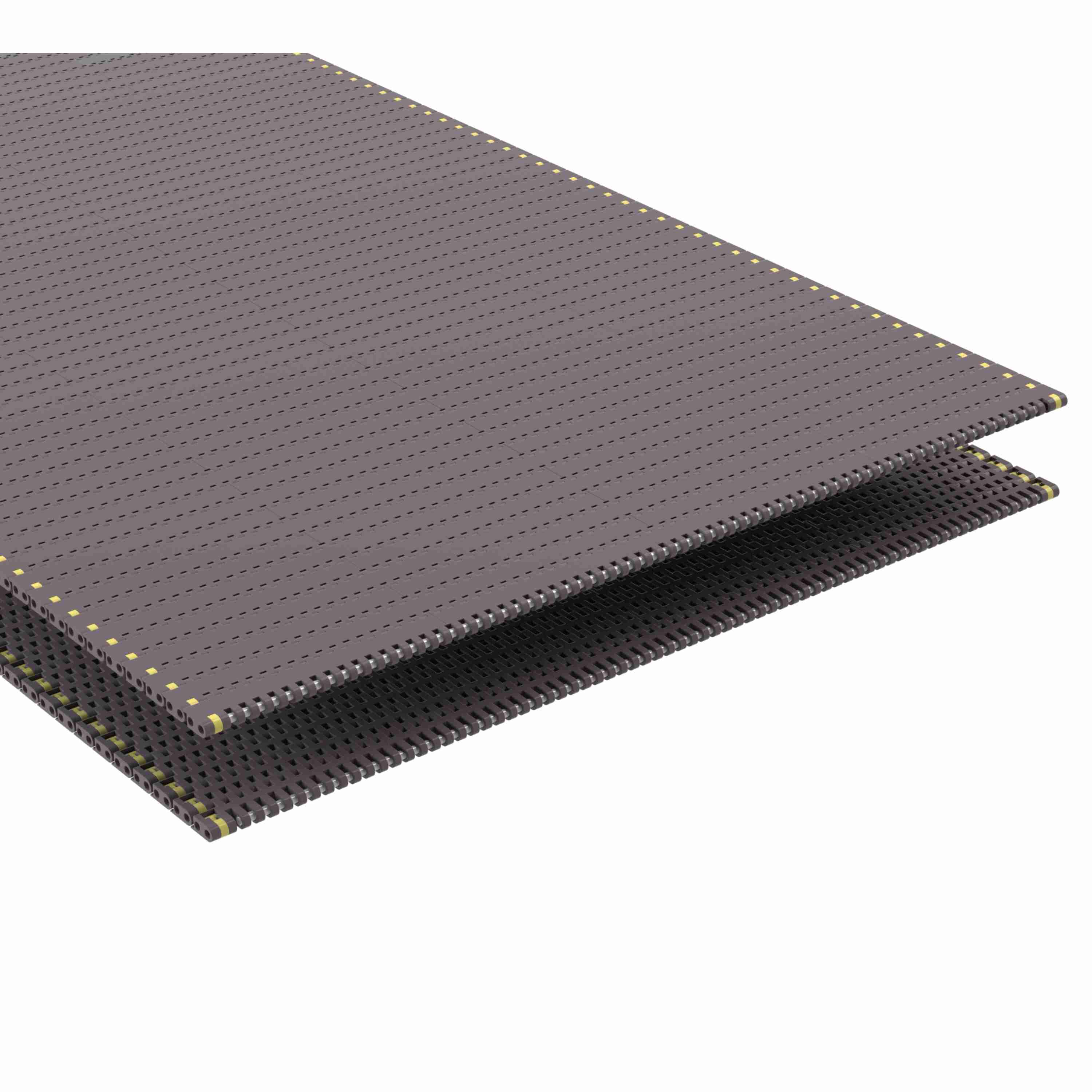

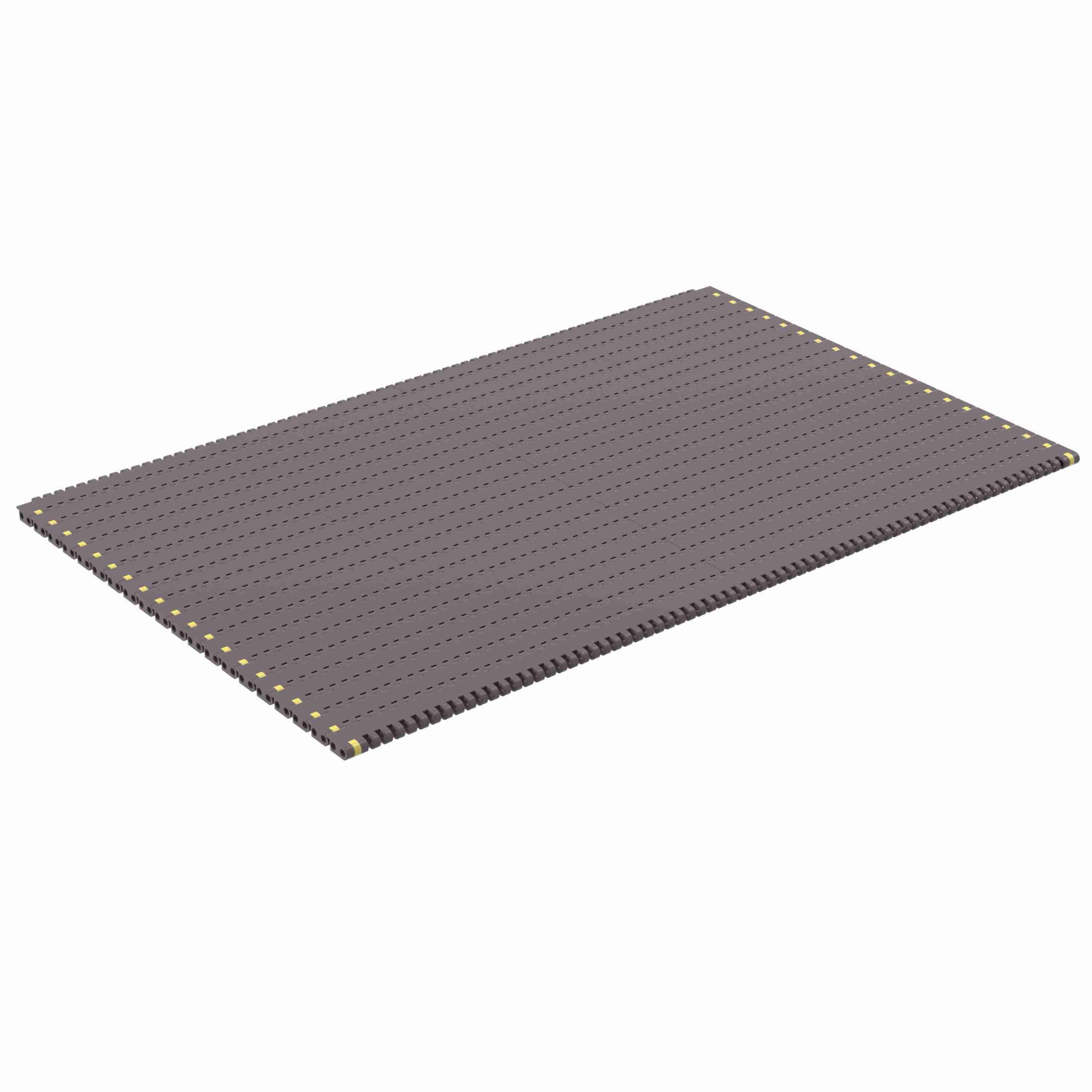

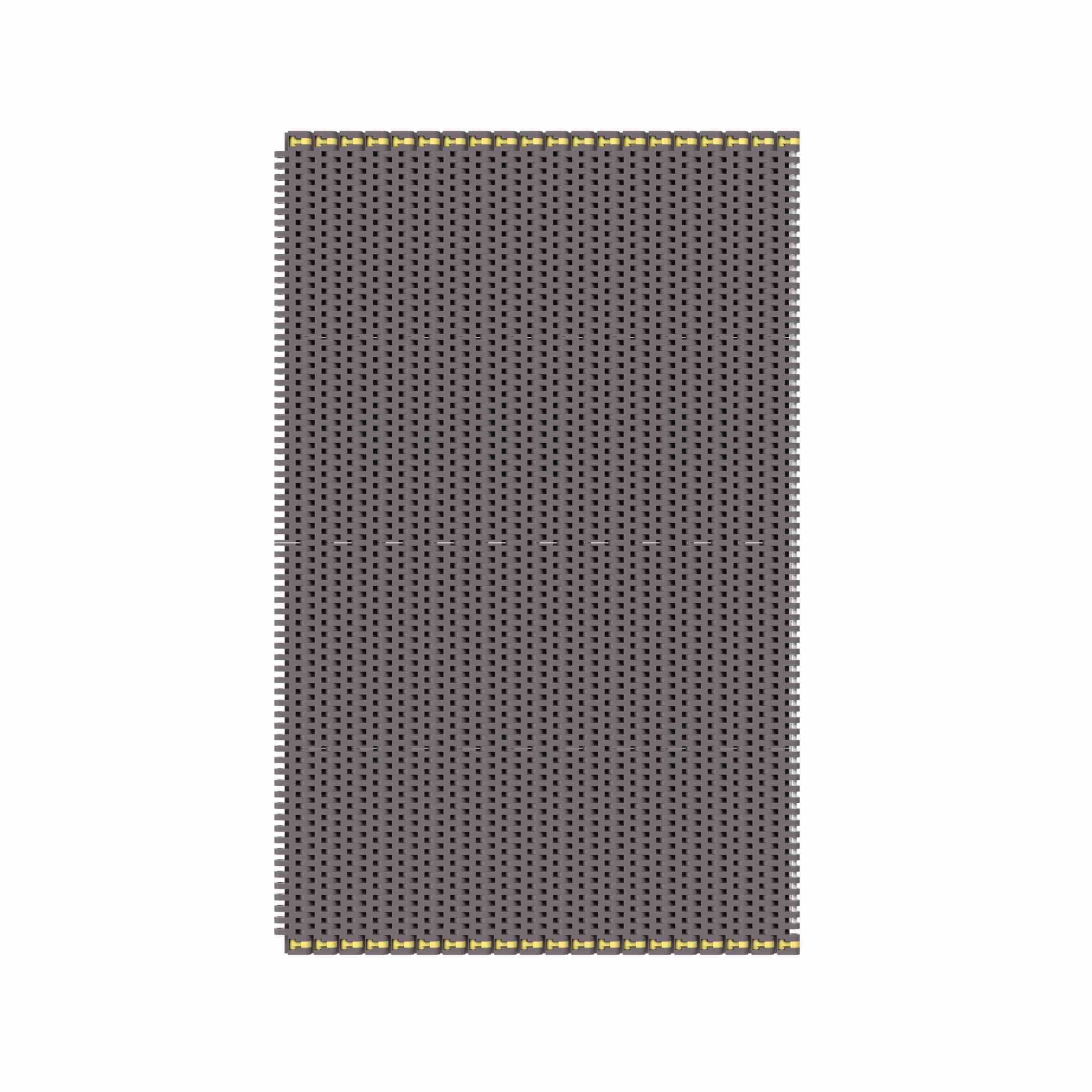

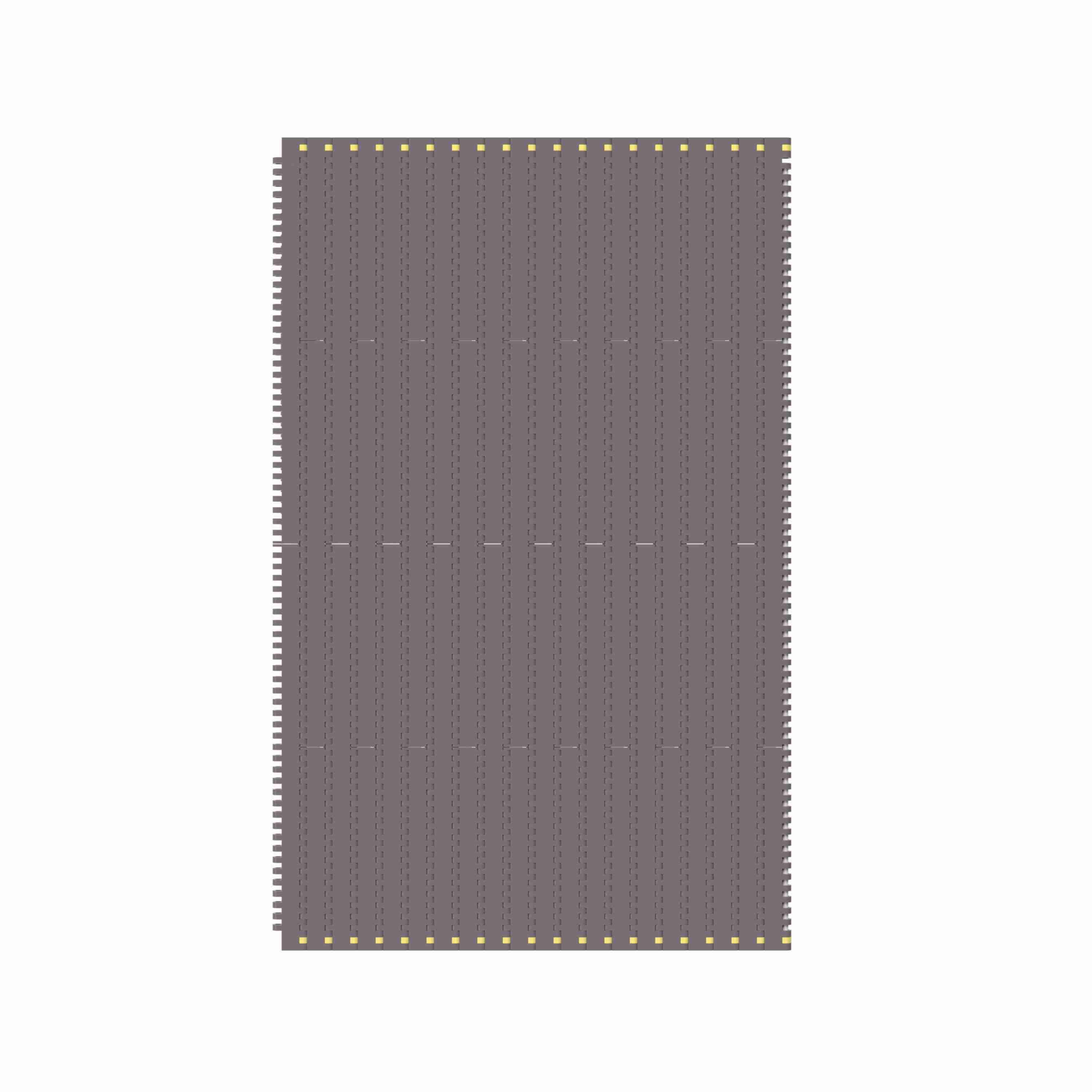

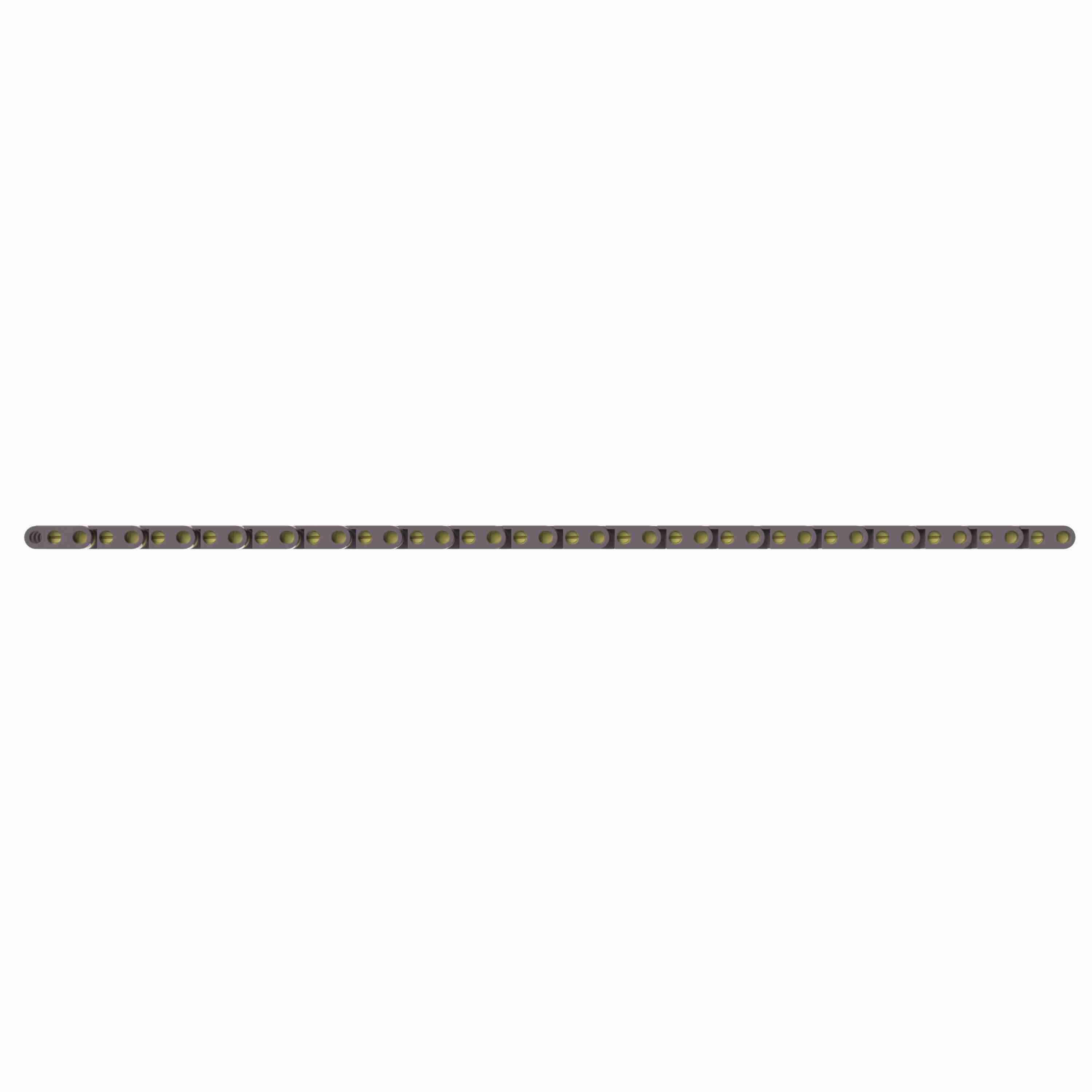

Rexnord 8505 Straight Running Solid Top, Material: Brown High Performance, Width: 21in, Pitch: 0.75in - HP8505-21
Part #:10028976
Catalog #:HP8505-21
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.34 in | Chain Number: | 8505 |
| Product Type: | Straight Running | Surface Type: | Solid Top |
| Chain Material: | HP | Series: | MatTop 8500 Series Chain |
| Chain Strength (lb/ft): | 2,000 lb/ft | Chain Width Measurement System: | Imperial |
| Chain Width (mm): | 533.4 mm | Chain Pitch (in): | 0.75 in |
| Straight or Side-Flex: | Straight Running | Chain Pitch (mm): | 19.1 mm |
| Chain Width (in): | 21 in | Belt Thickness (mm): | 8.6 mm |
| Chain Material Description: | Brown High Performance | Rod/Pin Material: | Polyester |
| Open Area (%): | 4.1 % | Chain Strength (N/m): | 29,180 N·m |
| Product Group: | Modular Plastic Belts | Product Line: | Plastic Modular Chain and Belt |
General Specifications
| Weight: | 0.20 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
