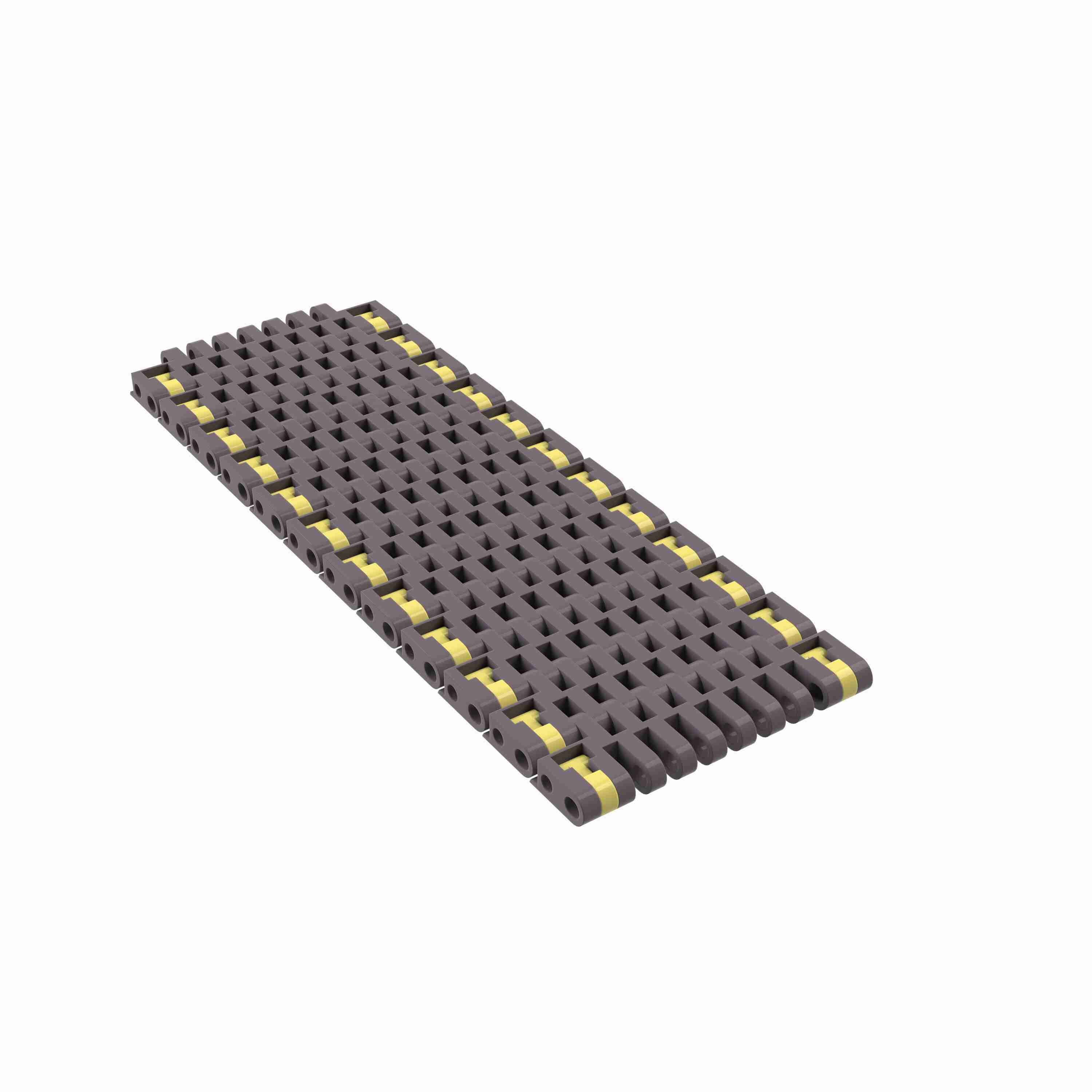

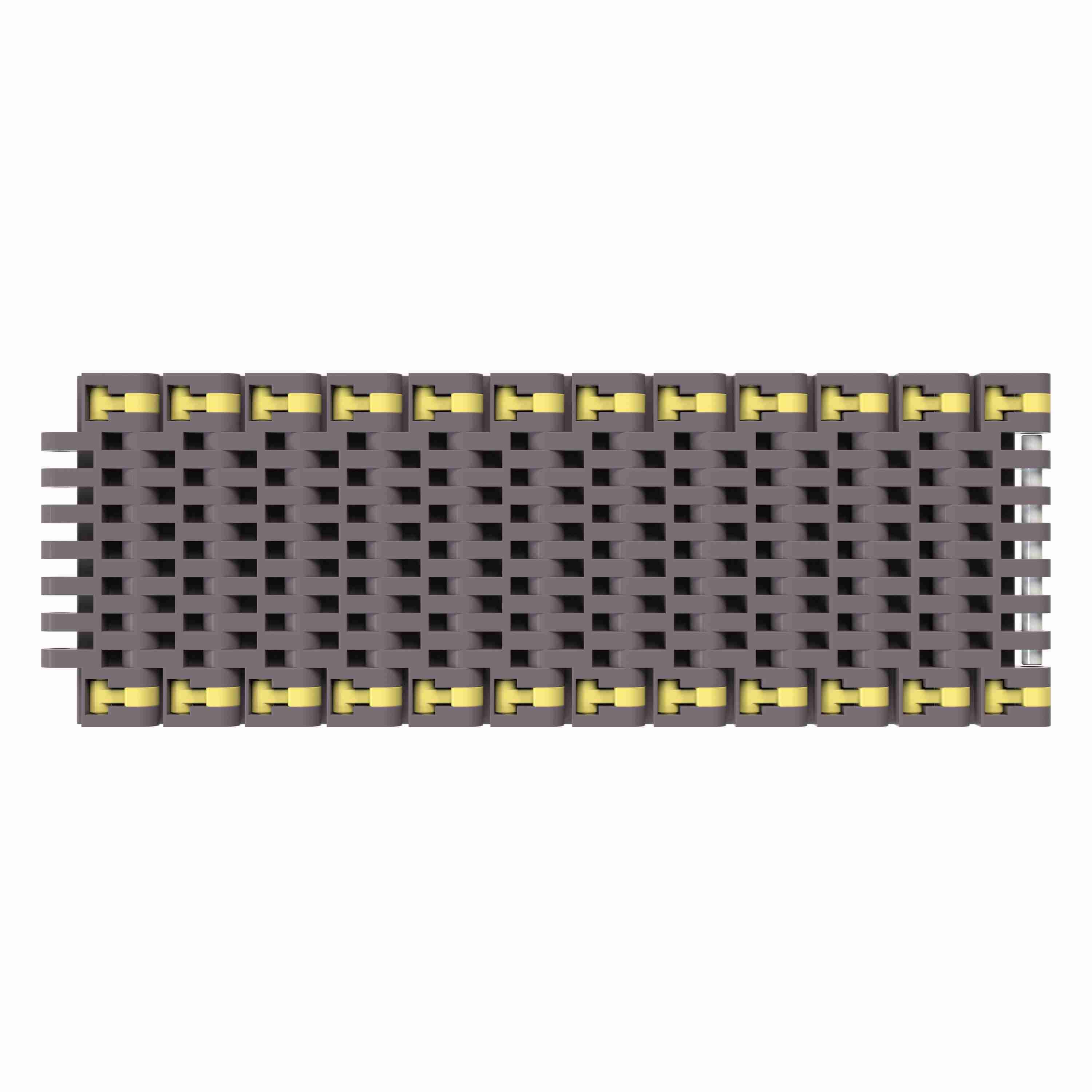

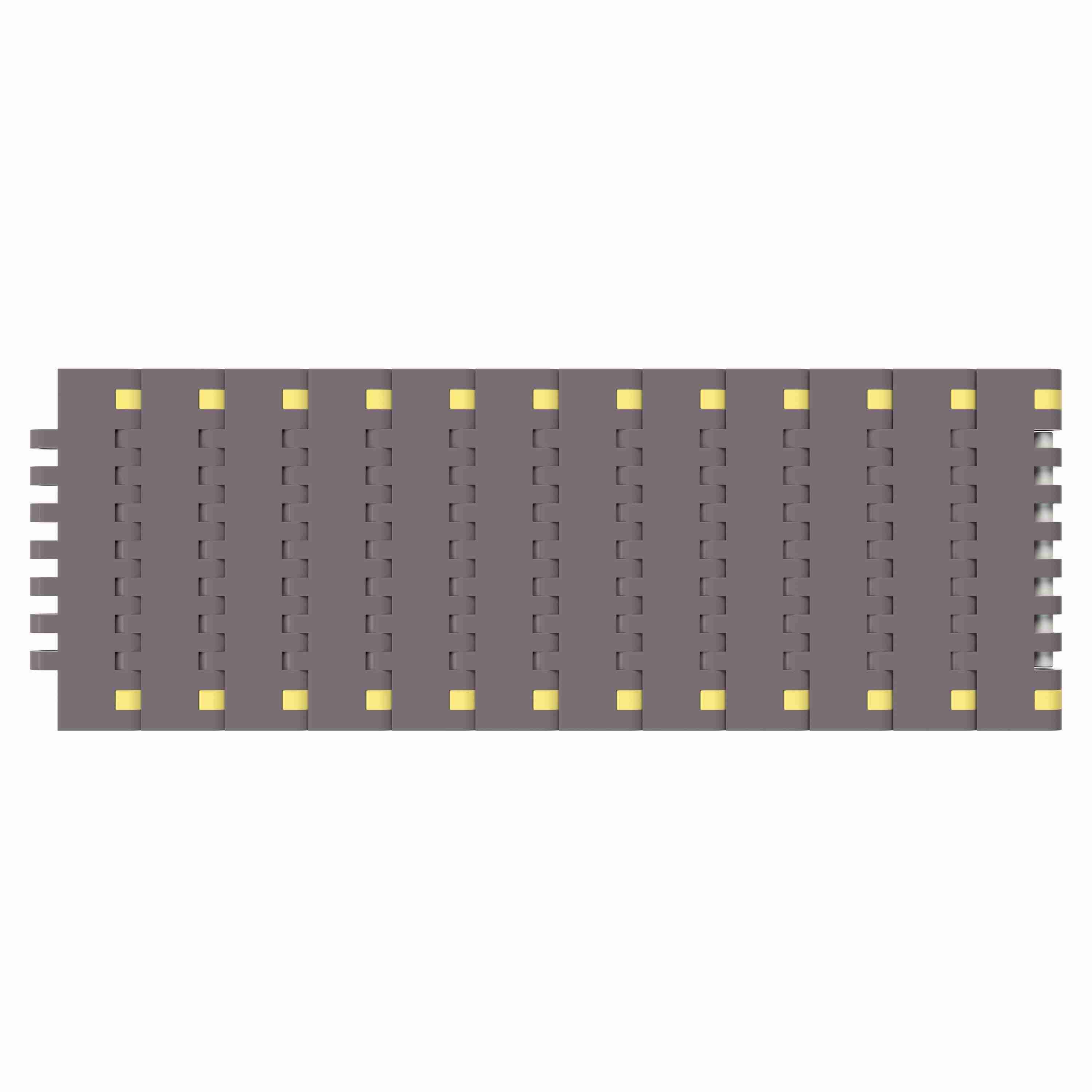

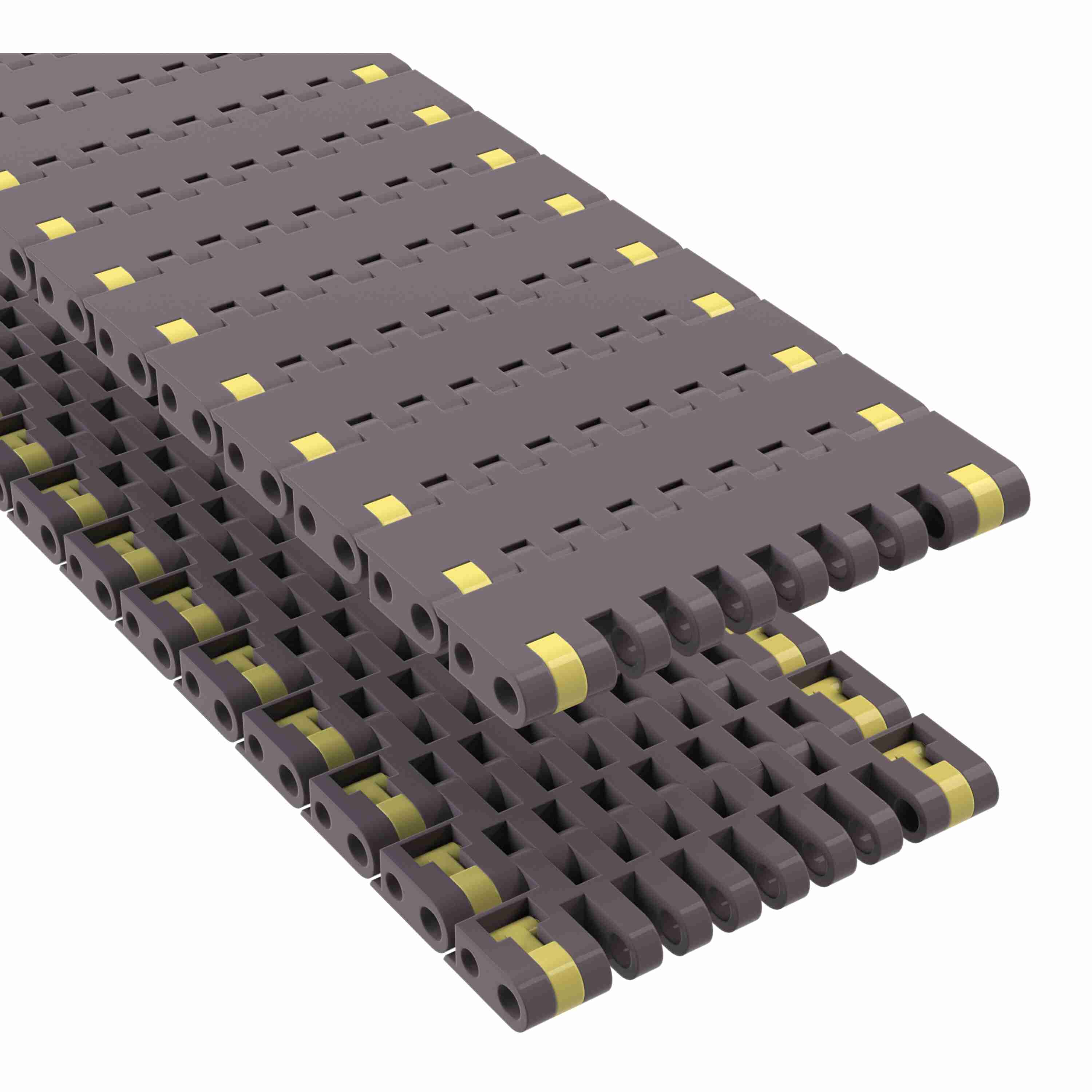

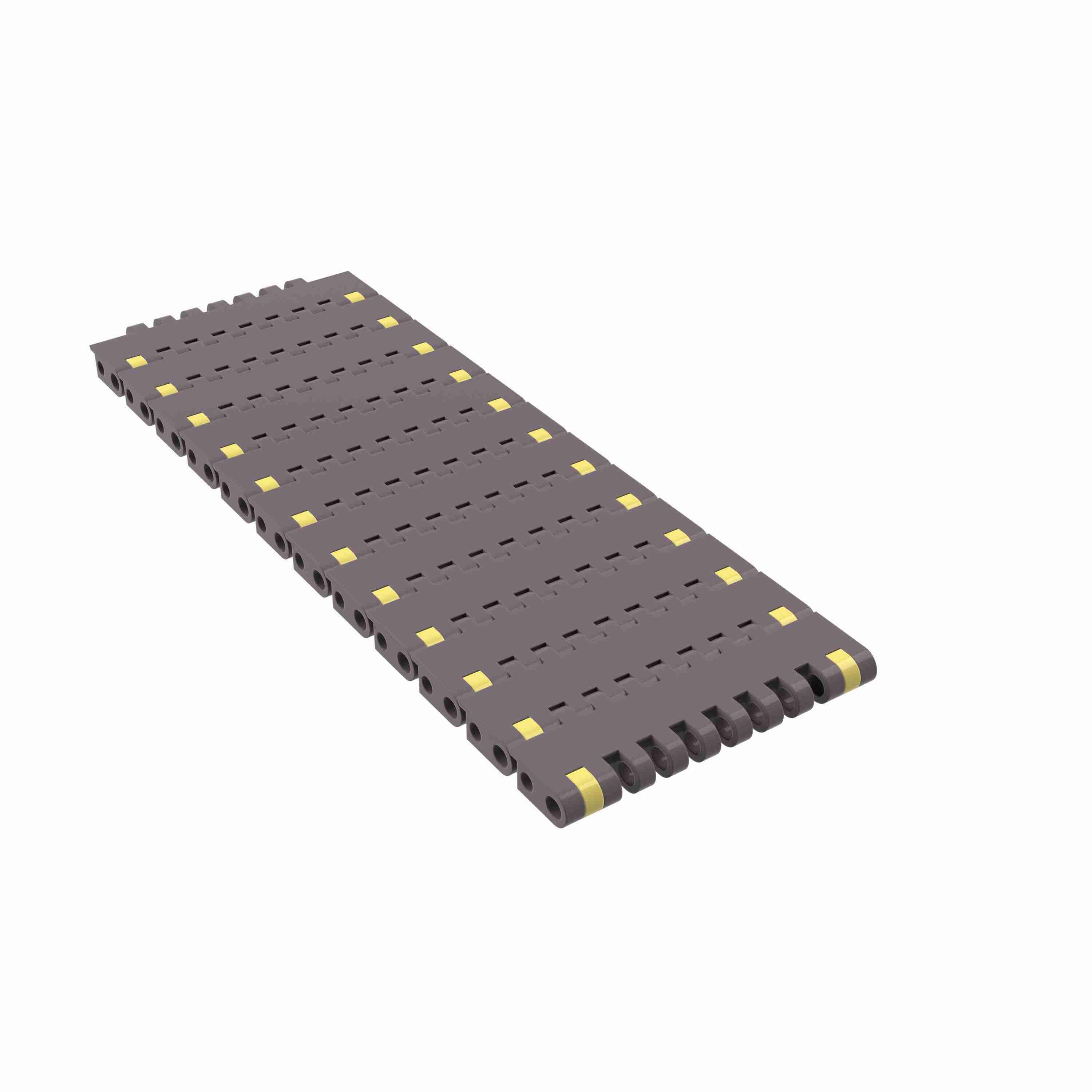

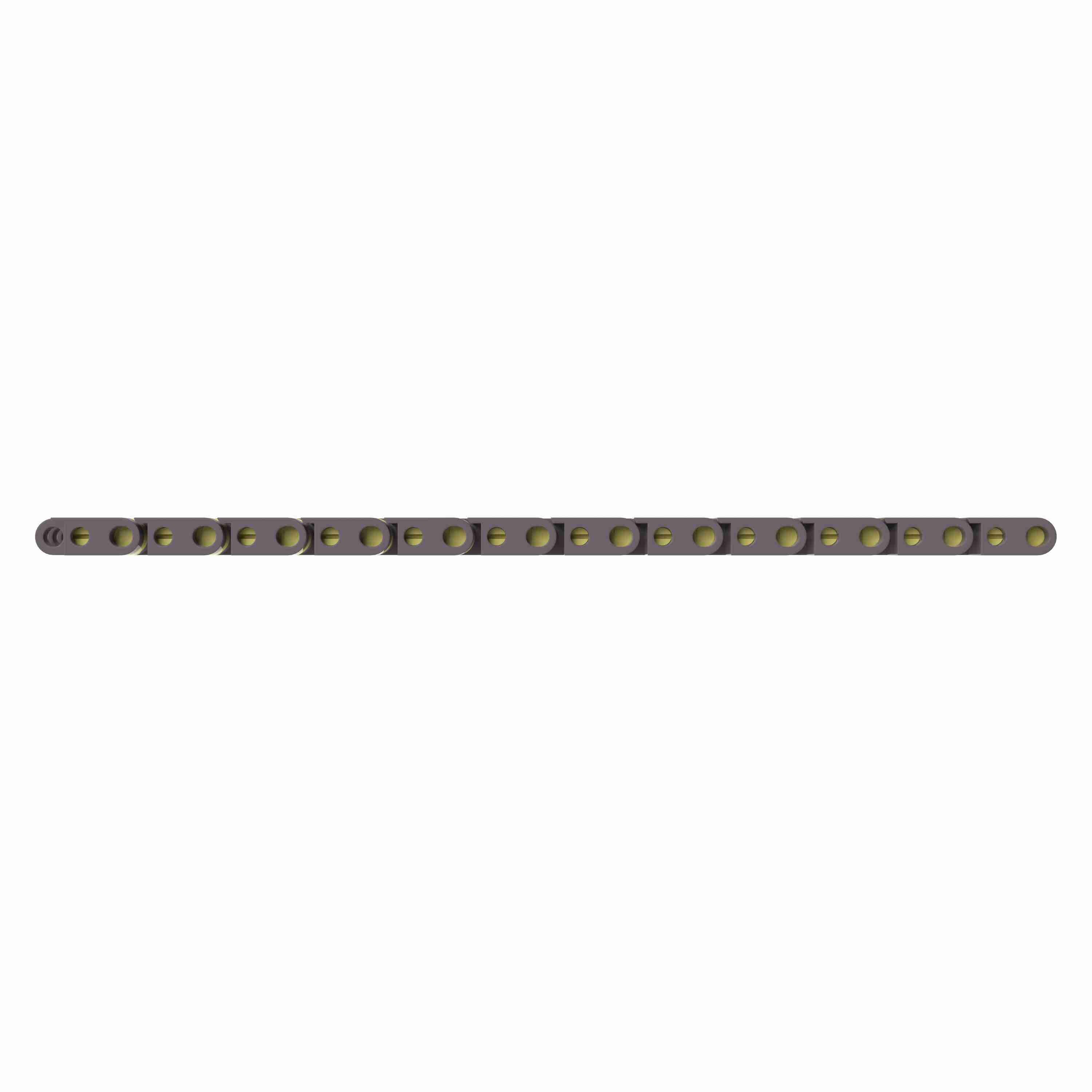

Rexnord 8505 Straight Running Solid Top, Material: Brown High Performance, Width: 3.25in, Pitch: 0.75in - 81418511
Part #:10028434
Catalog #:81418511
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.34 in | Chain Strength (lb): | 240 lb |
| Product Type: | Straight Running | Open Area (%): | 4.1 % |
| Chain Pitch (mm): | 19.1 mm | Straight or Side-Flex: | Straight Running |
| Chain Width (mm): | 82.6 mm | Rod/Pin Material: | Polyester |
| Chain Width (in): | 3.25 in | Chain Pitch (in): | 0.75 in |
| Chain Width Measurement System: | Imperial | Surface Type: | Solid Top |
| Chain Strength (N): | 1,066 N | Series: | MatTop 8500 Series Chain |
| Belt Thickness (mm): | 8.6 mm | Chain Material: | HP |
| Product Line: | Plastic Modular Chain and Belt | Chain Material Description: | Brown High Performance |
| Chain Number: | 8505 | Product Group: | Modular Plastic Belts |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
