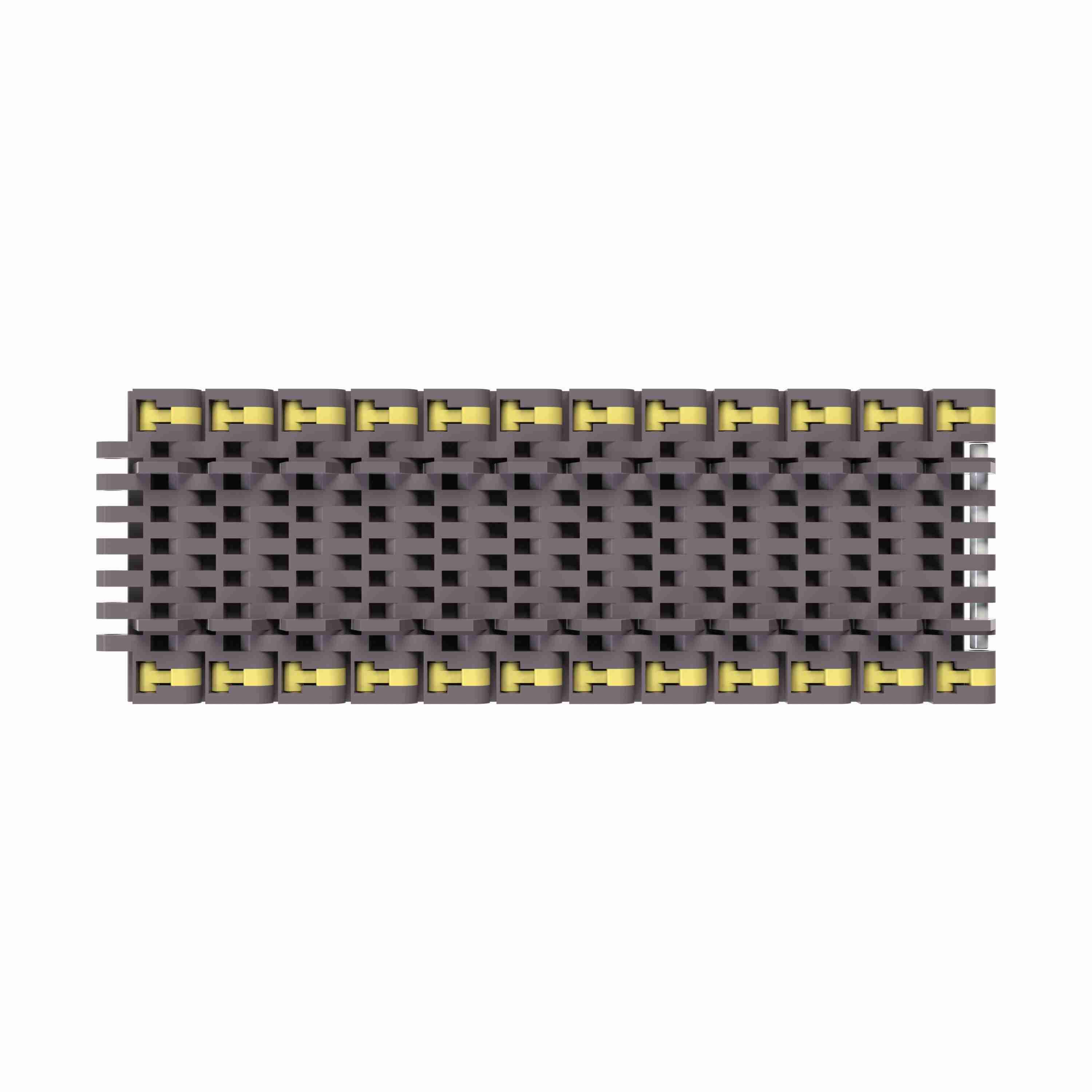

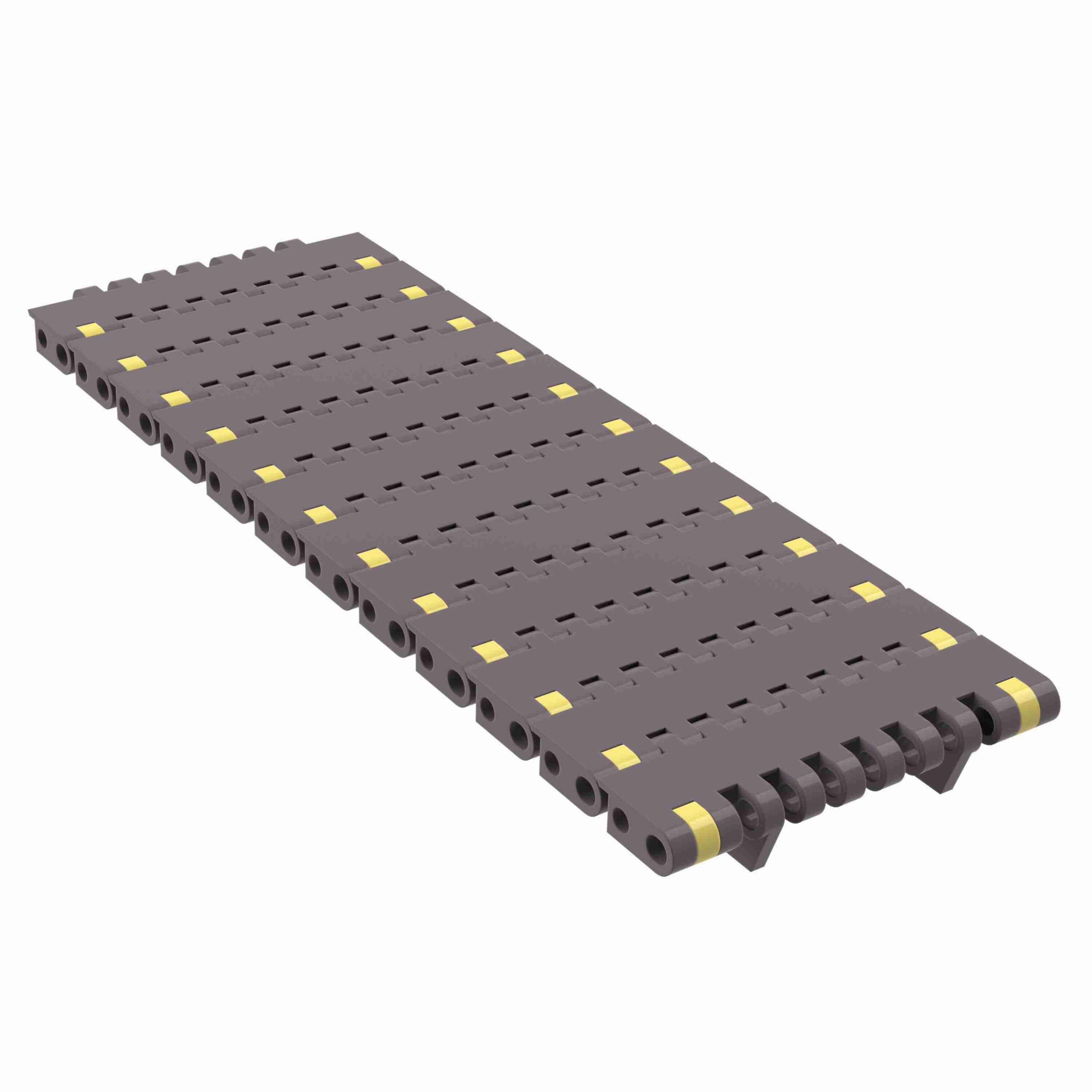

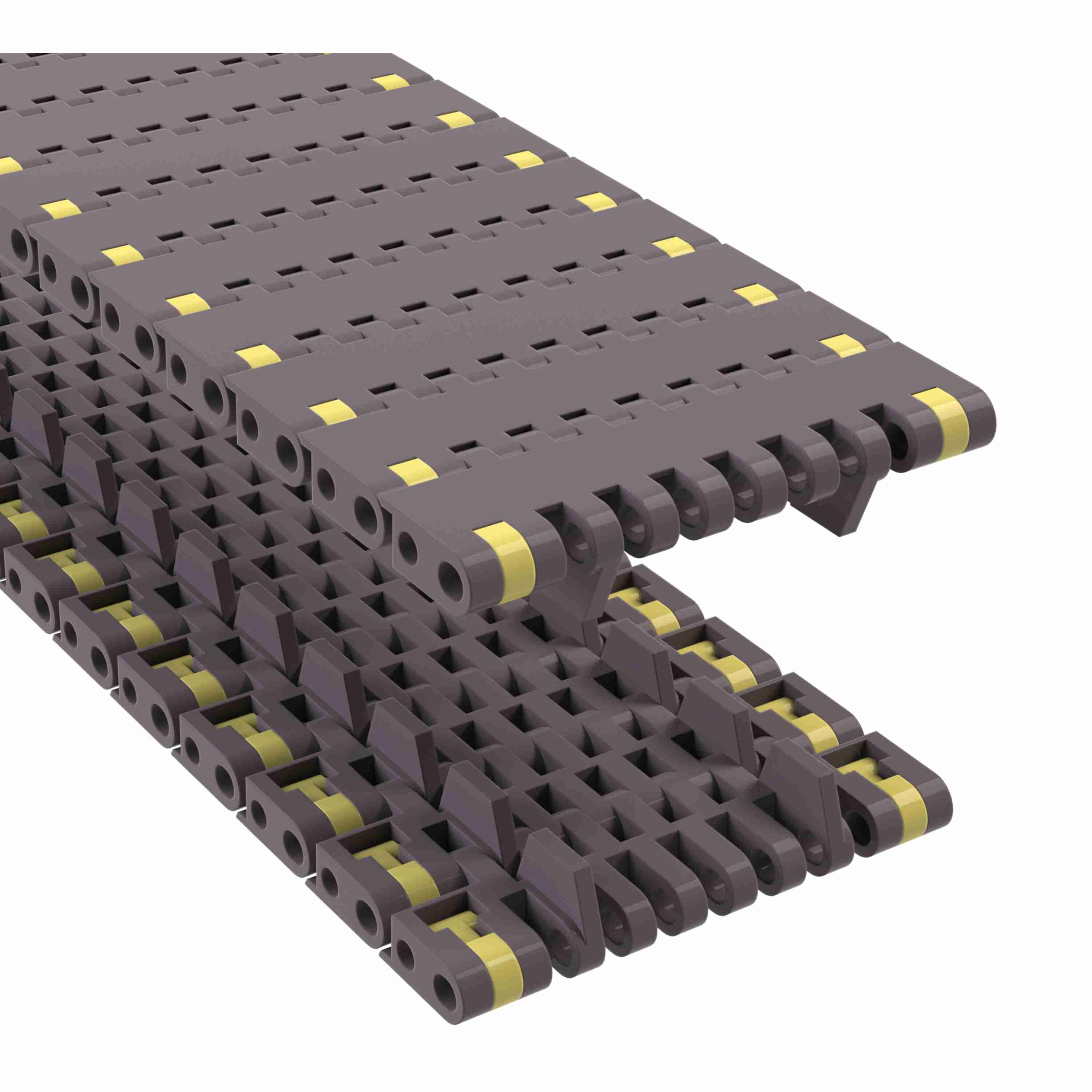

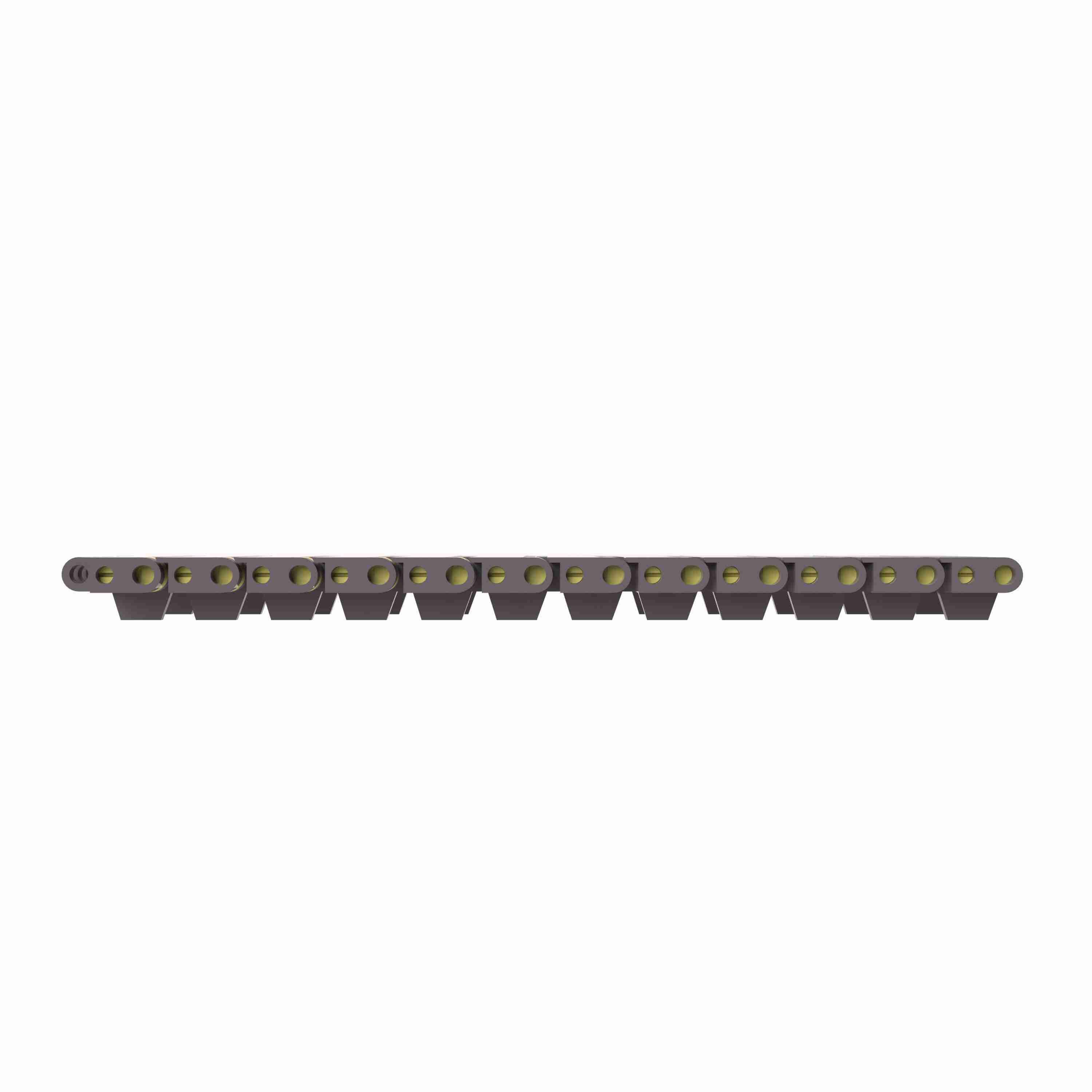

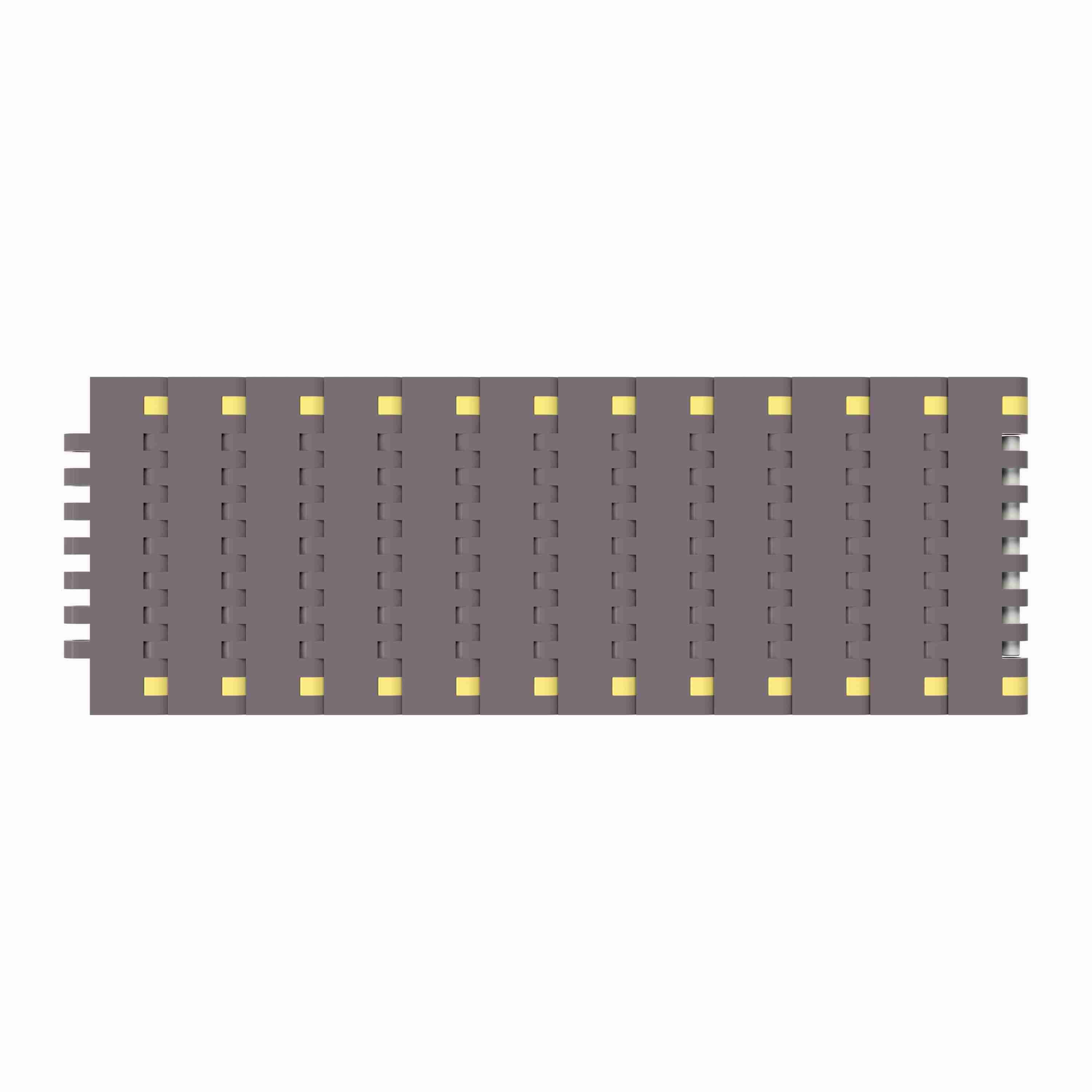

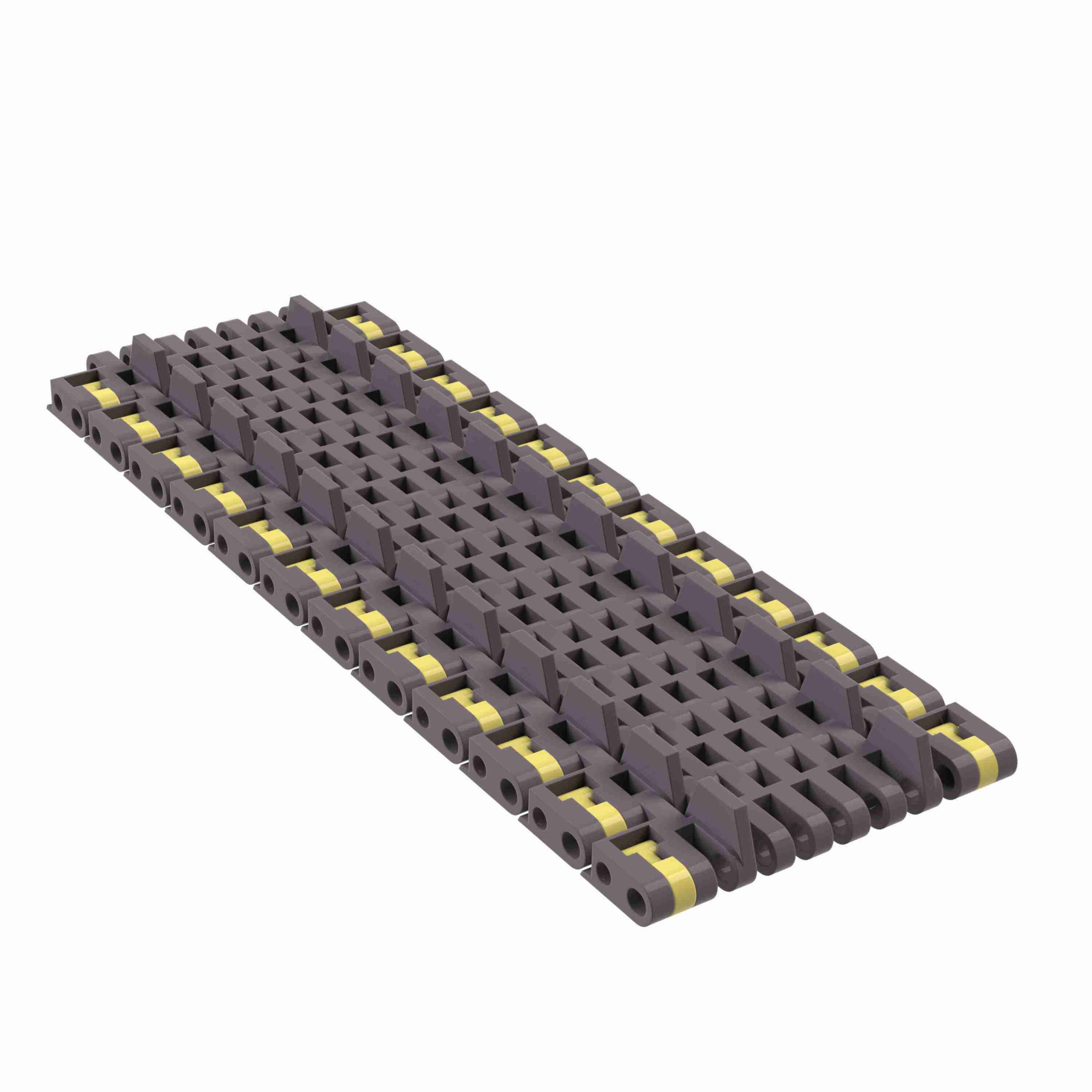

Rexnord 8505 Straight Running Solid Top, Material: Brown High Performance, Width: 3.25in, Pitch: 0.75in - 81416441
Part #:10028435
Catalog #:81416441
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Plastic Modular Chain and Belt | Open Area (%): | 4.1 % |
| Straight or Side-Flex: | Straight Running | Chain Pitch (mm): | 19.1 mm |
| Product Group: | Modular Plastic Belts | Number of Positrack: | 2 |
| Chain Width (mm): | 82.6 mm | Surface Type: | Solid Top |
| Series: | MatTop 8500 Series Chain | Chain Number: | 8505 |
| Chain Material: | HP | Belt Thickness (mm): | 8.6 mm |
| Chain Material Description: | Brown High Performance | Product Type: | Straight Running |
| Chain Pitch (in): | 0.75 in | Chain Strength (lb): | 240 lb |
| Belt Thickness (in): | 0.34 in | Positrack Location: | Center |
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 1,066 N |
| Chain Width (in): | 3.25 in | Positrack: | True |
| Rod/Pin Material: | Polyester |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
