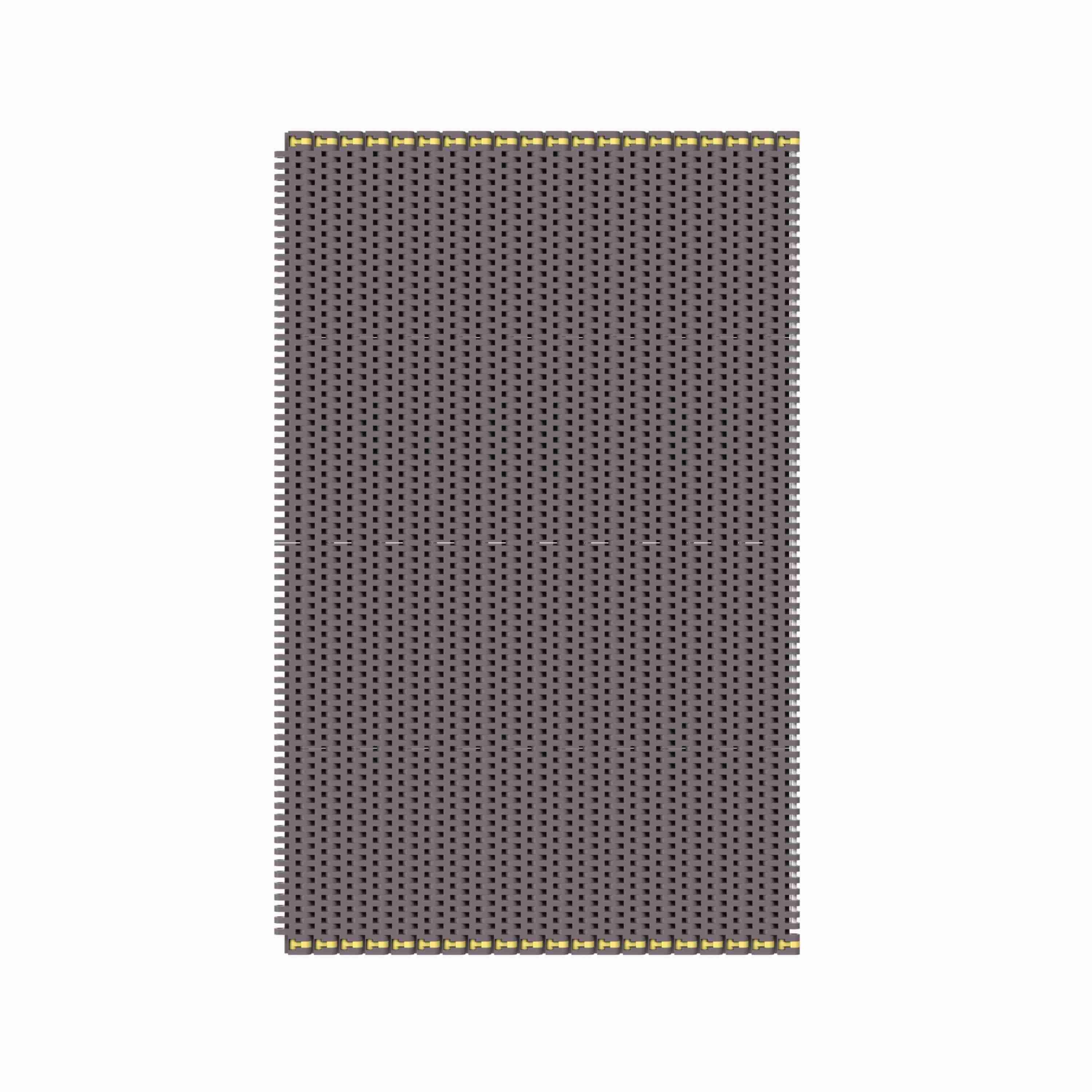

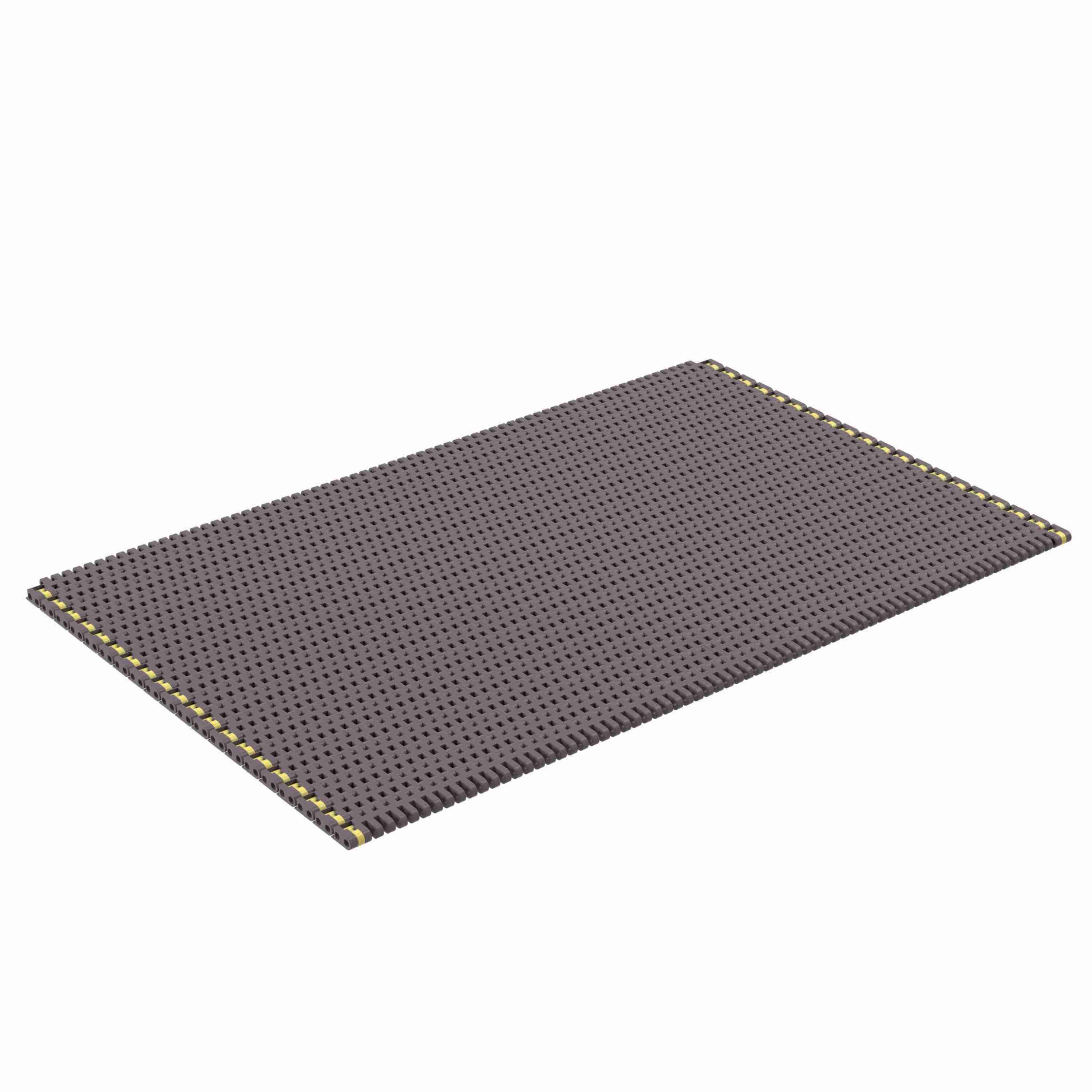

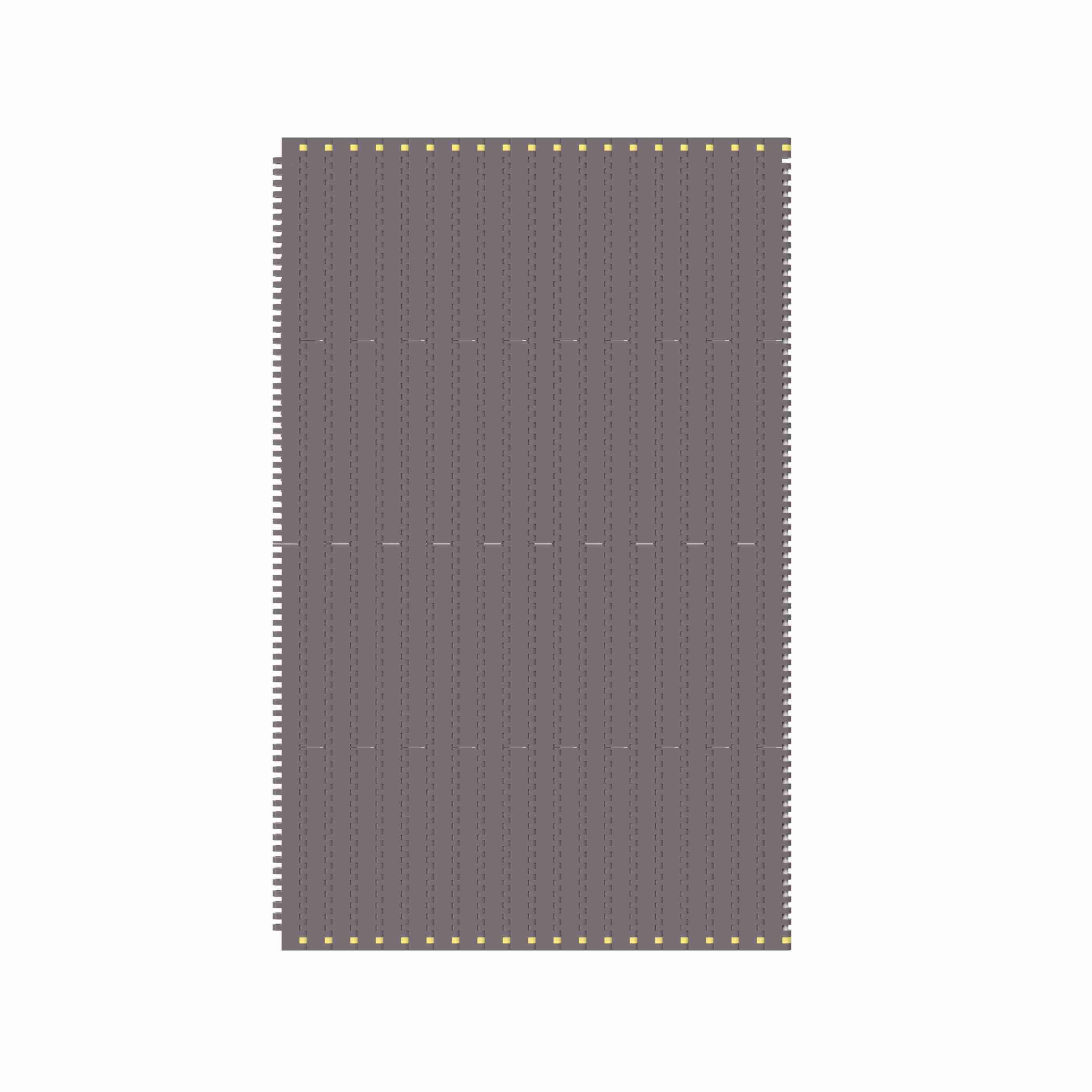

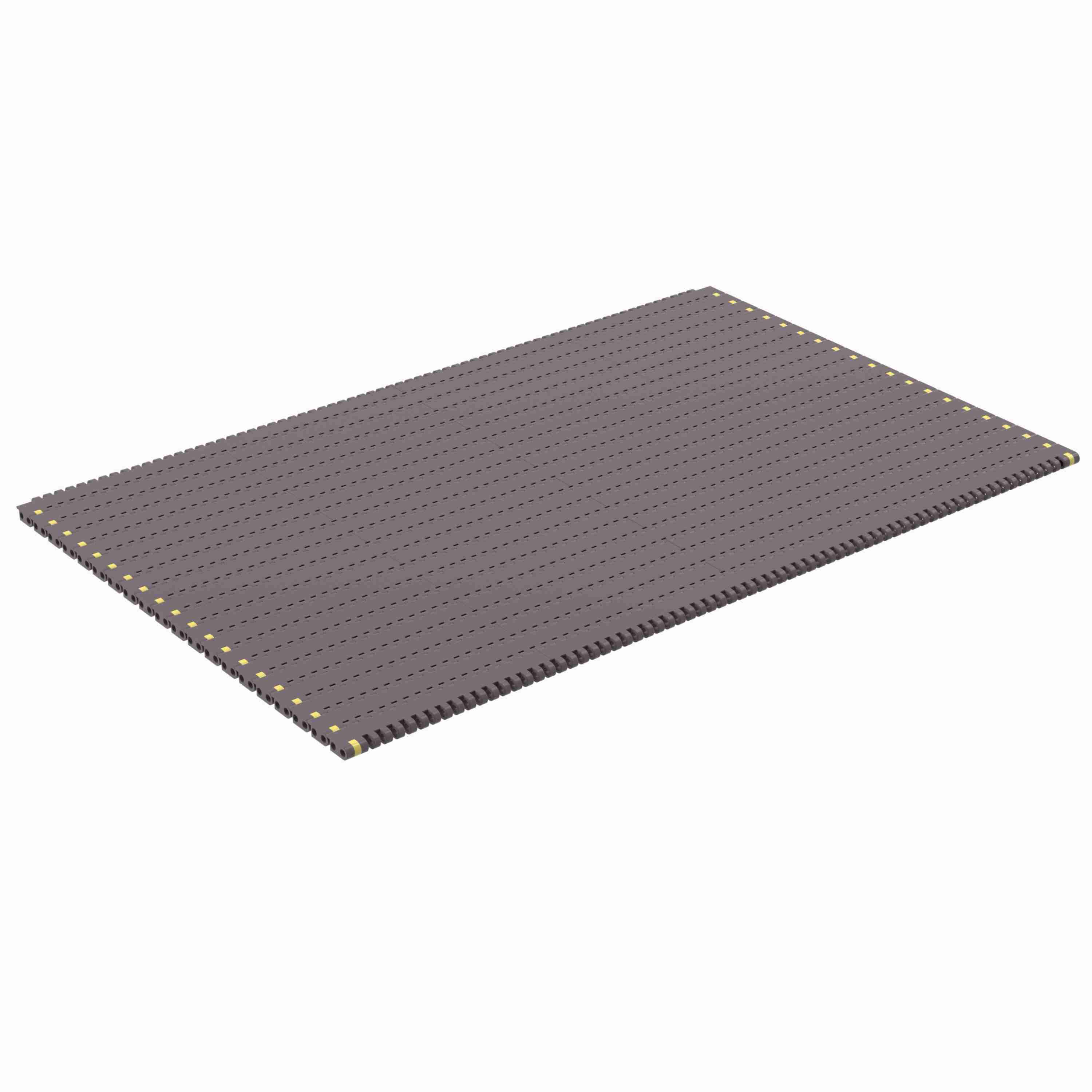

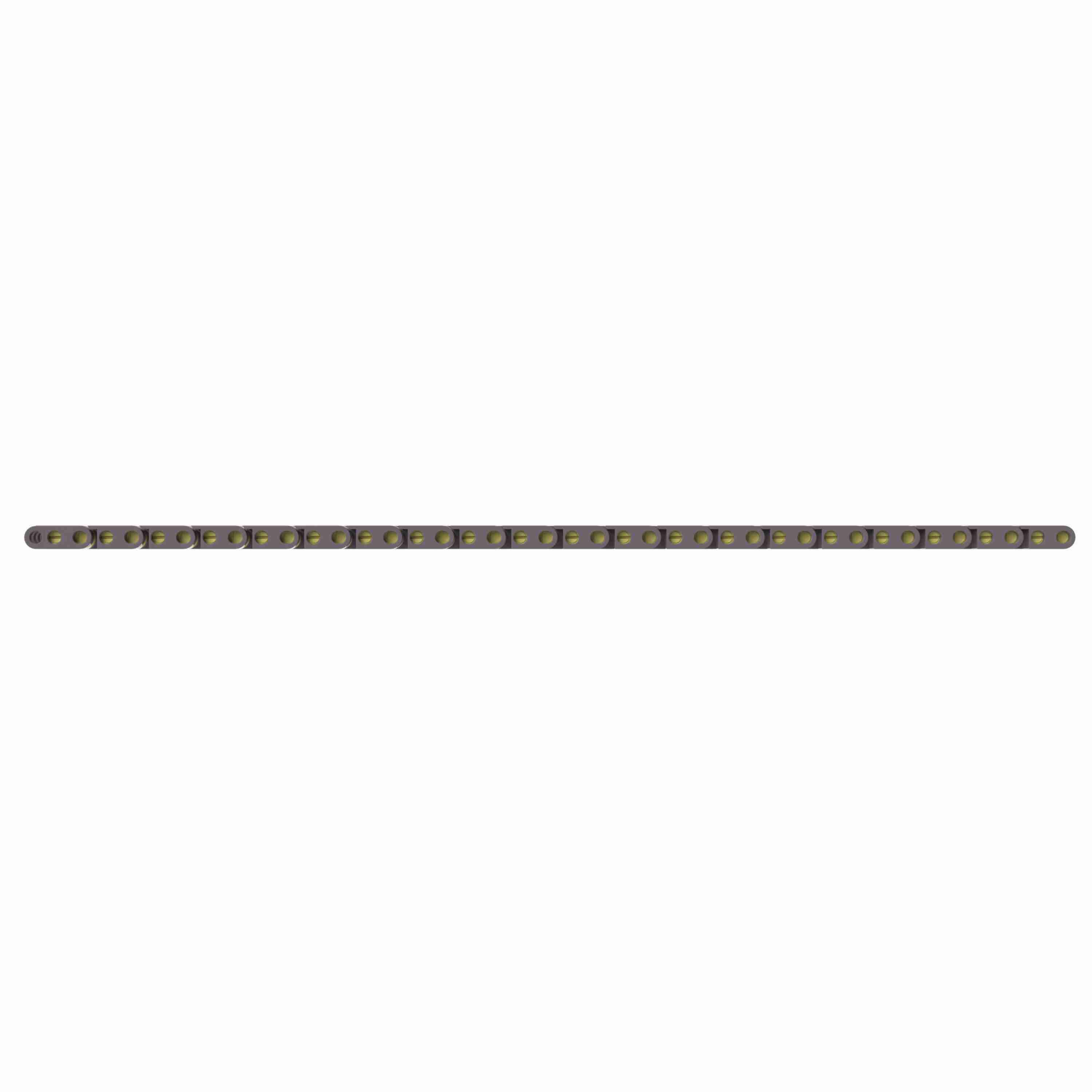

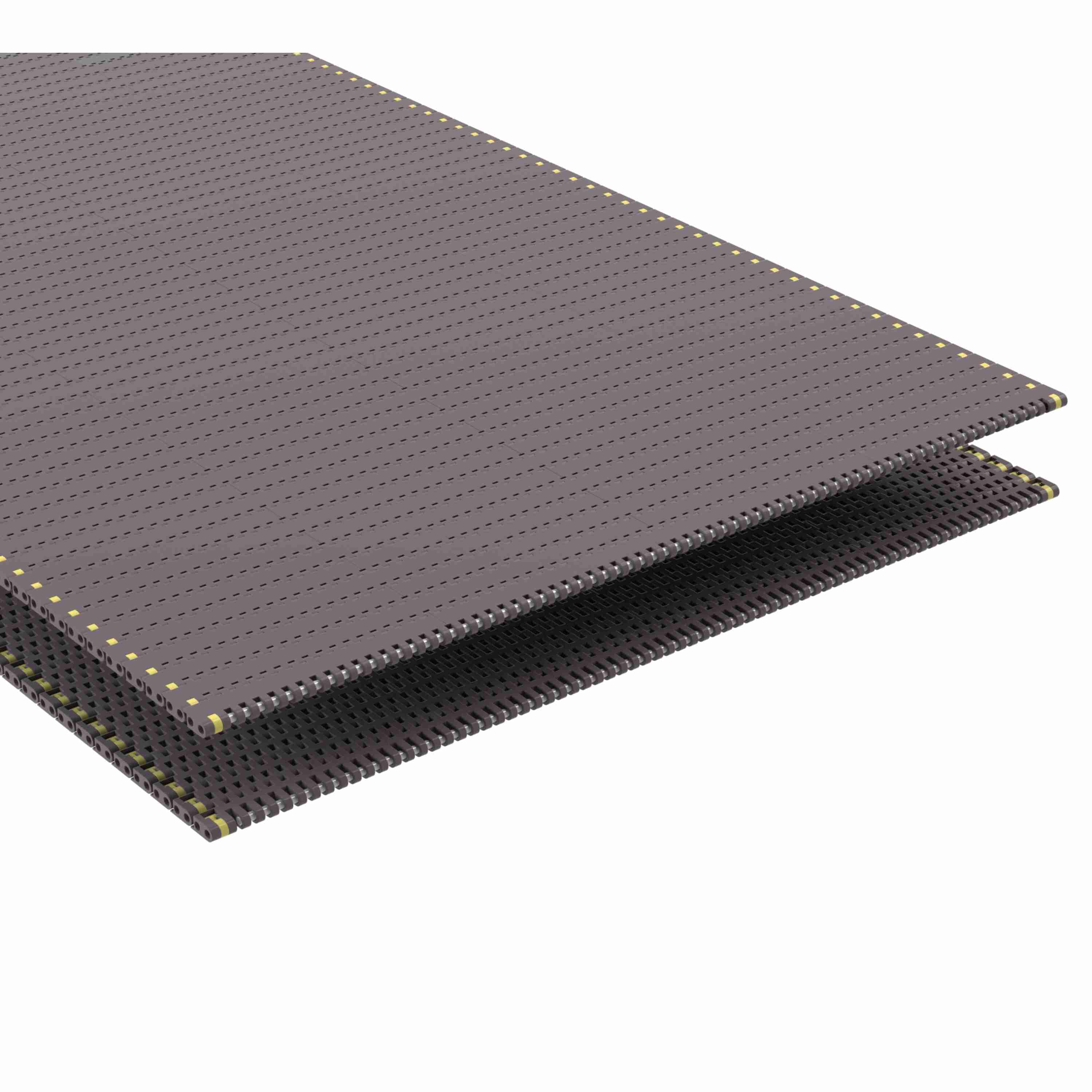

Rexnord 8505 Straight Running Solid Top, Material: Brown High Performance, Width: 33in, Pitch: 0.75in - 10324728
Part #:10324728
Catalog #:10324728
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 838.2 mm | Chain Material Description: | Brown High Performance |
| Chain Number: | 8505 | Product Line: | Plastic Modular Chain and Belt |
| Product Group: | Modular Plastic Belts | Series: | MatTop 8500 Series Chain |
| Chain Material: | HP | Chain Strength (lb/ft): | 2,000 lb/ft |
| Rod/Pin Material: | Polyester | Belt Thickness (mm): | 8.6 mm |
| Product Type: | Straight Running | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.34 in | Surface Type: | Solid Top |
| Chain Pitch (mm): | 19.1 mm | Chain Strength (N/m): | 29,180 N·m |
| Open Area (%): | 4.1 % | Chain Width Measurement System: | Imperial |
| Chain Pitch (in): | 0.75 in | Chain Width (in): | 33 in |
General Specifications
| Weight: | 0.31 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
