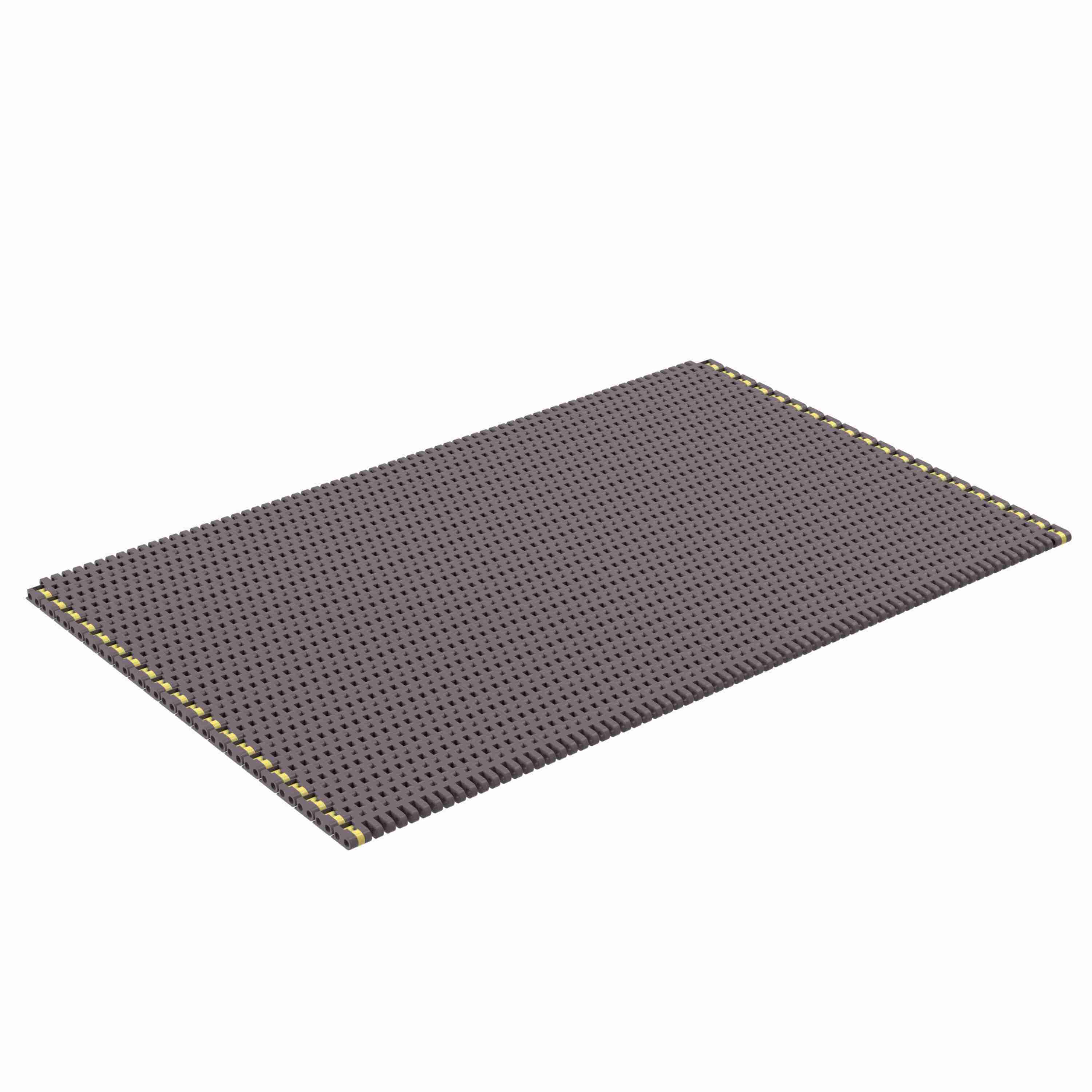

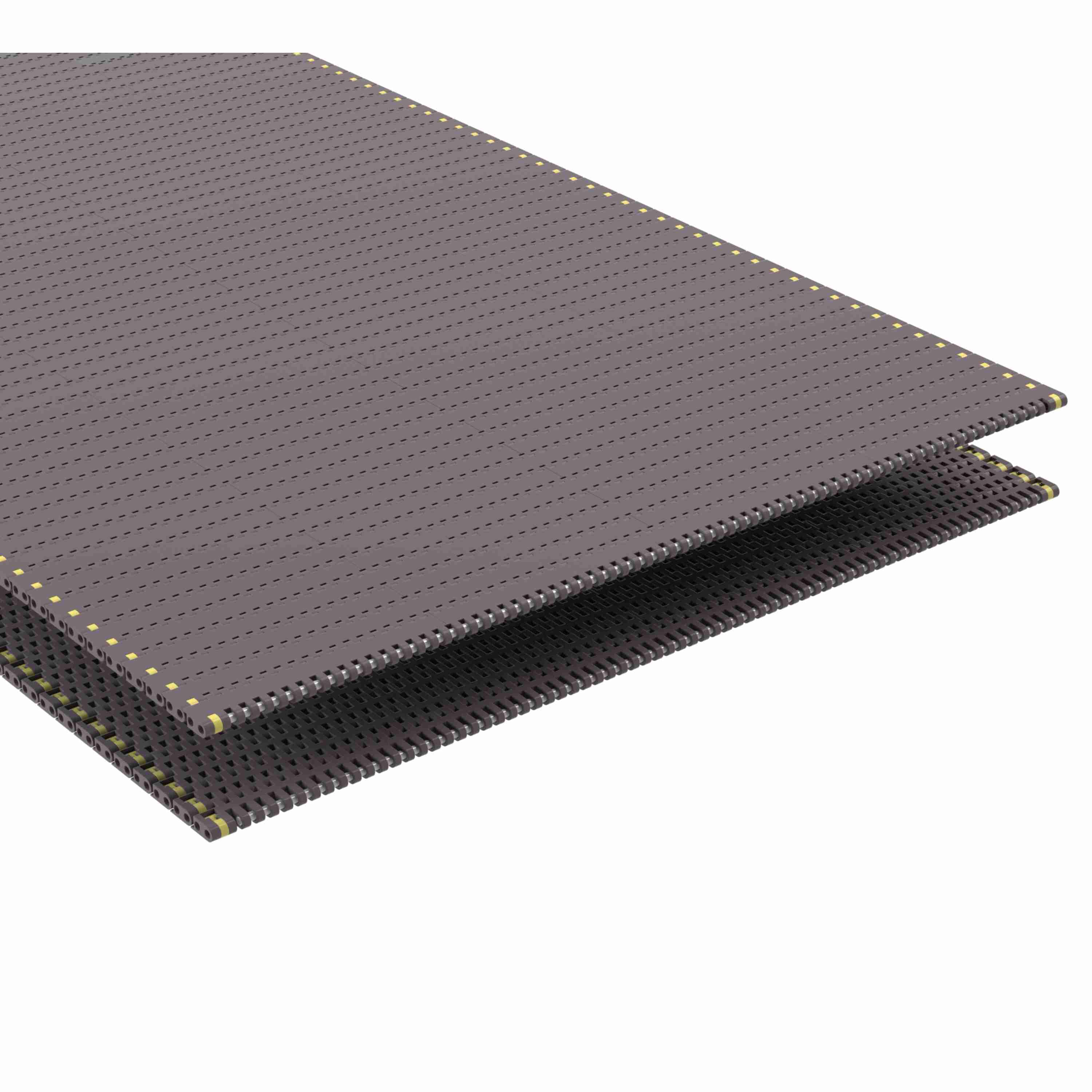

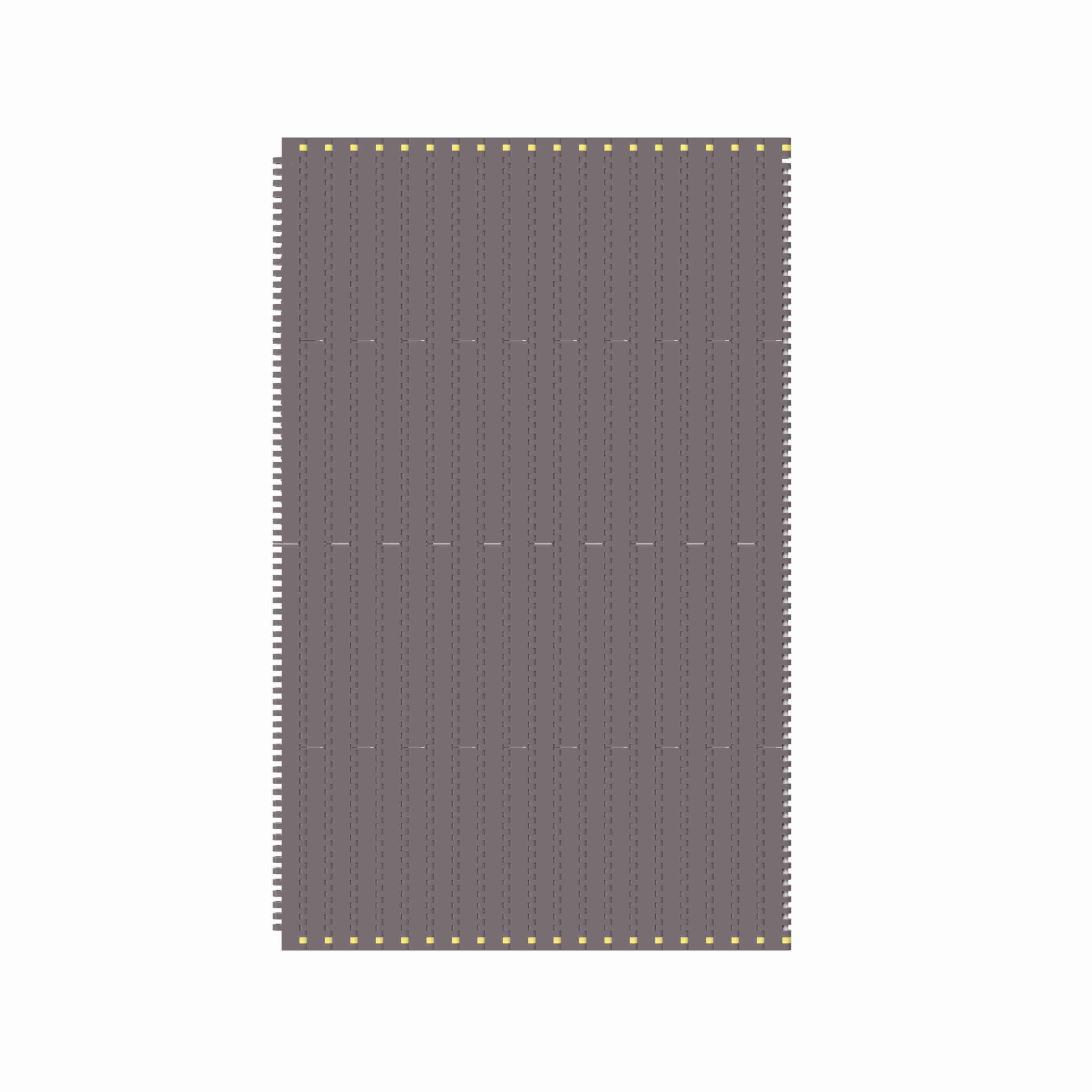

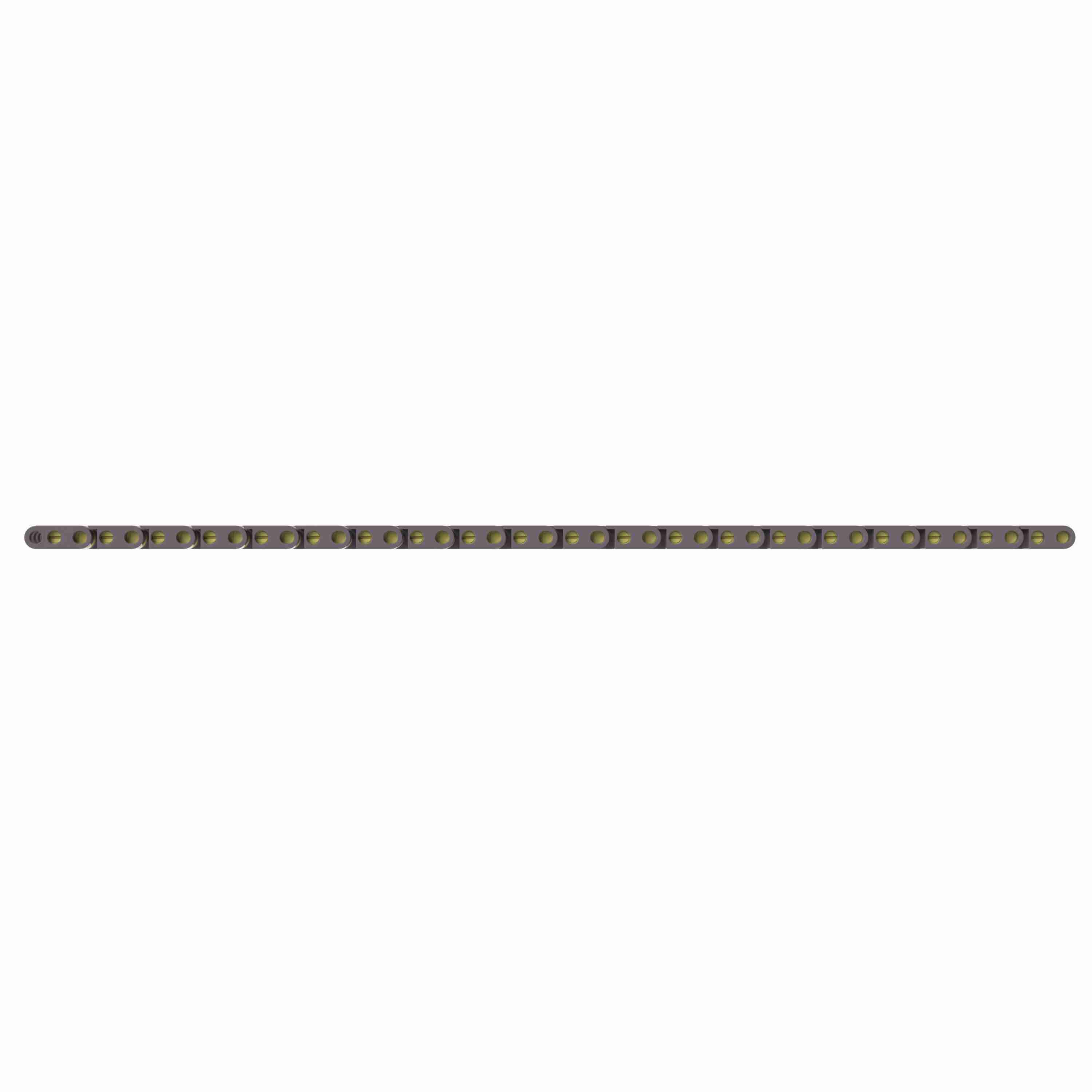

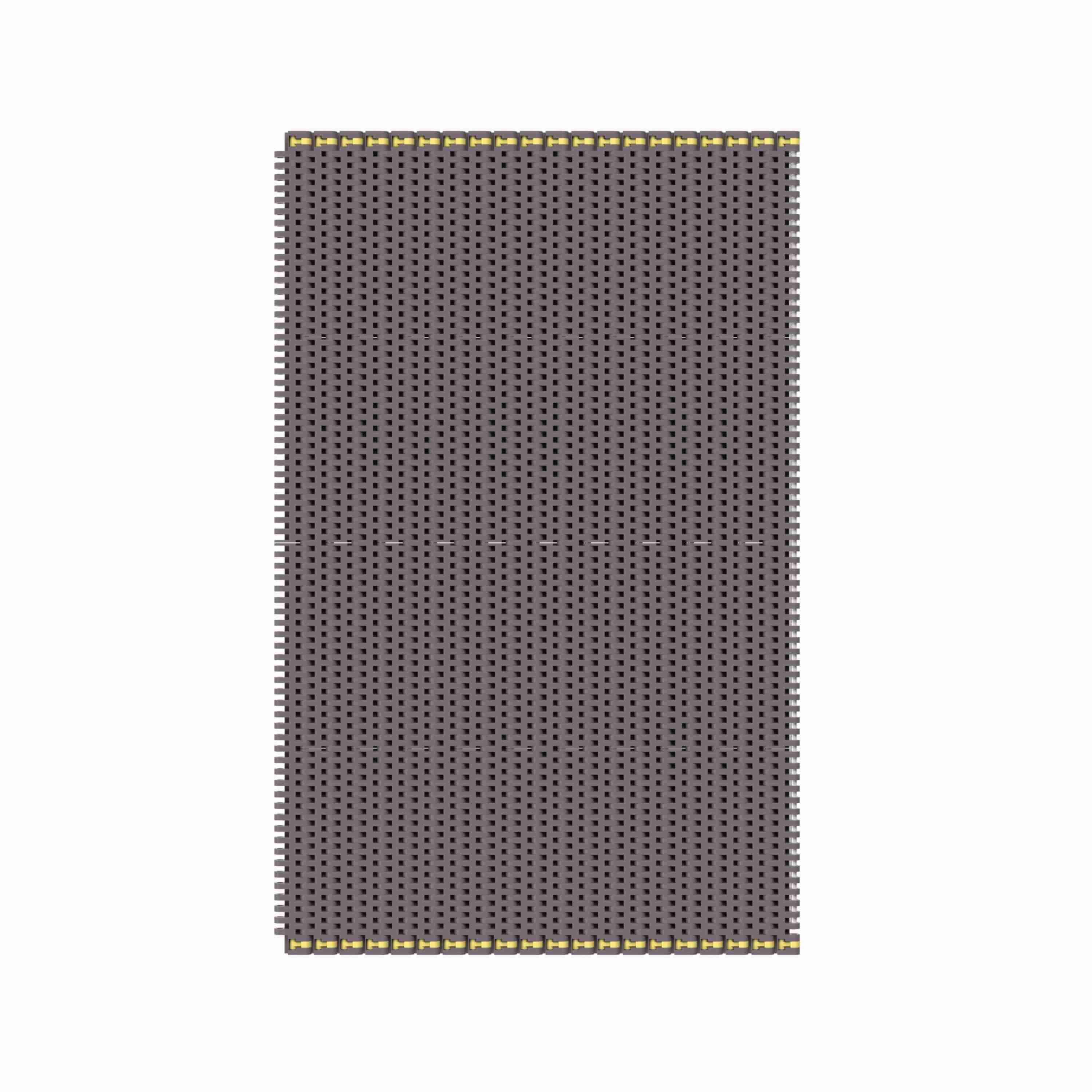

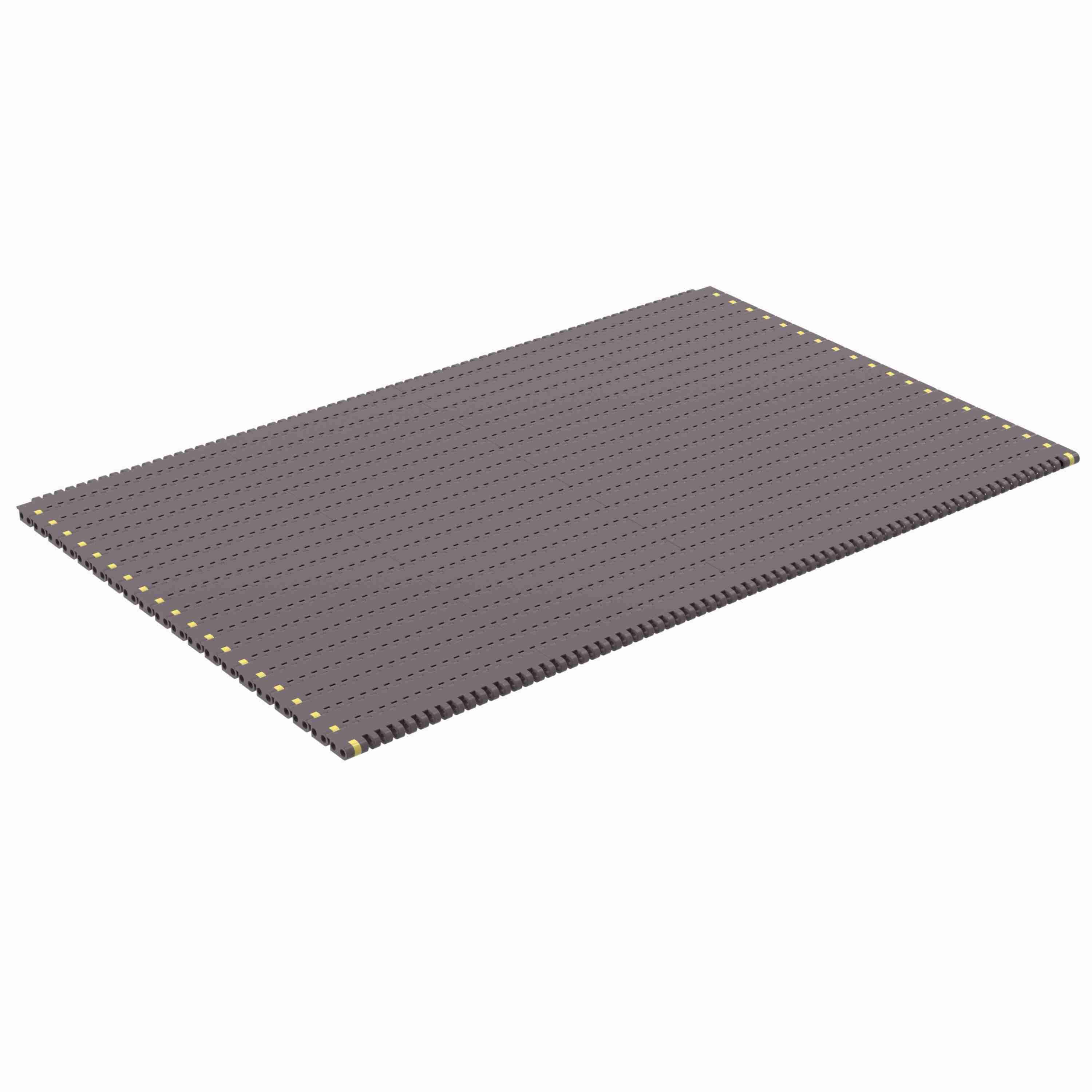

Rexnord 8505 Straight Running Solid Top, Material: Brown High Performance, Width: 39in, Pitch: 0.75in - 10324729
Part #:10324729
Catalog #:10324729
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Belt Thickness (mm): | 8.6 mm |
| Open Area (%): | 4.1 % | Chain Number: | 8505 |
| Chain Width Measurement System: | Imperial | Belt Thickness (in): | 0.34 in |
| Product Type: | Straight Running | Chain Material Description: | Brown High Performance |
| Product Line: | Plastic Modular Chain and Belt | Chain Strength (N/m): | 29,180 N·m |
| Series: | MatTop 8500 Series Chain | Straight or Side-Flex: | Straight Running |
| Chain Pitch (mm): | 19.1 mm | Chain Material: | HP |
| Chain Width (in): | 39 in | Rod/Pin Material: | Polyester |
| Surface Type: | Solid Top | Chain Width (mm): | 990.6 mm |
| Chain Strength (lb/ft): | 2,000 lb/ft | Chain Pitch (in): | 0.75 in |
General Specifications
| Weight: | 0.37 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
