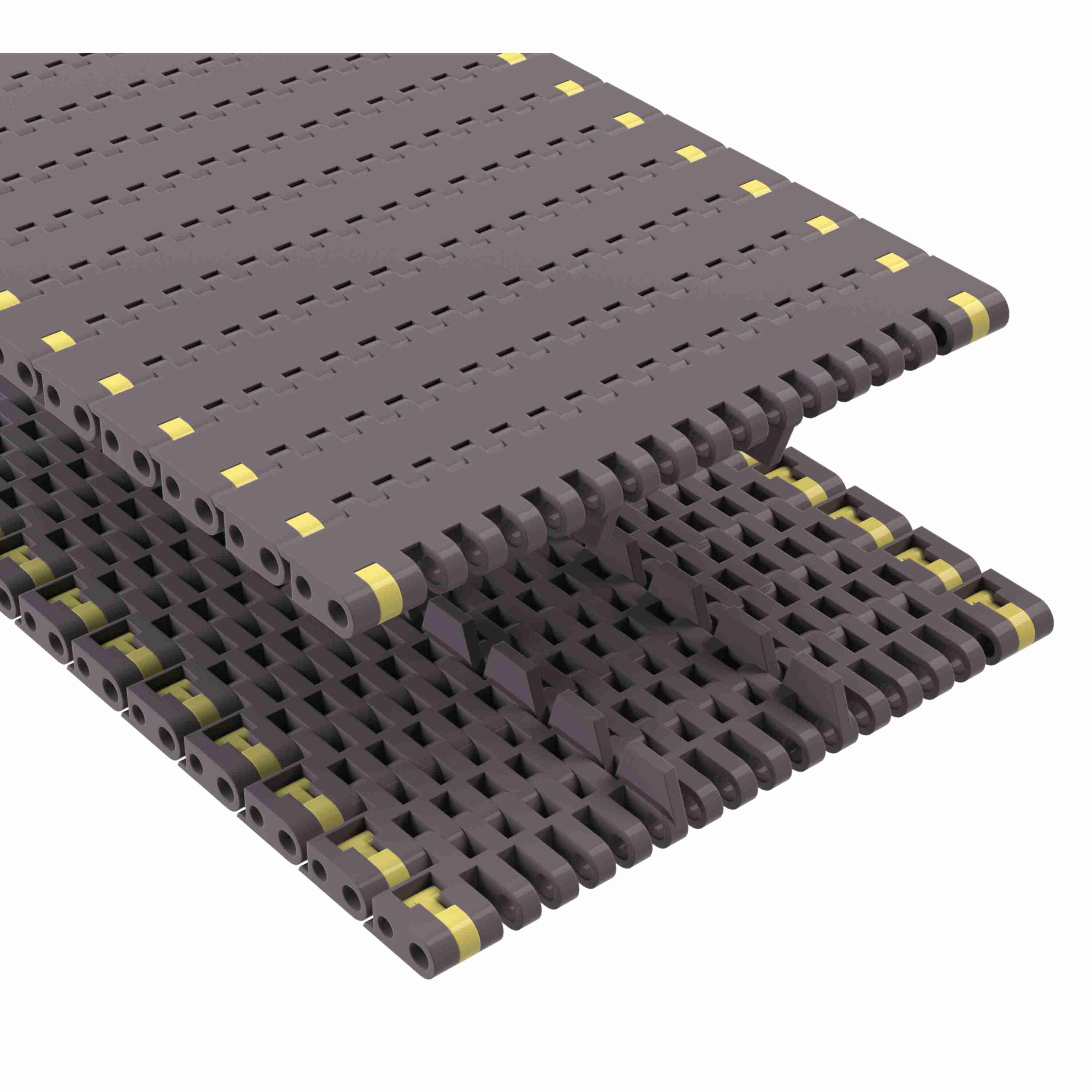

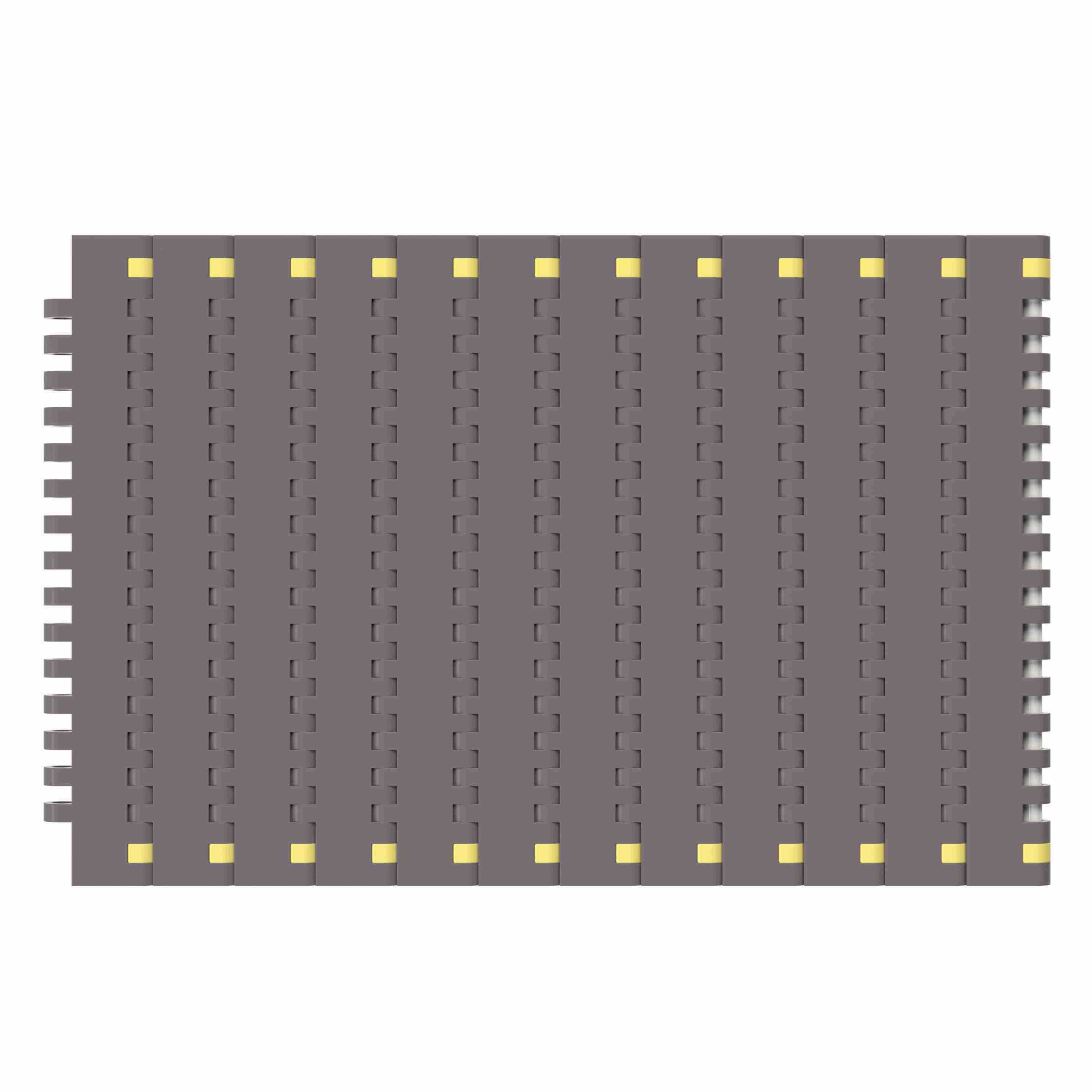

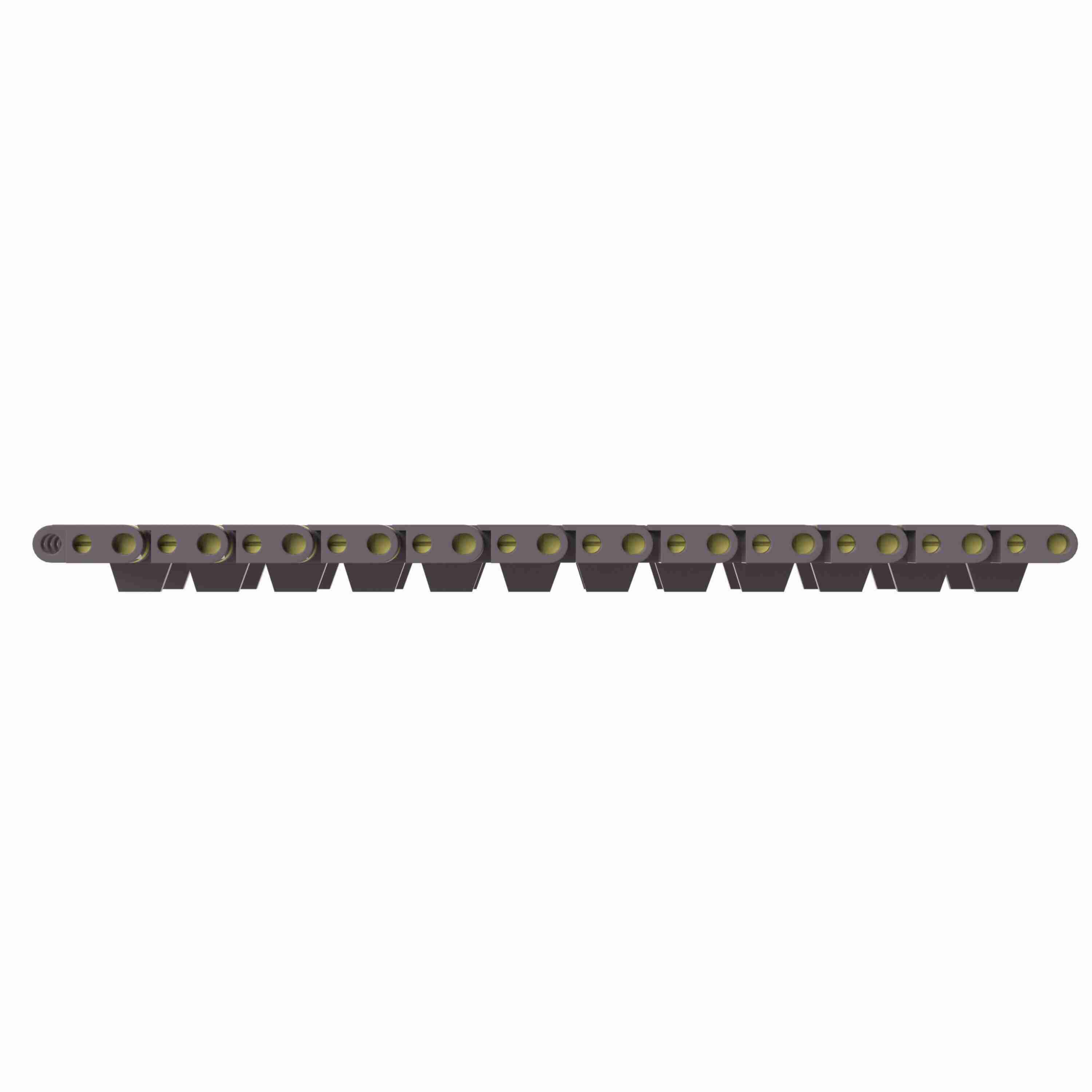

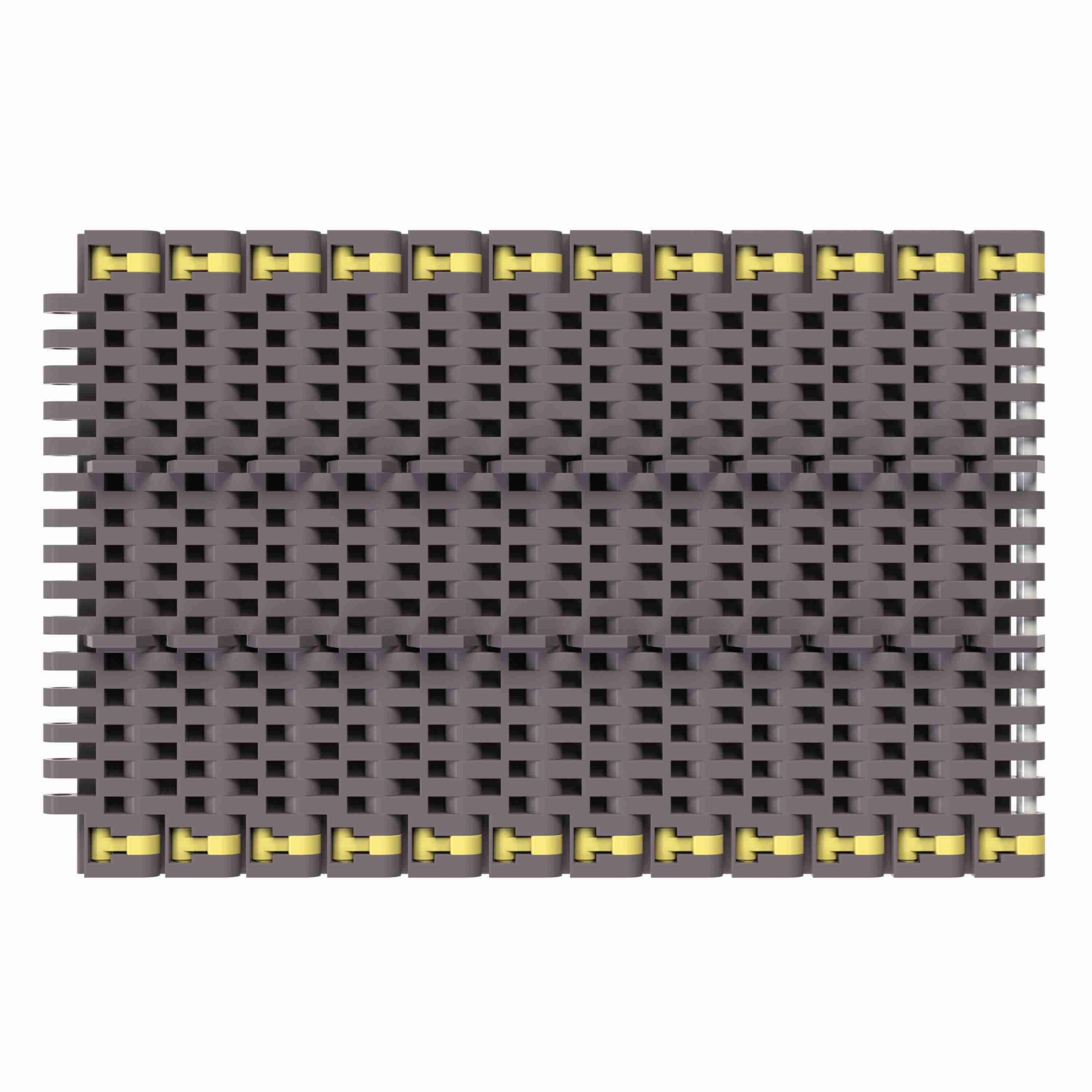

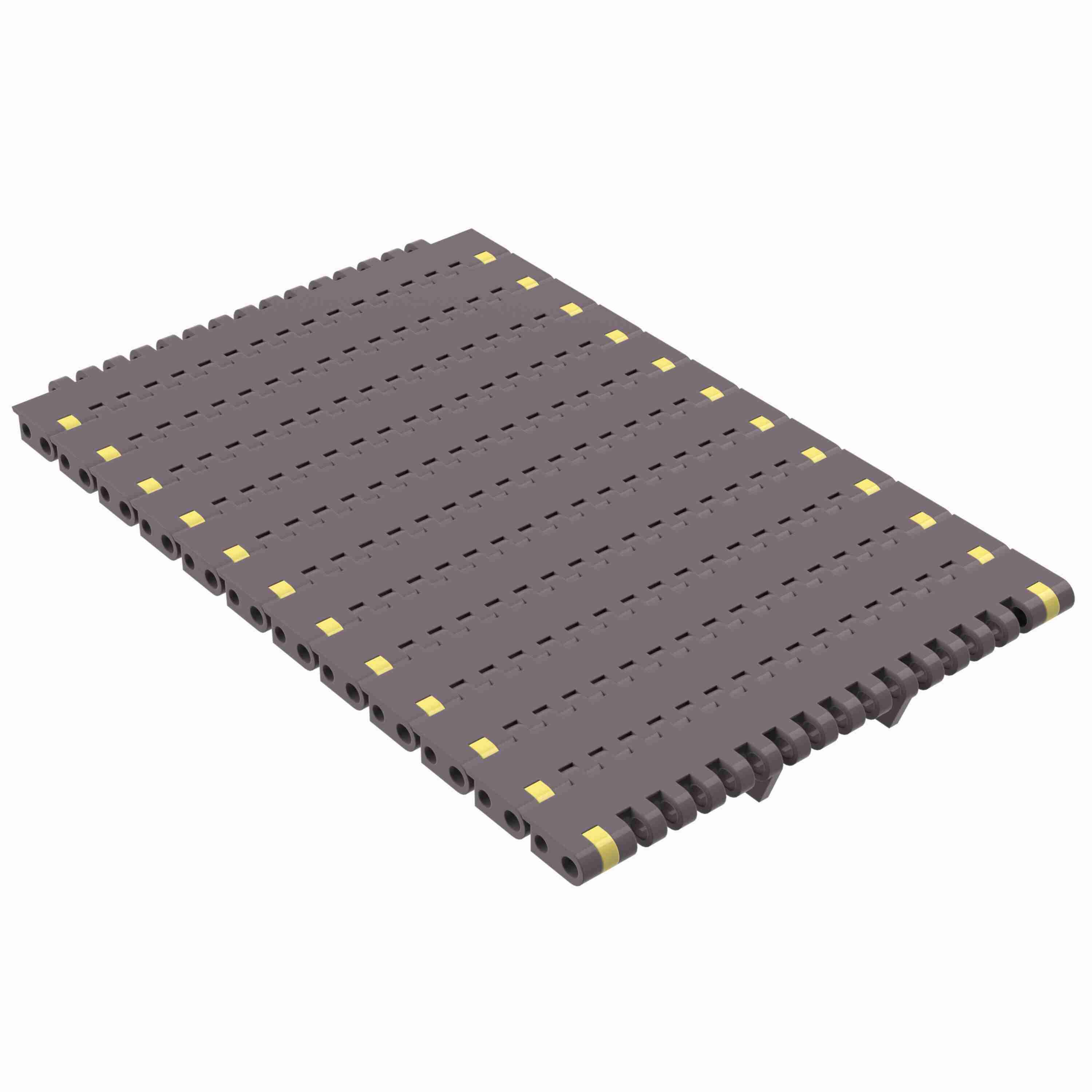

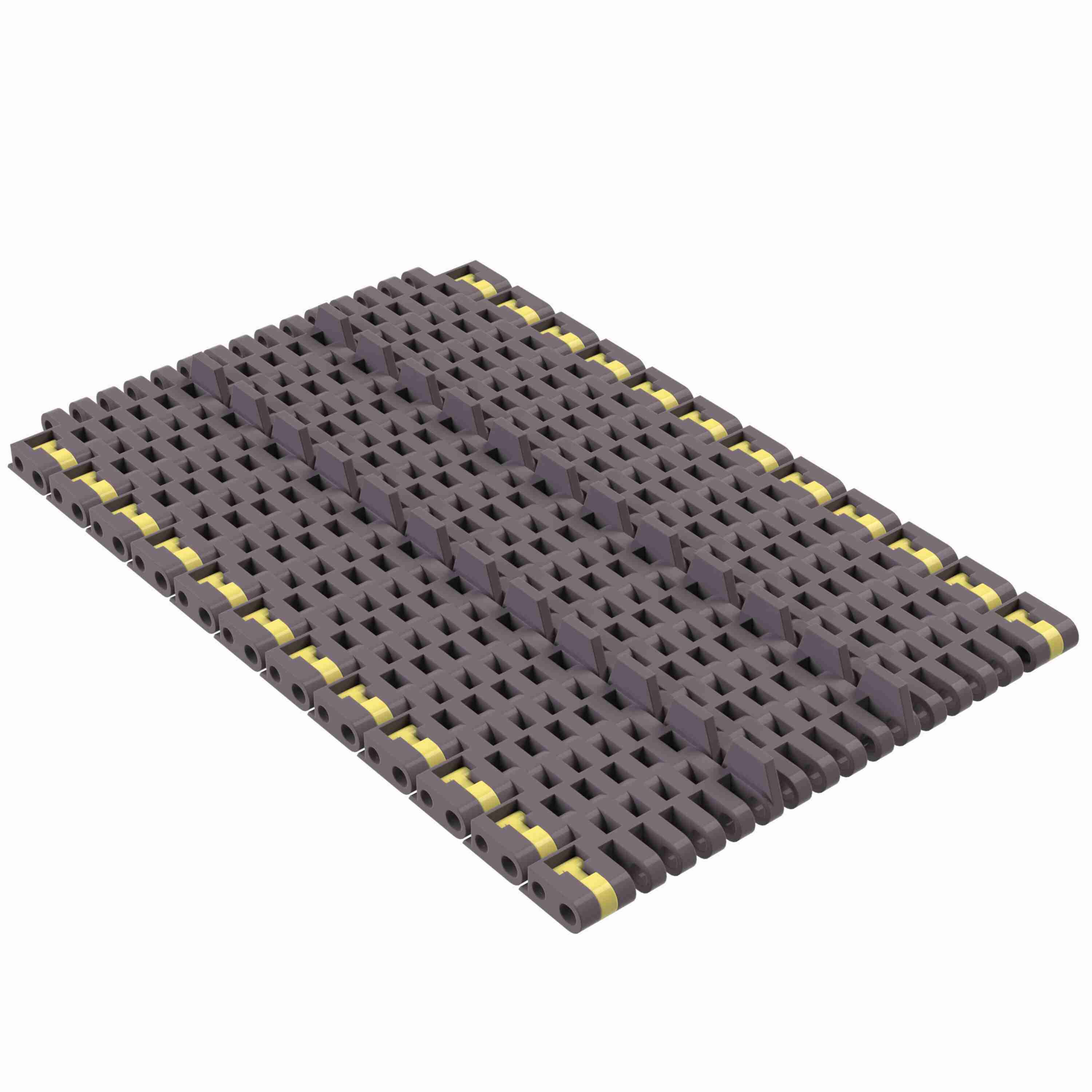

Rexnord 8505 Straight Running Solid Top, Material: Brown High Performance, Width: 6in, Pitch: 0.75in - 81420761
Part #:10028441
Catalog #:81420761
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 0.75 in | Product Type: | Straight Running |
| Number of Positrack: | 2 | Chain Material: | HP |
| Rod/Pin Material: | Polyester | Chain Width Measurement System: | Imperial |
| Open Area (%): | 4.1 % | Series: | MatTop 8500 Series Chain |
| Chain Width (mm): | 152.4 mm | Chain Strength (N): | 2,220 N |
| Chain Material Description: | Brown High Performance | Chain Strength (lb): | 500 lb |
| Positrack Location: | Center | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.34 in | Positrack: | True |
| Product Group: | Modular Plastic Belts | Chain Pitch (mm): | 19.1 mm |
| Surface Type: | Solid Top | Belt Thickness (mm): | 8.6 mm |
| Chain Number: | 8505 | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (in): | 6 in |
General Specifications
| Weight: | 0.06 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
