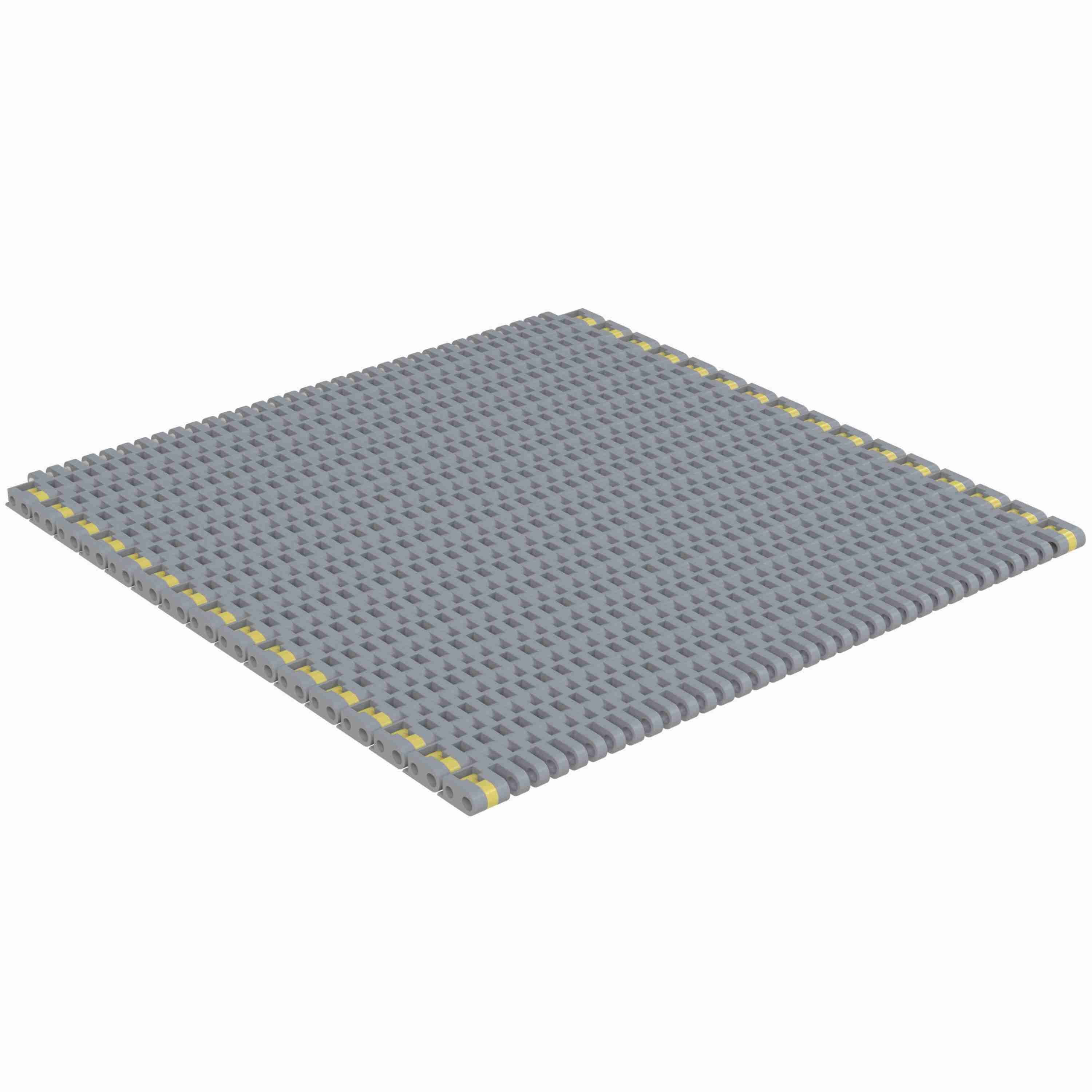

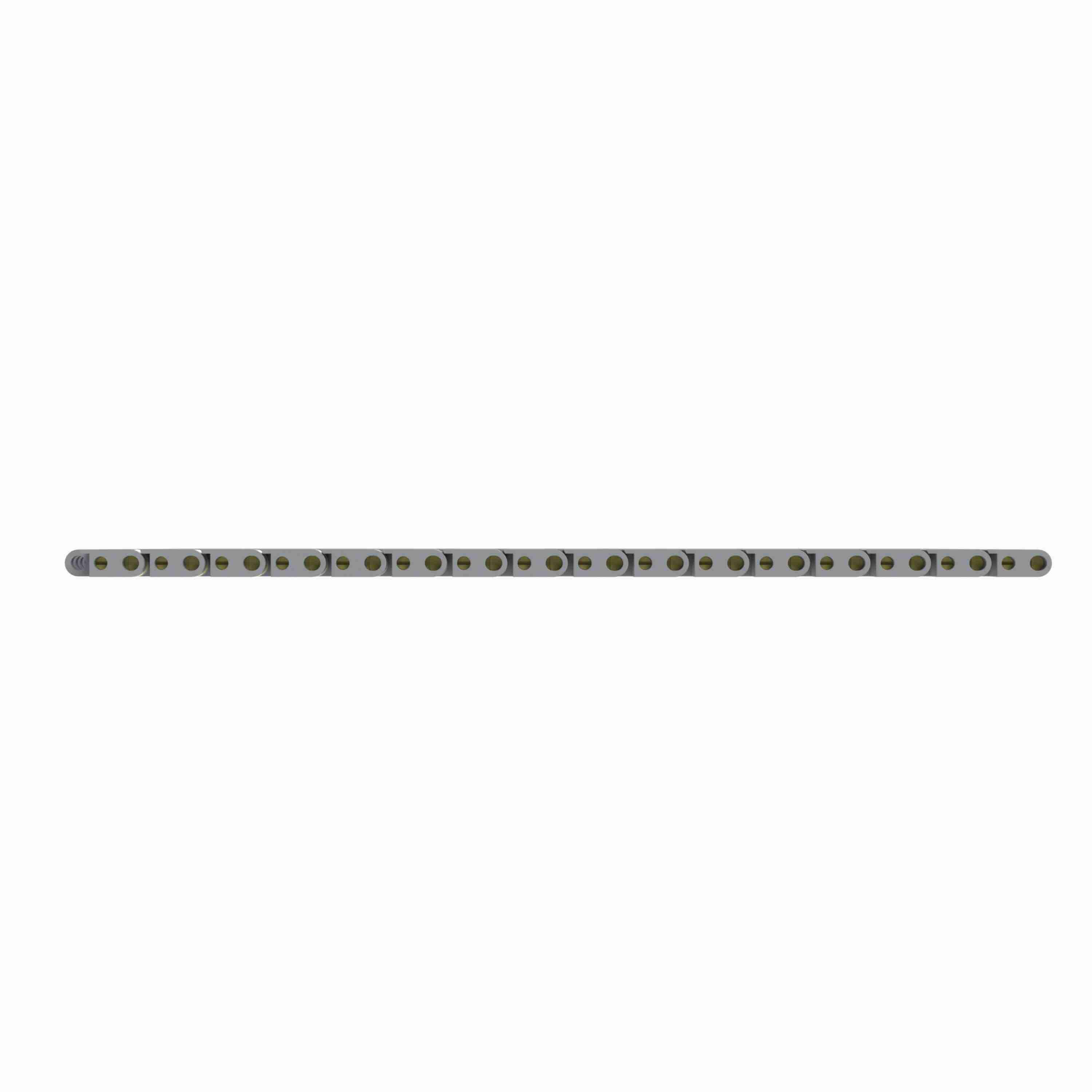

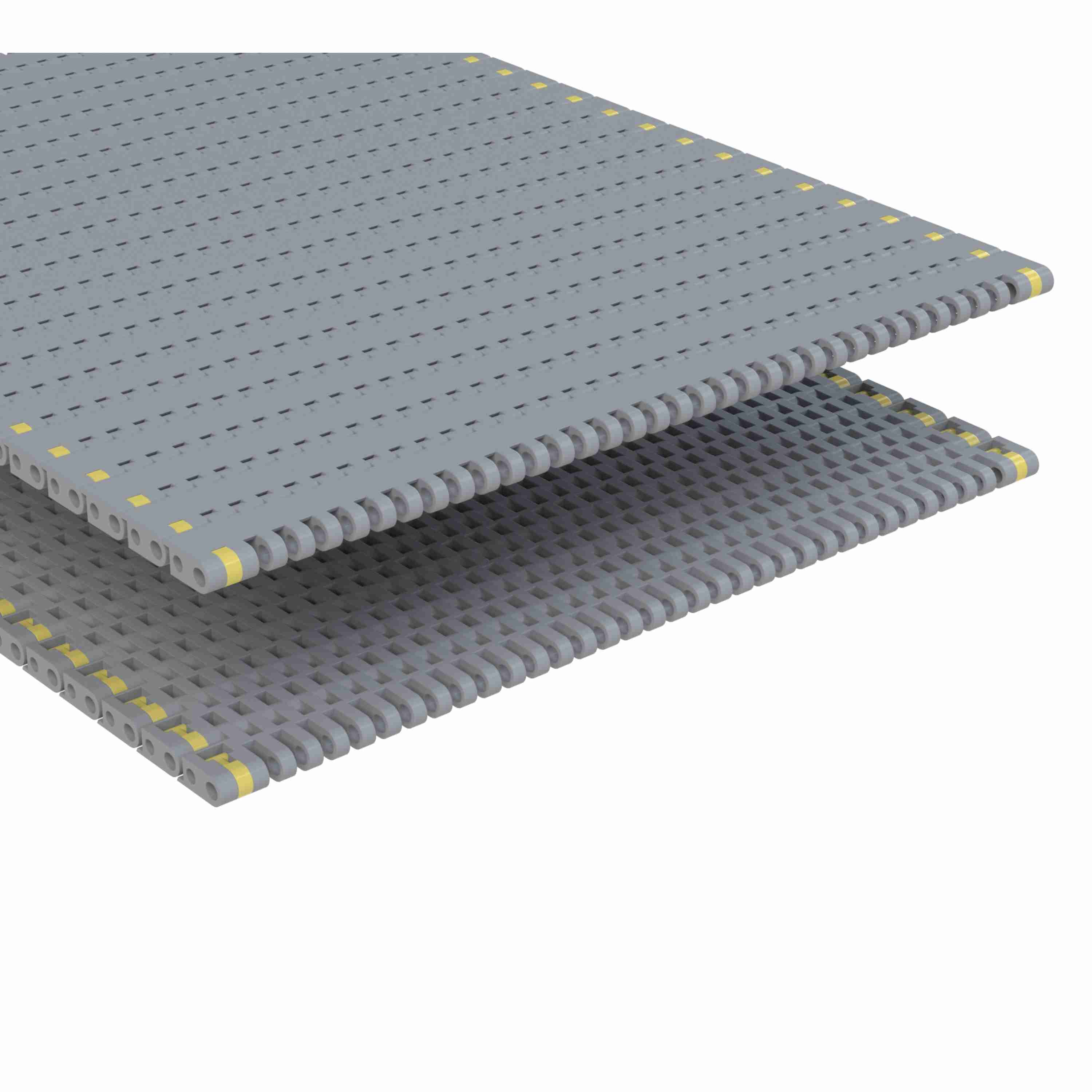

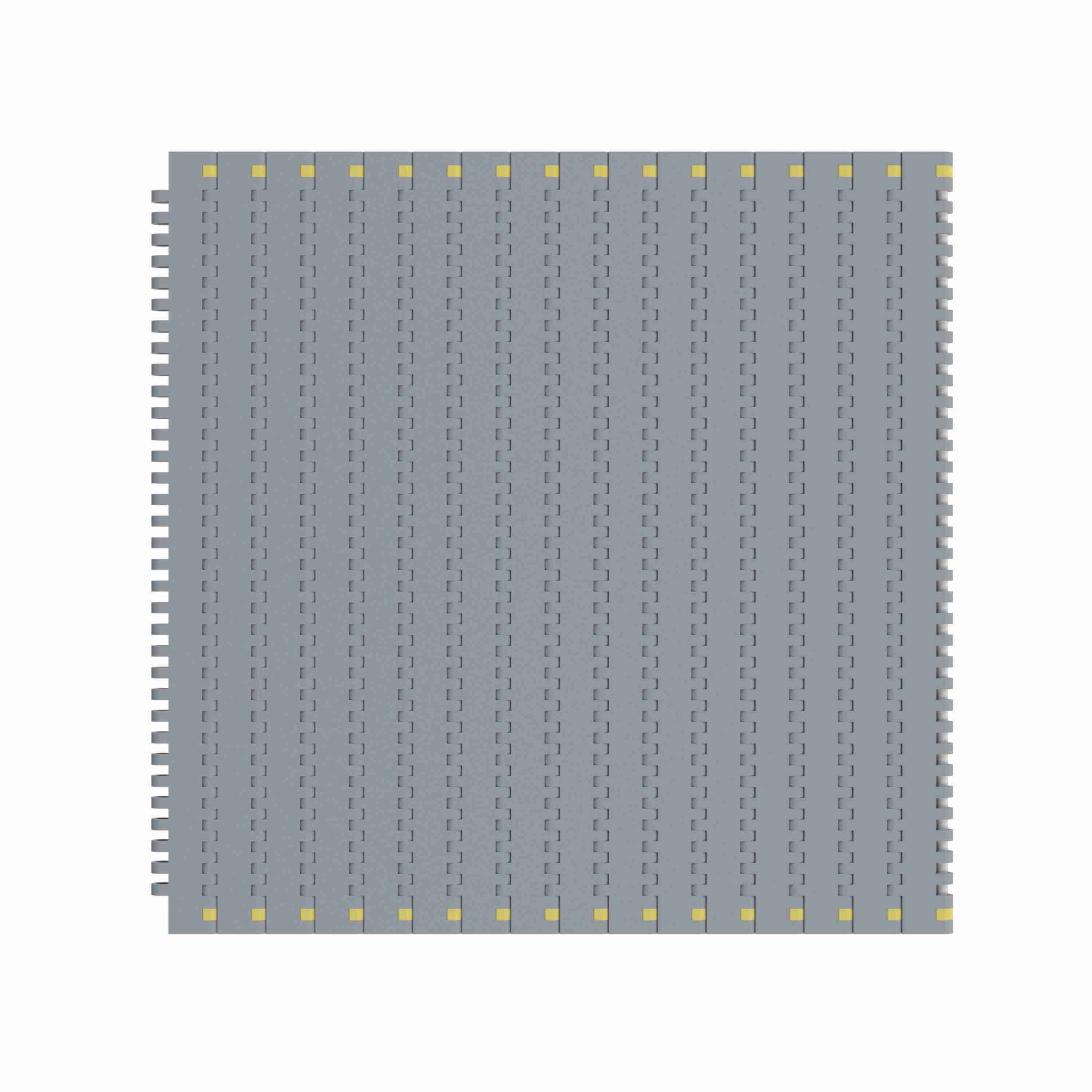

Rexnord 8505 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 12in, Pitch: 0.75in - 10286181
Part #:10286181
Catalog #:10286181
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | PSX | Belt Thickness (in): | 0.34 in |
| Chain Pitch (mm): | 19.1 mm | Product Line: | Plastic Modular Chain and Belt |
| Open Area (%): | 4.1 % | Product Group: | Modular Plastic Belts |
| Surface Type: | Solid Top | Chain Strength (lb): | 2,000 lb |
| Belt Thickness (mm): | 8.6 mm | Chain Number: | 8505 |
| Product Type: | Straight Running | Straight or Side-Flex: | Straight Running |
| Chain Width Measurement System: | Imperial | Chain Width (mm): | 304.8 mm |
| Chain Width (in): | 12 in | Series: | MatTop 8500 Series Chain |
| Chain Strength (N): | 8,880 N | Rod/Pin Material: | Polyester |
| Chain Material Description: | Silver Platinum Series™ X | Chain Pitch (in): | 0.75 in |
General Specifications
| Weight: | 0.11 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
