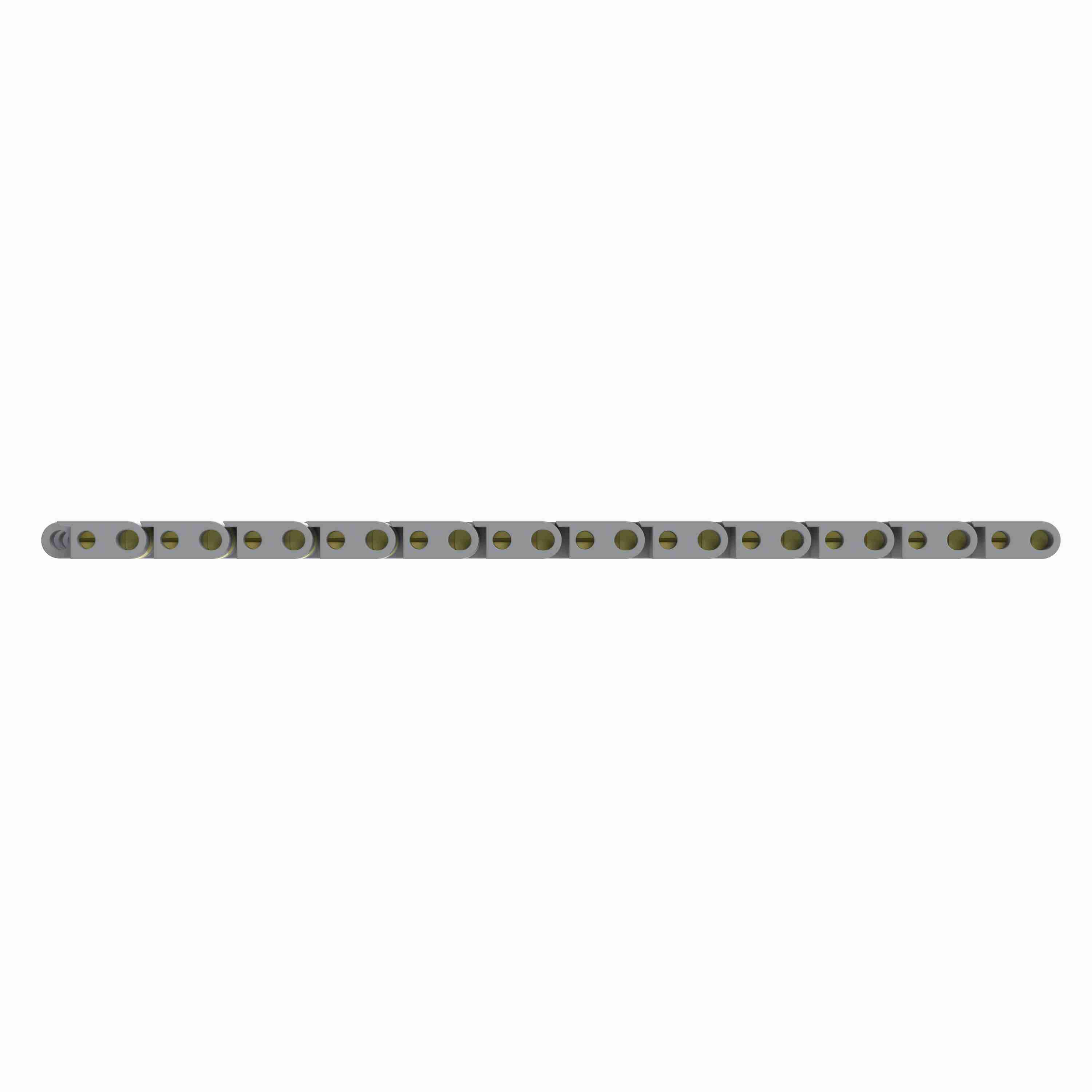

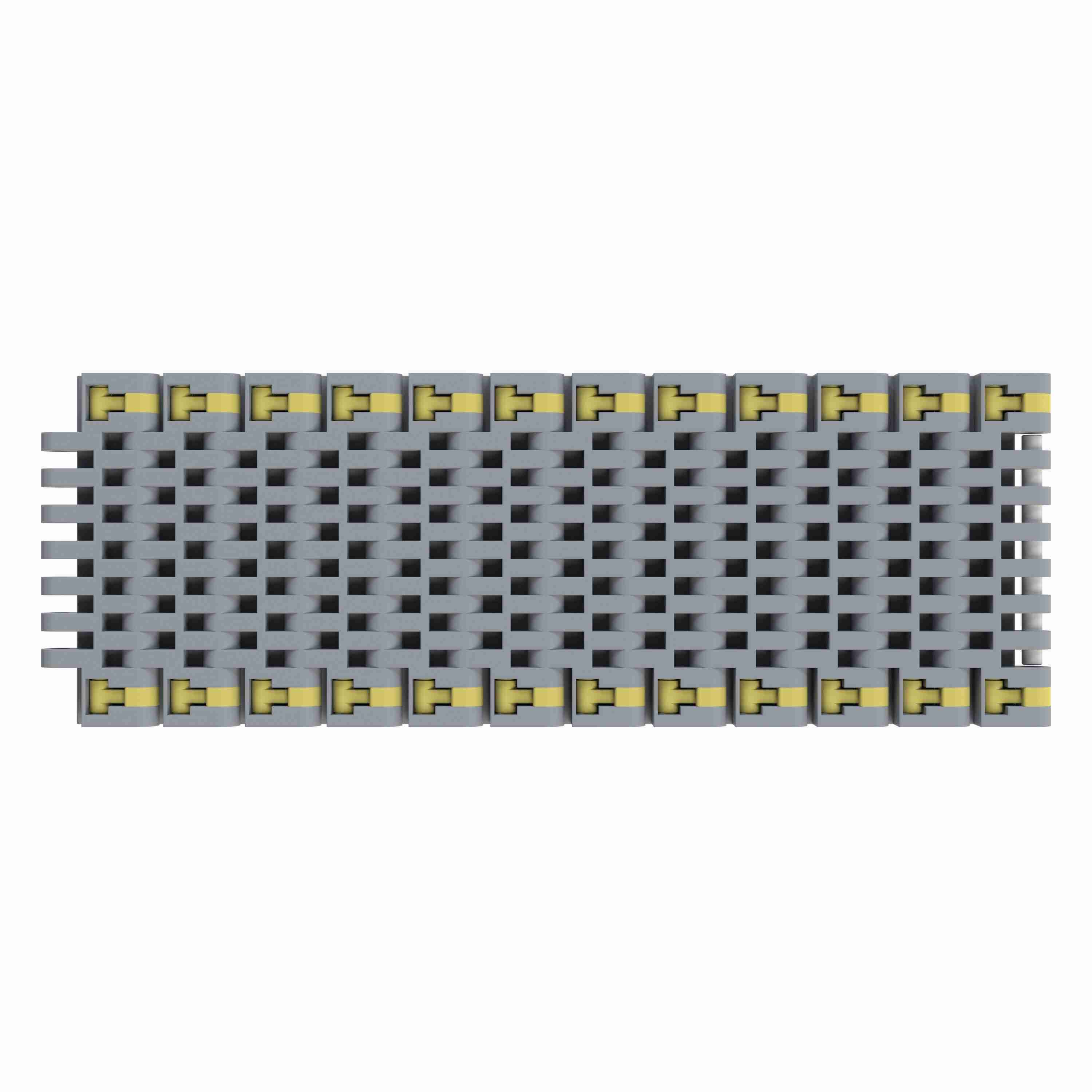

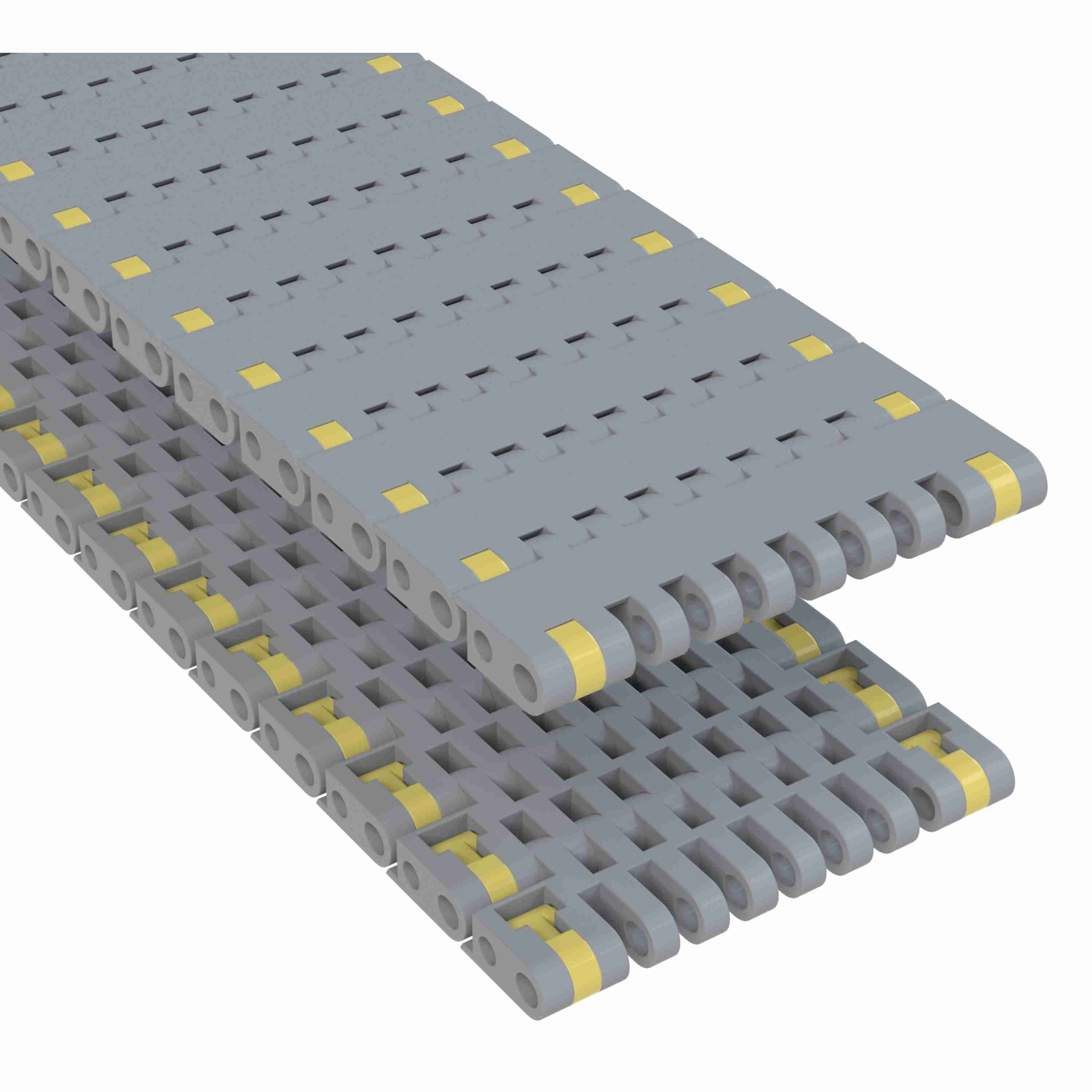

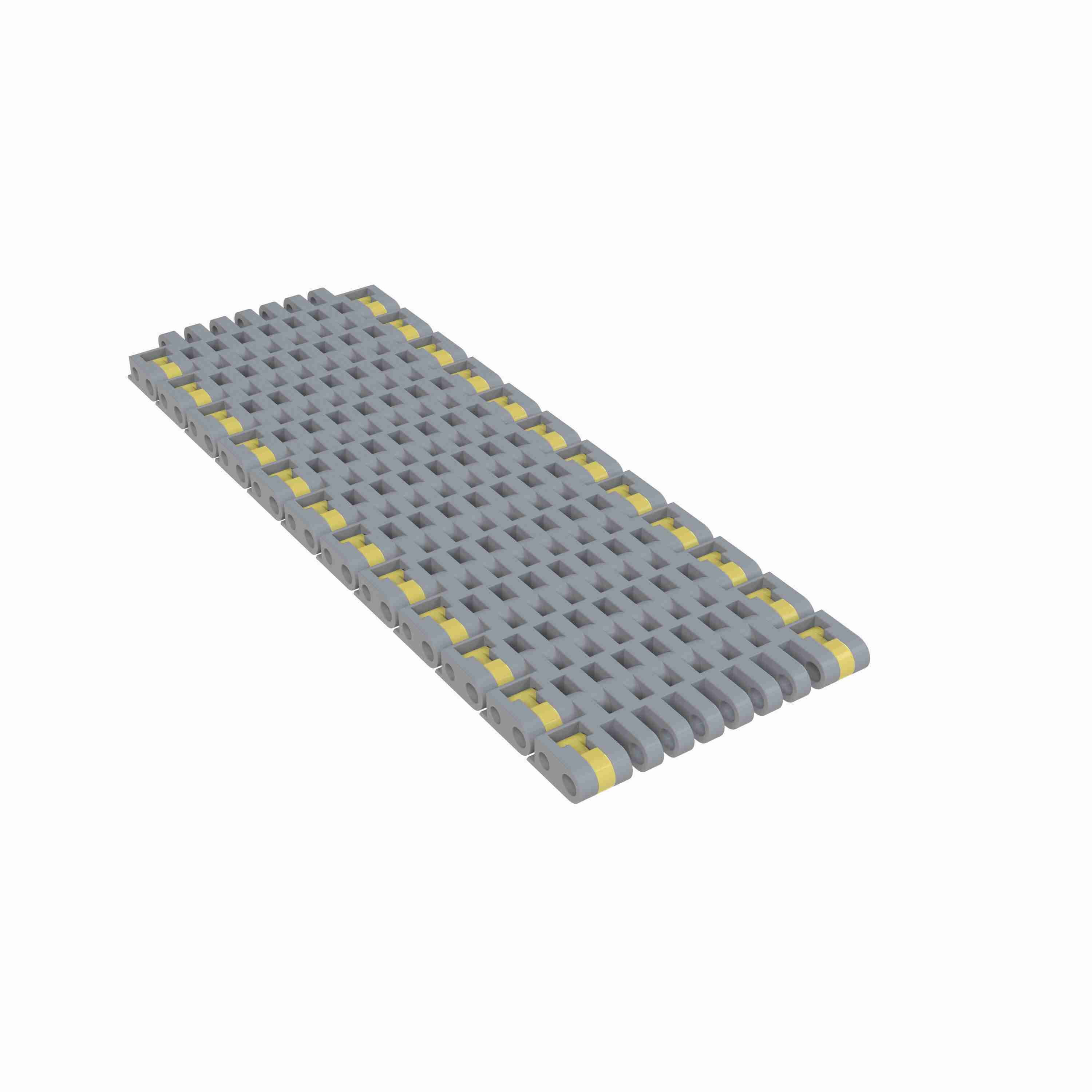

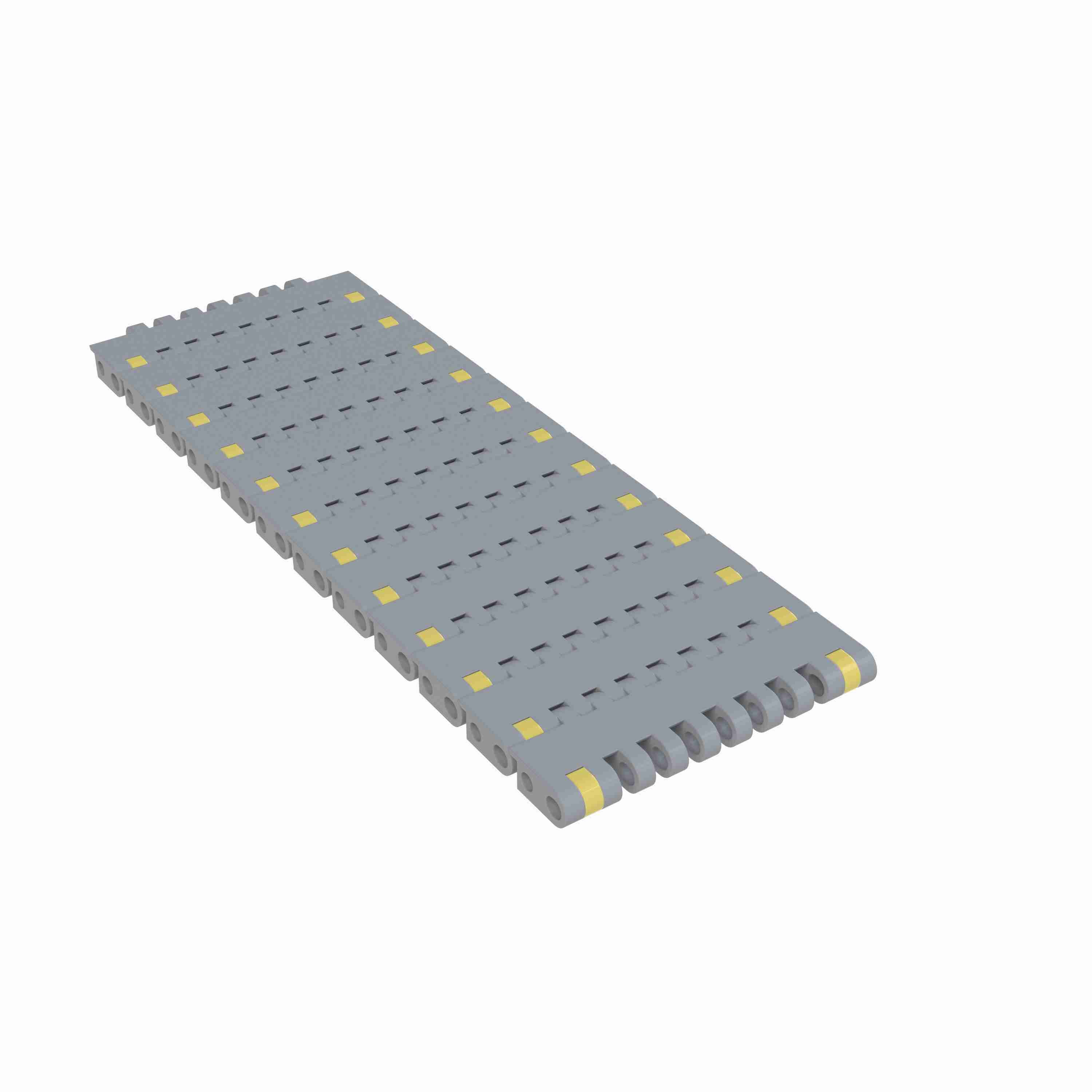

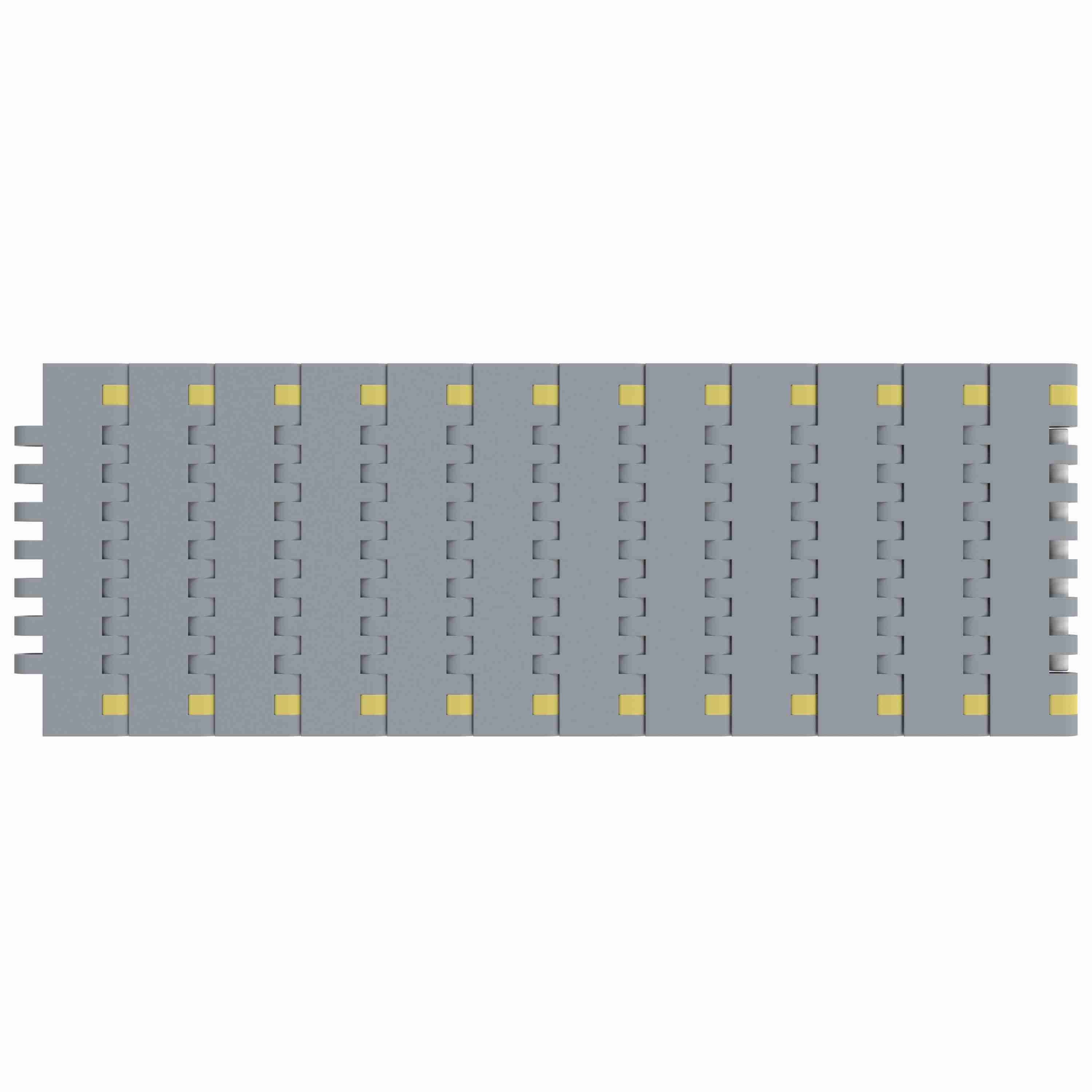

Rexnord 8505 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 3.25in, Pitch: 0.75in - 10286177
Part #:10286177
Catalog #:10286177
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Belt Thickness (in): | 0.34 in |
| Chain Material: | PSX | Chain Width (in): | 3.25 in |
| Chain Number: | 8505 | Rod/Pin Material: | Polyester |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Chain Width (mm): | 82.6 mm | Belt Thickness (mm): | 8.6 mm |
| Surface Type: | Solid Top | Chain Strength (lb): | 240 lb |
| Chain Pitch (in): | 0.75 in | Chain Pitch (mm): | 19.1 mm |
| Series: | MatTop 8500 Series Chain | Open Area (%): | 4.1 % |
| Chain Material Description: | Silver Platinum Series™ X | Chain Strength (N): | 1,066 N |
| Product Line: | Plastic Modular Chain and Belt | Straight or Side-Flex: | Straight Running |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
