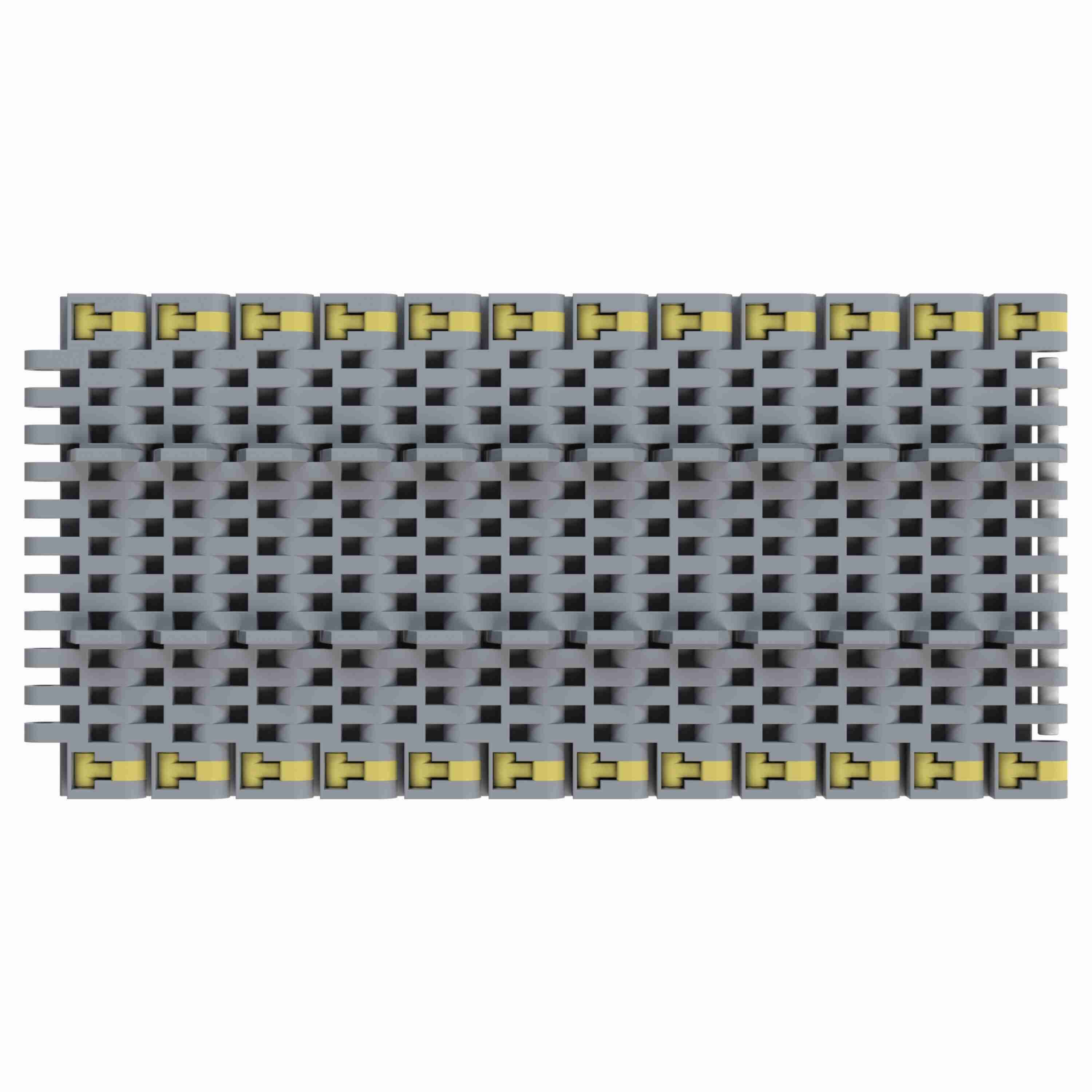

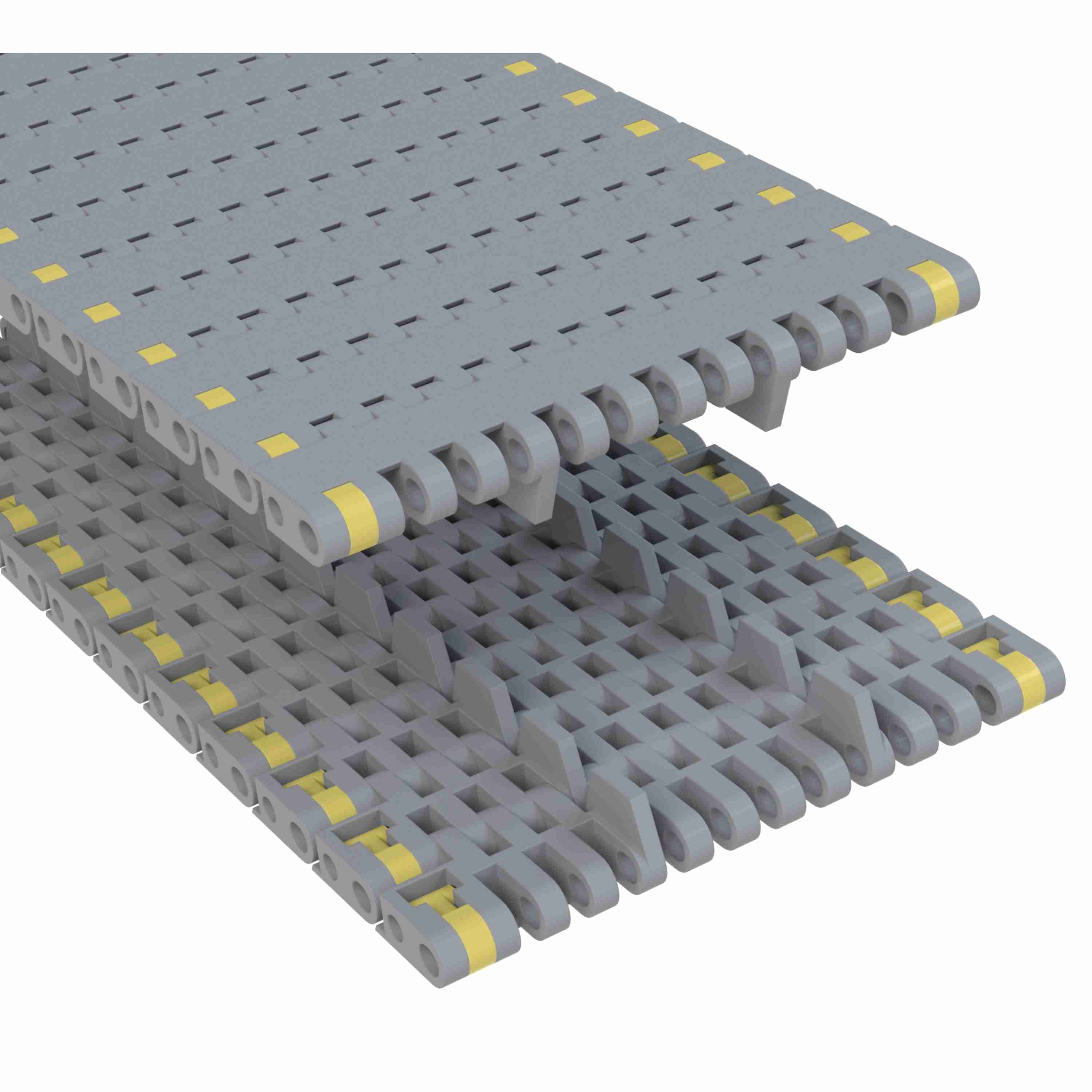

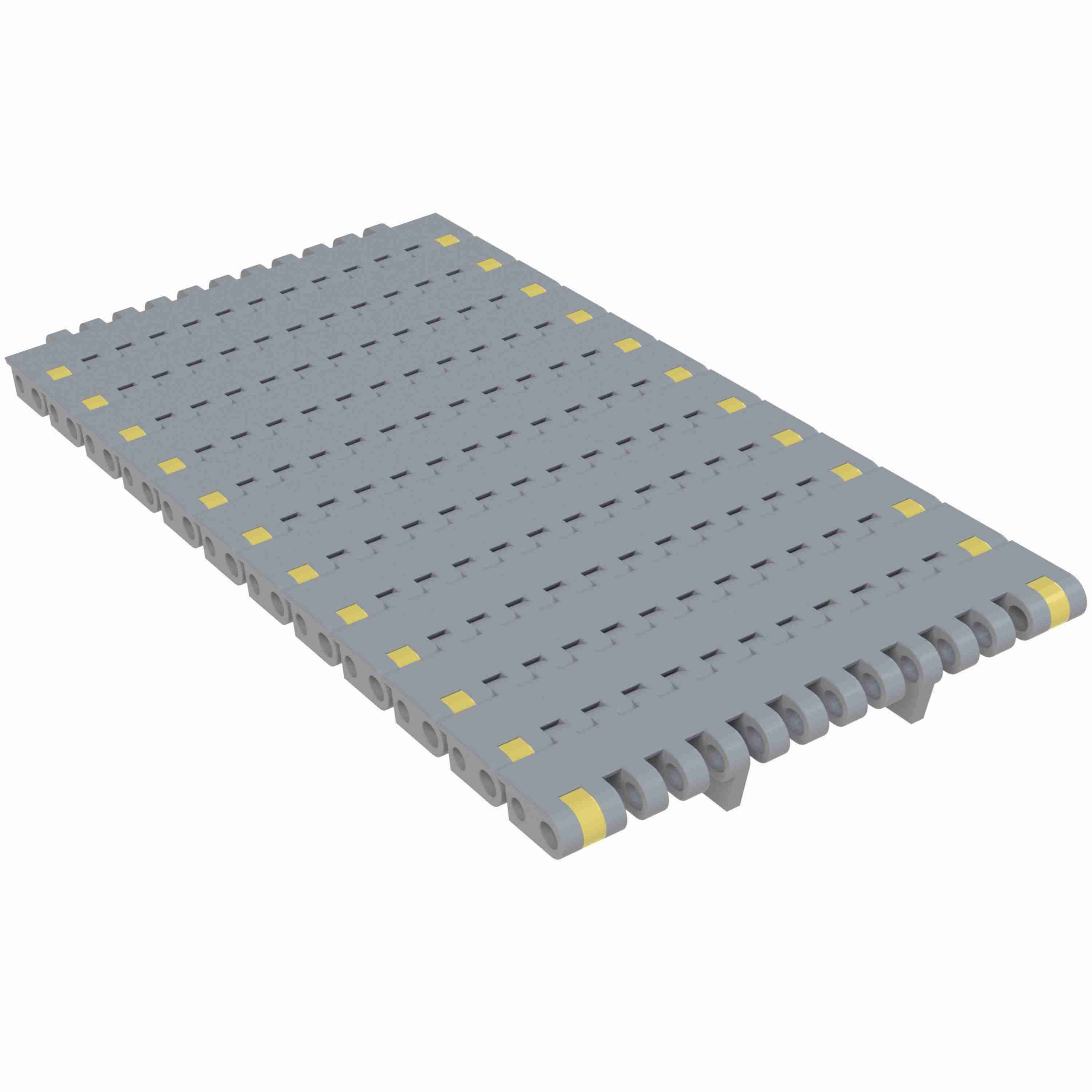

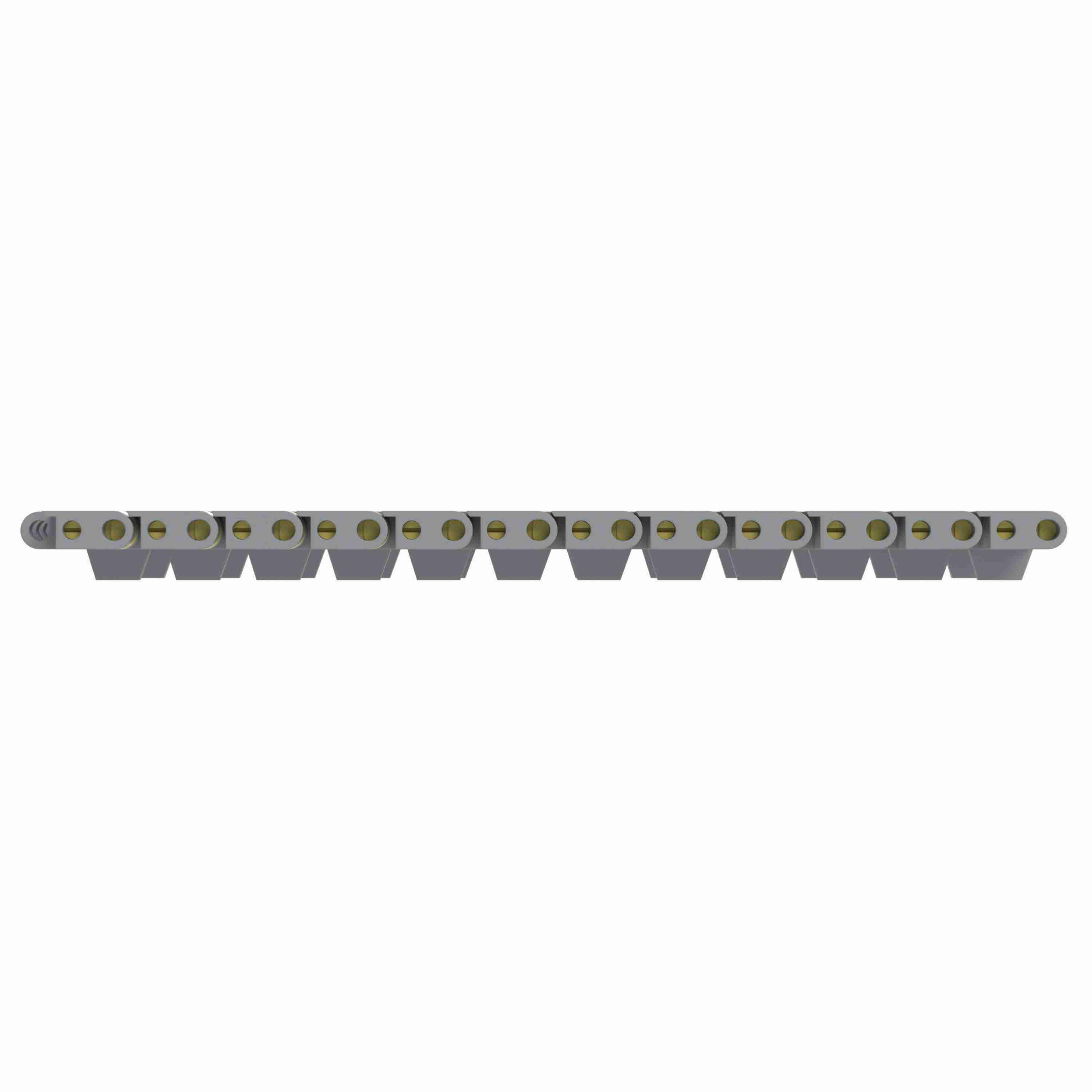

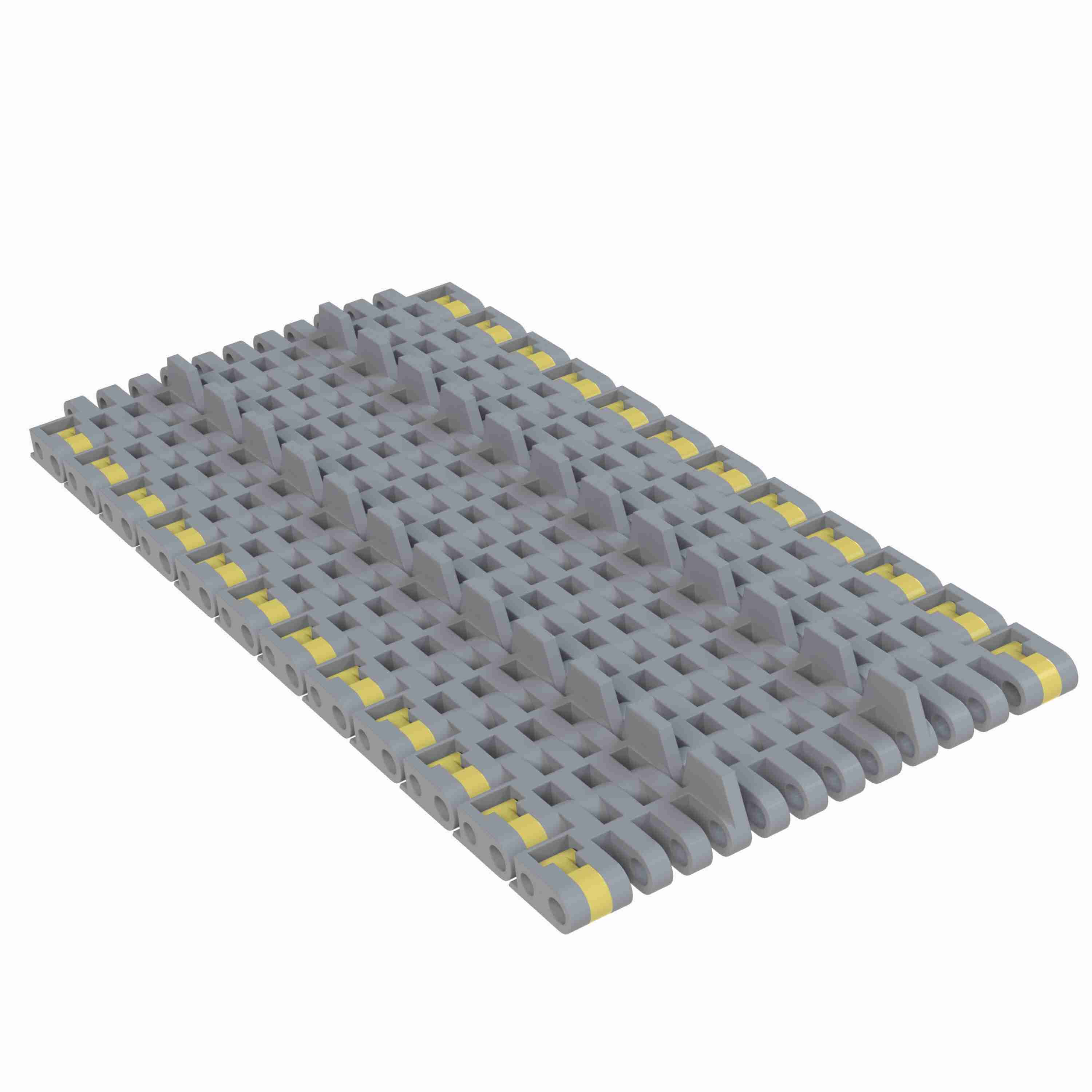

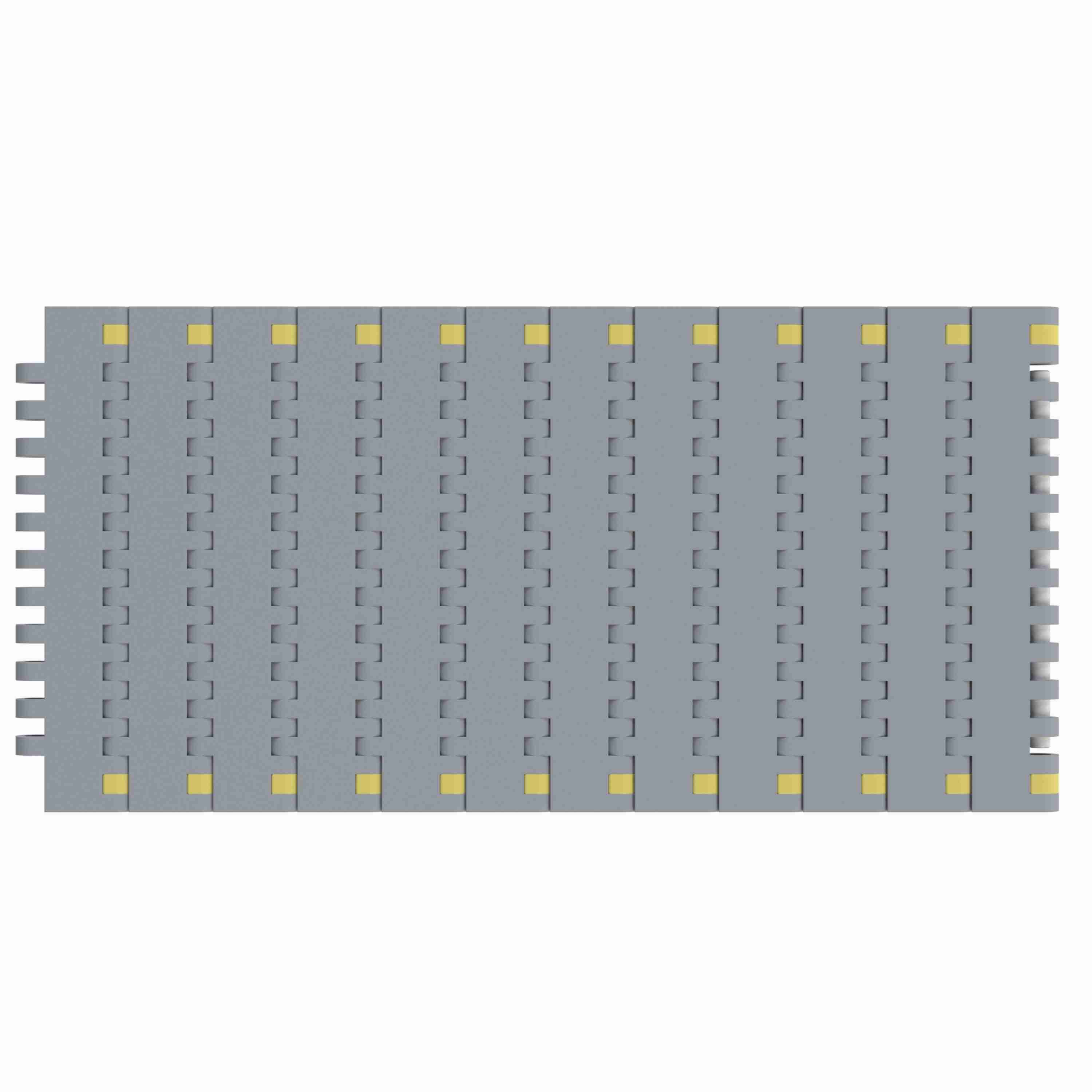

Rexnord 8505 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 4.5in, Pitch: 0.75in - 10286184
Part #:10286184
Catalog #:10286184
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Silver Platinum Series™ X | Chain Strength (N): | 1,598 N |
| Product Group: | Modular Plastic Belts | Open Area (%): | 4.1 % |
| Chain Width (mm): | 114.3 mm | Product Line: | Plastic Modular Chain and Belt |
| Product Type: | Straight Running | Belt Thickness (mm): | 8.6 mm |
| Surface Type: | Solid Top | Chain Width Measurement System: | Imperial |
| Chain Pitch (in): | 0.75 in | Number of Positrack: | 2 |
| Positrack Location: | Center | Chain Strength (lb): | 360 lb |
| Positrack: | True | Series: | MatTop 8500 Series Chain |
| Belt Thickness (in): | 0.34 in | Rod/Pin Material: | Polyester |
| Straight or Side-Flex: | Straight Running | Chain Width (in): | 4.5 in |
| Chain Pitch (mm): | 19.1 mm | Chain Number: | 8505 |
| Chain Material: | PSX |
General Specifications
| Weight: | 0.04 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
