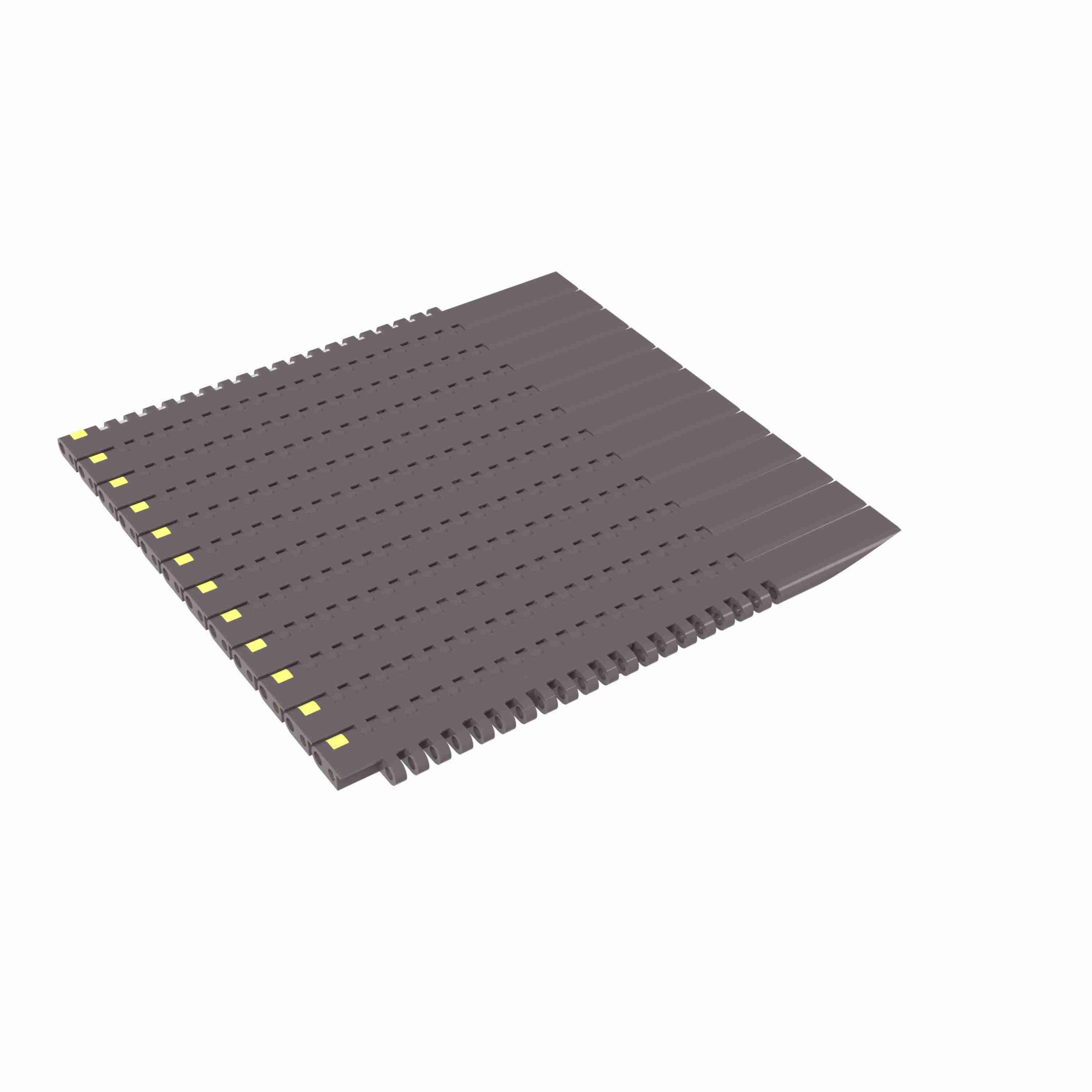

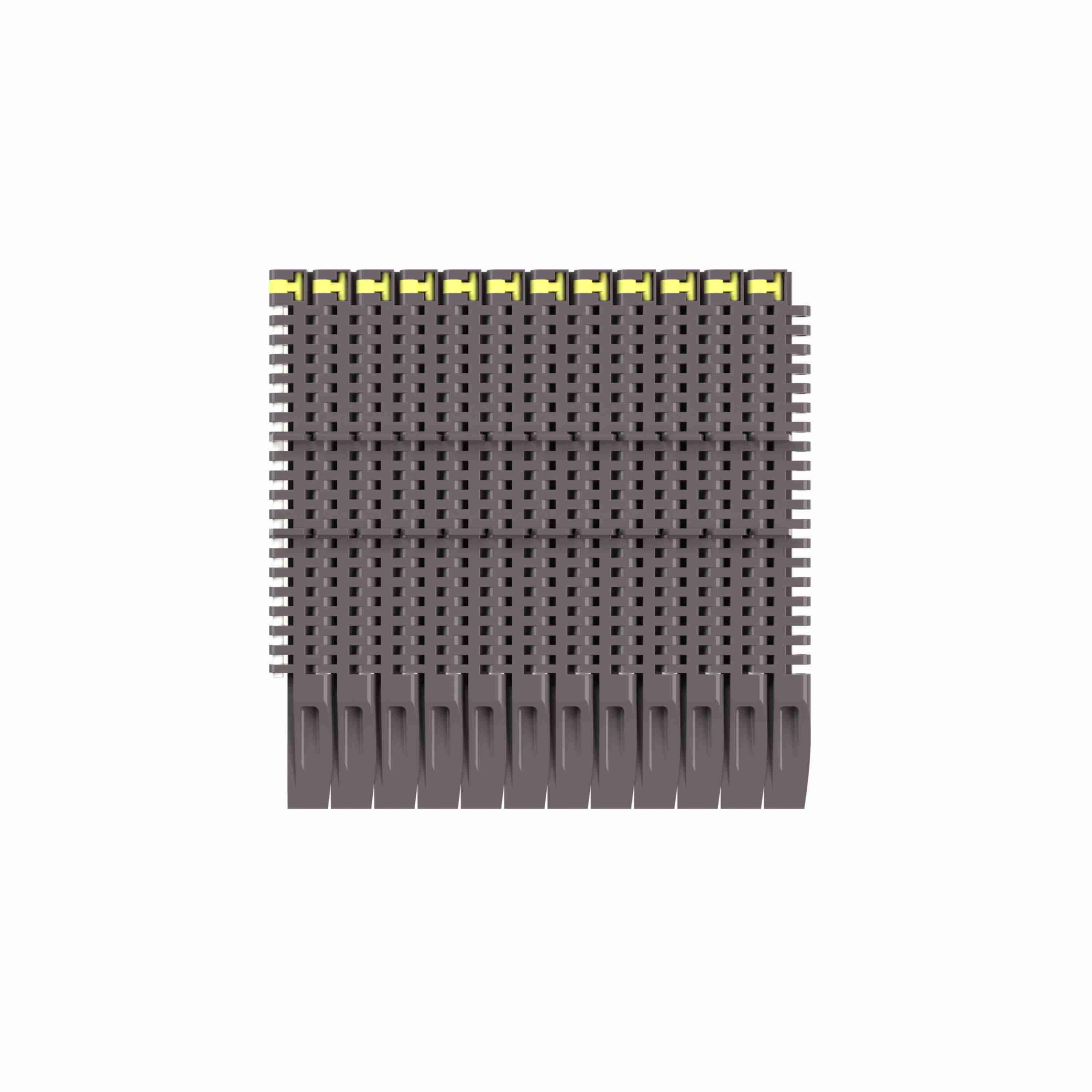

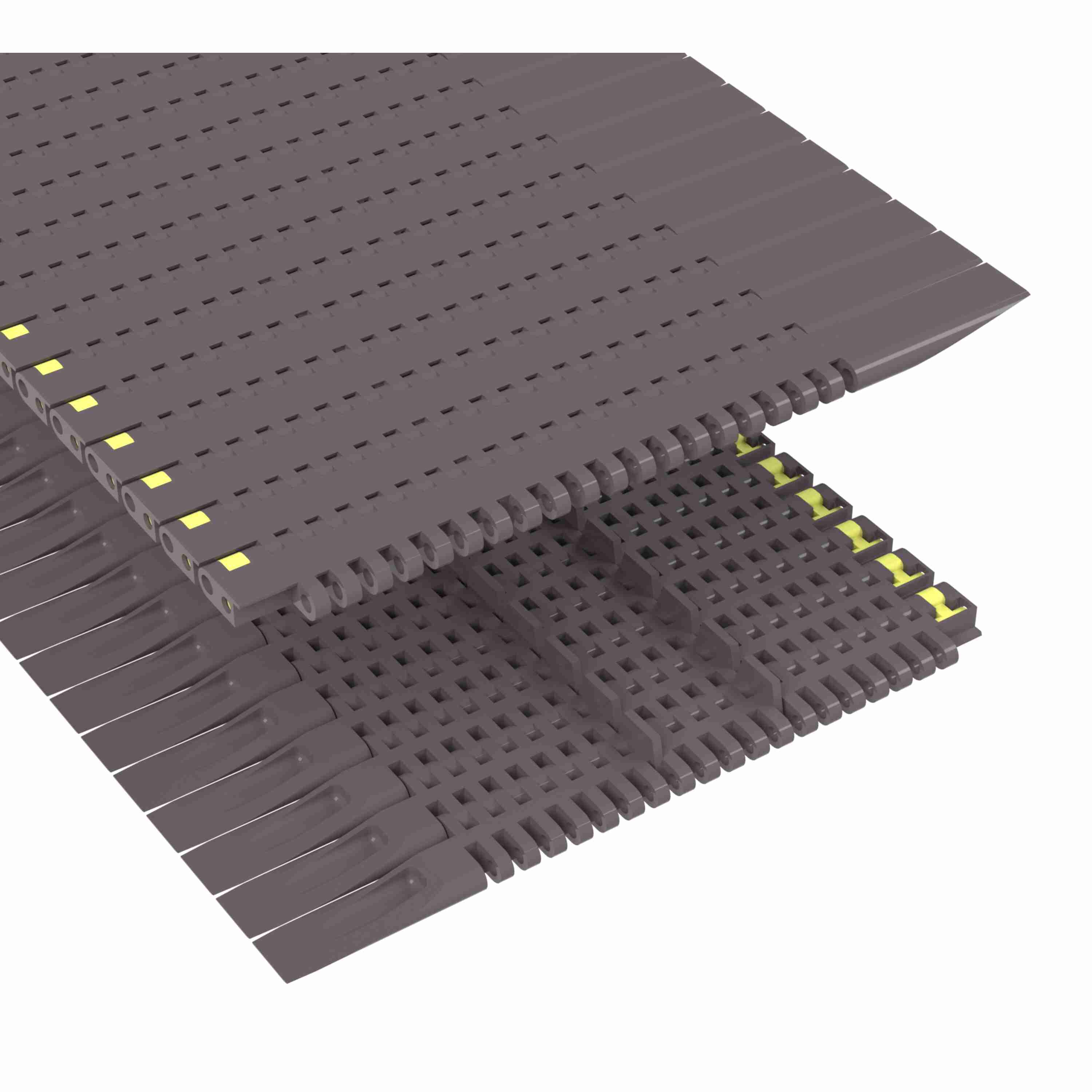

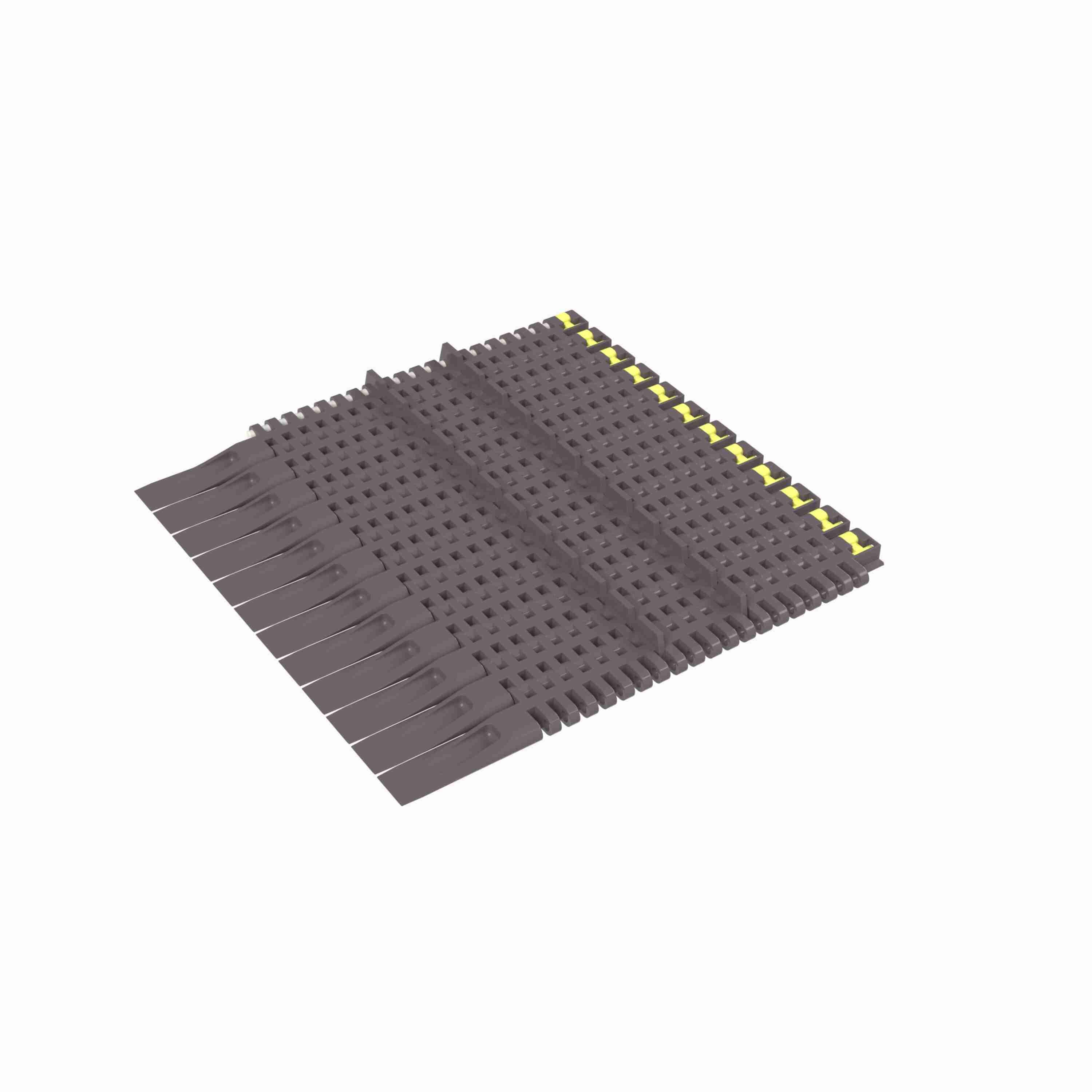

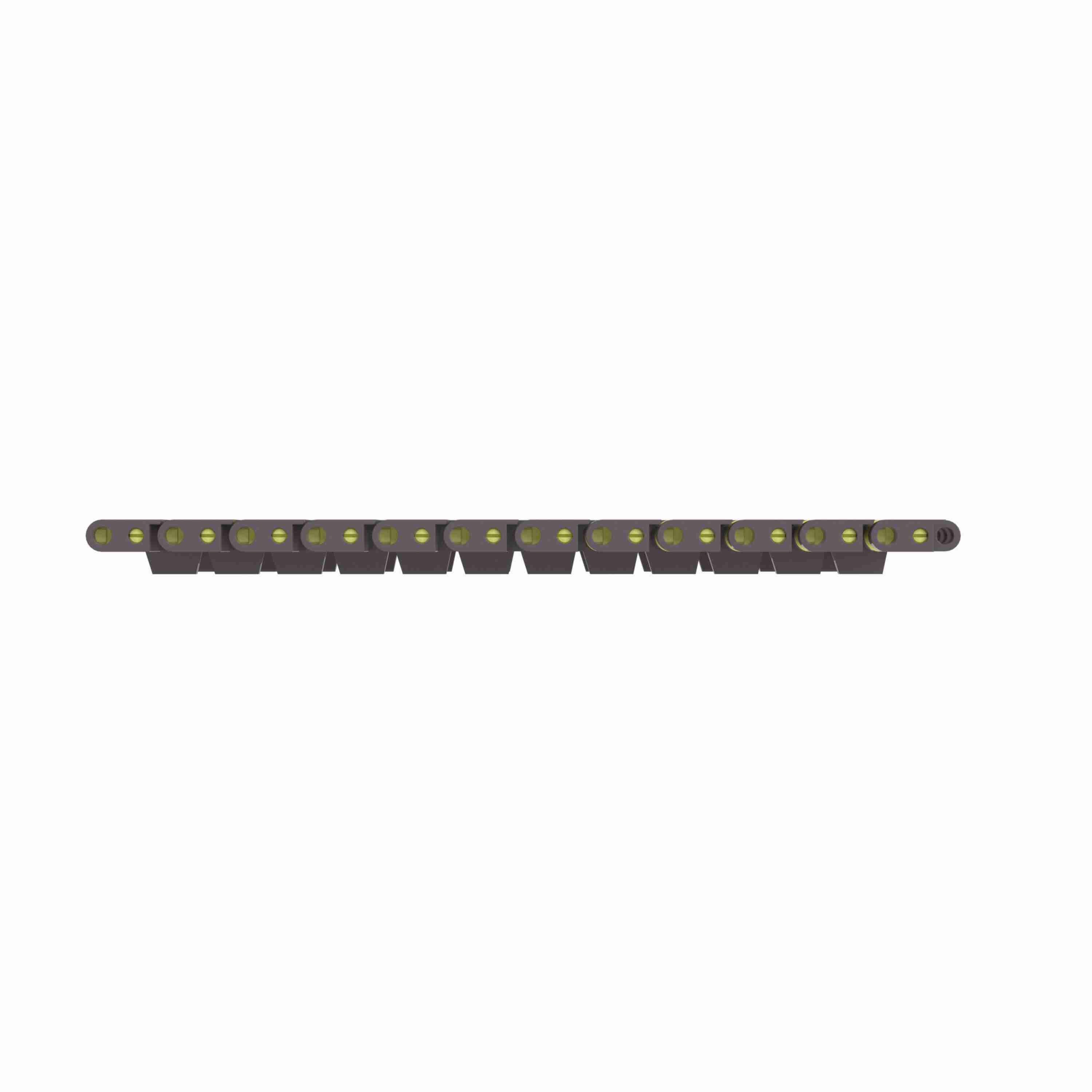

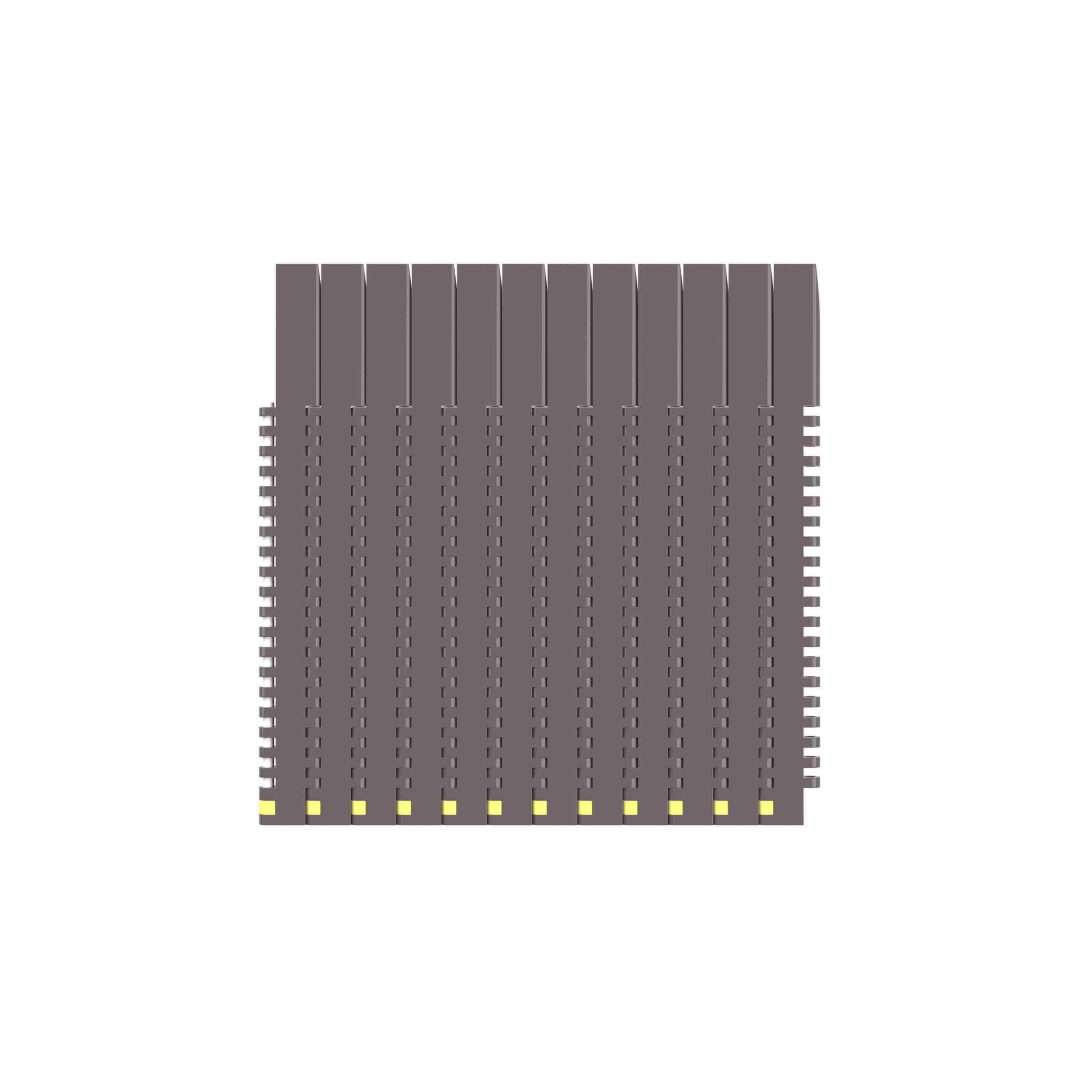

Rexnord 8505DTS Straight Running DTS®, Material: Brown High Performance, Width: 7.5in, Pitch: 0.75in - 81427971
Part #:10028442
Catalog #:81427971
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | MatTop 8500 Series Chain | Chain Width (mm): | 190.5 mm |
| Number of Positrack: | 2 | Belt Thickness (in): | 0.34 in |
| Chain Pitch (in): | 0.75 in | Chain Material Description: | Brown High Performance |
| Product Line: | Plastic Modular Chain and Belt | Product Type: | Straight Running |
| Chain Number: | 8505DTS | Chain Width Measurement System: | Imperial |
| Positrack: | True | Open Area (%): | 4.1 % |
| Rod/Pin Material: | Polyester | Surface Type: | DTS® |
| Direction: | LH | Belt Thickness (mm): | 8.6 mm |
| Chain Width (in): | 7.5 in | Chain Material: | HP |
| Straight or Side-Flex: | Straight Running | Product Group: | Modular Plastic Belts |
| Chain Strength (lb): | 600 lb | Chain Strength (N): | 2,664 N |
| Chain Pitch (mm): | 19.1 mm | Positrack Location: | Center |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
