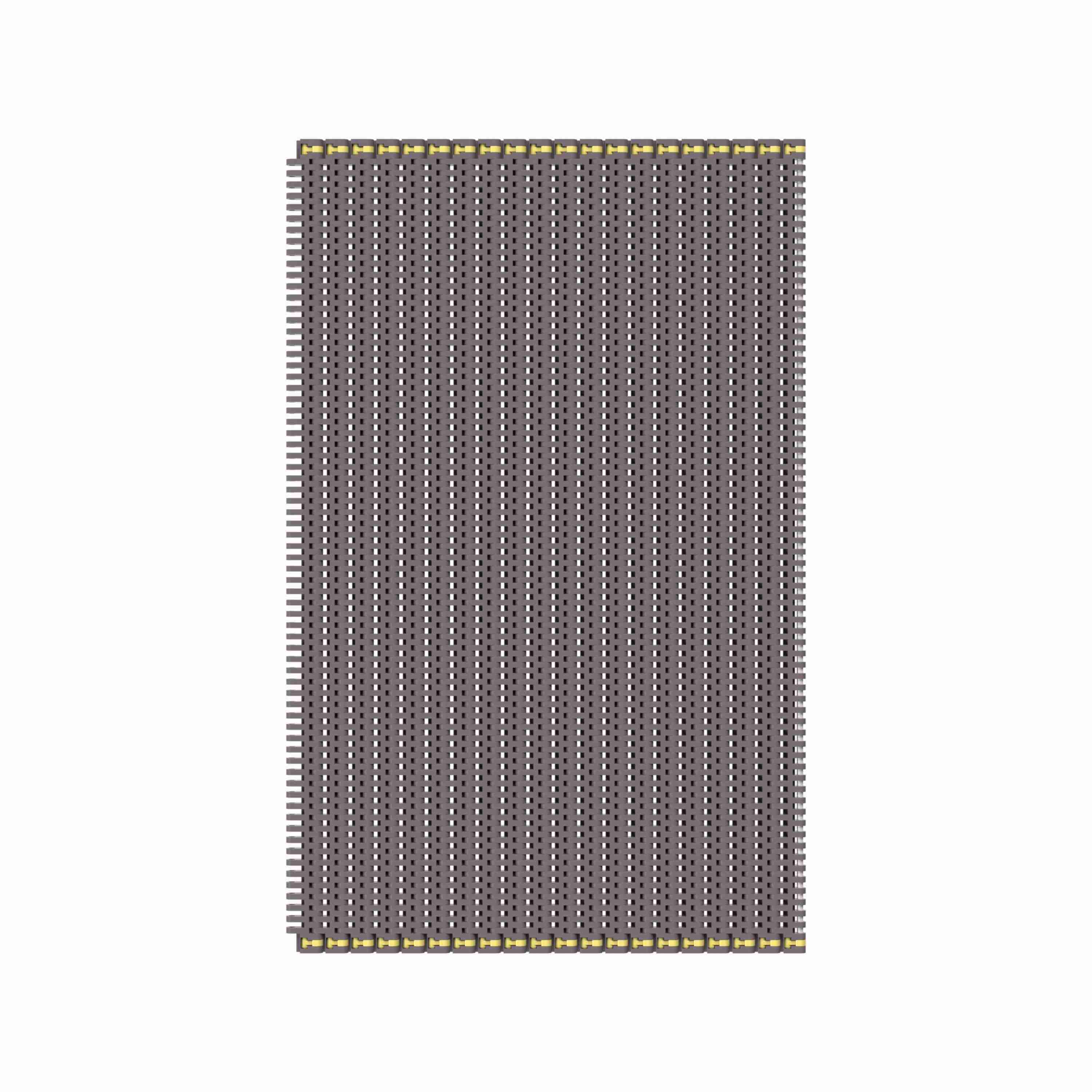

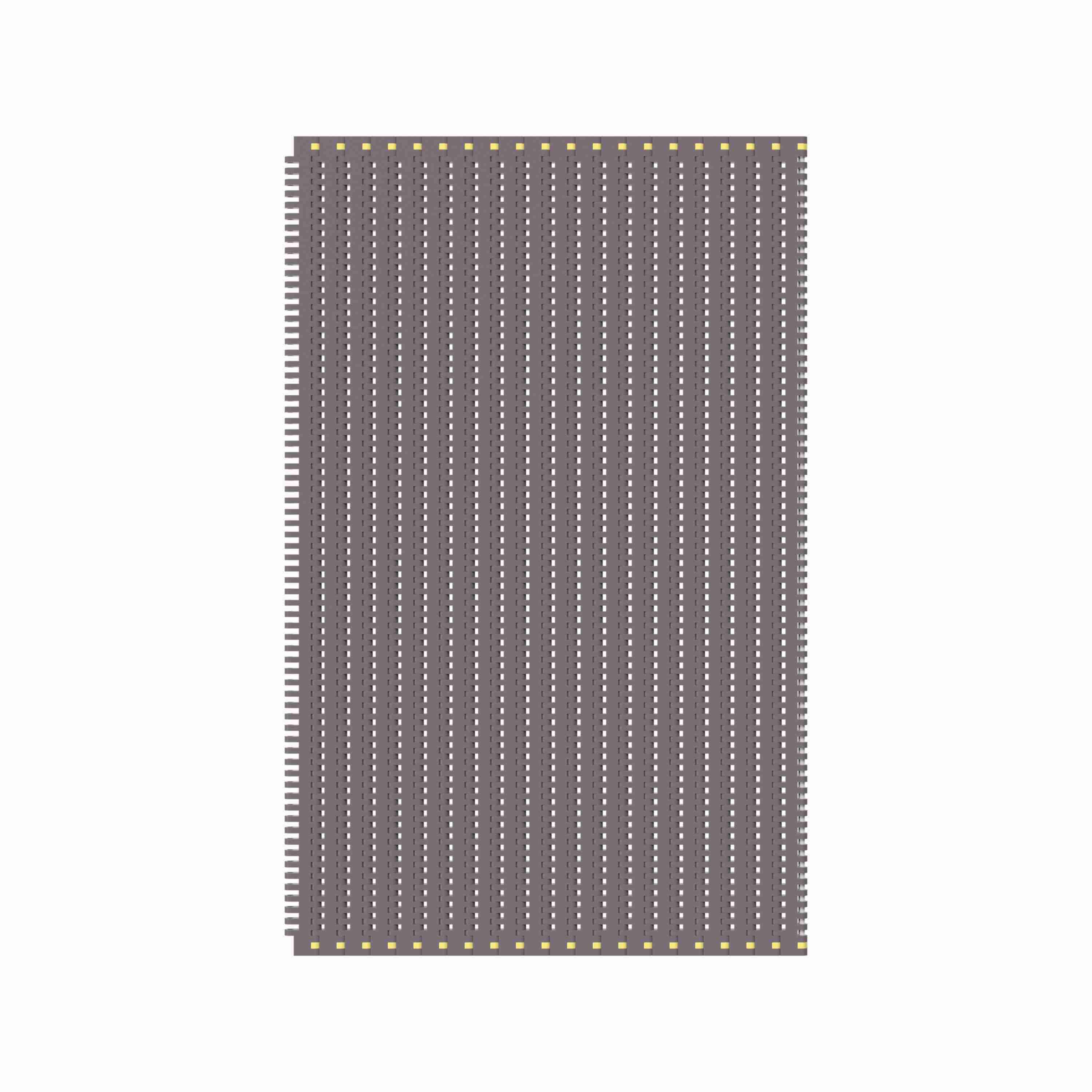

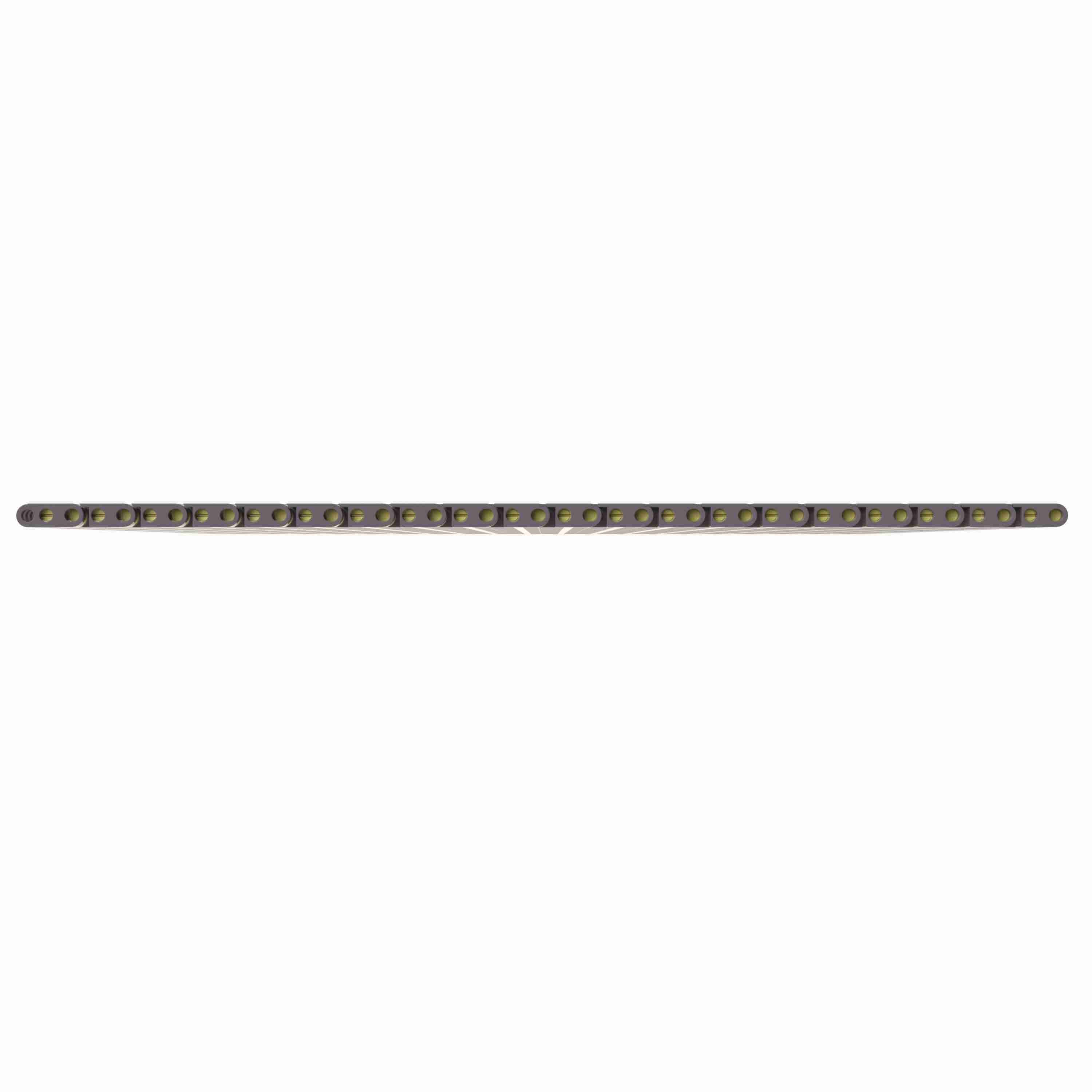

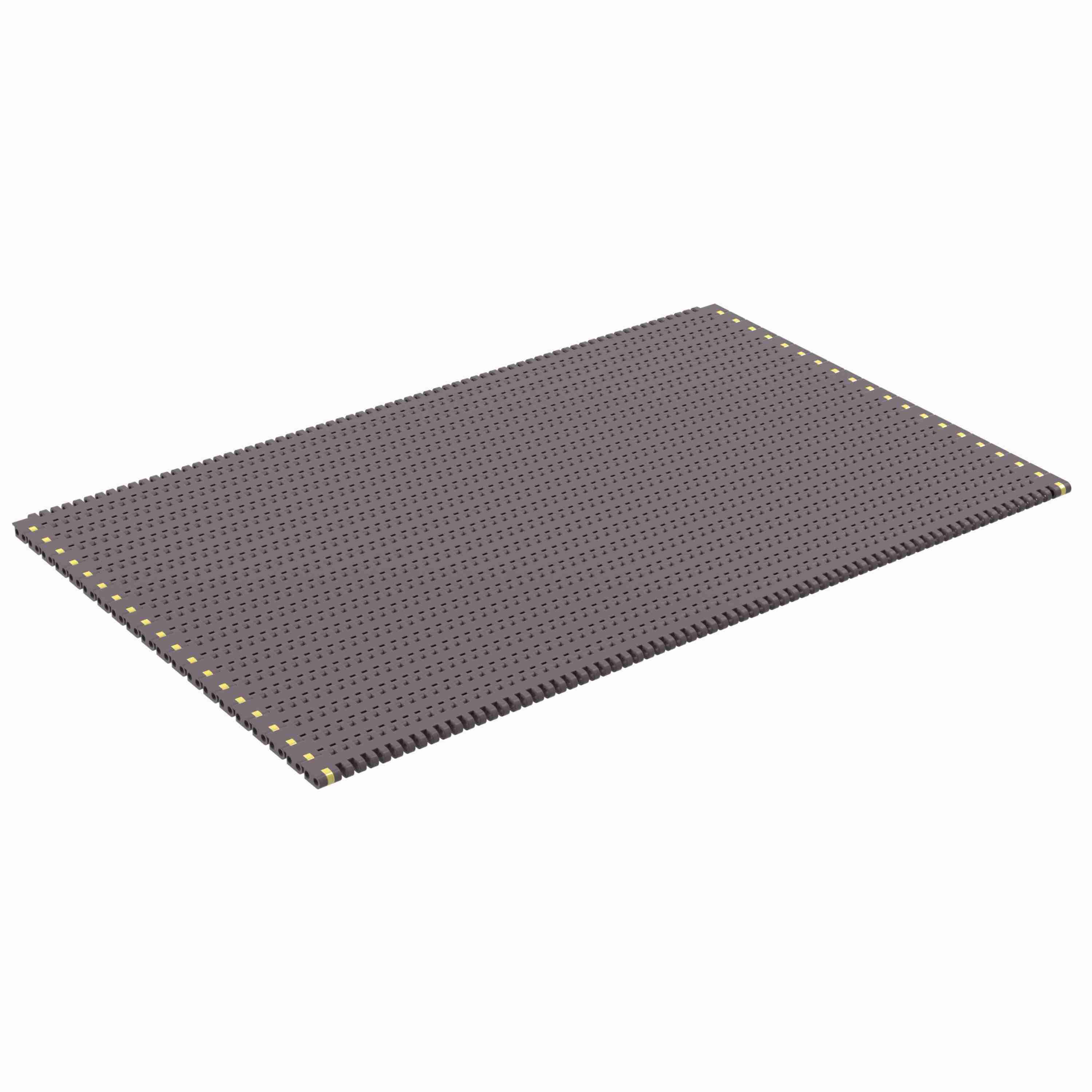

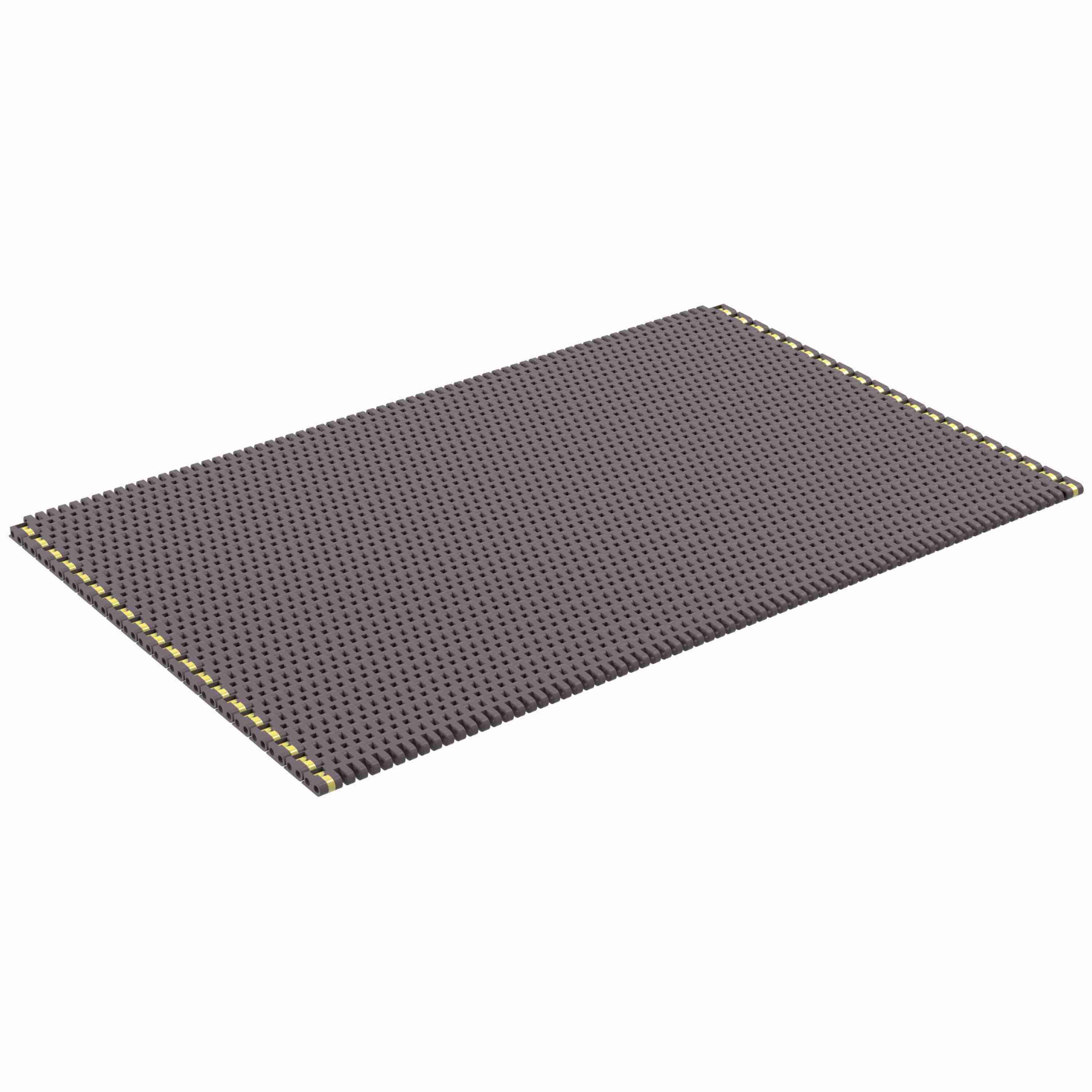

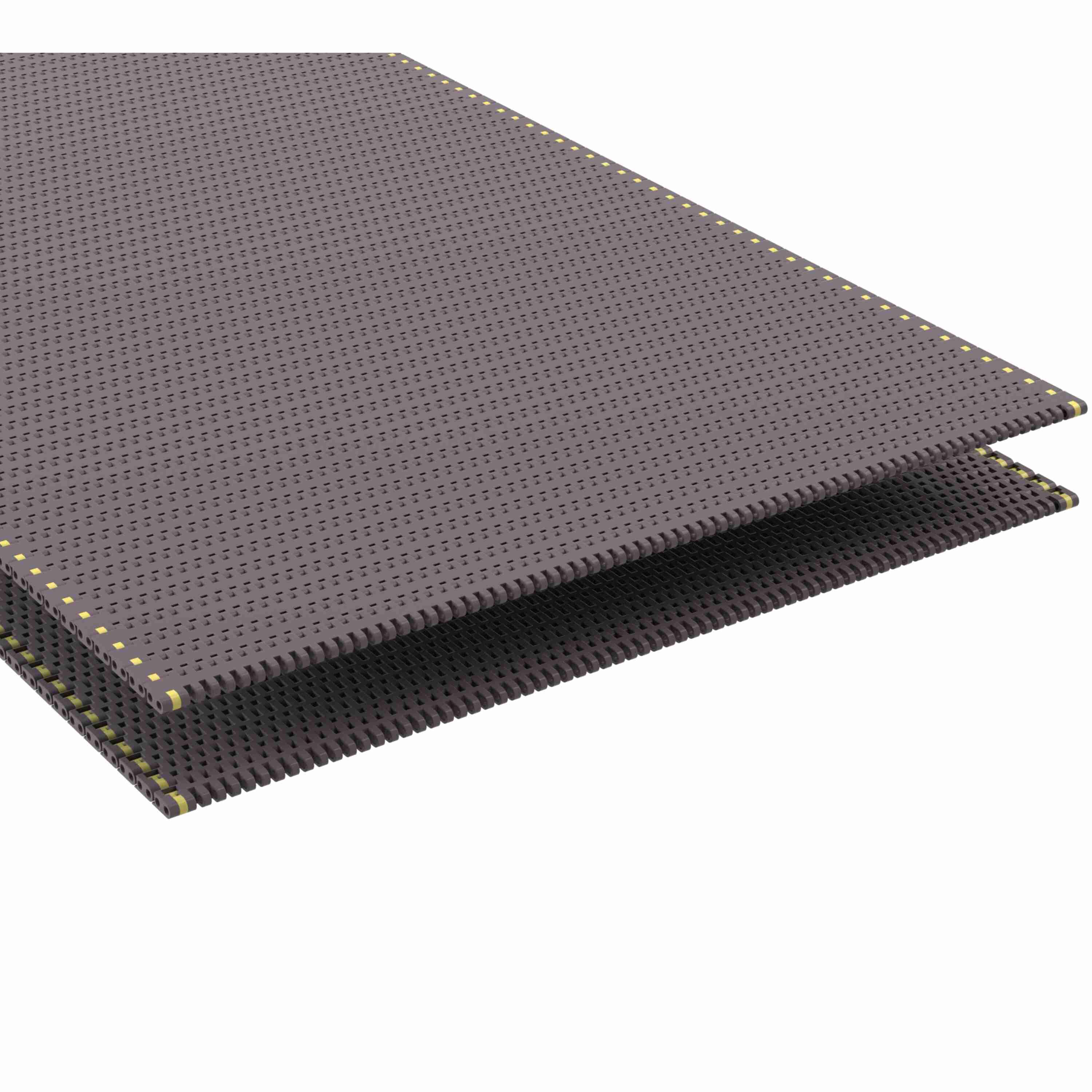

Rexnord 8506 Straight Running Flush Grid, Material: Brown High Performance, Width: 144in, Pitch: 0.75in - 10301039
Part #:10301039
Catalog #:10301039
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 8.7 mm | Chain Material Description: | Brown High Performance |
| Rod/Pin Material: | Polyester | Product Line: | Plastic Modular Chain and Belt |
| Product Type: | Straight Running | Chain Material: | HP |
| Open Area (%): | 21 % | Chain Width Measurement System: | Imperial |
| Series: | MatTop 8500 Series Chain | Straight or Side-Flex: | Straight Running |
| Chain Strength (lb/ft): | 2,000 lb/ft | Chain Number: | 8506 |
| Chain Pitch (in): | 0.75 in | Belt Thickness (in): | 0.34 in |
| Chain Strength (N/m): | 29,180 N·m | Product Group: | Modular Plastic Belts |
| Surface Type: | Flush Grid | Chain Pitch (mm): | 19.1 mm |
| Chain Width (in): | 144 in | Chain Width (mm): | 3,657.6 mm |
General Specifications
| Weight: | 1.21 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
