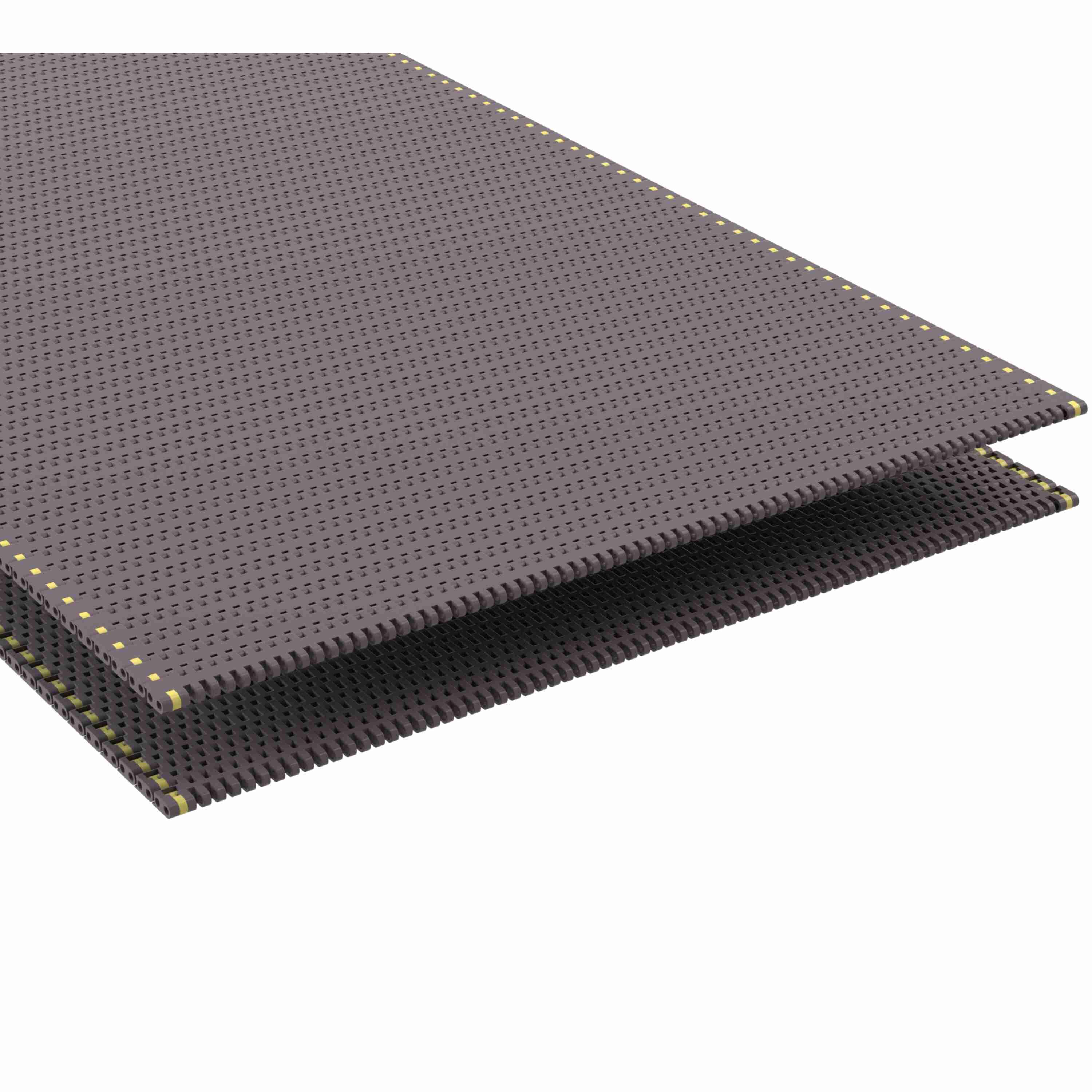

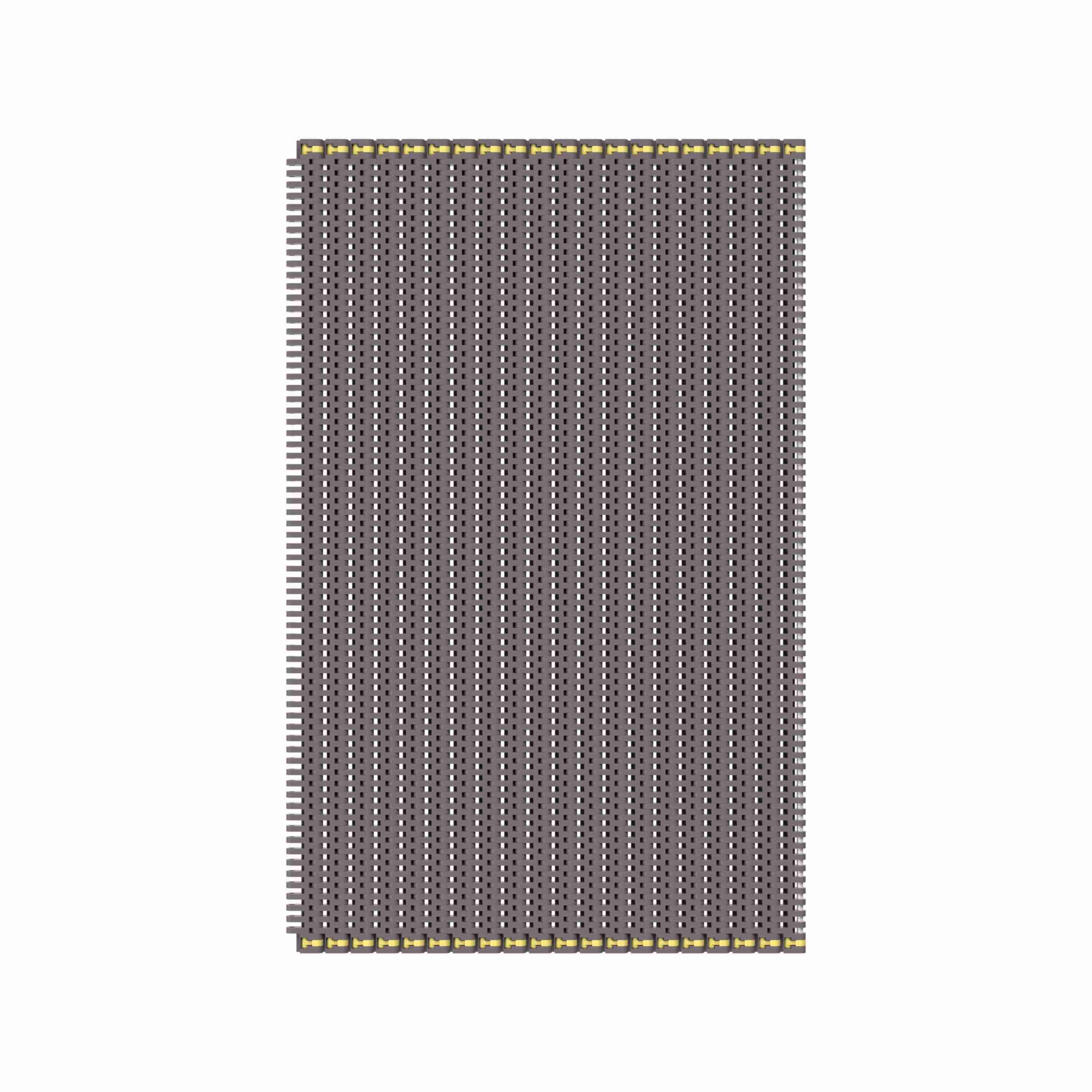

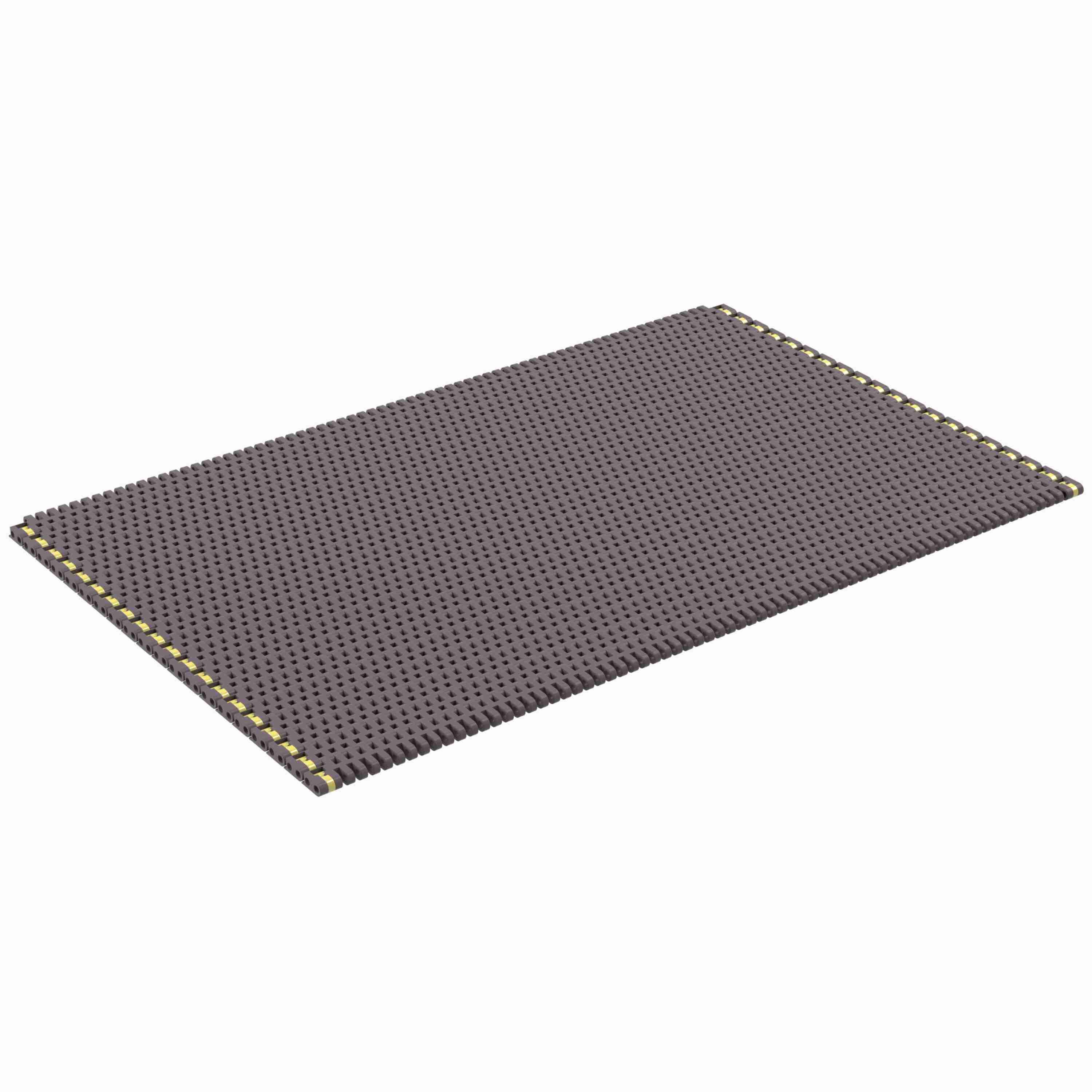

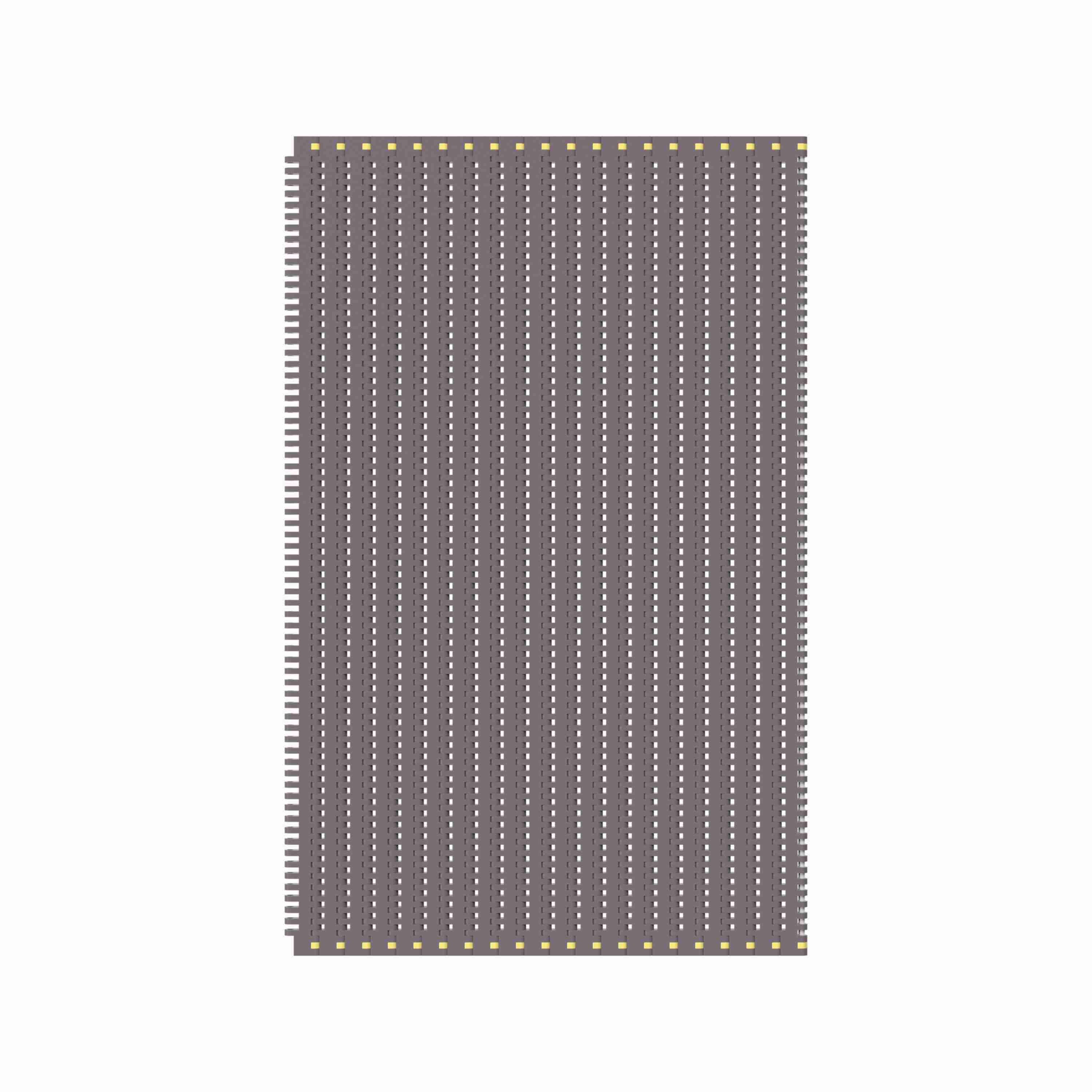

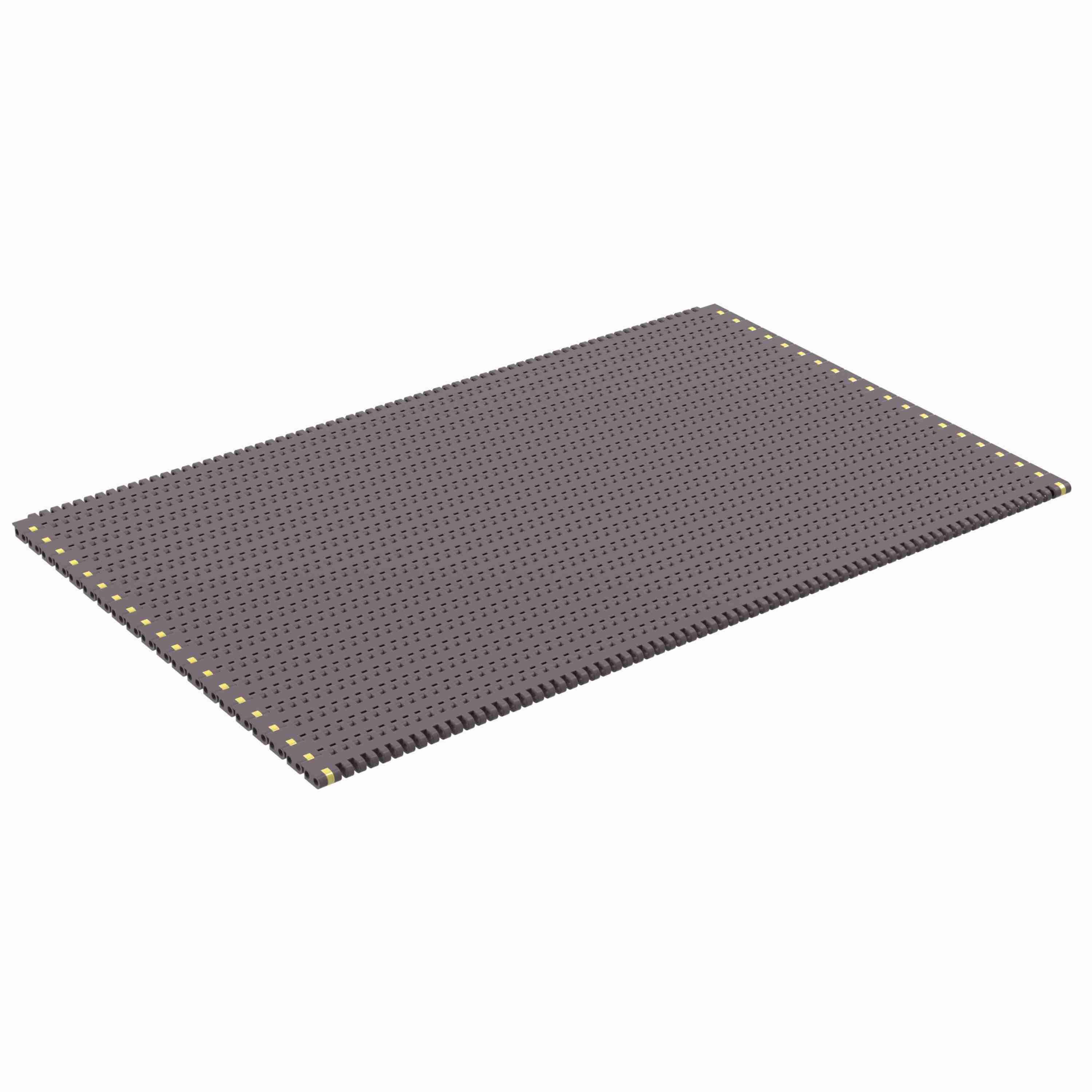

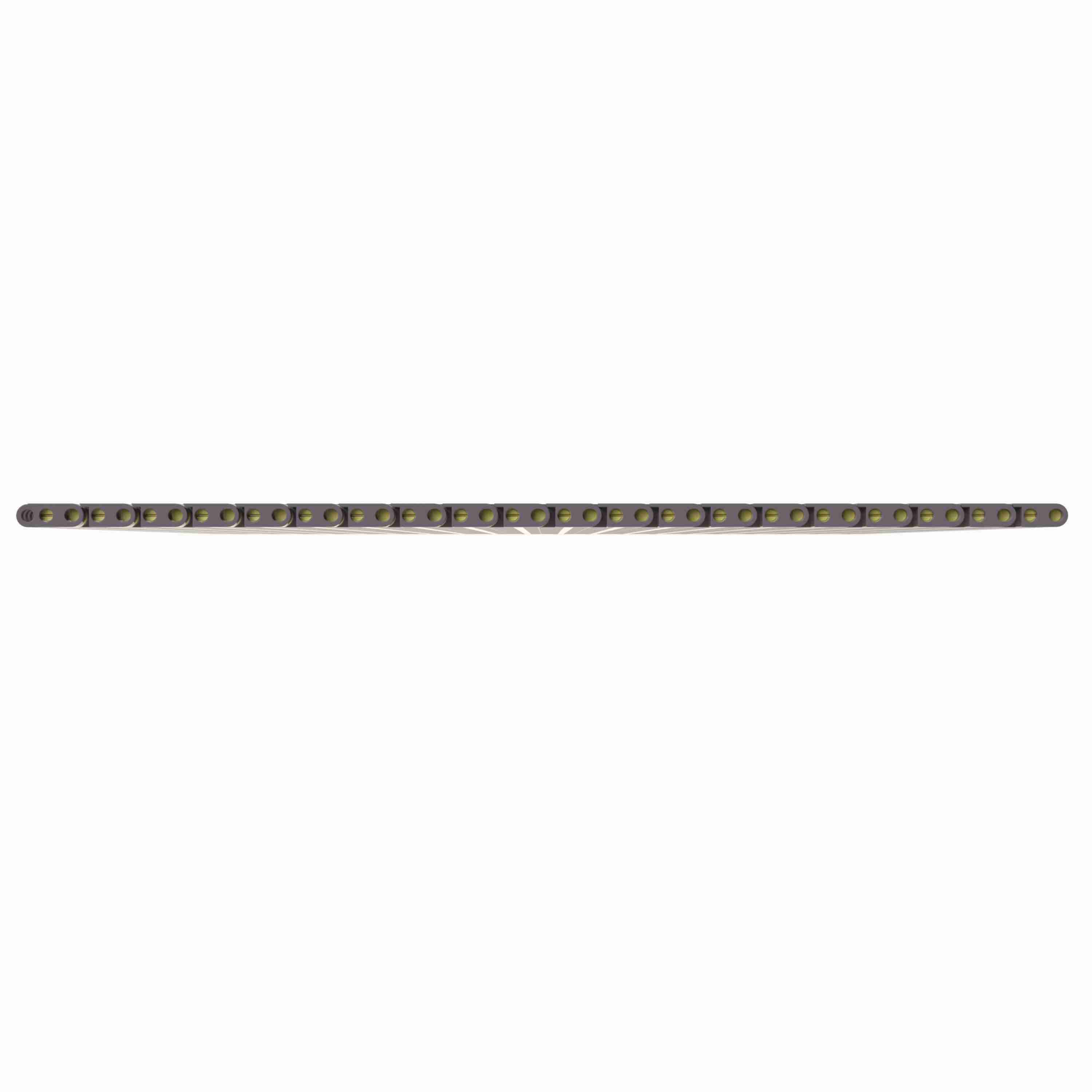

Rexnord 8506 Straight Running Flush Grid, Material: Brown High Performance, Width: 15in, Pitch: 0.75in - HP8506-15
Part #:10028989
Catalog #:HP8506-15
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Chain Material Description: | Brown High Performance |
| Surface Type: | Flush Grid | Chain Strength (lb/ft): | 2,000 lb/ft |
| Chain Material: | HP | Straight or Side-Flex: | Straight Running |
| Chain Width (mm): | 381 mm | Series: | MatTop 8500 Series Chain |
| Chain Pitch (mm): | 19.1 mm | Open Area (%): | 21 % |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 0.75 in |
| Chain Number: | 8506 | Chain Strength (N/m): | 29,180 N·m |
| Belt Thickness (in): | 0.34 in | Product Group: | Modular Plastic Belts |
| Belt Thickness (mm): | 8.7 mm | Chain Width Measurement System: | Imperial |
| Rod/Pin Material: | Polyester | Chain Width (in): | 15 in |
General Specifications
| Weight: | 0.14 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
