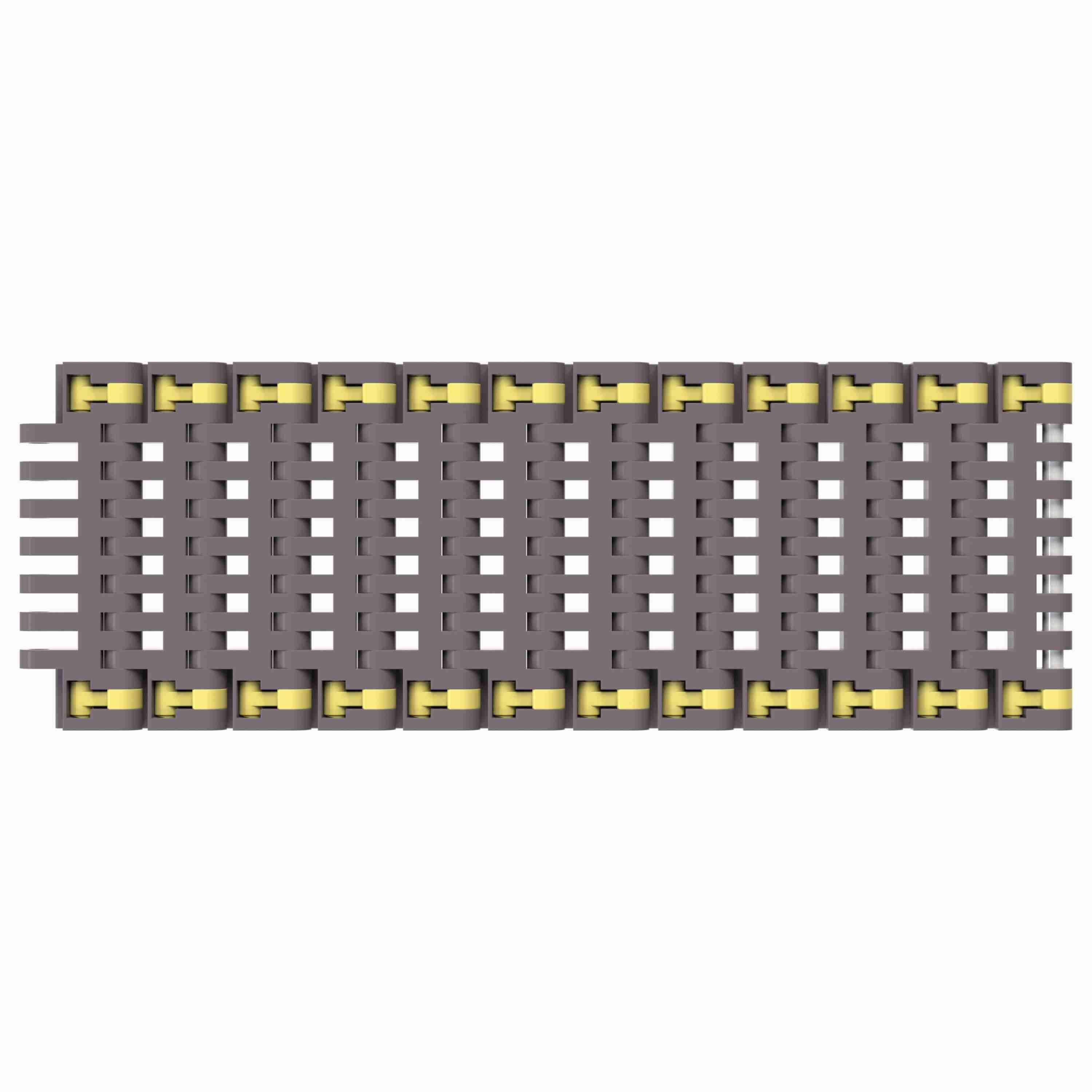

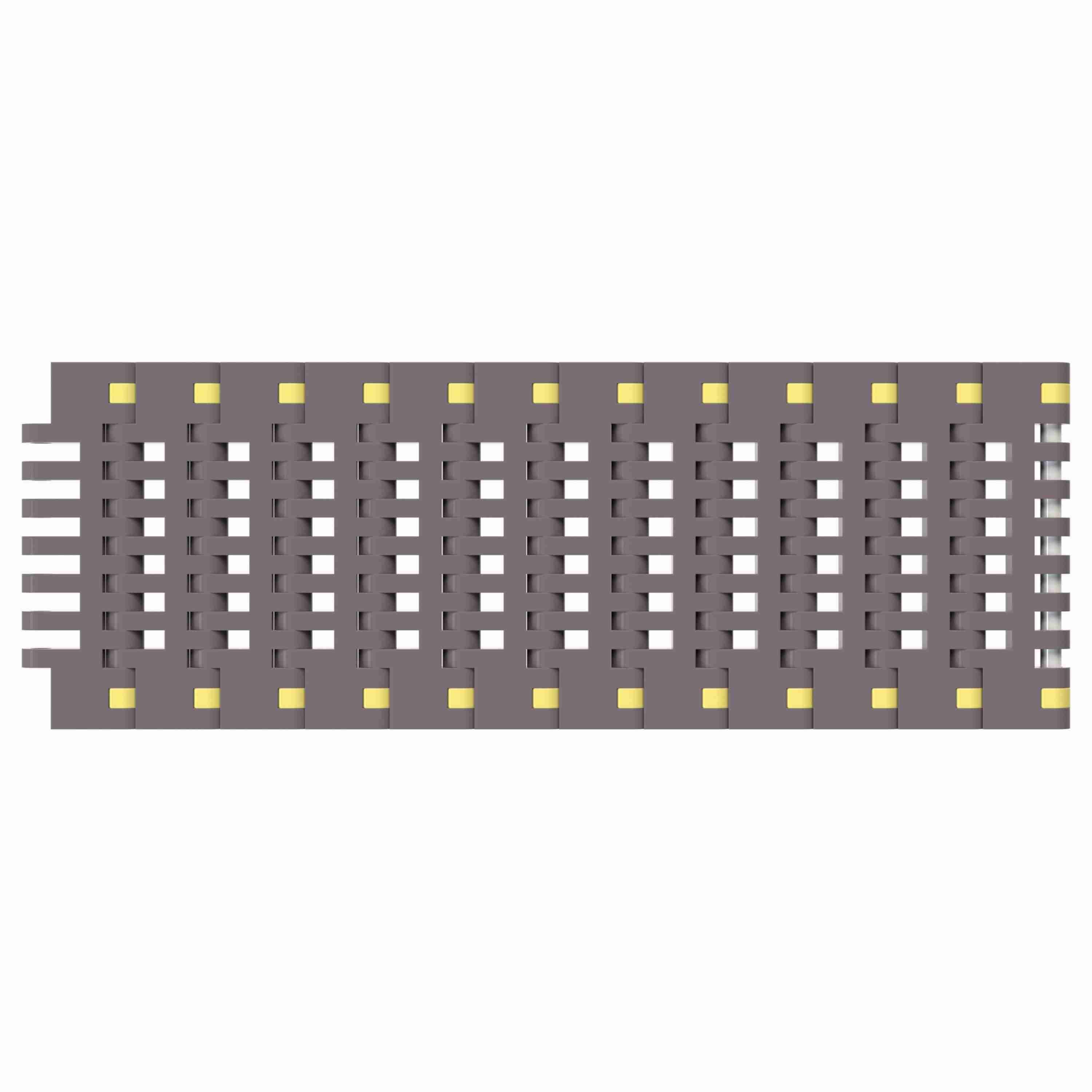

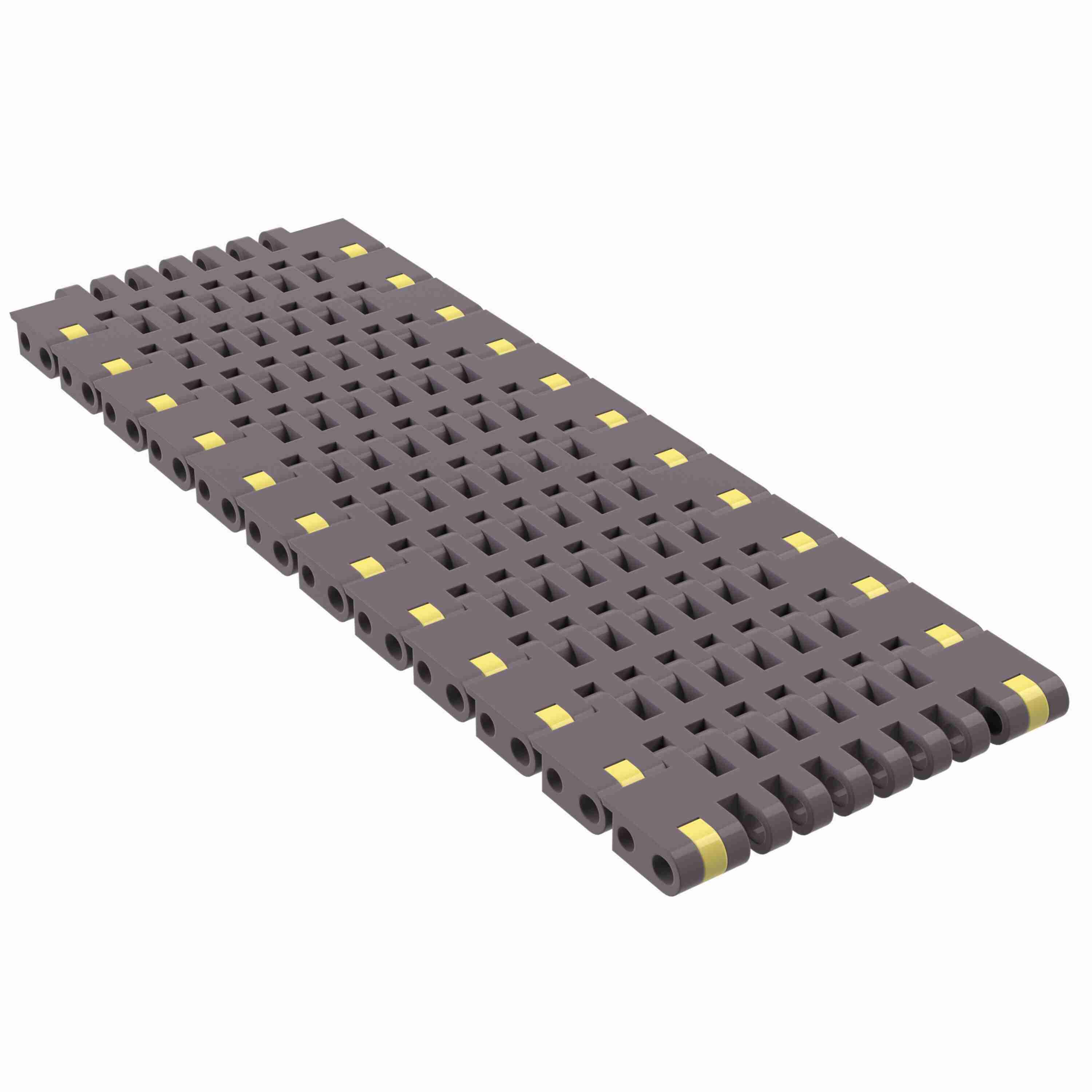

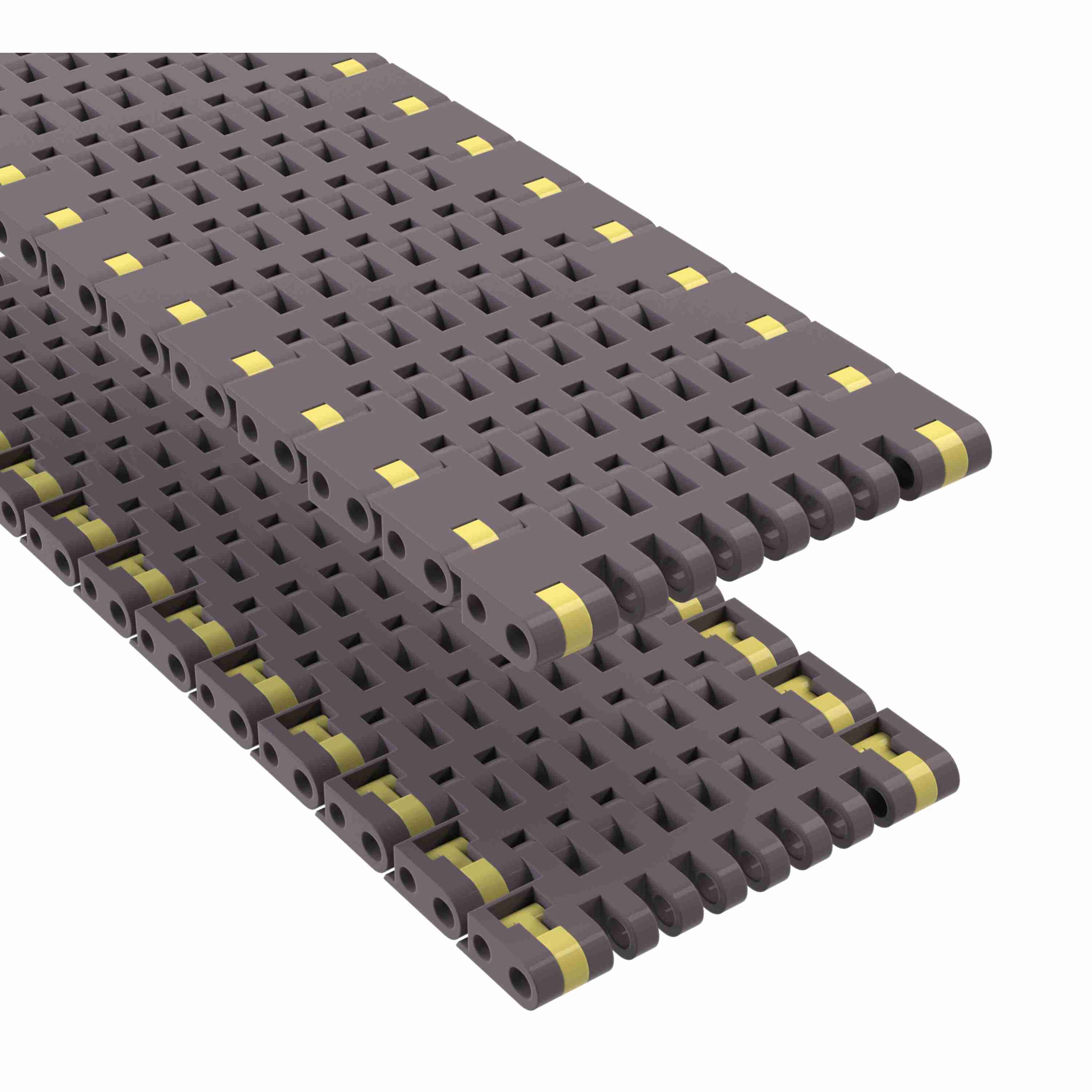

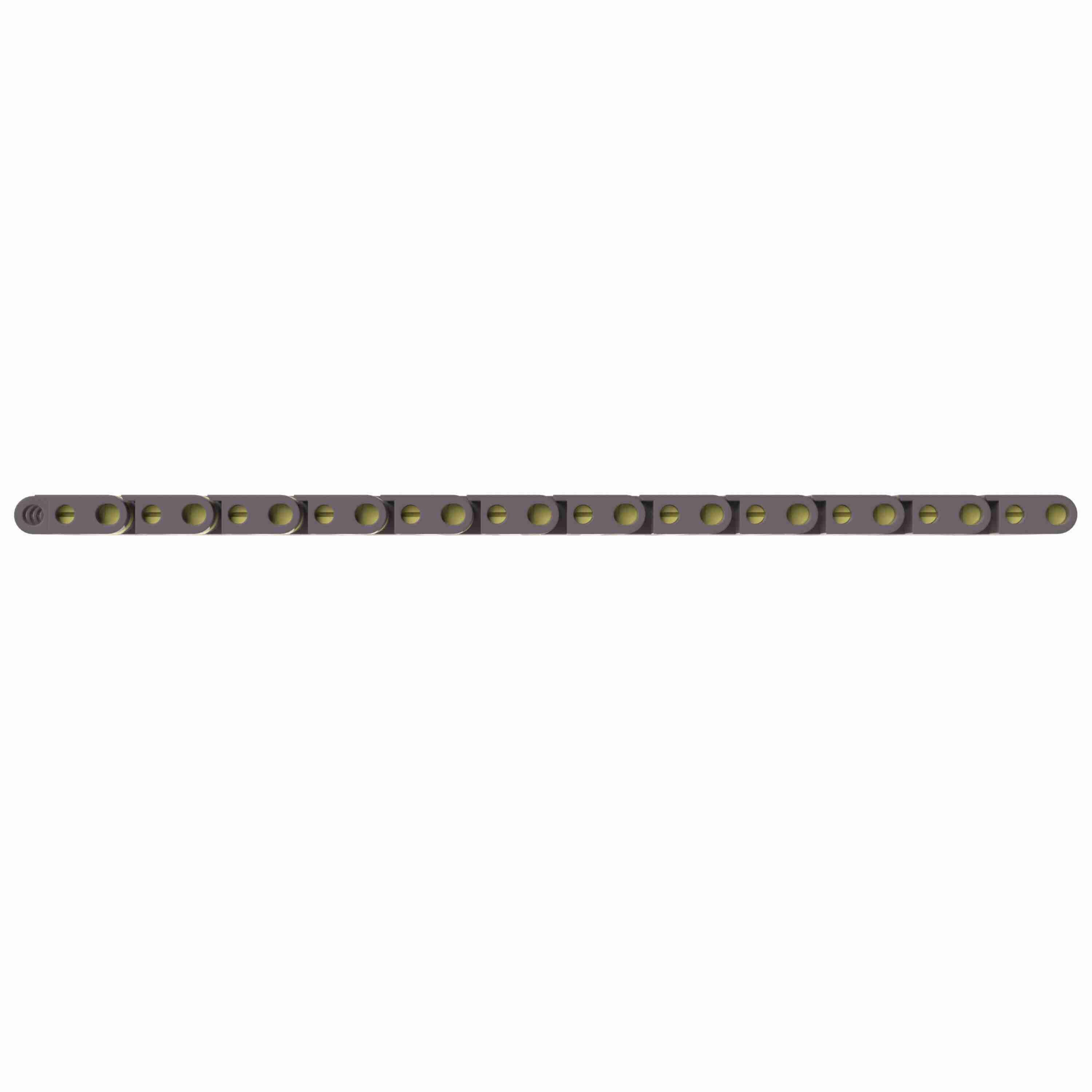

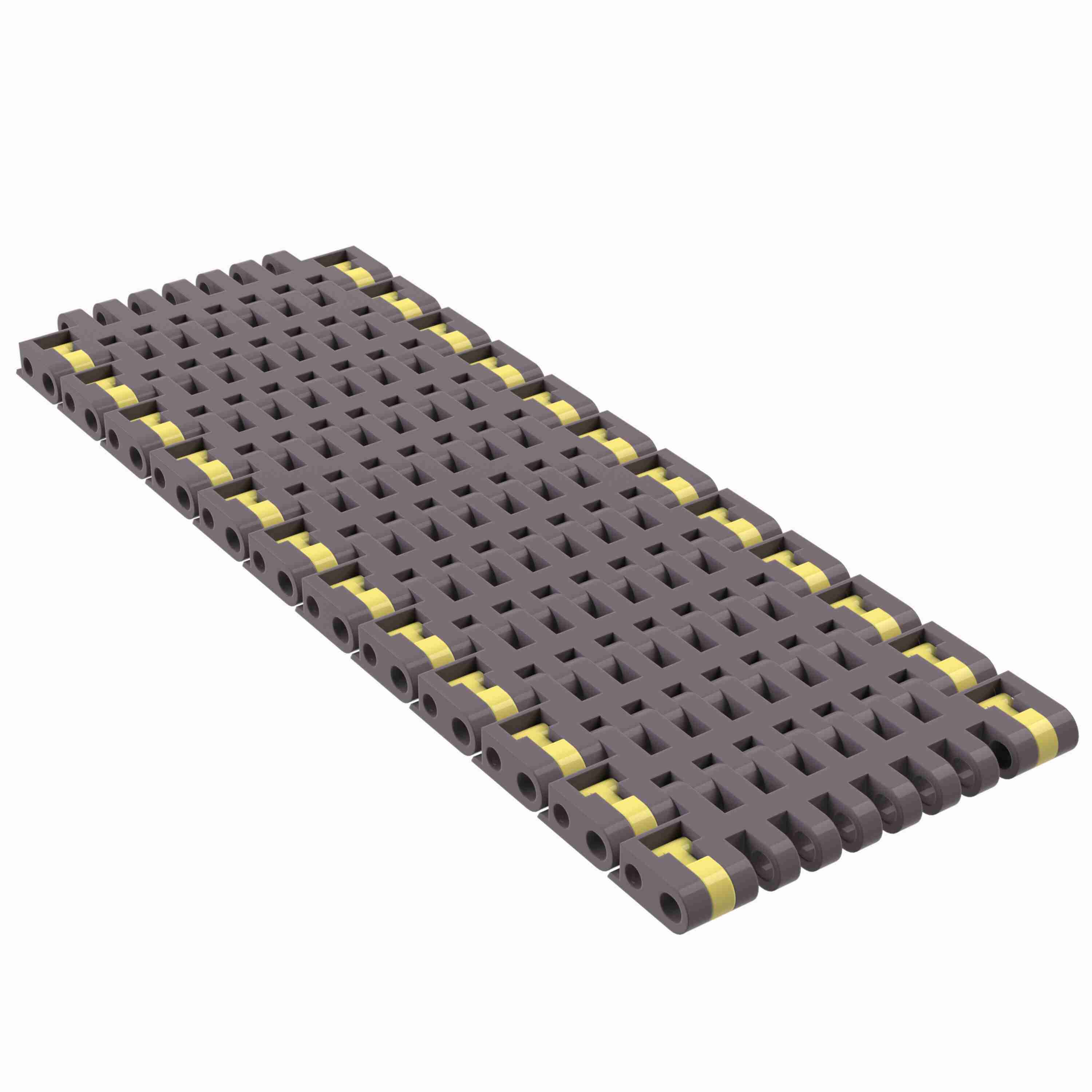

Rexnord 8506 Straight Running Flush Grid, Material: Brown High Performance, Width: 3.25in, Pitch: 0.75in - 81418541
Part #:10028448
Catalog #:81418541
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Surface Type: | Flush Grid |
| Chain Material Description: | Brown High Performance | Straight or Side-Flex: | Straight Running |
| Chain Width (mm): | 82.6 mm | Chain Strength (lb): | 240 lb |
| Belt Thickness (mm): | 8.7 mm | Chain Number: | 8506 |
| Open Area (%): | 21 % | Chain Strength (N): | 1,066 N |
| Rod/Pin Material: | Polyester | Belt Thickness (in): | 0.34 in |
| Chain Pitch (in): | 0.75 in | Chain Pitch (mm): | 19.1 mm |
| Product Group: | Modular Plastic Belts | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (in): | 3.25 in | Series: | MatTop 8500 Series Chain |
| Chain Material: | HP | Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 0.03 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
