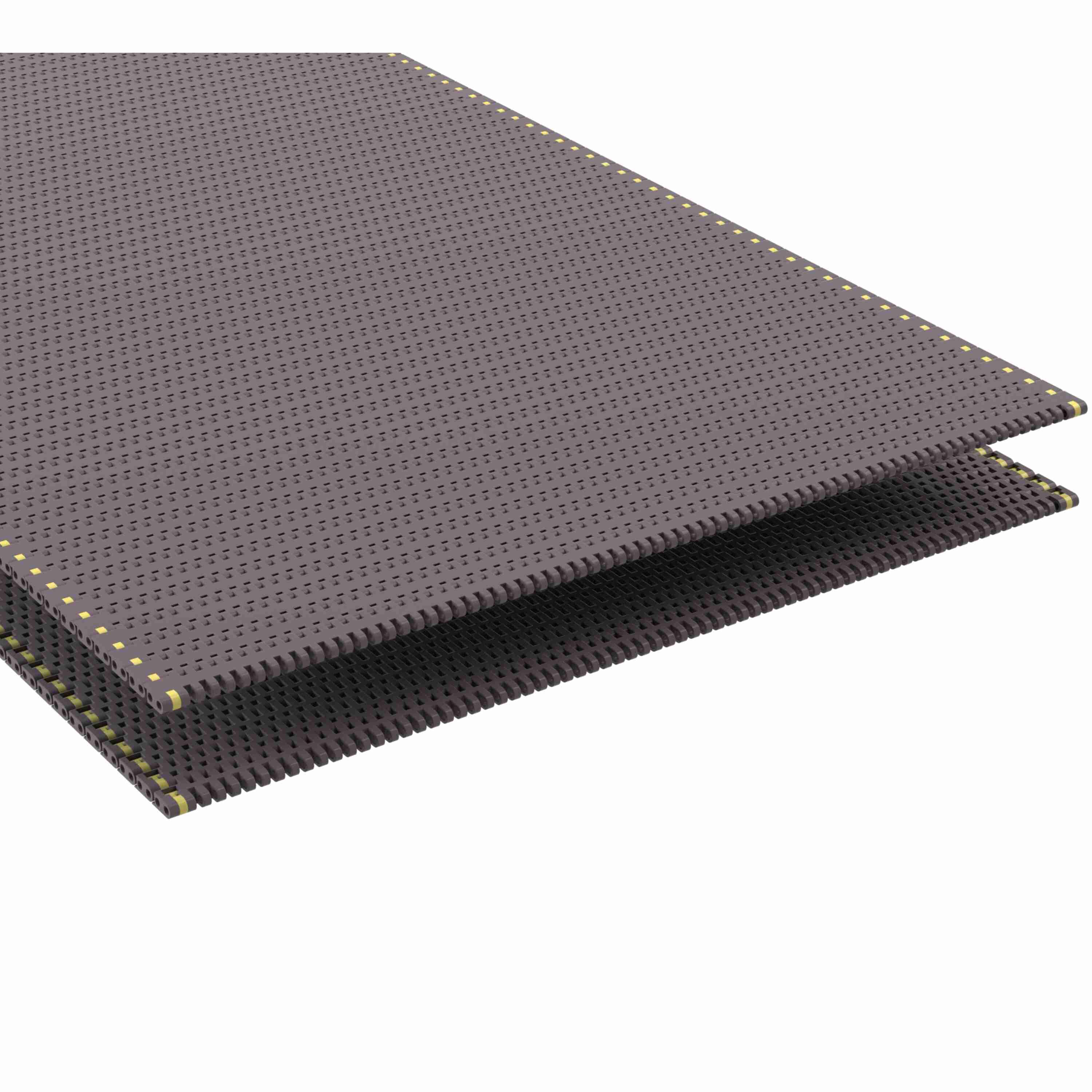

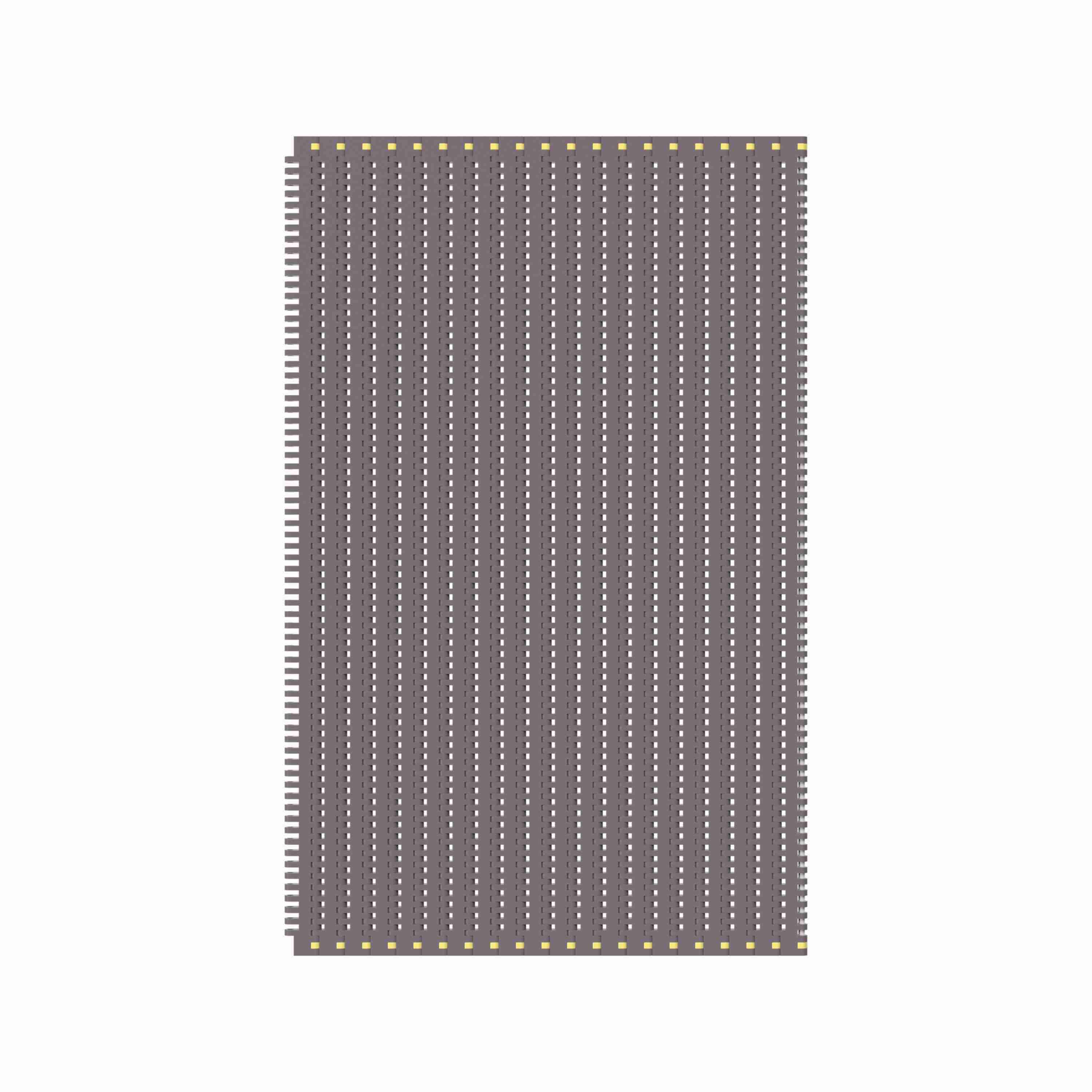

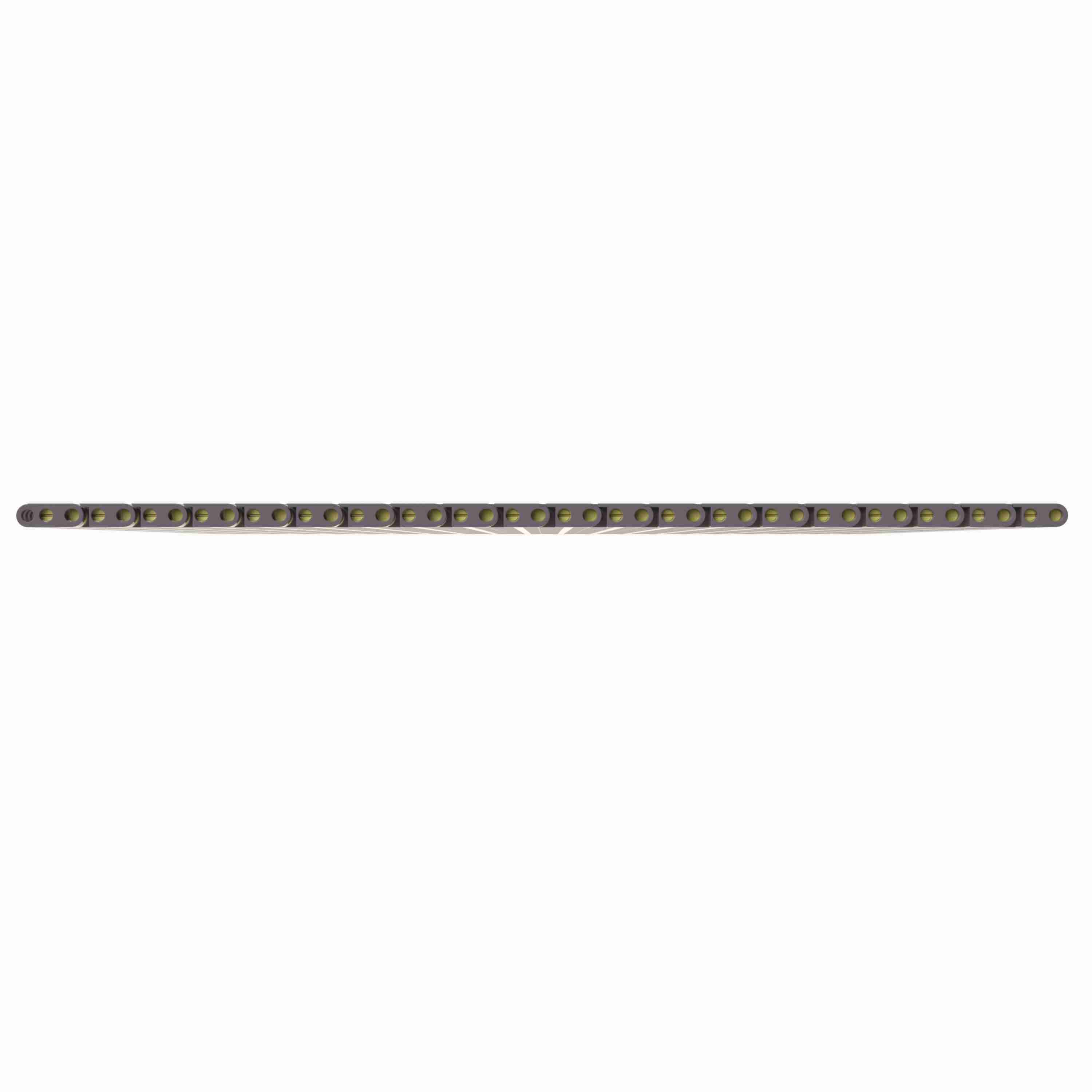

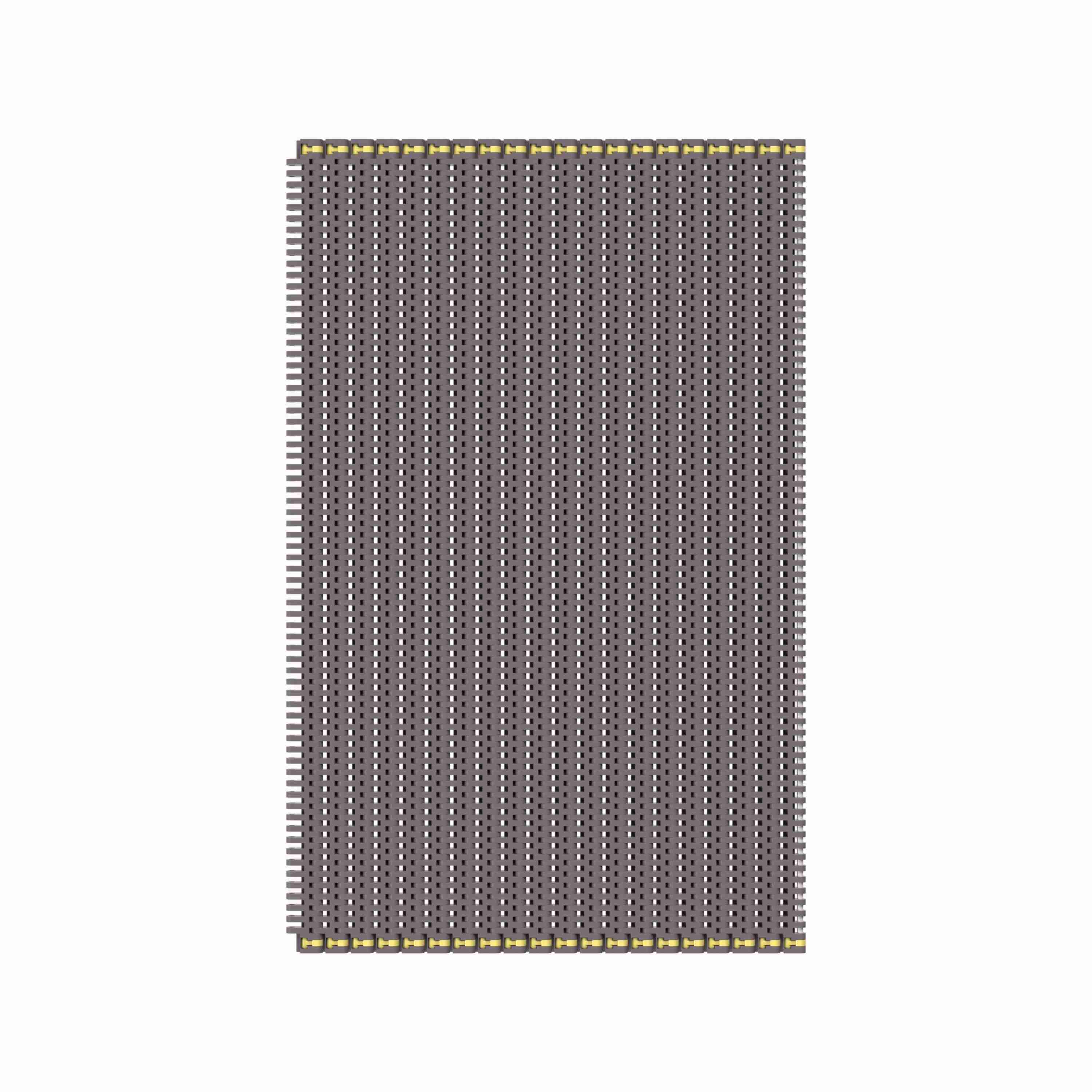

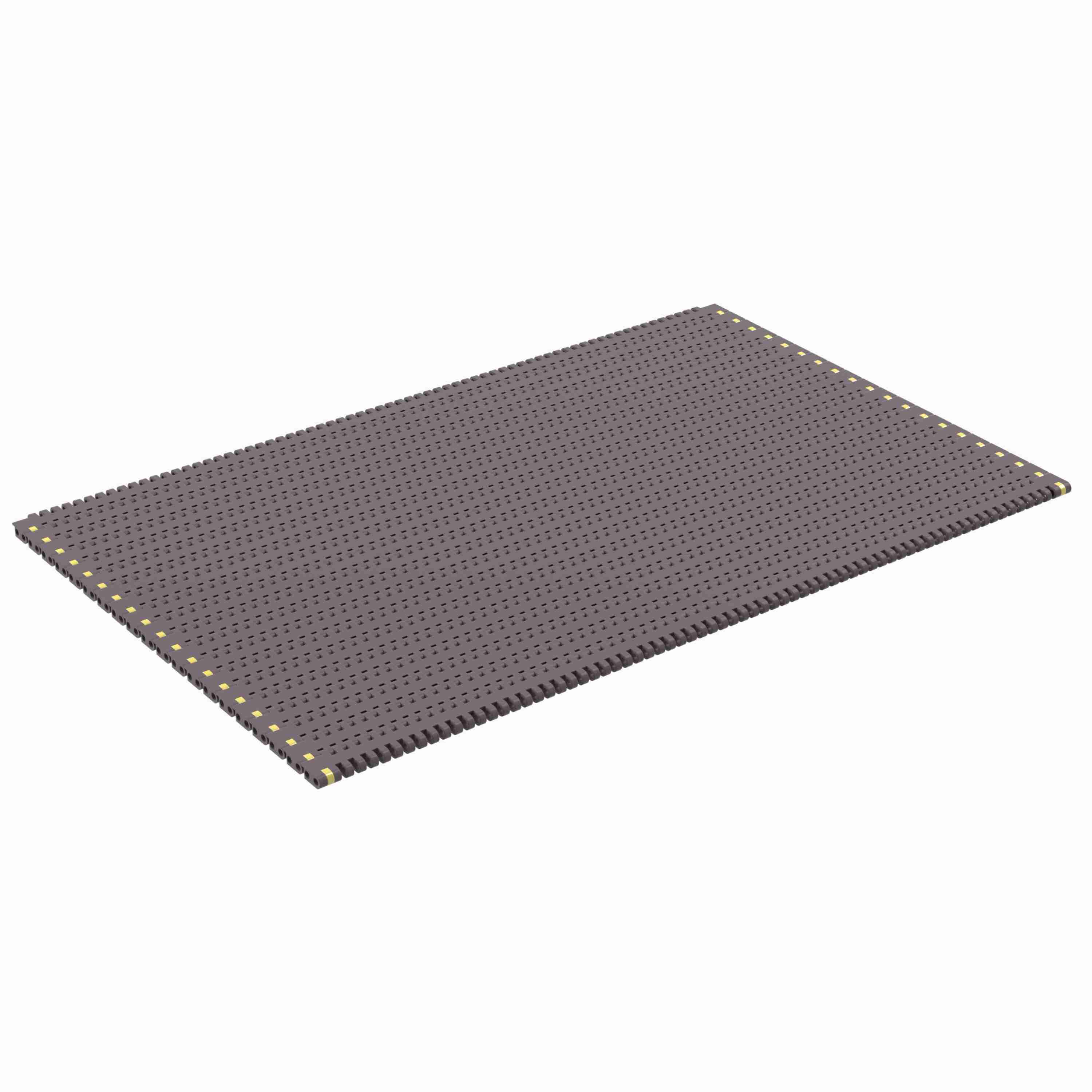

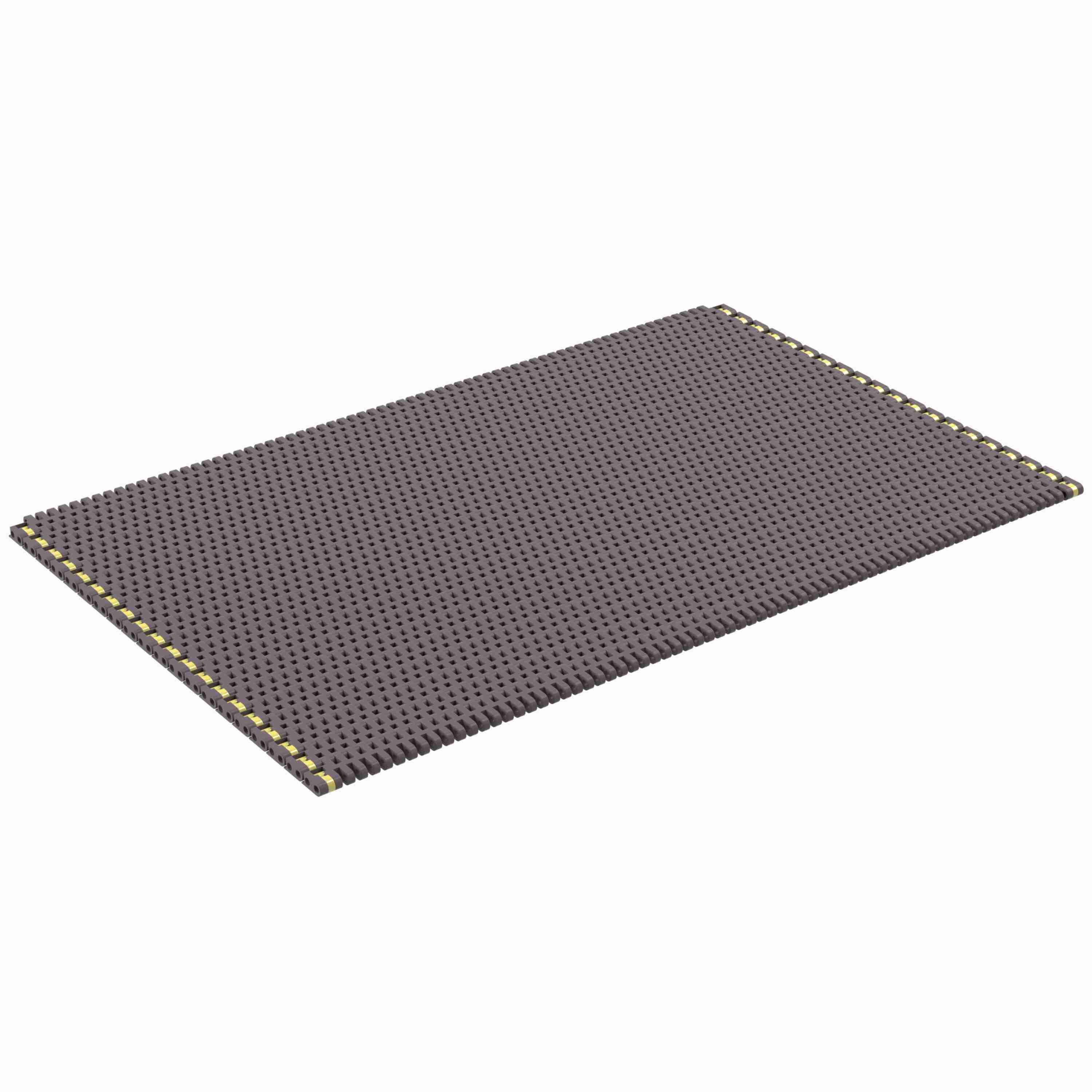

Rexnord 8506 Straight Running Flush Grid, Material: Brown High Performance, Width: 30in, Pitch: 0.75in - HP8506-30
Part #:10028992
Catalog #:HP8506-30
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Chain Width Measurement System: | Imperial |
| Chain Strength (lb/ft): | 2,000 lb/ft | Belt Thickness (mm): | 8.7 mm |
| Belt Thickness (in): | 0.34 in | Chain Pitch (mm): | 19.1 mm |
| Surface Type: | Flush Grid | Chain Width (in): | 30 in |
| Chain Number: | 8506 | Straight or Side-Flex: | Straight Running |
| Chain Pitch (in): | 0.75 in | Product Line: | Plastic Modular Chain and Belt |
| Product Type: | Straight Running | Chain Material Description: | Brown High Performance |
| Open Area (%): | 21 % | Product Group: | Modular Plastic Belts |
| Chain Strength (N/m): | 29,180 N·m | Chain Material: | HP |
| Series: | MatTop 8500 Series Chain | Chain Width (mm): | 762 mm |
General Specifications
| Weight: | 0.25 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
