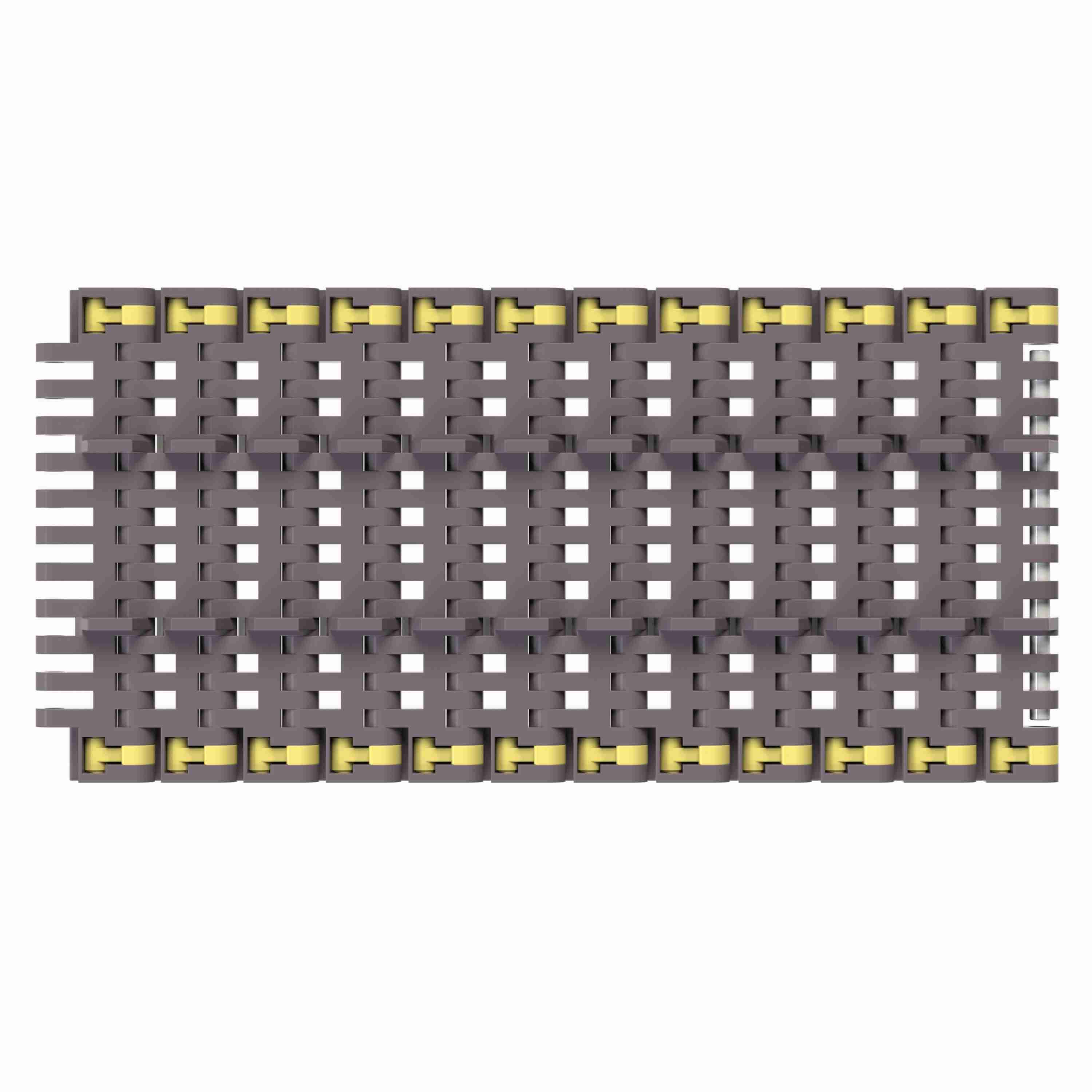

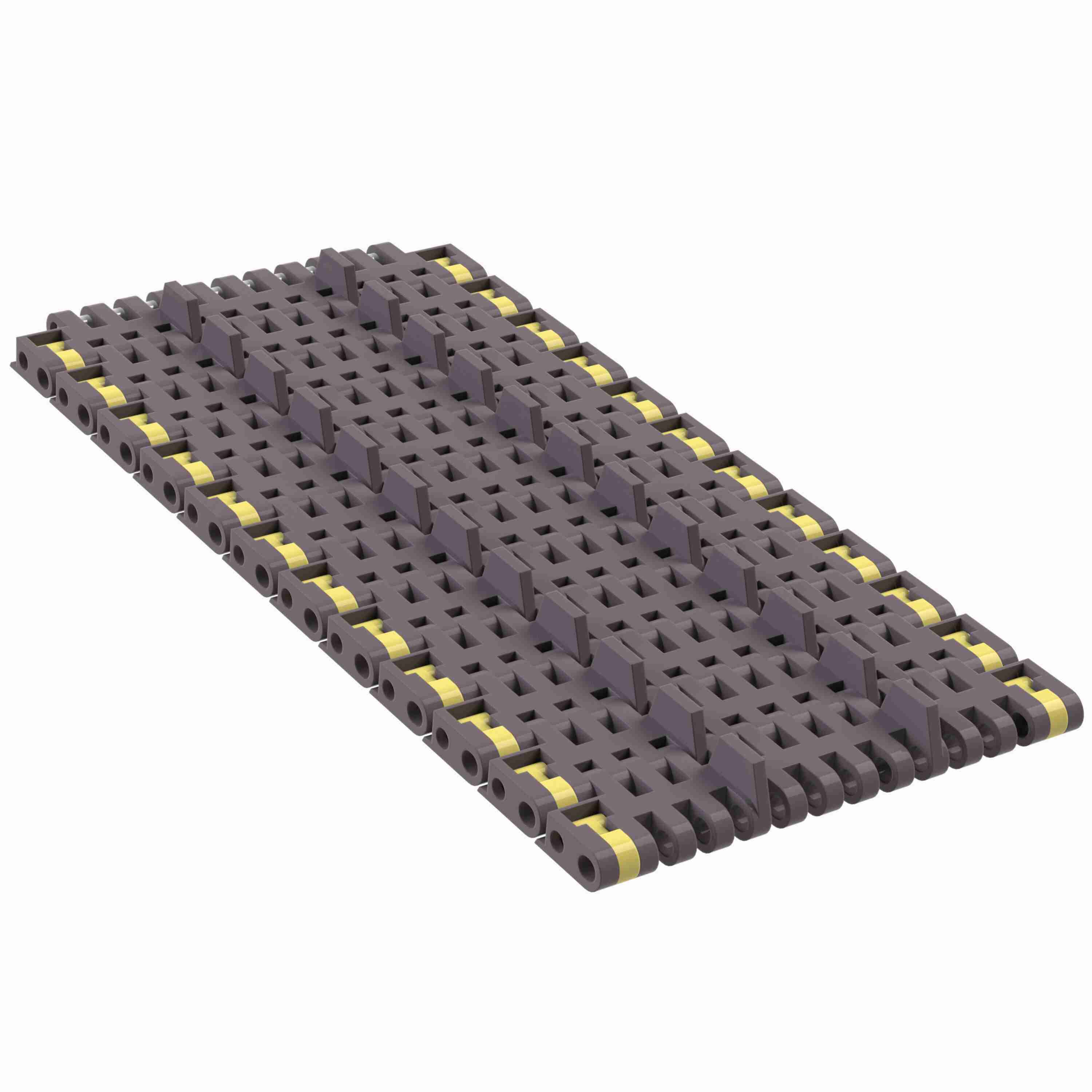

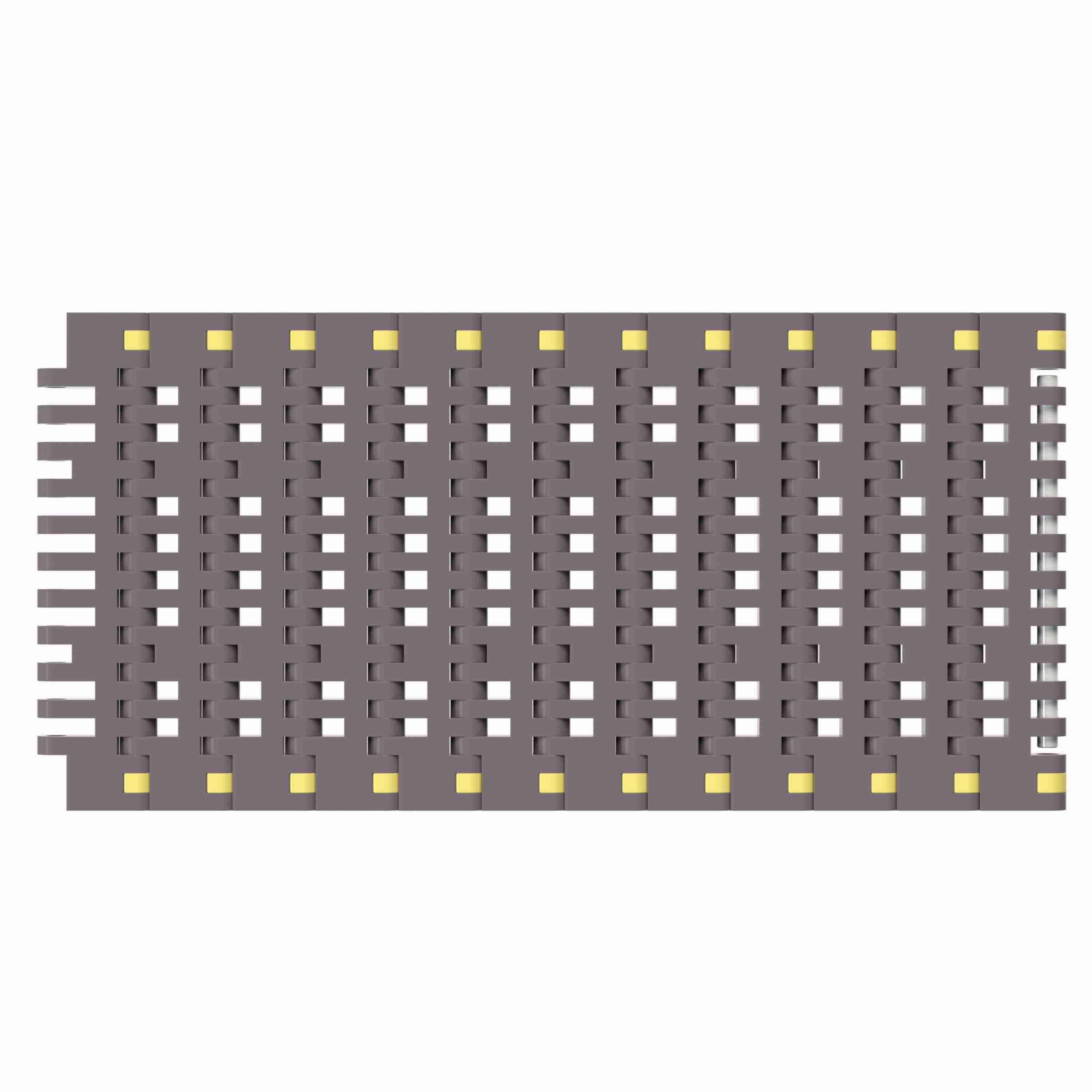

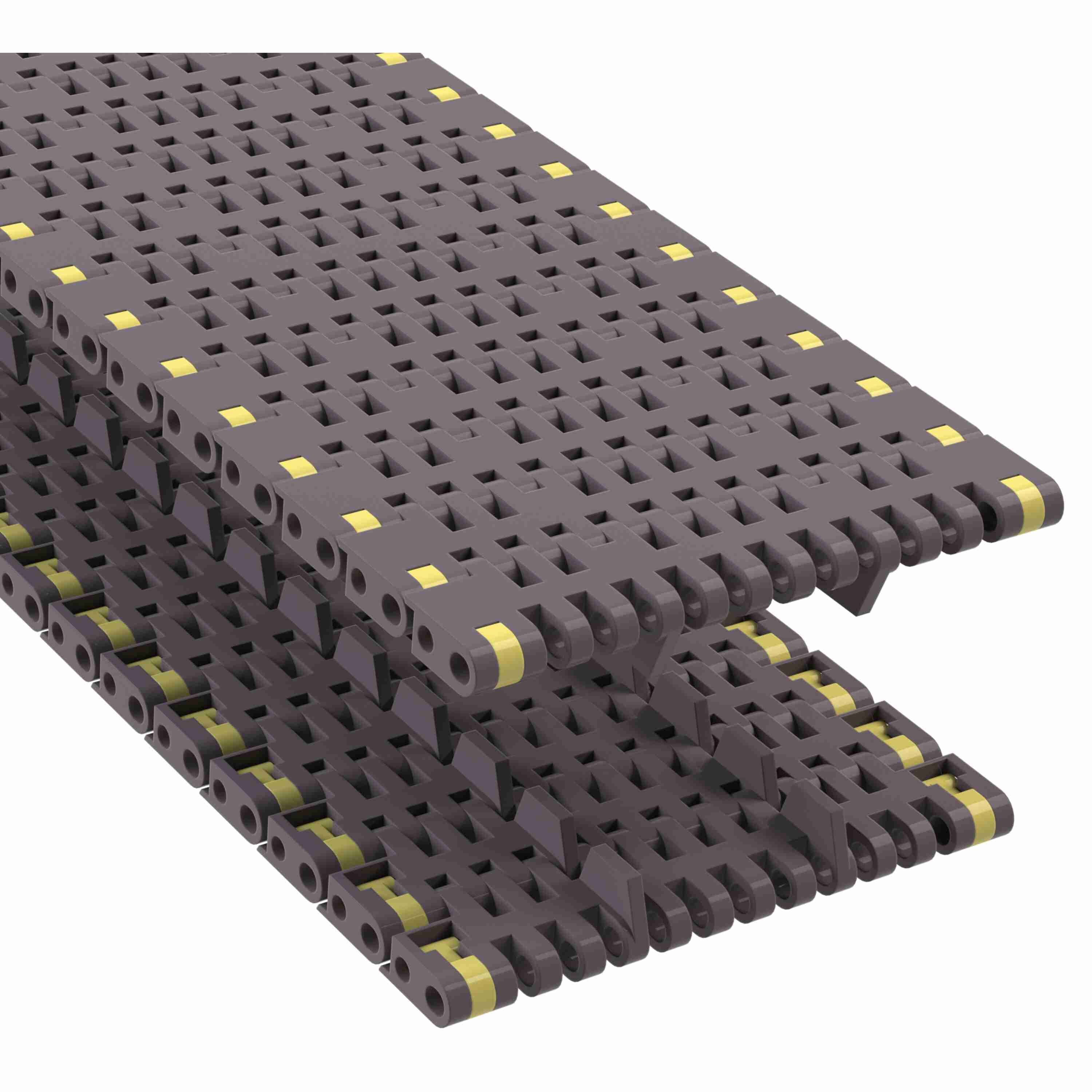

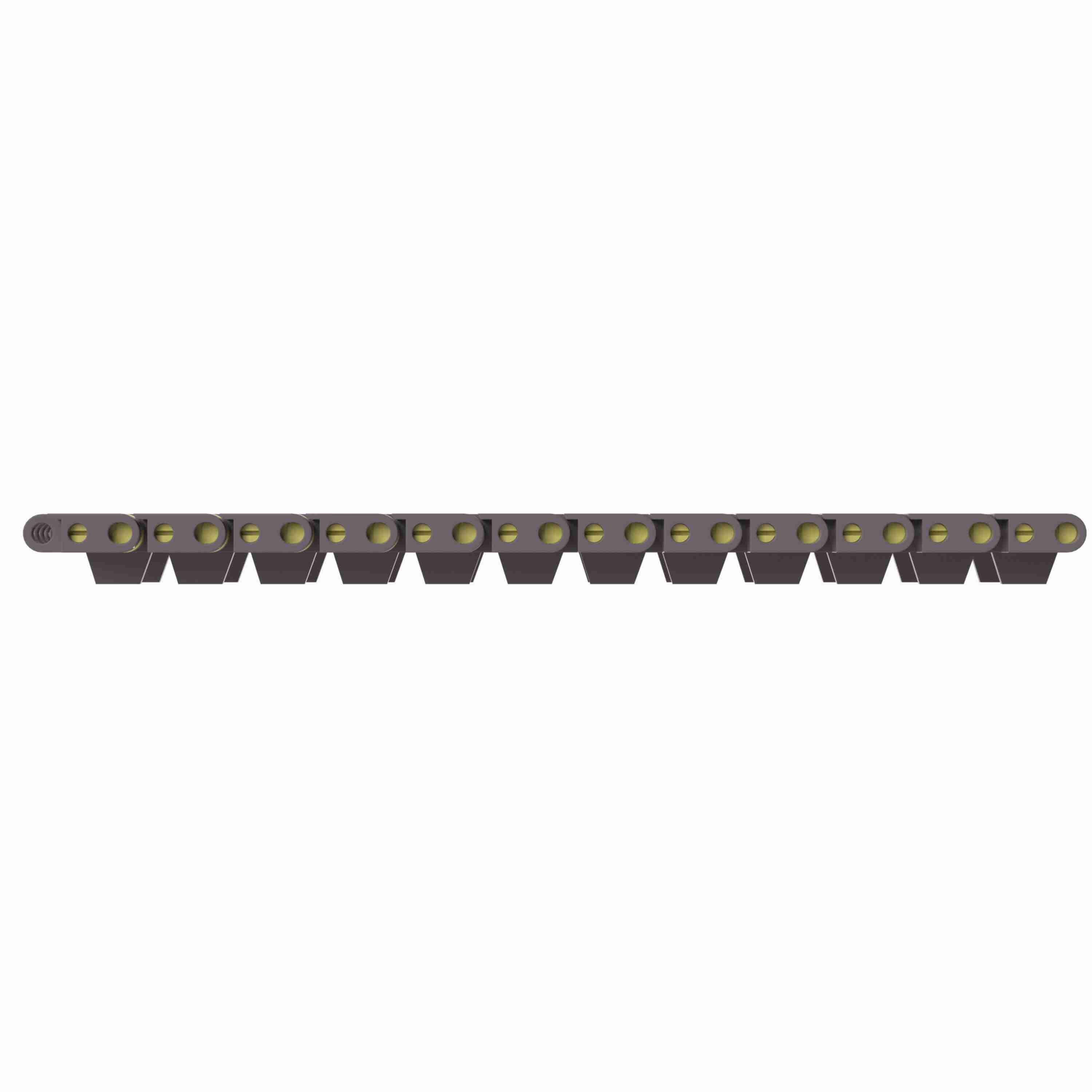

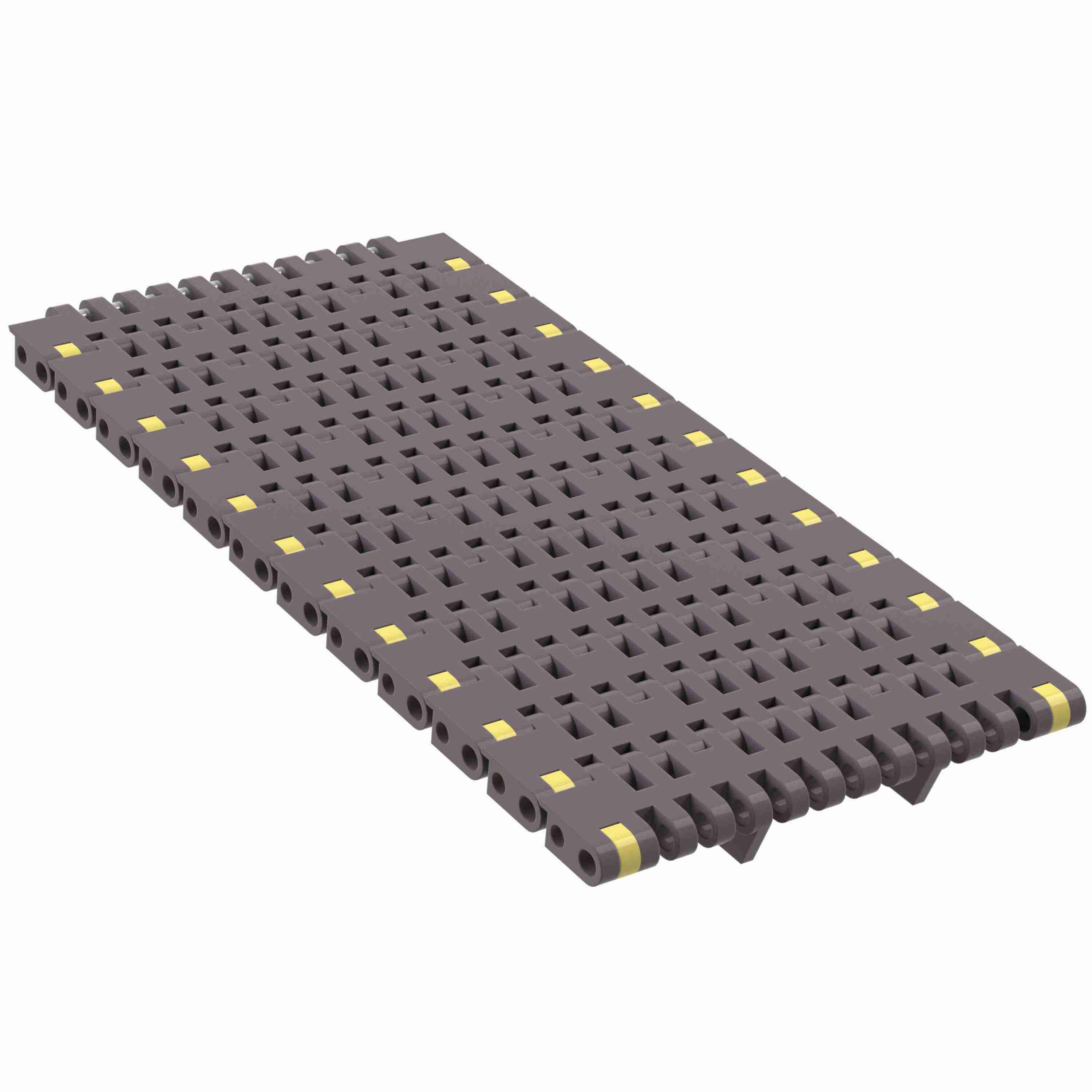

Rexnord 8506 Straight Running Flush Grid, Material: Brown High Performance, Width: 4.5in, Pitch: 0.75in - 81418171
Part #:10028994
Catalog #:81418171
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 0.75 in |
| Belt Thickness (mm): | 8.7 mm | Straight or Side-Flex: | Straight Running |
| Surface Type: | Flush Grid | Chain Width (mm): | 114.3 mm |
| Chain Strength (N): | 1,598 N | Chain Strength (lb): | 360 lb |
| Open Area (%): | 21 % | Chain Material Description: | Brown High Performance |
| Rod/Pin Material: | Polyester | Positrack: | True |
| Series: | MatTop 8500 Series Chain | Chain Number: | 8506 |
| Chain Width Measurement System: | Imperial | Chain Width (in): | 4.5 in |
| Number of Positrack: | 2 | Chain Material: | HP |
| Product Type: | Straight Running | Belt Thickness (in): | 0.34 in |
| Product Group: | Modular Plastic Belts | Chain Pitch (mm): | 19.1 mm |
| Positrack Location: | Center |
General Specifications
| Weight: | 0.04 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
