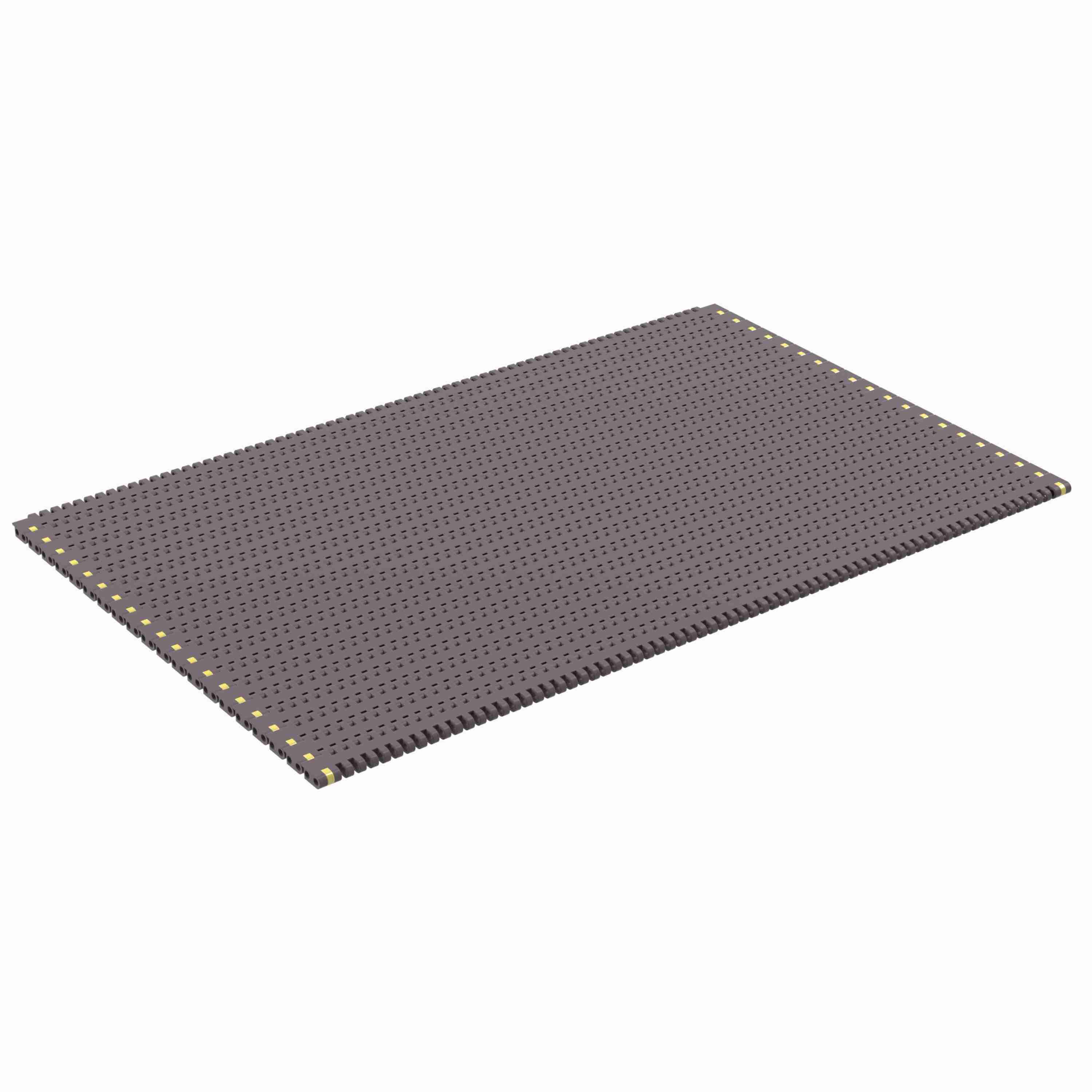

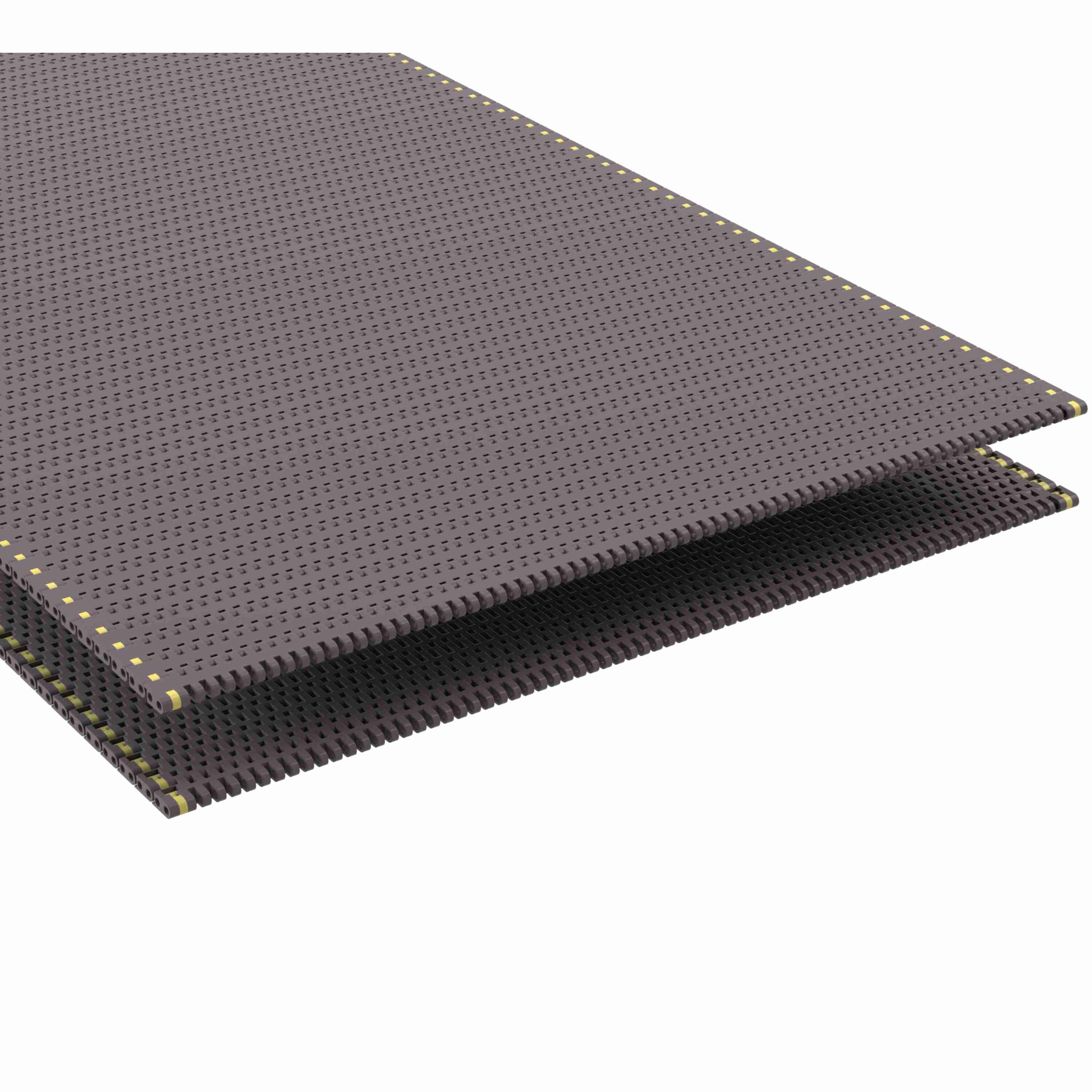

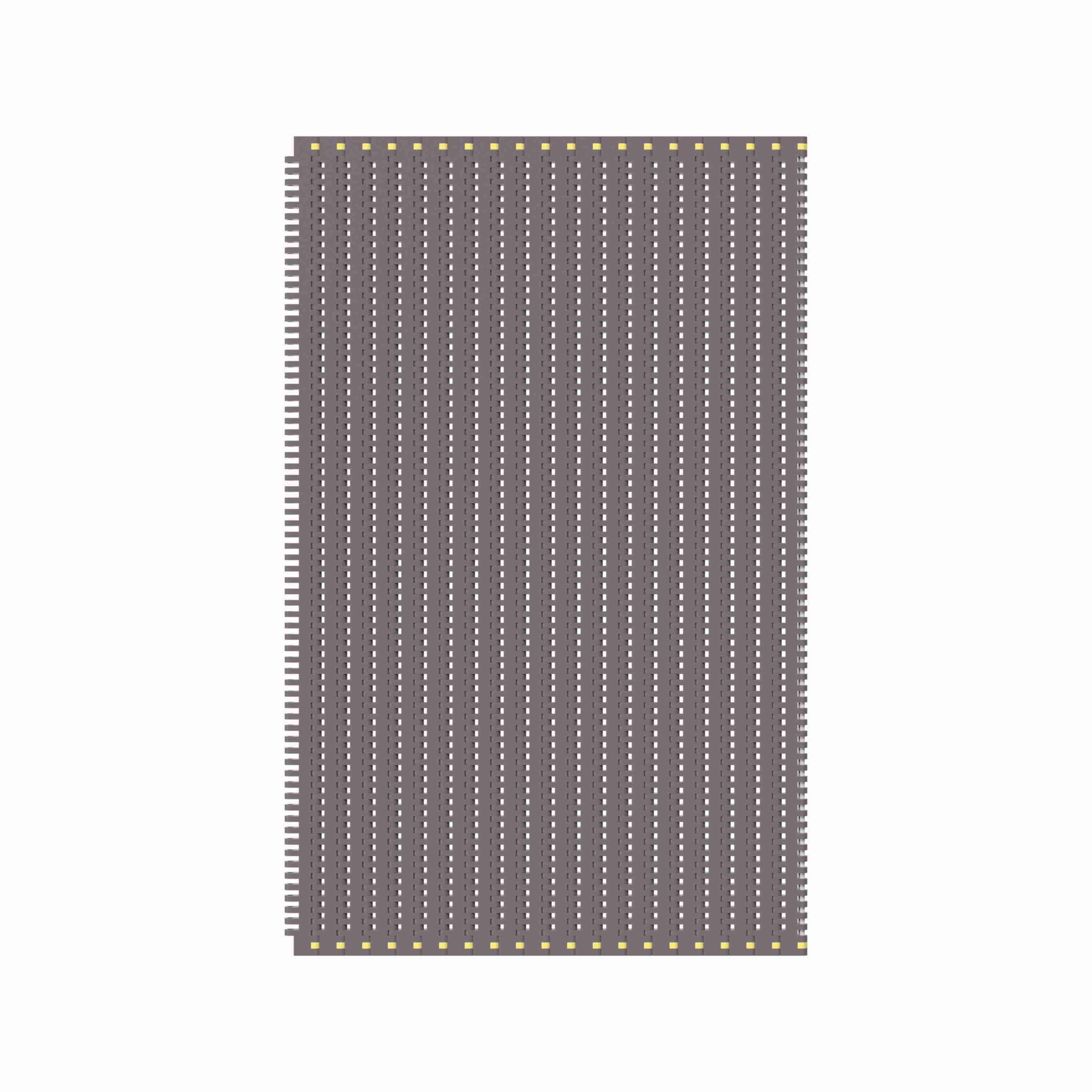

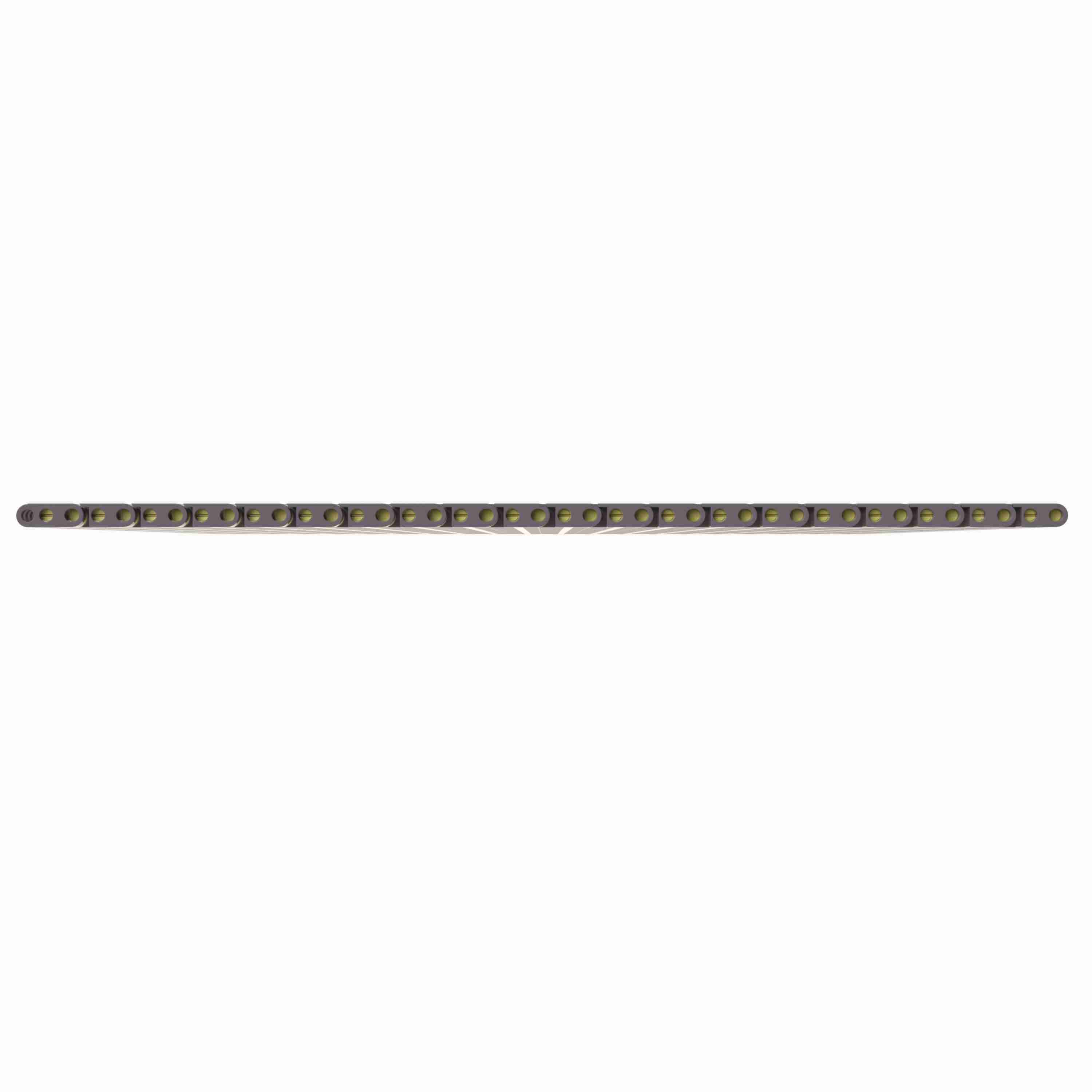

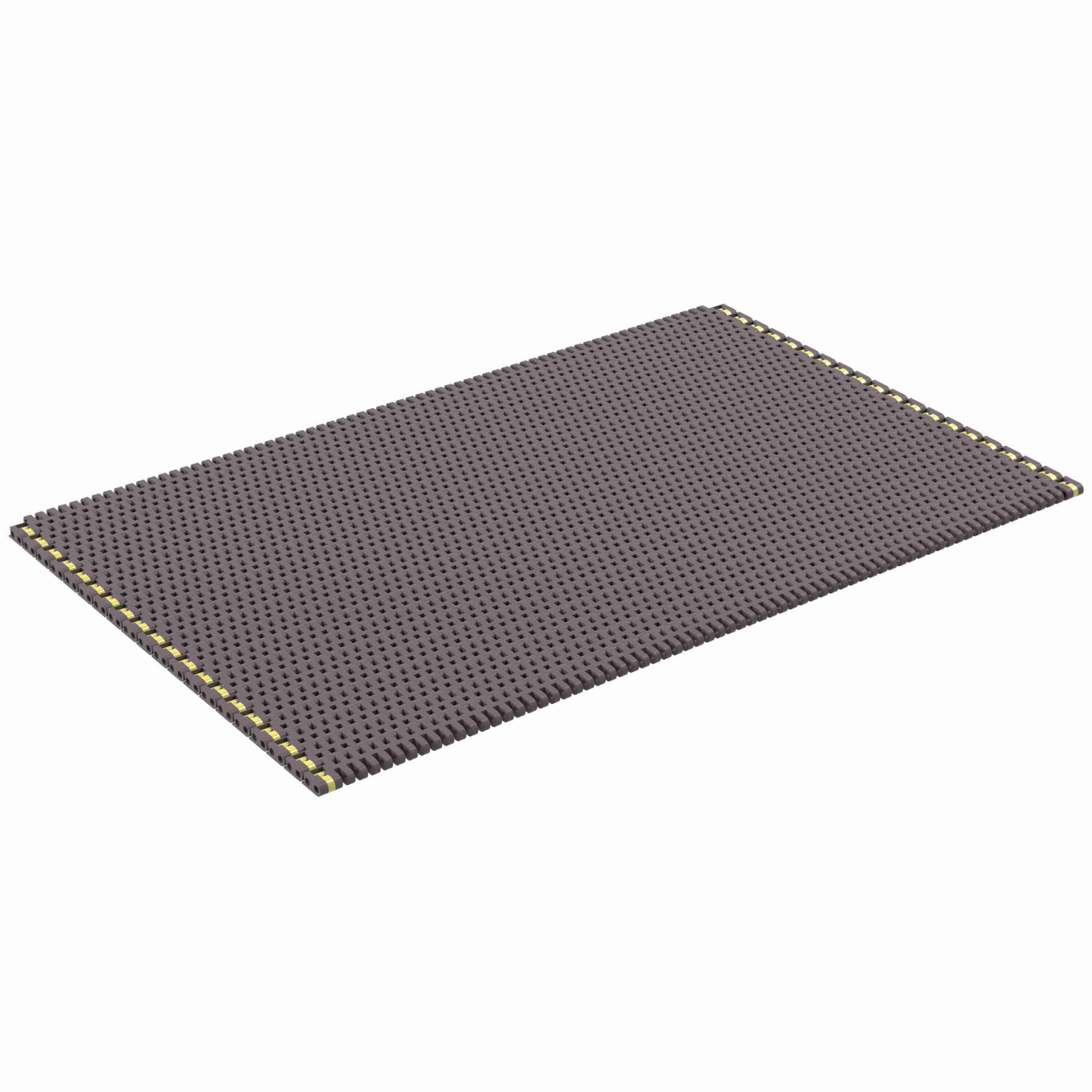

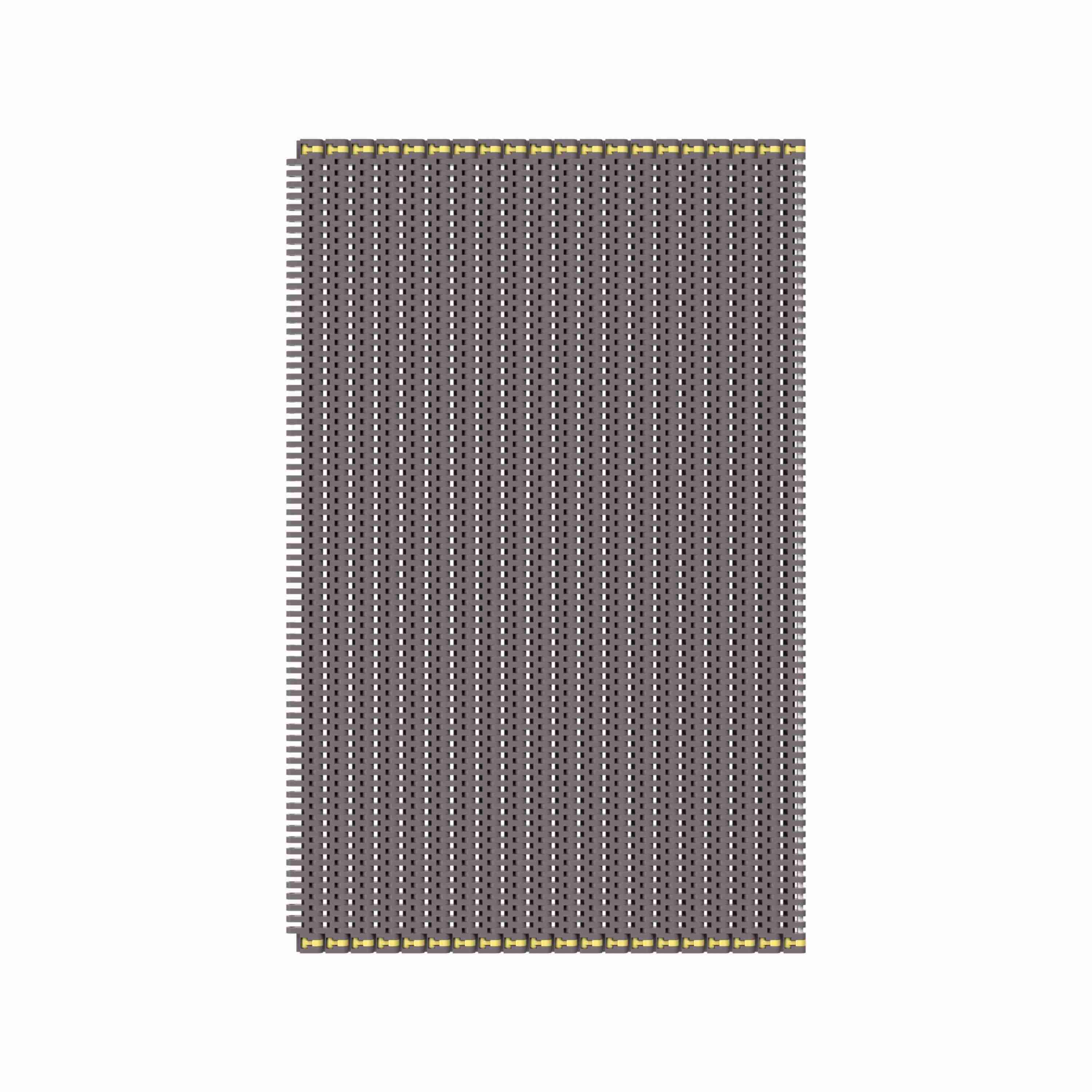

Rexnord 8506 Straight Running Flush Grid, Material: Brown High Performance, Width: 48in, Pitch: 0.75in - HP8506-48
Part #:10028995
Catalog #:HP8506-48
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 48 in | Product Group: | Modular Plastic Belts |
| Chain Pitch (mm): | 19.1 mm | Open Area (%): | 21 % |
| Chain Width (mm): | 1,219.2 mm | Chain Strength (N/m): | 29,180 N·m |
| Chain Width Measurement System: | Imperial | Chain Material: | HP |
| Product Type: | Straight Running | Series: | MatTop 8500 Series Chain |
| Chain Material Description: | Brown High Performance | Belt Thickness (in): | 0.34 in |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (mm): | 8.7 mm |
| Surface Type: | Flush Grid | Rod/Pin Material: | Polyester |
| Chain Pitch (in): | 0.75 in | Chain Number: | 8506 |
| Chain Strength (lb/ft): | 2,000 lb/ft | Straight or Side-Flex: | Straight Running |
General Specifications
| Weight: | 0.40 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
