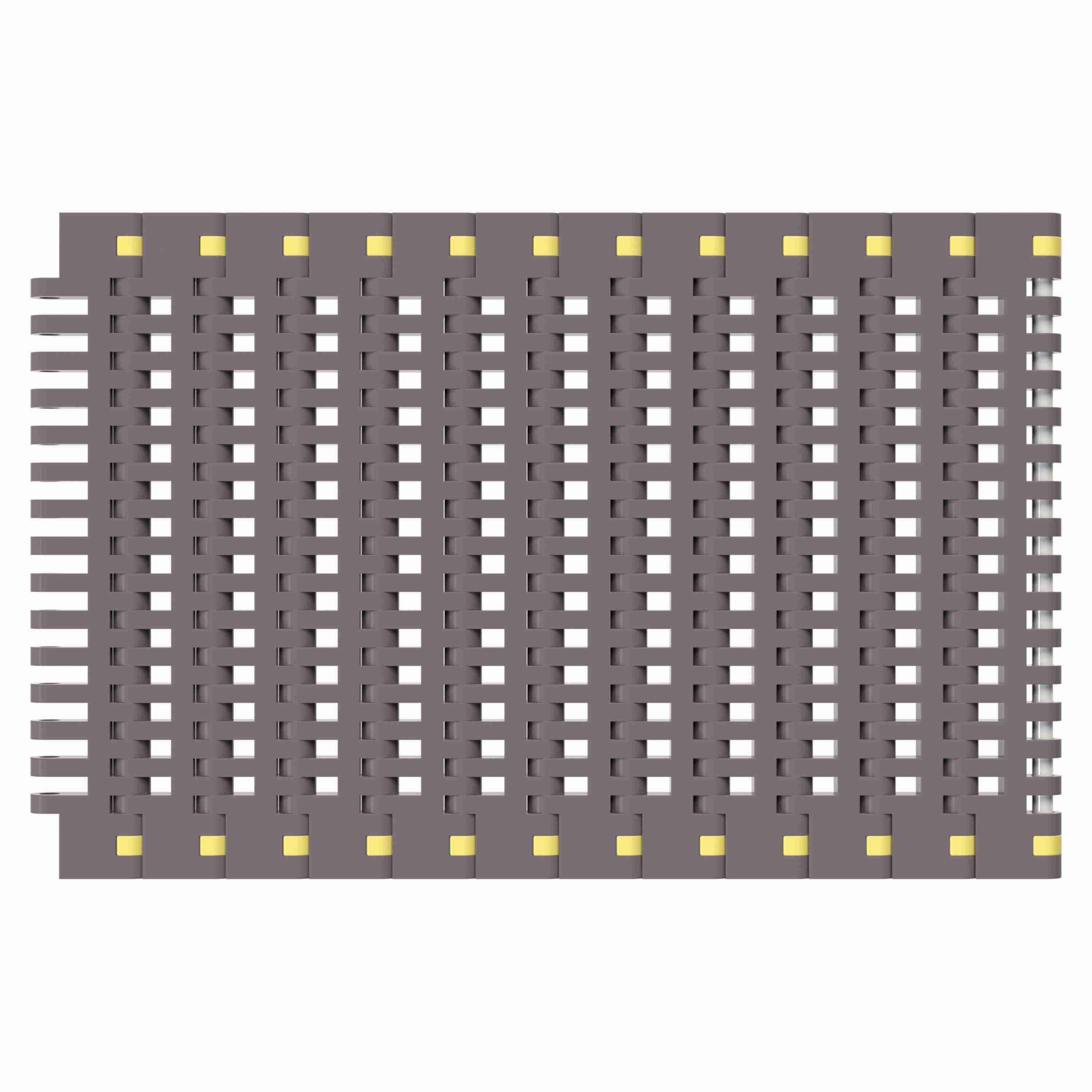

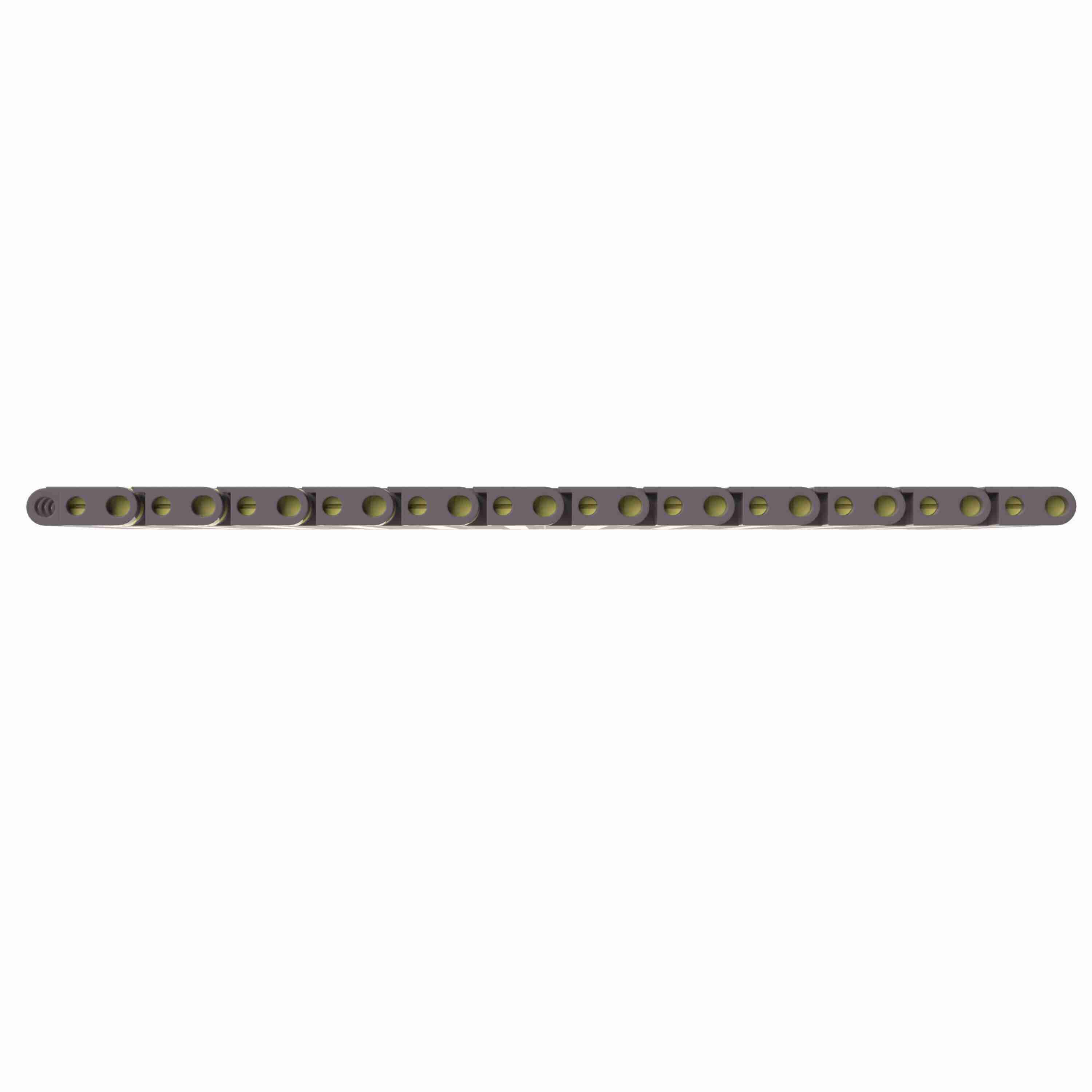

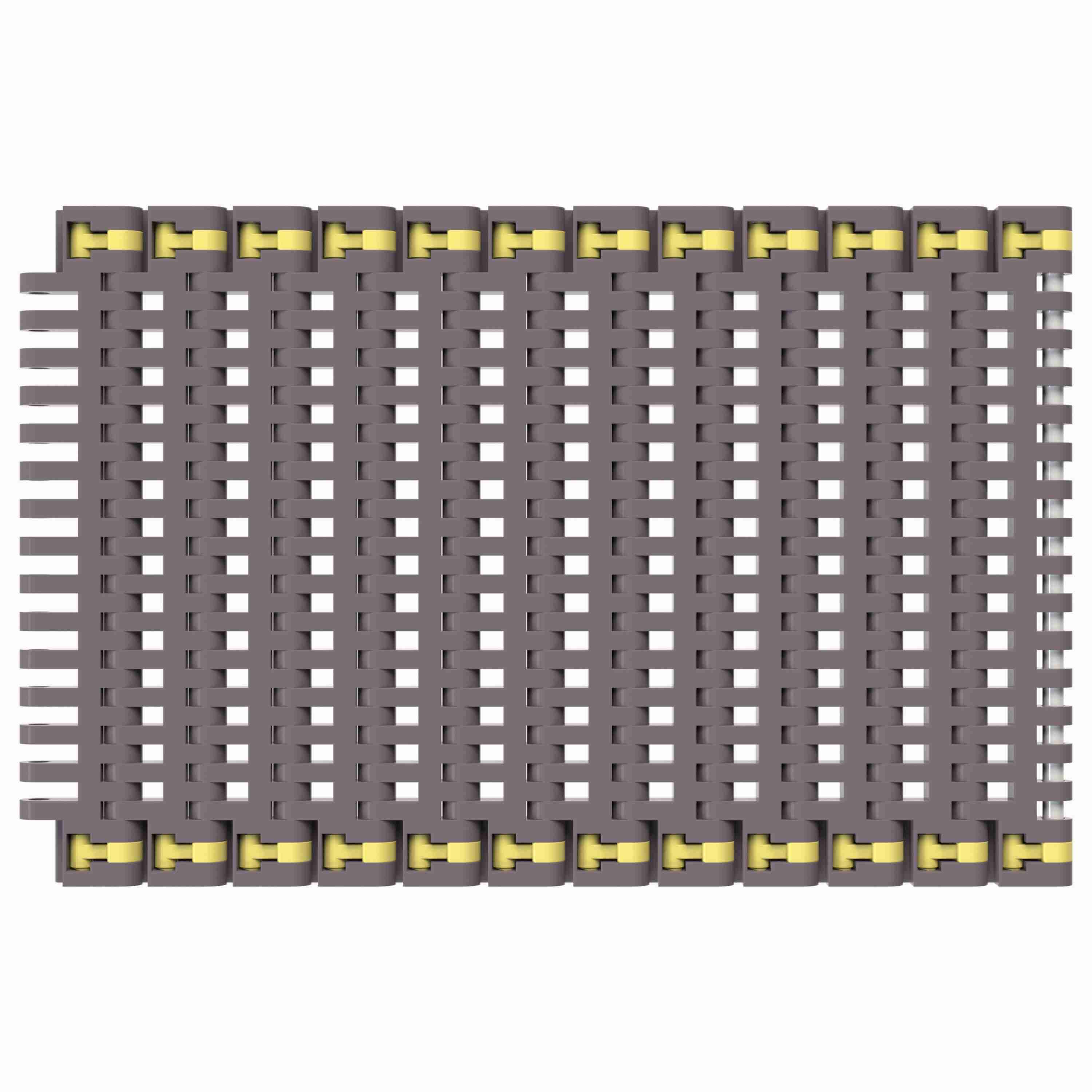

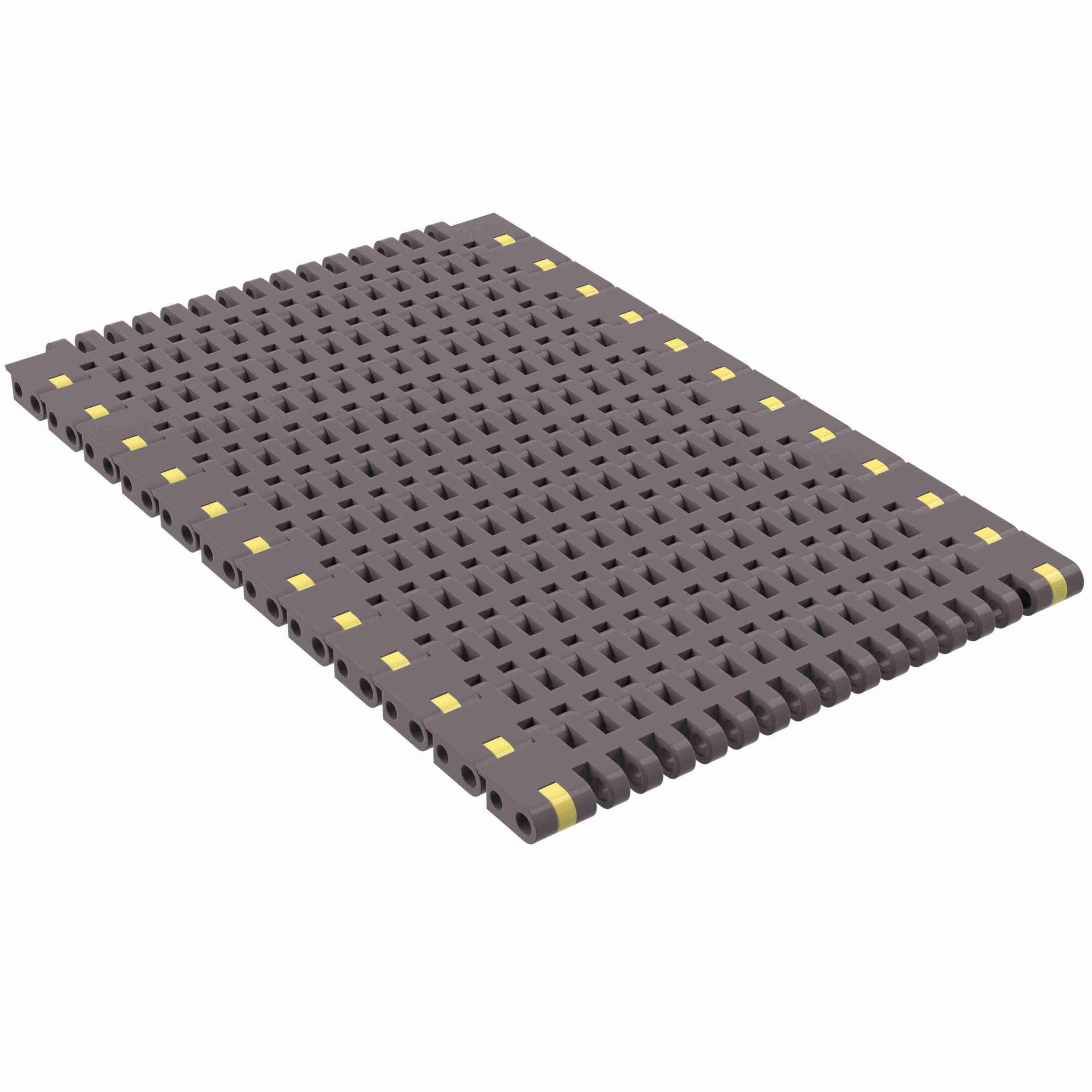

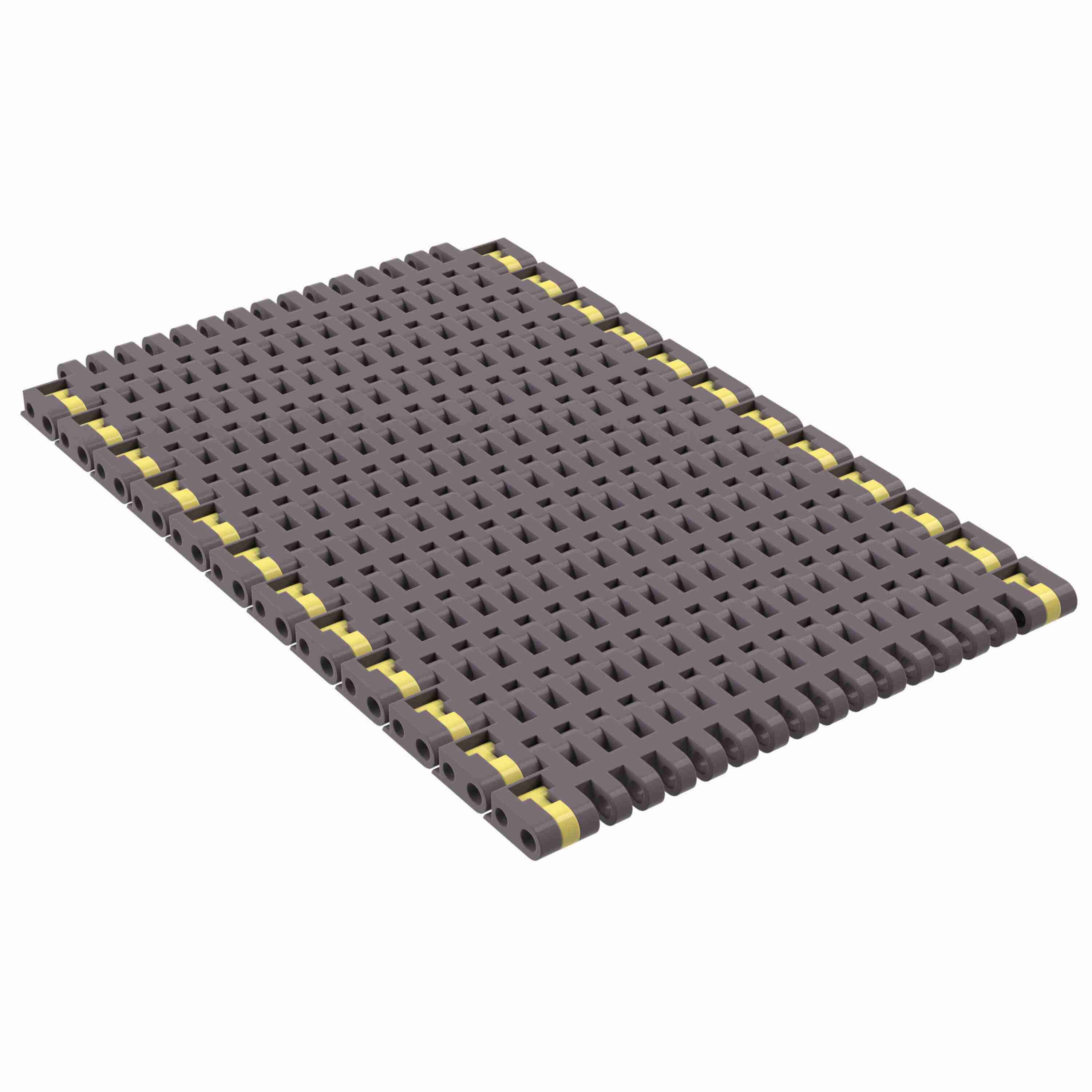

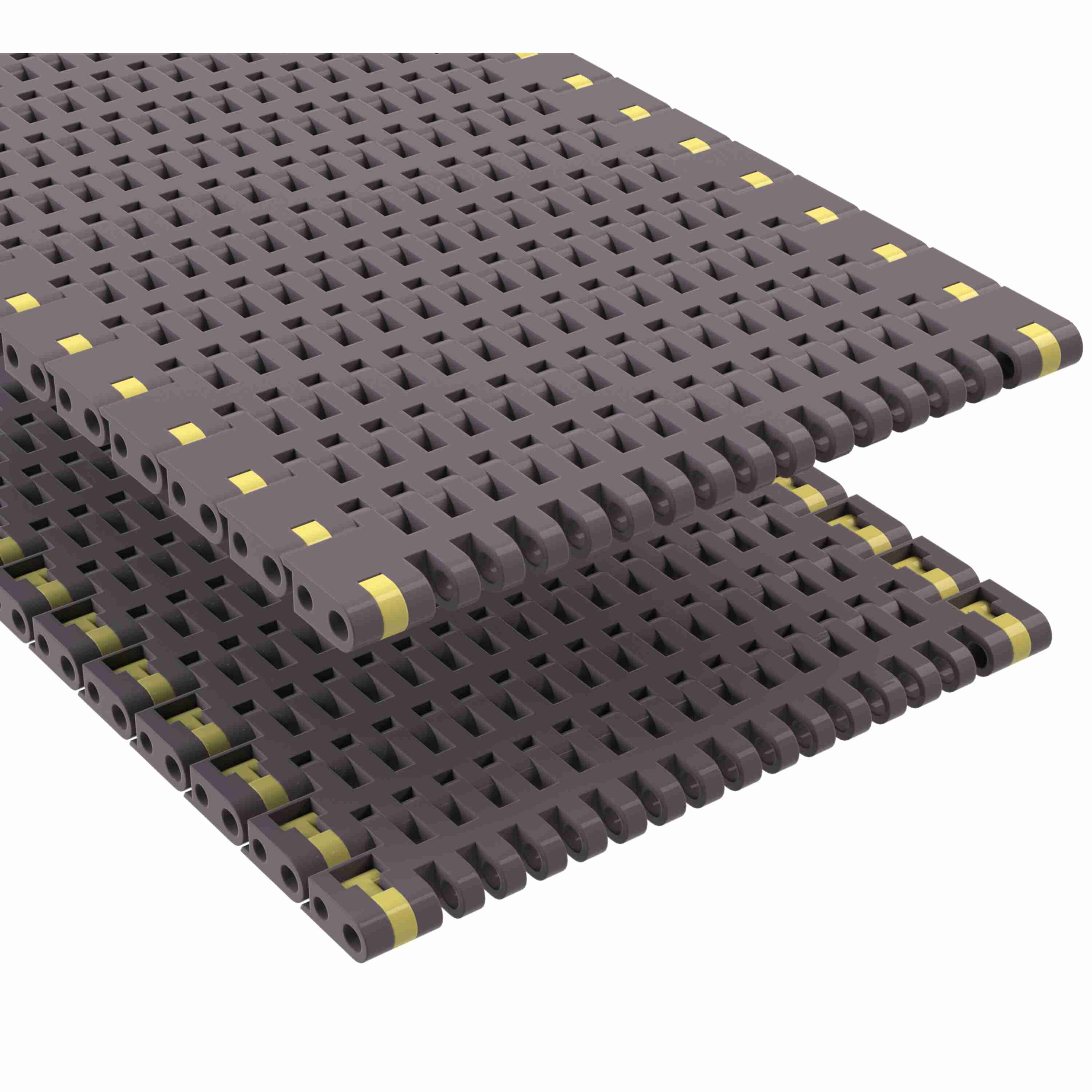

Rexnord 8506 Straight Running Flush Grid, Material: Brown High Performance, Width: 6in, Pitch: 0.75in - 81420871
Part #:10028451
Catalog #:81420871
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Plastic Modular Chain and Belt | Rod/Pin Material: | Polyester |
| Product Group: | Modular Plastic Belts | Chain Width (in): | 6 in |
| Belt Thickness (in): | 0.34 in | Belt Thickness (mm): | 8.7 mm |
| Open Area (%): | 21 % | Chain Strength (lb): | 500 lb |
| Chain Pitch (mm): | 19.1 mm | Series: | MatTop 8500 Series Chain |
| Surface Type: | Flush Grid | Chain Pitch (in): | 0.75 in |
| Chain Strength (N): | 2,220 N | Straight or Side-Flex: | Straight Running |
| Chain Width (mm): | 152.4 mm | Chain Width Measurement System: | Imperial |
| Chain Material Description: | Brown High Performance | Chain Material: | HP |
| Chain Number: | 8506 | Product Type: | Straight Running |
General Specifications
| Weight: | 0.05 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
