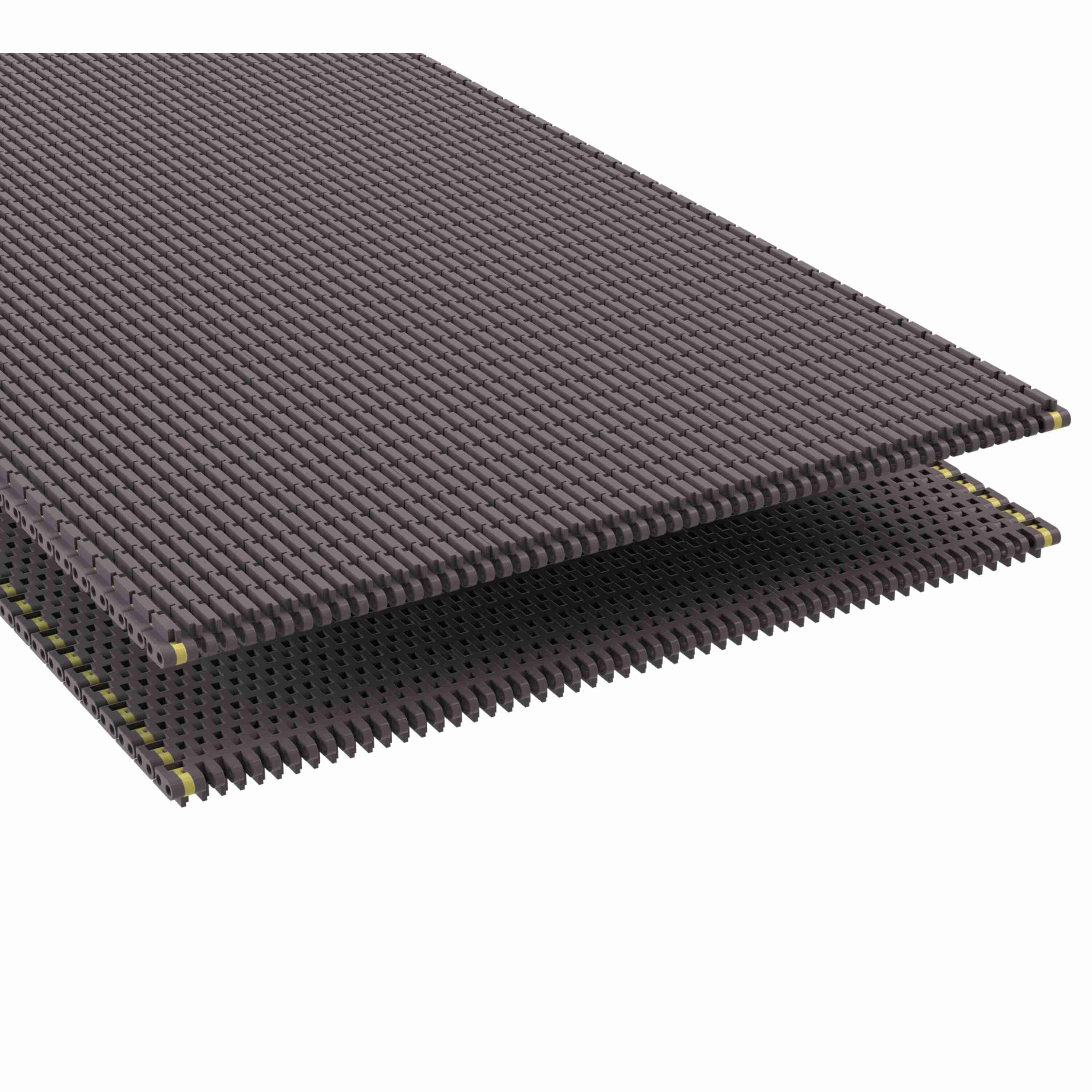

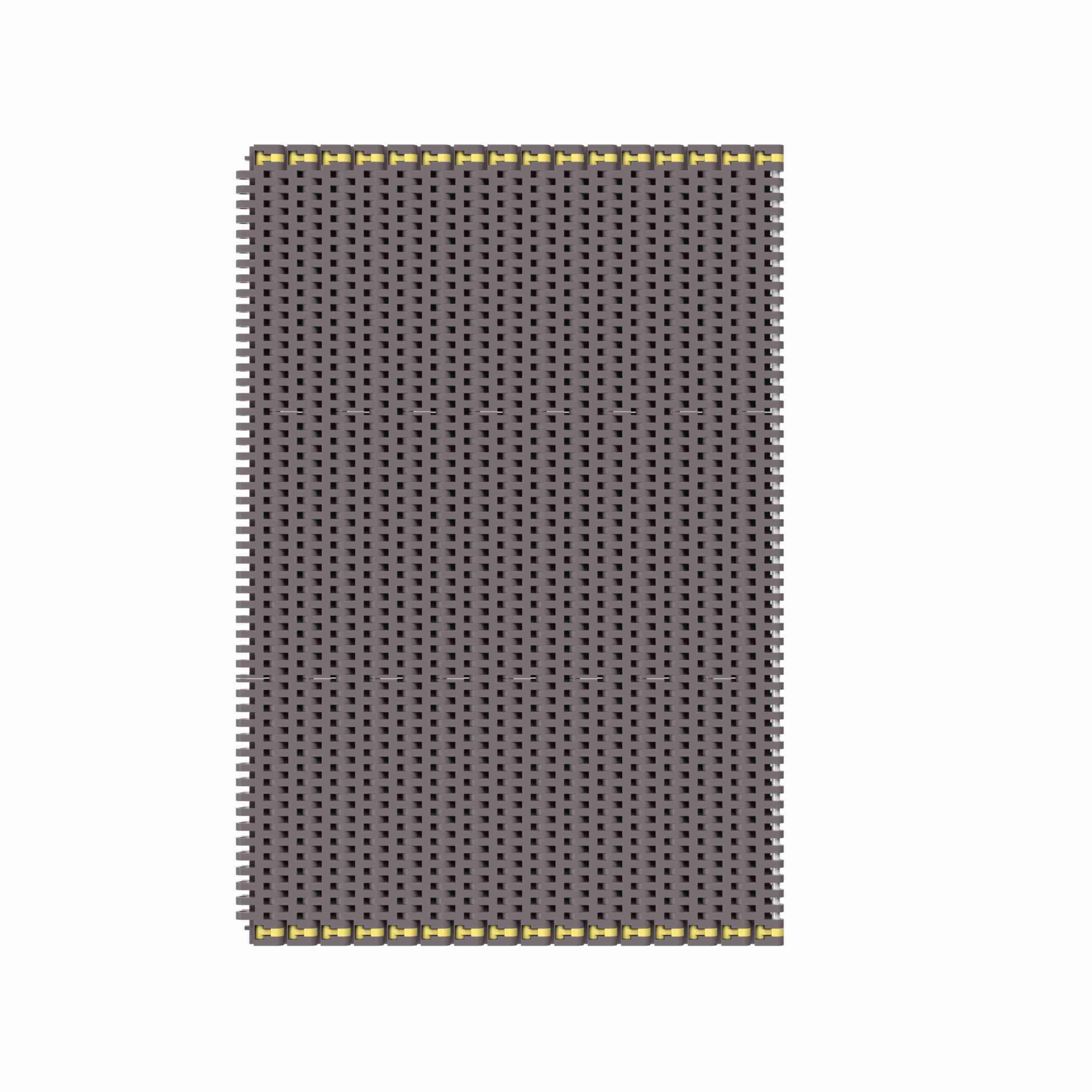

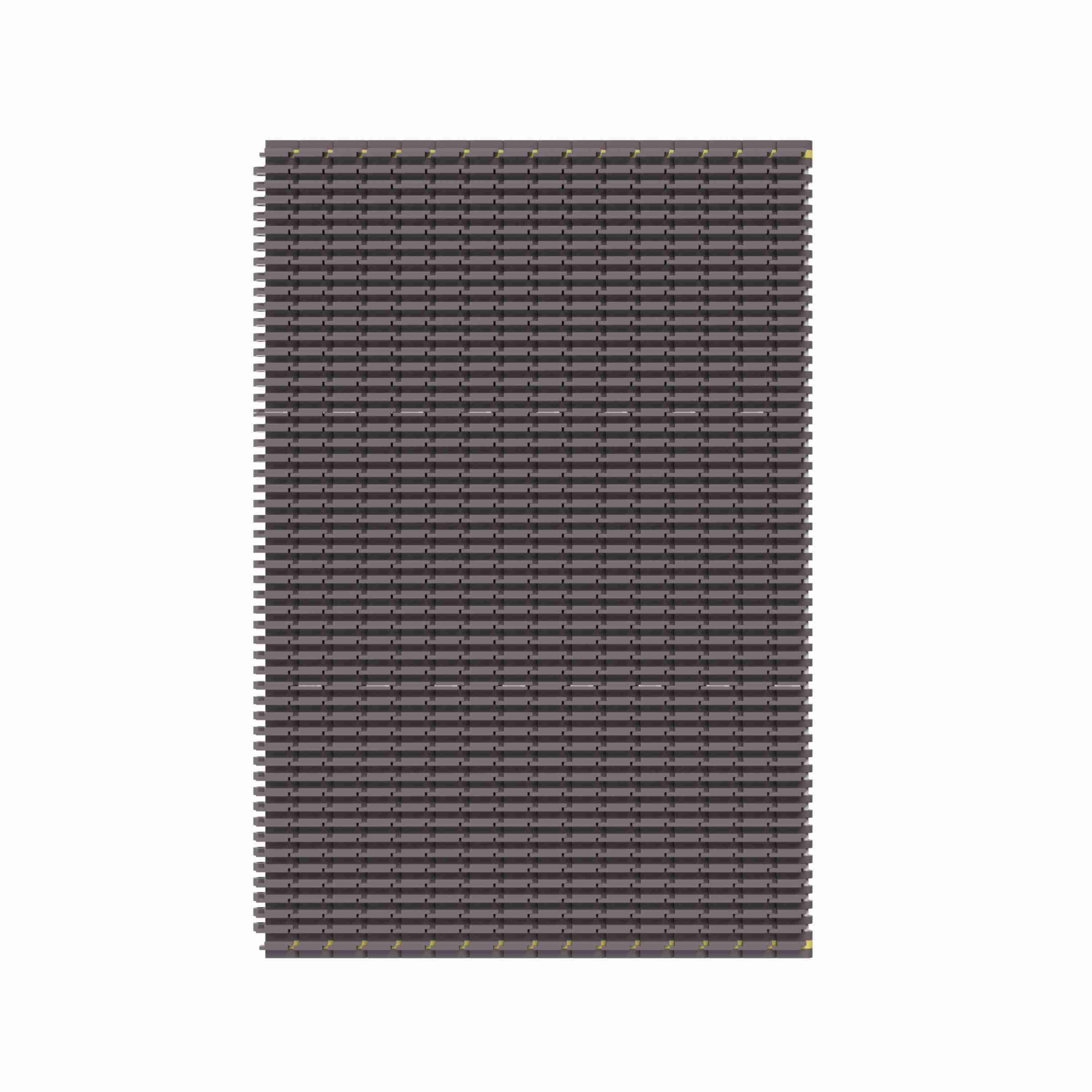

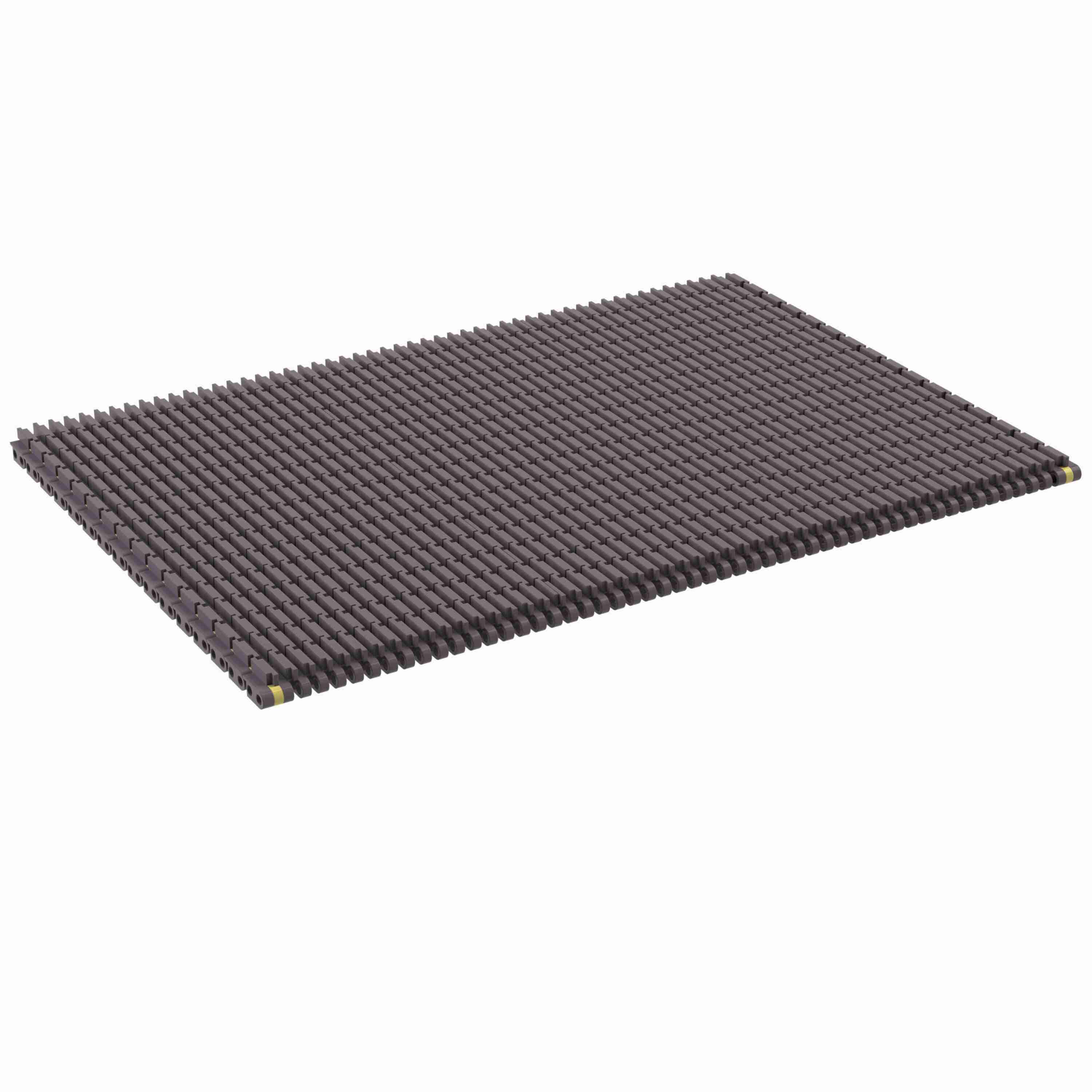

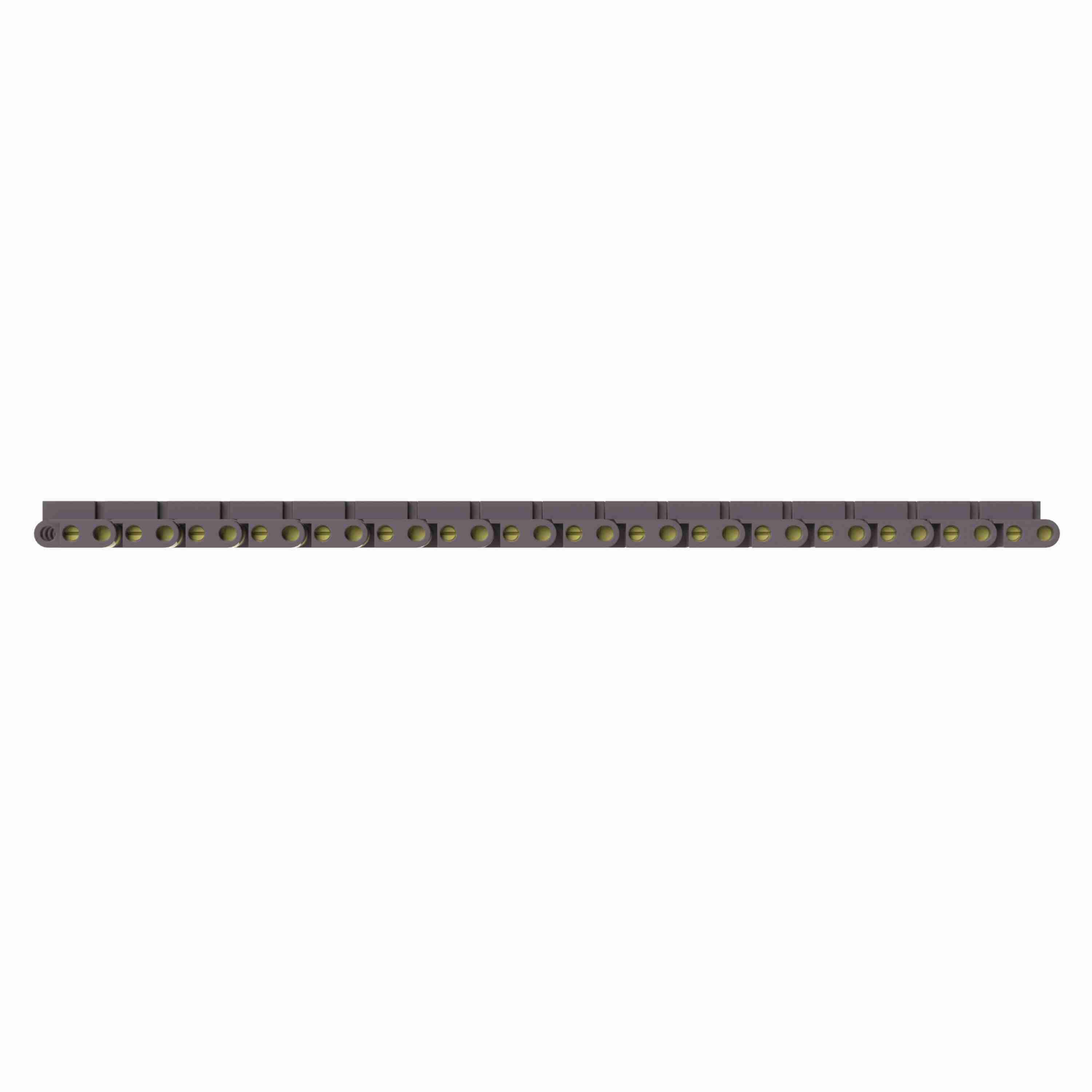

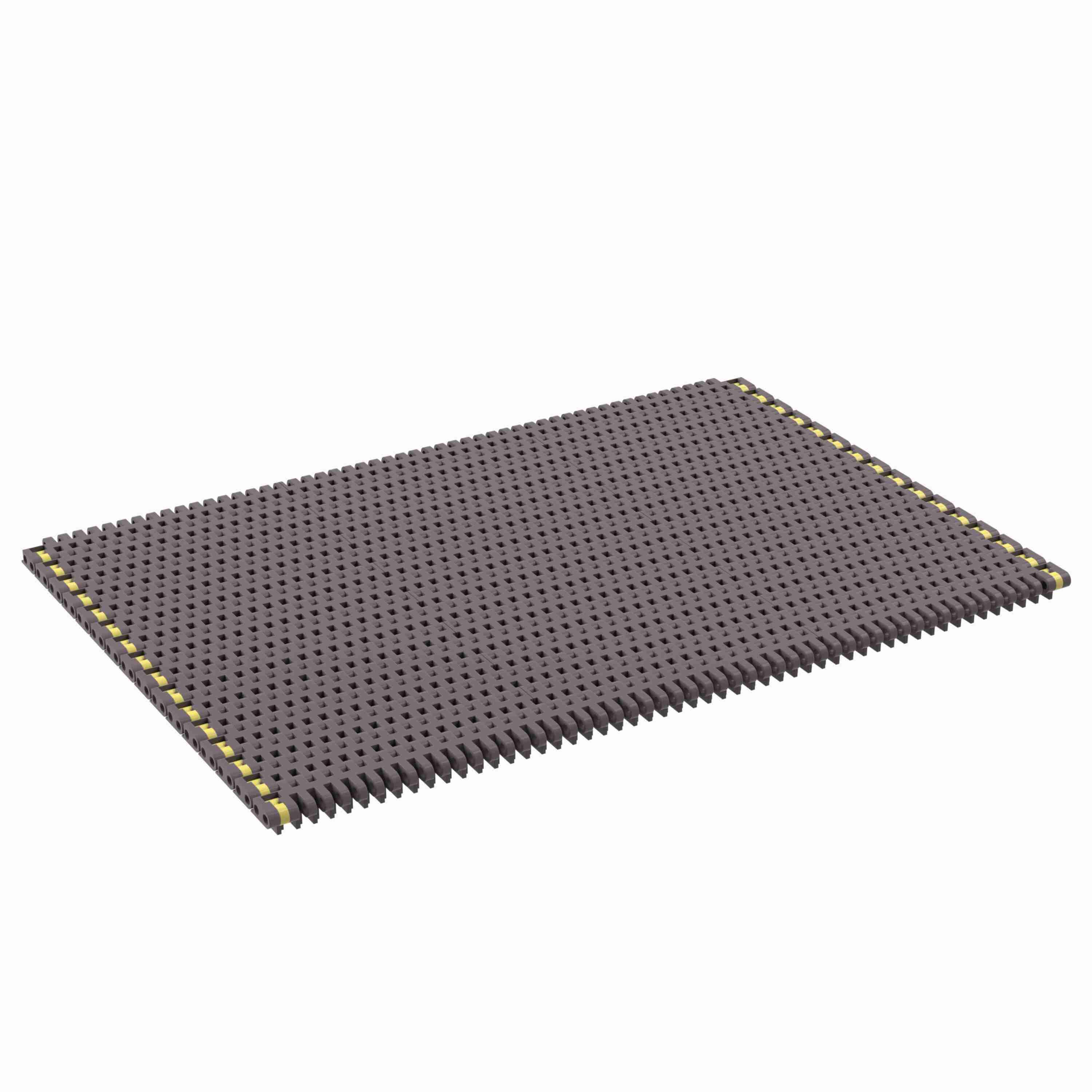

Rexnord 8507 Straight Running Raised Rib, Material: Brown High Performance, Width: 18in, Pitch: 0.75in - 10713938
Part #:10713938
Catalog #:10713938
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N/m): | 29,180 N·m | Product Line: | Plastic Modular Chain and Belt |
| Chain Width Measurement System: | Imperial | Chain Number: | 8507 |
| Series: | MatTop 8500 Series Chain | Straight or Side-Flex: | Straight Running |
| Chain Width (in): | 18 in | Product Type: | Straight Running |
| Product Group: | Modular Plastic Belts | Chain Material Description: | Brown High Performance |
| Belt Thickness (in): | 0.56 in | Surface Type: | Raised Rib |
| Open Area (%): | 20.7 % | Chain Pitch (mm): | 19.1 mm |
| Chain Strength (lb/ft): | 2,000 lb/ft | Chain Pitch (in): | 0.75 in |
| Rod/Pin Material: | Polyester | Belt Thickness (mm): | 14.2 mm |
| Chain Width (mm): | 457.2 mm | Chain Material: | HP |
General Specifications
| Weight: | 0.15 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
