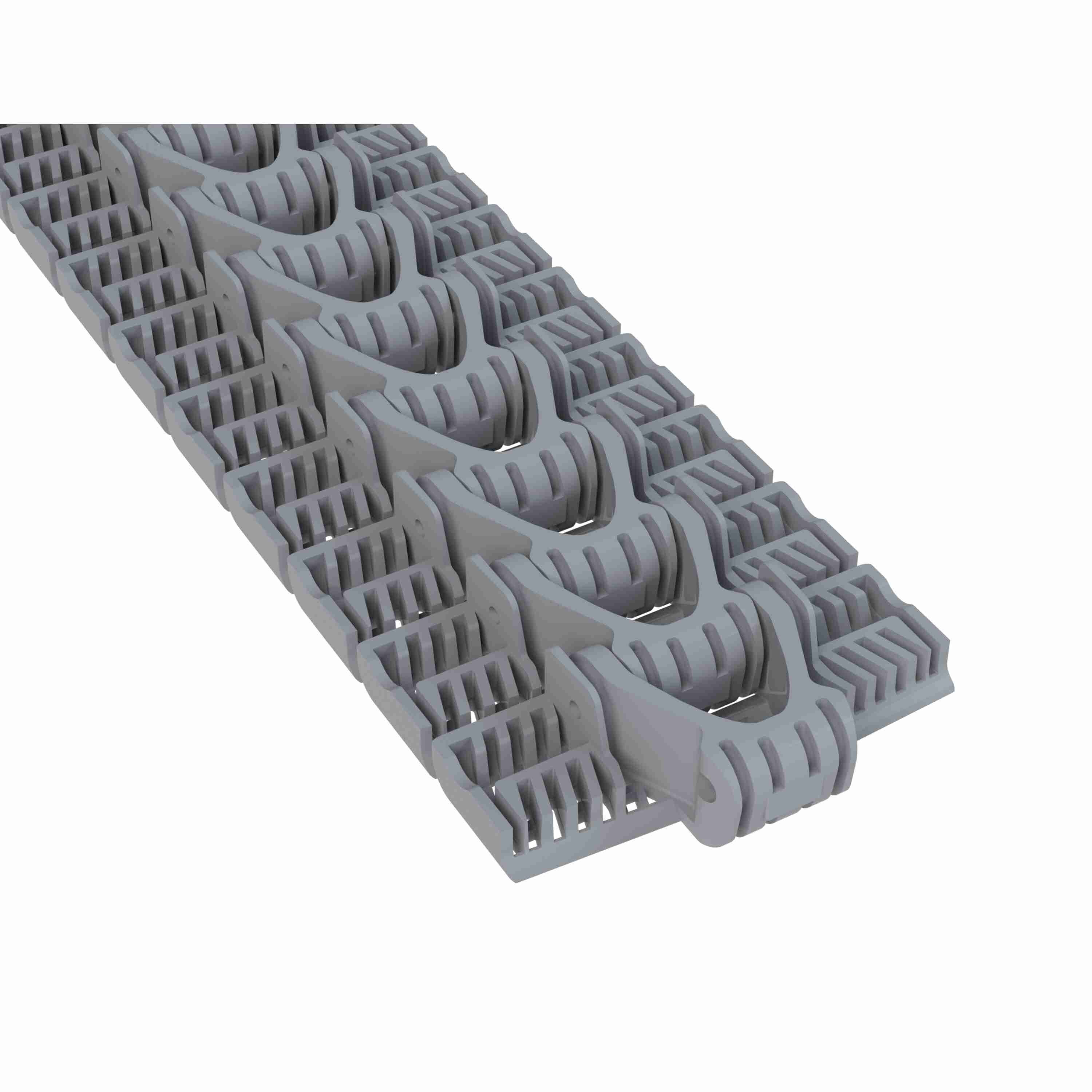

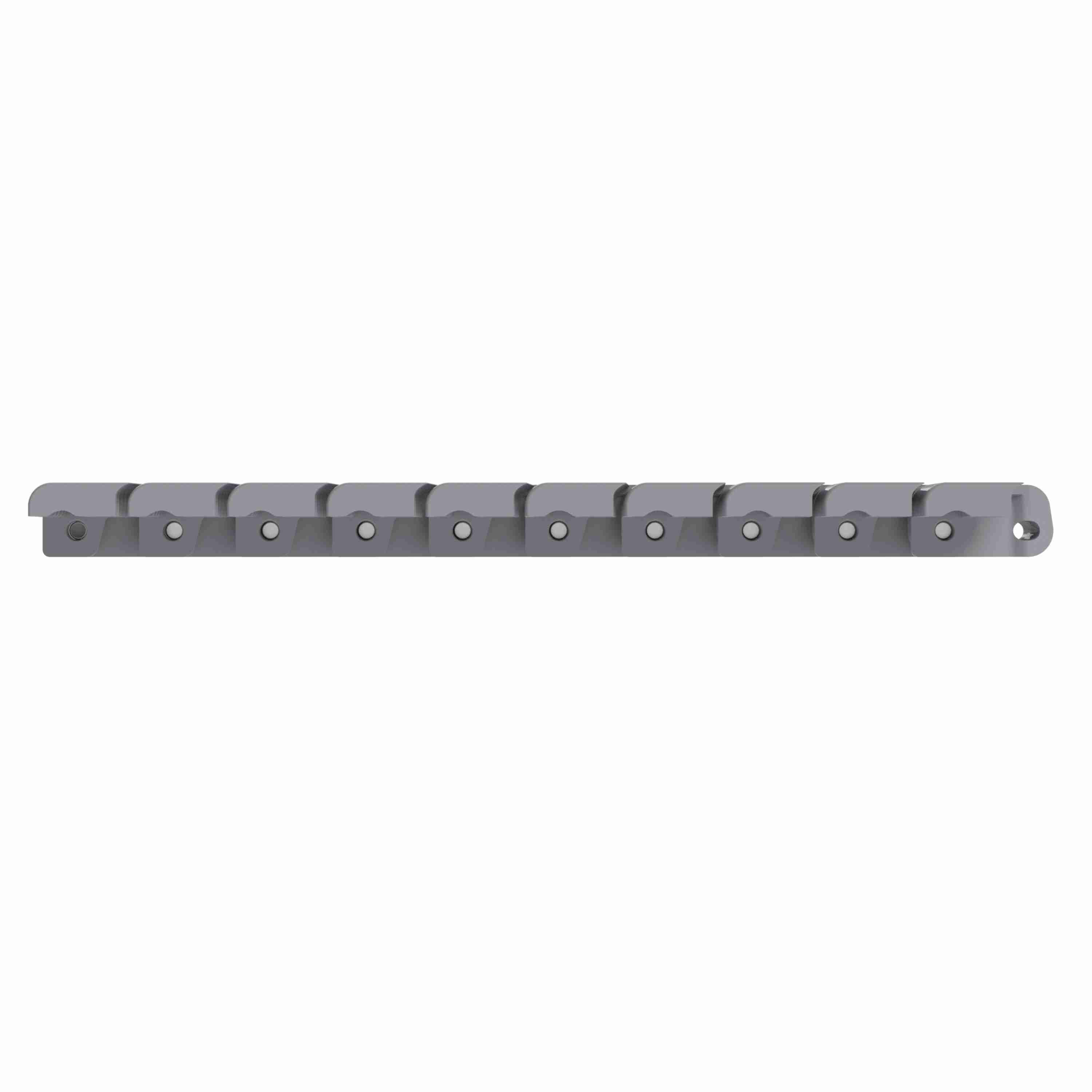

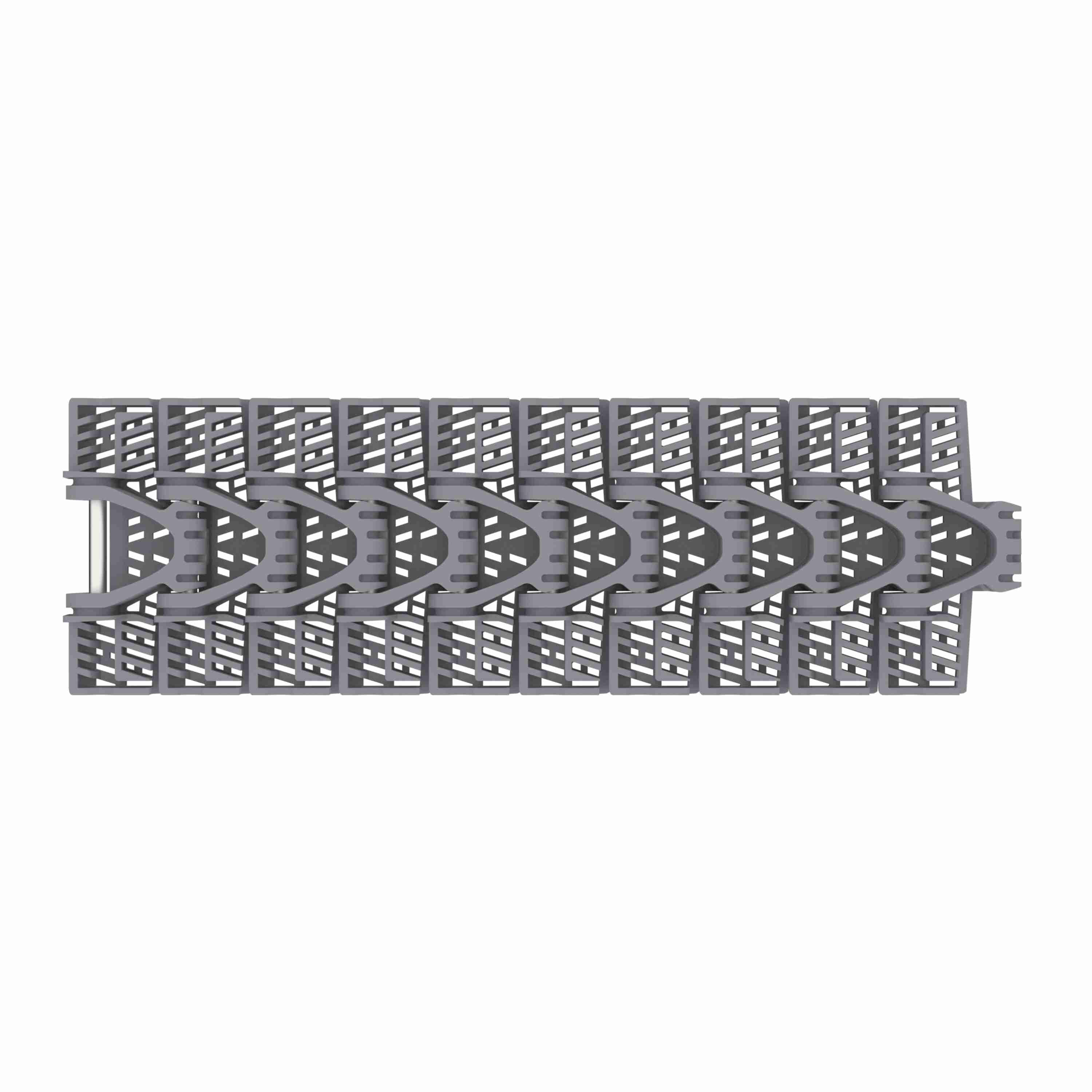

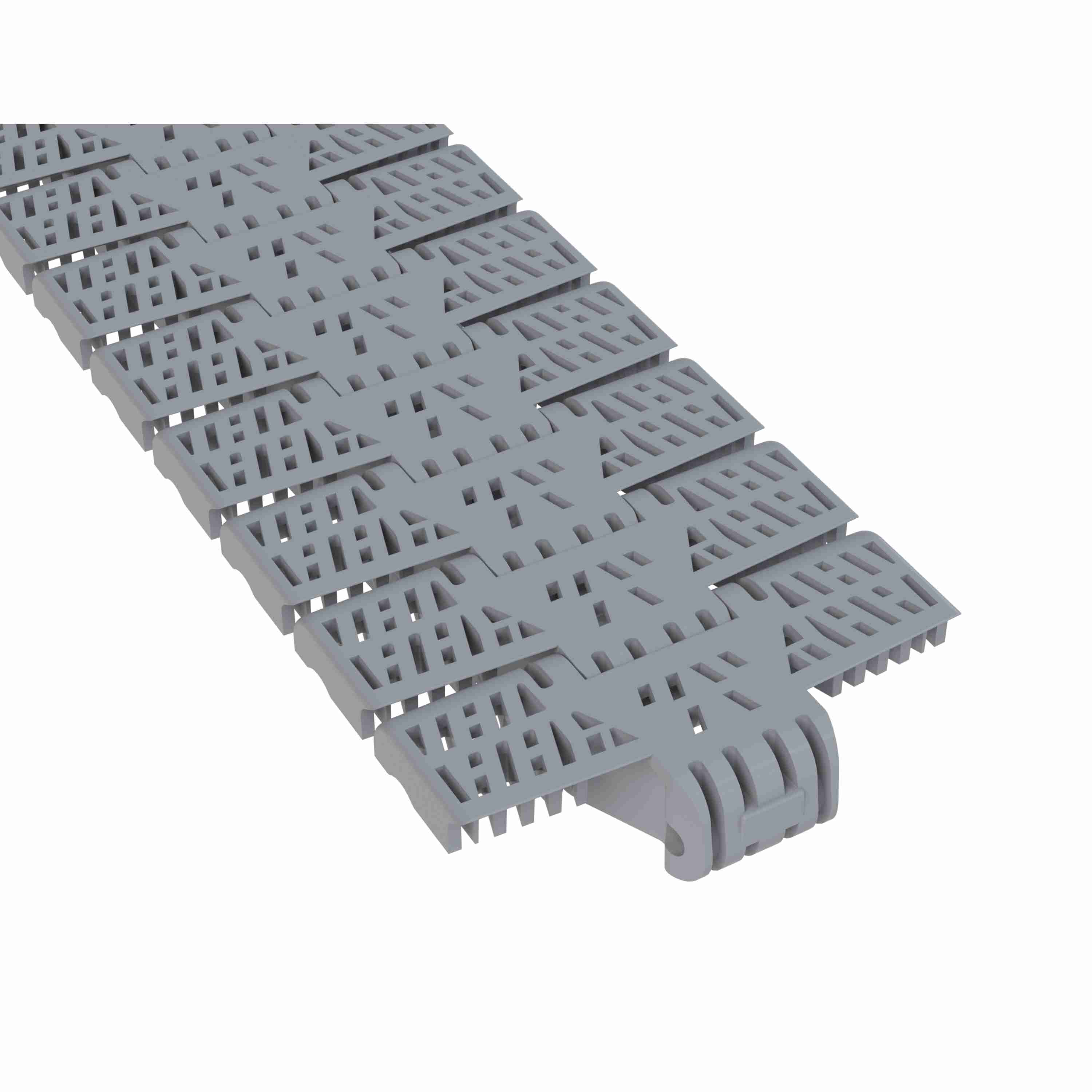

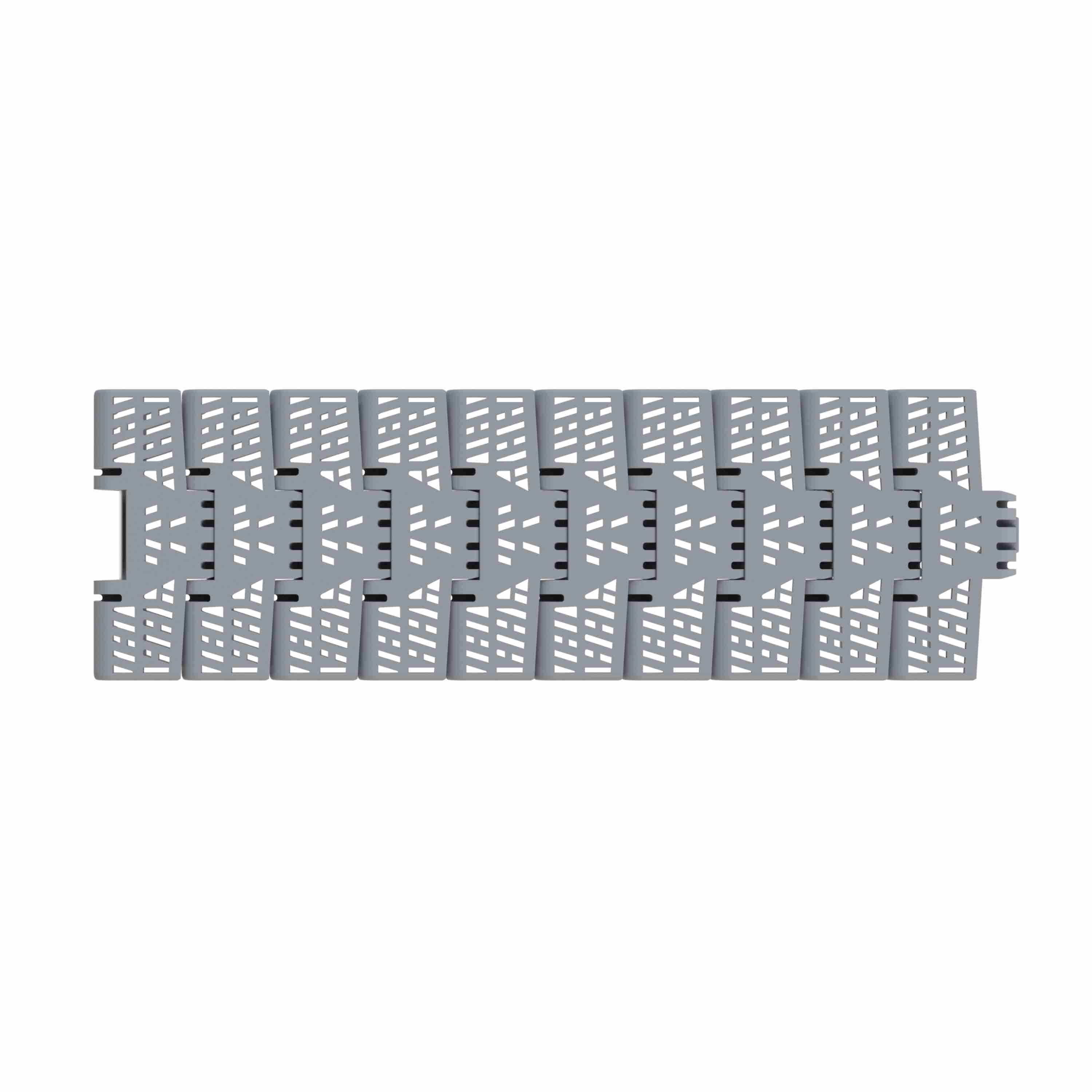

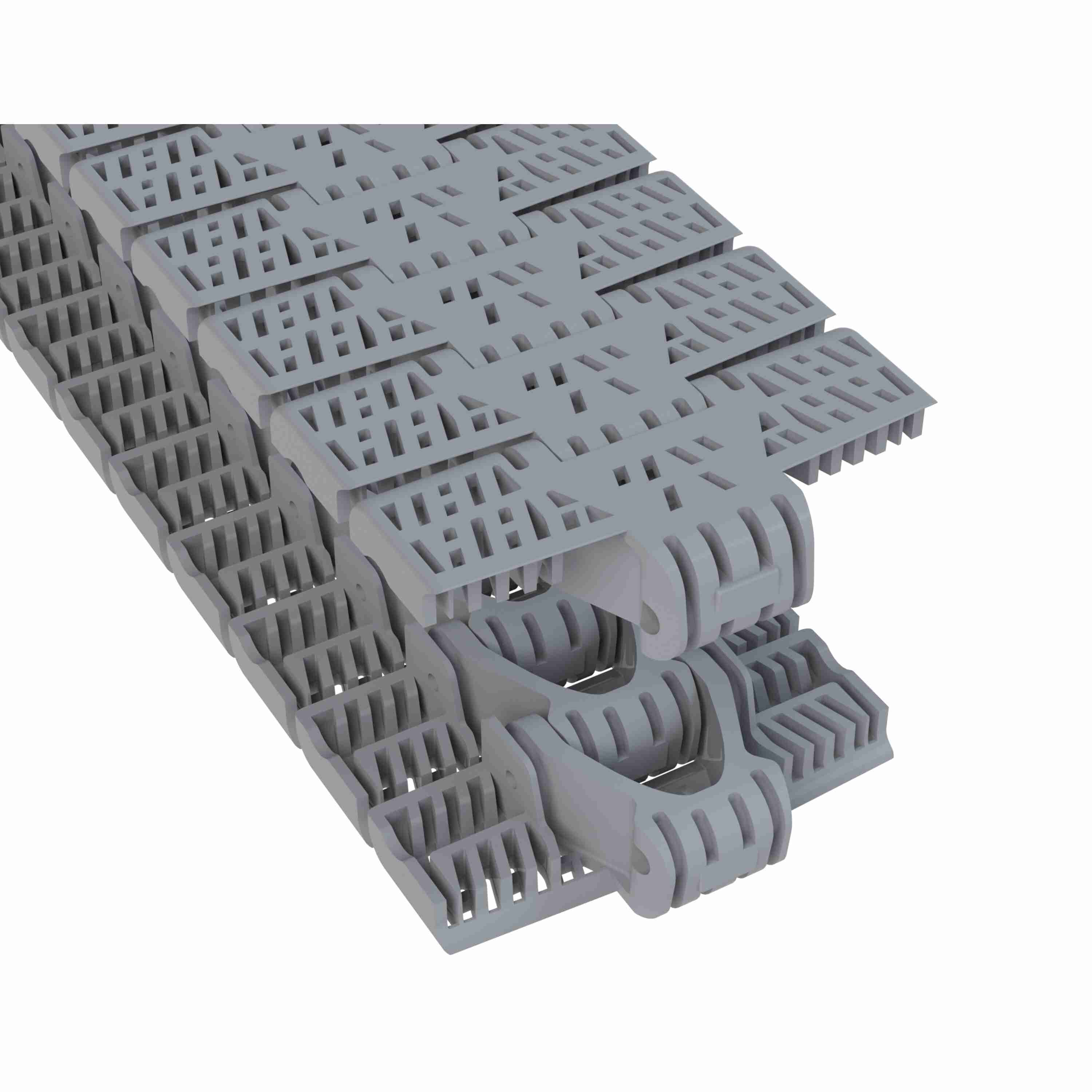

Rexnord 1040FGM Side-flexing Flush Grid, Material: Silver Platinum Series™ X, Width: 3.3in, Pitch: 1in - 10604586
Part #:10604586
Catalog #:10604586
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Chain Material: | PSX |
| Chain Material Description: | Silver Platinum Series™ X | Chain Strength (N): | 1,500 N |
| Series: | TableTop 1040 Series Side-flexing Chain | Chain Width (mm): | 83.8 mm |
| Chain Pitch (mm): | 25.4 mm | Rod/Pin Material: | Stainless Steel |
| Surface Type: | Flush Grid | Chain Strength (lb): | 338 lb |
| Chain Pitch (in): | 1 in | Curve Retention Type: | Magnetic |
| Flight Thickness (mm): | 8.6 mm | Chain Width (in): | 3.3 in |
| Straight or Side-Flex: | Side-flexing | Flight Thickness (in): | 0.34 in |
| Chain Number: | 1040FGM |
General Specifications
| Weight: | 0.02 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
