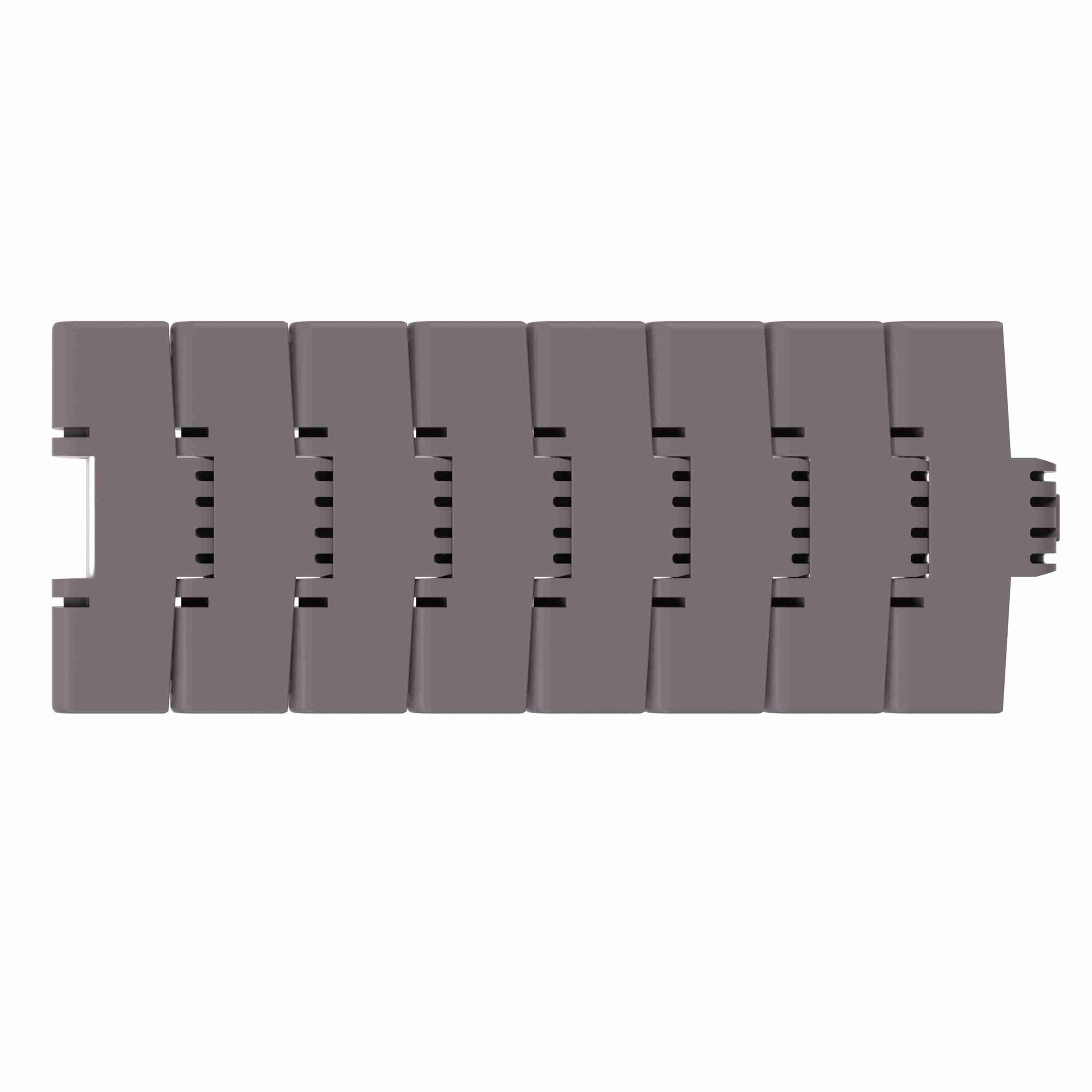

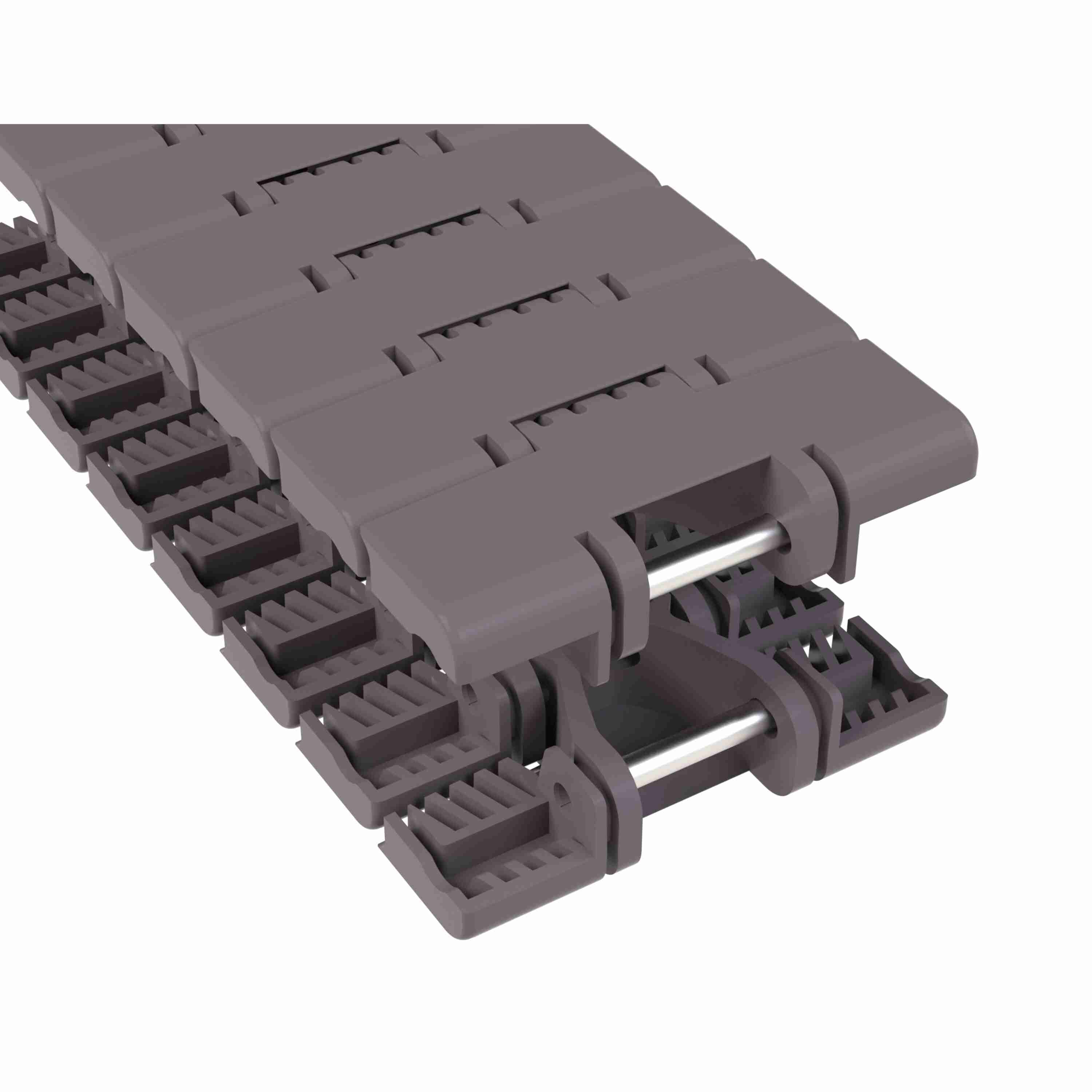

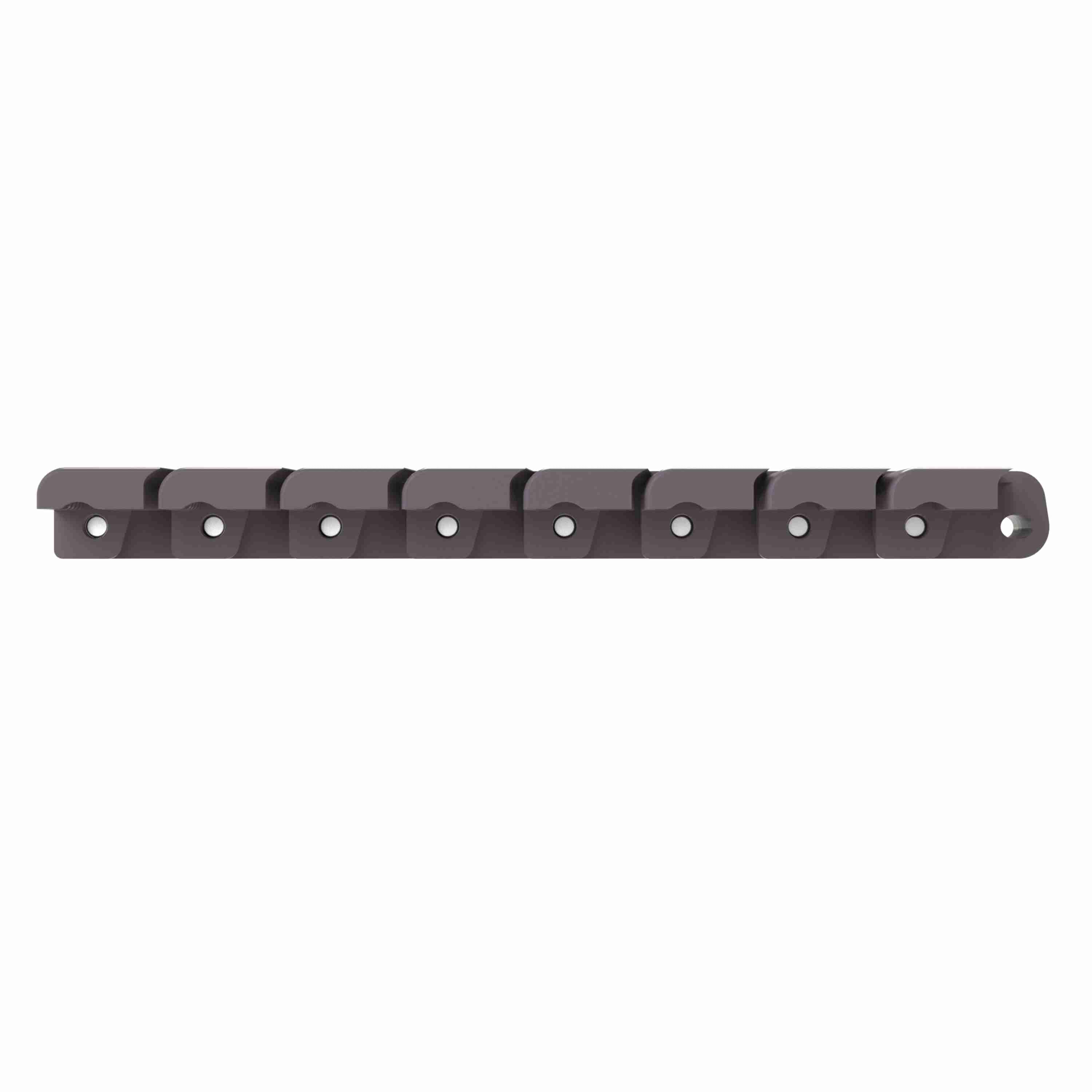

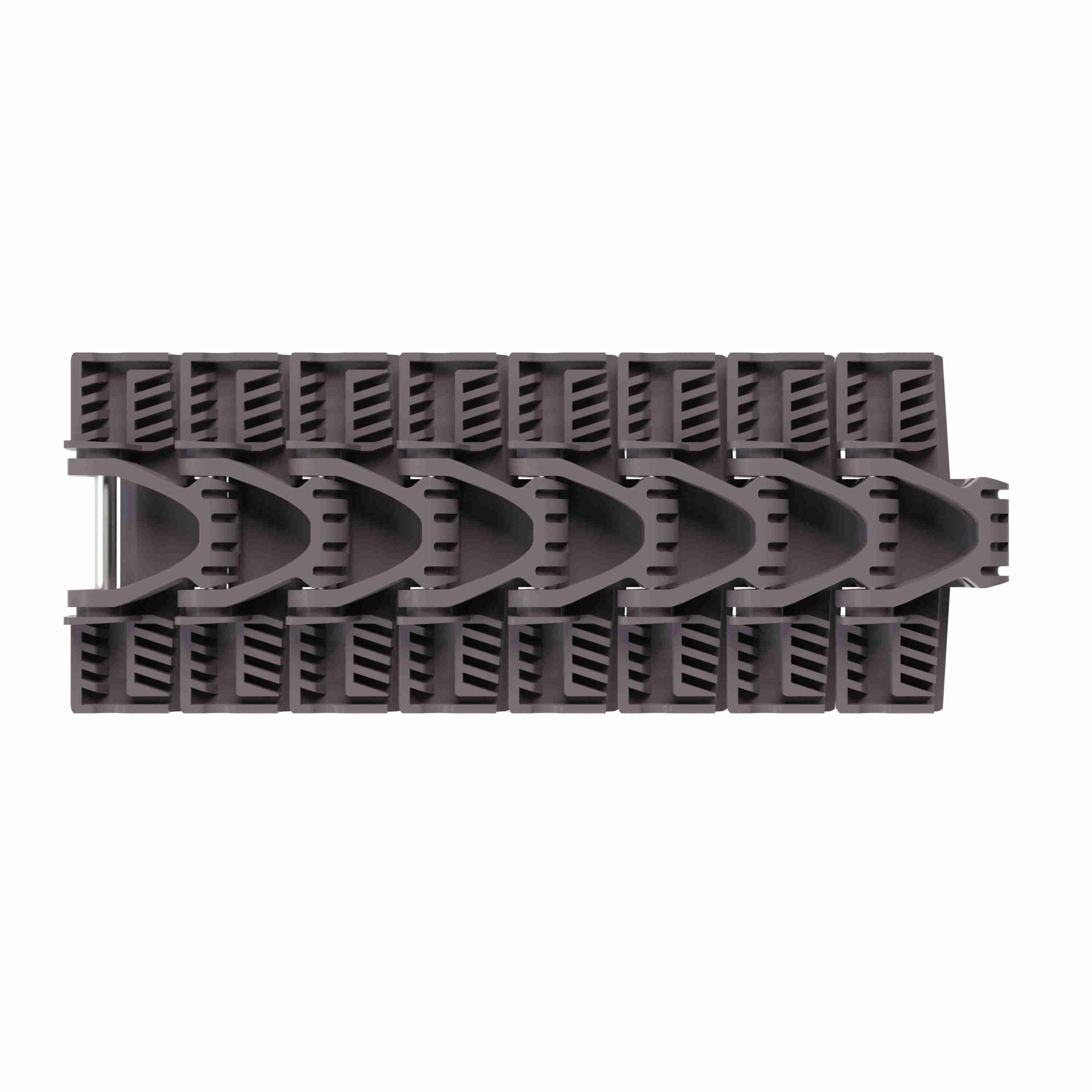

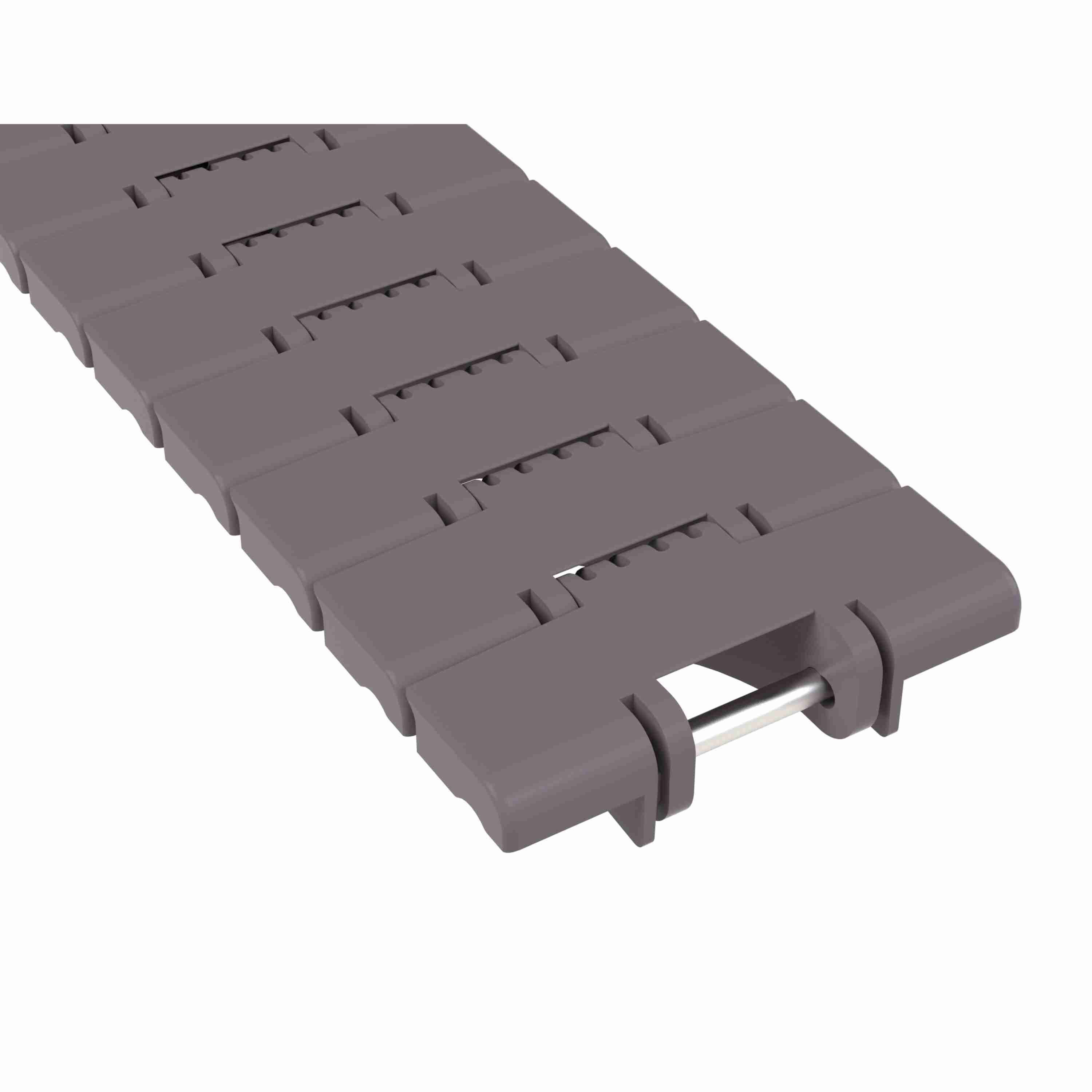

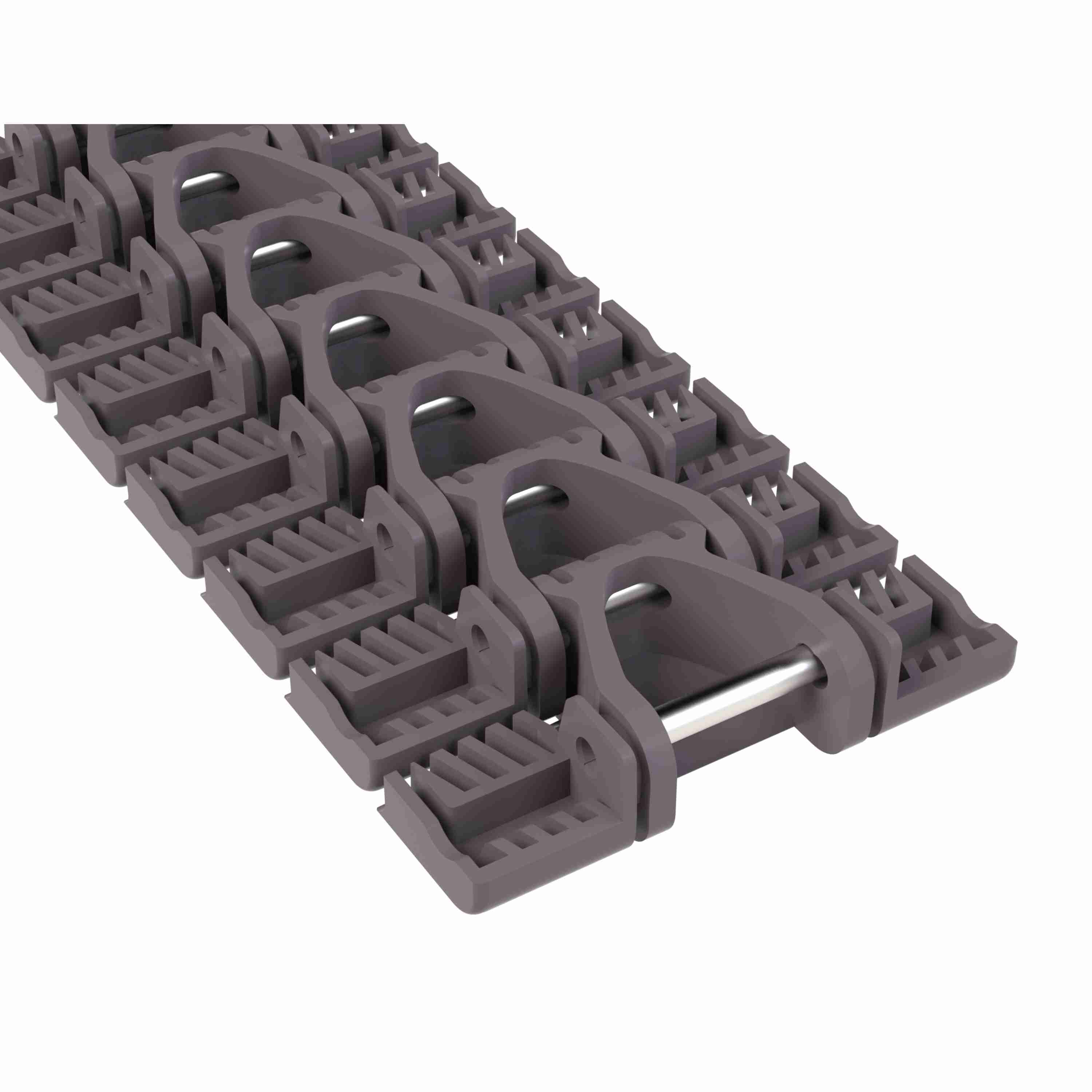

Rexnord 1040FTM Side-flexing Solid Top, Material: Brown High Performance, Width: 3.3in, Pitch: 1in - 10608553
Part #:10608553
Catalog #:10608553
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 83.8 mm | Rod/Pin Material: | Stainless Steel |
| Surface Type: | Solid Top | Curve Retention Type: | Magnetic |
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 1,500 N |
| Chain Number: | 1040FTM | Chain Pitch (in): | 1 in |
| Series: | TableTop 1040 Series Side-flexing Chain | Chain Strength (lb): | 338 lb |
| Chain Width (in): | 3.3 in | Straight or Side-Flex: | Side-flexing |
| Flight Thickness (in): | 0.34 in | Chain Material: | HP |
| Chain Material Description: | Brown High Performance | Flight Thickness (mm): | 8.6 mm |
| Chain Pitch (mm): | 25.4 mm |
General Specifications
| Weight: | 0.05 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
