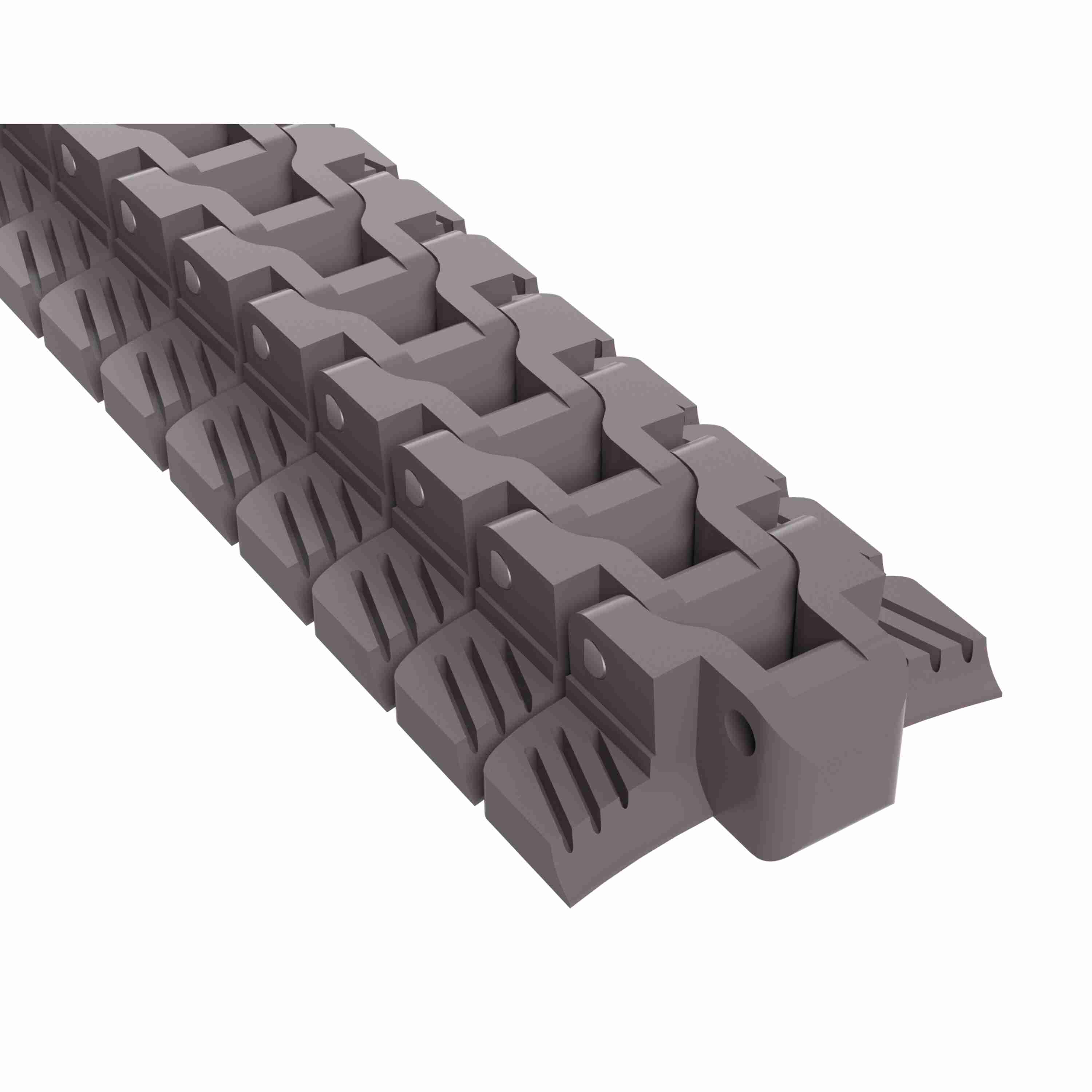

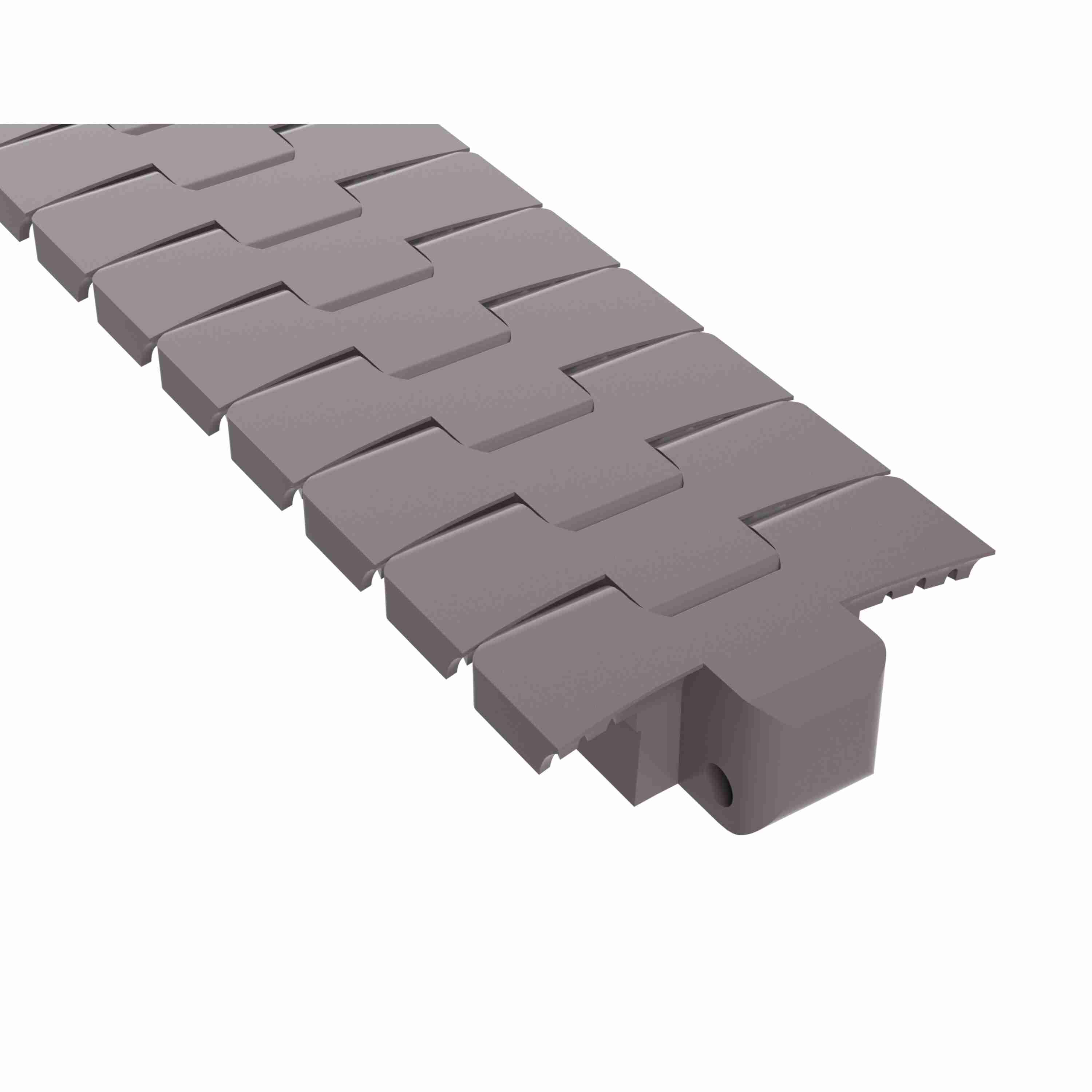

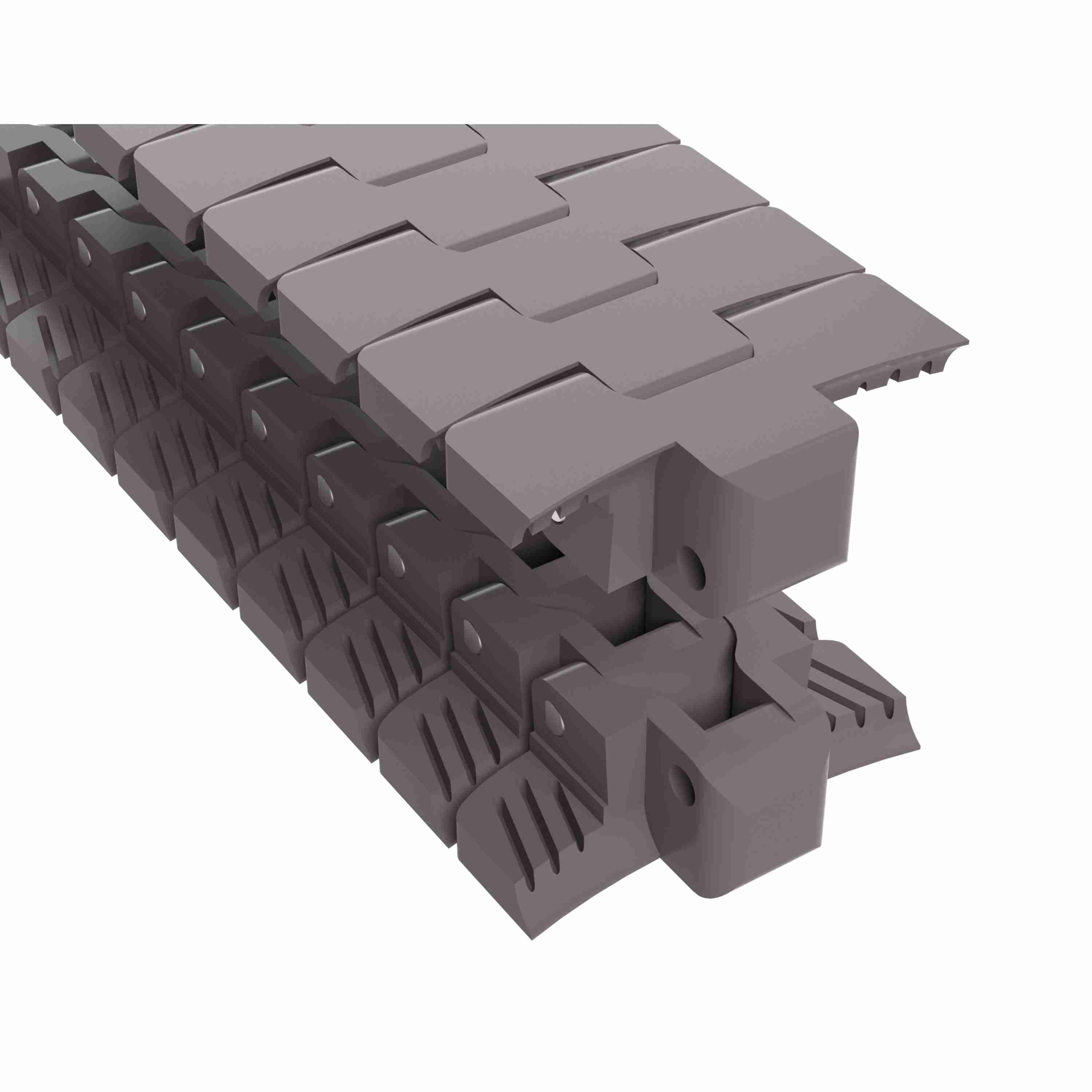

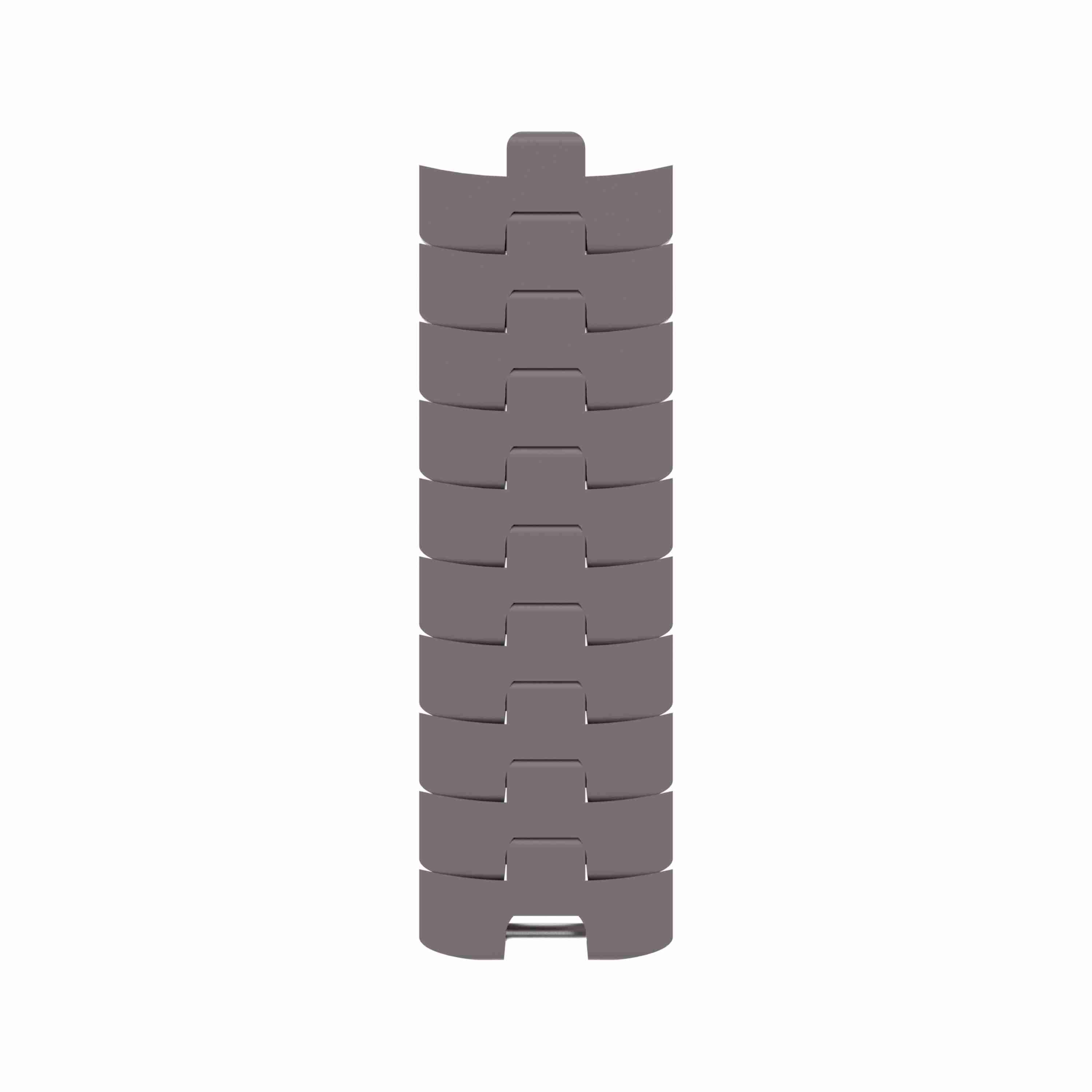

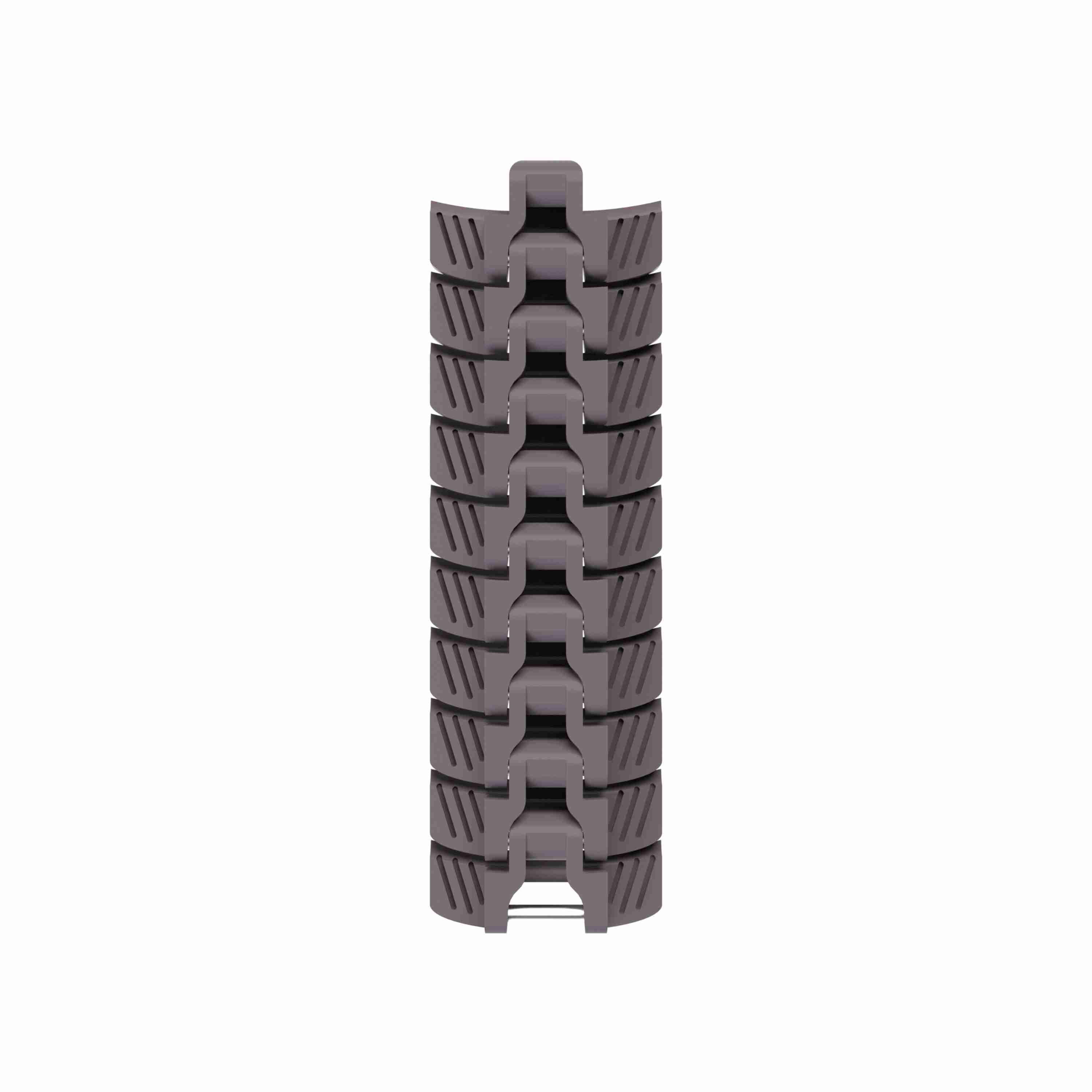

Rexnord 1050 FTLPC Side-flexing Solid Top, Material: Brown High Performance, Width: 3.25in, Pitch: 1in - 81429721
Part #:10145527
Catalog #:81429721
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 425 lb | Series: | TableTop 1050 Series Side-flexing Chain |
| Straight or Side-Flex: | Side-flexing | Chain Pitch (in): | 1 in |
| Chain Material Description: | Brown High Performance | Chain Pitch (mm): | 25.4 mm |
| Chain Number: | 1050 FTLPC | Chain Width (in): | 3.25 in |
| Chain Strength (N): | 1,887 N | Flight Thickness (mm): | 8.6 mm |
| Rod/Pin Material: | Stainless Steel | Curve Retention Type: | Low Pin Centerline |
| Flight Thickness (in): | 0.34 in | Chain Width (mm): | 82.6 mm |
| Surface Type: | Solid Top | Chain Material: | HP |
| Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 0.11 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
