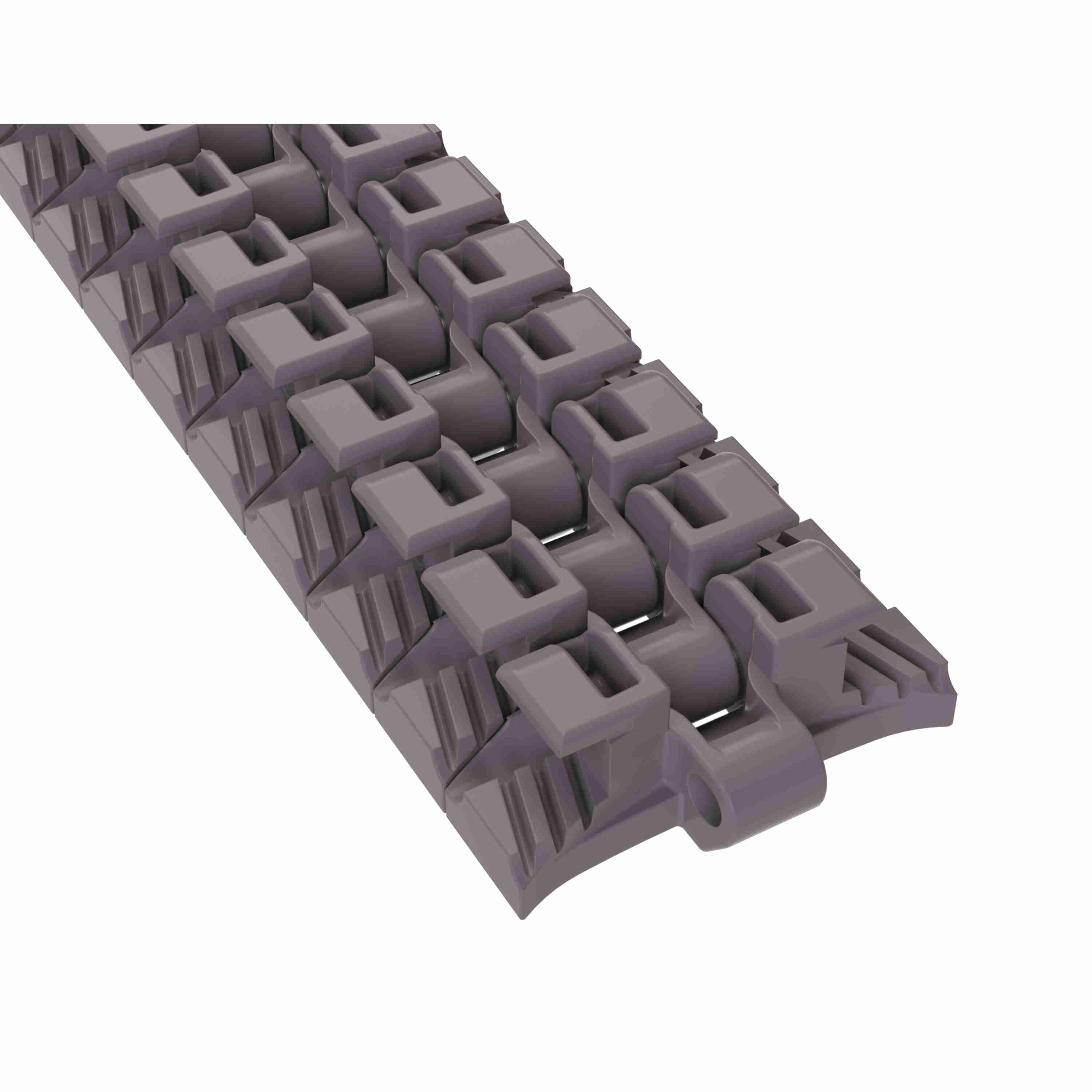

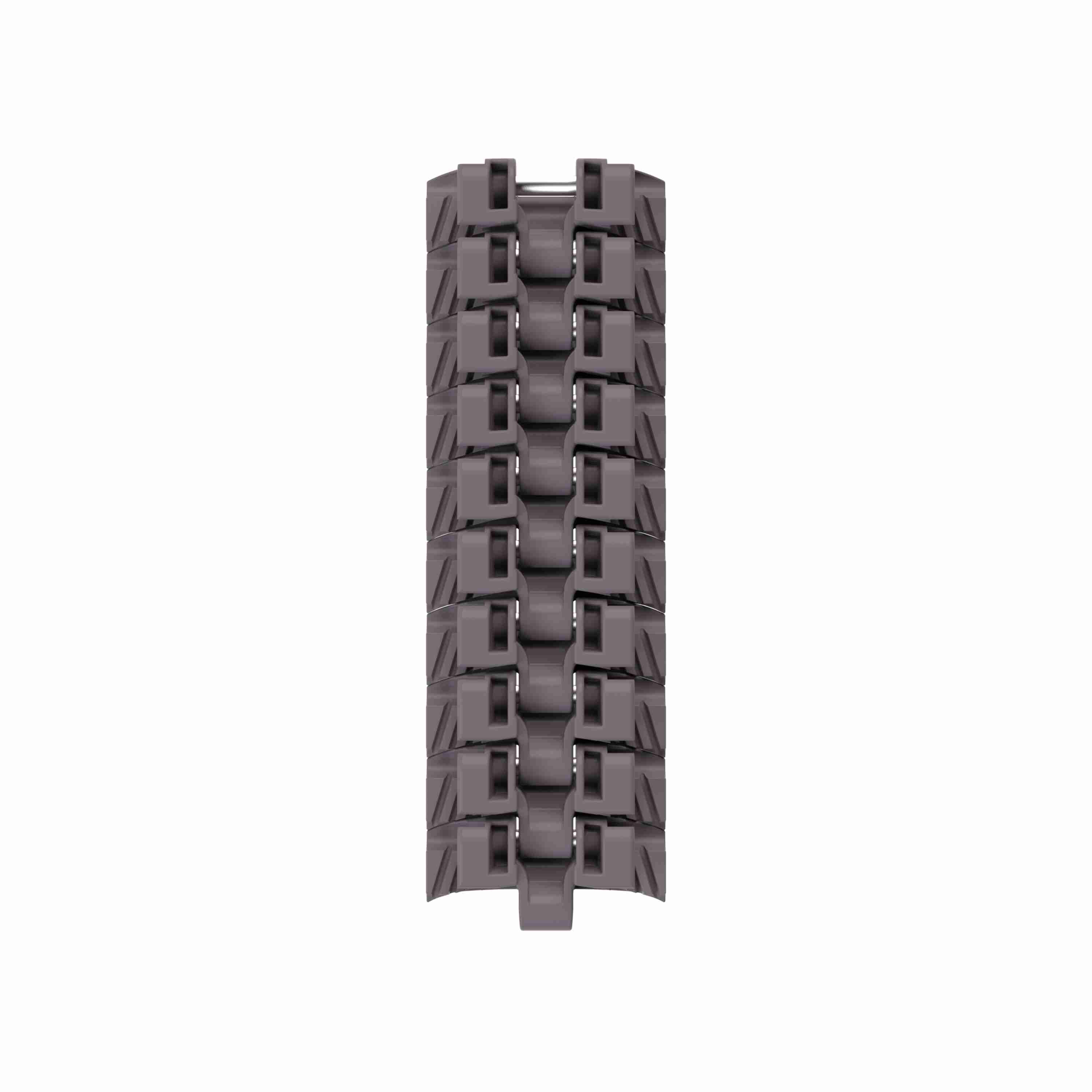

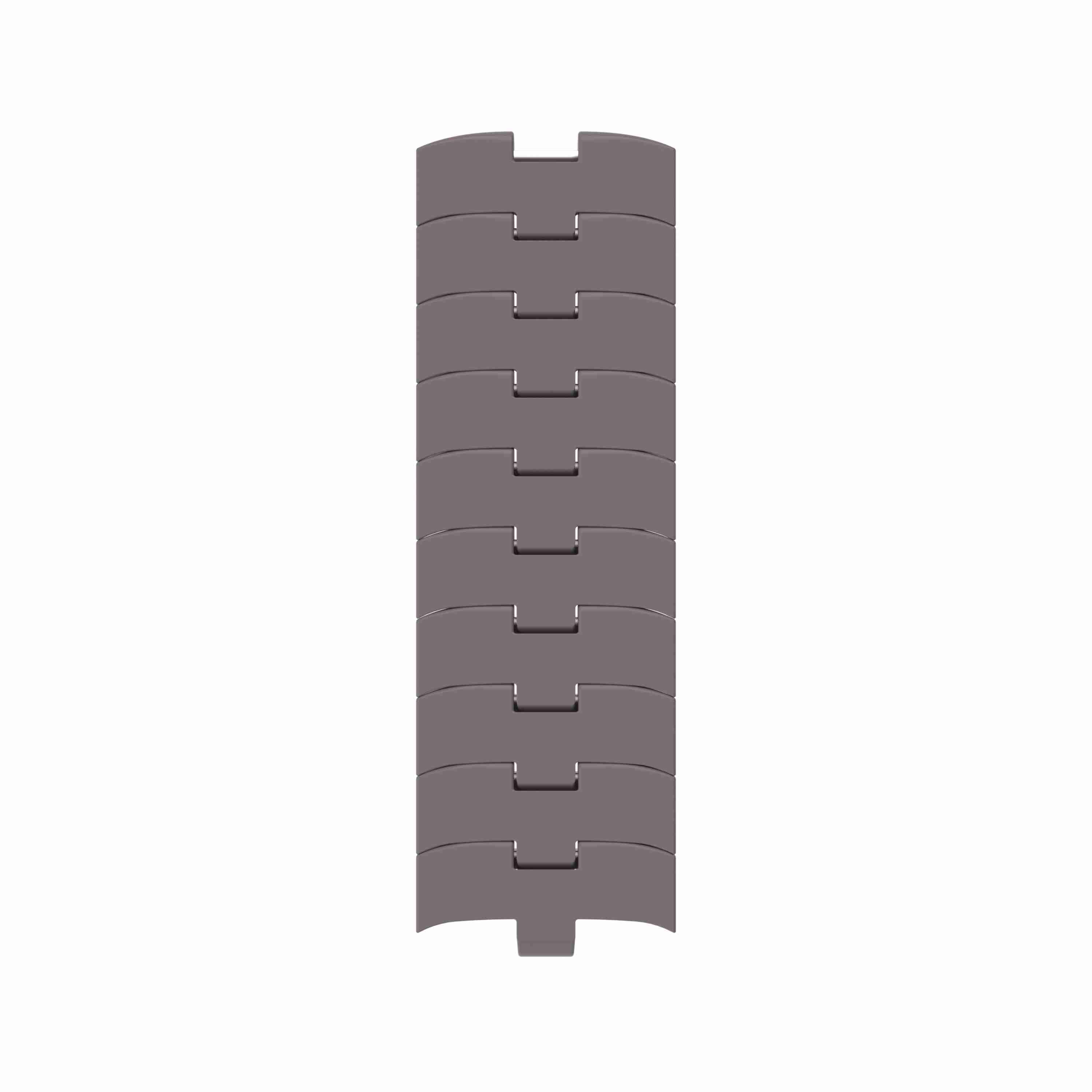

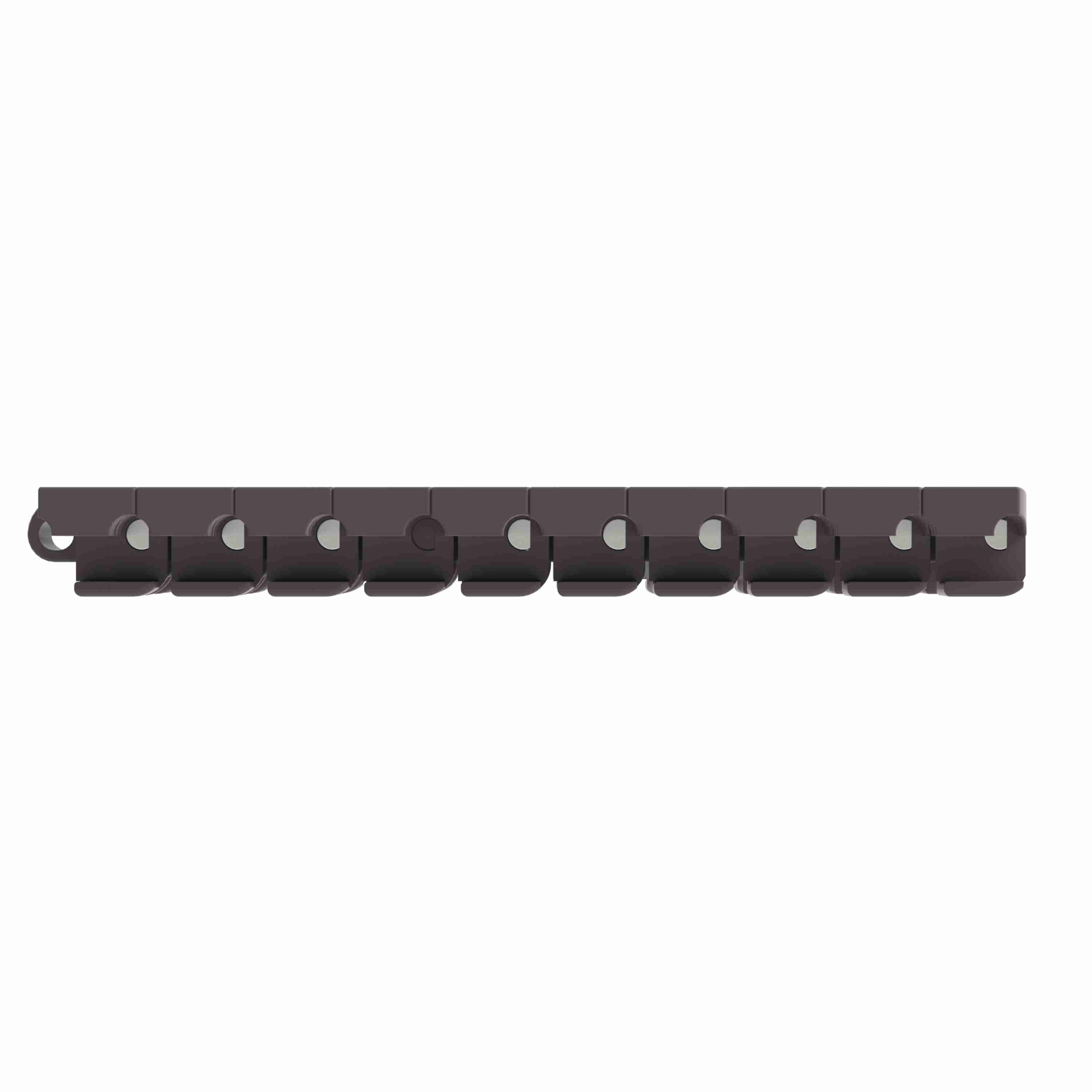

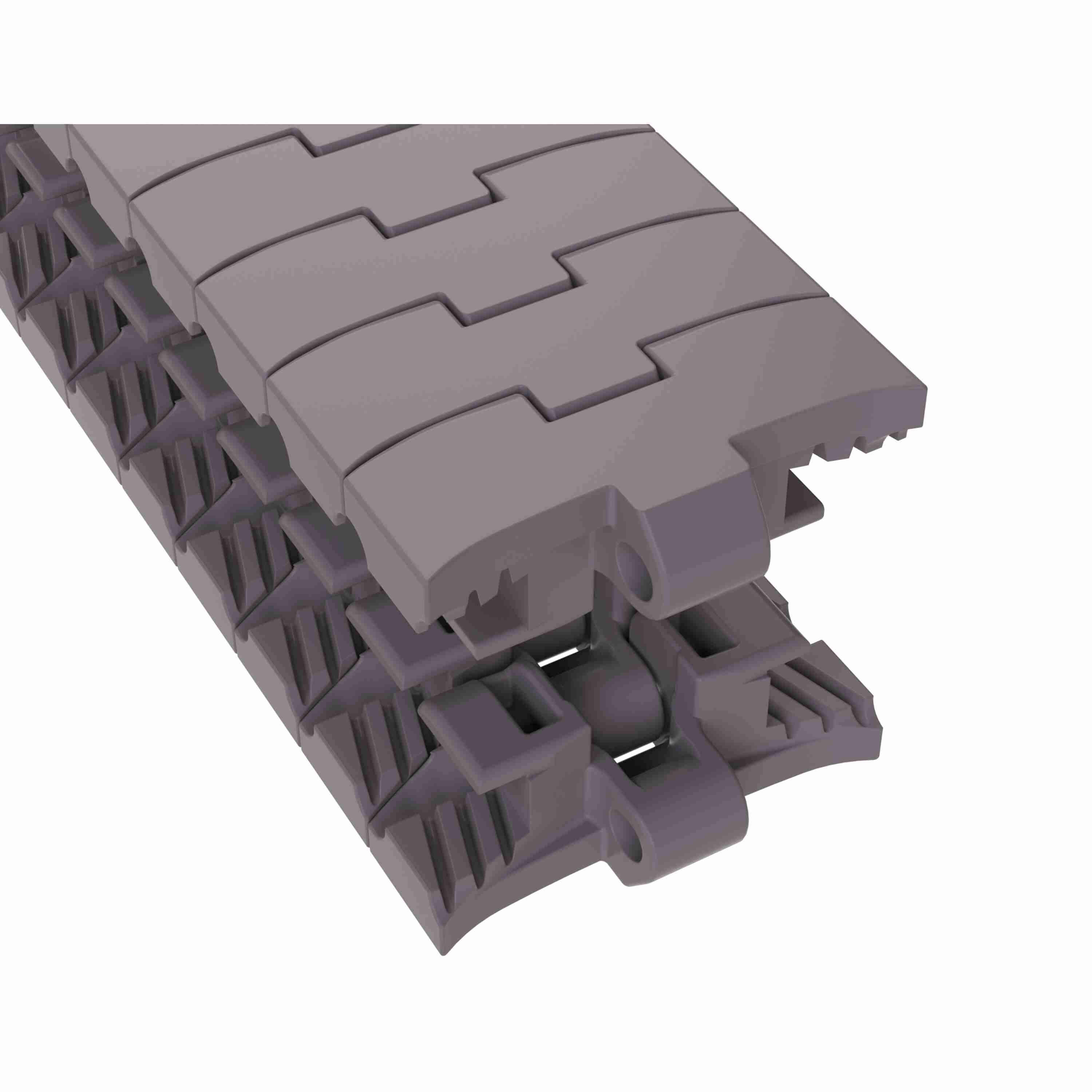

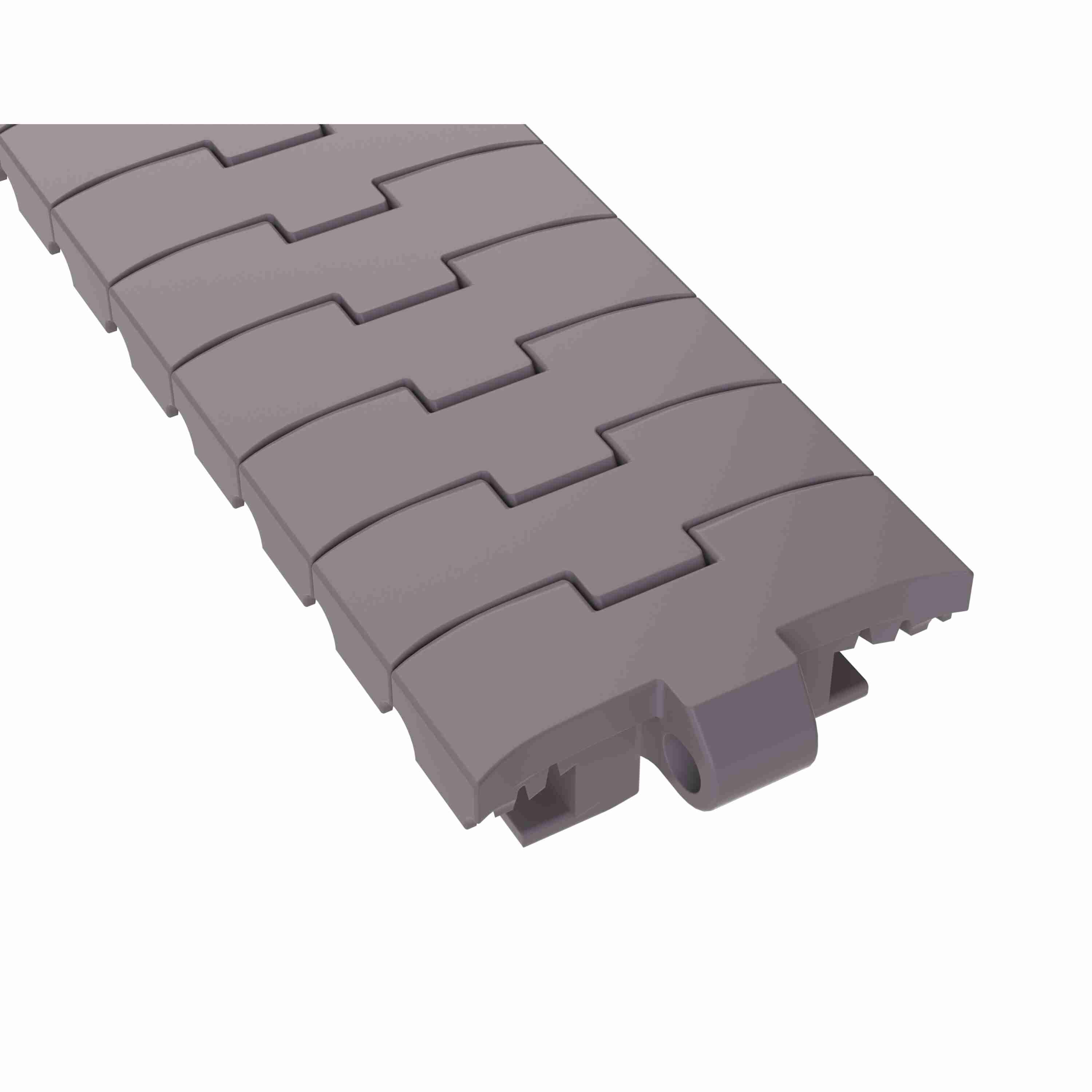

Rexnord 1055 FTTAB Side-flexing Solid Top, Material: Brown High Performance, Width: 3.3in, Pitch: 1in - 749.73.31
Part #:10139076
Catalog #:749.73.31
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Stainless Steel | Chain Number: | 1055 FTTAB |
| Series: | TableTop 1055 Series Side-flexing Chain | Chain Strength (lb): | 425 lb |
| Flight Thickness (in): | 0.5 in | Chain Material: | HP |
| Chain Strength (N): | 1,887 N | Chain Width (in): | 3.3 in |
| Chain Material Description: | Brown High Performance | Flight Thickness (mm): | 12.7 mm |
| Chain Width Measurement System: | Imperial | Chain Pitch (in): | 1 in |
| Straight or Side-Flex: | Side-flexing | Chain Pitch (mm): | 25.4 mm |
| Chain Width (mm): | 83.8 mm | Curve Retention Type: | TAB |
| Surface Type: | Solid Top |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
