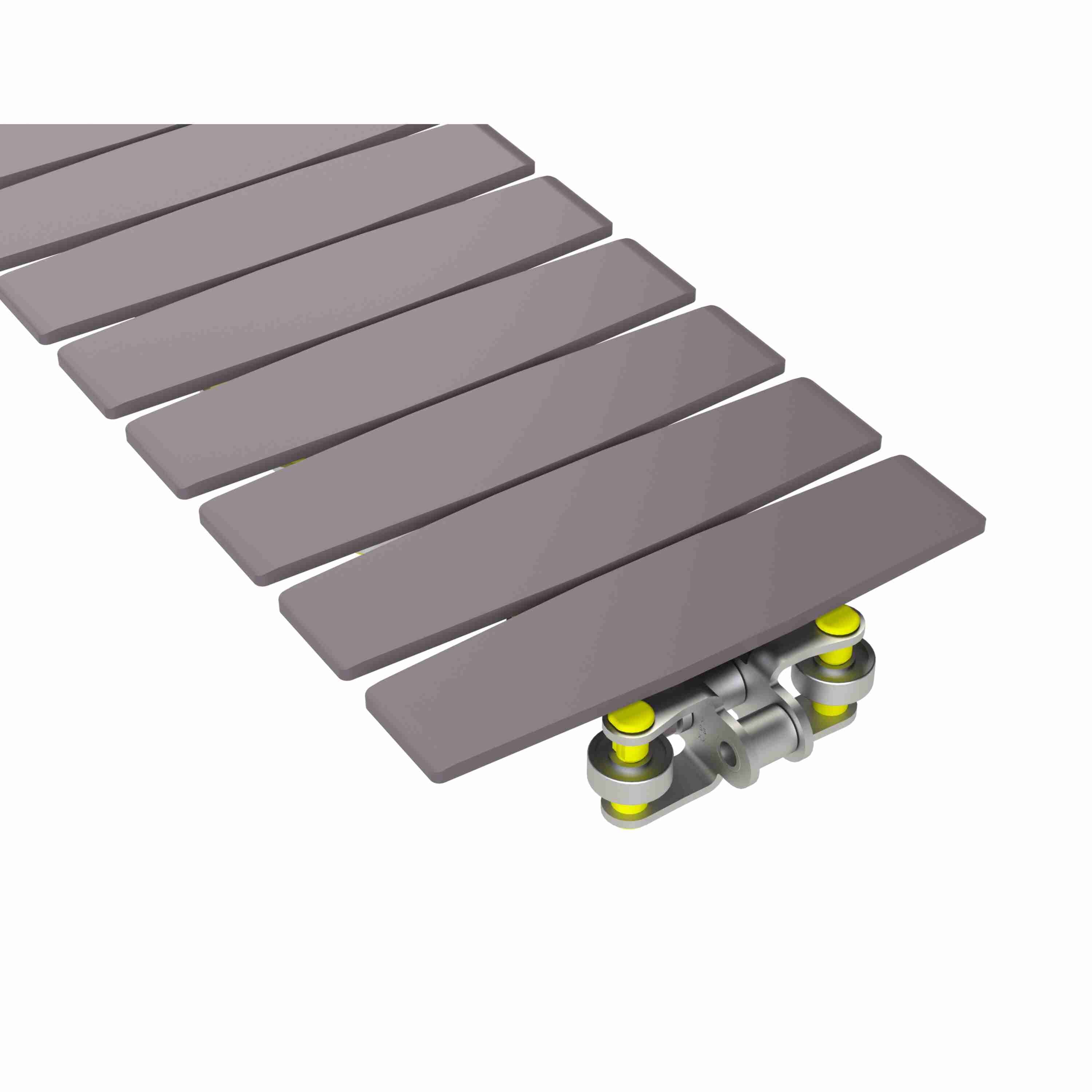

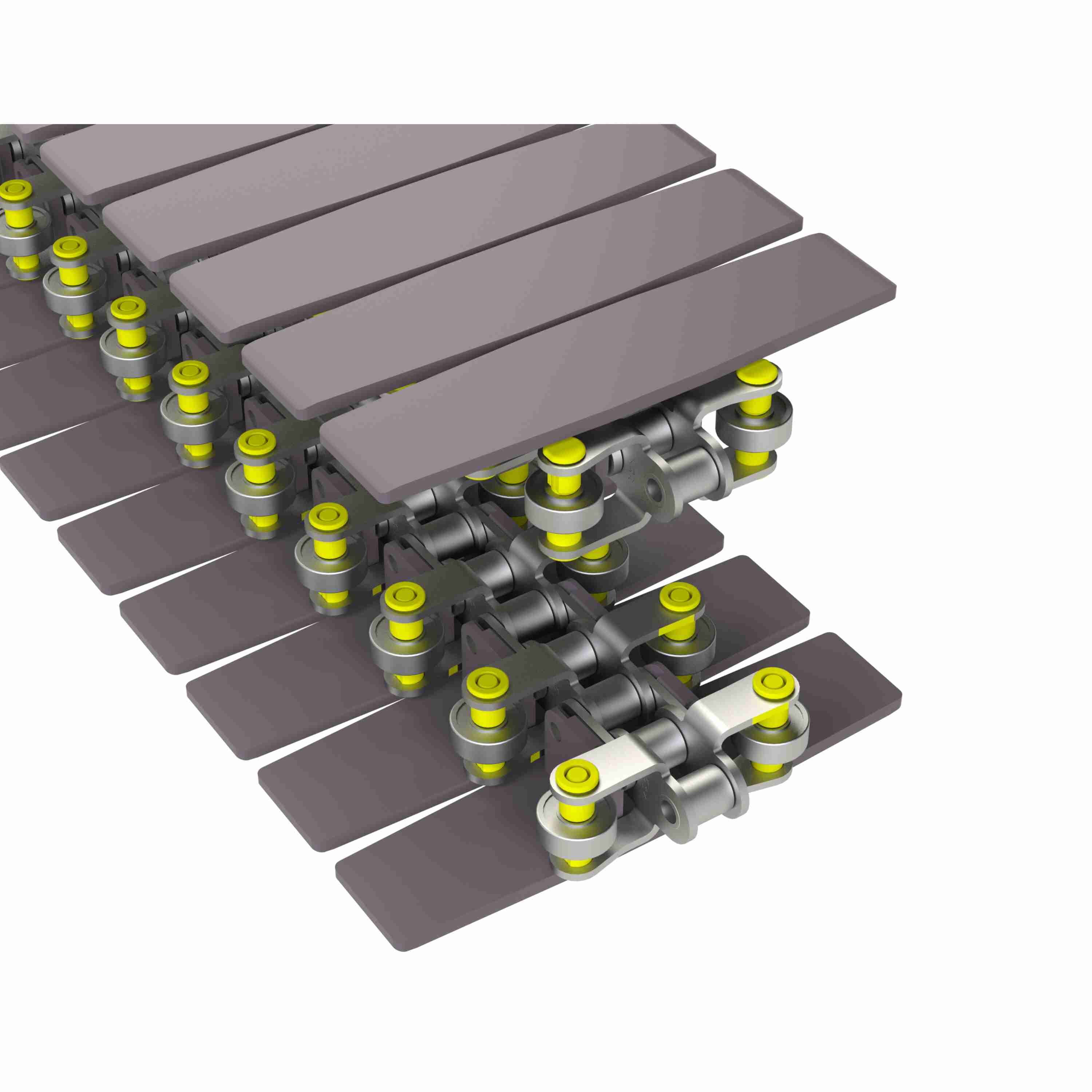

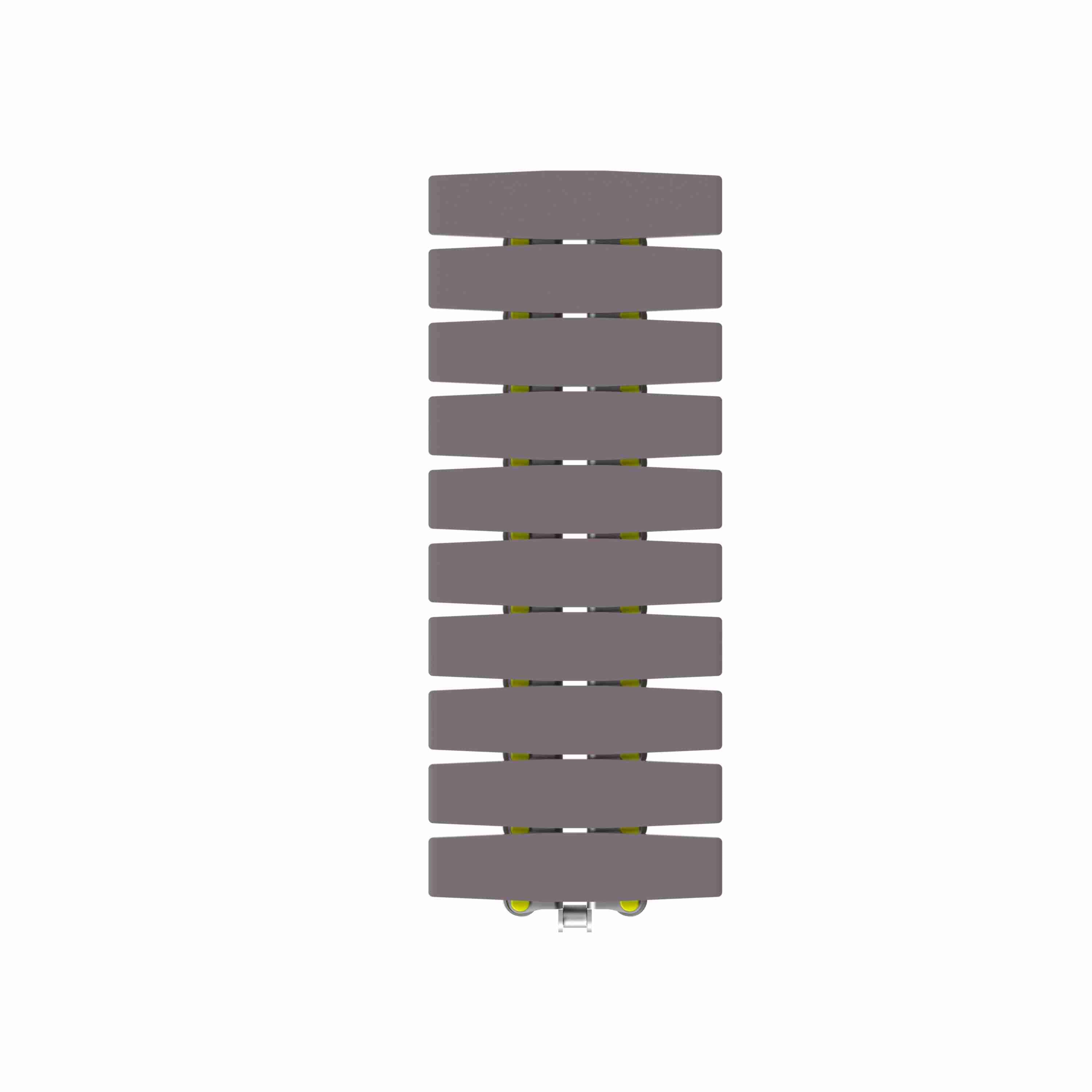

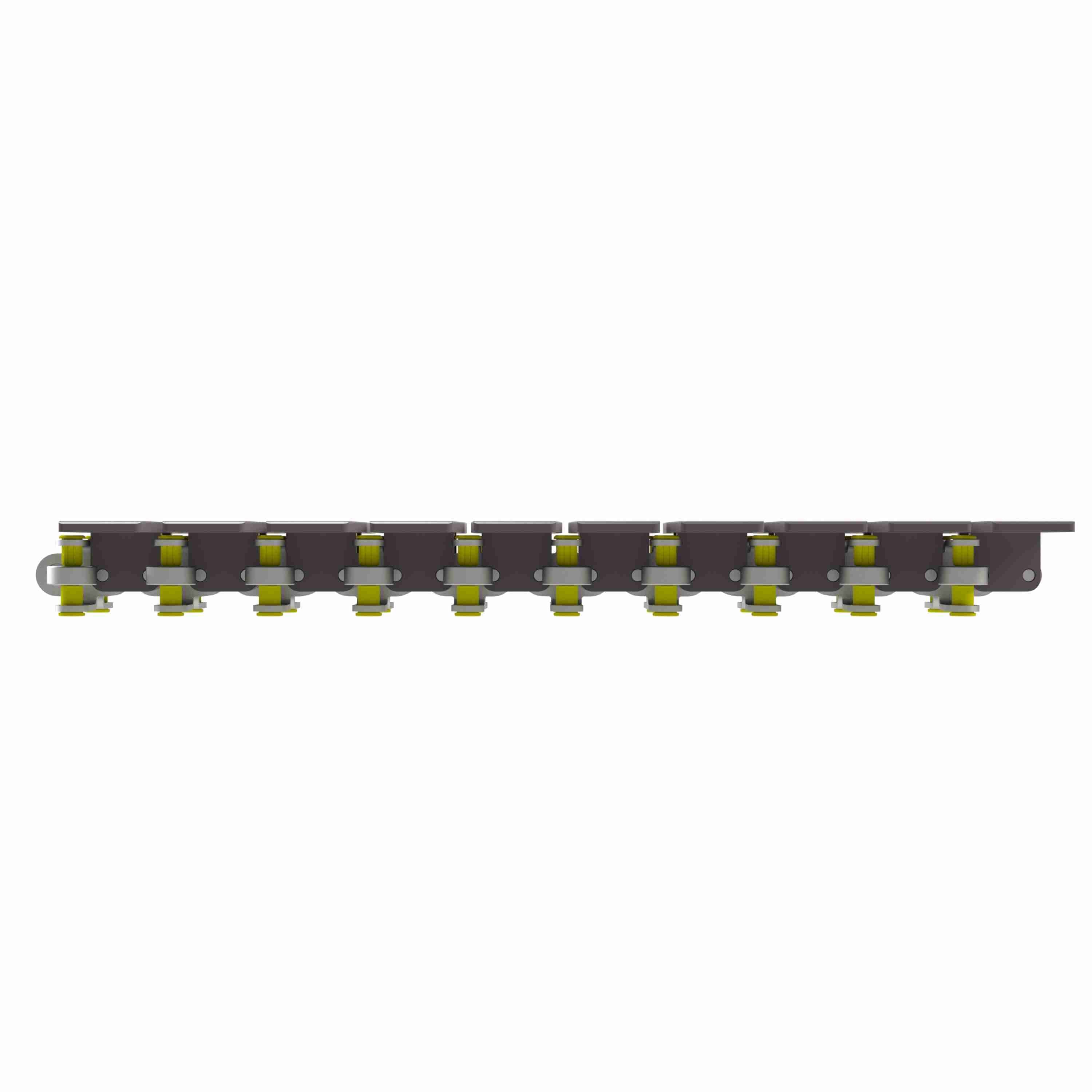

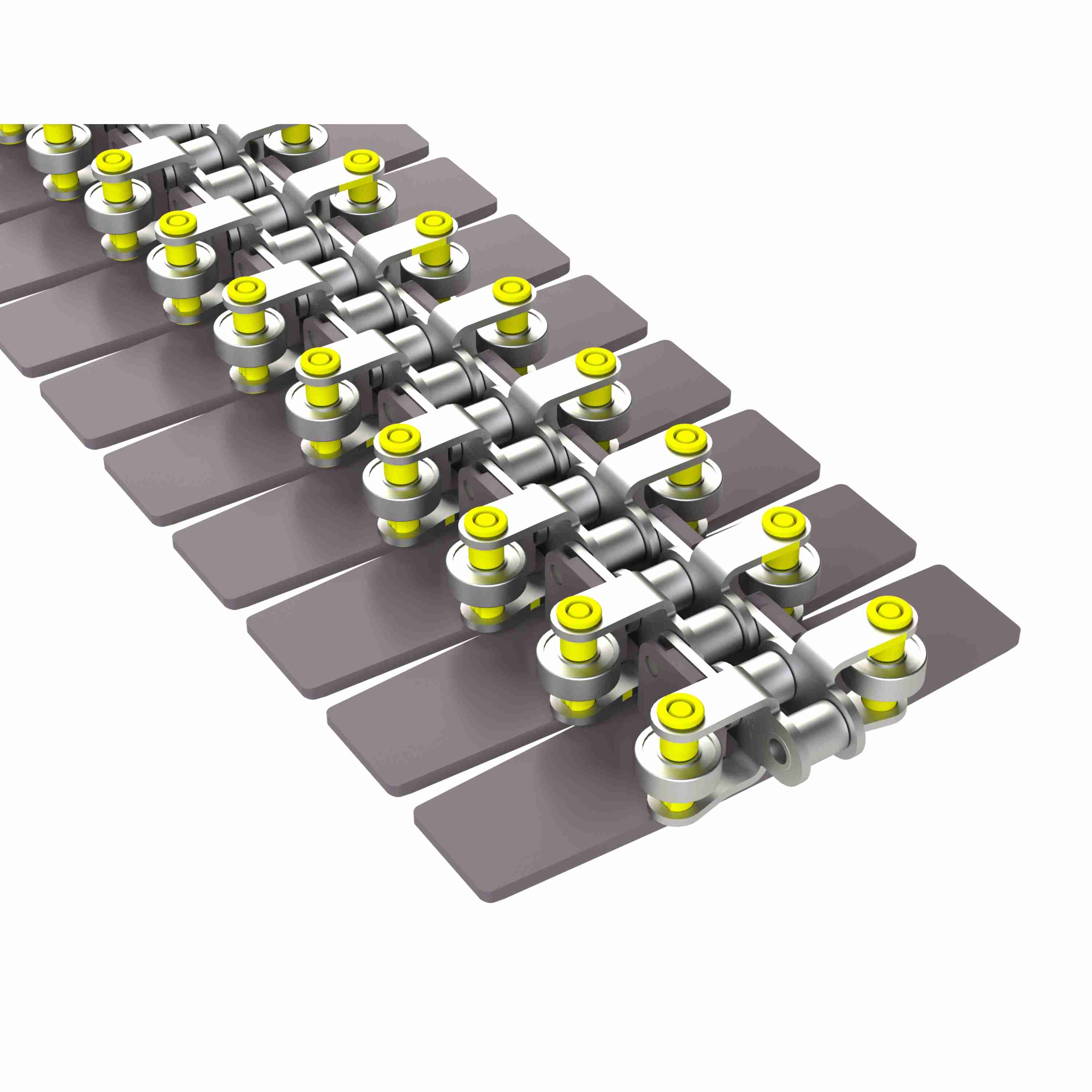

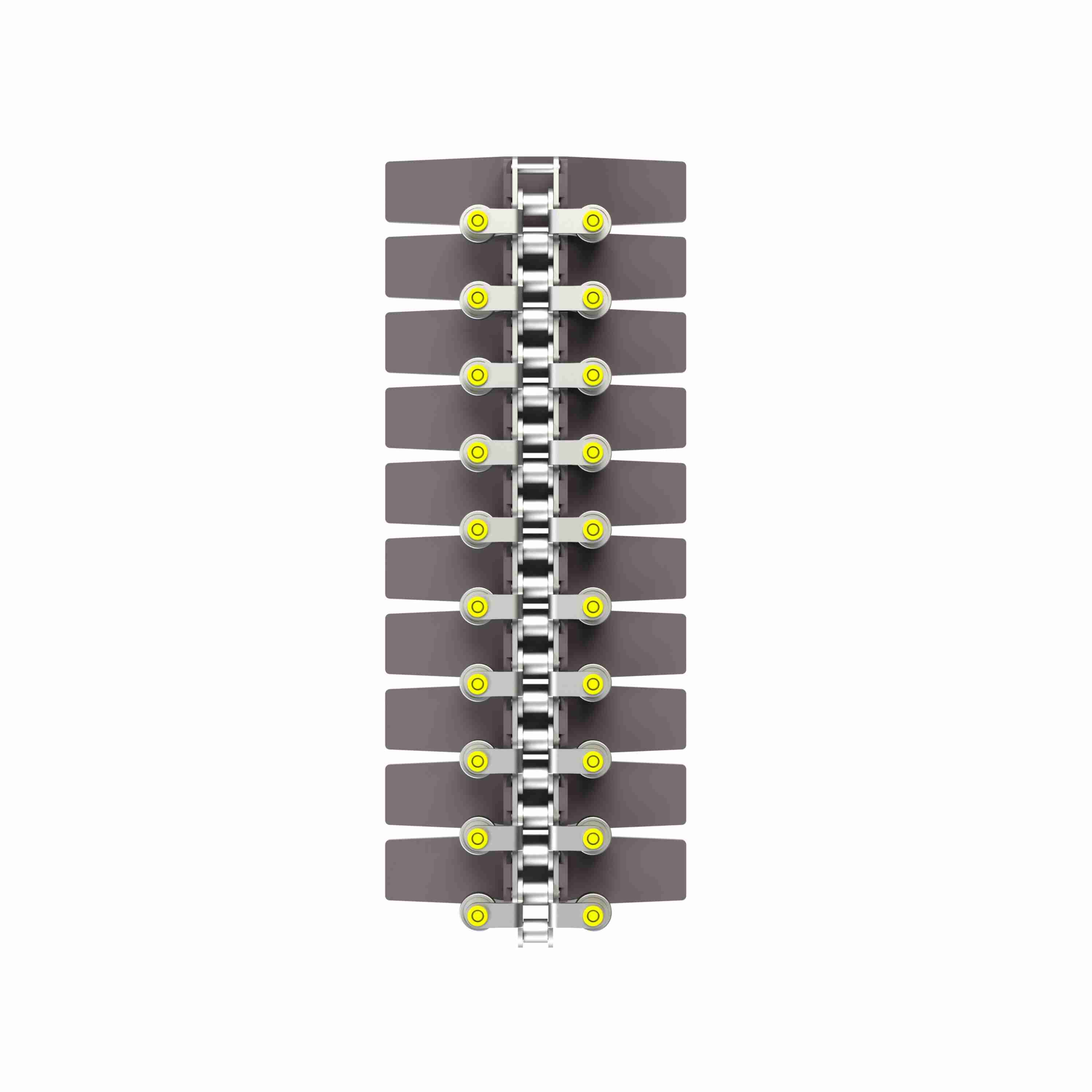

Rexnord 1673 Side-flexing Solid Top, Material: Brown High Performance, Width: 6in, Pitch: 1.5in - 10196349
Part #:10196349
Catalog #:10196349
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N): | 3,463 N | Flight Thickness (mm): | 4 mm |
| Surface Type: | Solid Top | Chain Strength (lb): | 780 lb |
| Base Chain Material: | Steel | Chain Material: | HP |
| Chain Width (mm): | 152.4 mm | Series: | TableTop 1673 Series Side-flexing Chain |
| Chain Pitch (mm): | 38.1 mm | Chain Material Description: | Brown High Performance |
| Chain Pitch (in): | 1.5 in | Flight Thickness (in): | 0.16 in |
| Straight or Side-Flex: | Side-flexing | Curve Retention Type: | TAB |
| Chain Width (in): | 6 in | Chain Width Measurement System: | Imperial |
| Chain Number: | 1673 |
General Specifications
| Weight: | 0.29 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
