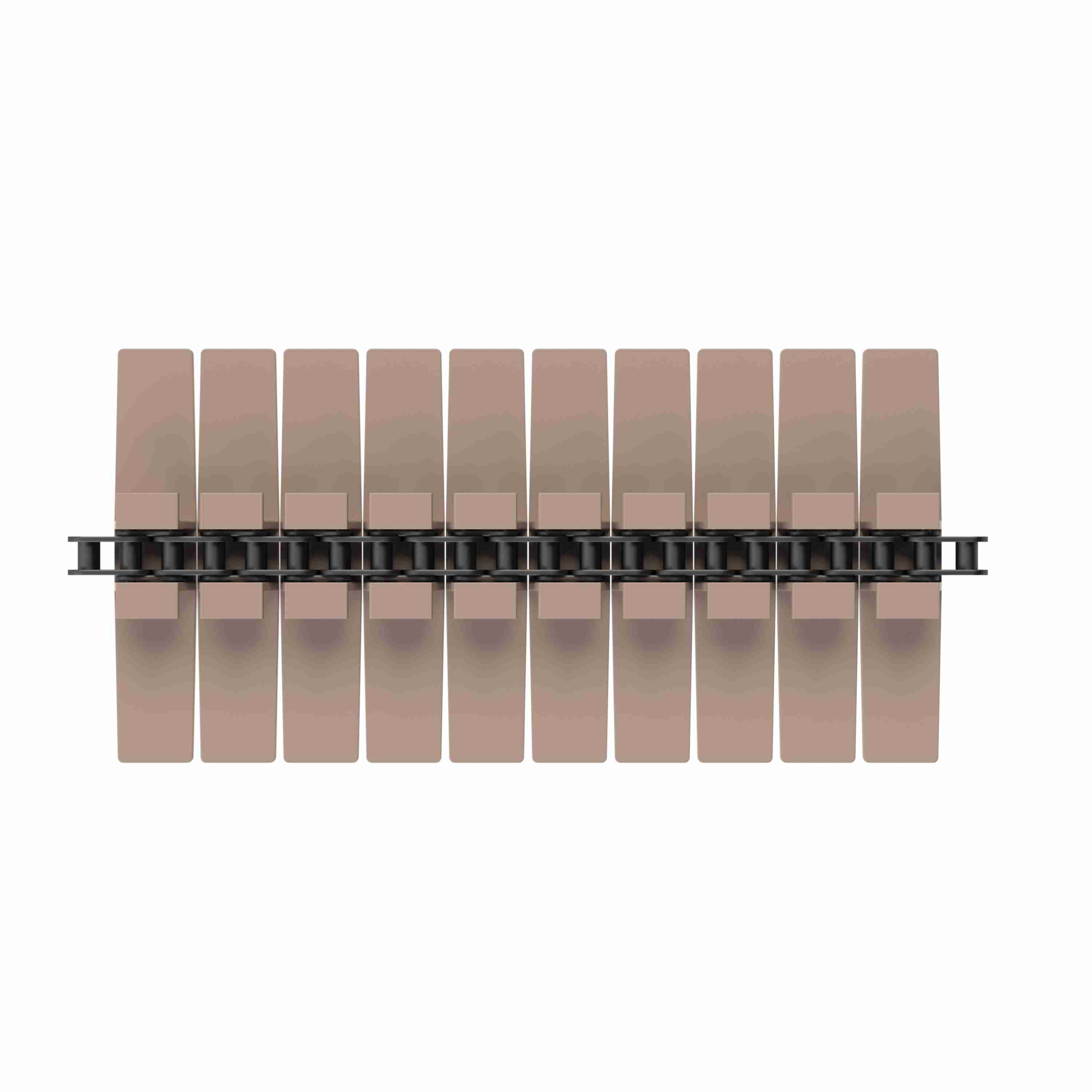

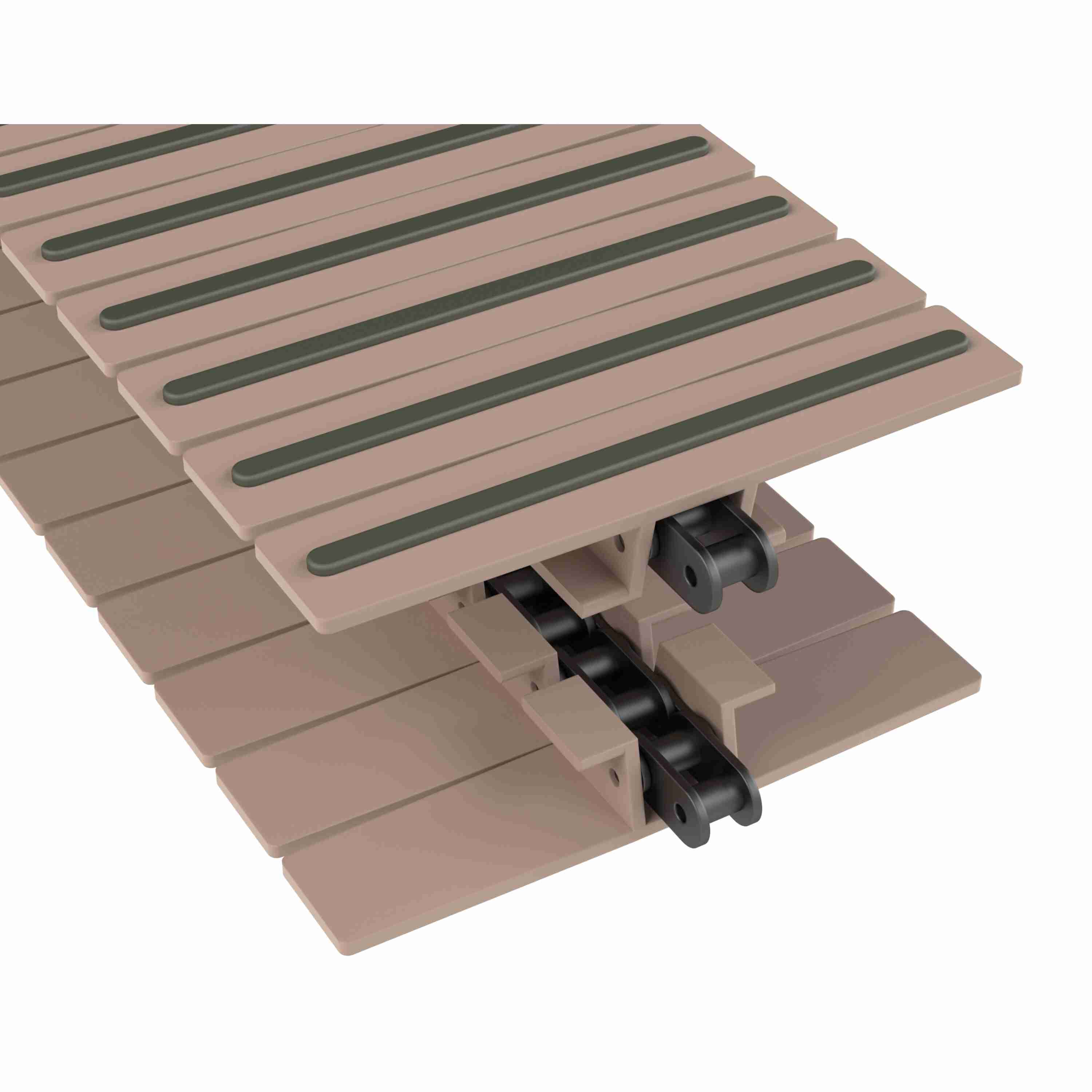

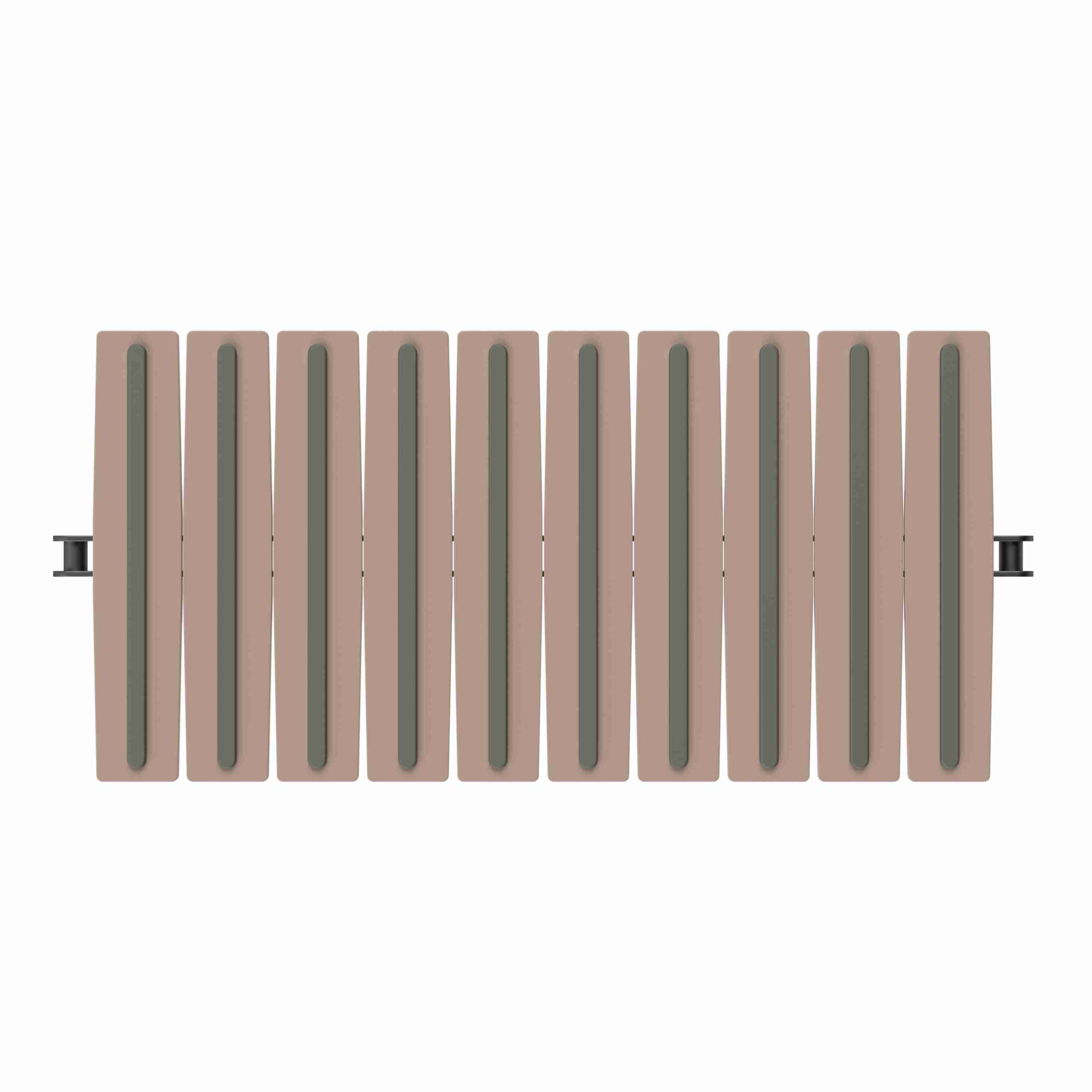

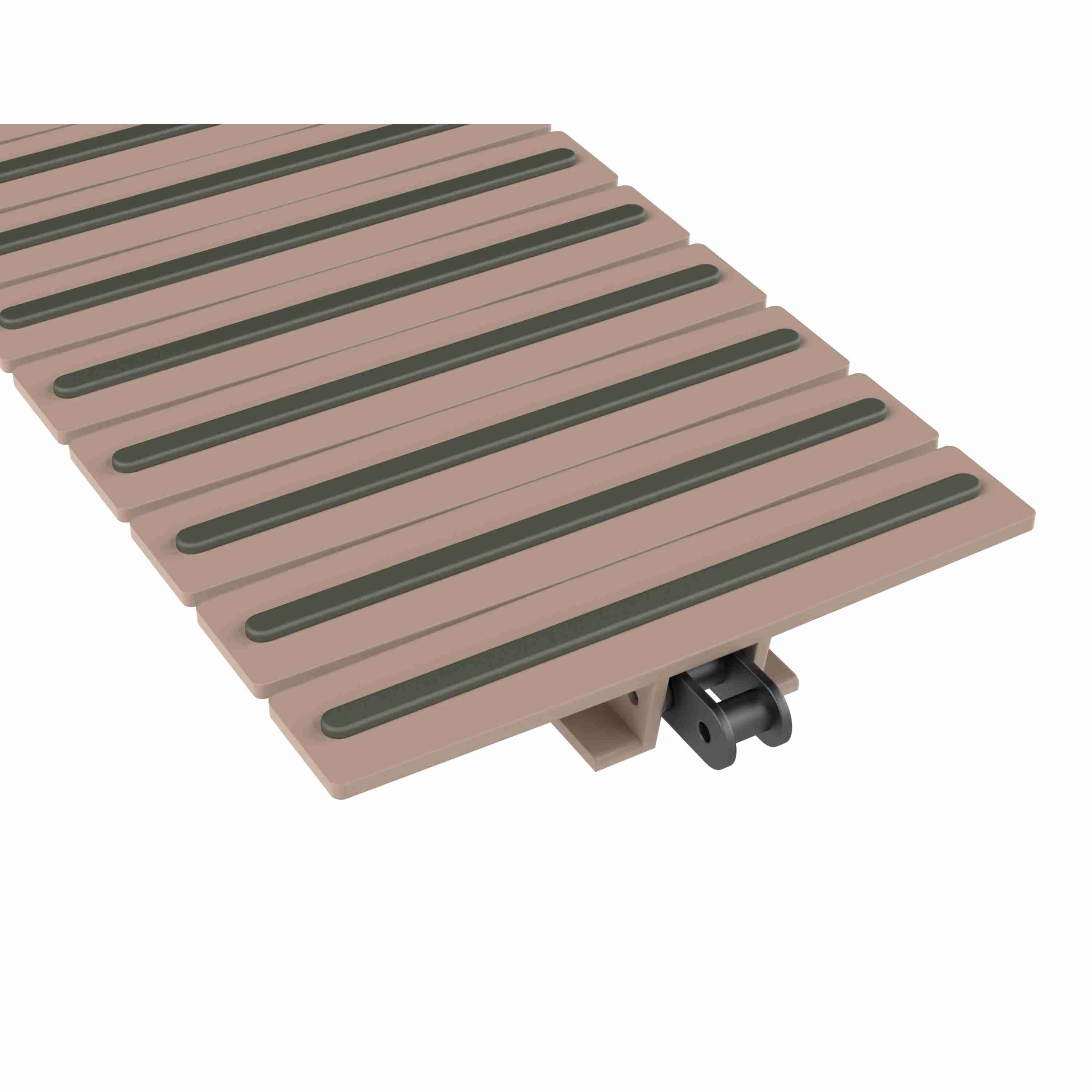

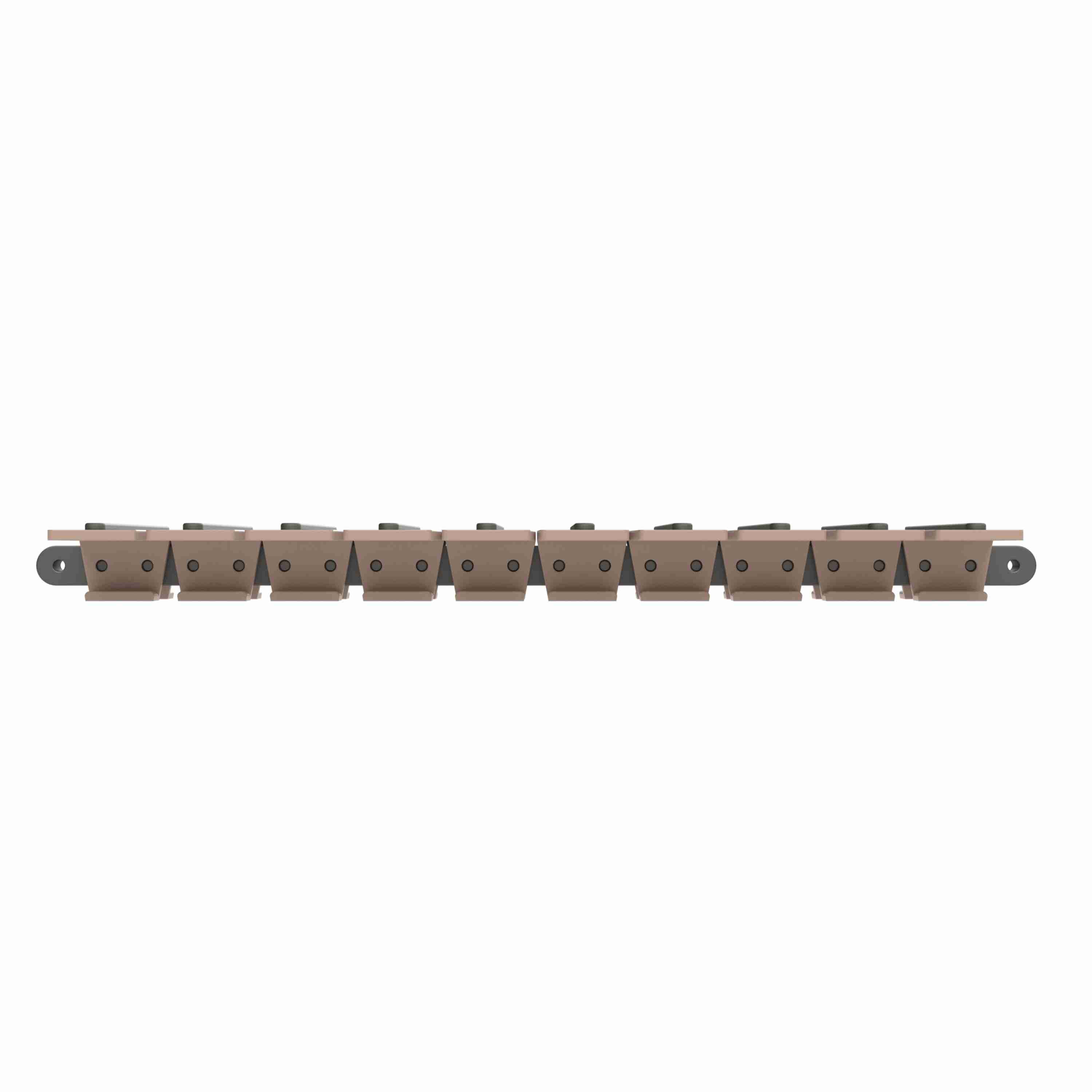

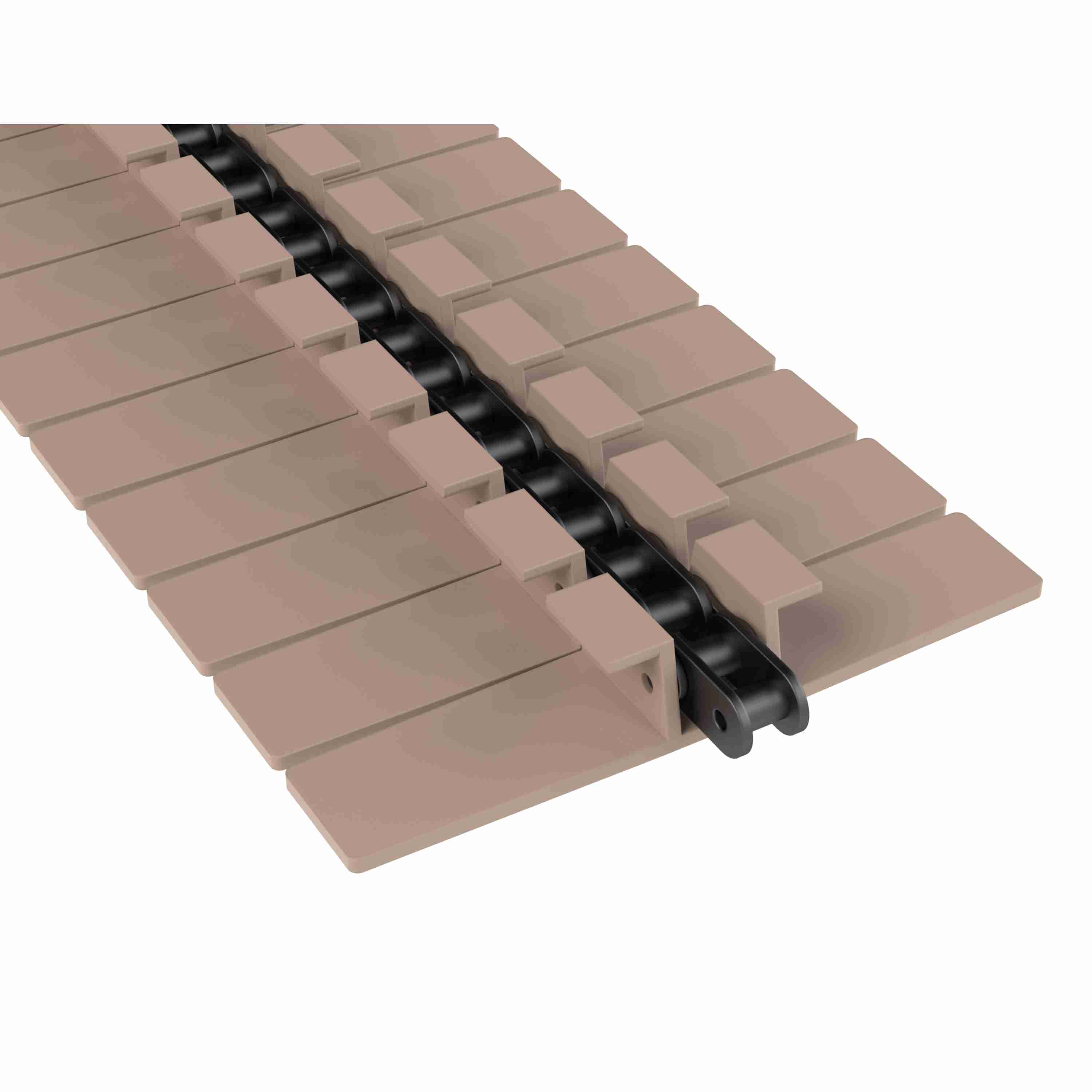

Rexnord 1873TAB RubberTop® Side-flexing RubberTop®, Material: Tan Low Friction, Width: 7.5in, Pitch: 1.5in - 81449551
Part #:10146190
Catalog #:81449551
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Flight Thickness (mm): | 6.9 mm |
| Chain Strength (N): | 3,330 N | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Flight Thickness (in): | 0.27 in | Series: | TableTop 1873 Series Side-flexing Chain |
| Chain Material Description: | Tan Low Friction | Chain Material: | LF |
| Chain Pitch (mm): | 38.1 mm | Chain Width (mm): | 190.5 mm |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Pitch (in): | 1.5 in |
| Chain Number: | 1873TAB RubberTop® | Surface Type: | RubberTop® |
| Base Chain Material: | Lubricated Stainless Steel Xtreme | Chain Width (in): | 7.5 in |
| Straight or Side-Flex: | Side-flexing | Curve Retention Type: | TAB |
| Chain Strength (lb): | 750 lb |
General Specifications
| Weight: | 0.22 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
