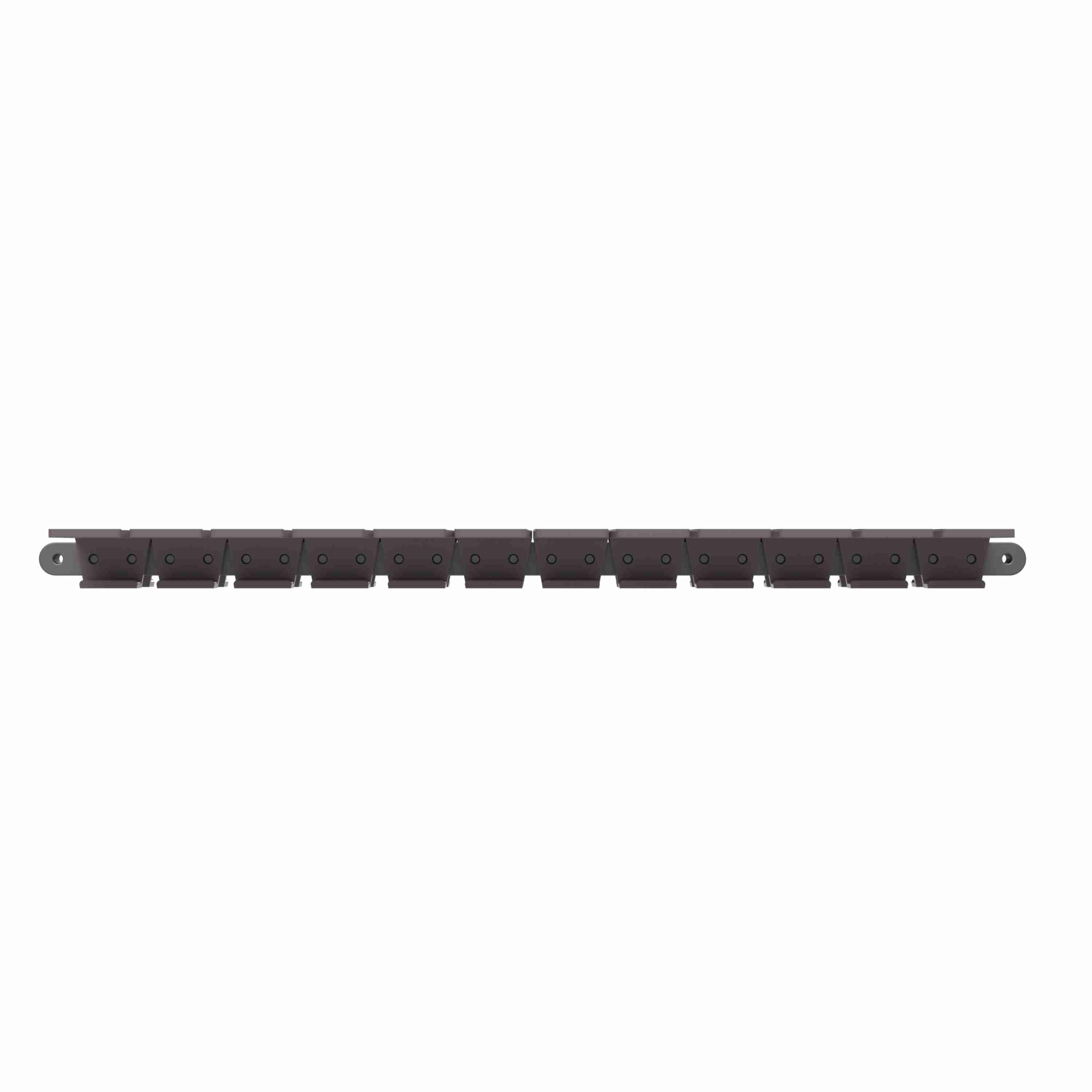

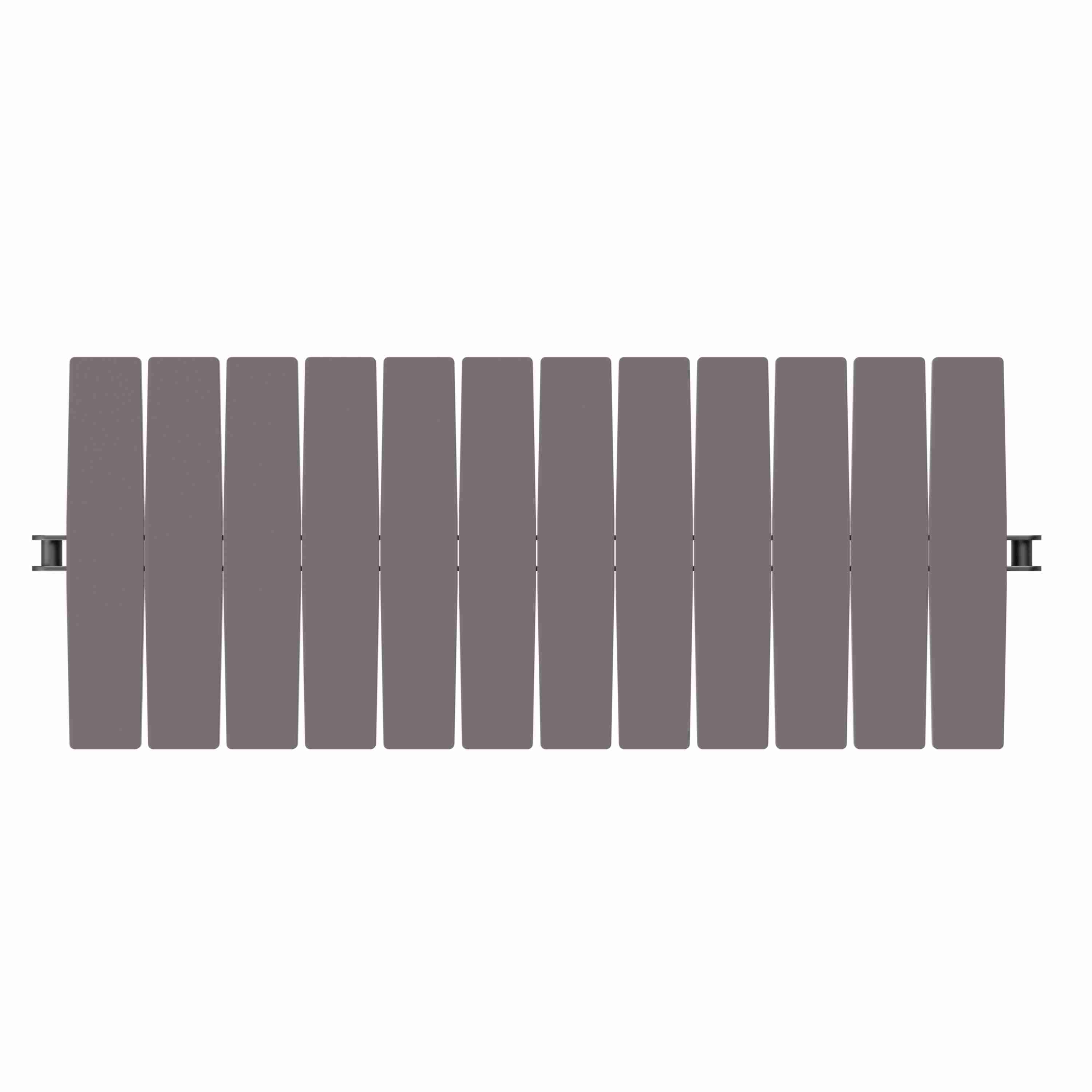

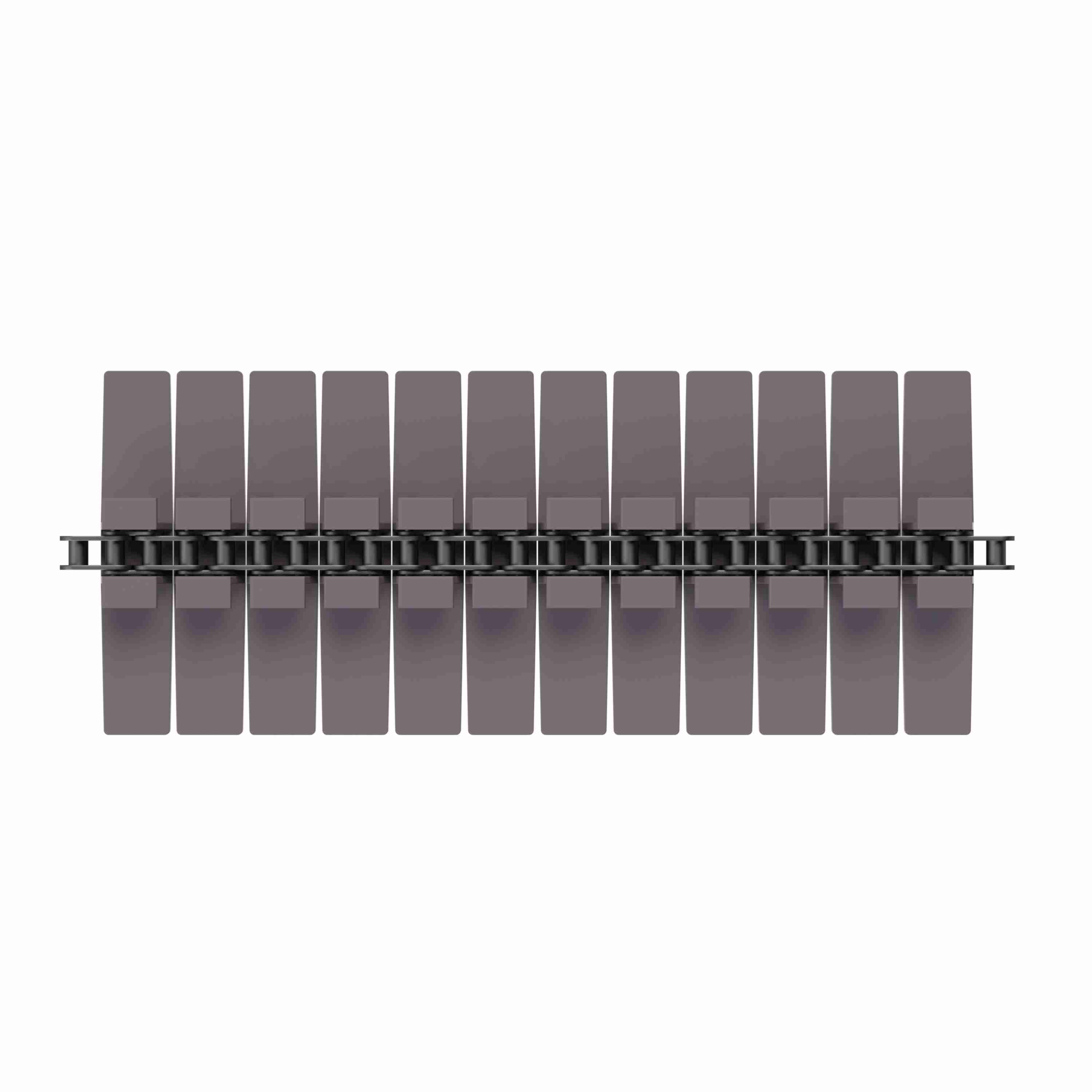

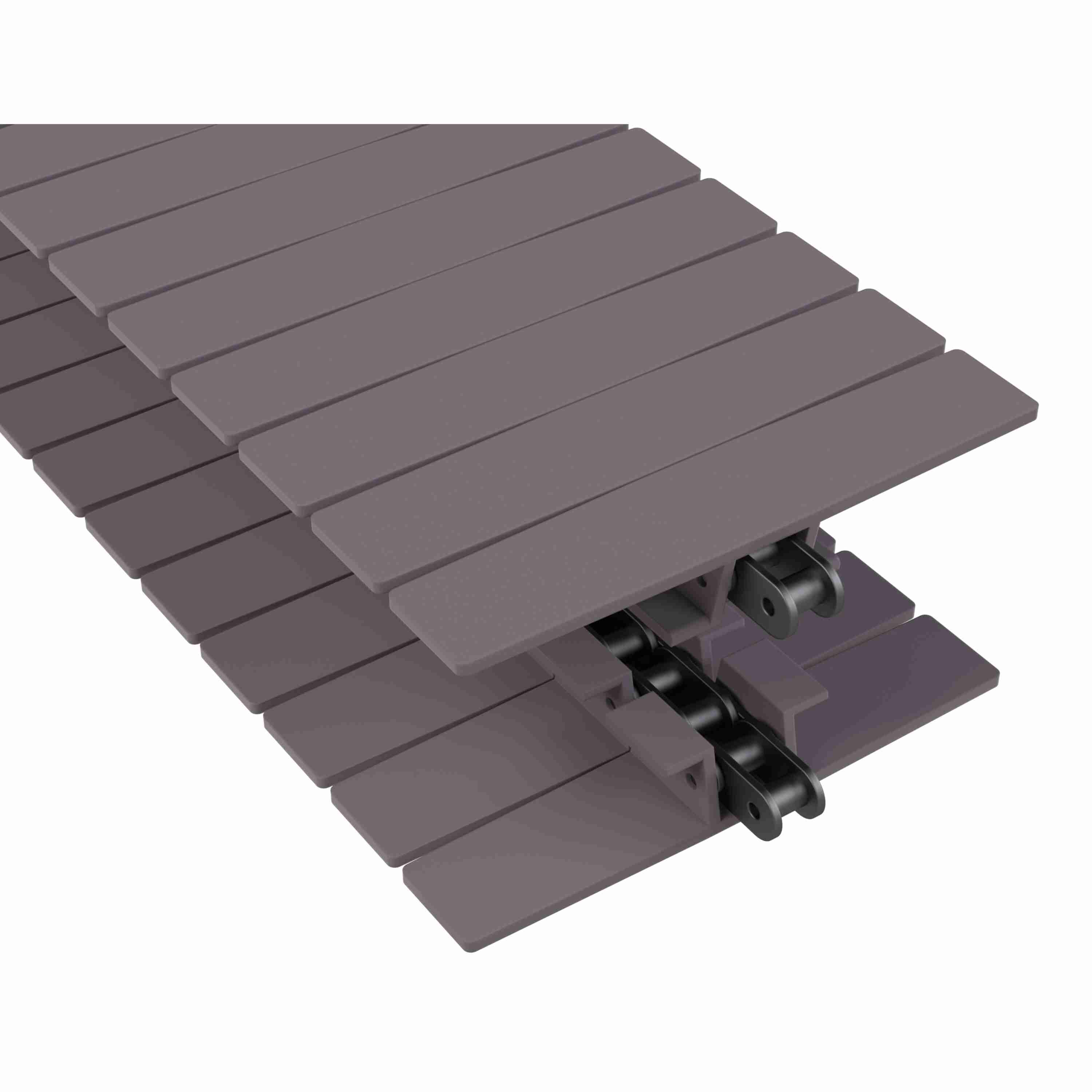

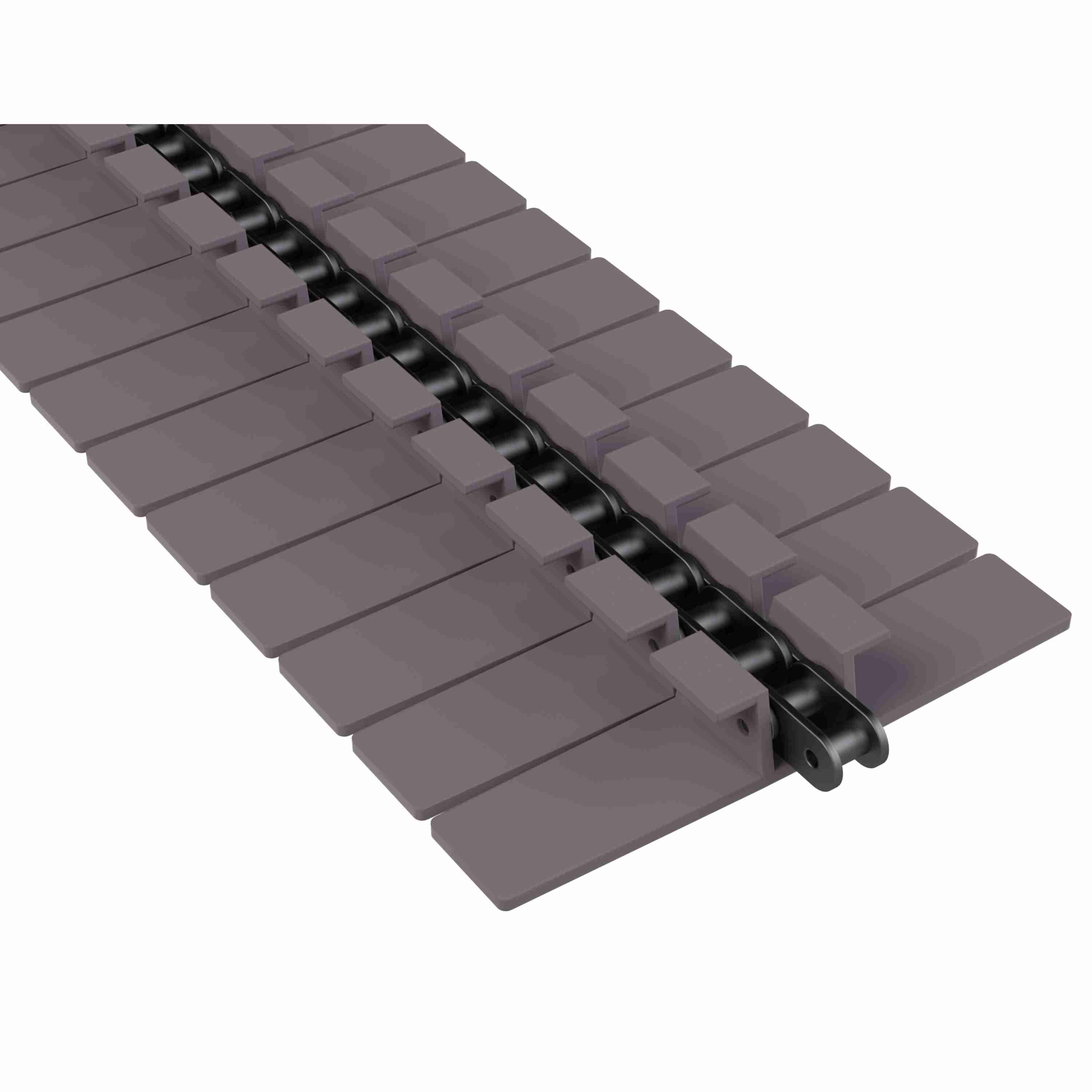

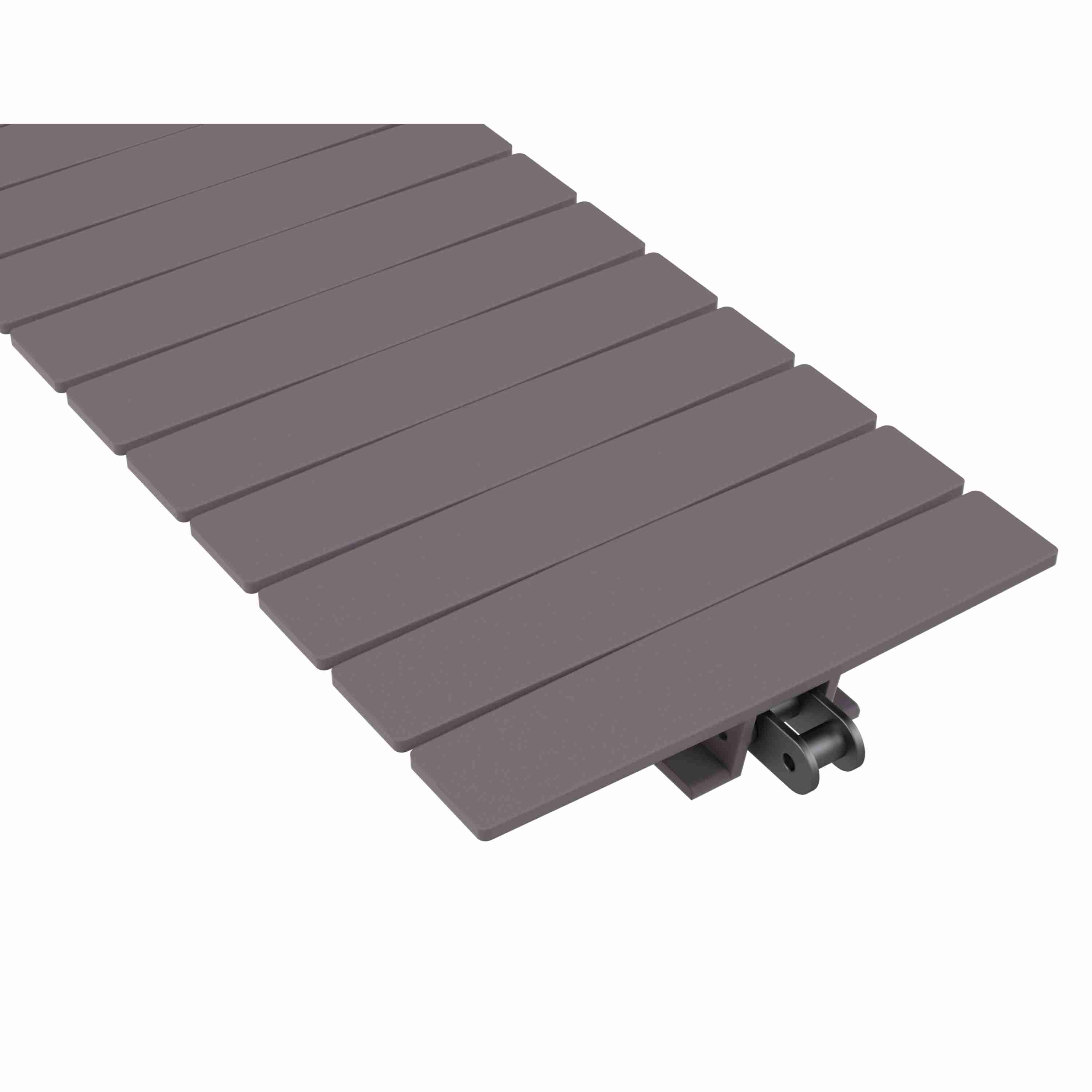

Rexnord 1873TAB Side-flexing Solid Top, Material: Brown High Performance, Width: 7.5in, Pitch: 1.5in - 81426344
Part #:10145396
Catalog #:81426344
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Solid Top | Chain Strength (N): | 4,440 N |
| Chain Material Description: | Brown High Performance | Straight or Side-Flex: | Side-flexing |
| Chain Material: | HP | Chain Width Measurement System: | Imperial |
| Curve Retention Type: | TAB | Chain Pitch (mm): | 38.1 mm |
| Chain Number: | 1873TAB | Chain Strength (lb): | 1,000 lb |
| Chain Pitch (in): | 1.5 in | Flight Thickness (mm): | 4 mm |
| Chain Width (in): | 7.5 in | Base Chain Material: | Steel |
| Flight Thickness (in): | 0.16 in | Chain Width (mm): | 190.5 mm |
| Series: | TableTop 1873 Series Side-flexing Chain |
General Specifications
| Weight: | 0.22 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
