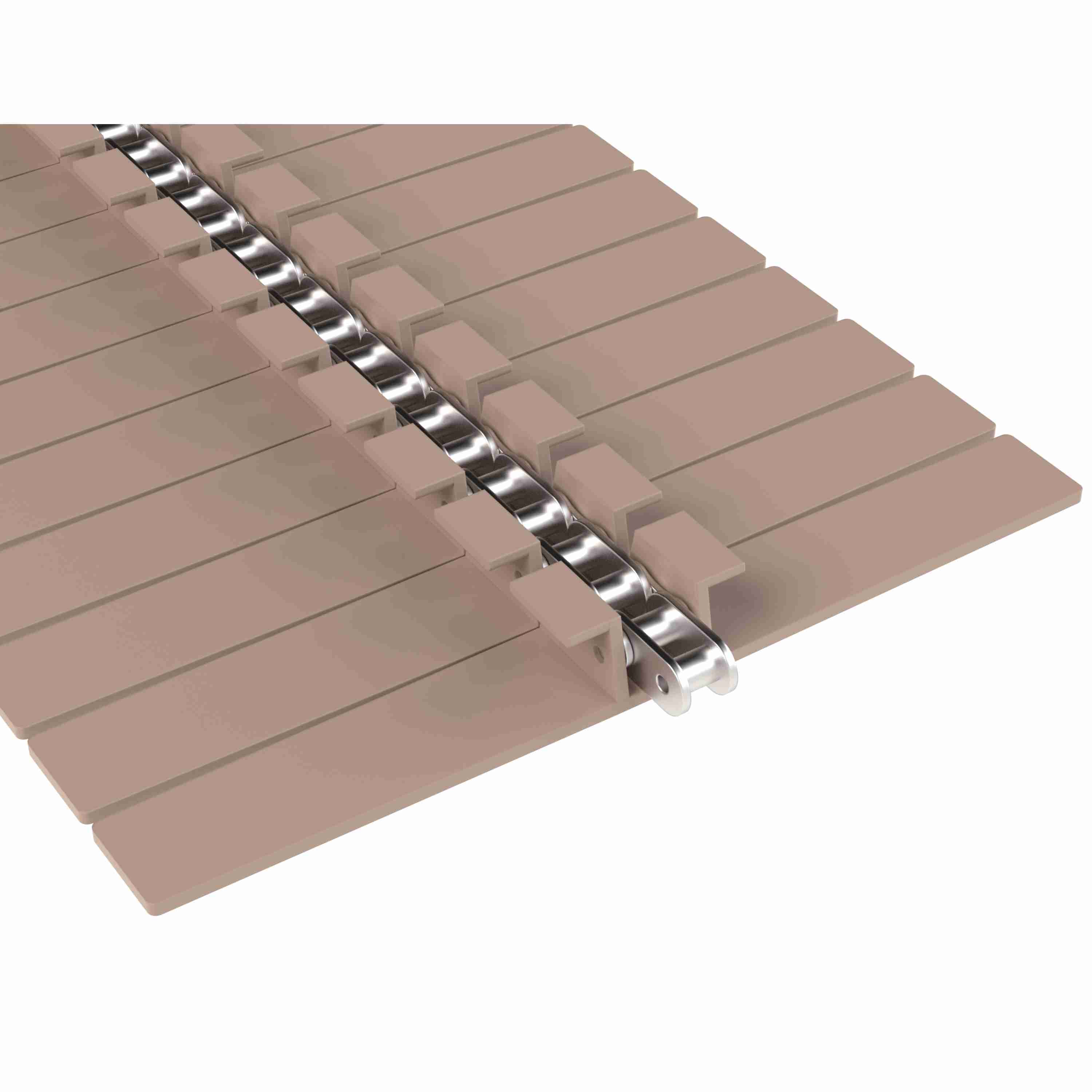

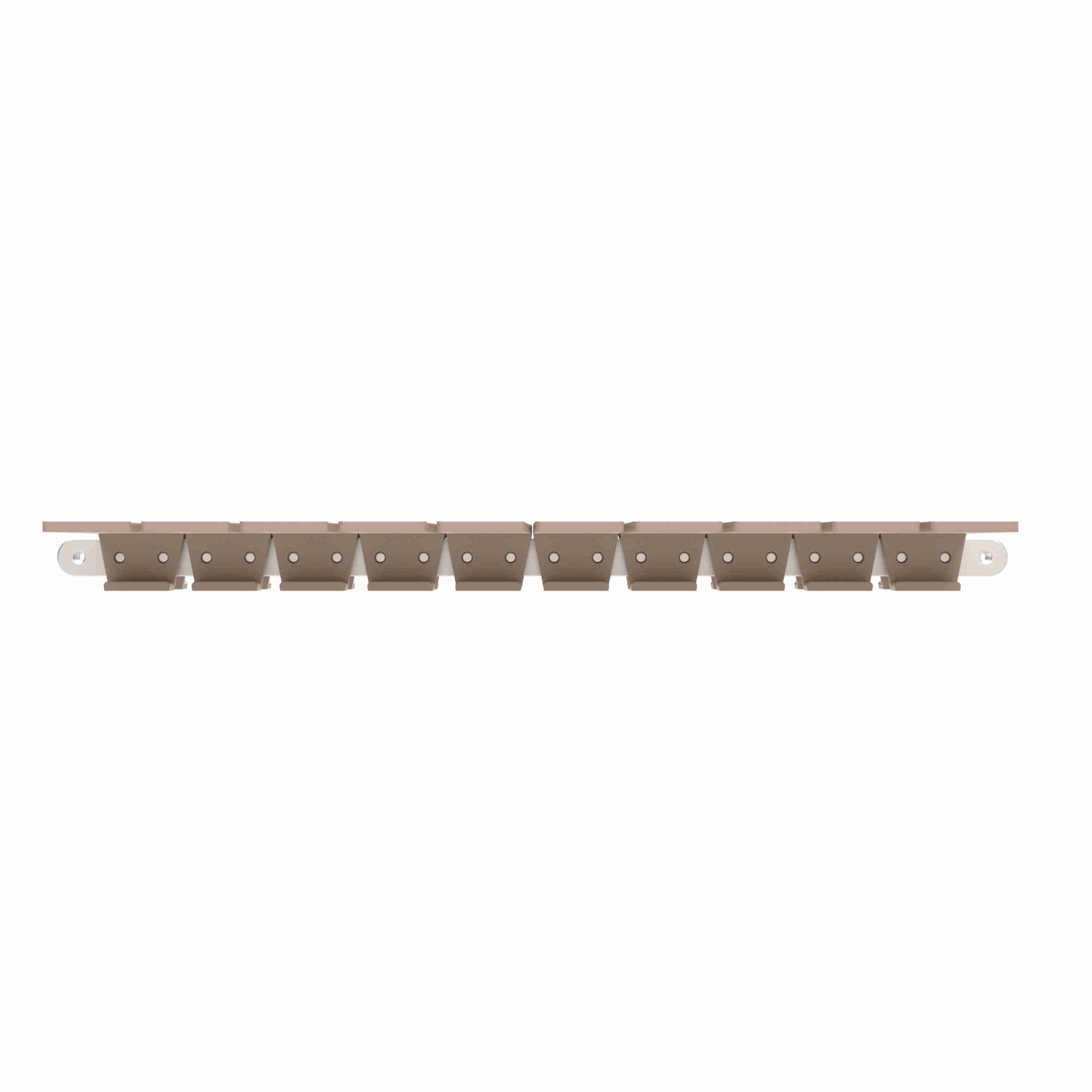

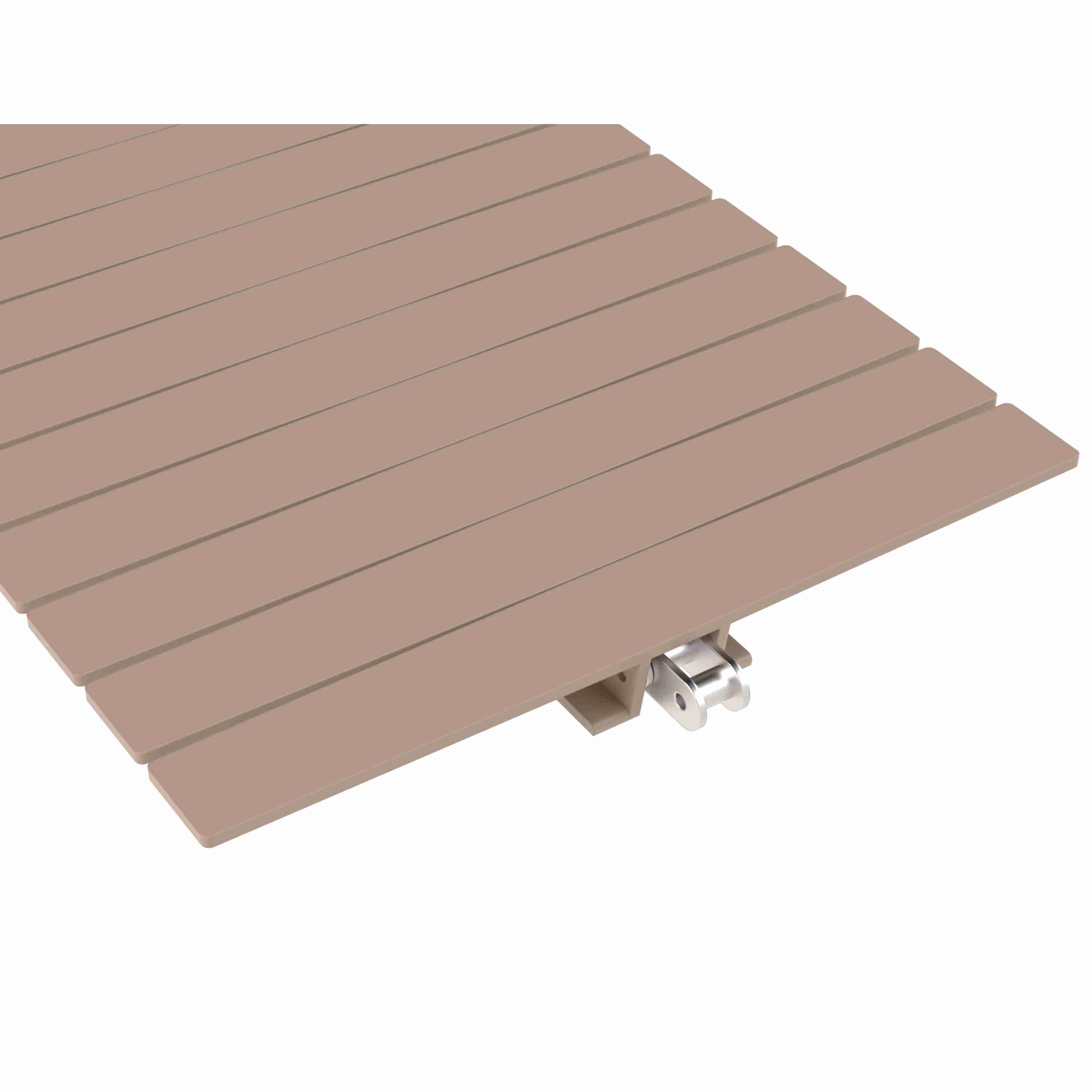

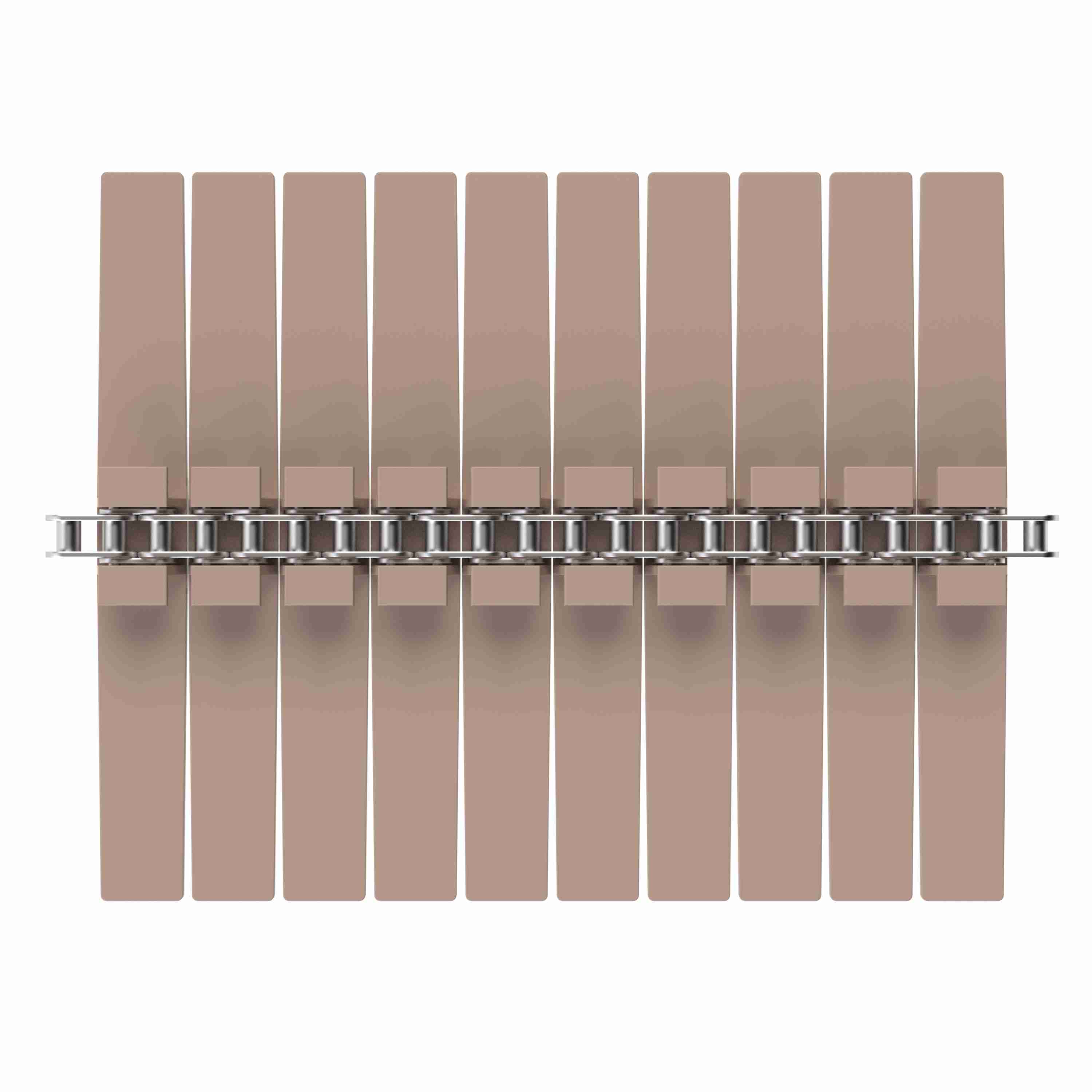

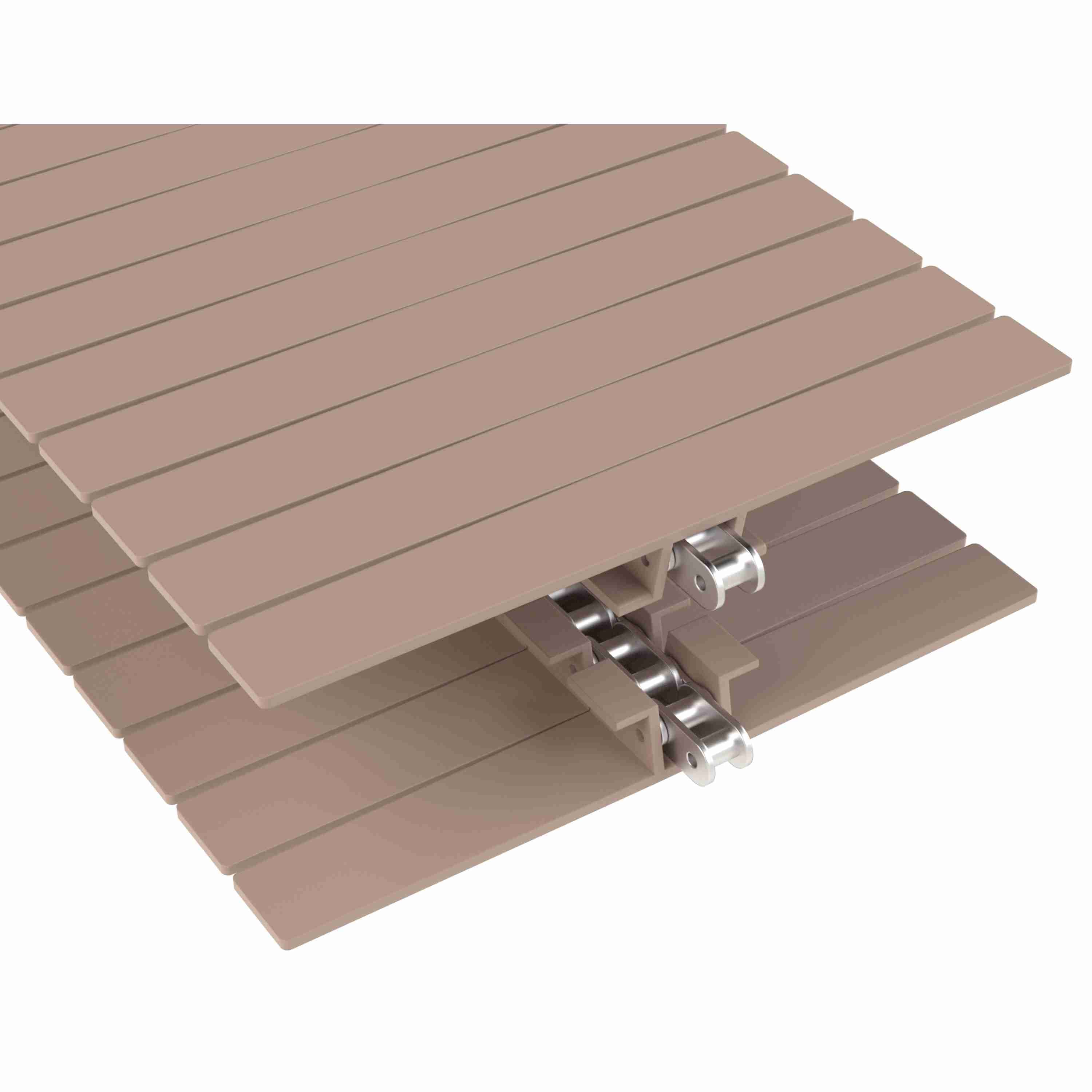

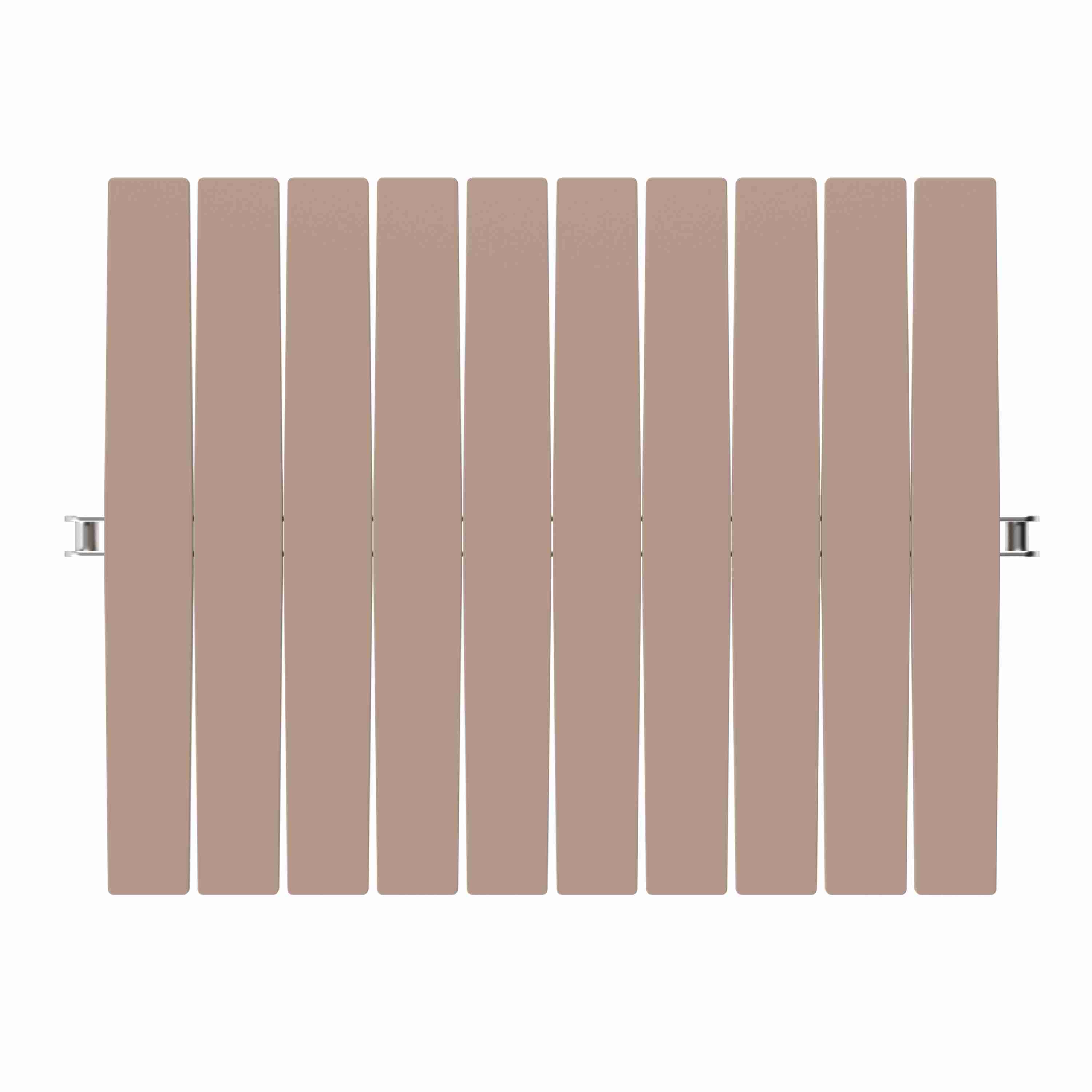

Rexnord 1873TAB Side-flexing Solid Top, Material: Tan Low Friction, Width: 12in, Pitch: 1.5in - LF1873K12
Part #:10177567
Catalog #:LF1873K12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 1873 Series Side-flexing Chain | Chain Pitch (in): | 1.5 in |
| Chain Strength (N): | 4,440 N | Chain Strength (lb): | 1,000 lb |
| Chain Material: | LF | Chain Number: | 1873TAB |
| Chain Width (mm): | 304.8 mm | Chain Material Description: | Tan Low Friction |
| Chain Pitch (mm): | 38.1 mm | Straight or Side-Flex: | Side-flexing |
| Flight Thickness (in): | 0.16 in | Curve Retention Type: | TAB |
| Chain Width Measurement System: | Imperial | Base Chain Material: | Steel |
| Flight Thickness (mm): | 4 mm | Surface Type: | Solid Top |
| Chain Width (in): | 12 in |
General Specifications
| Weight: | 0.25 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
