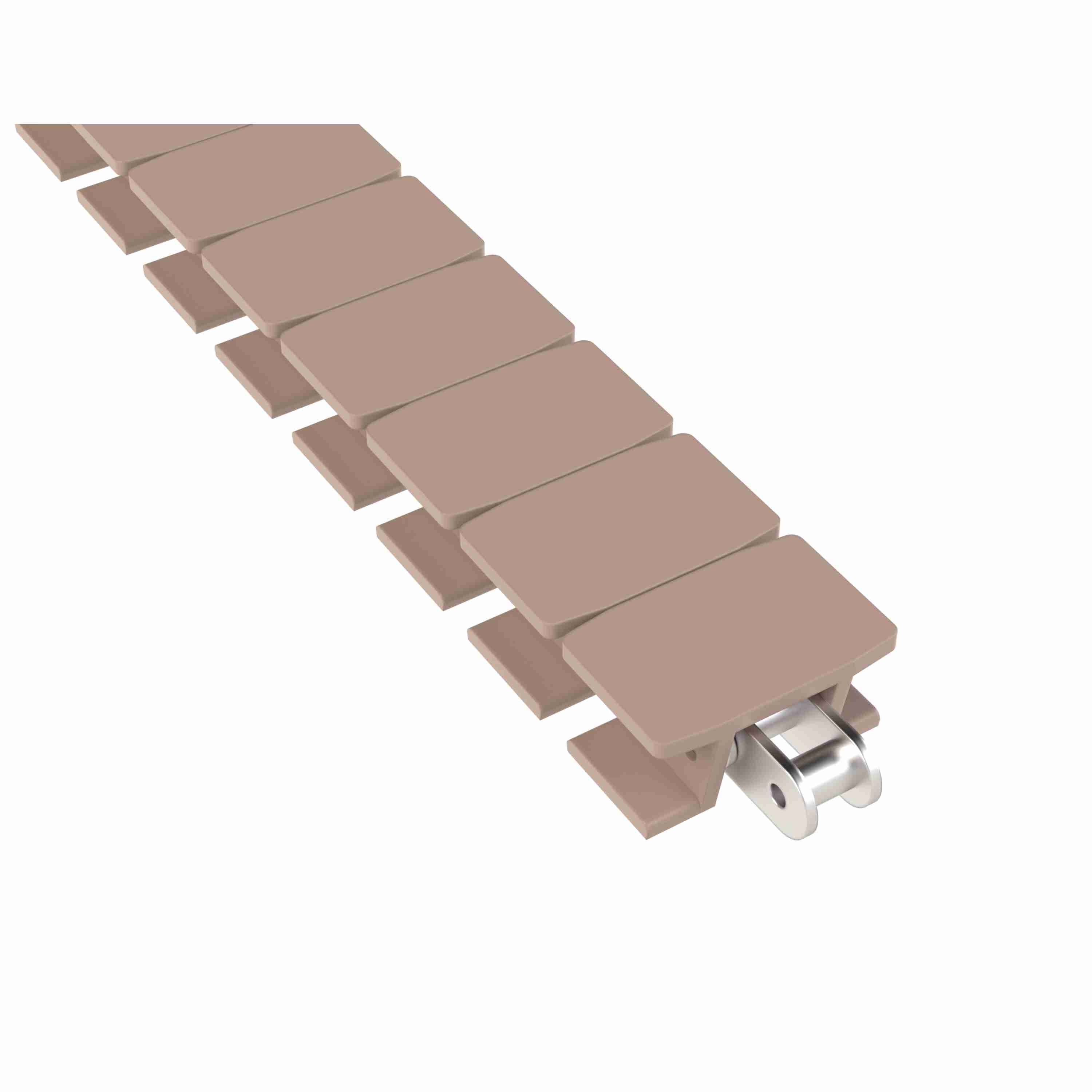

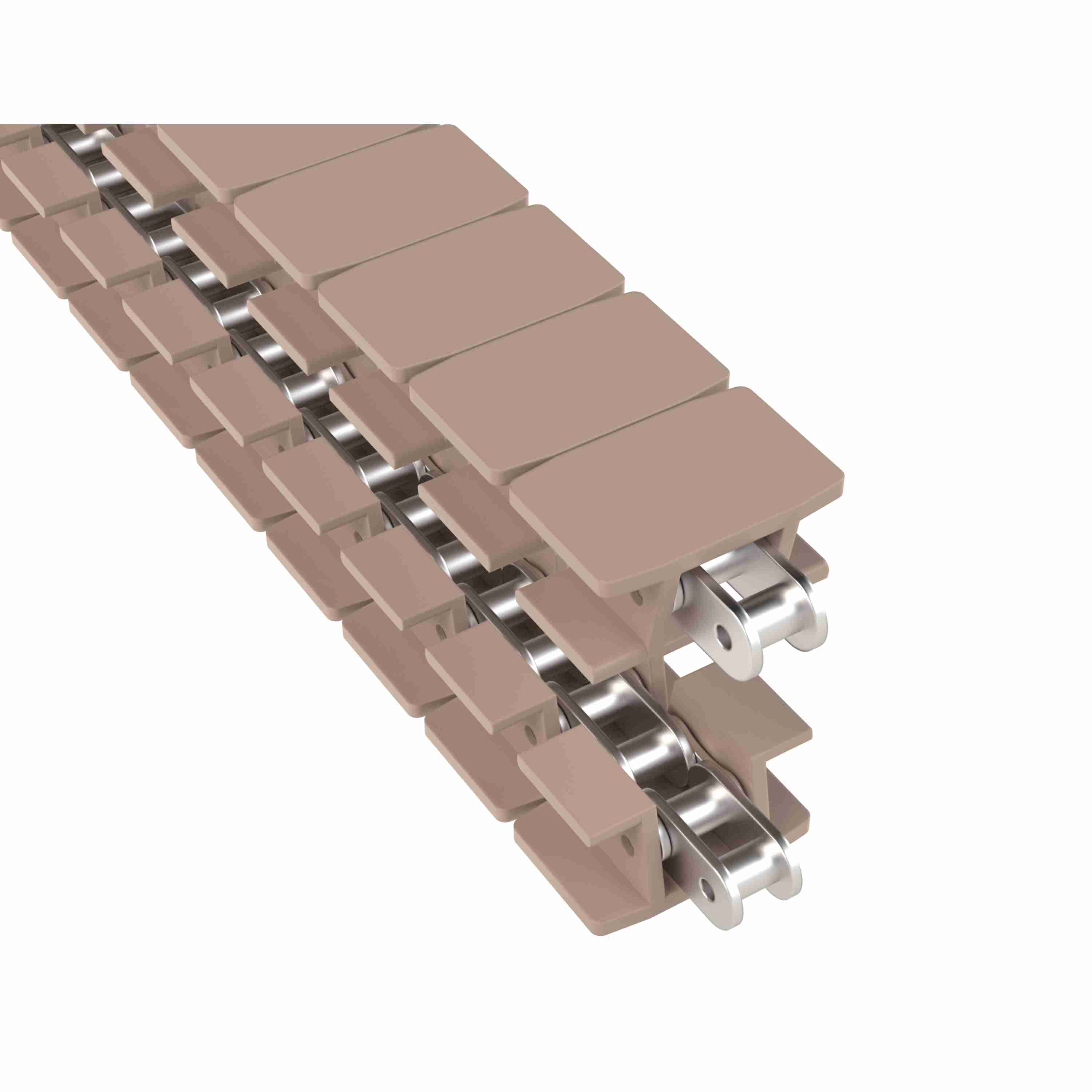

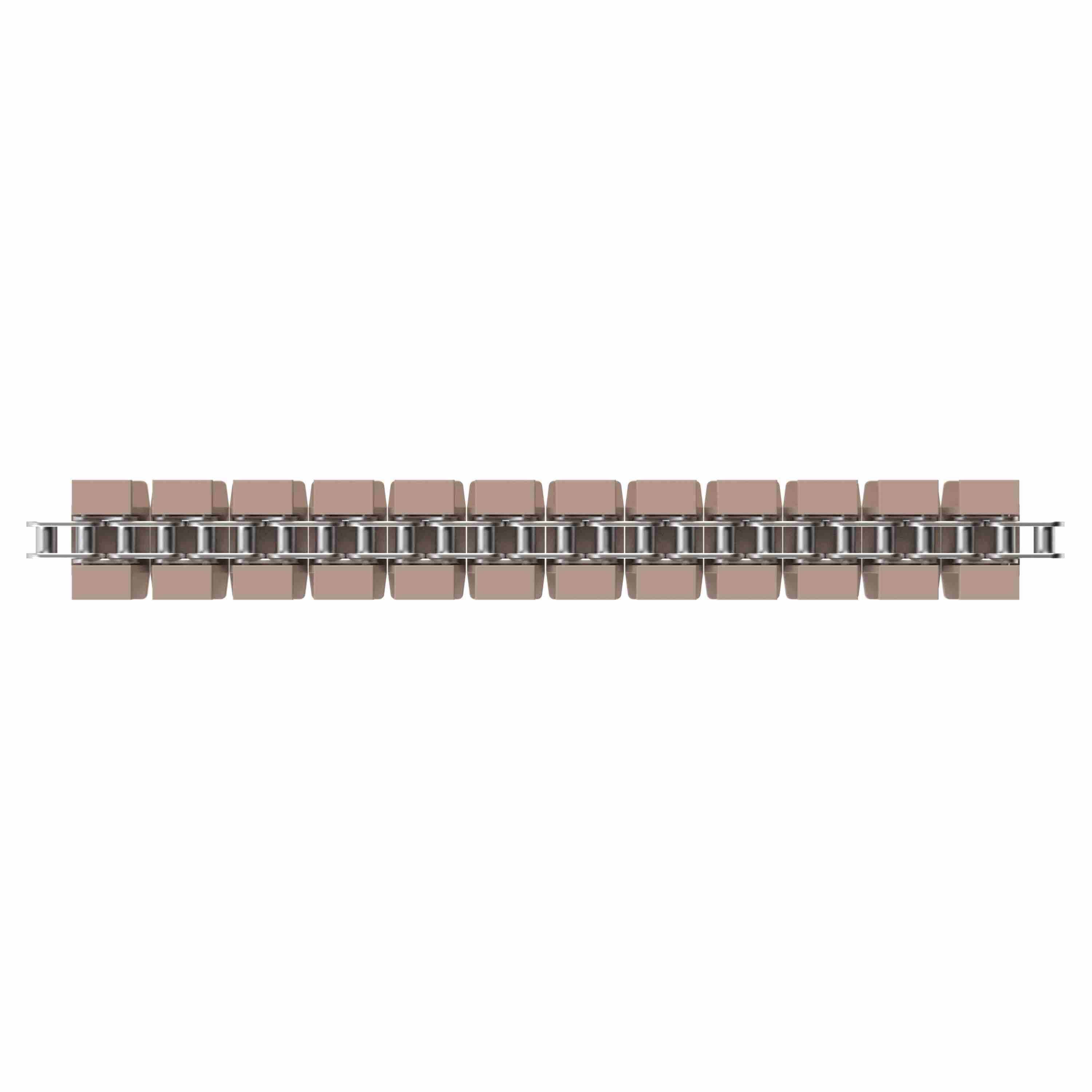

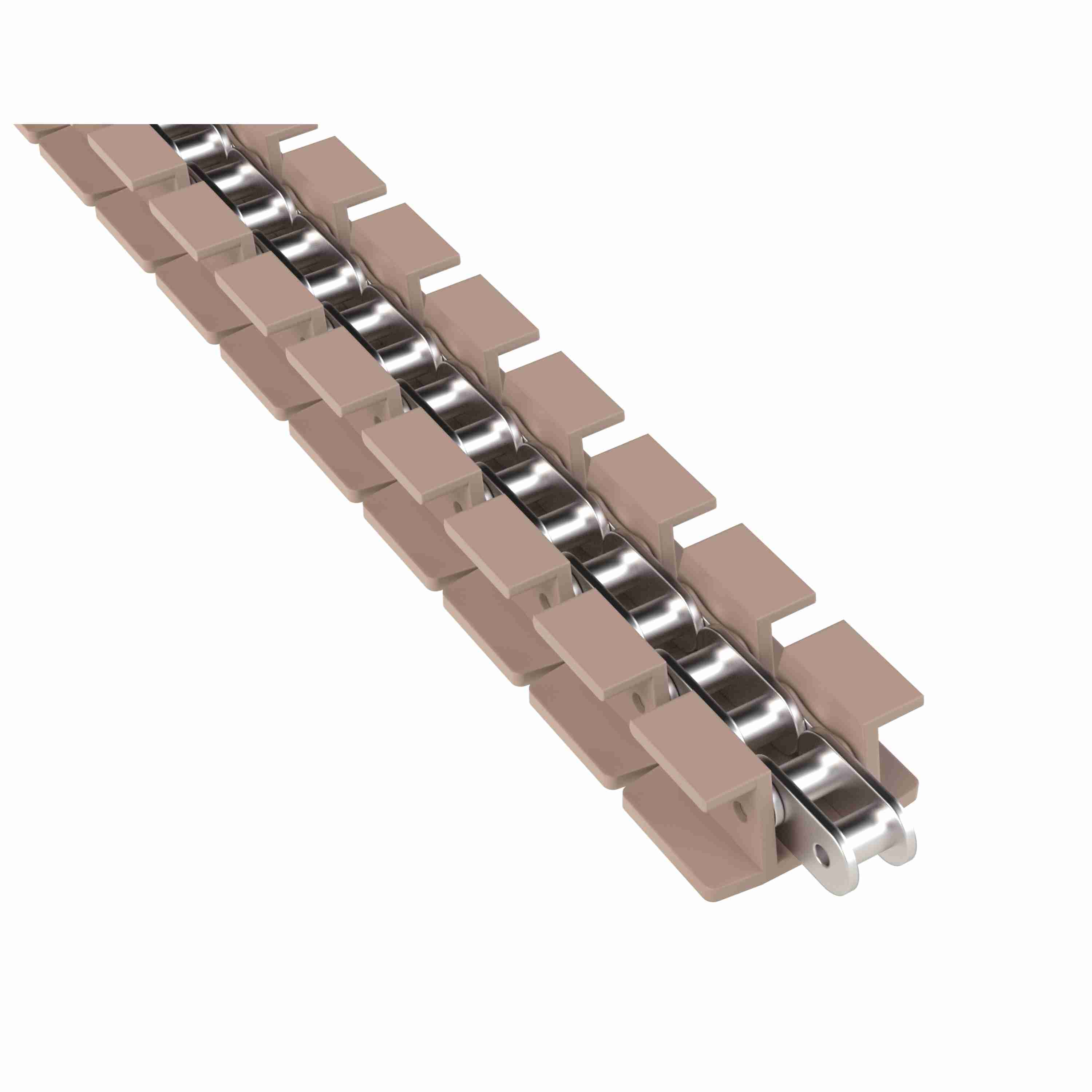

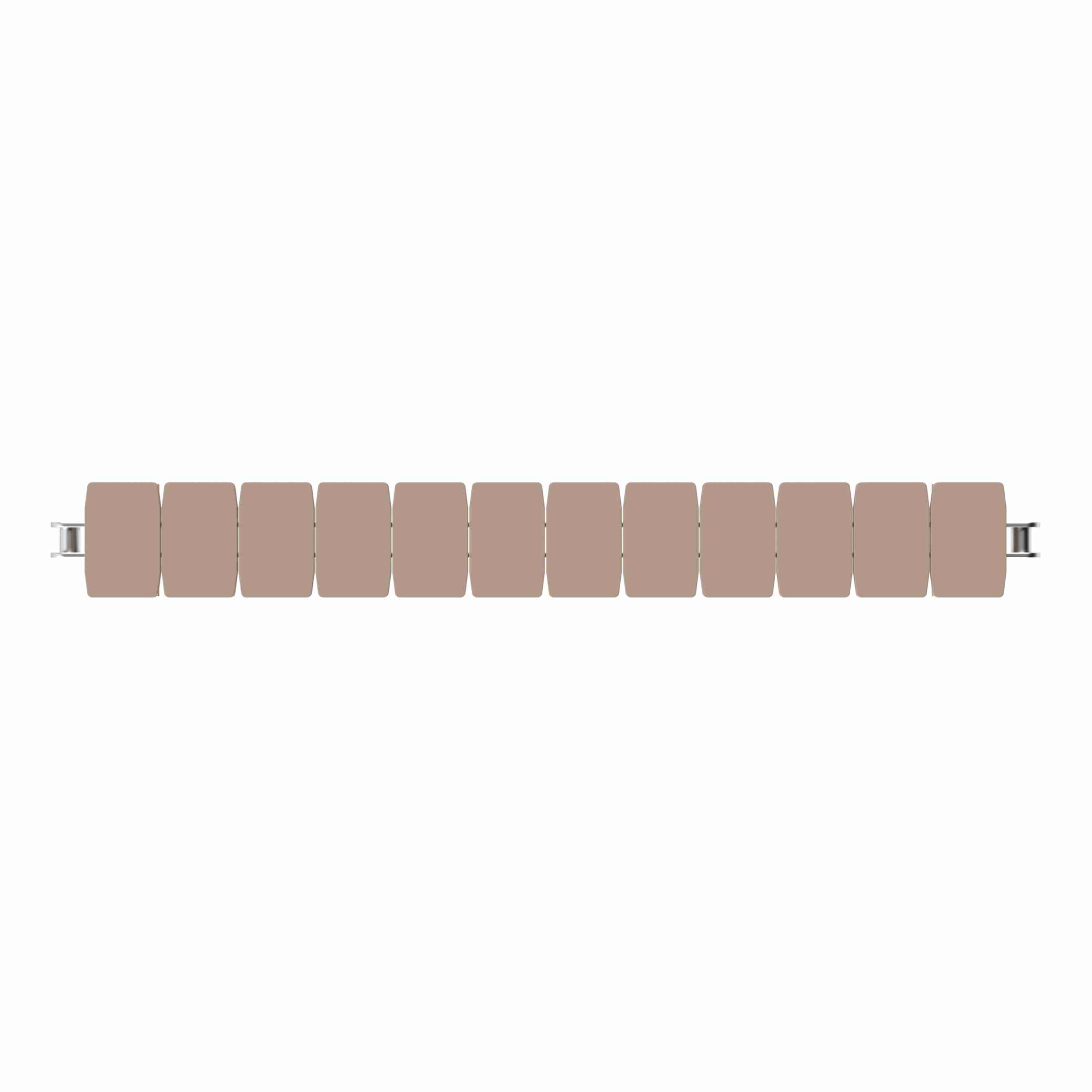

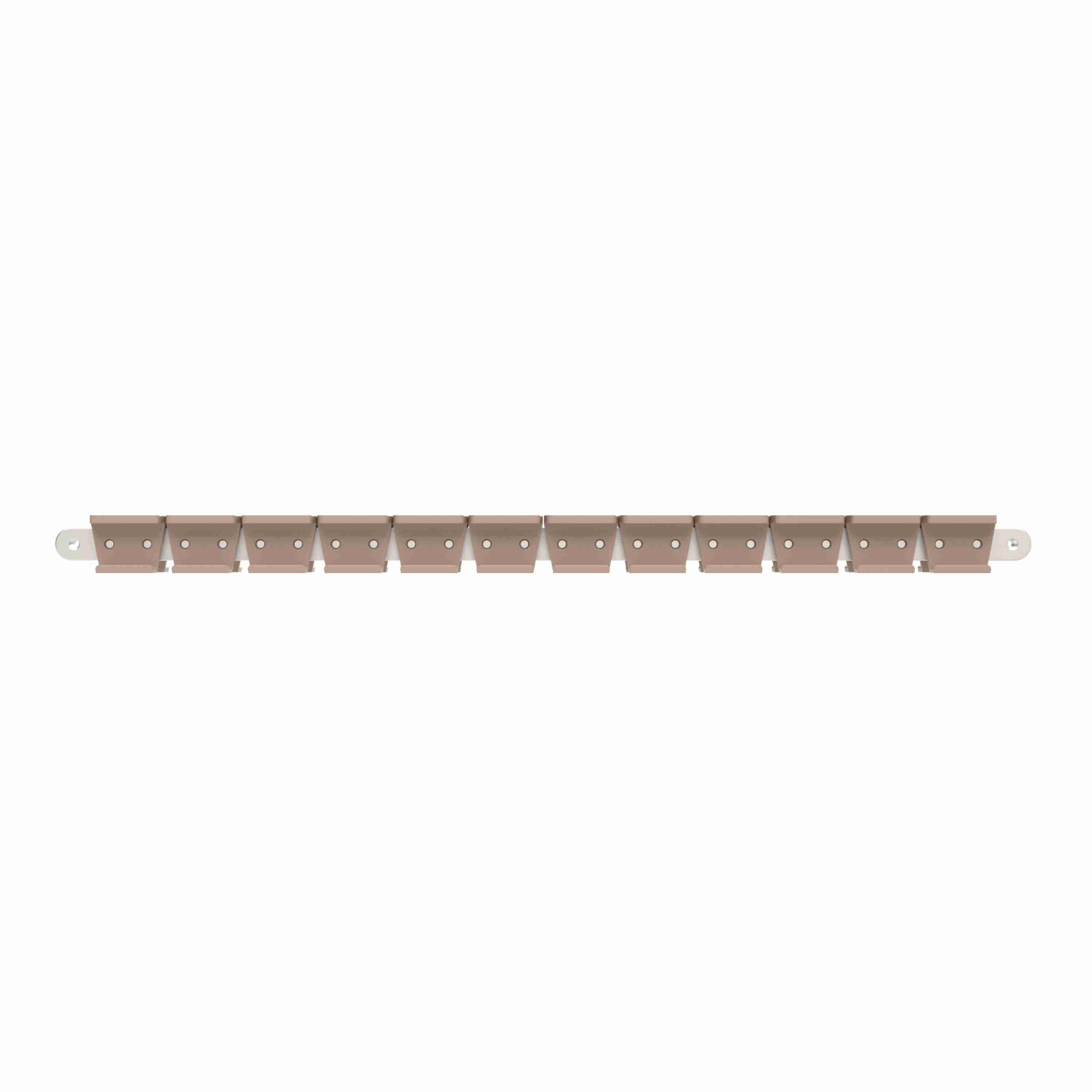

Rexnord 1873TAB Side-flexing Solid Top, Material: Tan Low Friction, Width: 3.25in, Pitch: 1.5in - LF1873SSK325
Part #:10177576
Catalog #:LF1873SSK325
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Solid Top | Flight Thickness (in): | 0.16 in |
| Chain Material: | LF | Chain Number: | 1873TAB |
| Chain Width (mm): | 82.6 mm | Base Chain Material: | Stainless Steel |
| Chain Pitch (in): | 1.5 in | Chain Width (in): | 3.25 in |
| Flight Thickness (mm): | 4 mm | Curve Retention Type: | TAB |
| Chain Pitch (mm): | 38.1 mm | Chain Width Measurement System: | Imperial |
| Straight or Side-Flex: | Side-flexing | Chain Material Description: | Tan Low Friction |
| Chain Strength (lb): | 750 lb | Chain Strength (N): | 3,330 N |
| Series: | TableTop 1873 Series Side-flexing Chain |
General Specifications
| Weight: | 0.18 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
