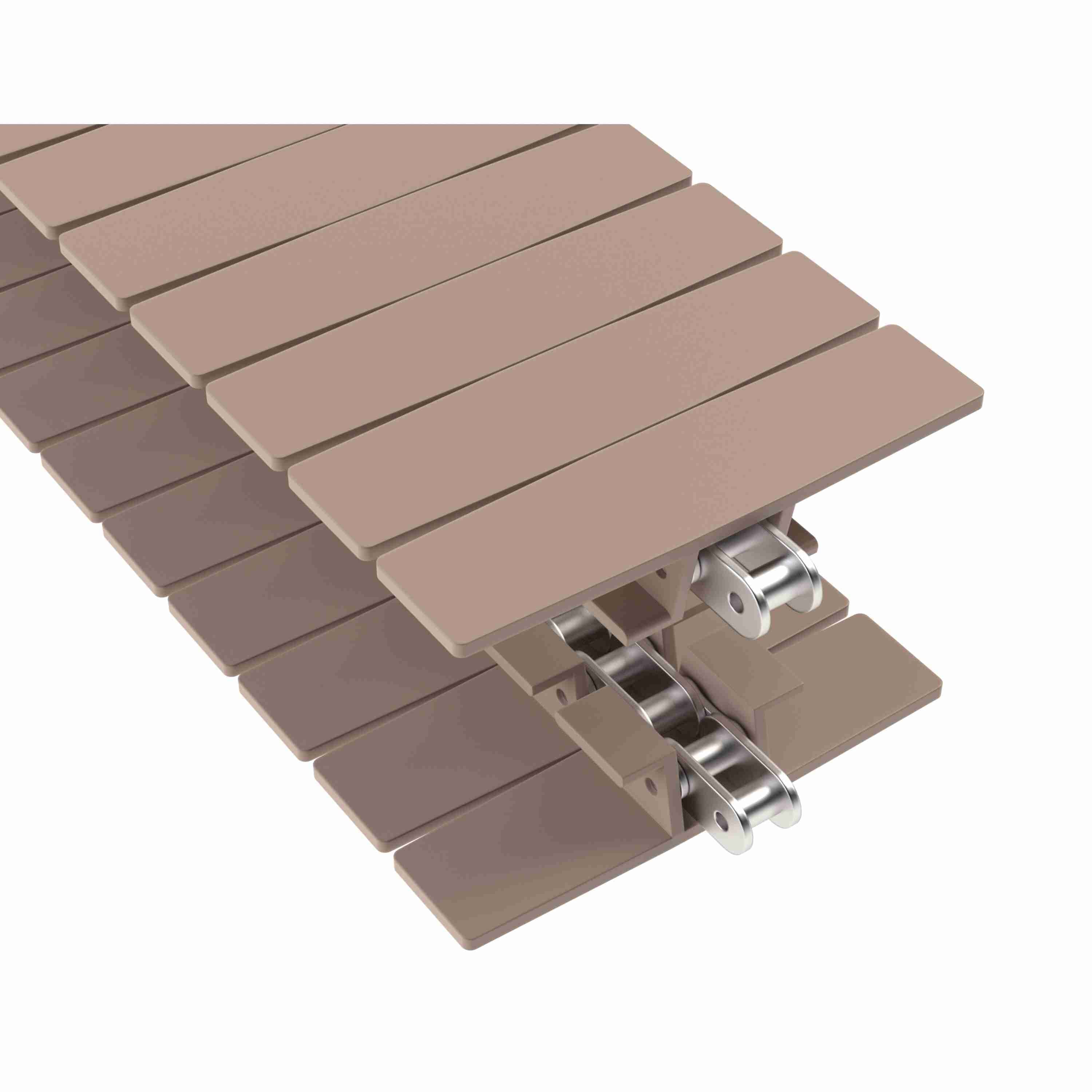

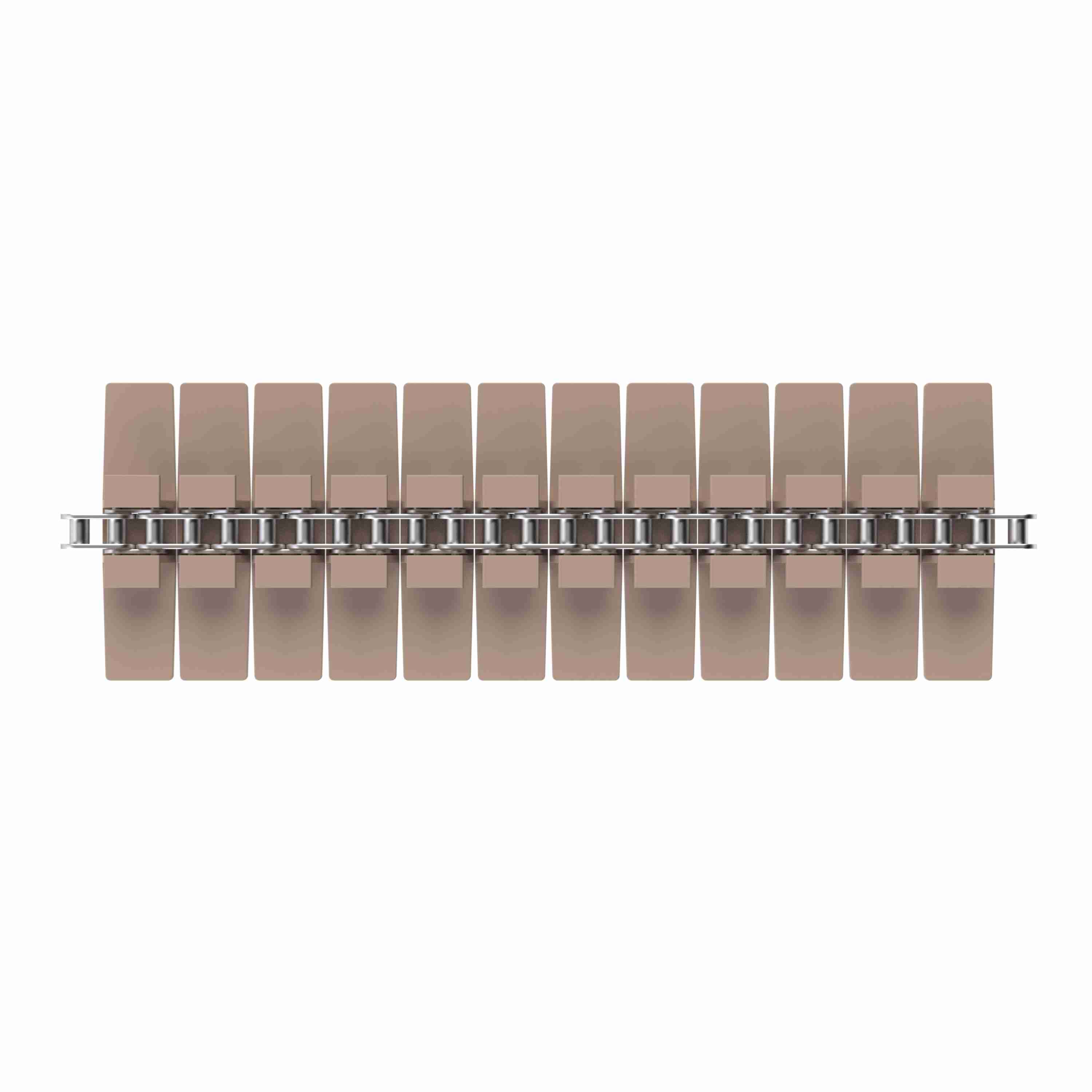

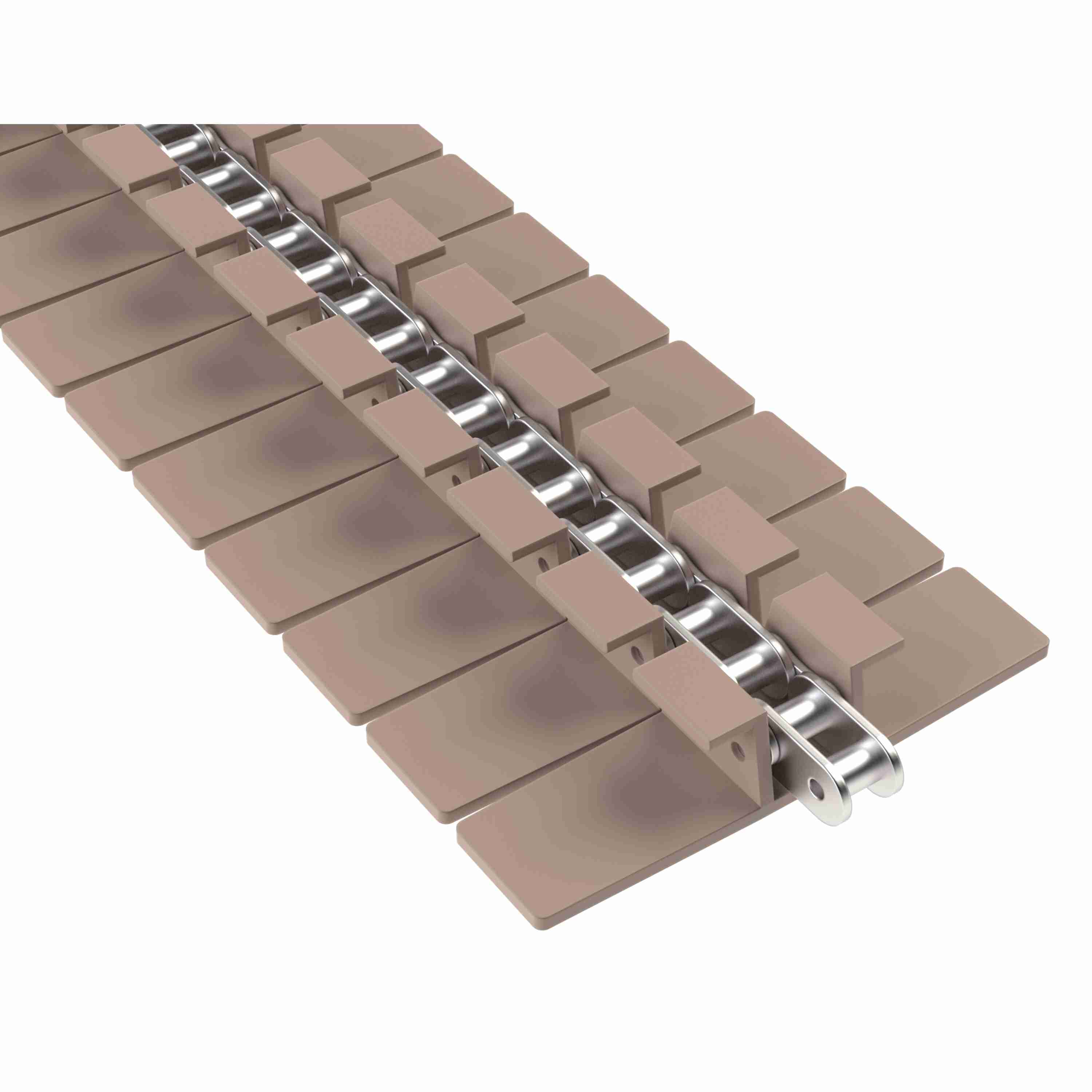

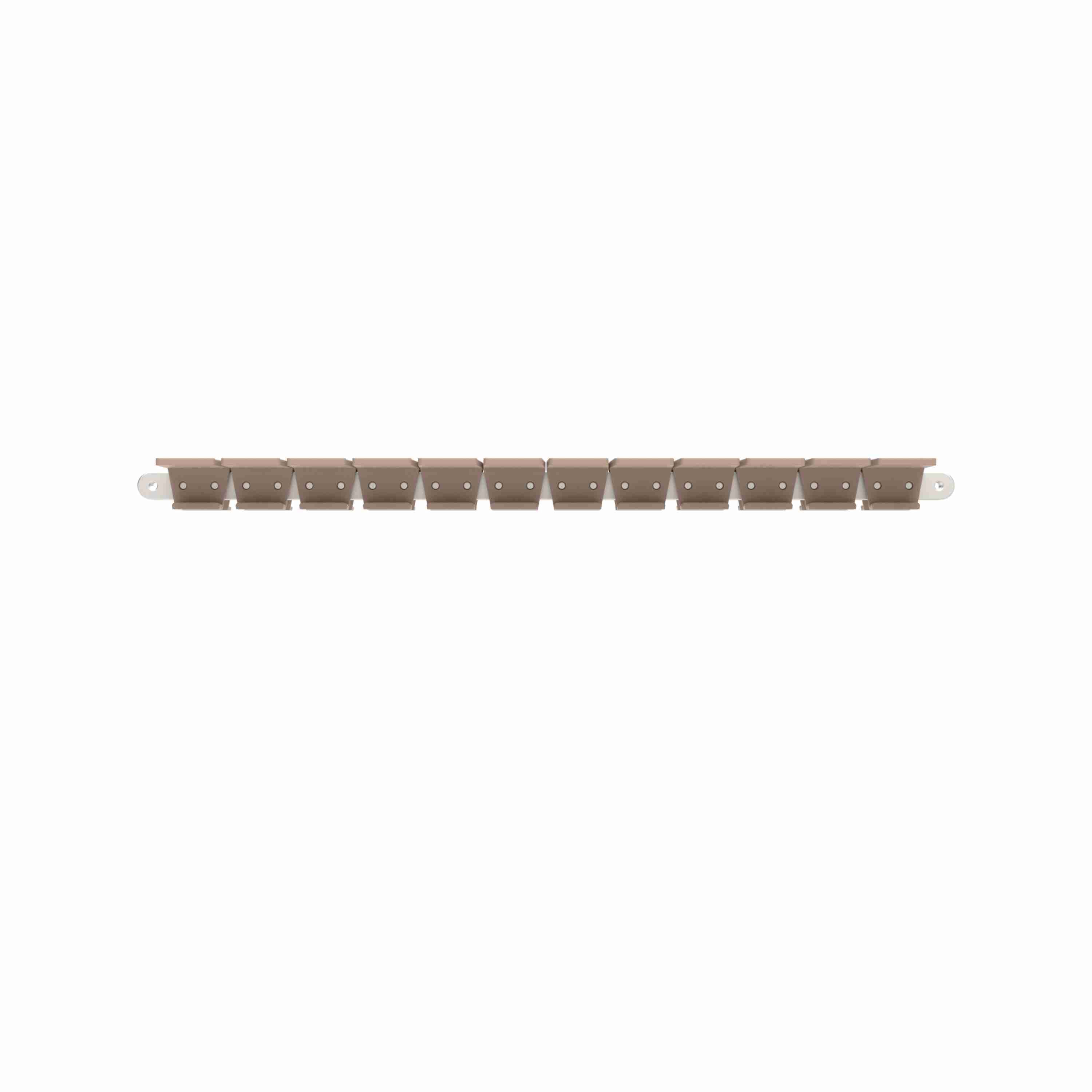

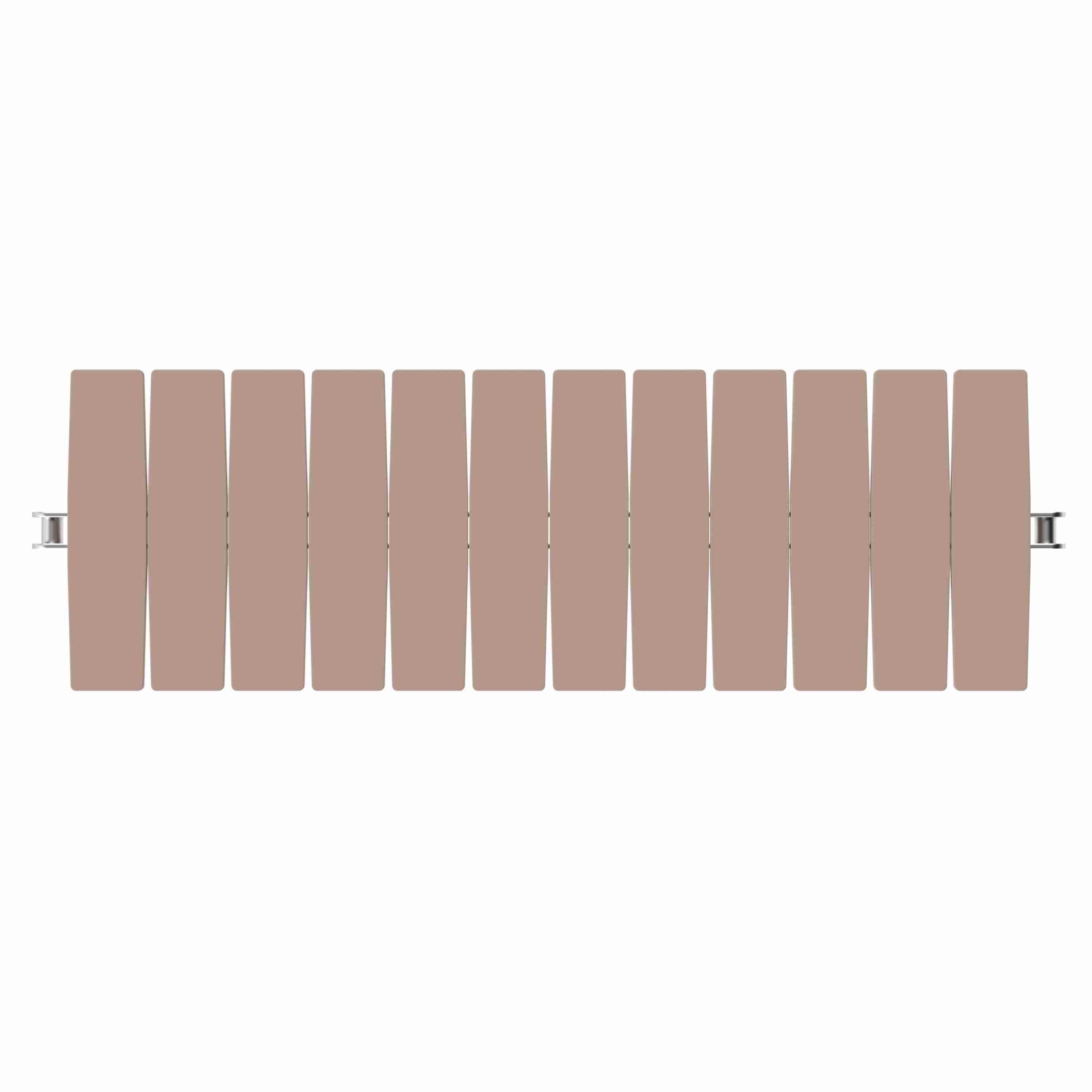

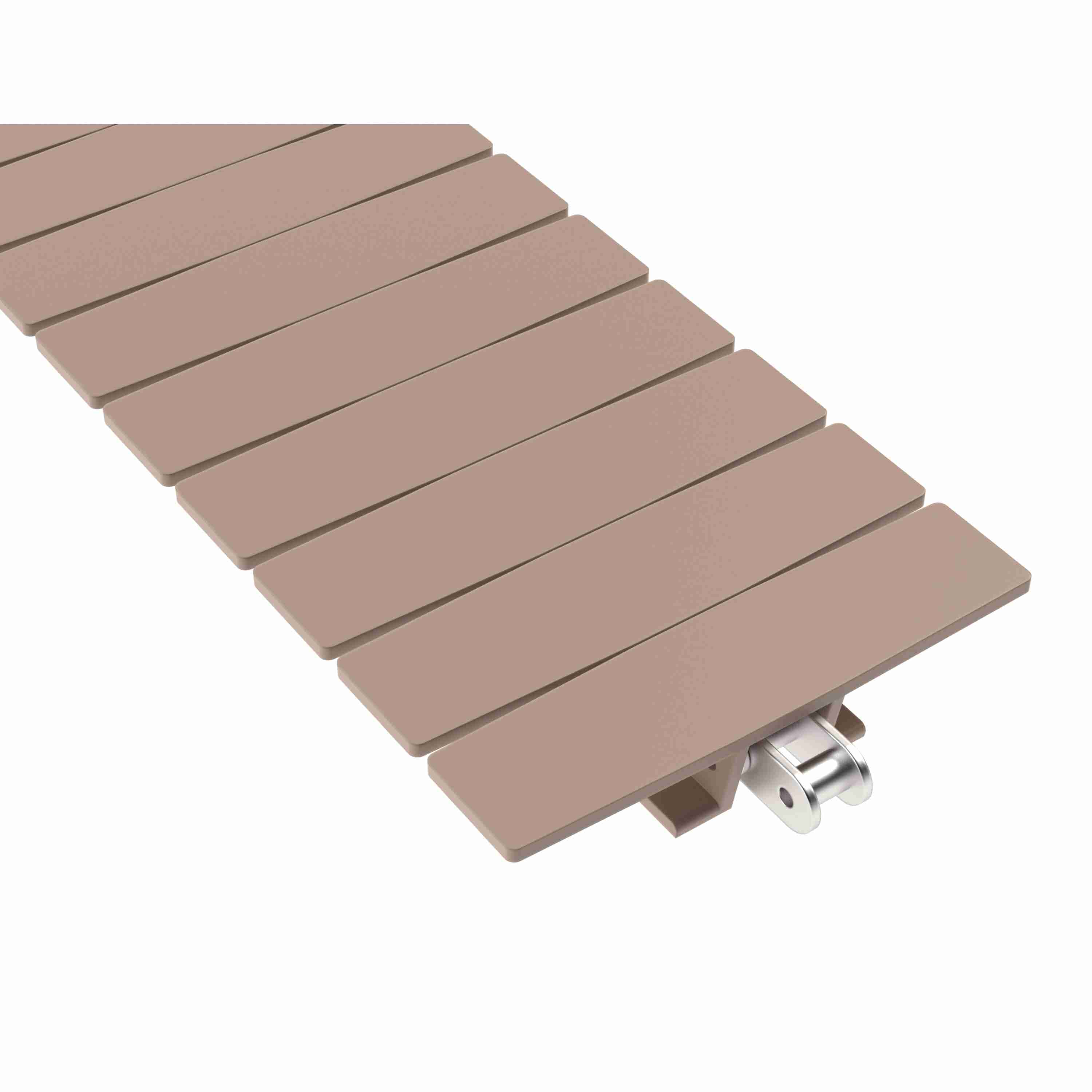

Rexnord 1873TAB Side-flexing Solid Top, Material: Tan Low Friction, Width: 6in, Pitch: 1.5in - LF1873K6
Part #:10177571
Catalog #:LF1873K6
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Chain Pitch (in): | 1.5 in |
| Surface Type: | Solid Top | Chain Material Description: | Tan Low Friction |
| Chain Strength (N): | 4,440 N | Flight Thickness (in): | 0.16 in |
| Series: | TableTop 1873 Series Side-flexing Chain | Flight Thickness (mm): | 4 mm |
| Chain Strength (lb): | 1,000 lb | Chain Width (mm): | 152.4 mm |
| Straight or Side-Flex: | Side-flexing | Curve Retention Type: | TAB |
| Chain Number: | 1873TAB | Base Chain Material: | Steel |
| Chain Pitch (mm): | 38.1 mm | Chain Width (in): | 6 in |
| Chain Material: | LF |
General Specifications
| Weight: | 0.20 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
