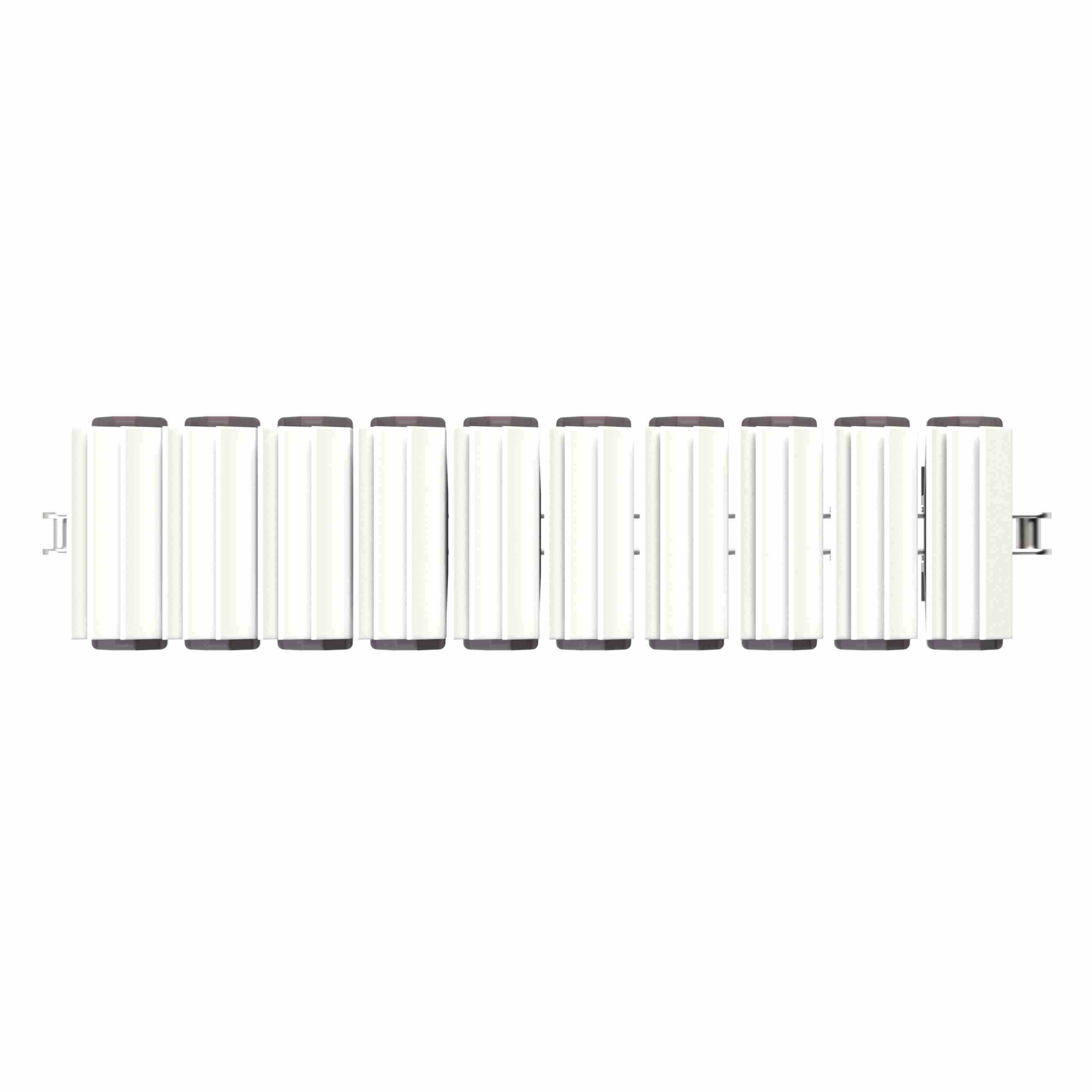

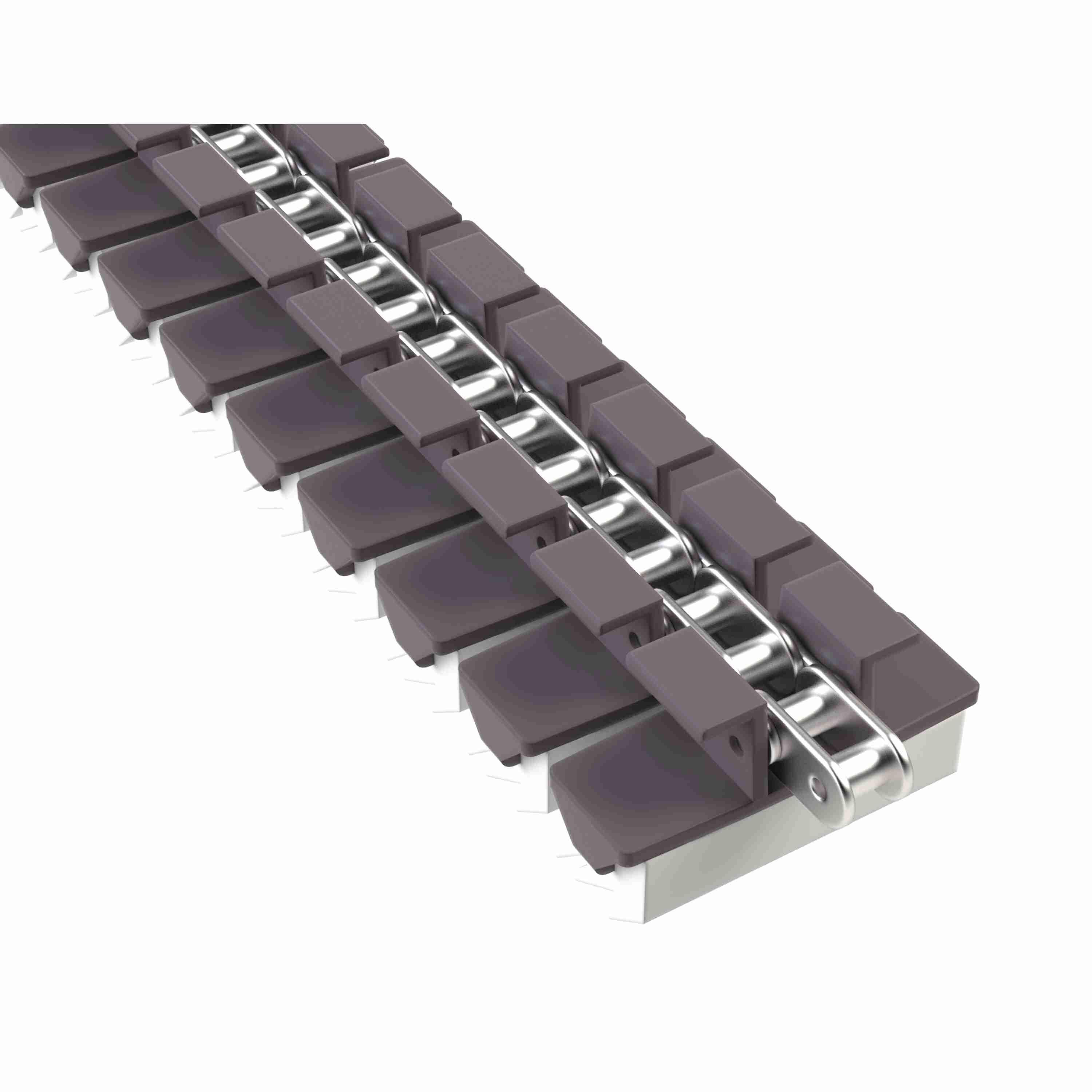

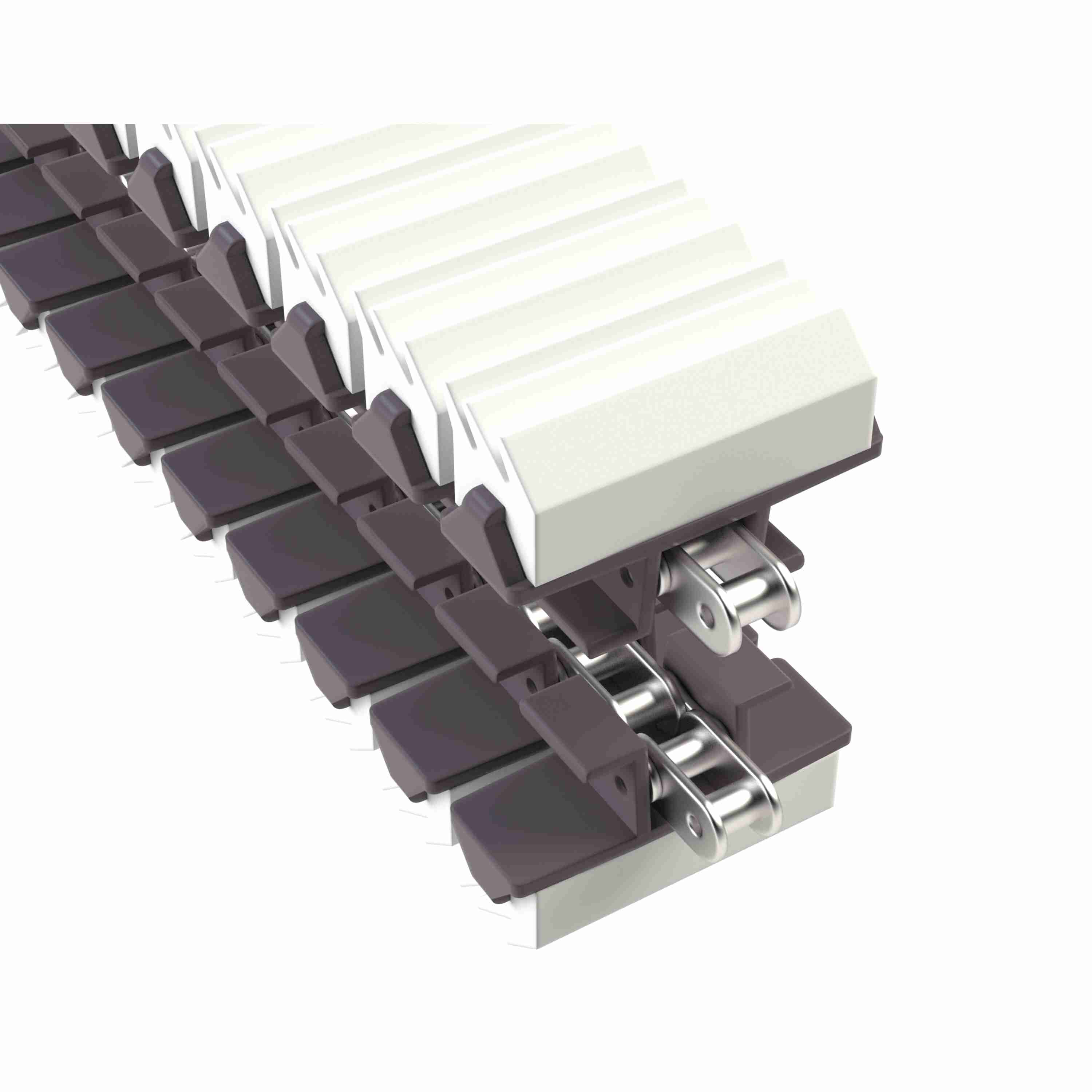

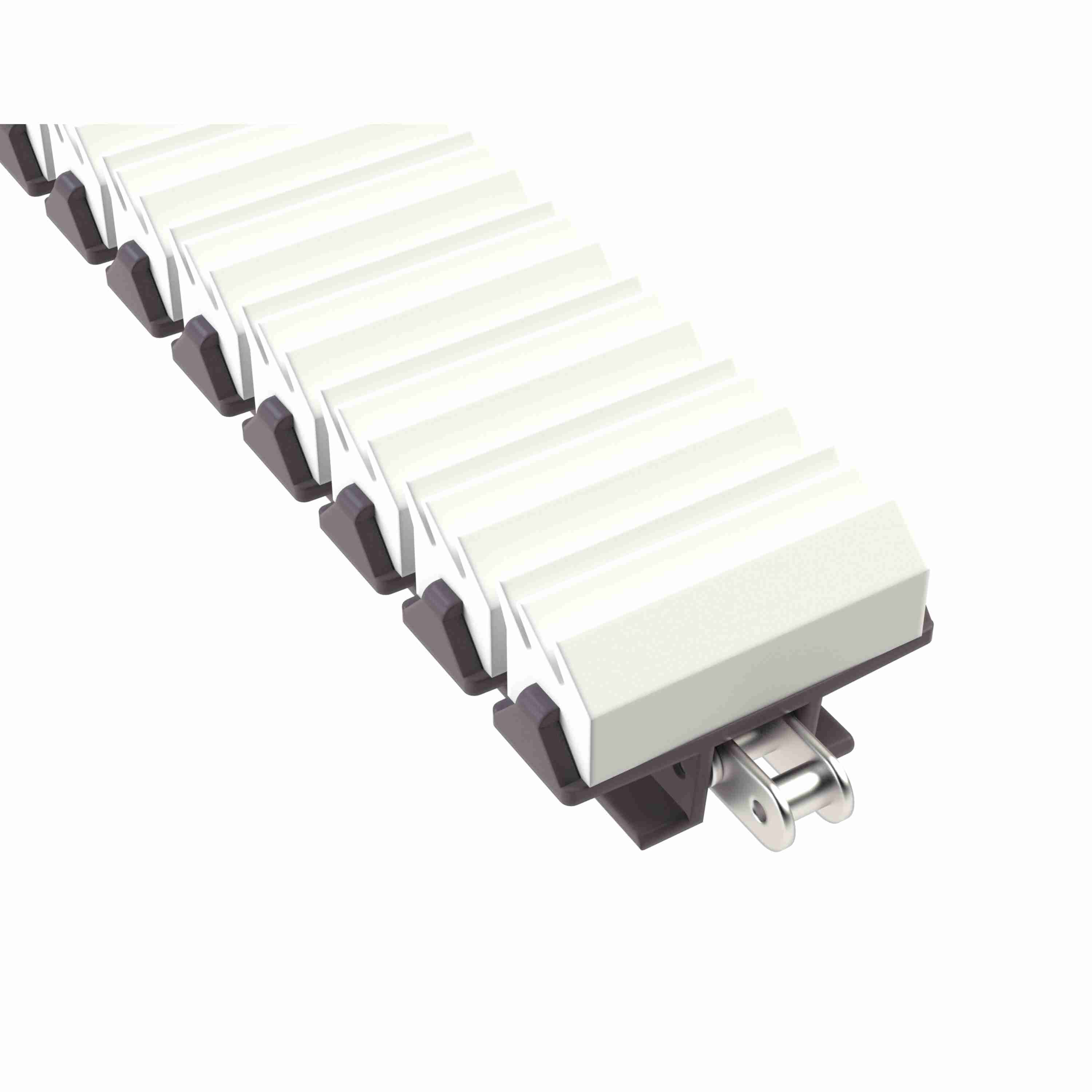

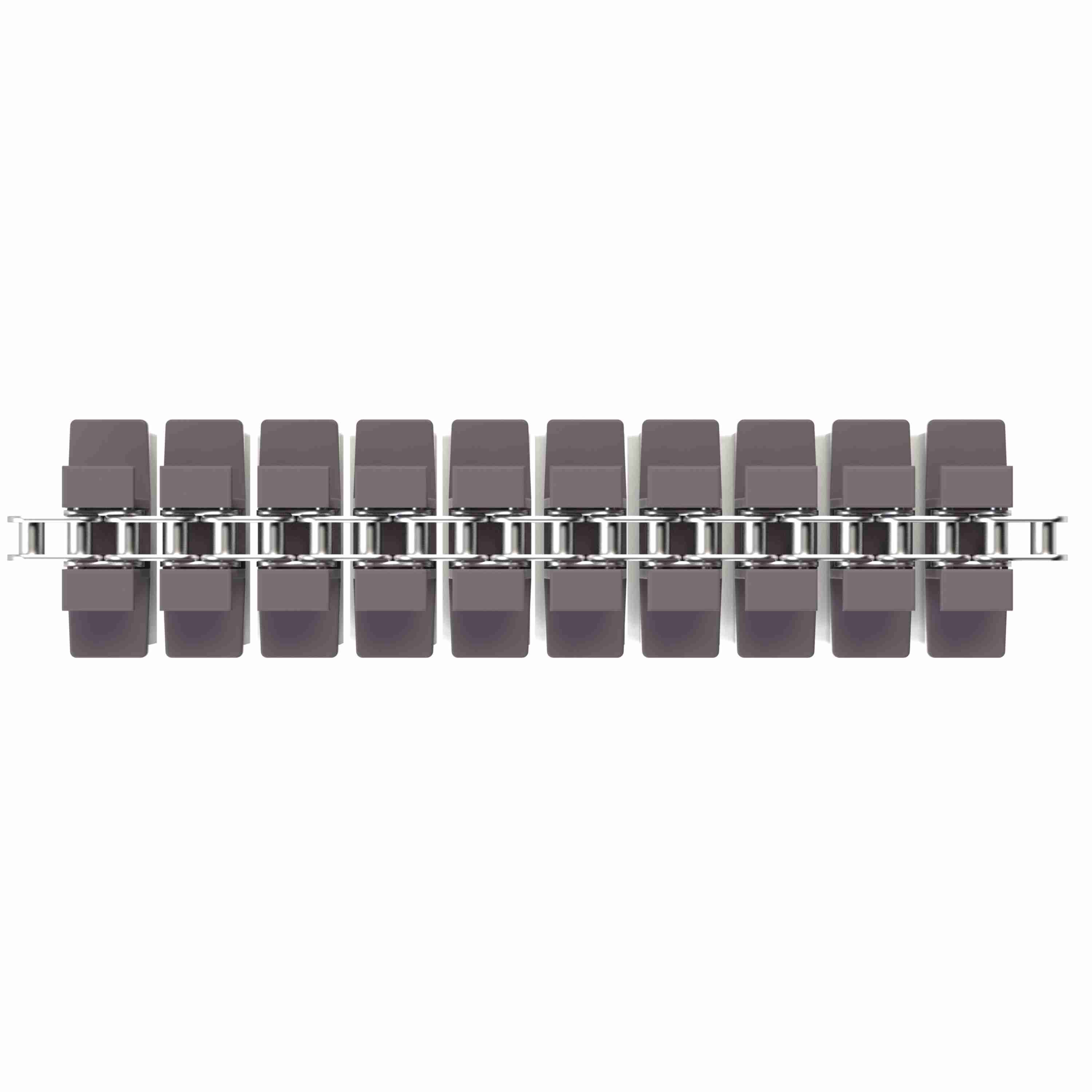

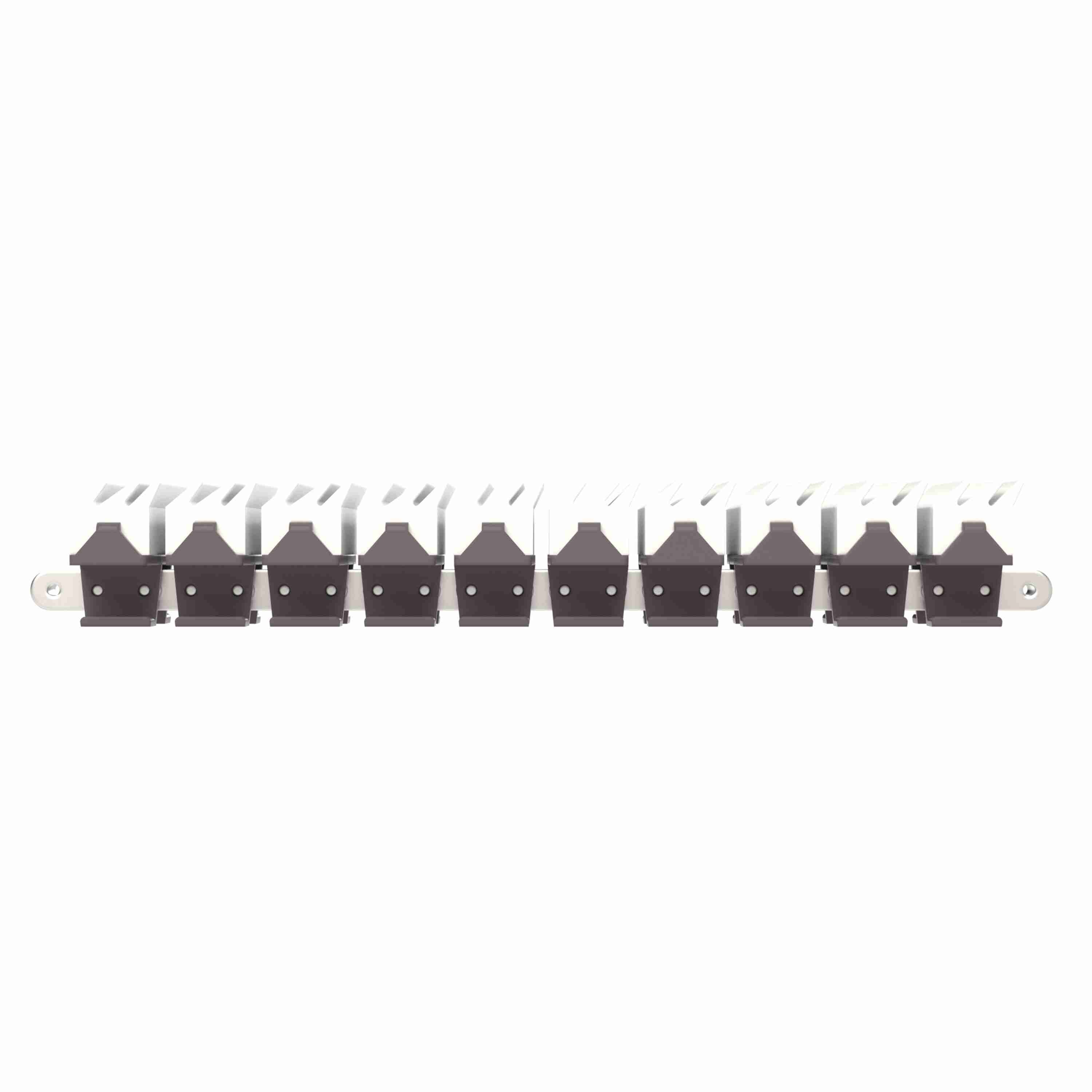

Rexnord 1873TAB SideGrip™ Side-flexing, Material: Brown High Performance, Width: 3.25in, Pitch: 1.5in - L1873628683
Part #:10177525
Catalog #:L1873628683
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Gripper Style: | S3JA | Chain Pitch (mm): | 38.1 mm |
| Chain Number: | 1873TAB SideGrip™ | Base Chain Material: | Steel |
| Curve Retention Type: | TAB | Gripper Material: | EPDM |
| Straight or Side-Flex: | Side-flexing | Chain Pitch (in): | 1.5 in |
| Chain Strength (N): | 4,440 N | Flight Thickness (in): | 0.16 in |
| Chain Width (mm): | 82.6 mm | Chain Width Measurement System: | Imperial |
| Chain Material: | HP | Chain Width (in): | 3.25 in |
| Gripper Color: | Gray | Gripper Hardness: | 45 Shore A |
| Chain Strength (lb): | 1,000 lb | Series: | TableTop 1873 Series Side-flexing Chain |
| Surface Type: | SideGrip™ | Flight Thickness (mm): | 4 mm |
| Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 0.43 LB | HTC: | 3926906090 |
| Country of Origin: | Italy |
