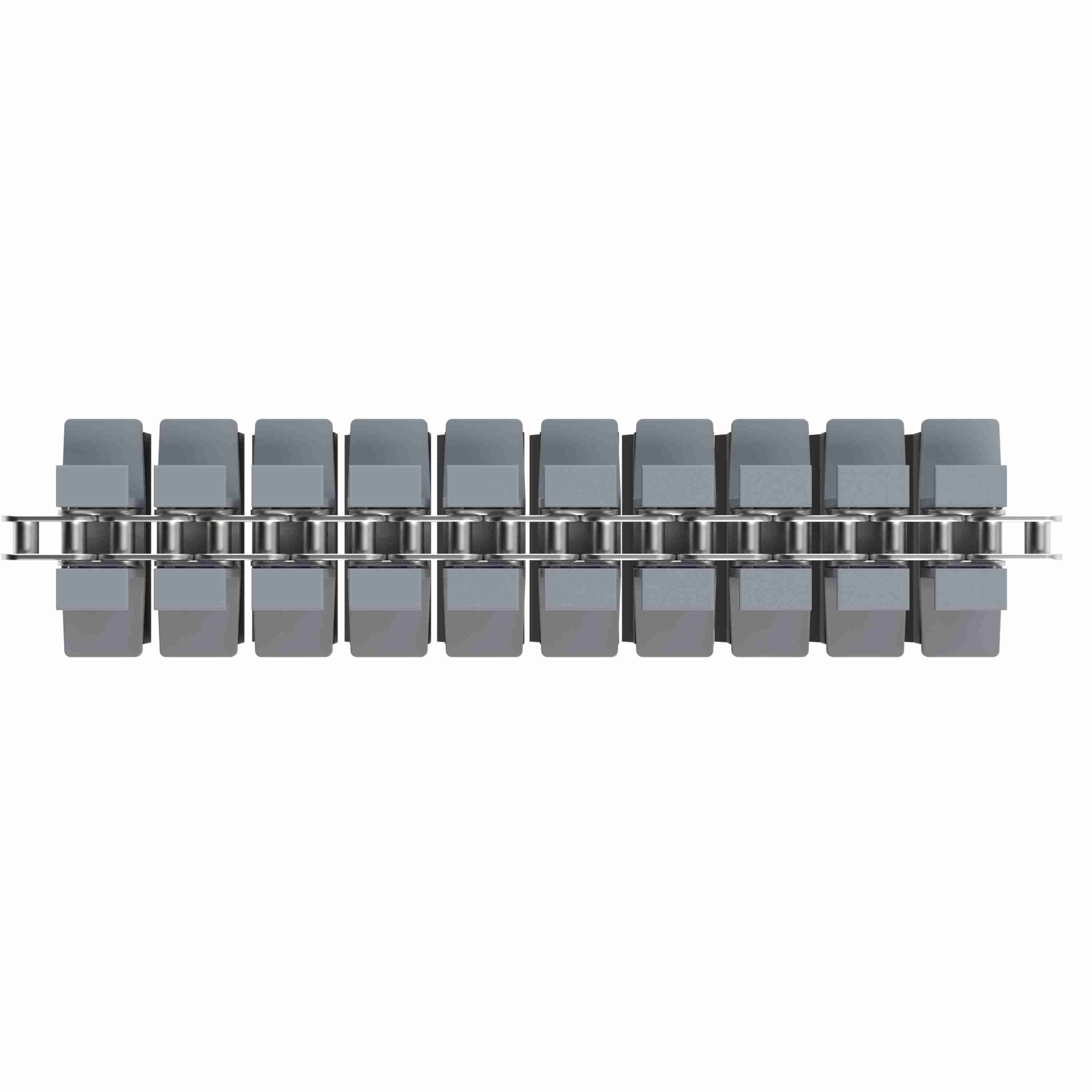

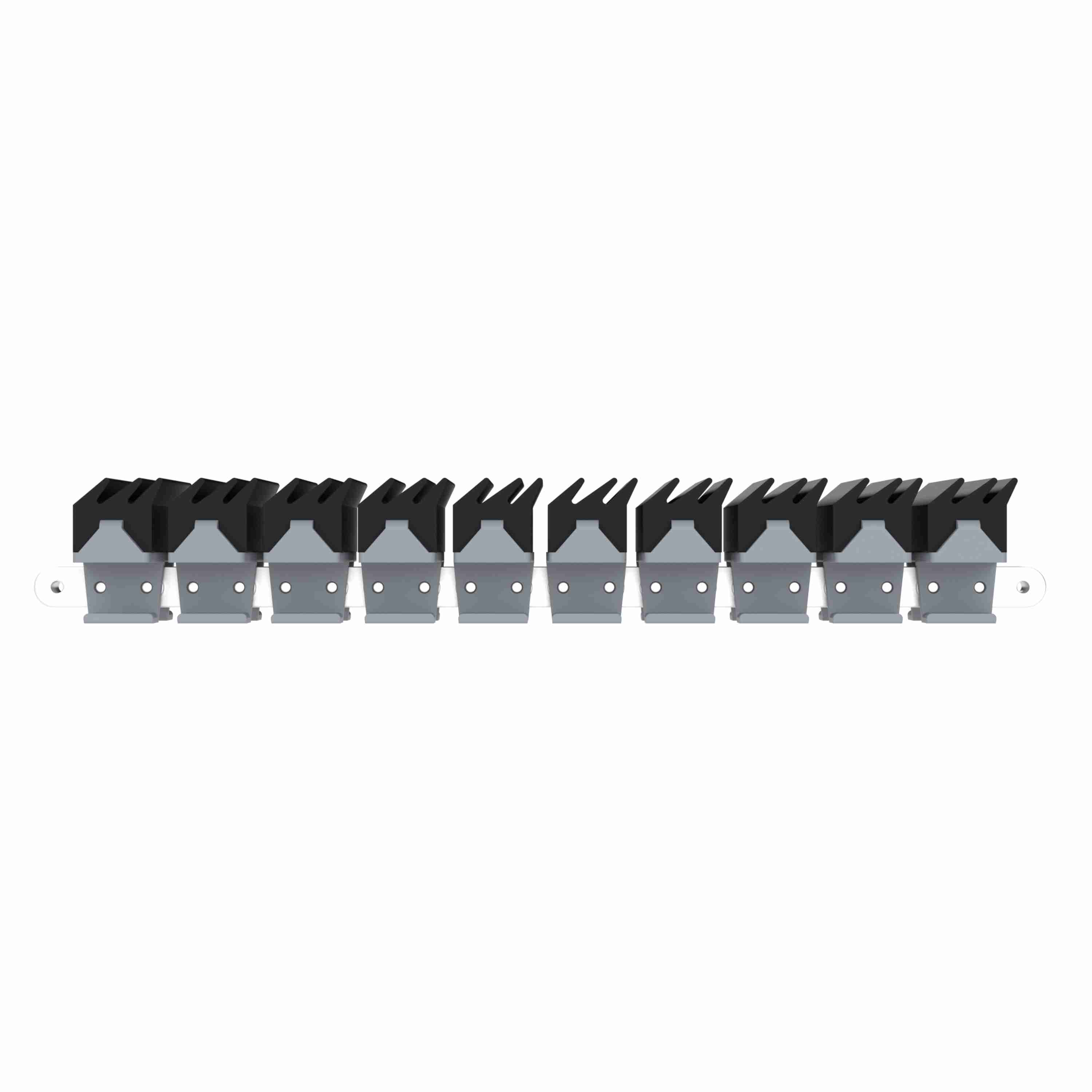

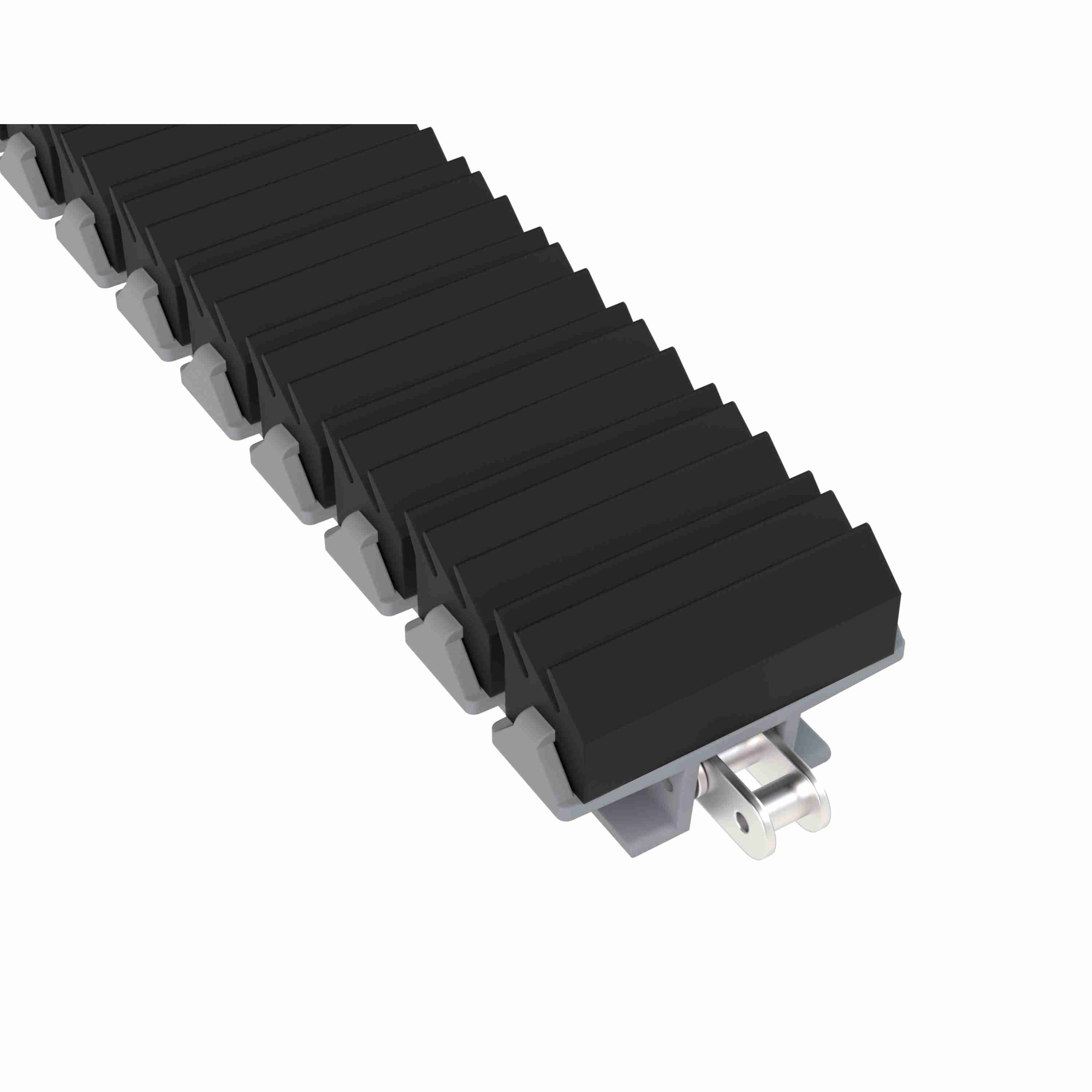

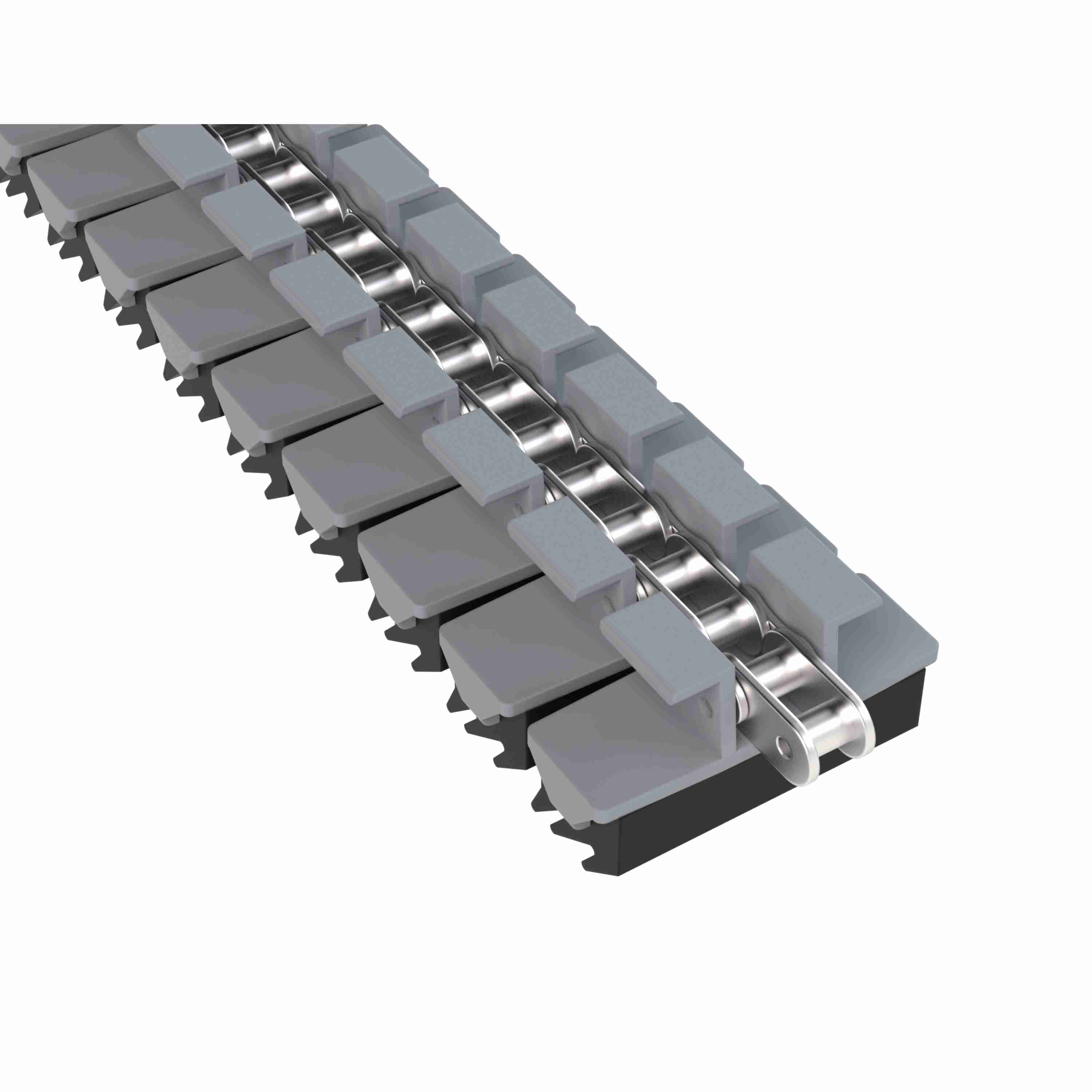

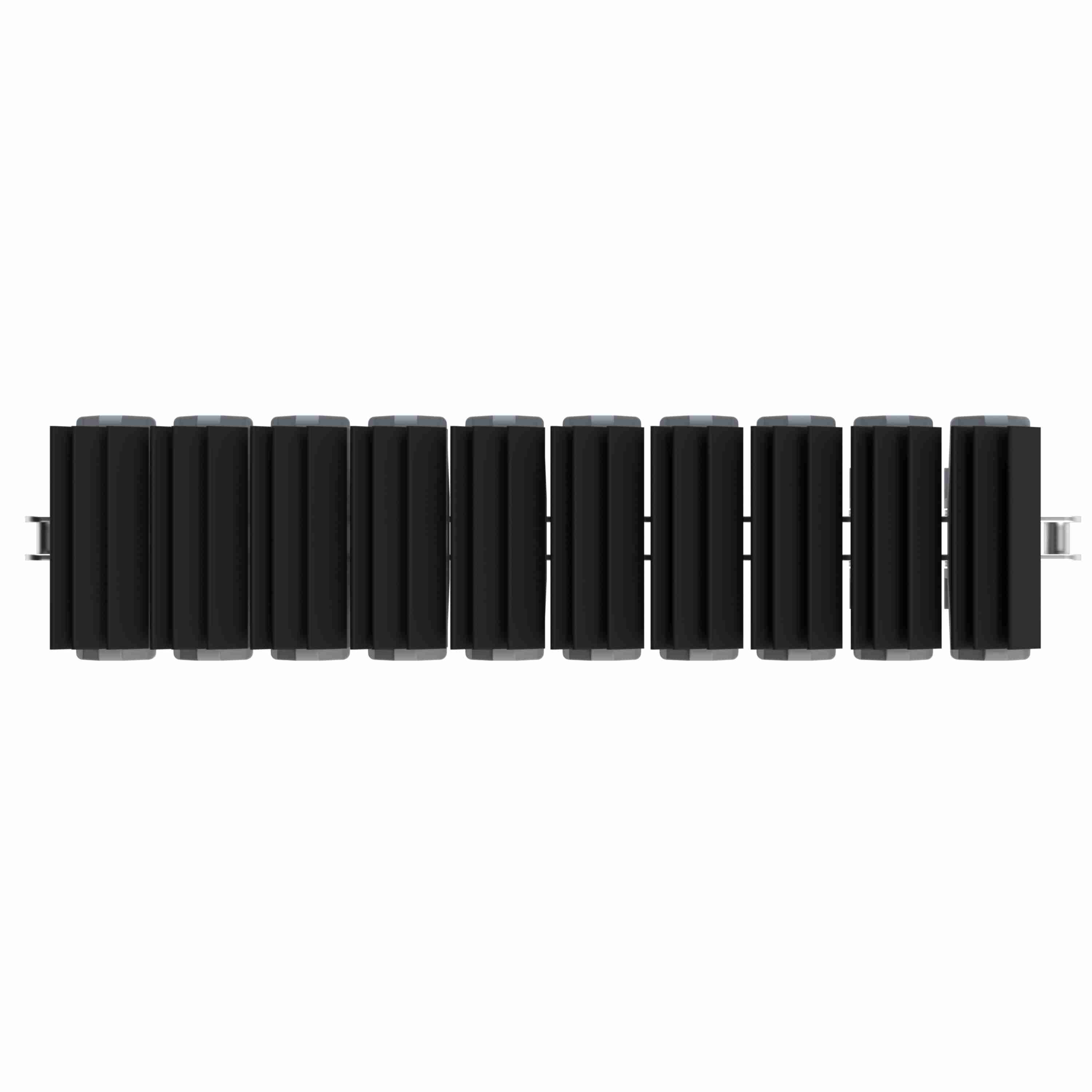

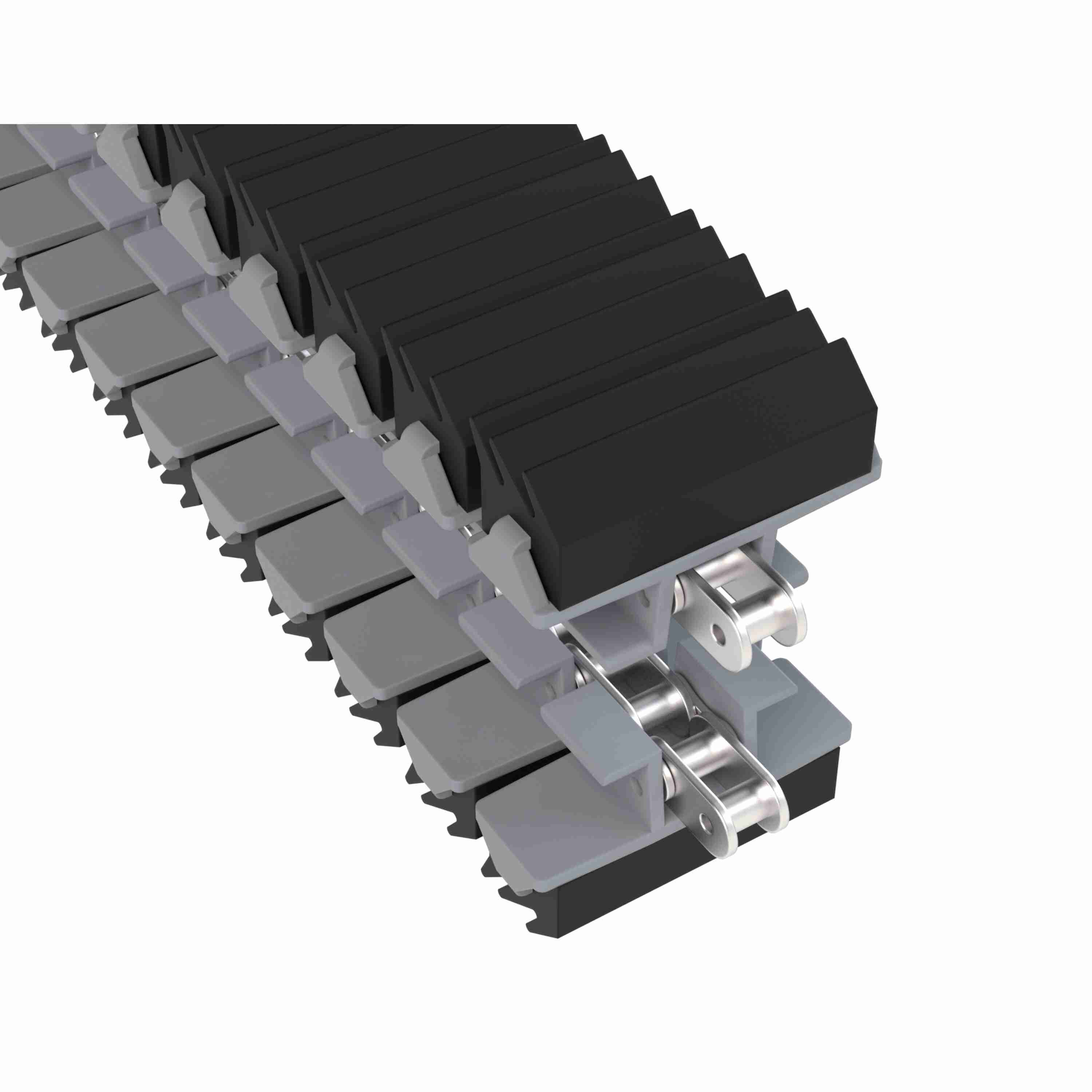

Rexnord 1873TAB SideGrip™ Side-flexing, Material: Silver Platinum Series, Width: 3.75in, Pitch: 1.5in - 81430551
Part #:10145580
Catalog #:81430551
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N): | 3,330 N | Base Chain Material: | Lubricated Stainless Steel |
| Chain Strength (lb): | 750 lb | Straight or Side-Flex: | Side-flexing |
| Chain Material Description: | Silver Platinum Series | Chain Width Measurement System: | Imperial |
| Chain Number: | 1873TAB SideGrip™ | Flight Thickness (mm): | 4 mm |
| Curve Retention Type: | TAB | Chain Pitch (in): | 1.5 in |
| Gripper Style: | Jaw | Gripper Color: | Black |
| Chain Width (in): | 3.75 in | Chain Width (mm): | 95.3 mm |
| Chain Pitch (mm): | 38.1 mm | Chain Material: | PS |
| Gripper Hardness: | 40 Shore A | Surface Type: | SideGrip™ |
| Series: | TableTop 1873 Series Side-flexing Chain | Flight Thickness (in): | 0.16 in |
| Gripper Material: | Neoprene |
General Specifications
| Weight: | 0.36 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
