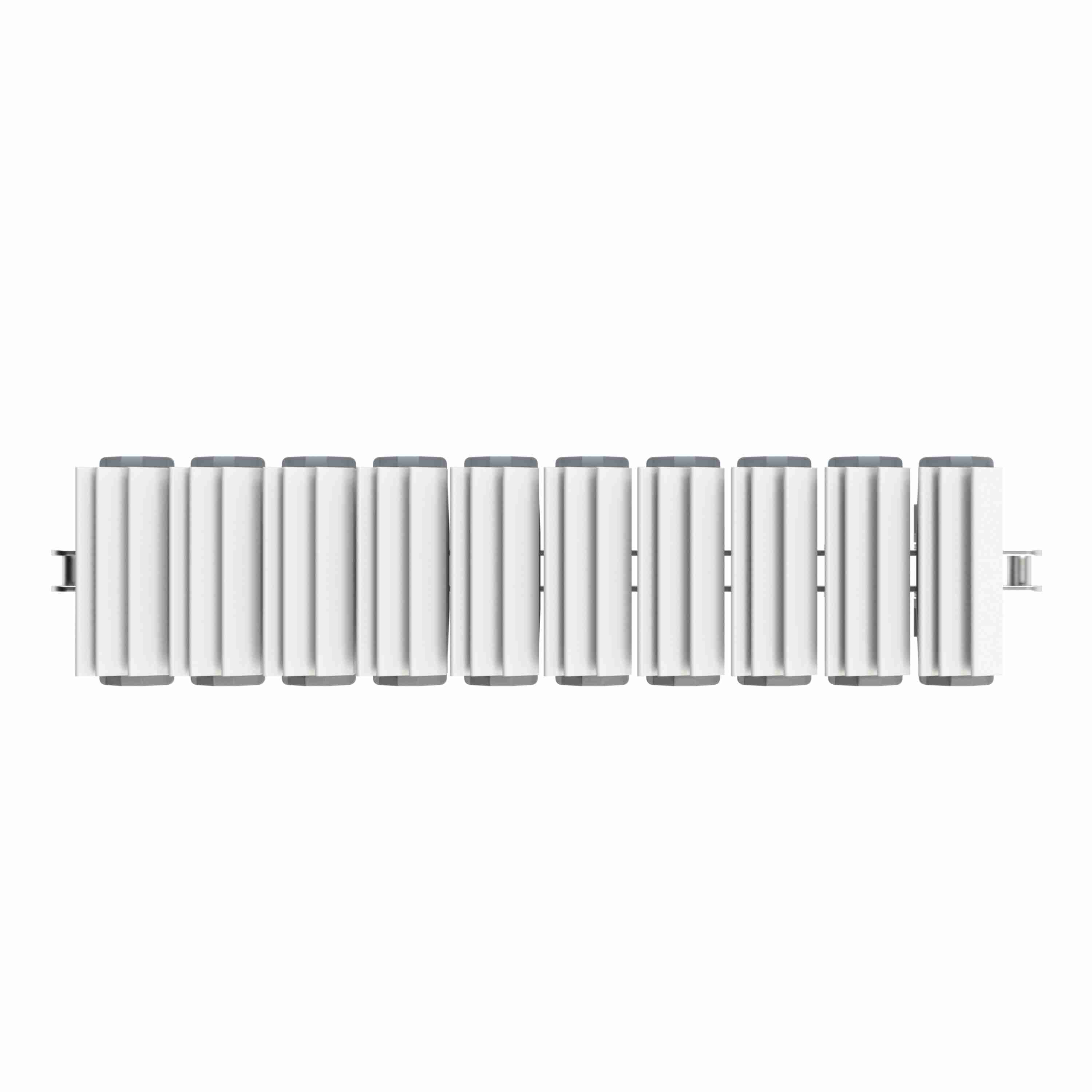

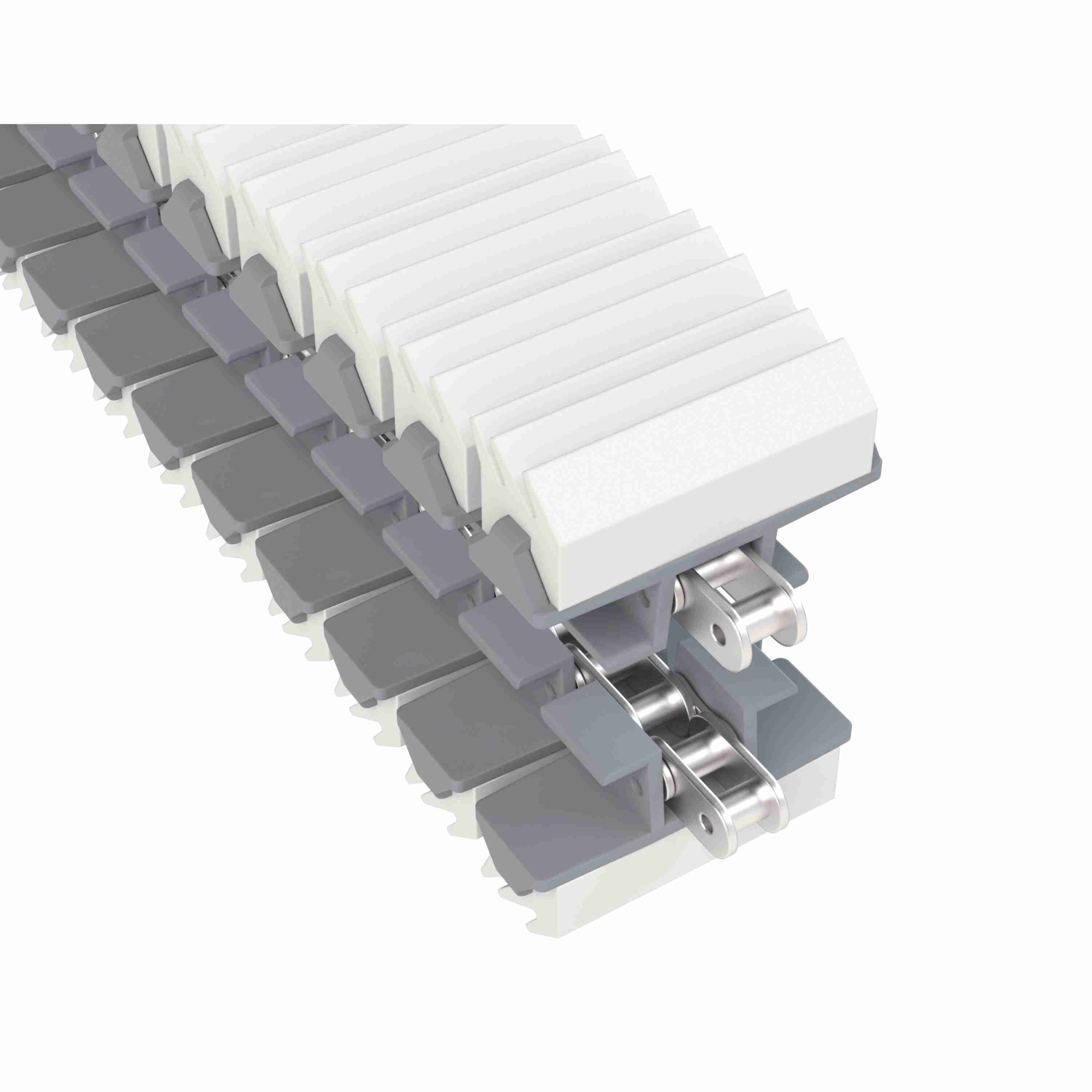

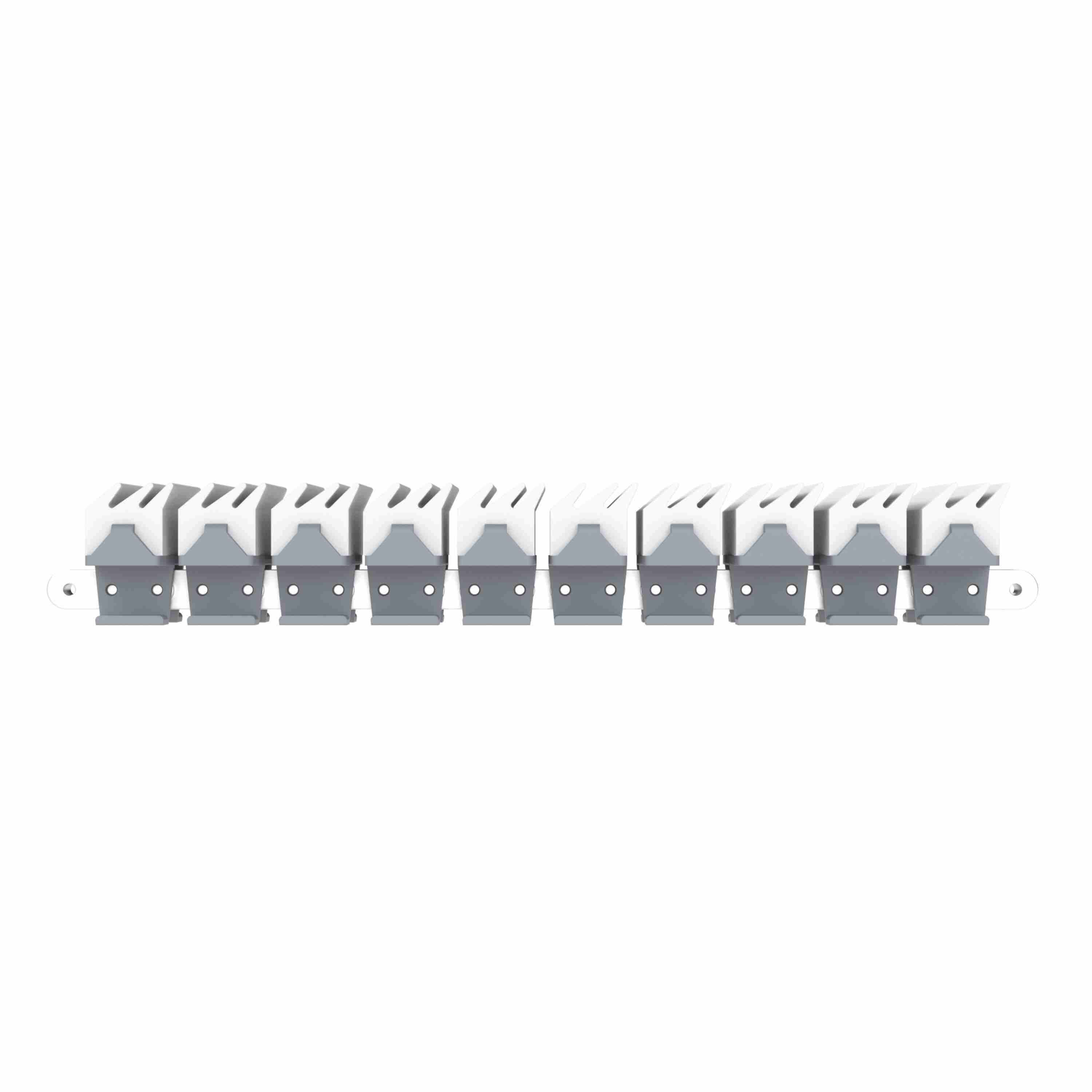

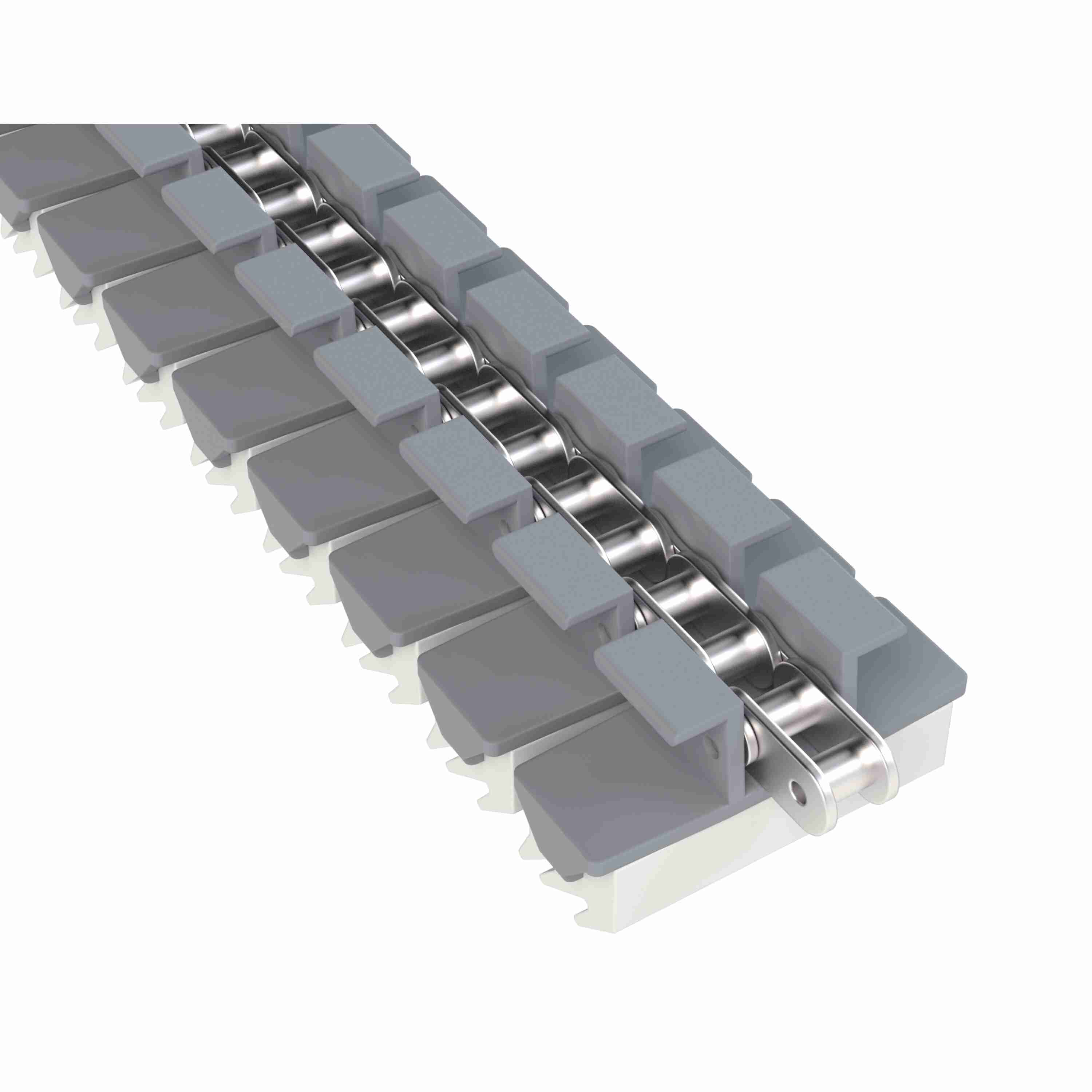

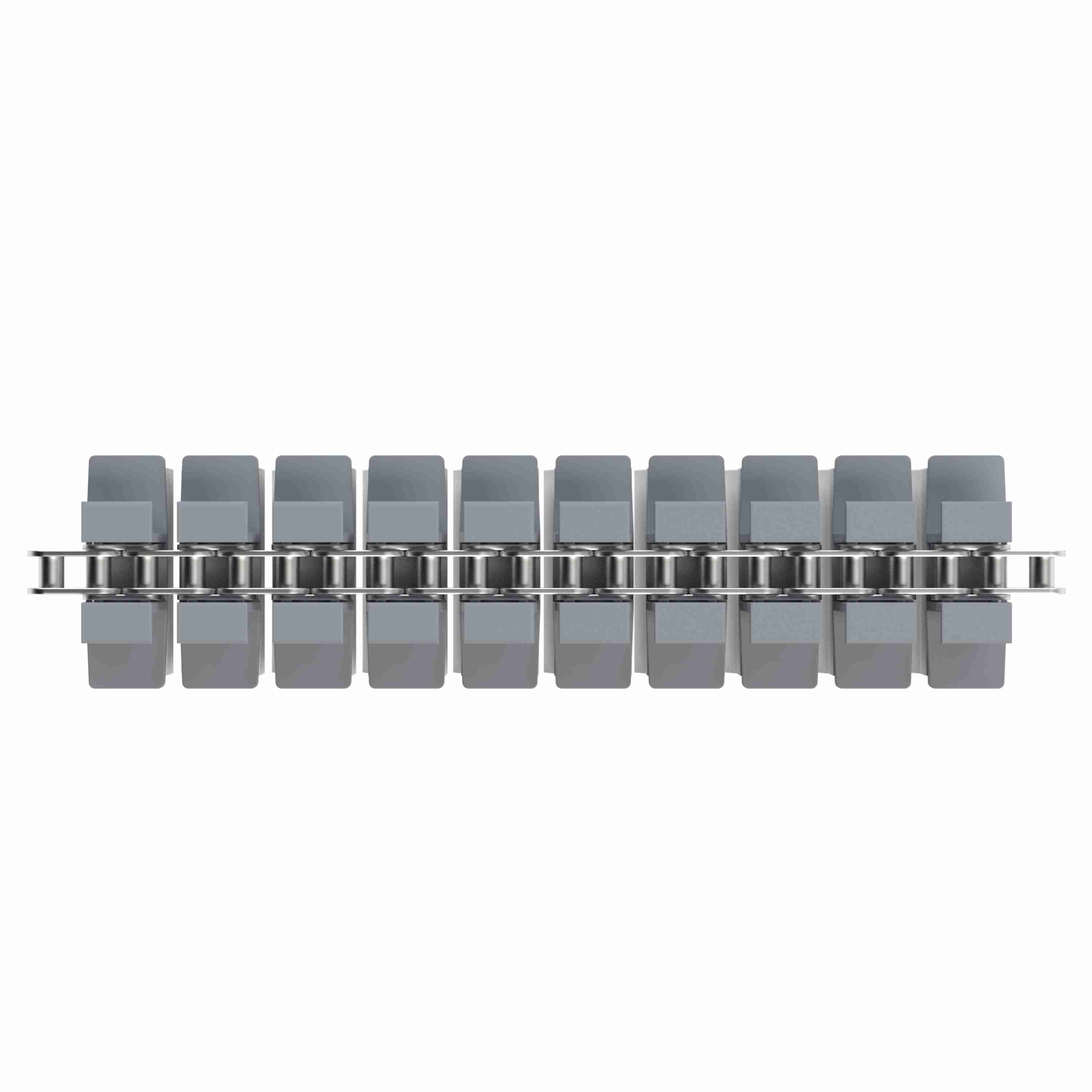

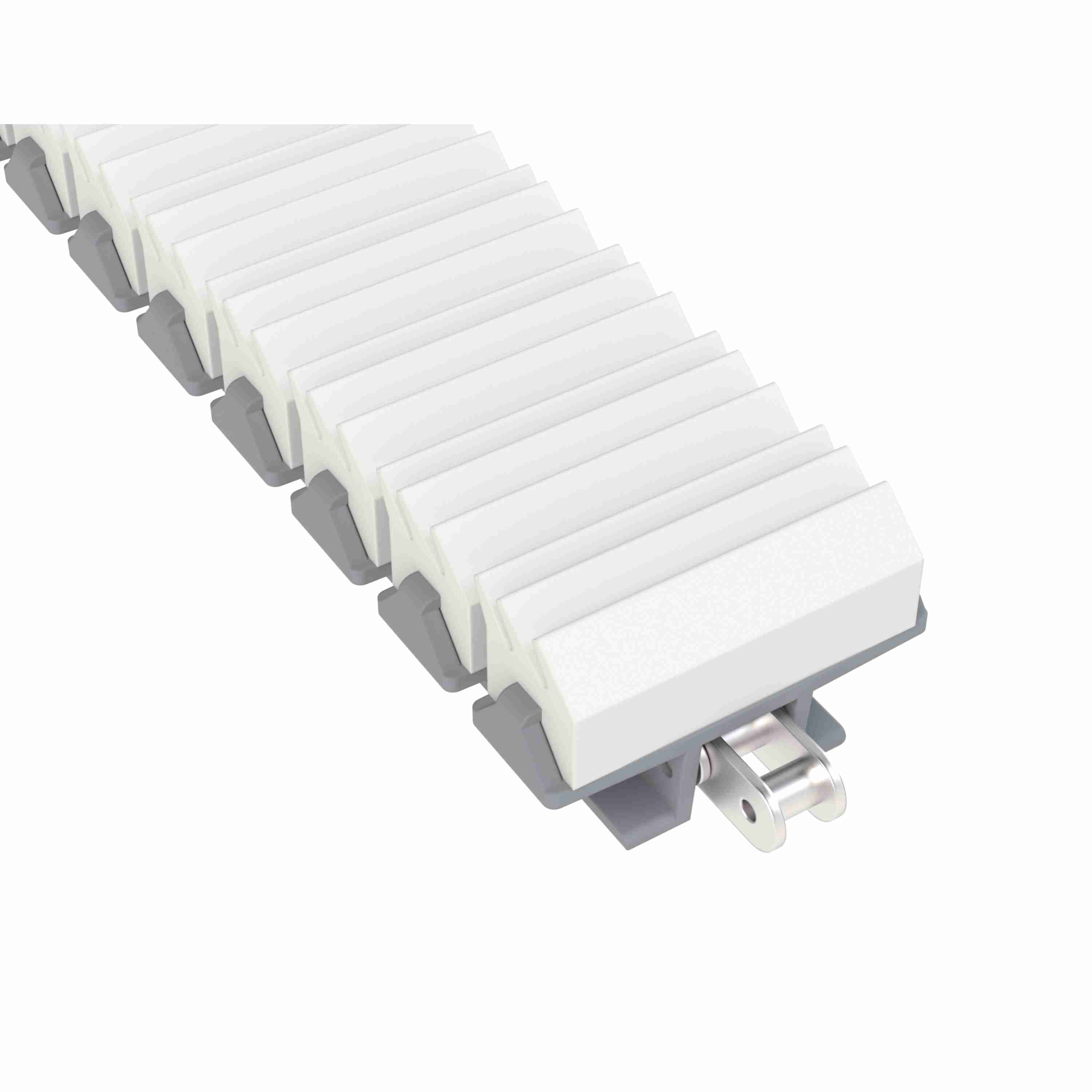

Rexnord 1873TAB SideGrip™ Side-flexing, Material: Silver Platinum Series, Width: 3.75in, Pitch: 1.5in - 81430555
Part #:10145583
Catalog #:81430555
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Gripper Material: | EPDM | Series: | TableTop 1873 Series Side-flexing Chain |
| Chain Material Description: | Silver Platinum Series | Surface Type: | SideGrip™ |
| Gripper Color: | White | Chain Width (in): | 3.75 in |
| Curve Retention Type: | TAB | Flight Thickness (in): | 0.16 in |
| Chain Material: | PS | Chain Strength (lb): | 750 lb |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 38.1 mm |
| Gripper Hardness: | 50 Shore A | Base Chain Material: | Lubricated Stainless Steel |
| Chain Strength (N): | 3,330 N | Chain Width (mm): | 95.3 mm |
| Straight or Side-Flex: | Side-flexing | Chain Pitch (in): | 1.5 in |
| Chain Number: | 1873TAB SideGrip™ | Gripper Style: | Jaw |
| Flight Thickness (mm): | 4 mm |
General Specifications
| Weight: | 0.35 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
